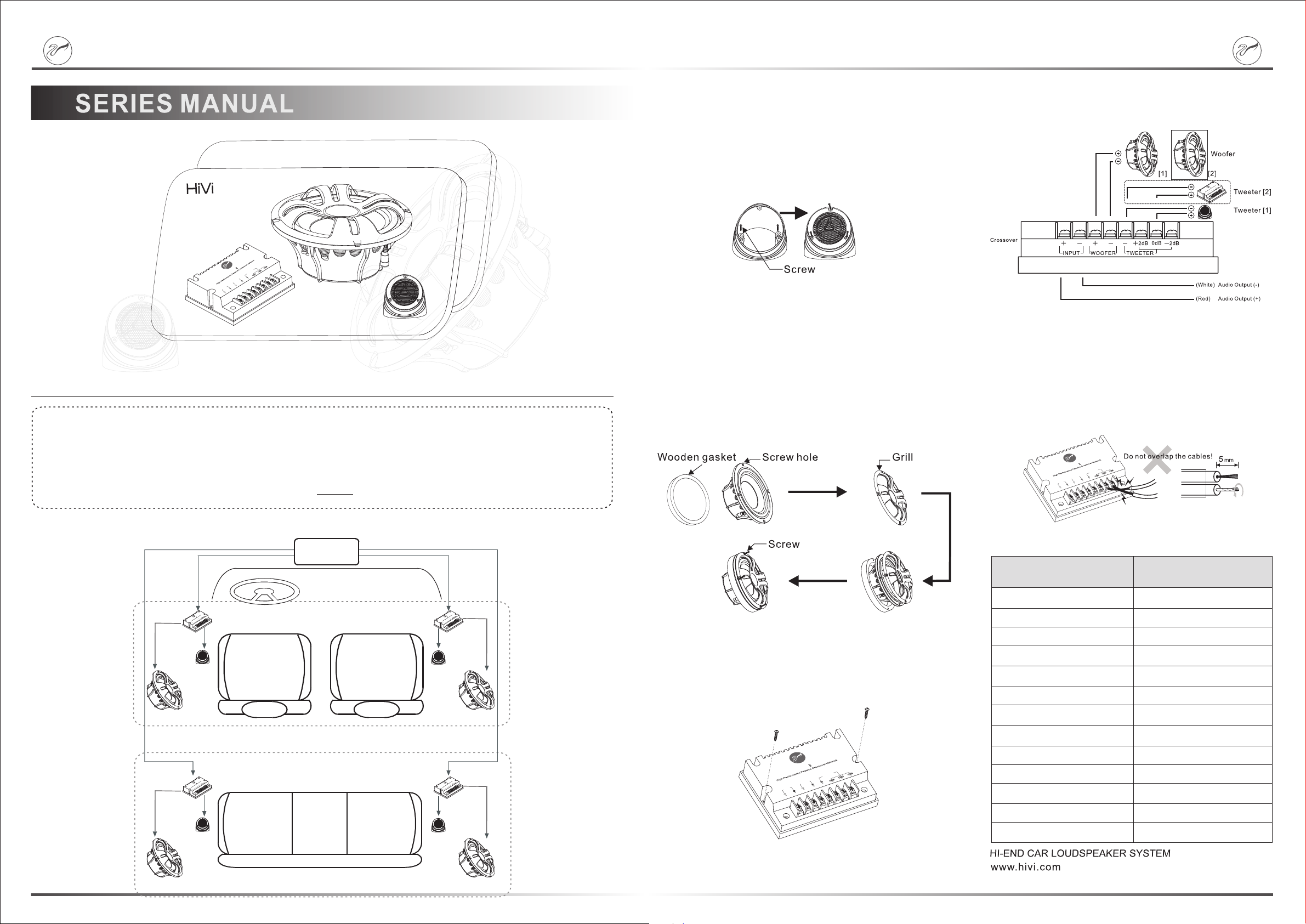

HiVi D Series User manual

因设计变更等原因，所示资料可能与实物不符，恕不另行通知
七、规格：
五、接线方法：
1、分频器与高音、低音连接示意图。
D
6.5” component system
Design by HiVi Acoustics, Inc.
Hi-end Car Loudspeaker System
D620II
www.hivi.com
二、高音喇叭安装(H28-1)
1、将高音喇叭从后罩中取出，按图示位置在后罩内打上
两个螺丝固定。（调整后罩方向，以便达到理想的听音效
果。）
2、固定后罩后，把高音喇叭放入后罩内，按图示用三个
螺丝固定高音喇叭。
D620
INPUT WOOFER TWEETER
欢迎您选购惠威车用扬声器系统。为了便于您的安装及使用，我们编写本折页。请务必在安装使用之前，仔细阅
读并清楚了解安装程序及注意事项，依据不同型号的扬声器系统，采用不同的安装方式。
虽然本折页说明了安装的方式，但是对于汽车拆装并没有作说明，假如您没有此方面的经验，请不要自行安装，
您可以去有经验的汽车服务处进行咨询。
请特别注意您的汽车处于熄火状态!
一、线路图：请按照以下线路图连接
D620
INPUT WOOFER TWEETER
D620
INPUT WOOFER TWEETER
D620
INPUT WOOFER TWEETER
D620
INPUT WOOFER TWEETER
D620
INPUT WOOFER TWEETER
四、分频器安装：
1、在车门或其它您想安装的地方确定安装位置，以不影响
其它部分为准，然后将分音器用螺丝固定在上面，如下
图：
D620
INPUT WOOFER TWEETER
D620
INPUT WOOFER TWEETER
六、安装注意事项：
1、铜线的裸露部分不要太长，约5mm左右（如下图），以
免在使用中产生交叠而引超短路。
D620II
型号
中 低 音
高 音
灵 敏 度
频率响应
最大功率
额定功率
额定阻抗
安装尺寸
开孔尺寸
安装深度
网罩尺寸
高通衰减斜率
低通衰减斜率
D6TII
H28-1
8 dB
60-20KHz
120W
60W
4Ω
8
φ156mm
φ194mm
>60mm
φ166.5x20mm
12dB/0ctave
12dB/0ctave
三、低音喇叭安装(D6TII)
1、将车窗玻璃放到最低，将低音单元放入喇叭安装孔内，
确认不会影响车窗的上下，如有影响，安装单元时需要增
加我们配套的垫圈。
2、将低音单元放到您需要安装的位置，确定好需要上螺丝
的位置并做好标记，然后用3.5mm的钻头钻4个安装孔。对
于原车安装子孔合适的这一步可以省略。然后将喇叭和垫
圈一起用螺丝上到车门上，注意一定要确保不会漏气，因
为这对低音的重放的影响是至关重要的。

Because of the design change,the illustration may not conform to the practicality.We will not inform again!
D6TII
H28-1
8 dB
60-20KHz
120W
60W
4Ω
8
φ156mm
φ194mm
>60mm
φ166.5x20mm
12dB/0ctave
12dB/0ctave
D620II
Model
Woofer
Tweeter
Sensitivity
Frequency Response
Max Power
Power Handling
Rating Impedance
Installation Size
Hole Size
Installation Depth
Net size
High pass decay rate
Low pass decay rate
Specifications:
D
Thank you for your purchase of HiVi Car-Audio Speaker Systems. Please read the following
installation and operation guidelines carefully to ensure many years enjoyment of car audio speaker
system. All HiVi Speaker Systems products should be set-up and installed by authorized and licensed
technicians.
Though this manual narrates the installation, it didn’t show the remove of car.lf you got no experience of
this, please don’t set up by yourself,you can inquire at the experienced car service office.
Please note your car is on flameout situation!
Circuit diagram Please connect according to the following circuit diagram
6.5 ” component system
Design by HiVi Acoustics, Inc.
Hi-end Car Loudspeaker System
D620II
D620
INPUT WOOFER TWEETER
CD/DVD
(Amplifier)
Front car loudspeaker system
Rear car loudspeaker system
D620
INPUT WOOFER TWEETER
D620
INPUT WOOFER TWEETER
D620
INPUT WOOFER TWEETER
D620
INPUT WOOFER TWEETER
Woofer installation (D6TII):
1.Down the car glass to the bottom, put the woofer
into the Install hole, make sure not to affect the car
window, if do, when equipped you have to add the
collocate gasket we offer.
2.Put the woofer to the position you want to install,
marking your screw position, then drill 4 holes with
the 3.5mm aiguilles. You can omit this process if your
original hole is conformable. And then screw the
gasket.
And the woofer on to the door, air leak is forbidden,
which is crucial to the woofer playback.
Tweeter installation (H28-1)
1.Fetch the tweeter from the back, drill two screws
on the back grill according to the graph.(Adjust the
back grill orientation to get the best listening effect)
2. Fix the back, put the tweeter in it, then with 3
screws you can make the tweeter fastness.
Installation of crossover
1.Please make sure to check that the crossover will
properly fit in the place you have selected for
mounting. Once you are sure the position is ideal
screw then crossover into position (See figure
below).
D620
INPUT WOOFER TWEETER
D620
INPUT WOOFER TWEETER
Notice
Remove wire insulator bout 5mm not longer (See
figure as below), in order to protect circuit, avoid
causing a short circuit between the anode (+) and
cathode (-) cables of loudspeaker. Rest wire core
tightly and do not overlap the cables!
Connection
1. Tweeter / Bass connection diagram.
D620
INPUT WOOFER TWEETER
Notice: Three tweeter options of +2dB 0dB -2dB for you choose
dependant on your cars internal acoustic environment and
individual tastes.
, ,
