HiWatch DS-I12Q User manual

1
Network Mini PT Dome Camera
Quick Start Guide

Network Mini PT Dome Camera·Quick Start Guide
2
2
About this Manual
This Manual is applicable to DS-I12Q DS-I22Q Network Camera.
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without
notice, due to firmware updates or other reasons. Please find the
latest version in the company website
Please use this user manual under the guidance of professionals.
Legal Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY
SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE
EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
Regulatory Information
FCC Information

Network Mini PT Dome Camera·Quick Start Guide
3
3
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the EMC Directive 2014/30/EU, the RoHS
Directive 2011/65/EU.

Network Mini PT Dome Camera·Quick Start Guide
4
4
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards
requirements.
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.

Network Mini PT Dome Camera·Quick Start Guide
5
5
Warnings
●In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
●Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 24 VAC or 12 VDC
according to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
●Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
●Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
●If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.

Network Mini PT Dome Camera·Quick Start Guide
6
6
●Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
Cautions
●Make sure the power supply voltage is correct before using the
camera.
●Do not drop the camera or subject it to physical shock.
●Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
●Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.
●The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
●Do not place the camera in extremely hot, cold (the operating
temperature shall be-30°C ~+60°C , or -40°C ~ +60°C if the
camera model has an “H” in its suffix), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
●To avoid heat accumulation, good ventilation is required for
operating environment.
●Keep the camera away from liquid while in use.

Network Mini PT Dome Camera·Quick Start Guide
7
7
●While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
●Regular part replacement: a few parts (e.g. electrolytic
capacitor) of the equipment shall be replaced regularly
according to their average enduring time. The average time
varies because of differences between operating environment
and using history, so regular checking is recommended for all
the users. Please contact with your dealer for more details.
●Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
●If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to
disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)

Network Mini PT Dome Camera·Quick Start Guide
8
8
Table of Contents
1 Appearance Description ............................................................... 9
Overview......................................................................... 91.1
Installing SD / SIM Card................................................. 151.2
Remote Control............................................................. 161.3
2 Installation ................................................................................. 18
3 Setting the Network Camera over the LAN ................................. 23
Wiring ........................................................................... 233.1
Activating the Camera................................................... 243.2
Activation via Web Browser................................ 243.2.1
Activation via SADP Software ............................. 253.2.2
Modifying the IP Address .............................................. 273.3
4 Accessing via Web Browser ........................................................ 30
5 Operating via Guarding Vision App............................................. 32
Enable Guarding Vision Service on Camera ................... 325.1
Enable Guarding Vision Service via SADP Software325.1.1
Enable Guarding Vision Service via Web Browser335.1.2
Guarding Vision Setup................................................... 355.2
Adding Camera to Guarding Vision................................ 355.3
Initializing the Memory Card......................................... 375.4
0504051070109

Network Mini PT Dome Camera·Quick Start Guide
9
9
1Appearance Description
Overview1.1
Two types of network Mini PT cameras are shown below.
Type I:WiFi network transmission is supported for the Type I
network Mini PT camera.
1
2
34
Overview (1)-Type IFigure 1-1
5
6
7
8
9
10
Overview (2)-Type IFigure 1-2

Network Mini PT Dome Camera·Quick Start Guide
10
10
1312
11
15
14
17
16

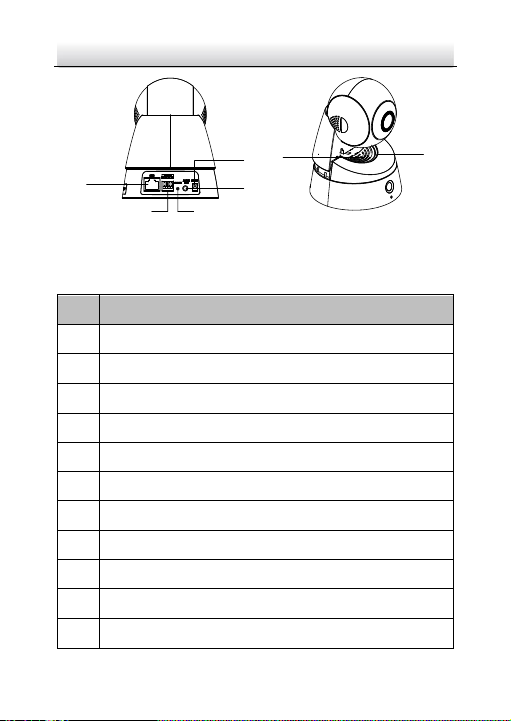

Overview (3)-Type IFigure 1-3
Description of Type I Network Mini PT CameraTable 1-1
No.
Description
1
Silicone Gasket
2
Dome Drive
3
WPS(Wi-Fi Protected Setup) Button
4
Micro SD Card Slot
5
Photic Cover
6
Lens
7
Lens Ring
8
PIR(Passive Infrared) sensor
9
MIC
10
Mounting Base
11
10M / 100M self-adaptive Ethernet interface

Network Mini PT Dome Camera·Quick Start Guide
11
11
No.
Description
12
Alarm Input/output Interface
13
Reset
14
Audio Out
15
Power supply interface (5 VDC)
16
Speaker
17
Status LED
Solid blue: Network is connected, and
camera is unarmed.
Flicking blue: No network connection.
Solid red: Camera is armed.
Flicking red: Camera is not working
properly.
Solid green: Camera is connected to the
platform.

Network Mini PT Dome Camera·Quick Start Guide
12
12
Type II:Wireless alarm is supported for the Type II network Mini PT
camera. 4G and Wi-Fi network transmission are optional.
1
2
3 4
Overview (1)-Type IIFigure 1-4
9
5
6
7
810
Overview (2)-Type IIFigure 1-5
For the Type II network Mini PT camera supporting the 4G network
transmission, the Wi-Fi network transmission does not take effect.

Network Mini PT Dome Camera·Quick Start Guide
13
13
18
17
11
12 13
14
15
16

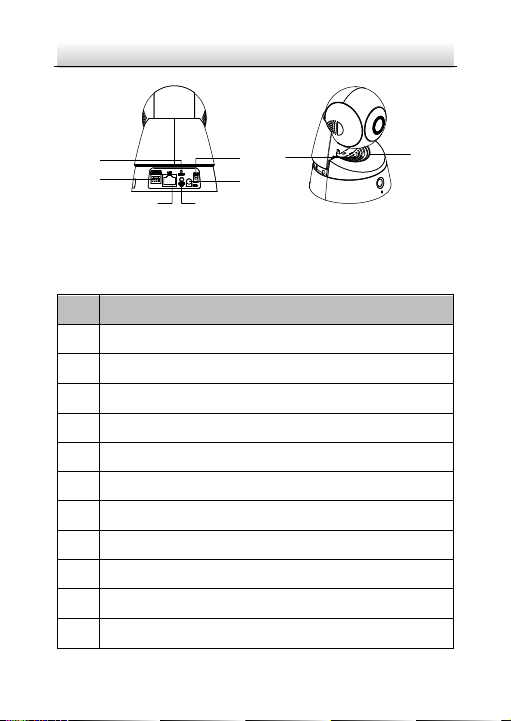

Overview (3)-Type IIFigure 1-6
Description of Type II Network Mini PT CameraTable 1-2
No.
Description
1
Silicone Gasket
2
Dome Drive
3
4G SIM Card Slot, (optional)
4
Micro SD Card Slot
5
Photic Cover
6
Lens
7
Lens Ring
8
PIR(Passive Infrared) sensor
9
MIC
10
Mounting Base
11
Alarm Input/output Interface

Network Mini PT Dome Camera·Quick Start Guide
14
14
No.
Description
12
10M / 100M self-adaptive Ethernet interface
13
Audio Out
14
WPS(Wi-Fi Protected Setup) Button, (optional)
15
Power supply interface (5 VDC)
16
Reset
17
Speaker
18
Status LED
Solid blue: Network is connected, and
camera is unarmed.
Flicking blue: No network connection.
Solid red: Camera is armed.
Flicking red: Camera is not working
properly.
Solid green: Camera is connected to the
platform and unarmed.
Solid yellow: Camera is connected to the
platform and armed.
The figures shown in this manual are for reference only. The
appearance and interfaces of the camera are subject to the
actual model.

Network Mini PT Dome Camera·Quick Start Guide
15
15
You can disable the status LED when you access the camera via
browsers. Go to Configuration—Advanced
Configuration—System—Service, and check off the checkbox of
Enable Status LED to disable the status LED.
Press RESET about 10s when the camera is powering on or
rebooting to restore the default settings, including the user
name, password, port No., etc.
A wireless router with the WPS function is required to enable
the WPS function of the camera.
Steps:
1) Press the WPS button on the router.
2) Press the WPS button (about 2s) on the camera within 120s
you enable the WPS of the router to join in the wireless
network.
Installing SD / SIM Card1.2
Steps:
Pull the removable cover on the mounting base outwards and1.
move it aside.
Insert the SIM card into the SIM card slot.2.
SIM card slot is only available for some certain camera models.
Insert the micro SD card into the micro SD card slot.3.
Fix the cover back to the mounting base.4.

Network Mini PT Dome Camera·Quick Start Guide
16
16
SIM Card Micro SD Card
Removable Cover
Install SD / SIM CardFigure 1-7
Remote Control1.3
A remote control is supplied for the Type II network Mini PT camera.
Remote ControlFigure 1-8

Network Mini PT Dome Camera·Quick Start Guide
17
17
Description of Remote ControlTable 1-3
Button
Description
Arm Button
Press the button to arm the camera. In arming
status, the alarm function, such as the wireless alarm
and the PIR alarm is enabled.
Disarm
Button
Press the button to disarm the camera. In the
disarming status, the alarm linkage is disabled.
Emergency
Button
Long press the button for 2s to trigger the
emergency alarm. The emergency alarm has the
highest priority.
Privacy
Button
Press the button to stop or start video stream
sending. When the video stream is stopped, you
can’t see the live view or get the record stream on
the remote client or web browser.

Network Mini PT Dome Camera·Quick Start Guide
18
18
2Installation
Before you start:
●Make sure the device in the package is in good condition and all
the assembly parts are included.
●The standard power supply is 12V DC or 24V AC, please make
sure your power supply matches with your camera.
●Make sure all the related equipment is power-off during the
installation.
●Check the specification of the products for the installation
environment.
●Make sure that the wall is strong enough to withstand four
times the weight of the camera and the bracket.
For the camera that supports IR, you are required to pay attention to
the following precautions to prevent IR reflection:
●Dust or grease on the dome cover will cause IR reflection.
Please do not remove the dome cover film until the installation
is finished. If there is dust or grease on the dome cover, clean
the dome cover with clean soft cloth and isopropyl alcohol.
●Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
●The foam ring around the lens must be seated flush against the
inner surface of the bubble to isolate the lens from the IR LEDS.
Fasten the dome cover to camera body so that the foam ring
and the dome cover are attached seamlessly.

Network Mini PT Dome Camera·Quick Start Guide
19
19
Steps:
Drill the screw holes on the ceiling according to the supplied drill1.
template.
Drill TemplateFigure 2-1
Align the screw holes on the ceiling and adapter plate, and then2.
fix the adapter plate to the ceiling with the supplied screws.

Network Mini PT Dome Camera·Quick Start Guide
20
20
Bayonet Joint
Install the Adapter PlateFigure 2-2
For cement wall, you need to use the expansion screw to fix the
mount; for wooden wall, you can just use the self-tapping screw to
fix the mount.
Align the mounting base of the camera to the adapter plate, and3.
rotate the camera clockwise until it is locked up by the three
bayonet joints on the adapter plate.
