HMS IXXAT FlexRay FR-IB100/PCIe User manual

FR-IB100/PCIe
FlexRay PCI Express Interface Card
USER MANUAL
4.01.0103.20000 2.0 ENGLISH

Important User Information
Liability
Every care has been taken in the preparation of this document. Please inform HMS Industrial Net-
works of any inaccuracies or omissions. The data and illustrations found in this document are not
binding. We, HMS Industrial Networks, reserve the right to modify our products in line with our poli-
cy of continuous product development. The information in this document is subject to change with-
out notice and therefore should not be considered as a binding description of the range of
functions (neither for future product versions). HMS Industrial Networks assumes no responsibility
for any errors that may appear in this document.
There are many applications of the described product. Those responsible for the use of this device
must ensure that all the necessary steps have been taken to verify that the applications meet all
performance and safety requirements including any applicable laws, regulations, codes, and
standards.
HMS Industrial Networks will under no circumstances assume liability or responsibility for any
problems that may arise as a result from improper use or use that is not in accordance with the
documented features of this product.
The examples and illustrations in this document are included solely for illustrative purposes.
Intellectual Property Rights
HMS Industrial Networks has intellectual property rights relating to technology embodied in the
product described in this document. These intellectual property rights may include patents and
pending patent applications in the USA and other countries.
Trademark Acknowledgements
IXXAT®is a registered trademark of HMS Industrial Networks. All other trademarks are the prop-
erty of their respective holders.
Copyright © 2016 HMS Technology Center Ravensburg GmbH. All rights reserved.
FR-IB100/PCIe FlexRay PCI Express Interface Card User Manual
4.01.0103.20000 2.0

FR-IB100/PCIe User Manual 4.01.0103.20000 2.0
Table of Contents Page
1 User Guide ...............................................................3
1.1 Document History . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Conventions . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 3
2 Safety and Dangers.....................................................4
2.1 Information on EMC . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . 4
2.2 General Safety Instructions . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5
3 Scope of Delivery .......................................................5
4 Product Description ... ... ....... ... ... ... ... ... ... .......... ... ... ... .. 6
5 Installation ...............................................................7
5.1 Installing the Software . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . .. 7
5.2 Installing the Hardware . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 7
6 Connections .............................................................8
6.1 FlexRay D-Sub 9 Connector . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 9
6.2 FlexRay Internal Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 9
7 Operation................................................................10
7.1 FlexRay LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . 10
7.2 CPU LED . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . 11
8 Firmware Updates .....................................................11
9 Technical Data..........................................................12
10 Support/Return Hardware ... ... ... ... ... ... . ... ... ... ... ... ... ... ... .13
10.1 Support. . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 13
10.2 Return Hardware . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

FR-IB100/PCIe User Manual 4.01.0103.20000 2.0
Table of Contents
11 Disposal .................................................................13
A Regulatory Compliance.. ... ... ... ... ... . ... ... ... ... ... ... ... ... . .. . .15
A.1 EMC Compliance (CE) . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
A.2 FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 15
A.3 Disposal and recycling. . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . 16

User Guide 3 (18)
1 User Guide
Please read the manual carefully. Make sure you fully understand the manual be-
fore using the product.
1.1 Document History
Version Date Description
2.0 December 2016 Revised and edited in new design
1.2 Conventions
Instructions and results are structured as follows:
uinstruction 1
uinstruction 2
wresult 1
wresult 2
Lists are structured as follows:
• item 1
• item 2
Bold typeface indicates interactive parts such as connectors and switches on
the hardware, or menus and buttons in a graphical user interface.
This font is used to indicate program code and other
kinds of data input/output such as configuration scripts.
This is a cross-reference within this document: Conventions, p. 3
This is an external link (URL): www.hms-networks.com
Safety advice is structured as follows:
Cause of the hazard!
Consequences of not taking remediate action.
How to avoid the hazard.
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

Safety and Dangers 4 (18)
Safety signs and signalwords are used dependent on the level of the hazard.
This is additional information which may facilitate installation and/or
operation.
This instruction must be followed to avoid a risk of reduced functionality
and/or damage to the equipment, or to avoid a network security risk.
Caution
This instruction must be followed to avoid a risk of personal injury.
WARNING
This instruction must be followed to avoid a risk of death or serious injury.
2 Safety and Dangers
2.1 Information on EMC
Risk of interference to radio and television if used in office or home
environment!
Use exclusively included accessories.
Make sure shield of interface is connected with device plug and plug on
other side.
Use exclusively shielded cables.
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

Scope of Delivery 5 (18)
2.2 General Safety Instructions
uProtect product from moisture and humidity.
uProtect product from too high or too low temperature (see Technical Data, p.
12).
uProtect product from fire.
uDon’t throw, drop or try to bend the product.
uDon’t paint the product.
uDon’t modify or disassemble the product. Service must be carried out by
HMS Industrial Networks.
uDon’t use modified products.
uStore products in dry and dust-free place.
3 Scope of Delivery
Included in the scope of delivery of standard variant:
• FR-IB100/PCIe
• CD with VCI driver
•VCI Driver Installation Guide
•FR-IB100/PCIe User Manual
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

Product Description 6 (18)
4 Product Description
The FlexRay PCI Express interface card FR-IB100/PCIe is an interface for oper-
ation, analysis, diagnostics and stimulation of FlexRay networks.
Features
• operation, measuring and analysis platform for FlexRay networks
• single lane (x1) PCI express card
• PCI connection in accordance with PCI express base specification, revision
1.1 (PCI express 1.1)
• FlexRay protocol support via communication controller Freescale MFR4310
• FlexRay 2 x 10 MBit/s
• FlexRay bus connection via Physical-Layer-Chip NXP TJA1082
• galvanically isolated
• highly integrated FPGA with PCIe controller, internal processor system, dual
port memory, time stamp, asynchronous receiver
• open FlexRay PC driver interface (VCI) for Windows XP, Windows Vista,
Windows 7

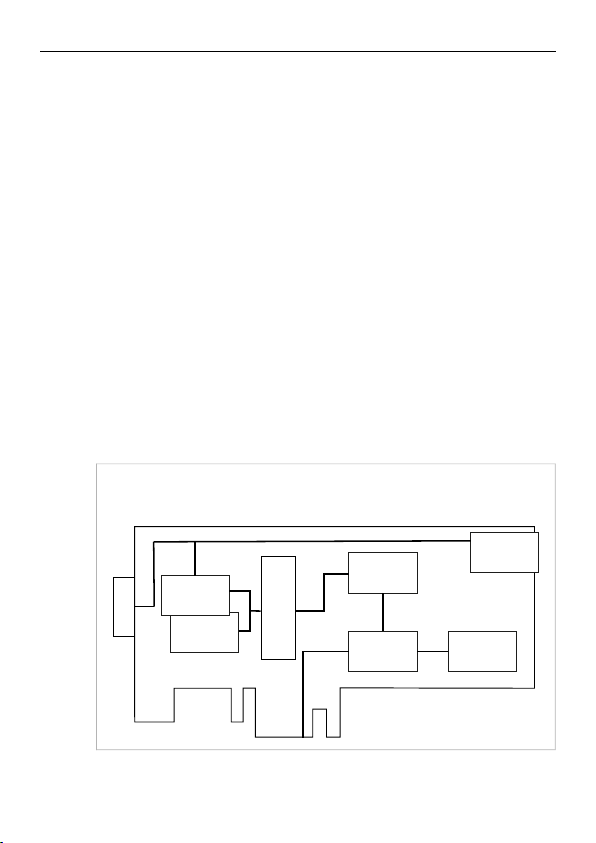

Fig. 1 Block diagram with all main interfaces
FlexRay
internal
connectorFlexRay
controller
MFR4310
RAMFPG A
FlexRay
transceiver
TJA1082
FlexRay
transceiver
TJA1082
Isolation
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

Installation 7 (18)
5 Installation
5.1 Installing the Software
For the operation of the interface a driver is needed.
Windows
uInstall VCI driver (see Installation manual VCI).
– version VCI 2 or
– version VCI 3 with VCI V2.20 Wrapper
5.2 Installing the Hardware
Risk of ESD damages caused by improper handling!
Use ESD protective measures to avoid equipment damage.
The FR-IB100/PCIe can be operated in all PCI express slots (x1, x4, x8,
x16).
uMake sure VCI driver V2 or V3 with V2.20 Wrapper is installed.
uTurn off computer.
uPull power cord.
uOpen computer case according to instructions of computer manufacturer.
uDetermine suitable slot.
uPlug PCI/PCIe connector in corresponding slot, without using force.
uMake sure the interface is securely fitted in computer.
uClose computer case.
wHardware installation is complete.
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

Connections 8 (18)
6 Connections
Fig. 2 Connectors
1 FlexRay D-Sub 9 connector (male)
2 Internal FlexRay connector (serial-ATA form factor), optional
On the FlexRay connectors the differential signal pairs (BM and BP) of the Flex-
Ray bus channels A and B are available.
The FlexRay bus is galvanically isolated from the PC ground and the PCI Ex-
press bus. Channels A and B are connected to the same potential.
2
1
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

Connections 9 (18)
6.1 FlexRay D-Sub 9 Connector
Pin Allocation of D-Sub 9 Connector
Pin no. Signal
1 -
2 FlexRay channel A Bus Minus (BM)
3 Ground (FlexRay)
4 FlexRay channel B Bus Minus (BM)
5 -
6 -
7 FlexRay channel A Bus Plus (BP)
8 FlexRay channel B Bus Plus (BP)
9 -
6.2 FlexRay Internal Connector
Pin Allocation of Internal Connector
Pin no. Signal
1 Ground (FlexRay)
2 FlexRay channel A Bus Plus (BP)
3 FlexRay channel A Bus Minus (BM)
4 Ground (FlexRay)
5 FlexRay channel B Bus Minus (BM)
6 FlexRay channel B Bus Plus (BP)
7 Ground (FlexRay)
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

Operation 10 (18)
7 Operation
Fig. 3 LEDs
1 FlexRay LED
2 CPU LED
7.1 FlexRay LED
The FlexRay LED displays the device status.
LED state Description
Off Boot manager or application not running (error)
Red flashing (con-
stant frequency)
FlexRay communication controller not configured (boot man-
ager or application running)
Red and green
flashing
Flash loader running, firmware is updated
Green flashing (con-
stant frequency)
FlexRay communication controller is configured.
Red FleyRay communication controller: no normal active operation
Green FlexRay communication controller: normal active operation
12
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

Firmware Updates 11 (18)
7.2 CPU LED
The CPU LED displays the communication status.
LED state Description
Off Application not running
Green flashing (con-
stant frequecy)
Application running
8 Firmware Updates
The FR-IB100/PCIe card is always supplied with the latest firmware on the on-
board flash. The VCI cooperates with this firmware.
uIf different firmware or update of onboard firmware is necessary, download
necessary files and tools from www.ixxat.com.
The operation of the flash loader is indicated by the FlexRay LED. Do not
switch off the PC while the flash loader is running. Switching off the PC
during operation of the flash loader may destroy the card.
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

Technical Data 12 (18)
9 Technical Data
PCI Express interface PCI express single lane port (x1) in accordance
with PCI Express base specification, revision 1.1
FlexRay communication
controller
Freescale MFR4310
FlexRay transceiver NXP TJA1082
Card system FPGA with Softcore processor 1 MByte RAM
Dimensions 106 x 58 mm
Weight Approx. 100 g
Operating temperature range 0 °C to +70 °C
Storage temperature range -40 °C to +85 °C
Galvanic isolation 500 V AC for 1 minute between FlexRay bus and
internal logic
Relative humidity 0 % to 90 %, no condensation
Power supply Via PCIe slot (3.3 V)
Power consumption Typ. 400 mA (3.3 V)
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

Support/Return Hardware 13 (18)
10 Support/Return Hardware
Observe the following information in the support area on www.ixxat.com:
• information about products
• FAQ lists
• installation notes
• updated product versions
• updates
10.1 Support
uFor problems or support with the product request support at www.ixxat.com/
support.
uIf required use support phone contacts on www.ixxat.com.
10.2 Return Hardware
uFill in the form for warranty claims and repair on www.ixxat.com.
uPrint out the Product Return Number (PRN resp. RMA).
uPack product in a physically- and ESD-safe way, use original packaging if
possible.
uEnclose PRN number.
uObserve further notes on www.ixxat.com.
uReturn hardware.
11 Disposal
uDispose of product according to national laws and regulations.
uObserve further notes about disposal of products on www.ixxat.com.
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

This page intentionally left blank

Appendix A: Regulatory Compliance 15 (18)
A Regulatory Compliance
A.1 EMC Compliance (CE)
The product is in compliance with the Electromagnetic Compatibility Directive.
More information and the Declaration of Conformity is found at www.ixxat.com.
A.2 FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
uThis device may not cause harmful interference.
uThis device must accept any interference received, including interference
that may cause undesired operation.
Product name FR-IB100/PCIe
Responsible
party
HMS Industrial Networks Inc
Address 35 E. Wacker Dr, Suite 1700
Chicago , IL 60601
Phone [phone]
Any changes or modifications not expressly approved by HMS Industrial
Networks could void the user's authority to operate the equipment.
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

Appendix A: Regulatory Compliance 16 (18)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
A.3 Disposal and recycling
You must dispose of this product properly according to local laws and regulations.
Because this product contains electronic components, it must be disposed of
separately from household waste. When this product reaches its end of life, con-
tact local authorities to learn about disposal and recycling options, or simply drop
it off at your local HMS office or return it to HMS.
For more information, see www.hms-networks.com.
FR-IB100/PCIe User Manual 4.01.0103.20000 2.0

This page intentionally left blank

last page
HMS Industrial Networks AB
Box 4126
300 04 Halmstad, Sweden
[email protected]
© 2016 HMS Technology Center Ravensburg GmbH
4.01.0103.20000 2.0.2698 / 2016-12-08 11:25
