HNP Mikrosysteme mzr-7208 User manual

Operating manual for micro annular gear pump
mzr-7208, mzr-7208X1
HNP Mikrosysteme GmbH
Bleicherufer 25
D-19053 Schwerin
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
http://www.hnp-mikrosysteme.de
Last update: August 2019

Impressum
Original instructions
Copyright
HNP Mikrosysteme GmbH
Bleicherufer 25
D-19053 Schwerin
All rights, including translation, reserved.
Without prior explicit written permission of HNP Mikrosysteme GmbH no part
of this manual may be, copied, reproduced or processed.
This manual has been prepared with care. HNP Mikrosysteme does assume no
liability for any errors in this manual and resulting consequences. Likewise, no
liability is assumed direct or subsequent damages arising from an incorrect use
of the devices.
While using micro annular gear pumps, the relevant standards regarding the
specifications of this manual have to be followed.
Subject to change without notice.

Contents Operating manual mzr-7208, mzr-7208X1
Last update: August 2019 Technical data subject to change without prior notice! i
Contents
1General Information 1
1.1 Use 1
1.2 Pump Model Designation 2
1.3 Technical data of the micro annular gear pump 3
1.4 Measurements and flow charts 4
1.5 Technical data of the standard motor 5
1.6 Technical data of the optional motor with analog hall
sensors (option) 8
2Safety 10
2.1 Safety symbols in this operating manual 10
2.2 Staff qualification and training 10
2.3 Safety-conscious work 10
2.4 Safety instructions for the operator 11
2.5 Safety instructions for maintenance, check and
assembly of the pump 11
2.6 Unauthorized pump conversions and spare part
manufacture 11
2.7 Improper modes of operation 12
2.8 General safety instructions 12
3Transport and intermediate storage 13
3.1 Shipment of the pumps and protection measures 13
3.2 Transport 13
3.3 Intermediate storage 13
4Description 14

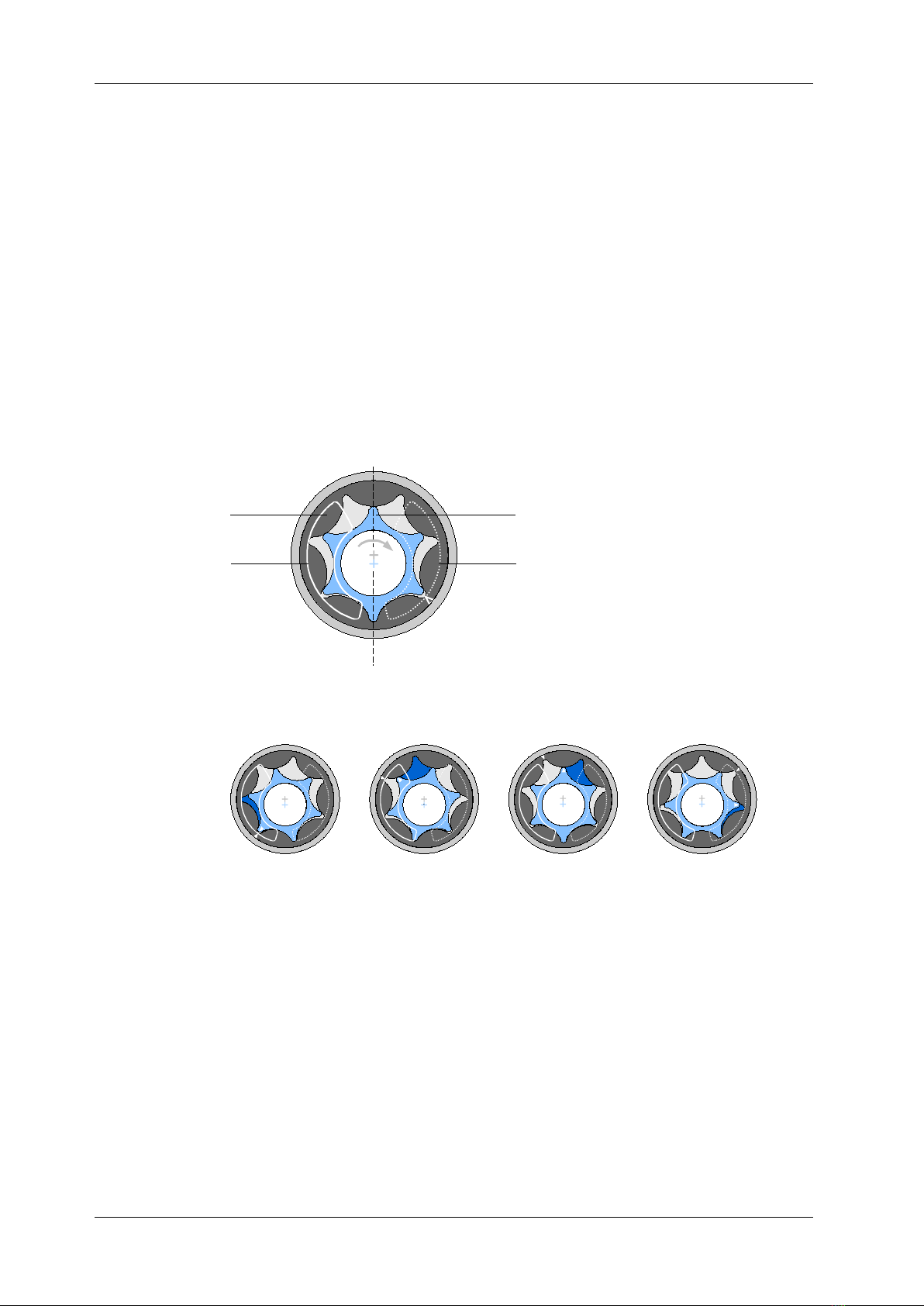

4.1 Operating principle of the micro annular gear pump 14
4.2 Construction materials 16
4.3 Liquid supply 16
5Optional modules 17
5.1 Fluidic seal module 18
5.2 Heat insulation module 21
5.3 Heating modules 22
5.3.1 Electric heating module 22
5.3.2 Fluidic heating- and cooling module 23
5.4 Heating device „JETmicro“ 24
5.5 Gas-tight seal module 25
6System integration 26
6.1 Check before the first assembly 26
6.2 Mounting of the micro annular gear pump 26
6.3 Assembly of the fluid connection fittings for
mzr-7208 27
6.4 Filter selection and use 30

Contents Operating manual mzr-7208, mzr-7208X1
ii Technical data subject to change without prior notice! Last update: August 2019
7Motion Controller 31
7.1 Operation with Controller S-HV 31
7.2 Operation with Controller S-HP-E 34
7.3 Operation with Controller S-BL (Option) 39
7.4 Operation with Controller S-HP (Option) 42
8Start Up / Shut Down 45
8.1 Preparing for operation 45
8.2 Startup of the micro annular gear pump 45
8.3 Flushing procedure after use 45
8.4 Shutdown of the micro annular gear pump 47
8.4.1 Conservation 49
8.4.2 Dismantling of the system 50
8.5 Trouble shooting 51
8.6 Return of the micro annular gear pump to the
manufacturer 51
9Software »Composer« and »Elmo Studio«
(Option for S-HP-E) 52
9.1 Use application of CD 52
9.2 Creating a new application 53
9.3 Adjustment of controller parameter 56
9.4 Operation of micro annular gear pump with RS-232
interface 60
9.5 Operation of micro annular gear pump as stand
alone application 61
9.6 Problems and their removal with controller S-HP-E 62
10 »Motion Manager« software 63
10.1 Direct drive control 63
10.2 Programming of the control 65
10.2.1 Transfer of a mcl file to the drive 65
11 Software »EPOS« (Option) 68
12 Accessories for microfluidic systems 70
13 Non-liability clause 70
14 Problems and their removal 71
15 EC Directive 73
15.1 Electromagnetic Compatibility (EMC) 74
15.1.1 EMC Directive and Standards 74
15.1.2 Information on use as intended 75
16 Declarations of conformity 76
17 Service, maintenance and warranty. 81

Contents Operating manual mzr-7208, mzr-7208X1
Last update: August 2019 Technical data subject to change without prior notice! iii
18 Contact persons 82
19 Legal information 83
20 Safety information for the return of already
employed micro annular gear pumps and
components 84
20.1 General information 84
20.2 Declaration of liquids in contact with the micro
annular gear pump 84
20.3 Shipment 84
21 Declaration of media in contact with the micro
annular gear pump and its components 85
22 Supplement 86

1 General Information Operation manual mzr-7208, mzr-7208X1
Last update: August 2019 Technical data subject to change without prior notice!.1
1General Information
Please read the »manual for micro annular gear pump« carefully before initial
operation of the pump. The manual for the controller have to be seen as part
of the pump manual. For missing manuals please call your distributor or HNP
Mikrosysteme directly.
We like to draw your attention especially to the following safety instructions.
1.1 Use
The micro annular gear pumps described in this manual are suitable for
continuous delivery and discrete dosage of water, watery solutions, solvents,
methanol, oils, lubricating liquids, paints and varnishes as well as many other
liquids.
!
If you intend to treat any aggressive, poisonous, or radioactive liquids, you
must conform to safety measures as according to the regulations in force. Any
project concerning handling of corrosive liquids should be previously discussed
with the pump manufacturer.
!
The micro annular gear pumps must not be used for invasive medical
applications, in which the liquid having had contact with the pump is re-
introduced to the body.
!
Micro annular gear pumps exclusively are provided for use in the industrial
area. A private use is excluded.
!
The micro annular gear pumps must not be used in aircrafts and spacecrafts or
other vehicles without prior consent of the manufacturer.
!
Data concerning resistance of the pumps to the manipulated liquids have been
elaborated according to the best of HNPM's knowledge. However, operating
parameters varying from one application case to another, no warranty for this
information can be given.
!
Information given in this manual does not release the customer from the
personal obligation to check the integrity, correct choice and suitability of the
pump for the intended use. The use of the micro annular gear pumps should
be conform with technical norms and regulations in force.
If you wish to receive more information than comprised in this operating
manual please contact directly HNP Mikrosysteme.

1 General Information Operation manual mzr-7208, mzr-7208X1
2Technical data subject to change without prior notice! Last update: August 2019
1.2 Pump Model Designation
This manual is valid for the micro annular gear pump mzr-7208, manufactured
after 2001 by HNP Mikrosysteme GmbH, Bleicherufer 25, 19053 Schwerin,
Germany.
The date of release of the present manual figures on the cover.

1 General Information Operation manual mzr-7208, mzr-7208X1
Last update: August 2019 Technical data subject to change without prior notice!.3
1.3 Technical data of the micro annular gear pump
The following table shows the technical data of the micro annular gear pump
head mzr-7208.
Constructive Specifications
Displacement volume 48 µl
Measurements (L x W x H) 205 x 60 x 80 mm
Weight approx. 1.5 kg
Internal volume 525 µl
Material case
stainless steel 1.4435 (316L)
Material rotor tungsten carbide Ni-based
Material bearing tungsten carbide Ni-based
Shaft seal graphite reinforced Teflon®, 316L
Static seals FPM (Viton®), optional: EPDM, FFPM
Fluid connections 1/8" NPT or M10x1 internal thread, lateral
Technical data
Flow rate 4.8 ... 288 ml/min ( = 17.2 l/h)
Smallest dosage volume 5 µl
Operating pressure range 0 – 30 bar (Viskosity 1 mPas)
0 – 120 bar mzr-7208X1 (Viskosity 16 mPas)
0 – 150 bar mzr-7208 (Viskosity 16 mPas)
Max. inlet pressure 10 bar
Viscosity range
0,3 – 50.000 mPas
Precision < 1 %
Pulsation 6 % (theoretical)
Liquid temperature -5 … +60 °C (150 °C*)
Ambient temperature -5 … +60 °C
Store temperature range -5 … +40 °C
caption: * Differing specifications on request
table 1 Technical data of the micro annular gear pump head mzr-7208
Warning The material properties of a liquid (e.g. viscosity, lubricating property, particle
content, corrosiveness) impacts the technical data and the lifetime of pumps.
Under appropriate conditions the characteristic values may be increased or
decreased.
Warning If you intend to operate the pump out of the range of the above given
specification, please consult the manufacturer. Modifications may be necessary
to ensure successful operation. Otherwise the pump or the system may be
damaged seriously.

1 General Information Operation manual mzr-7208, mzr-7208X1
4Technical data subject to change without prior notice! Last update: August 2019

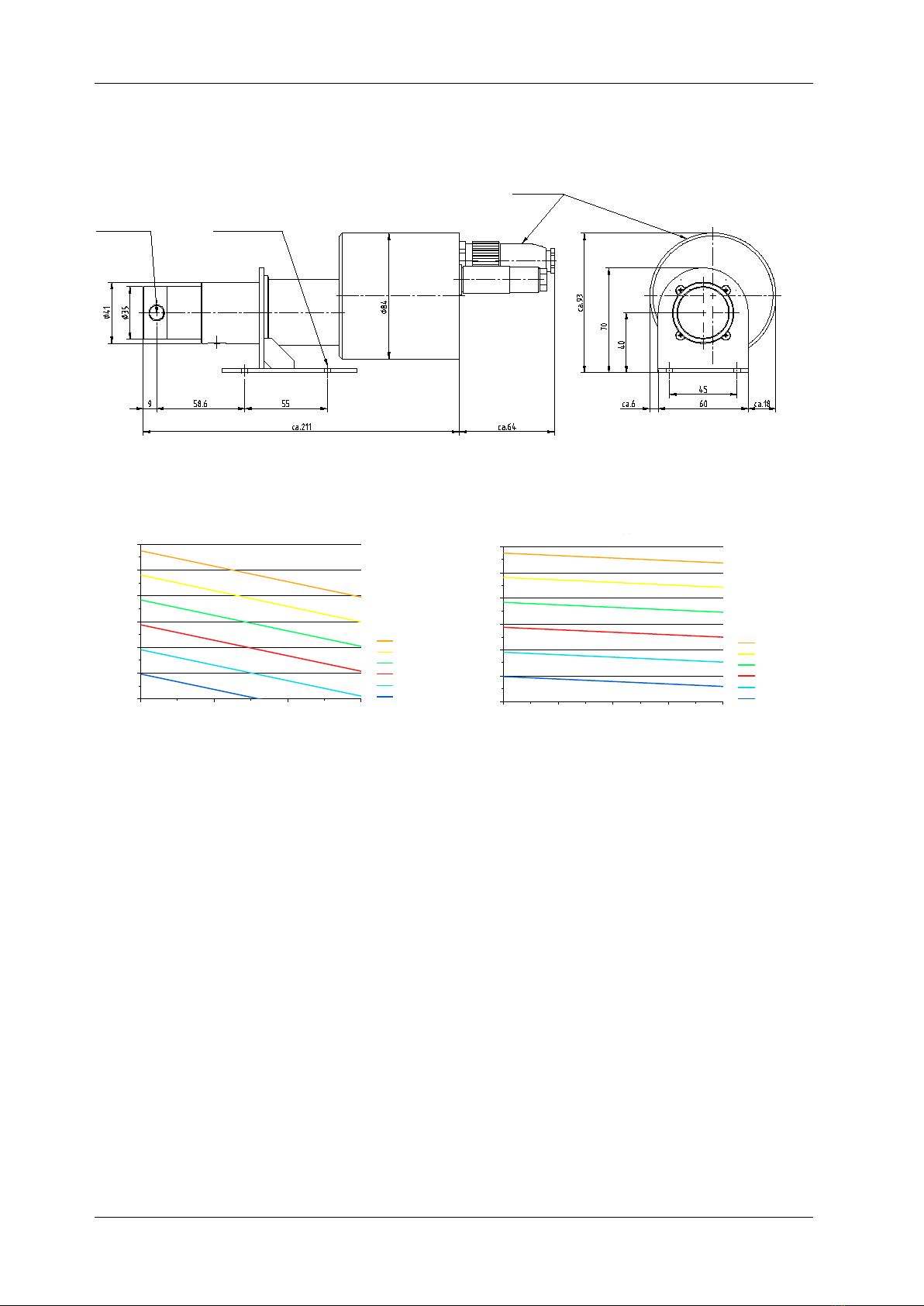

1.4 Measurements and flow charts
position ±5°
1/8" NPT fluid
connector
mounting
4 x Ø 4,3 (55x45)
figure 1 Measures of the micro annular gear pump mzr-7208
Liquid water Liquid oil
0
50
100
150
200
250
300
010 20 30
Differential pressure [bar]
Flow rate [ml/min]
6000
5000
4000
3000
2000
1000
Speed [rpm]
Viscosity 1 mPas
Liquid water
0
50
100
150
200
250
300
020 40 60 80
Differential pressure [bar]
Flow rate [ml/min]
6000
5000
4000
3000
2000
1000
08
Speed [rpm]
Viscosity 16 mPas
Liquid oil
figure 2 Flow charts mzr-7208

1 General Information Operation manual mzr-7208, mzr-7208X1
Last update: August 2019 Technical data subject to change without prior notice!.5
1.5 Technical data of the standard motor
The micro annular gear pump mzr-7208 is provided with an actuator equipped
with a 2 pole brushless DC-motor. The DC motor uses a high dynamic and is
recommended for programmed dosage operation of the micro annular gear
pump. With a control unit it is possible to manage lower RPM ranges down to
10 RPM. The accuracy of dosage can be achieved better than 0.5 %. The
connection of the motor to a control unit is simple.
Data of capacity
Nominal voltage 36 V DC
Stall torque 191 mNm
Max. continuous current 6,29 A
Starting current approx. 15 A
Assigned power rating 201 W
terminal inductance, phase-phase 143 µH
No load speed by 36 V 10450 rpm
operation range 10 ... 6.000 rpm
temperature range -30 ... +125 °C
Protective class
IP54
Male socket for motor windings Binder Series 623
Type: 99-4637-20-06
Female cable connector for motor
windings
Binder Series 623
Type: 99-4636-00-06
Male socket for Encoder/Hall sensor
cable
Lumberg
Typ: SFV 120
Female cable connector for
Encoder/Hall sensor
Binder Series 423
Type: 99-5130-15-12
Length connection cable 3 m
lengthening up to max.
10 m
table 2 Technical data of the motor
Encoder
Max. voltage Vcc 5 VDC ± 10 %
Number of channels 3 (A, B, I)
Counts per revolution and channel 500
Output current max. 20 mA
Phase shift Φ(nominal) 90°
Operating temperature range
0 ... +40°C
table 3 Technical data encoder

1 General Information Operation manual mzr-7208, mzr-7208X1
6Technical data subject to change without prior notice! Last update: August 2019

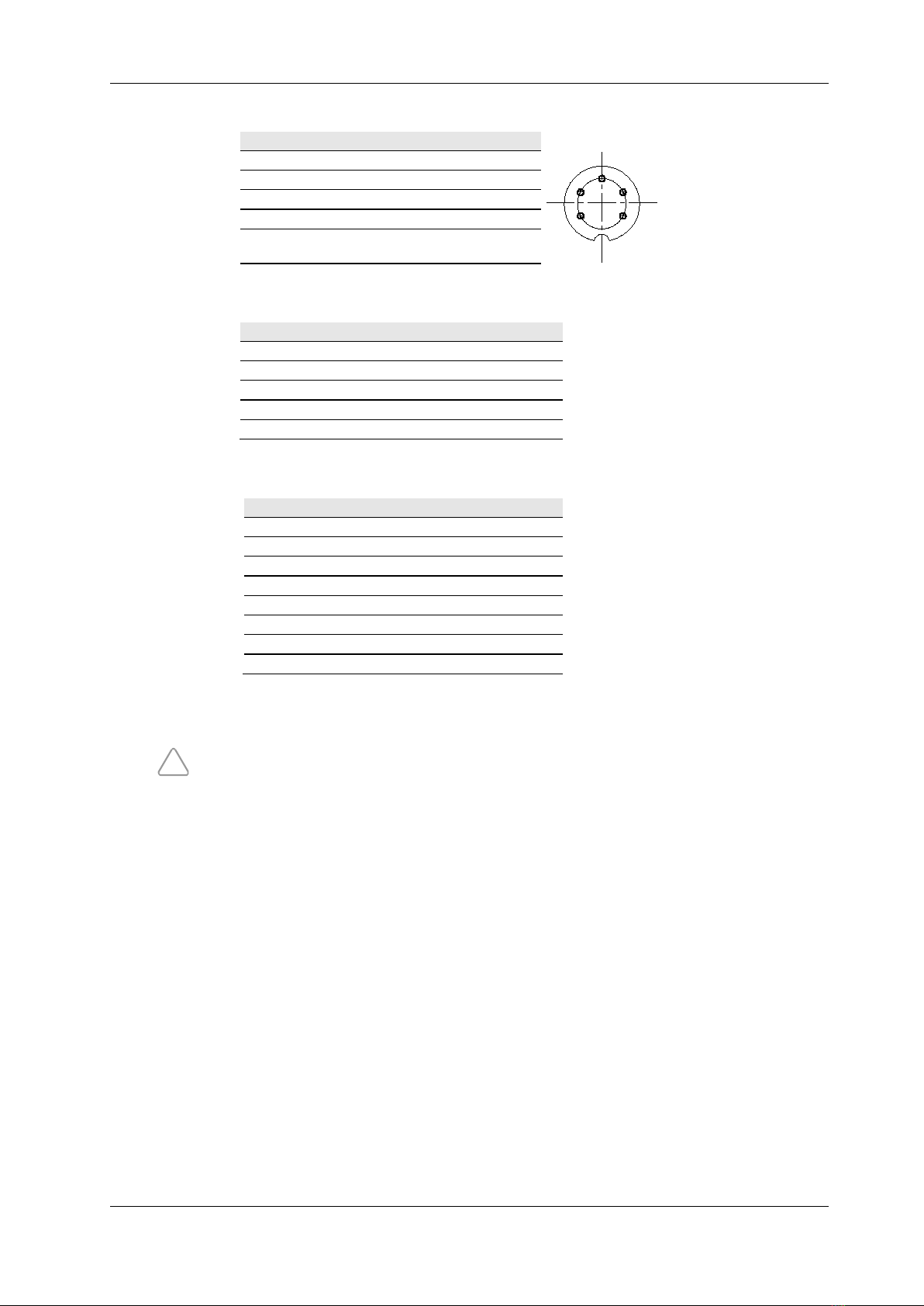

pin
Description
1 motor phase A
2
n.c.
3 motor phase B
4 n.c.
5
motor phase C
6 n.c.
table 4 Pin configuration of the motor supply
pin Description
A Encoder voltage +5 V
B Encoder/Hall sensor GND
C Encoder channel A
D Encoder channel A neg.
E Encoder channel B
F Encoder channel B neg.
G Encoder channel I
H Encoder channel I neg.
J Hall sensor voltage +5 V
K Hall sensor A
L
Hall sensor B
M Hall sensor C
table 5 Pin configuration of the motor connector (Encoder/Hall)
wire colour Description
brown motor phase A
green motor phase B
white motor phase C
table 6 Motor cable 3 poles
wire colour Description pin Controller S-HV
red Encoder voltage +5 V 6
pink Hall sensors voltage +5 V 6
yellow
Encoder channel B
7
green Encoder channel A 8
blue Encoder/Hall sensor GND 9
brown Hall sensor A 10
grey Hall sensor B 11
white Hall sensor C 12
black screen earth screw
table 7 Encoder/Hall sensors cable 8 poles with controller S-HV
The encoder channel A and B are change together on the controller S-HV!

1 General Information Operation manual mzr-7208, mzr-7208X1
Last update: August 2019 Technical data subject to change without prior notice!.7
wire colour
Description
pin Controller S-HP
red Encoder voltage +5 V 36
blue
Encoder/Hall sensor GND
19
green Encoder channel A 33
black Encoder channel A neg. 16
yellow
Encoder channel B
34
violet Encoder channel B neg. 17
grey/pink Encoder channel I 35
red/blue
Encoder channel I neg.
18
pink Hall sensors voltage +5 V 11
brown Hall sensor A 9
grey Hall sensor B 6
white Hall sensor C 10
green/yellow screen earth screw
table 8 Encoder/Hall sensors cable 12 poles with controller S-HP (option)

1 General Information Operation manual mzr-7208, mzr-7208X1
8Technical data subject to change without prior notice! Last update: August 2019

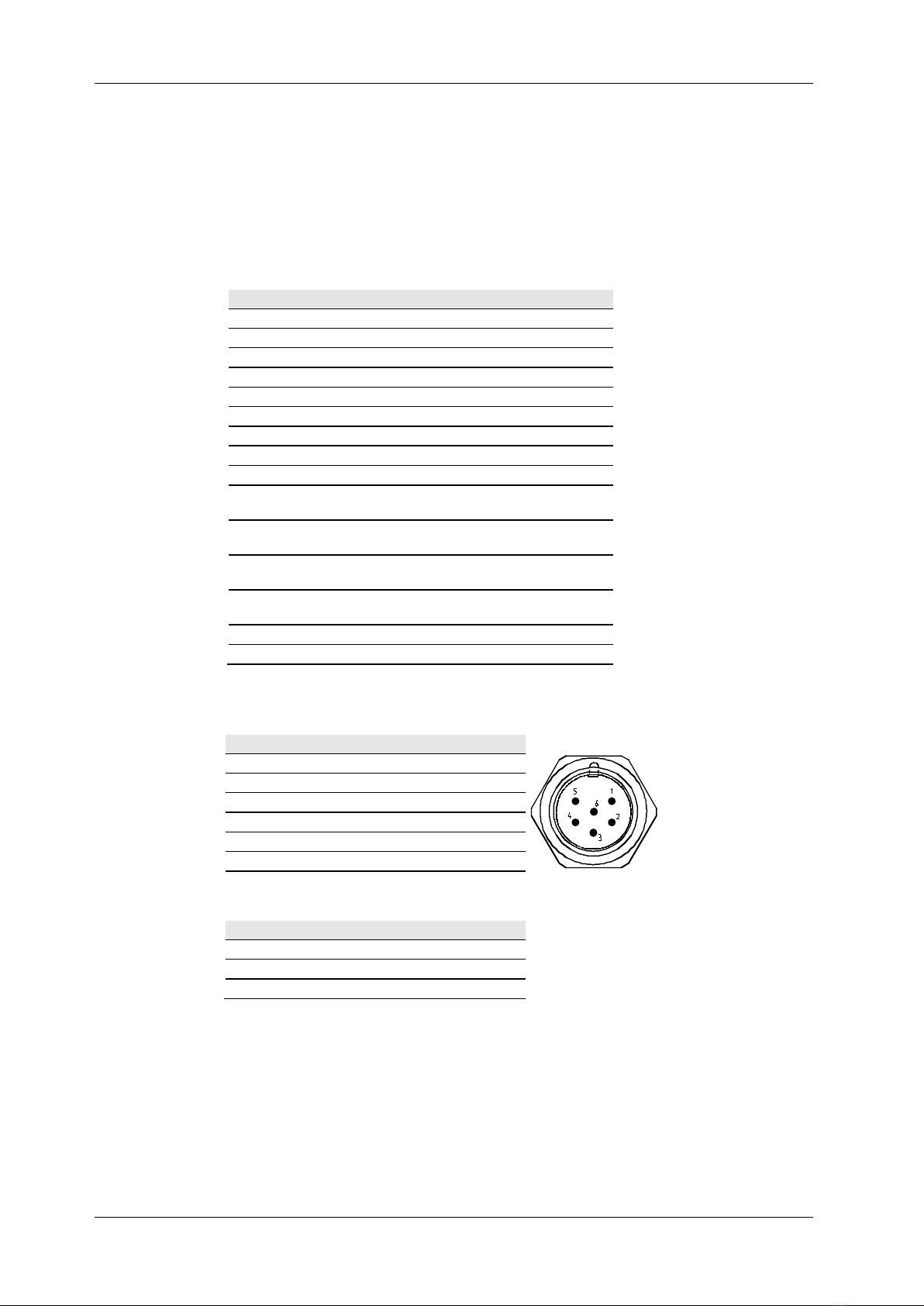

1.6 Technical data of the optional motor with analog hall sensors (option)
The micro annular gear pump mzr-7208X1 can alternatively be driven with a
brushless DC-motor with analog hall sensors. It is characterized by higher
dimensions and a wider speed range, which covers entirely the speed range of
the micro annular gear pump and shows a longer service life than a brushed
DC-motor.
Performance parameters
Nominal voltage 36 V
Max. continuous torque
191,9 mNm
Power 201 W
No-load speed at 9 V 10,450 rpm
Max. continuous current
6.29 A
Terminal resistance, phase-phase 0.445 Ω
Terminal inductance, phase-phase 143 µH
Speed
1 – 6000 rpm
Ambient temperature -30 … +125 °C
Male socket for motor windings Binder Series 623
Type: 99-4637-20-06
Female cable connector for motor windings Binder Series 623
Type: 99-4636-00-06
Male socket for Hall sensor cable Lumberg
Type: SFV 50/6
Female cable connector for Hall sensor Binder Serie 423
Type: 99-5114-09-05
Type of Hall effect sensor analog
Length connection cable 2 m
table 9 Technical data of the brushless DC-motor
pin Description
1 motor phase A
2 n.c.
3 motor phase B
4 n.c.
5 motor phase C
6 n.c.
table 10 Pin configuration of the motor supply
wire colour Description
brown motor phase A
green motor phase B
white motor phase C
table 11 Cable 3 poles of the motor supply

1 General Information Operation manual mzr-7208, mzr-7208X1
Last update: August 2019 Technical data subject to change without prior notice!.9
pin
Description
A Hall sensor GND
A
B
C
D
E
B
Hall sensor sensor voltage +5 V
C Hall sensor A
D Hall sensor B
E Hall sensor C
table 12 Pin configuration of the hall sensor connector
wire colour
Description
blue Hall sensor GND
red Hall sensor voltage +5 V
brown Hall sensor A
grey Hall sensor B
white
Hall sensor C
table 13 Motor cable 3 poles
Function Connection Color
Hall sensor A green
Phase A brown
Hall sensor B blue
Phase B orange
Hall sensor C gray
Phase C yellow
Voltage +5 V red
Mass GND black
table 14 Pin configuration of the motor (cable version)
!
Please notice that the brushless DC motors must imperatively be operated with
an adapted control unit! The micro annular gear pump mzr-7208 can be
delivered for this purpose with optional control units S-BL.

2 Safety Operation manual mzr-7208, mzr-7208X1
10 Technical data subject to change without prior notice! Last update: August 2019
2Safety
Comply with the general safety instructions listed in the safety section as well
as with the special safety instructions listed under the other main sections. All
legal and corporate safety instructions have to be obeyed.
2.1 Safety symbols in this operating manual
Please comply not only with the general safety instructions listed below, but
also with specific safety instructions mentioned in the following chapters.
Non respect of the safety instructions marked with the following signs
represents danger to people:
Danger symbol High voltage symbol
!
Safety symbol according to
DIN 4844 – W9
Safety symbol according to
DIN 4844 – W8
Non compliance with the safety instructions marked with the following sign:
Warning
represents a risk of damage to the micro annular gear pump.
Operating instructions machined directly on the pump such as the indication of
liquid input and output should be followed and kept in a clearly readable
condition.
2.2 Staff qualification and training
The staff operating, servicing, inspecting and assembling the pumps must
evidence the appropriate qualification for these works. Areas of responsibility
and competence as well as monitoring of the staff must be precisely regulated
by the decision maker. If the personnel do not have the necessary knowledge,
they must be trained and instructed accordingly. If necessary, this can be
implemented by the supplier or the manufacturer on behalf of the operator.
Furthermore, the operator in charge must ensure that the content of the
present manual has been fully understood by the personnel.
2.3 Safety-conscious work
The safety instructions listed in this operating manual, the applicable national
regulations for accident prevents and all internal working, operating and safety
regulations of the operator must be complied with.

2 Safety Operation manual mzr-7208, mzr-7208X1
Last update: August 2019 Technical data subject to change without prior notice!.11
2.4 Safety instructions for the operator
The surface temperature of the motor under full load may exceed 60°C. If
needed, this surface should be protected on site against contact in order to
avoid skin burns.
The drive should be protected against dust, water vapor condensation,
humidity, splash water, aggressive gases and liquids. Please provide for
adequate air ventilation and thus cooling of the motor.
The micro annular gear pumps mzr-2905, mzr-4605 and mzr-7205 must not be
used in areas exposed to explosion risks or in the proximity of inflammable
gases and vapors.
Possible leaks of dangerous liquids (for example from the shaft sealing) should
be guided away in a way not to represent any danger for the personnel and the
environment. The pump should be regularly checked for possible leakage. All
legal requirements in this matter should be followed.
The existing protections against contact for the moving parts of the pump (such
as for example the coupling) must not be removed during operation.
Take care that all risks resulting from the electric energy are excluded. (For
details please refer to the instructions provided by the authorities in charge or
your power supplier.)
Warning Please insure, that the totality of the liquid supply accessories such as tubes,
hoses, filters etc. are free from dust or dirt particles. Impurities such as metal,
plastic or glass particles may impair or damage the pump leading to its failure.
Warning Please, operate the pump with a filter featuring 10 µm or smaller pores. It will
protect the pump.
2.5 Safety instructions for maintenance, check and assembly of the pump
As a rule all maintenance work on the device should be performed when the
device is at a standstill. The shutdown procedure described in this manual must
be followed. Pumps delivering liquids hazardous to health must be
decontaminated. Immediately after the work had been completed all safety
equipment and protection measures should be applied.
Before starting the operation, please take into notice the instructions listed in
the chapter 6.
Warning Should a malfunction of the pump occur, do not dismantle the pump on your
own but contact one of HNP Mikrosysteme's service staff for professional
assistance.
2.6 Unauthorized pump conversions and spare part manufacture
Conversions or modification to the device are only permitted with prior consent
of the manufacturer. Original spare parts and accessories authorized by the

2 Safety Operation manual mzr-7208, mzr-7208X1
12 Technical data subject to change without prior notice! Last update: August 2019
manufacturer ensure safety. The use of other parts will annul the liability of the
pump manufacturer for any resulting consequences.
2.7 Improper modes of operation
The safety of operation of the delivered device can only be insured by correct
use, as described in chapter 1. The limit values given in this manual must not be
exceeded in any case.
2.8 General safety instructions
Please observe the following safety instructions
!
The pump may operate at high pressures. For this reason please use only the
delivered accessories and ensure that the employed fittings and tubing have
been prescribed and approved for these pressures.
!
In order to decrease the pressure, provide the system with a pressure control
valve directing the excess liquid to the storage tank or back to the suction side.
In the case of blockage of the pressure side the operating pressure can
multiply, this can lead to the damage of downstream components.
!
At a standstill, the liquid may flow through the pump in the direction of the
falling pressure. In order to avoid this unwanted movement, please integrate
non-return valves (see accessories).
!
Protect the micro annular gear pump and the electric drive against strokes and
shocks.
!
Under normal working conditions the shaft sealing rings integrated in the
pump prevent the liquid from leaking out of the device. The micro annular
gear pumps are "technically leak-proof" however not "hermetically sealed"
which means it may occur that gases or liquids enter to or escape from the
pump.
The allowed operating parameters of the drive should not be exceeded. In
particular an incorrect polarity setting of the supply voltage may lead to
damage of the control unit.
Warning Please insure, that the totality of the liquid supply accessories such as tubes,
hoses, filters etc. are free from dust or dirt particles. Impurities such as metal,
plastic or glass particles may impair or damage the pump leading to its failure.
Warning Please operate the pump with a filter featuring 10 µm or smaller pores. It will
protect the pump.

3 Transport and intermediate storage Operation manual mzr-7208, mzr-7208X1
Last update: August 2019 Technical data subject to change without prior notice!.13
3Transport and intermediate storage
3.1 Shipment of the pumps and protection measures
The pumps leaving the factory are secured against corrosion and shocks. The
inlets and outlets of the pumps are protected with plastic plugs in order to
prevent any foreign bodies from penetrating into the device.
3.2 Transport
In order to avoid any damage related to transport, the package must be
protected against shocks. HNP Mikrosysteme guarantees, that all goods leave
the factory in the best condition. Any noticed damage should be reported to
the concerned forwarding agent, authorized dealer or to HNP Mikrosysteme, as
manufacturer.
3.3 Intermediate storage
Following points concerning pump storage should be observed:
−Necessary conservation procedure (see also chapter 8.4.1)
−The protective plugs must be left screwed in
−The pump should not be stored in humid places
−For storage temperature - refer to chapter 1.3 of the present manual

4 Description Operation manual mzr-7208, mzr-7208X1
14 Technical data subject to change without prior notice! Last update: August 2019
4Description
4.1 Operating principle of the micro annular gear pump
Micro annular gear pumps are positive displacement pumps. They contain two
rotors, bearing slightly eccentrically to each other; an externally toothed
internal rotor and an annular, internally toothed external rotor (see figure 3).
Due to their cycloid indenting, the rotors remain interlocked at any time,
forming during rotation a system of several sealed pumping chambers. As the
rotors revolve around their offset axis, the pumping chambers increase on the
induction (suction) side and simultaneously decrease on the delivery side of the
pump (see figure 4). A homogenous flow is generated between the kidney-like
inlet and outlet.
internal
rotor
external
rotor
delivery sideinduction side
inlet outlet
figure 3 Principle of the micro annular gear pump
figure 4 Operating principle of the micro annular gear pump
In the case of rotary displacement pumps, the delivered amount of liquid may
be easily calculated form the displacement volume Vgof the pump and the
number of revolutions of the rotor n. Displacement volume stands for the
volume of liquid that is moved within one revolution of the rotor. This
relationship is illustrated by the following formula:
nVQ g
Vol ⋅⋅=
η
The volumetric efficiency
η
Vol shows the relationship between the actual and
the theoretical flow rate. The existing differences result from internal
movement of the liquid during the operation.
