Hobbes CLEANSSETTE User manual

Optical Connector Cleaner
CLEANSSETTE Manual
Screw
Cover
Guide roller
Cassette reel
Window
Wiping Board
Guide Roller
Lever
Structure
Latch
Latch
Cover guide roller
The angle mark
for cover guide roller
How to use
1. Open the shutter by gripping lever.
New cleaning tape will appear.
2. Push and slide a ferrule end face while
gripping the lever. While sliding the
ferrule end face, please make sure the
ferrule end face has completely touch
the cleaning tape. After slide the ferrule
end face in one slot, turn the ferrule
end face 90 degree and slide the
second slot.
3. Close the shutter by releasing the grip.
4. You may view the remaining reel from
the window.

www.hobbes–group.com
CAUTION!
When the lever becomes easy to depress, it indicates a new refill is needed.
Repeated forceful depression of lever can cause damage to cleaner
mechanism. Be Careful not to place this product at more than 60°C for
long times and it may loose its functionality. Replace the new reel in the
manual way. If you do not, a damage may result. CLEANSSETTE can
not be warranted when improper replacement is installed.

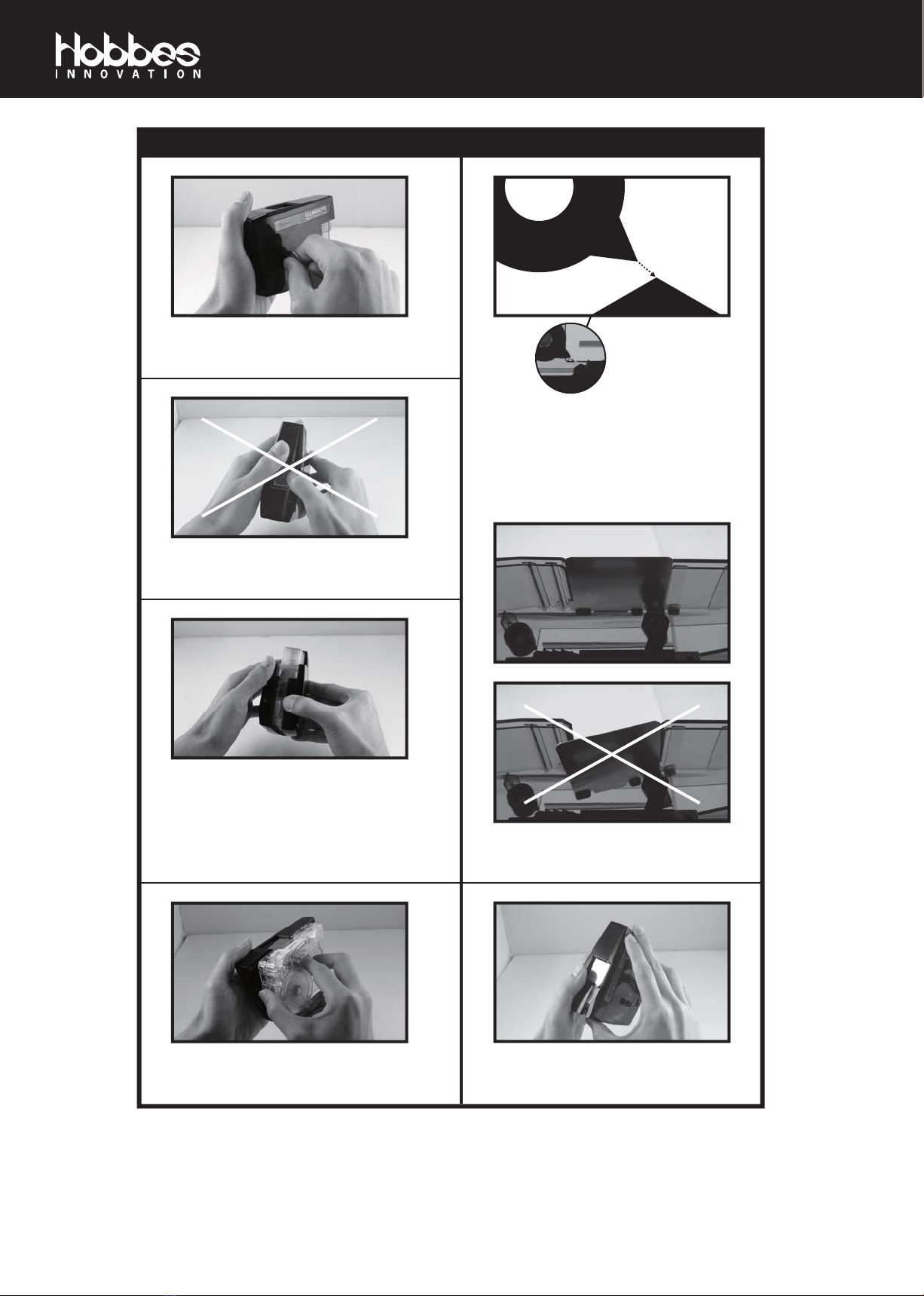

How to replace the Cassette Reel.
1. Turn the screw with a coin and
open the cover.
4. Pull out the finished cassette
reel and replace with new one.
2. Never open cover from the top.
It may cause damage to the cover.
3. Always open cover from the
bottom. When open the cover,
please use one hand to grip one
of the covers and the other
hand opens.
5. When putting the new cassette
reel, make sure the cover guide
roller is pointing to the top of
angle mark and the metal cover
is in the slot.
6. Close the cover and tighten
the screw.
