Hobbywing Technology XRotor User manual

User Manual
01Specifications
Model 5.8GHzVideo Transmitter
Frequency 5.7GHz-5.8GHz
VTx Port SM Female Connector
ntenna Port SM Male Connector
Supply Voltage 7-30V
Size 36*36mm
Pitch-row 30.5*30.5mm
02Installation

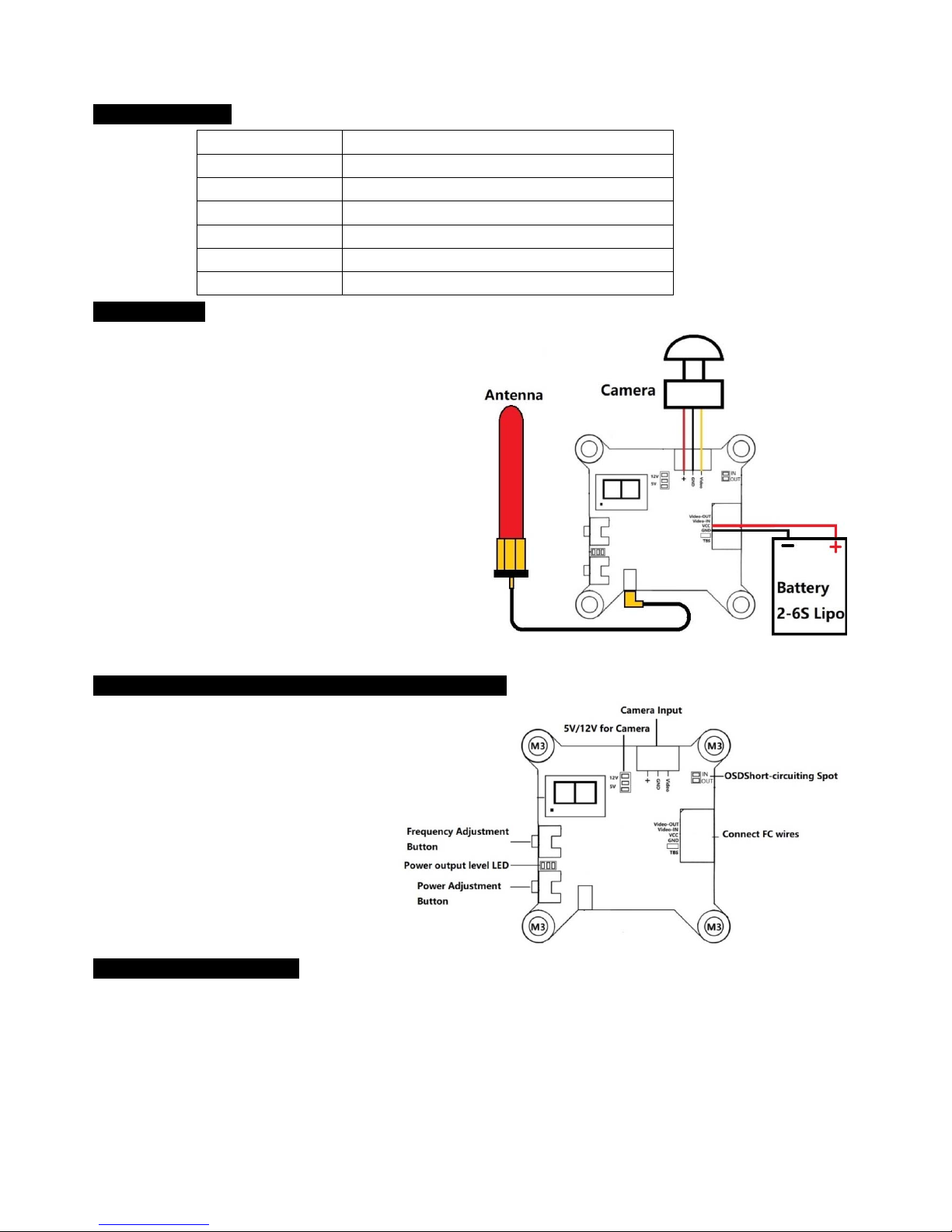

1) Use the 3pin connecter wire( red black and yellow ) connect
the camera and VTx .(as the picture shown beside ) .
2) Connect the VTx“VCC” port to the battery “+” , and “GND” port
to the battery “-“(battery voltage must be 7-30V (2-6S Lipo)) .
3) The module leaves the factory with the antenna permanently
attached/glued.
4) ntenna manufacturer:
HOBBYWING TECHNOLOGY Co.,
LTD.
ntenna brand: not applicable
ntenna model name:5.8GHz antenna ;
ntenna gain:2.5dbi
03 Layout & Ports of the Video Transmitter VTx )
•Short circuit the two OSD soldering points when
using the VTX separately , anddo not short circuit
the two points when pairing the VTX with the
HobbywingF4 flight controller and XRotor Micro
45 4-in-1 ESC .
• Short circuit the corresponding two soldering
points to select the supplyvoltage of 5V/12V. If
short circuit the upper two points, then the VTX
willprovide the voltage of 12V to the camera; if
short circuit the lower two points,then the VTX will
provide the voltage of 5V to the camera.
04Parameter Adjustment
Frequency Point Adjustment Frequency Set-Channel forms Frequency Point)
1） Display： If the LED segment display on the VTX displays “ 2”, then it means the corresponding frequency is 5845MHz (as shown
in the form below).
2）Frequency Set djustment: press the “Frequency djustment Button” for 2 seconds to enter the frequency adjusting mode, and
the LED segment display starts to f lash; press the same button to change the frequency, the frequencies are circularly displayed
(from to F); and press the same button for 2 seconds to save the setting and exit the mode after selecting the corresponding
frequency.
Channel djustment: press the “Frequency djustment Button” for 2 seconds to enter the channel adjusting mode, and the LED

segment display starts to flash; press the same button to change the channel, the channels are circularly displayed (from 1 to 8); and
press the same button for 2 seconds to save the setting and exit the mode after selecting the corresponding channel.that’s to adjust
the channel after adjusting the frequency or adjust the frequency after adjusting the channel
3) Frequency Point -Frequency Table:
Channel
Frequency 1 2 3 4 5 6 7 8
5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz
B 5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz
F 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz
R 5732MHz 5769MHz 5806MHz 5843MHz
press the “Frequency djustment
Button” for 2 seconds , then come into the
Frequency set
press the same button to
change the frequency
press the same button for 2
seconds to save the setting
and exit the mode
press the “Frequency
djustment Button” for 2
seconds to enter the channel
adjusting mode
Press the same button to
change the channel
press the same button for 2
seconds to save the setting and
exit the mode
