HOBOT-268/288 Window Cleaning Robot
User’s Manual

- 1 - HOBOT Technology Inc.
Copyright
Copyright ©2017 by HOBOT®Technology Inc. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system or translated into any language or computer language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of this company.
Trademarks
All other logos, products, or company names mentioned in this manual may be
the registered trademarks or copyrights of their respective companies, and are
used for informational purposes only.
Technical support
If any problems occur and this manual cannot provide the solution you need,
please contact a local retailer or local authorized dealer.
Disclaimer
HOBOT Technology Inc. makes no claims or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties, tradability or suitability for any particular purpose. Furthermore,
HOBOT Technology Inc. reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation of this
company to provide notification of such revisions or changes.
The user should follow the instructions provided in this user manual, but is
ultimately responsible for assessing placement and safety when using this glass
cleaning tool.

- 2 - HOBOT Technology Inc.
Important Safety Precautions
Read all instructions before operating this device.
WARNING
1. Fasten the safety rope and tie to an indoor fixture before operating the device.
2. Check if the safety rope is broken or the knot is loose before operating the
device.
3. A power cord must be used for the HOBOT to function properly.
4. For windows with no balcony, a warning area must be established on the
ground below to prevent people from coming near it.
5. The battery must be fully charged (green light ON) before using.
6. Do NOT use on rainy or humid days.
7. Turn power on before putting device onto glass.
8. When placing the appliance onto glass, make sure it sticks to the surface
before removing the supporting hand.
9. Remove the device before turning the power off.
10.Make sure to put the cleaning cloth onto the device correctly to avoid air
leakage.
11.Do NOT use on frames with non-rectangular (rounded) edges.
12.Do not spray or pour water onto the appliance.
13.Prohibit children from using this device.
14.Remove any obstructions on the glass. Do not use on cracked glass. Reflective
or coated glass may be scratched during operation by dirt on the glass.
15.Keep hair, loose clothing, fingers, and all body parts away from the openings
and moving parts.
16.Do not use in areas containing flammable or combustible liquids or gases.

- 3 - HOBOT Technology Inc.
Product Description
HOBOT-268/288 is a square-shaped window-cleaning robot with a vacuum
motor inside that uses suction to stick to glass surfaces. The device also has two
caterpillar wheels that can freely traverse window surfaces, and even walls. The
easily-replaceable lint-free cloth is used on the pad. Micro-fiber cloth is used to attain
superior glass cleaning.
An embedded UPS (Uninterrupted Power System) can prevent the robot from
falling off the window even when the power is off.
There are two advanced sensors added for enhancing HOBOT’s cleaning
performance and tightening its security while it works on framed and even frameless
windows. The pressure sensor monitors air leakage and the laser sensor detects the
edge of windows.
HOBOT has AI Technology that can calculate paths, auto-detect window edges,
and auto-clean entire windows. It also features a mode for manual operation.
Specifications
Product size
240mm x 240mm x 100mm (LWH)
(9.5 in x 9.5 in x 3.9 in)
Product weight
1.2Kg (2.65 lbs)
Gift box size
340mm x 255mm x 125mm (LWH)
(13.4 in x 10.0 in x 4.9 in)
Gift box total weight
2.35Kg (5.18 lbs)
Input Voltage
100~240VAC, 50Hz~60Hz
Adapter output
Minimum 24V/3.0A
Power consumption
72W
AC power cord length
1.0m (3.3 feet)
DC power cord length
4.0m (13.1 feet)
Safety rope length
4.5m (14.8 feet), Stength:150Kgf
Battery
Li-Po, 4x3.7 V
Battery working time
20 minutes
Battery life
2 years
Cleaning speed
2.4 min/ m2(14.5 sec/ feet2)
(Cleaning the entire area twice)
Noise
64dB
Maximum cleaning area
Height: 6m (19 feet), Width: 5m (16 feet)

- 4 - HOBOT Technology Inc.
Product and accessories
Device x 1
Remote controller x 1
Adapter (100~240VAC, 50~60Hz) x 1
AC power cord x 1
DC power extension cord (4 meters or 13 feet) x 1
Microfiber dry-cleaning cloth x 3
Microfiber polishing cloth x 3
Safety rope x 1
User manual x 1
Product features
Designed for any thickness glass
AI Technology HB268 V1.0
Cleaning speed: 2.4 min/m2(14.5 sec/ feet2).
3 kinds of automatic operation modes for cleaning the entire window
Stops automatically upon completion of cleaning.
Embedded UPS (Uninterrupted Power System)
Applicable to frameless windows (Laser sensor detects edges of windows)
Anti-falling control algorithm
Auto-detects edges of window
Microfiber cloth
High-strength safety rope (tensile strength 150Kgf) and buckle
Remote control
Power consumption: 72W
Input voltage: 100~240VAC, 50~60Hz

- 5 - HOBOT Technology Inc.
Getting to know the device
Step 1. Preparing
(1) Do not use device on rainy or humid days.
(2) For windows with no balcony, a warning area must be established on the
ground below to prevent people from coming near it.
(3) Check to see if the safety rope is broken or if the knot is loose.
(4) Fasten the safety rope and tie to an indoor fixture before operating if
clean outside of higher floor window.
Safety rope & buckle
DC power jack
Vent
Green light: full-charged
Hanging hole
Power-switch
Caution sticker
Blue light: Indicates
normal status
Red light: Indicates
abnormal status
Orange light: charging
Vent
Handle
Buzzer
Remote receiving window
2-Laser Sensor
Cleaning cloth
Blue LED, Red LED
Remote receiving window
2-Caterpillar wheel
Suction area

- 6 - HOBOT Technology Inc.
Step 2. Connect power cord to HOBOT correctly.
Step 3. Make sure the battery is fully charged (green light ON) before use:
(1)First, turn off the power switch on the device. Plug it into a power source.
Orange light ON means charging.
(2)Green light ON means the battery is fully charged.
Step 4. Make sure to put the cleaning cloth onto the device correctly to avoid air
leakage.
Step 5. Put the device onto glass.
(1) Turn power switch on make sure fan is running.
(2) Put device onto glass and keep 10cm (4 in) away from the window frame.
(3) Check if device is sticking to the glass before releasing it.
Step 6. Auto mode or manual mode operation.
(1) Operate HOBOT by remote controller. There are 3 kinds auto mode (,
, ) that could automatically clean whole window.
(2) Press
to stop device running.
(3) Press , , , to manually control device moving.
Step 7. Finish and remove the device from glass.
(1) While device is running, hold the safety rope with one hand and take
device down from glass with the other hand.
(2) Remove the device to a safe area, then turn it off.

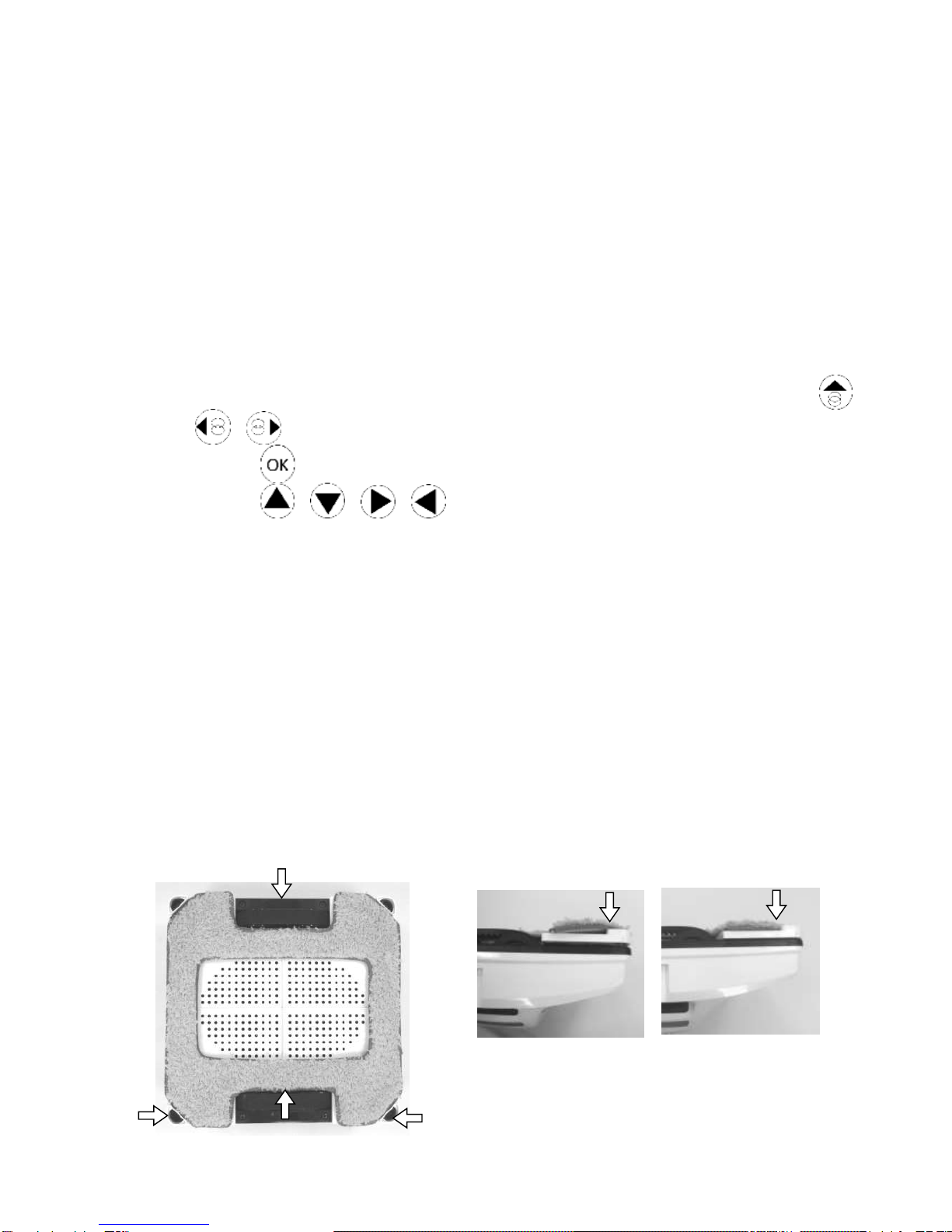

Put cleaning cloth onto device correctly
(1) HOBOT has 2-laser sensors for detecting glass edge. These laser sensors
can not be covered by cleaning cloth like as shown.
(2) Put cleaning cloth onto device flatly and do not let cloth cover the caterpillar
wheel and laser sensors.
X
O
2-laser sensor
Caterpillar wheel

- 7 - HOBOT Technology Inc.
How to clean caterpillar belt
When the device easily slips on the surface of the window, it is because belts are
stained with accumulation of dust and water after each use. It is highly
recommend cleaning caterpillar belts before putting the device away.
Please follow 3 steps below.
Step 1: Turn the device upside down.
Step 2: Turn power switch on, the device’s caterpillar belts continually rotate for 3
minutes.
Step 3: Customers use cloth clean caterpillar belts and keep cloth in the middle
of belts to avoid cloth being jammed in the belts. If cloth is jammed, users
can turn power switch off and draw it out.
UPS (Uninterrupted Power System) function
(1)The UPS function will be enabled automatically when no electric power is
supplied. The backup time of this UPS is 20 minutes.
(2)If no electric power is supplied, the device will stop automatically, sound an
alert, and flash a red light. The user should take the device down from the glass
as soon as possible.
(3)The safety rope can be used to pull the device back. Gently pull the safety rope
at an angle close to the glass to prevent it from falling off.
How to clean the glass
Microfiber dry-cleaning cloth : it is specifically used for dry clean to wipe partial
dust, dirt off the outside of windows because of its lower friction and poorer water
absorbency.
Microfiber polishing cloth : it can be used for wet or dry clean and suitable for
dust-free exterior windows and interior windows due to its higher friction factor
and better water absorbency.

- 8 - HOBOT Technology Inc.
Spraying detergent on the glass makes HOBOT effectively polish window and
leave window shining. If the device slips and cannot move, please change cloth
to micro-fiber dry-cleaning cloth.
If there is water or detergent on the cloth or glass, the water or detergent will mix
together with the dust or dirt to become mud. Thus, dusty windows must be
cleaned with dry- cleaning cloth as the first step of cleaning glasses, no water or
detergent is needed, exterior windows especially.
Using HOBOT on sunny days or days with low humidity for best results.
The surface of window with water molecules becomes slippery and has
white streaks left on the glass so it is not suggested using the device to
clean exterior windows on rainy or high humidity days.
Remote controller
The device can be remote controlled from the front and back sides. To replace the
battery, just pull down the battery cover.
Setup
Direction
Horizontal
Setup
Vertical
Setup
Zigzag, then N-way
auto-clean whole window
N-way auto-clean whole
window
move LEFT then Zigzag
auto-clean the rest window
move UP then N-way
auto-clean the rest window
move RIGHT then Zigzag
auto-clean the rest window
move DOWN then in N-way
auto-clean the rest window
, , ,
Manually move UP, DOWN, RIGHT, LEFT
,
Stop
Start/Stop
Auto up then down Auto left then down Auto right then down

- 9 - HOBOT Technology Inc.
Setting up the device with the HOBOT App.
( HOBOT-288 only )
Step 1: Scan QR code or search “HOBOT”on the App Store or
Google Play to download HOBOT app on your smart
phone or tablet.
Step2. Turn on Bluetooth and click
HOBOTApp.
Step3. Turn on the device and wait for
“Connected”shown on HOBOT
App.
Make sure both HOBOTApp and the device are on, so you can
use your iOS or Android smart device to operate the
device.
LED indication
Situation
LED indication/Sound
1. Battery charging
Orange LED is ON
2. Battery charged full
Green LED is ON
3. No electrical power
Blue LED is ON
Red LED flashing
Sound: repeat beep
4. Hardware error
Red-LED flashing
Blue-LED flashing with “error number”
Sound: beep once 60 seconds
5. Vacuum pressure too low
Blue LED is ON
Red-LED flashes once
Sound: single beep
6. Air leakage while operating
Blue LED is ON
Red-LED flashes once
Sound: single beep

- 10 - HOBOT Technology Inc.
Power adapter/DC extension cable
Frequently asked questions (FAQ)
Q1: When the power switch is turned on, the FAN does not rotate, and no any beep
sounds.
Case
LED signal/Sound
Situation and Solution
1.
Battery voltage is
too low
Blue: flash
Red: off
Orange: on
Sound: no beep
It means battery charge is too low. Wait for
battery to fully charge (green light is lit). If
machine still can’t be used after charging for 8
hours, the battery should be changed.
2.
Hardware failure
Blue: flash
Red: flash
Sound: beep
Machine hardware failure.
Please contact a local retailer or local
authorized dealer for repairs.
Q2: When the power switch is turned on, the FAN is rotating, Blue-LED is lighting,
Red-LED is flashing, with repeat beep sounds.
Ans: No electrical power supplied. Please connect and check power cord, adapter,
and the device.
STEP 2 :
Plug into DC power jack
Power adapter
L-shape connector
DC extension cable
DC plug
STEP 1
STEP 3 :
Connect AC cord to
AC power port

- 11 - HOBOT Technology Inc.
Q3: When the power switch is turned on, HOBOT can’t start up by remote controller.
Case
LED signal/Sound
Situation and Solution
1.
Pressure not
enough
Blue: on
Red: flash one time
Sound: single beep
The vacuum pressure is not enough. User
could re-attach cleaning cloth onto device
again, or change a new cleaning cloth.
2.
Remote failure
Blue: on
Red: off
Sound: no beep when
press remote key
Remote controller failure.
Please contact a local retailer or local
authorized dealer for repairs.
Q4: The HOBOT slips and cannot detect the upper frame of window in “Auto Up then
Down”( ) mode.
Ans: (1) Press to stop, switch to manual mode to lower the half of the
device and then switch to “Auto Up then Down”( ) mode again.
or, (2) Press to stop, switch to manual mode to lower the half of the
device and then switch to or auto mode.
Q5: HOBOT cannot finish cleaning the whole window and stops in the middle area.
Ans: Press or auto mode to continue cleaning.
Q6: HOBOT slips and can not climb up to the window frame.
Ans: (1) The cleaning cloth already got heavy dirt or too wet. It shall change cleaning
cloth.
(2) The caterpillar belt might be too wet or got heavy dust. It shall clean
caterpillar belt.
Q7: HOBOT does not move smoothly, or it moves irregularly.
Ans: (1) Cleaning cloth is too dirty. Please change out the cleaning cloth for a clean
one.
(2) Do not spray too much water on glass or cleaning cloth.
(3) Glass surface has different friction factor areas due to glass stickers, window
film, and so on. Please limit use the HOBOT to certain areas of the window.
Q8: What to do if HOBOT stops due to a power outage?
Ans: (1) User can pull HOBOT back with safety rope. Gently pull the safety rope at an
angle close to the glass to prevent it from falling off the glass.
(2) Switch the power switch to “off”.
(3) Check whether there is a poor connection or broken cord.

- 12 - HOBOT Technology Inc.
Q9: What to do if HOBOT unexpectedly stops and the red light is flashing, with no
alarm sounding?
Ans:(1) User can move HOBOT to safe area by remote control, or pull HOBOT back
with safety rope. Gently pull the safety rope at an angle close to the glass to
prevent it from falling off the glass.
(2) Remove obstacles on the glass surface.
(3) Check whether there is air leakage caused by a gap or uneven window
frame.
Safety information about power adapter/battery
Use only the power adapter supplied with this device. Use of other types of
power adapters will result in malfunction and/or danger.
Please use a proper electrical outlet and make sure no heavy objects are placed
on the power adapter or the power cord.
Allow adequate ventilation around the adapter when using it to operate the
device. Do not cover the power adapter with objects that will reduce ventilation
and cooling.
Do not use the adapter in a humid environment. Never handle the adapter with
wet hands.
Connect the adapter to a proper power source. The voltage requirements are
listed on the adapter.
Do not use a broken adapter, power cord, or plug.
Do not attempt to service the adapter. There are no service parts included.
Replace the whole unit if it is damaged or exposed to high moisture. Consult your
HOBOT dealer for help and maintenance.
The battery used in this device may present a risk of fire or chemical burn if
mistreated. Do not disassemble, short the contacts, heat above 60℃(140℉), or
incinerate.
If you have to dispose of old equipment, please take it to the local recycling
center for recycling electrical and electronic parts.
General safety information
Retain the safety and operating instructions for future reference.
Follow all operating and use instructions.
Do not expose your device to rain or excess humidity, and keep it away from
liquids (such as beverages, faucets, and so on).

- 13 - HOBOT Technology Inc.
Avoid exposing your device to direct sunlight or sources of intense light, and
keep it away from sources of heat (such as radiators, space heaters, stoves, and
so on).
Do not place the device in the vicinity of strong magnetic fields.
Keep the device and accessories away from children.
Product operating temperatures: 0℃~40℃(32℉~104℉)。
Product storage temperatures: -10℃~50℃(14℉~122℉)。

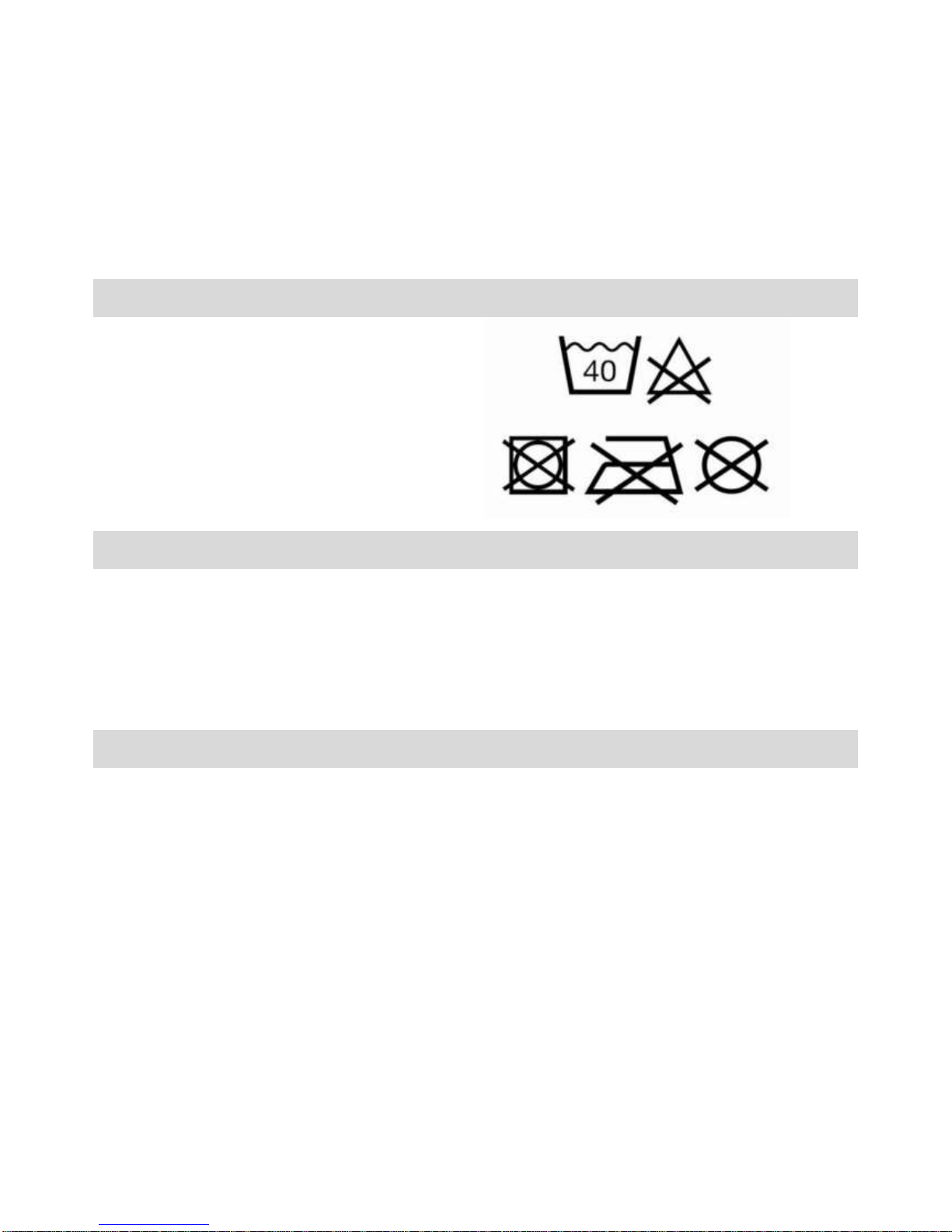

Cleaning cloth laundry instructions
Washing under 40℃(104℉)。
Do not bleach.
Do not tumble-dry.
Do not iron.
Do not dry clean.
Limited warranty
If there are defects in your HOBOT glass-cleaning robot due to faulty materials, poor
workmanship, or malfunction within the warranty period from the date of purchase or
delivery, please contact a local retailer or local authorized dealer for repairs or
replacement.
Not covered by warranty
Normal wear and tear (e.g. cleaning cloth, safety rope, etc).
Reduction in battery discharge time due to battery age or use.
Damage caused by assembly or installation that is not in accordance with the
instructions included with the HOBOT.
Damage caused by using the HOBOT glass cleaning robot for anything other
than normal domestic household purposes.
Damage caused by using parts and accessories which are not specified by
HOBOT.
Damage caused by accidents, abuse, or misuse.

- 14 - HOBOT Technology Inc.
WARRANTY CARD
The warranty for HOBOT-268/288 is 12 months from the date of purchase.
The warranty for the battery is 6 months from the date of purchase.
The service life of HOBOT-268/288 is 5 (five) years from the date of purchase.
Robot’s serial number must be registered to receive limited warranty service.
You can register robot on official distributor’s web-site:
http://homerobotusa.com/hobot-register/
Or you can call us to register at 833.462.6887.
HOBOT Customer Service in the US
Home Robot LLC provides limited warranty, service, and repair of our products. We
also supply accessories and parts for all HOBOT models.
217 Miracle Strip Pkwy
Fort Walton Beach, FL 32548
1.833.462.6887. Monday through Friday, 9am-5pm EST.
www.homerobotusa.com
[e-mail]

- 15 - HOBOT Technology Inc.

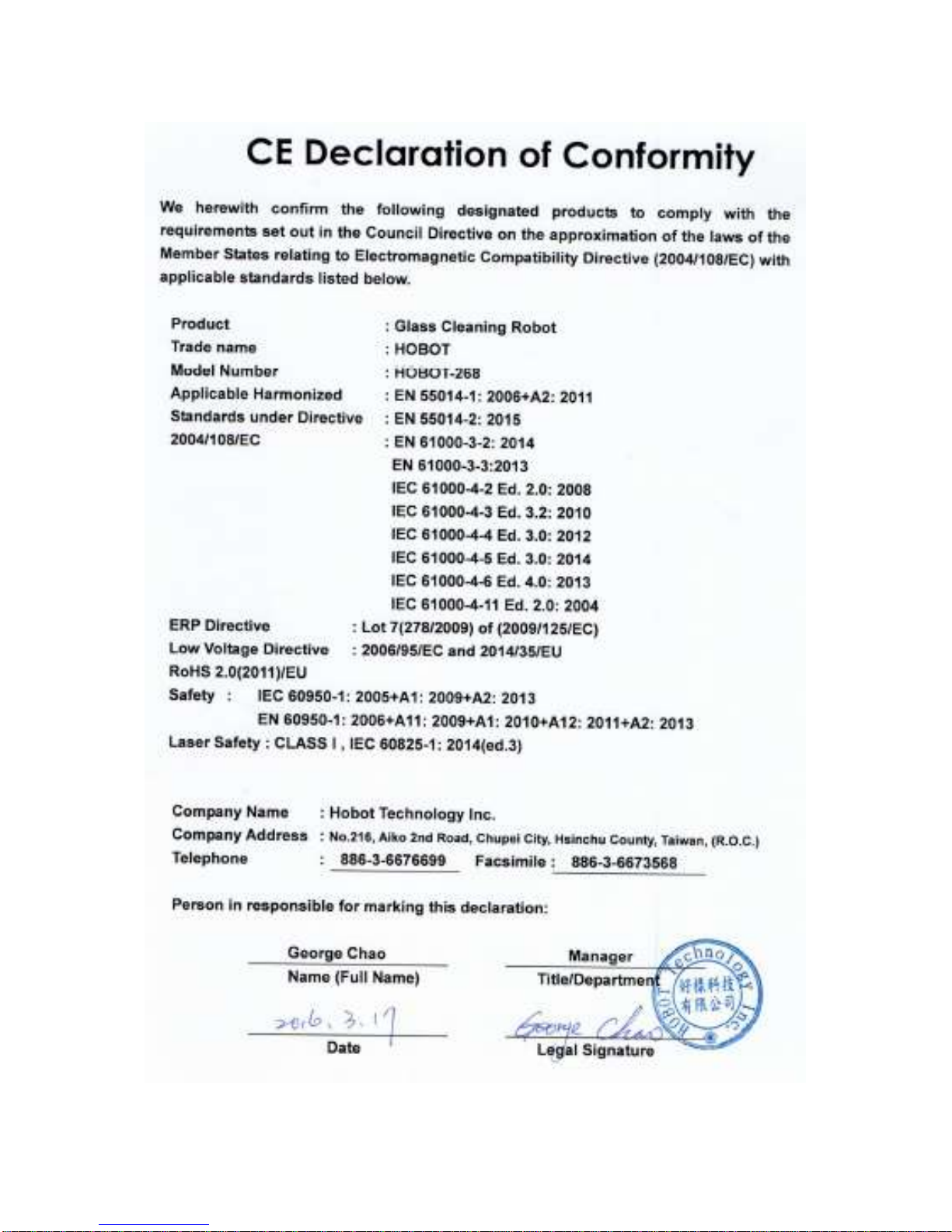

- 16 - HOBOT Technology Inc.
Hobot Technology Inc.
www.hobot.com.tw
