FN-400ULX
Power Supply/Charger
Installation Guide
Altronix Corp.
140 58th St. Brooklyn, NY
Rev. 101112

- 2 -
140 58th St.
Overview:
The FN-400ULX is a power supply that converts a 115VAC / 60Hz input to a 12VDC or 24VDC regulating output
(see specifications below).
Agency Listings:
•
UL File # S4707:
UL Listed for Access Control
Specifications:
Altronix Corp . Output (cont’d):
•
Short circuit and thermal overload protection.
Battery Backup:
System Units (UL 294), UL Listed Standard for Power
Supplies for Use with Burglar-Alarm Systems (UL 603),
UL Listed Hospital Signaling and Nurse Call Equipment
(UL 1069), UL Listed Standard for Safety for Fire
Protective Signaling Systems (UL 1481).
•
MEA - NYC Department of Buildings Approved.
•
CSFM - California State Fire Marshal Approved.
•
FM Approved.
Input:
•
Input 115VAC, 60Hz, 3 amp.
•
AC input and DC output LED indicators.
Output:
•
Class 2 Rated power-limited output.
•
12VDC or 24VDC selectable output.
•
4 amp total supply current at 12VDC
or 3 amp total supply current at 24VDC.
•
Filtered and electronically regulated outputs.
•
Built-in charger for sealed lead acid or gel type batteries.
•
Automatic switch over to stand-by battery when
AC fails.
•
Maximum charge current 0.7 amp.
•
Zero voltage drop when switched over to battery backup.
Supervision:
•
AC fail supervision (form “C” contacts).
•
Low battery supervision (form “C” contacts).
•
Battery presence supervision (form “C” contacts).
Additional Features:
•
Power supply, enclosure, cam lock and battery leads.
Enclosures:
FN-400ULX-R (Red)
FN-400ULX-C (Charcoal Grey)
Enclosure Dimensions (H x W x D) :
13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm)

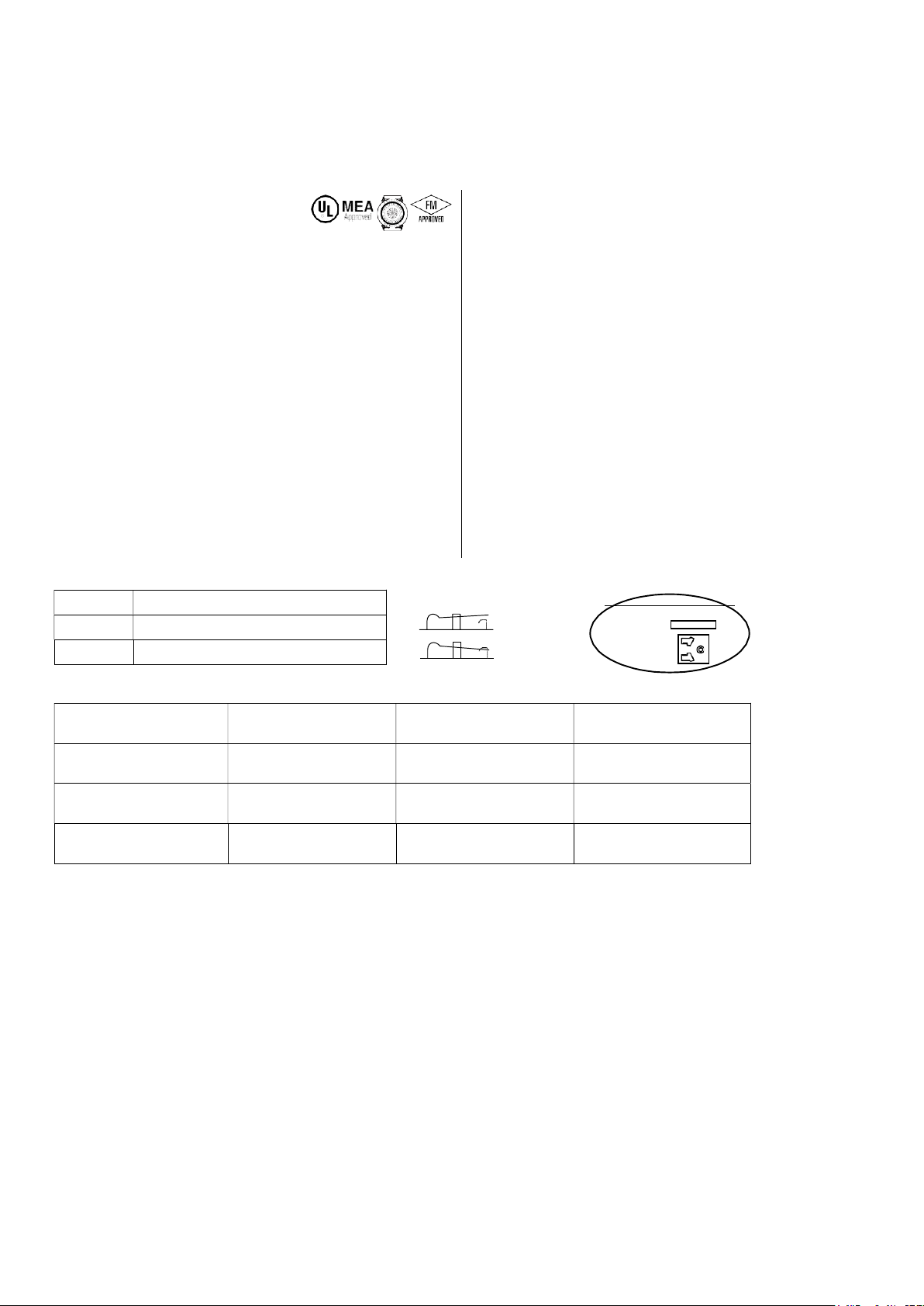

Power Supply Voltage Output Selections:
Switch Detail
OPEN SWITCH
Fig. 1
CLOSED SWITCH
Stand-by Specifications:
Output 4 hr. of Stand-by &
5 Minutes of Alarm
24 hr. of Stand-by &
5 Minutes of Alarm
60 hr. of Stand-by &
5 Minutes of Alarm
12VDC / 40AH Battery
Stand-by = 4.0 amp
Alarm = 4.0 amp
Stand-by = 1.0 amp
Alarm = 4.0 amp
Stand-by = 300mA
Alarm = 4.0 amp
24VDC / 12AH Battery -------- Stand-by = 200mA
Alarm = 3.0 amp --------
24VDC / 40AH Battery
Stand-by = 3.0 amp
Alarm = 3.0 amp
Stand-by = 1.0 amp
Alarm = 3.0 amp
Stand-by = 300mA
Alarm = 3.0 amp
Installation Instructions:
The unit should be installed in accordance with article 760 of The National Electrical Code as well as NFPA 72 and all
applicable Local Codes.
1.
Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure’s
upper keyholes over the two upper screws; level and secure. Mark the position of the lower two holes. Remove the
enclosure. Drill the lower holes and install two fasteners. Place the enclosure’s upper keyholes over the two upper
screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 4).
2.
Set the FN-400ULX to the desired DC output voltage by setting SW1 (Fig. 1, pg. 2, Fig. 2c, pg. 3) to the appropriate
position (refer to Power Supply Voltage Output Selections chart).
3.
Connect AC power (115VAC 60Hz) to terminals marked [L, G, N] (Fig. 2, pg. 3). Use 14 AWG or larger for all
power connections (Battery, DC output, AC input). Use 22 AWG to 18 AWG for power-limited circuits
(AC Fail/Low Battery reporting).
Keep power-limited wiring separate from non power-limited wiring (115VAC / 60Hz Input, Battery Wires).
Minimum 0.25” spacing must be provided.
CAUTION: Do not touch exposed metal parts. Shut branch circuit power before installing or servicing equipment.
There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.
Opened - 24V
Closed
-
12V
SW1
Output Switch Position
12VDC SW1 - CLOSED (Fig. 1, on right)
24VDC SW1 - OPEN (Fig. 1, on right)

- 3 -
4.
Connect devices to be powered to terminals marked [+ DC –] (Fig. 2, pg. 3).
5.
Measure output voltage before connecting devices. This helps avoiding potential damage.
6.
For Access Control applications, batteries are optional. When batteries are not used a loss of AC will result in the
loss of output voltage. When the use of stand-by batteries is desired, they must be lead acid or gel type.
Connect battery to terminals marked [+ BAT –] (Fig. 2, pg. 3). Use two (2) 12VDC batteries connected in series for
24VDC operation (battery leads included).
7.
Connect appropriate signaling notification devices to AC FAIL & BAT FAIL (Fig. 2a, pg. 3) supervisory relay outputs.
Note: When used in fire alarm, burglar alarm or access control applications, “AC Fail” relay should be
utilized to visually indicate that AC power is on. To delay report 6 hours cut “AC Delay” jumper (Fig. 2b, pg. 3).
8.
Please ensure that the door is secured with the provided cam lock.
Wiring:
Use 14 AWG or larger for all power connections.
Note: Take care to keep power-limited circuits separate from non power-limited wiring (115VAC, Battery).
Maintenance:
Unit should be tested at least once a year for the proper operation as follows:
Output Voltage Test: Under normal load conditions, the DC output voltage should be checked for proper voltage level
(refer to Power Supply Voltage Output Specifications chart).
Battery Test: Under normal load conditions check that the battery is fully charged, check specified voltage both at battery
terminal and at the board terminals marked [+ BAT –] to ensure that there is no break in the battery connection wires.
Note: Maximum charging current under discharge is 0.7 amp.
Note: Expected battery life is 5 years, however it is recommended changing batteries in 4 years or less if needed.
CAUTION: De-energize unit prior to servicing. For continued protection against risk of
Fig. 2
electric shock and fire hazard replace fuse with the same type and rating.
Do not expose to rain or moisture.
Fig.
Fig.
Keep power-limited wiring separate from non power-limited.
Use minimum 0.25" spacing.
2a
Door
Green
Lead
Wire
Strap
(from
Enclosure
to Door)
Do Not Touch
Exposed Metal Parts
Bat Fail NC C NO NC C NO Fail
Battery & AC Supervision
Circuit
(power-limited)
115VAC
power
mains
non power-
limited
Class 1
Fig. 2c
2b
AC D elay
Opened
-
24V
Closed
-
12V
SW1
J1
15
+
BAT ---
+
DC ---
Battery connection
(non power-limited)
DC
Output
to
devices
(power
-
limited)
Battery 1
Battery 2
12VDC Rechargeable Battery
(optional)
12VDC Rechargeable Battery
(optional)
CAUTION: Optional rechargeable stand-by batteries must
match
the
power
supply output voltage
setting.
AC
Opened - 24V Closed - 12V
SW1
J1
15A 250 V
Risk of Fire, Replac e Fuses As M arked
AC DC B at
5A 250 V
L G N
Bat Fail NC C N O NC C N O AC Fail
AC Delay

- 4 -
LED Diagnostics:
Red (DC) Green (AC) Red (BAT) Status
ON ON ON Normal operating condition.
ON OFF ON Loss of AC. Stand-by battery supplying power.
OFF ON OFF No DC output. Battery Trouble
OFF OFF OFF Loss of AC. Discharged or no stand-by battery. No DC output.
ON ON OFF Battery missing / Low battery.
Terminal Identification:
Terminal Legend Function/Description
L, G, N Connect 115VAC 60 Hz. to these terminals: L to Hot, N to Neutral.
+ DC --- 12VDC @ 4 amp or 24VDC @ 3 amp continuous power-limited output.
AC Fail
NC, C, NO
Indicates loss of AC power, e.g. connect to audible device or alarm panel. Relay normally
energized when AC power is present. Contact rating 1 amp @ 28VDC. AC or brownout fail is
reported within 1 minute of event. To delay reporting of up to 6 hrs., cut “AC delay” jumper
and reset power to unit.
Bat Fail
NC, C, NO
Indicates low battery condition, e.g. connect to alarm panel. Relay normally energized when DC
power is present. Contact rating 1 amp @ 28VDC.
+ BAT --- Stand-by battery connections. Maximum charge current 0.7 amp.

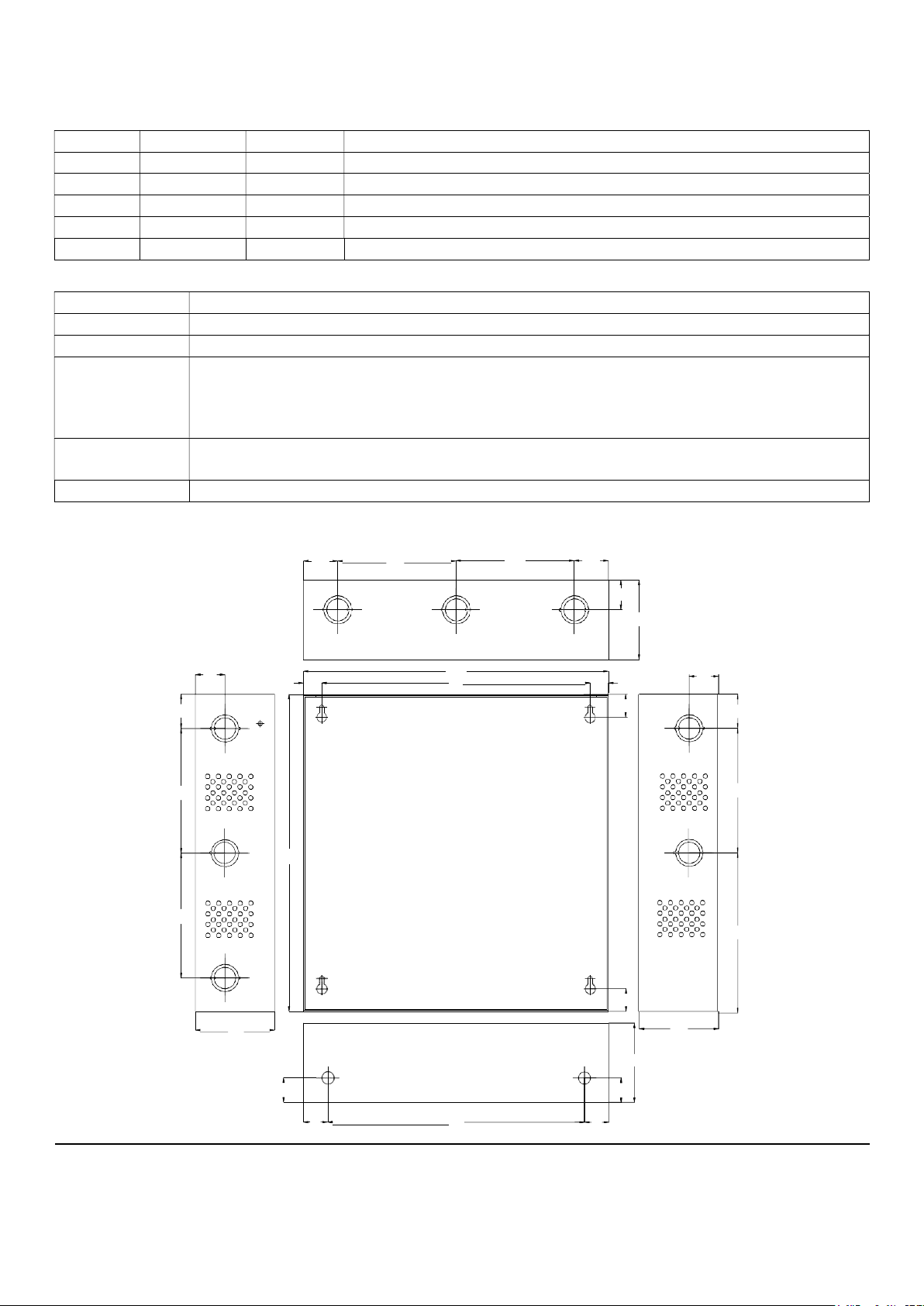

Enclosure Dimensions (H x W x D):
13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm)* The door is included
1.40” 4.85”
4.85”
1.40”
(36mm) (123mm) (123mm)
(36mm)
1.20”
(31mm)
3.25”
(83mm)
12.5”
1.20”
(31mm)
1.40”
(36mm)
5.10”
(1 30m m)
5.10”
(1 30m m)
3.25”
(83mm)
(25mm) (267mm)
(25mm)
Hochiki America Corp.
7051 Village Drive, Suite 100, Buena Park, CA 90621-2268, 714-522-2246, Fax: [phone], www.hochiki.com
IIFN-400ULX G02N
0.75”
(1 9m m)
(318mm)
11.0” 0.75”
(279m m )
(19mm)
1.20”
(31mm)
0.9375”
(24mm)
1.40”
(36mm)
5.10”
(130m m)
13.0”
(3 30m m)
6.5625”
(167m m)
0.9375”
(24mm)
3.25”
(8 3m m)
3.25”
(83mm)
1.0”
(2 5m m)
1.0”
(25mm)
1.0”
10.5”
1.0”
