HOIN HOP-M581 User manual

1
80MM Thermal Receipt Printer
User Manual
Please read this manual carefully before using it, and keep
it for future reference

80MM Thermal Receipt Printer User Manual
2
About this manual
Thanks for your purchase of our company's 80MM thermal printer.
This manual can help you to use this product. Please read this manual
before use, and safekeeping, so that all the user of this product can
read it.
Note
Due to our constant efforts to improve and upgrade the product's
function and performance, our company reserves the right to change
the hardware and software specifications of the manual without prior
notice.
If you find any errors or missions in the contents of this manual, please
tell us or our agent,thank you very much.
Without the prior written permission of our company, the contents of the
relevant manual attached to the product shall not be reproduced,
transmitted, transcribed, stored, etc.
Statement
This product is type A product, may cause the wireless radio
interference in the living environment , in this case,the user need to
protect the interference with effective protection measures.
Safety tips
●Do not disassemble the printer personally, pls read this manual before
use.
●The printer should be installed in a stable place to avoid damage to
the printer due to vibration or shock.
●Do not store and use the printer in the environment of high
temperature, high humidity, and heavy pollution.

80MM Thermal Receipt Printer User Manual
3
●The power adapter of the printer should be connected to the
grounding socket. Avoid to use the same socket with other large motor
or other equipment can lead to voltage fluctuation. Otherwise, it may
lead abnormal to printer and even damage to the printer.
●Pls use the standard power adapter to the printer.
●When connect to printer, please make sure the printer is in power off
status.
●When the printer is printing, please do not open the paper cover,
otherwise it may cause unexpected situation, and even damage the
printer.
●After printing, print head is still in high temperature, pls do not touch, to
avoid burn.
●Pls do not use dissolved substances, such as: benzene, thinner or
alcohol wipe to clean the printer casing. At the same time, please do not
use corrosive chemicals and detergent to contact printer. To avoid
damage to the printer.
●Pls use our company approved or regular factory produced printing
paper, otherwise it may lead to poor print quality, and even damage the
printer core.
●How long the letters can stay on the receipt is related to thermal paper
quality, if you want to print the long-term preservation bills, please
choose a high quality thermal paper.
●The printer is only suitable for using in the altitude below 2000M.
●The printer is only suitable for use in non tropical climates.
Application Area:
●Electronic cash register POS system printing
●Electronic transfer POS system printing
●Sports, postal, civil aviation bill printing
●Query, service system bill printing

80MM Thermal Receipt Printer User Manual
4
●Catering industry bill printing
●Tax bill printing
Package:
●Printer 1PC
●Standard power adapter (including power line) 1SET
●Paper roll 1ROLL
●Data line 1PC
●User manual 1PC
●Driver CD 1PC
Printer Features：
●Support vertical placing and printing;
●Ultra-low power consumption, and ultimate power saving;
●Support billing coming reminder and error warning function;
●Support wall hanging function, meet the special environment printing;
●Support 80MM large diameter roll;
●Support kitchen printing and Internet printing;
●Support printer monitoring function,to avoid losing bills;
●Using 100M Ethernet card, Printing more fast and fluently.
●Re-printing after network disconnection,to avoid lose bills;
●Support LOGO Graphical download and print;
●Support 1D bar code printing;
●Support GB18030 large character library,easy to print uncommon
words;
●Support Multi language printing;
●Rich Interface:USB,Serial,Internet,Bluetooth,WIFI,etc.(Interface
combination, pls contact manufacture to confirm)
●Compatible with ESC/POS print instruction mode;
●Support Windows,Linux,Android and IOS system;

80MM Thermal Receipt Printer User Manual
5
Printer Parameters:
Item
Parameters
Print
parameters
Printing Method
Thermal Line
Printing width
72mm
Resolution
8dots/mm,203dpi
Print speed
160mm/s(Max)
Line Spacing
3.75mm（Can adjust line spacing by
command）
Line No.
FontA-48Lines/FontB-64Lines/Simple,tradition
al Chinese-24 lines
Character
Standard GB18030 simplified / BIG5
traditional Chinese Fonts(Japanese and
Korean optional)
Character Size
ANK character:
Font A:1.5X3.0mm(12x24dot)
Font B:1.1X2.1mm(9x17dot)
Simple/Traditional Chinese:
3.0x30.mm(24x24dot)
Extended
character set
PC437/Katakana/PC850/PC860/PC863/
PC865/WestEurope/Greek/Hebrew/
EastEurope/Iran/WPC1252/PC866/PC852/
PC858/IranII/Latvian/Arabic/PT151,1251/
PC737/WPC/1257/ThaiVietnam/PC864/
PC1001/(Latvian)/(PC1001)/(PT151,1251)/
(WPC1257)/(PC864)/(Vietnam)/(Thai)
Bar code
1D bar code：
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/
CODE39/ITF/CODABAR/CODE93/CODE128

80MM Thermal Receipt Printer User Manual
6
Bar code
Character
Graphics
printing
Supports bitmap download and print (Each
bitmap size max to 20k)
Cutter
Cutter Function
Full cut/Half cut
Paper
Type
Thermal Paper
Width
79.5±0.5mm
Diameter
≤82mm
Feed method
Easy feed(Clameshell feed)
Print
commands
Commands
ESC/POS
Power
Power Adaptor
Input：AC 100V-240V, 50～60Hz
Output：DC 12V/2A
Cash Drawer
output
DC 12V/1A
Buffer
NV Flash
256K bytes
physical
characterist
ics
Weight
1.2KG
Environme
nt
Dimension
195*148*145(MM)
Working
Temp：5 ~ 45℃，Humidity：10 ~ 80%
Reliability
parameter
Storage
Temp：-10 ~ 50℃，Humidity：10 ~ 90%
Cutter Life
1000,000times
Software
Print Head Life
100KM（print density≤12.5）
Driver
Android,IOS,Linux,Windows

80MM Thermal Receipt Printer User Manual
7
Printer connection
1. Connect the power adapter cable with printer.
2. Connect the data cable(eg: USB line) with printer also.
3. Connect Cash drawer line with printer as well.
Install thermal paper
80MM series thermal printer using 80MM thermal paper, using easy
paper structure, convenient to install paper.
1 Pressing down the opening button, open the printer cover
2 Put thermal print paper in the paper holder according to the pic below
3 Pull a little paper out of the warehouse
4 tear excess printing paper

80MM Thermal Receipt Printer User Manual
8
Note: take care of the roll direction, if reverse direction, the content
won’t be print out.
Power switch, press bottom, indicators and their functions
1 Power switch button
The switch can turn on and off the printer power supply.
2 Feed button
Press this button can feed the paper out, if keep pressing, will continue
to feed.

80MM Thermal Receipt Printer User Manual
9
3 Paper light indicator
When this paper light and the Error light flashing at the same time, it
indicates printer is lack of paper; When this paper light and the Error
light are off, means the printer has paper.
4 Power light indicator
This light on indicates that the printer is connected to the power supply,
this light off indicates that the printer power is off.
5 Error light
When Lack paper in printer ; or cutter have problem; or the print head is
overheated; or the cover is not closed properly, this error indicator will
flash.
How to print a self test page
Connect printer with the power adapter, press feed button and turn on
power button at the same time, keep pressing the feed button until the
paper light turn off and then release the feed button, you will see a self
test page printed. In self test page, it shows the current printer status
and setting details.
How to set the beep function close or open
Connect printer to the power adapter, press feed button and turn on
power button at the same time, keep pressing the feed button until the
Paper light and error light all turn off, then release the feed button, then
you will see the beeper have been set closed / opened.
How to set printing density
Connect printer to the power adapter, press feed button and turn on
power button at the same time, keep pressing the feed button until the
Paper light and error light all turn off, and paper light turn on,then

80MM Thermal Receipt Printer User Manual
10
release the feed button, then you have set the printing density
successfully.
How to back to factory setting:
Connect printer to the power adapter, press feed button and turn on
power button at the same time, keep pressing the Feed button until the
Paper light and error light all turn off, and paper light and error light turn
on again, then you will see printer print “Factory Mode set, please
restart the printer.” Now you can release button and restart the printer,
then you back to factory setting.
Cutter stuck maintenance
Method 1: Press the power switch to turn off the printer, then turn it on
to return cutter back to original place.
Method 2: Open the top front cover, then rotate the gear on the printer
cutter mechanism, and make the cutter back to the initial position(Image
as follows). Open another paper cover and re-Install paper roll,then we
can print normally.

80MM Thermal Receipt Printer User Manual
11
Note: do not open cover by force, or may cause unrecoverable damage
to the print head and the cutter.
Printer driver
80MM series thermal printer driver mode has two kinds, one is using the
port for directly printing, the other is install driver in Windows system to
print.
1.port direct drive
In this way, do not need to install the driver, only need to output the
character (commands and data) directly to port, and to achieve
character conversion printing by printer inner hard font library. Using
port directly drive, make the print control more convenient.
If you use port direct drive mode, you need to use the print command
set to control the printer's printing, 80MM series thermal printer has
integrated the ESC/POS instruction set.

80MM Thermal Receipt Printer User Manual
12
2.Install driver in windows system
Install driver stored in CD under windows system, you use the driver
under the program and realize printing. In this way, it is Windows driver
that turn the character into a graphic dot and realize printing.
Windows driver installation instructions, pls see Step (1)-(6):
（1）Double click the driver setup ，click "ok"
（2）Click the "next step"

80MM Thermal Receipt Printer User Manual
13
（3）Select "I accept this Agreement", click "next"
（4）Click "install"

80MM Thermal Receipt Printer User Manual
14

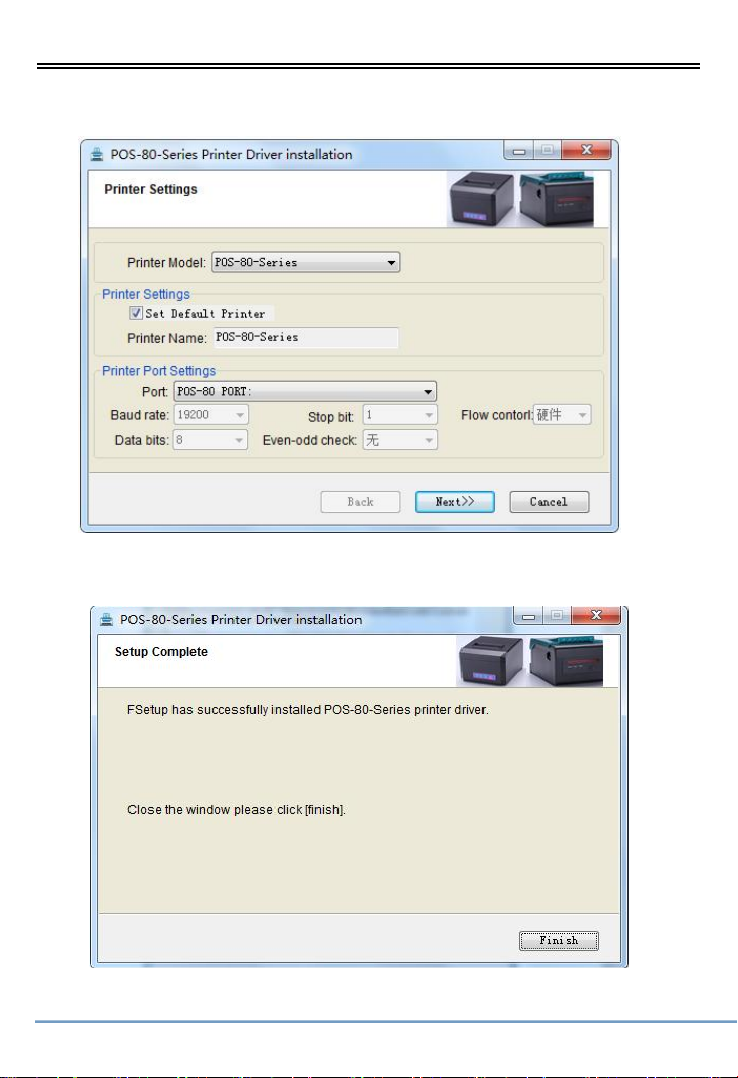

（5）Setup software will automatically identify the version of the
Windows system, click "Next”
(6) Click "finish" to complete the driver installation. After this step
completed, mean the driver have been installed successfully.

80MM Thermal Receipt Printer User Manual
15

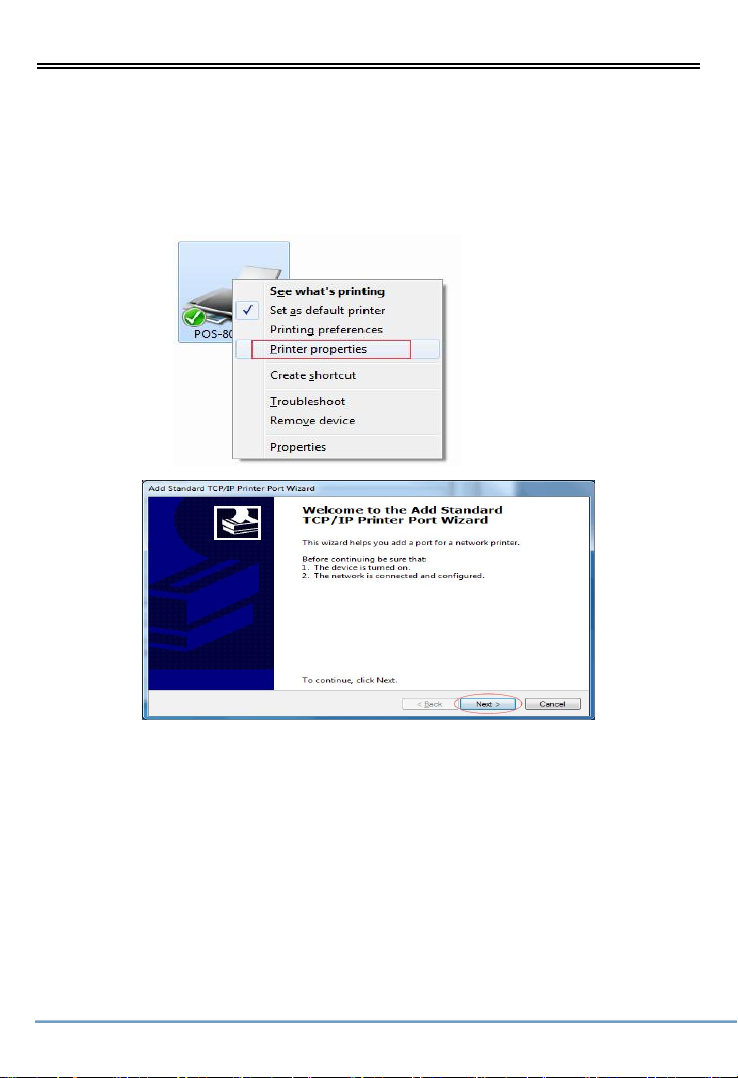

（7）For Ethernet printing,need to add the Ethernet port in your side.
Open Driver POS-80MM-Series and right click it,choose the Printer
Properties and add new Ethernet port.The Exact adding way show as
following . (Only Printer with Ethernet port need to check following
steps)

80MM Thermal Receipt Printer User Manual
16

80MM Thermal Receipt Printer User Manual
17

80MM Thermal Receipt Printer User Manual
18
Printer Repair and maintenance
1. printer external and warehouse cleaning: please use a wet cloth
gently wipe the printer surface and internal paper warehouse.
2. Printer core clean: printer core must be clean on time, especially the
quality of printing is decline, cleaning methods are as follows: put cotton
dipped in anhydrous alcohol and gently wipe the printer core ceramic
parts as shown in the picture below until clean enough.
3.If find water inside printer, pls immediately cut off power, and dry the
printer naturally.
Failure Analysis:
Failure
phenomenon
Failure cause
Solution
Printer paper light
and Error light
flashing at same
time,and make a Di
Di... beep sound
Printer lack of
paper
Install paper correctly
Printer error light
flashing and make
a Di Di...beep
sound
1,The printer
cutter problem.
2.The printer head
is overheated
3. The cover not
closed well
1,Pls follow the “Cutter
stuck maintenance”
schedule above to solve.
2,Open the cover and
dissipate heat fully then go
on printing.
3. Confirm Cover Closed
well
When printing, only
paper running but
no print
Thermal paper
install reverse
Pls install the paper in a
opposite direction

80MM Thermal Receipt Printer User Manual
19
The printer print
light in density
The print head not
clean for a long
time
Put cotton dipped in
anhydrous alcohol and
gently wipe the printer core
ceramic parts until clean
enough
The thermal paper
is not good
Pls choose high quality
thermal paper
There is no
response on printer
The power
adaptor not
connected
Pls check power adaptor is
connected well and power
switch is on.
Printer can self test,
but can not print
online
Driver port
selection error
Pls select the correct print
driver port based on the
actual connection port
Printer serial port
does not print or
print garbled
Bit rate selection
error
Pls set COM baud rate
according to the COM info
on self test page
