HOIN HOP-M581 User manual

58MM Thermal Receipt Printer
User manual
Please read this manual carefully before using it, and keep
it for future reference.

About this manual
Thank you for your purchase of our company's 58MM thermal printer.
This manual can help you learn to use this product. Please read this
manual before use, and safekeeping, so that all the use of this product
can read it.
Safety tips:
◆Do not disassemble the printer personally, pls read this manual
before use.
◆The printer should be installed in a solid place to avoid vibration
or impact damage to the printer.
◆Do not store and use the printer in the environment of high
temperature, high humidity, and heavy pollution.
◆When plug connection line, please make sure the printer power
is closed.
◆In order to ensure the quality of printing and the life of the
product, please use the normal manufacturers' thermal paper.
◆After printing, print head is still at high temperature, pls do not
touch, to avoid burn.
◆Pls do not use dissolved substances, such as: benzene, thinner
or alcohol wipe to clean the printer casing. At the same time, please do
not use corrosive chemicals and detergent to contact printer. To avoid
damage to the printer.
◆The printer can't print in a paperless state, otherwise it will
seriously damage the printing roller and thermal print head.
Application Area:
◆Electronic cash register POS system printing
◆Electronic transfer system printing
◆Sports, postal, civil aviation bill printing
◆Query, service system bill printing
◆Tax bill printing

Package:
◆Printer 1PC
◆Power line 1 PC
◆Paper roll 1 ROLL
◆USB Data cable 1PC
◆Use manual 1PC
◆Driver CD 1PC
Product Features：
◆High Print quality, low cost
◆Low noise, high speed printing
◆Support raster bitmap printing
◆Easy paper install structure,simple and convenient to operate
◆Built-in power supply design, to save space and more convenient
to configure
◆Support GB18030 big font, easy to print uncommon characters
◆Support multi language print, suitable for users all over the world
◆Support download and print LOGO&graphics
◆Support Windows, Linux, Android and IOS system printing
◆Built in data buffer, print and receive data at the same time
◆Support character zoom, rotation, adjustable line spacing
printing character
◆The power consumption is small, and no need ribbon and
cartridge, low using cost
◆Compatible with ESC/POS instruction set
◆With USB interface, Bluetooth interface optional
Parameters：
Items
Parameters
Printing Method
Thermal Line
Printing Method
48MM
Resolution
384dots/Line（8dots/mm，203dpi）

Print
parameters
Printing Speed
90mm/Second
Interface Type
USB,Bluetooth(Optional)
Line Spacing
3.75 mm（Can adjust line spacing by command）
Line No.
Font A:32 character /Line
Font B:42 character/Line
Simple,traditional Chinese-16 lines
Character
Standard GB18030 simplified/traditional
Chinese Fonts
Character Size
ANK character，Font A：1.5×3.0mm
（12×24Dots）
Font B：1.1×2.1mm（9×17Dots）
Simplified/Traditional Chinese：
3.0×3.0mm(24×24 Dots）
Bar code
&Character
Extended
character set
PC437/Katakana/PC850/PC860/PC863/PC865/
WestEurope/Greek/Hebrew/EastEurope/Iran/W
PC1252/PC866/PC852/PC858/IranII/Latvian/Ar
abic/PT151,1251/PC737/WPC/1257/ThaiVietna
m/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1
251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
Bar code
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CO
DE39/ITF/CODABAR/CODE93/CODE128
Graphics
printing
Graphics
printing
Supports bitmap download and print
Paper
Type
Thermal Roll
Width
57.5±0.5mm
Diameter
≤60mm
Feed Method
Easy feed(Clameshell feed)
Commands
Commands
ESC/POS
Power
Power Adaptor
Input：AC 100V-240V,50-60Hz
Output：DC 12V/2A

Printer connection:
1 connect the power adapter cable to the printer power supply
interface.
2 connect the USB data cable to the printer's interface.
3 the cashier drawer cable connected with printer interface .
Install the print paper
58MM series thermal printer using 58MM thermal paper, using easy
paper structure, convenient to install paper.
1.thumb and forefinger pinch the flip cover front place , pull up to
open the printer's flip cover.
Casher Drawer
output
DC 12V/1A
Buffer
Input Buffer
32K bytes
NV Flash
40K bytes
physicacha
racteristics
Weight
590g
Dimension
185*130*112(MM)
Environme
nt
Working
Temp：5 ~ 45℃,Humidity：10 ~ 80%
Storage
Temp：-10 ~ 50℃,Humidity：10 ~ 90%（No dew）
Reliability
parameter
Print Head Life
50KM（print density≤12.5）
Software
Driver
Android,IOS,Linux,Win2000,Win2003,WinXP,W
in7,Win8,Win8.1,Win10

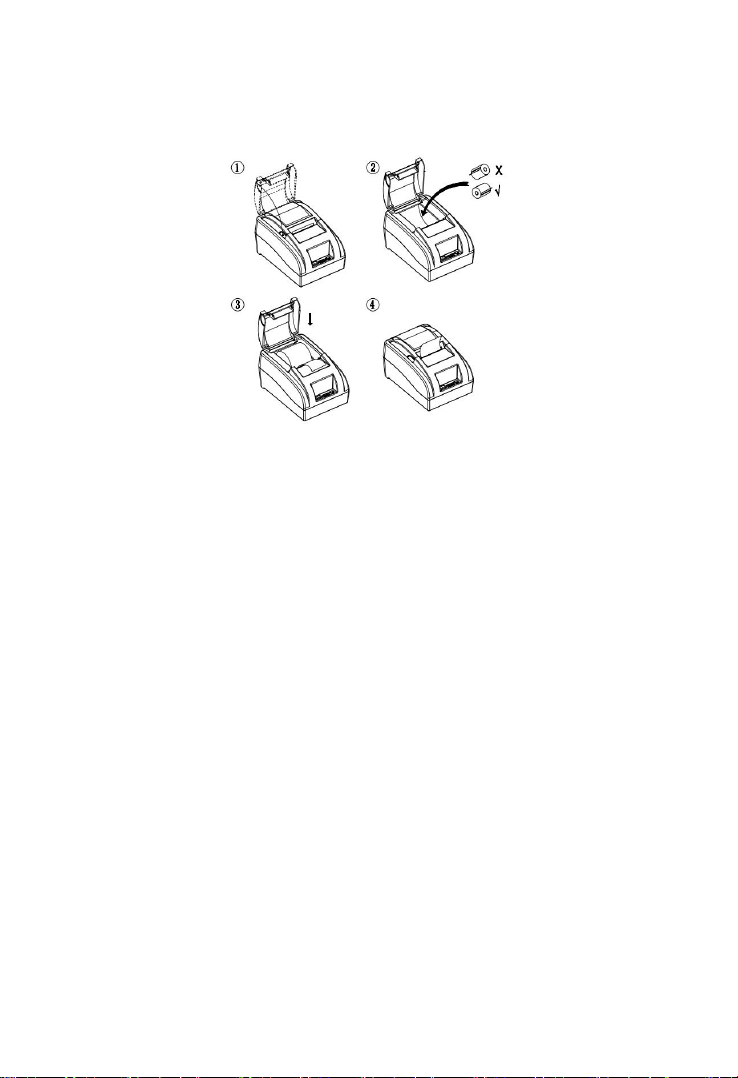

2.Put thermal print paper in the paper holder according to the pic
below.
3.Press down the flip cover
Note: take care of the paper roll direction, if reverse direction, the
content won’t be print out.
Switch, key name, indicator and function:
1 POWER switch
The switch can turned on and off the printer power supply.
2 FEED key
Press the button can feed,
3 STATUS light
STATUS light long off indicates the printer is in the normal working
state, STATUS light flashing indicates that the printer is short of paper,
print head overheating or error and other abnormal conditions.
4 POWER light
The indicator light on indicates that the printer is connected to the
power supply, this light off indicates that the printer power is off.
Self test:
Printer self-test method are as follows:When the printer connected
to the power adapter, under off status, press feed key and power key at

the same time until you see status red light on, then release your hand,
printers will print a self test page.
Switching between English and Chinese:
Switching between English and Chinese are as follows: When the
printer connected to the power adapter, under off status, press feed key
and power key at the same time until you see status red light on-off,
then release your hand, printers will change to other language.
Density：
Printer Density change are as follows: When the printer connected
to the power adapter, under off status, press feed key and power key at
the same time until you see status red light on-off-on, then release your
hand, feed some paper,you will see printer show: Current Printer
Density is Level- 1/2/3/4”
Hex mode system:
Enter into Hex mode are as follows: When the printer connected to
the power adapter, under off status, press feed key and power key at
the same time until you see status red light on-off-on-off, then release
your hand, it enter into hex mode.
Printer connection :
1.Windows driver installation
Our driver is very convenient to install and use, click on the driver
file, choose the next step directly. then can be used when installation
success, no need to configure the USB port.
2 Android system Bluetooth printer connect description
(Bluetooth interface optional)
①Turn on the printer power switch;

②Open the Android mobile phone (or PDA) Bluetooth, commonly
used path: system settings - Device connectivity-Bluetooth;
③Click "Scan" or "Search Bluetooth", in the "available devices",will
automatically search to the name of “Bluetooth Printer" or “Thermal
Printer";
④Click “Bluetooth Printer" or “Thermal Printer", and input pair code
(factory default: 1234), click" finish "to achieve Bluetooth pairing;
⑤Go to the corresponding APP software to do printer settings or
add Bluetooth printer,then it can be used;
3.IOS (Apple) system Bluetooth printer connect description
(Bluetooth interface optional)
①Turn on the printer power switch;
②Open IOS (Apple) system mobile phone (or tablet) Bluetooth,
commonly used path: Settings - Bluetooth-Turn on Bluetooth (This
process only for open Bluetooth,Not for paring process, Paring process
is in your application setting);
③Go to the corresponding APP software to do printer settings or
add Bluetooth printer for paring, after Bluetooth paring process success,
then it can be used;
Printer Repair and maintenance:
1. printer external and warehouse cleaning: please use a wet cloth
gently wipe the printer surface and internal paper warehouse.
2. Printer core clean: printer core must be clean on time, especially
the quality of printing is decline, cleaning methods are as follows: put
cotton dipped in anhydrous alcohol and gently wipe the printer core
ceramic parts as shown in the picture below until clean enough.
3.If find water inside printer, please immediately disconnect the
printer power, and dry the printer naturally.

Failure Analysis:
Failure phenomenon
Failure cause
Solution
Printer status
indicator flashing
1.Printer lack of paper
2.The printer head is
too hot
3.The flip not closed
well
1.Install paper correctly
2.Open the cover and
dissipate heat fully then go on
printing.
3. Cover the flip well
When the printer
prints only paper run
but not print
Print paper install
reverse
Pls install the print paper for
an opposite direction
The printer print fuzzy
The print head not
clean for a long time
Put cotton dipped in
anhydrous alcohol and gently
wipe the printer core ceramic
parts until clean enough
There is no response
of printer
The power adaptor
not connected
Pls check power adaptor is
connected well or not,power
switch is turn on or not
Printer can self test,
but can not print
online
Driver port selection
error
Pls select the correct print
driver port based on the actual
connection port
