HOLLISTER-WHITNEY Rope Gripper 620 Operating instructions

BULLETIN 1144
Page 1 of 29
11/12/19
Hollister-Whitney Elevator Co., LLC
2603 North 24th Street Fax: [phone]
Quincy, IL 62305 e-mail: [e-mail]
Phone: [phone] www.hollisterwhitney.com
INSTALLATION, MAINTENANCE, AND
TROUBLE SHOOTING INSTRUCTIONS
FOR
Models #620, #621, #622, #624, #625, #626, & #626SPL
Hollister-Whitney “Rope Gripper ®” & Pumping Unit
(Patent # 5,228,540)
CSA Certification File #88181

BULLETIN 1144
Page 2 of 29
11/12/19
Hollister-Whitney Elevator Co., LLC
2603 North 24th Street Fax: [phone]
Quincy, IL 62305 e-mail: [e-mail]
Phone: [phone] www.hollisterwhitney.com
Bulletin 1144 Table of Contents
For Dimensional Sheets and Parts Lists See Supplemental Bulletin 1144S
“ROPE GRIPPER®” RATINGS CHART ...................................................................................... 3
“ROPE GRIPPER®” MOUNTING CHANNEL GUIDELINES.................................................... 4
INSTALLATION OF “ROPE GRIPPER®”................................................................................... 7
TESTING OF “ROPE GRIPPER®”............................................................................................... 9
“ROPE GRIPPER®” LINING WEAR-IN...................................................................................... 9
LINING WEAR & REPLACEMENT.......................................................................................... 10
TESTING ALL CIRCUITS.......................................................................................................... 12
SUGGESTED CONTROLLER CIRCUITS............................................................................. 13
GRC1 DESCRIPTION.............................................................................................................. 13
GRC2 DESCRIPTION.............................................................................................................. 13
DZC1 DESCRIPTION.............................................................................................................. 13
DZC2 DESCRIPTION.............................................................................................................. 13
HOLLISTER-WHITNEY “ROPE GRIPPER®” OPERATION................................................... 15
NORMAL OPERATION.......................................................................................................... 15
OVERSPEED............................................................................................................................ 15
OVERSPEED RESET............................................................................................................... 15
UNINTENDED MOTION........................................................................................................ 15
UNINTENDED MOTION RESET........................................................................................... 15
MANUAL OPENING............................................................................................................... 15
TEST PROCEDURE FOR COMPLIANCE WITH ELEVATOR SAFETY CODES................. 16
1) POWER INTERRUPTION TEST..................................................................................... 16
2) ASCENDING CAR OVERSPEED TEST......................................................................... 16
3) UCM - UNCONTROLLED CAR MOTION TESTS........................................................ 16
SUGGESTED ADDITIONAL SOFTWARE FOR ADDED SAFETY....................................... 16
ROPE GRIPPER®TROUBLE SHOOTING GUIDE .................................................................. 17
GRIPPER SET ON ROPES –GRIPPER WILL NOT RESET................................................ 17
PUMP UNIT CYCLING ON AND OFF.................................................................................. 17
MICROSWITCH ADJUSTMENT PROCEDURE .................................................................. 18
BLOWING CONTROLLER FUSES........................................................................................ 19
CHECKING PUMP UNIT AMP DRAW................................................................................. 19
AIR IN LINE (CHANGING OUT HOSES OR CYLINDERS)............................................... 20
HYDRAULIC CYLINDER REPLACEMENT INSTRUCTIONS.......................................... 20
FLUID LEVEL LOW ............................................................................................................... 21
HAND PUMP DOES NOT FUNCTION ................................................................................. 21
“ROPE GRIPPER®” LUBRICATION ..................................................................................... 21
WIRE ROPE LUBRICATION ................................................................................................. 21
CSA Certification of Compliance................................................................................................. 22
EC Type –Examination Certificate.............................................................................................. 24

BULLETIN 1144
Page 3 of 29
11/12/19
“ROPE GRIPPER®” RATINGS CHART
620 621 622 624 625 626 626 SPL
inch 5.25 6.5 6.5 10 11.5 10 13.75
mm 133 165 165 254 292 254 349
inch
mm
CLOSING TIME sec.
fpm 350
m/s 1.78
m/m 107
fpm 402
m/s 2.04
m/m 123
lbs 2500 4000
kg 1134 1814
lbs 11500
kg 5216
lbs
kg
lbs 2280 5750
kg 1034 2608
fpm 250
m/s 1.27
m/m 76
fpm 303
m/s 1.54
m/m 92
lbs 5000 8000
kg 2268 3628
lbs 23000
kg 10433
lbs
kg
lbs 6000 7667
kg 2722 3477
fpm 87
m/s 0.44
m/m 27
fpm 110
m/s 0.56
m/m 33
lbs 10000 16000
kg 4536 7256
lbs 46000
kg 20865
lbs
kg
lbs 12000 15333
kg 5443 6954
± 76.2 (152.4 Total)
0.300
76000
34473
1500
680
3000
1361
400
2.03
122
459
2.33
140
150
0.76
46
189
0.96
58
152000
68946
8000
MINIMUM
RATINGS
CAR RATED
LOAD
5000
10000
2268
4536
CAR & CWT
MASS
16000
32000
7257
16000
3629
7257
2500
5000
1134
2268
4:1 ROPING
MAXIMUM RATINGS
RATED SPEED
300
1.52
91
ROPE GRIPPER
TRIPPING
SPEED
355
1.80
108
CAR RATED
LOAD
20000
40000
9072
18144
TOTAL SYSTEM
LOAD
14515
10000
20000
4536
9072
TOTAL SYSTEM
LOAD
76000
34473
38000
17237
800
4.06
244
ROPE GRIPPER
TRIPPING
SPEED
921
4.68
281
600
272
8000
3629
5000
2268
1500
680
6000
2722
10000
4536
38000
17237
2500
1134
18600
8437
CAR RATED
LOAD
CAR & CWT
MASS
MINIMUM
RATINGS
MAXIMUM RATINGS
2:1 ROPING
MAXIMUM RATINGS
RATED SPEED
CAR RATED
LOAD
MINIMUM
RATINGS
CAR RATED
LOAD
1:1 ROPING
CAR & CWT
MASS
ROPE GRIPPER MODEL
CAR RATED
LOAD
ROPE GRIPPER
TRIPPING
SPEED
RATED SPEED
MAX. OUT TO
OUT OF
TOTAL SYSTEM
LOAD
POWER SUPPLY
CONTACT RATINGS
6A, 120 VAC, 1 PH, 60Hz
6A, 250 VAC, 0.15A, 250VDC
1200
6.10
366
1368
6.95
417
600
3.05
183
690
3.51
210
DOOR ZONE
±3 (6 Total)

BULLETIN 1144
Page 4 of 29
11/12/19
HOLLISTER-WHITNEY “ROPE GRIPPER®”
*** With 620-100 Pumping Unit ***
Instructions for Model #620, 622, 624, 625, 626 & 626SPL (Patent #5,228,540)
WARNING:KEEP HANDS CLEAR OF “ROPE GRIPPER®”.
FORCES CREATED CAN CRUSH FINGERS.
FIGURE 1
“ROPE GRIPPER®”MOUNTING CHANNEL GUIDELINES
•The Mounting Channel Framework supporting the gripper must withstand upward and
downward forces according to Chart 1 below and applicable codes. Hollister-Whitney does
not recommend anchoring “Rope Gripper’s®”directly to concrete.
•The Mounting Channel Framework must be sufficiently sized to securely hold the “ROPE
GRIPPER®” and elevator while preventing any sliding. The Traction Machine must also be
prevented from sliding. See Figures 2 and 3 for suggested machine room mountings.
Additionally, see Figures 11 thru 14 for examples of Hollister-Whitney machines with built-
in factory “Rope Gripper®”mounts.
•It is always recommended that the “Rope Gripper®”be mounted in the machine room.
However, it may not be possible to mount the gripper in the machine room when adding a
“Rope Gripper®” to an existing installation. It is acceptable to mount the “Rope Gripper®” in
the hoist-way, and it can be mounted horizontally or upside down on the car or counterweight
side, so long as proper consideration for access is given for future gripper maintenance and
Pumping Unit location. The Pumping Unit must be mounted right side up. The hydraulic
hose standard length is 27 inches. Various hose lengths of up to 8 feet are available in stock,
with longer lengths up to 30 feet available by special order. The available lengths can be
utilized to mount the Pumping Unit in the machine room if the “Rope Gripper®”is mounted
remotely such as in the hoist-way.
•Note: If the “Rope Gripper®”is mounted upside down, consideration should be given to
covering the “bottom”of the mechanism to help prevent dirt and debris from falling into the
“Rope Gripper’s®” internal workings.

BULLETIN 1144
Page 5 of 29
11/12/19

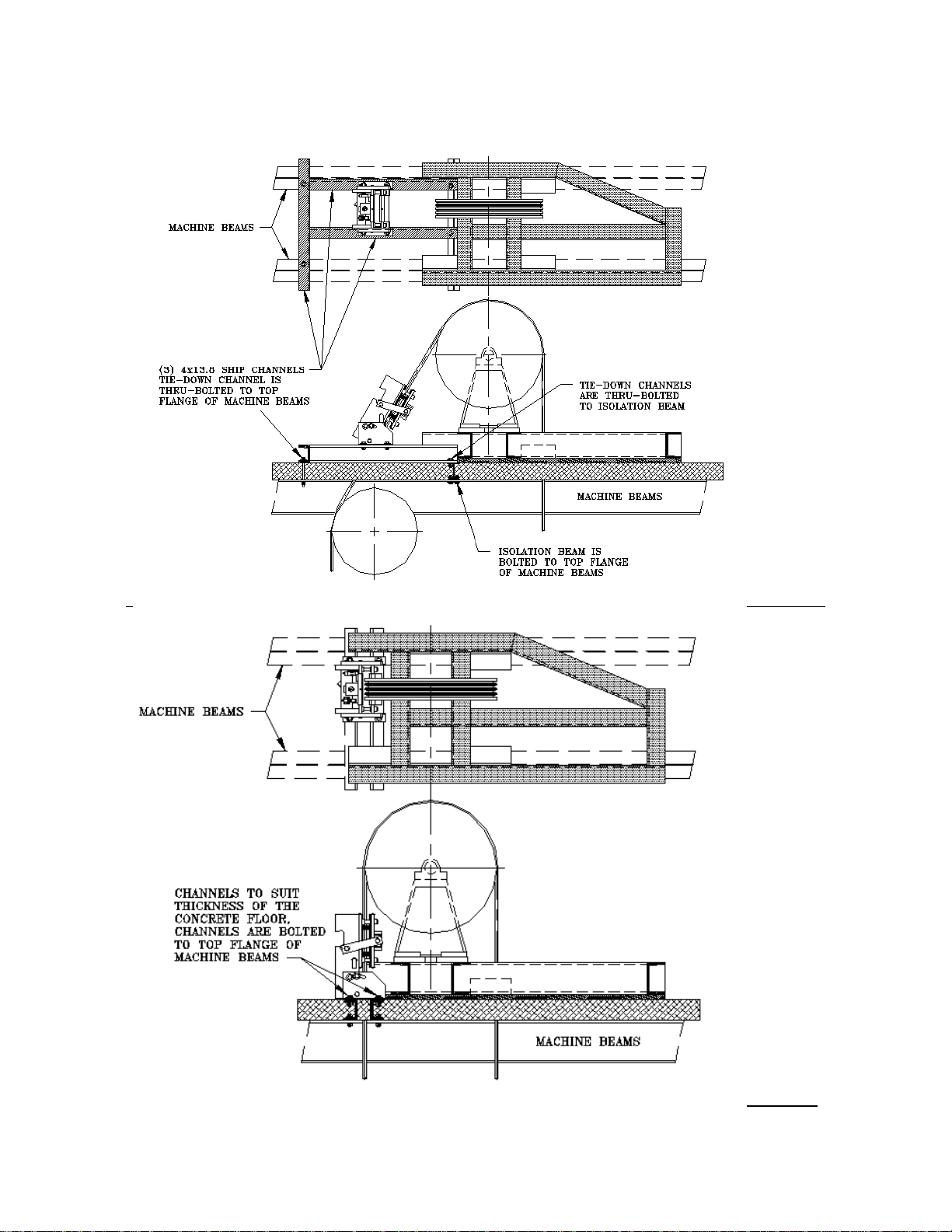

Typical Mounting Arrangements for Overhead Machines
New Installations
FIGURE 2

BULLETIN 1144
Page 6 of 29
11/12/19

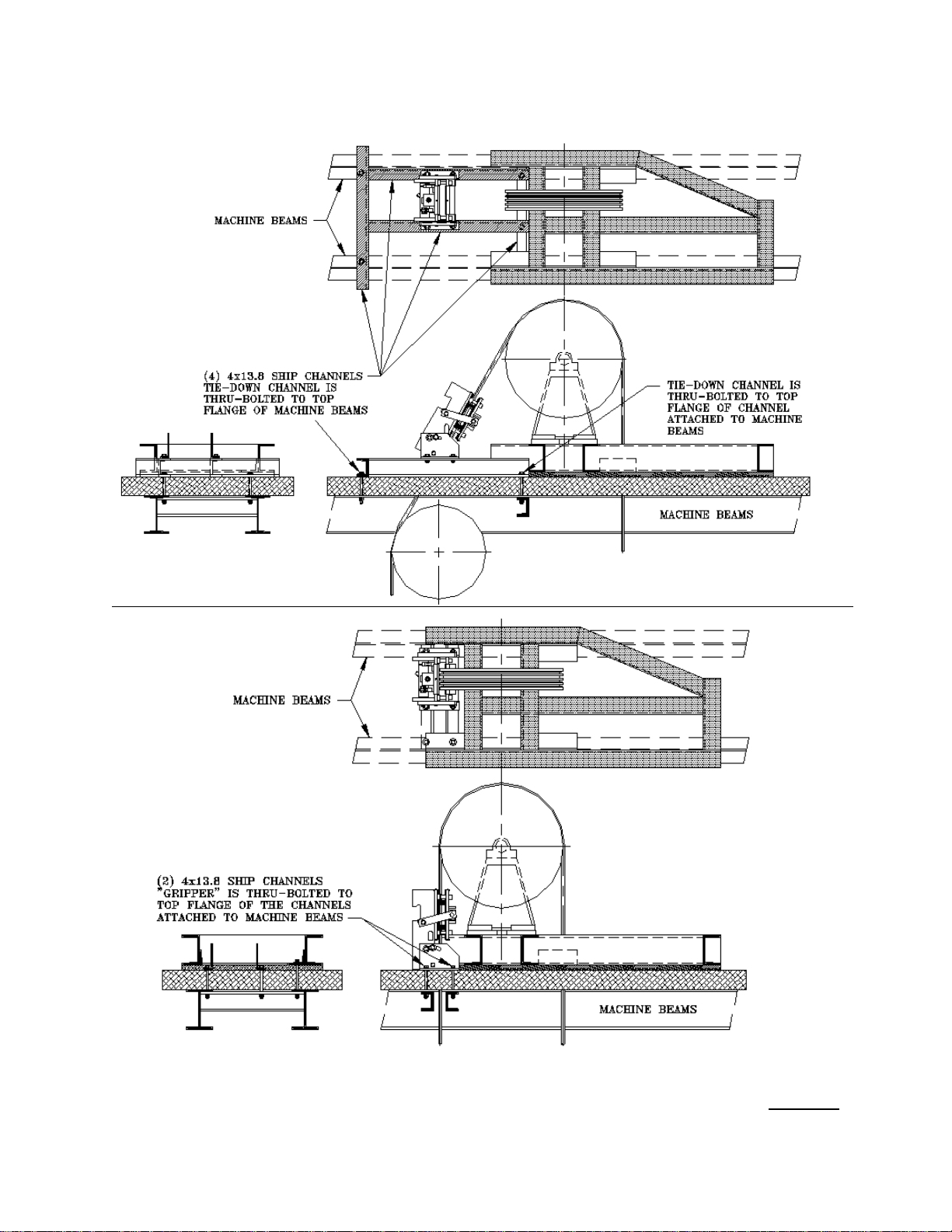

Typical Mounting Arrangements for Overhead Machines
Existing Installations
FIGURE 3

BULLETIN 1144
Page 7 of 29
11/12/19
INSTALLATION OF “ROPE GRIPPER®”
•For Dimensional Sheets and Parts Lists please refer to supplemental Bulletin 1144S.
•Remove shipping cap from oil reservoir and install oil cap.
•Be sure security set screws are holding the rotating shaft in the LOADED position as shown
in Figure 1 above.
•Remove both connecting arms after removing the four retaining rings.
•Remove movable shoe assembly.
•Attach “ROPE GRIPPER®” to mounting channels with appropriate bolts per Chart 1 below.
Do not fully tighten bolts yet.
MODEL #
APPROXIMATE
UP & DOWN FORCE
GRADE 5 MOUNTING BOLTS*
(Approximate Torques)
620
2000 lbs
1/2" UNC @ 74 ft-lbs
621 & 622
4000 lbs
1/2" UNC @ 74 ft-lbs
624
4000 lbs
5/8" UNC @ 143 ft-lbs
625
4000 lbs
5/8" UNC @ 143 ft-lbs
626 & 626SPL
8000 lbs
5/8" UNC @ 143 ft-lbs
Note: Mounting must conform to applicable codes. CHART 1
•Position the “ROPE GRIPPER®” so that the stationary shoe lining barely touches the ropes
from top to bottom. Make sure the gripper is squarely aligned, and centered side to side as
much as possible, with the ropes. Misalignment may cause uneven and/or excessive lining
wear. Note:
oIn some cases, rope orientation may twist through the hoistway, such as when the
overhead and car sheaves are not aligned. In this case, some “misalignment”to
the stationary pad is necessary. This is acceptable so long as the ropes clear both
pads while traveling.
oRope splay near the hitch may cause additional alignment challenges. In these
cases, rope clamps such as H-W’s Rope Guide (P/N 270-109) may be utilized.
•Securely fasten the gripper mounting bolts (5 bolts per side). Torque to specifications in
Chart 1 above. * Note: The 6 5/8" bolts supplied with the 626 and 626-SPL Grippers
ONLY securing the mounting angles (3 per side) to the Gripper are Grade 8 and should be
tightened to 225 ft-lbs.
•Double check rope alignment. Notes above notwithstanding, the ropes should touch the
stationary shoe lining evenly if applicable.
•Reinstall movable shoe assembly.
•Reinstall connecting arms with chamfered edges facing inside the gripper and secure the four
snap rings.
•Mount pumping unit in the best available location. Unit must be upright but can be placed on
either side of the gripper. See hose length notes on Page 4.
•If necessary, wiring on the gripper can be rerouted to opposite side of assembly by relocating
the box connector to the opposite side and pulling wire through.
•Remove the pumping unit knock-out for the hydraulic line, install the supplied Rubber
Grommet and route male hydraulic fitting through knockout hole on the side of pumping
unit. Inside pumping unit push male Quick-Connect fitting into female fitting while lifting

BULLETIN 1144
Page 8 of 29
11/12/19
ring on female fitting. Release ring to secure the fittings together.
•Wiring from the gripper to pump unit is color coded per Chart 2.
•Connect terminals RG1 and RG2 to controller power, RG5 and RG7 to
safety circuit; check control diagram for proper elevator control connection.
•When wiring and hydraulic connections are complete, make sure valve stem
(dump valve) in pumping unit is set to AUTOMATIC. Turn pumping unit
test switch ON (see Figure 4). The gripper latch solenoid should energize
and push the trigger onto the latch. If it fails to do so, check control wiring.
•When the solenoid is energized, loosen the two security set screws a turn or
two. If rotating shaft moves, turn valve stem to MANUAL and use hand
pump to move shaft back, or jump terminal RG3 to RG4 to temporarily
operate electric pump. Make sure the trigger has properly engaged the latch.
•Remove security set screws. Once removed, store set screws in bottom of
pump unit. NOTE: Security set screws must be completely removed
when “ROPE GRIPPER®”activates to prevent gripper failing to set or
damage to the unit.
•Unit is now ready for required lining wear-in and testing.
FIGURE 4
White
RG2
Black
RG3
Red
RG4
Orange
RG5
Blue
RG6
Green
Ground
Pigtail to Pumping
Unit Wiring
CHART 2

BULLETIN 1144
Page 9 of 29
11/12/19
TESTING OF “ROPE GRIPPER®”
•Make sure controller safety circuit is active and clear for running, and the pumping unit valve
stem is in AUTOMATIC. Turn test switch ON. The “ROPE GRIPPER®” should be in the
ready (LOADED) position (NOT gripping the ropes).
•Turn test switch to OFF. This should activate the “ROPE GRIPPER®”, gripping the ropes.
Be sure that while gripping the ropes, the switch contacts on the “ROPE GRIPPER®” stop or
prevent power from being applied to the motor and machine brake.
•Turn the valve stem in the pumping unit to MANUAL. This will open the manual
microswitch contact and prevent the elevator from running.
•Use hand pump to return the gripper to the ready or loaded position.
•Turn test switch ON. Elevator should still be prevented from running.
•Turn the valve stem back to AUTOMATIC. The manual contact will close allowing the
elevator to run.
“ROPE GRIPPER®” LINING WEAR-IN

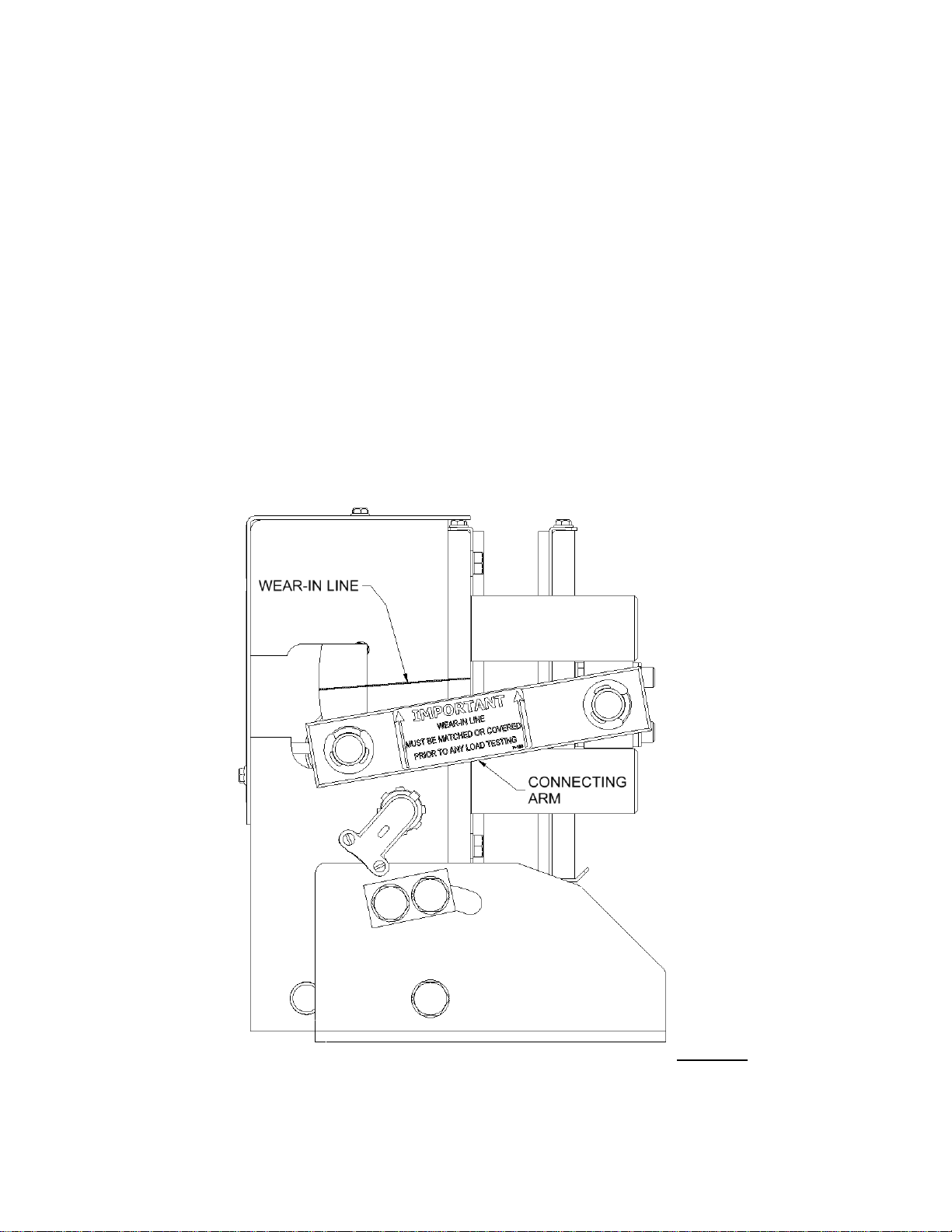

1. A line has been marked on the side wall of the gripper to aid in the Wear-In process. Note
that at this point in the procedure, this line is well above the Connecting Arm and will be met
or covered by the Connecting Arm during the Wear-In process (refer to Figures 1 & 5 for
location of Connecting Arm and Wear-In line).
FIGURE 5
2. Confirm the moveable shoe has been set up for the proper size ropes (Chart 3). Shims on
this chart are a general guideline and may vary. See Item 9 of this section.

BULLETIN 1144
Page 10 of 29
11/12/19
3. Make sure pumping unit valve stem is in AUTOMATIC and test switch is ON.
4. Run the car at the slow or inspect speed and wipe down the ropes to remove any dirt and/or
excess oil and grease from top to bottom. Return car to top floor.
5. Jump terminals RG5 to RG6 and run the empty car in slow speed in the direction that will
pull the ropes thru the “ROPE GRIPPER®”(typically DOWN). When the car is up to speed,
turn the test switch OFF. The “ROPE GRIPPER®”will grip the ropes with a light pressure
and ropes will begin to wear grooves in the linings.
6. As the linings wear-in, the rotating shaft will move up the cam slot and around the corner(s)
of the cam noted below (Figure 6), and the connecting arms will move up the side wall and
begin to match or line up with the wear-in line (see Figure 5) marked on the side wall.
Note: #624, #625, #626 and #626SPL have two corners. These grippers are not worn-
in until the rotating shaft goes past the second corner of the cam as noted below (see
Figure 6) and the connecting arm meets or covers the line marked on the side wall.
FIGURE 6
7. Note that it may take several car-runs to complete lining wear-in.
8. Once the rotating shaft has turned the corner(s) and the wear-in line is matched or covered,
stop the car and remove the jumper from RG5 to RG6.
9. If the lining wear-in is not completed after the grooves in the linings have reached
approximately 1/16”deep, spacer shims (Figure 7) can be moved from between the shaft
support blocks and moveable shoe to the outside of the support block to allow the rotating
shaft to completely turn the corner and move up the cam. Refer to Chart 3 for initial spacer
and shim set-up. Note: Before changing spacers, install security set screws to prevent
unintended “ROPE GRIPPER®” activation, which could lead to severe personal injury
and/or damage to the unit.
LINING WEAR & REPLACEMENT
•The linings will wear, especially after multiple high-speed stops. When gripping moving
ropes, material will be removed from the pads (lining wear) and the rotating shaft will move
towards the upper end of the cam. Near the end of the cam, the excessive wear microswitch
will open and the “ROPE GRIPPER®” will not automatically reopen.
