HOLOVISION VIO Service manual

INSTALLATI N
INSTRUCTI NS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax [phone]
H L VISI N
Manual Type 1.1.0.9-RF
Holovision VI with Essex 265 Controller
Specifications
Access Control
Essex 5 button keypad
2 relays
5-6 users
16.5 VAC power supply included
Internal rectifier gives optional ‘’dc out’’ for strikes
For Models
201-VIO
203-VIO
301-VIO
302-VIO
Communication
Holovision VIO is a SIP enabled intercom module
developed specifically with the custom integrator in
mind. It works with Crestron RAVA/SIP and most SIP
enabled VoIP phone systems and servers.
Speaker
Microphone
PoE+ Switch
Push Button
IP Camera

Essex Keypad Wiring
The 265 module comes with jumpers and MOVs prewired to the left side of the terminal stirp. Remove all wires from left side of terminal strip and wire per this diagram
*MOV (metal oxide varistor) is the small red component which is included. Its purpose is to absorb “inductive kick back” which can be created when power is removed from
the strike.
Page 2 TYPE 1.1.0.9-RF
Essex Model 265
NC 2
NO 2
COM 2
NC 1
NO 1
COM 1
+DC
- OUT
AC
IN
Remote Monitor
Earth
Holovision Entry
System with
eypad
eypadcable(22/12)l
AC Out for Strike
DC out for strike
16.5
VAC
*MOVisrecommended
Gate Strike
**N TE:
Jumper Wire is Required
**
Essex Model 265
NC 2
NO 2
COM 2
NC 1
NO 1
COM 1
+DC
- OUT
AC
IN
Remote Monitor
Earth
Holovision Entry
System with
eypad
eypadcable (22/12)l
16.5
VAC
*MOVis recommended
Gate Strike
**N TE:
Jumper Wire is Required
**
**

Essex Keypad Wiring
Contact Closure for Gate Motor
*MOV (metal oxide varistor) is the small red component which is included. Its purpose is to absorb “inductive kick back” which can be created when power is removed from
the strike.
Page 3 TYPE 1.1.0.9-RF
N TE:
Jumper Wire is Required
Essex Model 265
NC 2
NO 2
COM 2
NC 1
NO 1
COM 1
+DC
- OUT
AC
IN
Remote Monitor
Earth
Holovision Entry
System with
eypad
eypad cable (22/12)l
The 265 module comes with jumpers and MOVs prewired to the left side of the terminal stirp. Remove all wires from left side of terminal strip and wire per this diagram
“Open”
Terminals
on Gate
Motor
16.5
VAC

Set Essex Relay ptions
Step Action
G AL: To use jumper pins on circuit board to configure standard
relay options. In this configuration, Codes 1 and 2
operate Relay 1. Codes 3, 4, 5 operate Relay 2.
1 Relay 1 and 2 activate. Only Relay 1 latch*
Code Relay 1 Relay 2
Open Latch Open Latch
Master Code No No No No
Code 1,2 Yes Yes No No
Code 3, 4, 5 No No Yes No
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
Master Unlock
1, 2 Unlock
3,4,5 Unlock
1,2 Latch
3, 4,5 Latch
CCTV
Doorbell
Relay 1
Relay 2
Step Action
2 Relay 1 and 2 activate and latch*
Code Relay 1 Relay 2
Open Latch Open Latch
Master Code No No No No
Code 1,2 Yes Yes No No
Code 3, 4, 5 No No Yes Yes
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
Master Unlock
1, 2 Unlock
3,4,5 Unlock
1,2 Latch
3, 4,5 Latch
CCTV
Doorbell
Relay 1
Relay 2
*LATCHING RELAY: In order to latch either relay, simply enter the code,
followed by “7”. Repeat (code, 7) in order to unlatch the relay.
The top example would be used where the driveway gate was connected to
Relay 1 (and could be locked open), and the pedestrian gate was connected
to Relay 2. (No latching possible).
Page 4 TYPE 1.1.0.9-RF

1 Enter “Master Code”.
2 Enter 115 (3 beeps).
3 Enter User Code 3.
4 Wait 5 seconds for 3 reset beeps.
Set User Code 3
Step Action
Programming of Essex Keypad
1 Enter “Master Code”
2 Enter 113 (3 beeps).
3 Enter User Code 2.
4 Wait 5 seconds for 3 reset beeps.
Set User Code 2
Step Action
1 Press “Program” switch once. (keypad will beep 4 times)
2 Once “Program” switch is pressed, you have 2 minutes to complete Step 5.
3 Press “1119”. (you will hear 3 beeps)
4 Step 5 must be completed within 5 seconds of Step 3.
5 Enter “Master Code” *
6 Wait 5 seconds for 3 beeps to confirm new “Master Code”.
Set Master Code
Step Action
1 Enter “Master Code”
2 Enter 111 (3 beeps).
3 Enter User Code 1.
4 Wait 5 seconds for 3 reset beeps.
Set User Code 1
Step Action
* MASTER CODE: The default Master Code is 13579. This should be replaced by a unique code to be used only by
your company. The Master Code can be 3 to 8 digits long.
Page 5 TYPE 1.1.0.9-RF

Programming of Essex Keypad
1 Enter “Master Code”.
2 Enter 117 (3 beeps).
3 Enter User Code 4.
4 Wait 5 seconds for 3 reset beeps.
Set User Code 4
Step Action
1 Enter “Master Code”
.
2 Enter 119 (3 beeps).
3 Enter User Code 5.
4 Wait 5 seconds for 3 reset beeps.
Set User Code 5
Step Action
1 Enter Master Code .
2 Enter address of code to be deleted (111, 113, etc.).
3 Do not enter any code until you hear 3 reset beeps.
4 Wait 5 seconds for 3 reset beeps.
Delete Any Code
Step Action
Note: User codes can be 3 to 8 digits
Page 6 TYPE 1.1.0.-RF
1 Enter any User Code (1 -5).
2 Enter “7”. This will cause the relay to latch (subject to the jumper pin settings see Page 5).
3 To unlatch the relay, re-enter the user Code, followed by “7”.
Step Action
Latch a Relay
1 Press “Program” switch (keypad will beep 4 times).
2 Enter 1117 (3 beeps).
3 Enter 1 for every 1 second latch time, and 5 for every 5 seconds.
Examples:
6 seconds = 5, 1
8 seconds = 5, 1, 1, 1
12 seconds = 5, 5, 1, 1
4 Wait 5 seconds for 4 reset beeps.
Set Activation Time Of Relay 1 (User codes 1 & 2 - see note below)
Step Action

Programming of Essex Keypad
1 Press “Program” switch (keypad will beep 4 times).
2 Enter 1115 (3 beeps).
3 Enter 1 for every 1 second latch time, and 5 for every 5 seconds.
Examples:
6 seconds = 5, 1
8 seconds = 5, 1, 1, 1
12 seconds = 5, 5, 1, 1
4 Wait 5 seconds for 4 reset beeps.
Set Activation Time Of Relay 2 (User codes 3, 4& 5 - see note below)
Step Action
Note: The above 2 steps are actually setting the activation times for user code 1, 2 and user code 3, 4, 5. Using the
jumper pin setting as shown in “Set Essex Relay Options”, this will set activation time of Relays 1 & 2.
Page 7 TYPE 1.1.0.9-RF

Page 8 TYPE 1.1.0.9-RF

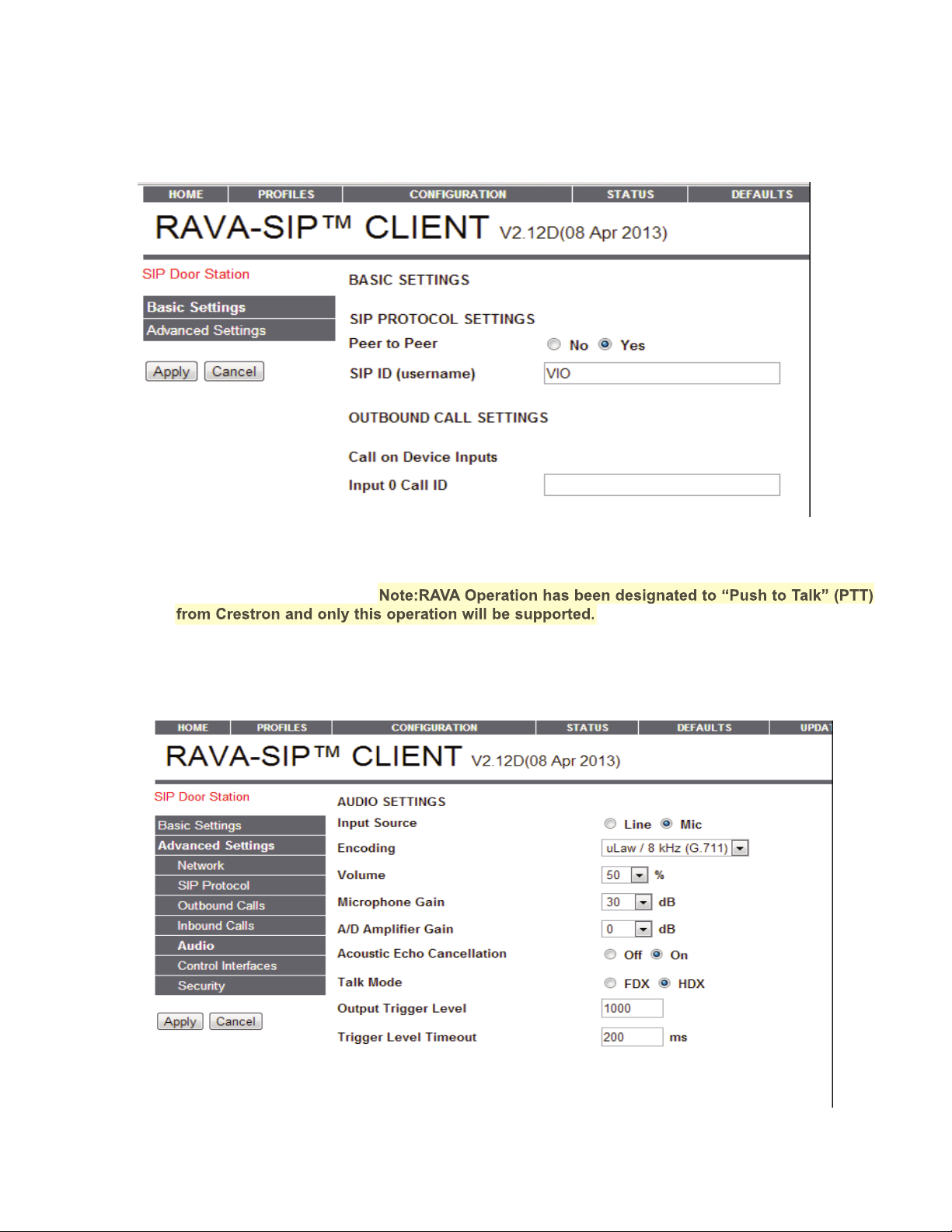

VI RAVA Quick Start
1. Plug the device into the network. Device will speak it’s IP address.
2. Navigate to device IP on a web browser.
3. Under “Configuration” please enter SIP ID for the name to be displayed, and enter the extension
of the Main RAVA Touchscreenunder “Input Call ID 0 Default is CALL:CRESTR N”
*Note out of the box the “CALL:CRESTR N” default will ring all touchpanels in the CRESTR N
call group.
4. Configure the Audio setiings. Note:RAVA peration has been designated to “Push to Talk” (PTT)
from Crestron and only this operation will be supported. Although full duplex and half duplex
are an option, these settingdo not perform best in all senarios. As a recommendation you can
experiment for the best audio settings.
AUDI SETTING BEL W ARE NLY A REC MMENDATI N

Page 9 TYPE 1.1.0.9-RF
5. Configure the relay setting under “Inbound Calls”. Configure the powered relay and the dry
contact closure. Choose any 2 to 4 digit combination
Note; By configuring the request to exit feature you can configure for either relay.
6. Once the device has been configured you can initiate the call by pressing the button



     

 

 
















      
#          

     















   

  


%&
  !"
"
   
  !##$"# 


'
      

   















 

















   
 

 



 
