Holystone HS210 User manual

Instructions For Use
[email protected] (USA)
[email protected] (CA)
[phone]
[email protected] (EU)
[email protected] (JP)
HS210
www.holystone.com
V 2.0

Contents
1. Disclaimer&Warning ........................................................................
2. Safety Guidelines ...............................................................................
3. Maintenance ......................................................................................
4. Packing Contents ..............................................................................
5. Drone’s Details ..................................................................................
6. Low Battery Warning .....................................................................
7. Transmitter Functions .....................................................................
8. Installation ...........................................................................................
9. Joystick Mode ...................................................................................
10. Charging ...........................................................................................
11. Flight
Pair the Drone ................................................................................
Calibrate the Gyro .........................................................................
One Key Start/ Landing ...............................................................
12. Trimmer ...........................................................................................
13. Speed Switch .................................................................................
14. Emergency Stop ...........................................................................
15. 360 ° Flip .........................................................................................
16. Altitude-Hold Function................................................................
17. Headless Mode .............................................................................
18. Specication ..................................................................................
19. Contact Us .....................................................................................
20. General Information ...................................................................
1
1
5
6
7
7
8
8
9
10
11
12
12
13
14
14
15
15
16
17
18
19

< DISCLAIMER & WARNING >
1. Please read this disclaimer carefully before using our product. This
product is not recommended for people under the age of 14. By
using this product, you hereby agree to this disclaimer and signify
that you have read it fully. You agree that you are responsible for
your own conduct and any damage caused while using this
product, and its consequences . You agree to use this product only
for purposes that are proper and in accordance with local
regulations, terms and all applicable policies and guidelines Holy
Stone may make available.
2. When using this product, please be sure to strictly abide by the
specication requirements and safety guidelines stated in this
document. Any personal injury property damage, legal disputes
and all other adverse events caused by the violation of the safety
instructions or due to any other factor, WILL NOT be Holy Stone’s
responsibility.
●
1. Check Before Use
This product is not a toy, but it is a high precision drone that
integrates various electronic stability and control mechanisms.
Please be sure to setup this drone carefully and correctly to ensure
safe, accident-free operation.
Please be sure that the batteries of the drone and transmitter are
clean, undamaged and have enough power.
Please be sure that all the propellers are undamaged and are
●
●
< SAFETY GUIDELINES >
installed in the right orientation.
Please do a thorough check of the product before each use.
Check for rmness of the parts, any signs of cracks and wear of the
propeller, battery power and eectiveness of the indicator, etc. If
after doing a complete check any issues are found, please refrain
from using the drone until the issue has been taken care of.
Incorrect assembly or poor control by inexperienced pilots can
result in damage to property or harm to people in an accident. Be
fully aware of your surroundings when ying and always maintain
complete control of the device at all times.

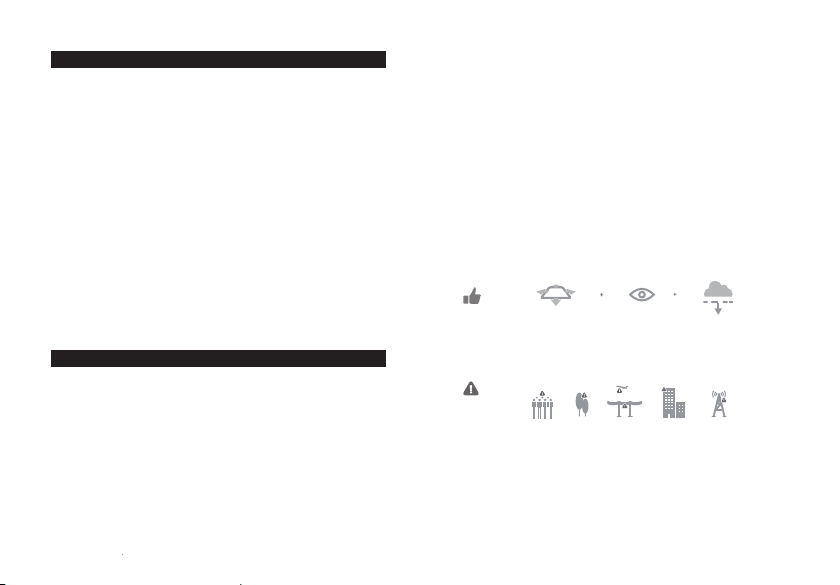

2. Flight Environment
Fly in Open Areas Maintain Line
of Sight
Fly Below
164 feet (50 m)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
DO NOT y near strong electromagnetic sources such as power lines
and base stations as it may aect the onboard compass.
Avoid ying over or near obstacles, crowds, high voltage power lines,
trees, airport or bodies of water.
●
-1- -2-

DO NOT use the drone in adverse weather conditions such as rain,
snow, fog and strong wind.
3. Operations Requirements
Please don’t use this device to follow any moving vehicles .
When ying, only turn o the motor in case of an emergency.
Please ight the drone back to you as soon as possible when the
battery is running low.
This device should not be used while drinking alcohol if you are
feeling fatigued, taking medicine, or feeling any physical
discomfort.
Stay away from the rotating propellers and motors.
Beware of the noise volume the drone produces. Keep your
No Fly Zone
Stay away from the rotating
propellers and motors.
4. Use of Battery
Please ensure batteries are tted in the correct orientation as
shown in the instructions manual.
Avoid short circuits by tting the batteries incorrectly, and do
not crush or squeeze the batteries as this could carry the risk of an
explosion.
Do not mix new and old batteries as this can lead to a poor
performance of the product.
Dispose of used batteries carefully, do not litter.
Please keep dead batteries away from heat and re.
If the device is not going to be used for an extended period of
time, remove batteries to prevent potential damage from battery
leakage.
It is recommended to only use the USB charging cable that
comes with the drone to charge the battery.
Don`t attempt to disassemble or modify the battery in any way.
Don`t use the battery if it gives o an odor, generates heat,
become discolored or deformed, or appears abnormal in any way. If
the battery is in use or being charged, remove it from the device or
charger immediately and discontinue use.
Don't pierce the battery casing with a nail or other sharp object,
break it open with a hammer, or step on it!
Don't short-circuit the battery by connecting wires or other
metal object to the positive(+) and negative(-) terminals.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
-3- -4-
Li-Po Battery Disposal & Recycling
Waste Lithium-polymer batteries must not be placed with household trash.
Please contact local environmental or waste agency or the waste agency
or the supplier of your model or your nearest Li-Po battery recycling center.

< MAINTENANCE >
1. Clear the product after each use with a clean, soft cloth.
2. Avoid prolonged exposure to direct sunlight and avoid buildup of
heat on the drone.
3. This device is not waterproof and must not be submerged in
water under any circumstance. Failure to maintain the device
completely dry will result in the failure of the unit.
4. Check the charging plug and other accessories for signs of
damage frequently. If any part of the device is damaged, refrain
from ying until maintenance can be carried out.
<PACKING CONTENTS>
-5- -6-
Drone Transmitter
USB Charger Propellers
Instructions
For Use
Propellers
Spanner
Drone Battery
Screwdriver
Instructions For Use
[email protected](USA)
[email protected](CA)
[phone]
[email protected](EU)
[email protected](JP)
HS210
www.holystone.com
V 2.0
×1 ×1 ×3
×1 ×1
×1×1
×1

< DRONE’S DETAILS >
< INSTALLATION >
Turn ON/OFF
Speed Switch 360° Flip
Headless Mode
One Key Start/
Landing
Indicator Light
< TRANSMITTER FUNCTIONS >
-7- -8-
If you want to install the batteries, please always pay close
attention to battery polarity to make sure they are inserted
correctly.
AAA Batteries
(NOT included)
Battery
Compartment
Battery Cover
Propeller B
Propeller A
Propeller A
HEAD
TAIL
Propeller B
< LOW BATTERY WARNING >
①When the drone battery runs low, the indicator lights on the
drone will blink continuously. About 1 minute or so the drone will
automatically land on low electricity.
②When the transmitter battery runs low, the power indicator of the
transmitter will blink continuously and the transmitter will keep
beeping. When this happens, the pilot should change the new
battery for the transmitter.
Left Joystick Right Joystick

< CHARGING >
USB Adapter
([email protected])
Power Bank
Computer USB Port
① Connect the battery with the charger.
② Plug the charger into a USB charging port on the computer,
power bank or USB adapter (5V @ 0.5 to 2.0A ).
③ Charging time: about 40-60 minutes.
④ a. While the battery is charging, the charging indicator
light is Red.
b. When the battery is full charged, the charging indicator
light will turn Green.
Before charging, please check the contents of the “Use of
Battery”section of the “ Safety Guidelines” carefully!
-9- -10-
Charging Indicator
Charging Port
1. MODE 2 (Left hand throttle MODE 2 will be default setting.)
2. MODE 1
< JOYSTICK MODE >
Left Joystick Right Joystick
Ascend
Descend
Turn
Left
Turn
Right
Forward
Backward
Ascend
Descend
Up
Left
Up
Down
Down
Left Right
Turn
Left
Turn
Right
Forward
Backward
Up
Down
Left Right
Up
Down
Left Right
To enter MODE 1, turn on the transmittter while holding the“ Speed
Switch ” button. (Please do not release the “ Speed Switch ” button
until the transmitter is powered on.)
Fly to
Right
Fly to
Left
Fly to
Right
Fly to
Left
Left Joystick Right Joystick
Right
USB Charger

< FLIGHT > < FLIGHT >
1. Pair the Drone
2. Calibrate the Gyro
3. One Key Start/ Landing
Tips: To ensure a stable ight, we suggest that the pilot calibrates
the gyro every time after pairing the drone and after a crash.
After pairing/ calibration, press the One Key Start button, the
propellers will start spinning, indicating this drone is ready to y,
and you can control this drone by using the joysticks. Press the One
Key Landing button again, the drone will land by itself .
As shown in the diagram above, push the left and right joystick
simultaneously to the lower left corner
to calibrate the gyro. The
LED lights on the drone will blink quickly and turn solid. When you
hear 2 beeps from the transmitter that indicates the calibration is
completed.
①Connect the battery port
access to the fuselage power
port.
③Turn on the transmitter.
④ Push the throttle joystick up
then down to pair the drone
with the transmitter. The LED
indicator lights on the drone will
turn solid if the drone is paired
successfully.
②Place the drone on a at and
level surface with the head
forward and the tail towards the
pilot.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-11- -12-
All of the operations shown in this manual are demonstrated
using MODE 2.
HEAD
TAIL

< TRIMMER >
F/B Sideward Fly Trim
L/R Sideward Fly Trim
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
< SPEED SWITCH >
< EMERGENCY STOP >
(When you hear one long beep from the transmitter that indicates
the drone is adjusted to balance.)
This drone comes with 3 speed modes (Low/ Medium/ High). Press
the Speed Switch button on the upper left of the transmitter to
switch the speed. Increase or decrease one speed at a time. “Di”
indicates Low speed; “DiDi” indicates Medium speed and “DiDiDi”
indicates High speed.
(The Low Speed is default speed mode.)
The Emergency Stop function can be only used in case of
emergency during the ight to avoid any of damage or injury.
Press the upper left and upper right button of the transmitter at the
same time, the motors will stop immediately.
-13- -14-
If the drone drifts forward, hold down the throttle joystick and do
not release it while pushing the direction joystick down to balance
the drone; If the drone drifts backwards, hold down the throttle
joystick and do not release it while pushing the direction joystick up
to balance the drone.
If the drone drifts left, hold down the throttle joystick and do not
release it while pushing the direction joystick right to balance the
drone; If the drone drifts right, hold down the throttle joystick and
do not release it while pushing the direction joystick left to balance

< ALTITUDE-HOLD FUNCTION >
< 360° FLIP >
< HEADLESS MODE >
The drone is designed with altitude-hold function so the drone can
maintain its altitude after you release the left stick( the left stick will
automatically spring back to the middle ).
When you get familiar with all the functions of the drone, you can
try this amazing ip mode. When you y the drone at least 10 feet,
press the 360° Flip button on the upper right of the transmitter, then
push the right joystick Forward/ Backward or Left/ Right, and the
drone will do a ip towards the corresponding direction.
If you are in MODE 1, push the right joystick Left/ Right or push the
left joystick Forward/ Backward, and the drone will do a ip towards
the corresponding direction.
Tips: This function will perform better when the battery is fully charged.
1. After pairing/calibration, press the Headless Mode button on the
transmitter. A beep will be heard from the transmitter, and the
lights on the drone will keep blinking. The transmitter will beep
slowly to indicate that drone is in Headless Mode.
2. Press the Headless Mode button again, and you will hear 2 beeps,
the LED indicator lights on the drone will be solid which indicates
the drone exits the Headless Mode.
-15- -16-
10 Feet
Under Headless Mode, the forward direction is the direction that
the head of drone faces when the drone takes o. In order to make
sure the pilot can tell drone's direction, we recommend that pilots
to stay in the same orientation as the drone head faces when the
drone takes o. If so, when the pilot pushes the direction joystick
forward, the drone will y forward. If the pilot pushes the direction
joystick backward, the drone will y towards him/her. If the pilot
move the right stick left / right, the drone will move left/ right
relative to you. It is very important that the pilot stay in the same
orientation as the drone head faces when the drone takes o.
Please make the pilot stays facing the same direction
as the direction that the head of the drone faces at take-o.
Tail
Tail
Tail
Head
Head
Head

< SPECIFICATION > < CONTACT US >
DRONE
Model: HS210
Weight: 22g/ 0.77oz
Flight Time: ＜7 minutes
Motor Model: 0615
Operating Temperature Range: 14°F to +104°F (-10°C to +40°C)
Dimensions: 80 x 80 x 30 mm
FLIGHT BATTERY
Capacity: 220mAh
Voltage: 3.7V
Battery Type: Li-Po Battery
Charging Temperature Range: 41° to 104°F (5° to 40°C)
Charging Time: 40 - 60 minutes (depends on charging power and
remaining battery power)
TRANSMITTER
Operating Frequency: 2.4 GHz
Transmission Distance: 10 m (outdoors and unobstructed)
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Battery:
1.5V AAA Battery (NOT INCLUDED)
USB CHARGING CABLE
Voltage: 5 V
Rated Power: ≤10 W
[email protected] (USA)
[email protected] (CA)
[phone]
Please do not hesitate to contact us if you need further
support.
[email protected] (EU)
[email protected] (JP)
-17- -18-
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

< GENERAL INFORMATION >
-19- -20-
FCC Notice:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limitsare designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for
help.
WARNING: Changes or modications not expressly approved by
the party responsible for compliance could void the user's
authority to operate the equipment.
RF Exposure
< GENERAL INFORMATION >
IC Notice:
This device complies with Canada Industry licence-exempt RSS
standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference; and
(2) this device must accept any interference. Including
interference that may cause undesired operation of the device.
CAN ICES-3 (B)
Avis d’Industrie Canada
Le présent appareil est conforme aux CNR d'industrie Canada
applicables aux appareils radio exem pts de licence L'exploita-
tion est autorisée aux deux conditions suivantes:
1) I'appareil ne doit pas produire de brouillage; et
2) I'utillsateur de I'appareil doit accepterbrouillage radioélec-
trique subi meme si le brouillage est susceptible d'encomprom-
The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure
condition without restriction.

< GENERAL INFORMATION >
-21- -22-
ettre le fonctionnement. mauvais fonctionnement de I'appareil.
Cet appareil numériquie de la classe B est conforme à la norme
NMB-003 du Canada.
CAN NMB-3 (B)
RF Exposure
Radiation Exposure Statement:
HOW TO RECYCLE THIS PRODUCT
This symbol on the product or its documentation indicates that it
must not be disposed of with household waste.
Uncontrolled waste disposal may harm the environment or human
health.
Please separate your device from other types of waste to recycle it
responsibly.
This will help to foster the sustainable re-use of material resources.
We invite you to contact your retailer or inquire at your local town
hallto nd out where and how the drone can be recycled.
BATTERY WARNING:
1. Failure to follow all the instructions may result in serious injury,
irreparable damage to the battery and may cause a re, smoke or
explosion.
2. Always check the battery’s condition before charging or using it.
3. Replace the battery if it has been dropped, or in case of odour,
overheating, discolouration, deformation or leakage.
4. Never use anything other than the approval LiPo charger the
battery. Always use a balancing charger for LiPo cells or a LiPo cell
balancer. It is recommended that you do not to use any other
charger than the one provided with the product.
5. The battery temperature must never exceed 60°C(140°F)
otherwise the battery could be damaged or ignite.
6. Never charger on a ammable surface, near ammable products
or inside a vehicle(perferably place the battery in a non-ammable
and nonconductive container).
7. Never leave the battery unattended during the charging process.
Never disassemble or modify the housing’s wiring, or puncture the
cells. Always ensure that the charger output voltage corresponds to
the voltage of the battery. Do not short circuit the batteries.
< GENERAL INFORMATION >
This equipment complies with ISED radiation exposure limits
set forth for an uncontrolled environment. The device has
been evaluated to meet general RF exposure requirement.
Le matériel est conforme aux limites de dose d'exposition
aux rayonnements énoncés pour fac un autre environnement.
ce dispositif a été évalué à satisfaire l'exigence générale
de l'exposition aux rf.

-23- -24-
< GENERAL INFORMATION > < GENERAL INFORMATION >
8. Never expose the LiPo battery to moisture or direct sunlight, or
store it in a place where temperatures could exceed 60°C(car in the
sun, for example).
9. Always keep it out of reach of children.
10. Improper battery use may result in a re, explosion or other
hazard.
11. Non-rechargeable batteries are not to be recharged. Recharge-
able batteries are only to be charged under adult supervision.
12. Dierent types of batteries or new and used batteries are not to
be mixed.
13. Batteries are to be inserted with the correct polarity.
14. The supply terminals are not to be short-circuited. Regular
examination of transformer or battery charger for any damage to
their cord, plug, enclosure and other parts and they must not be
used until the damage has been repaired.
15. The packaging has to be kept since it contains important
information.
16. The toy is only to be connected to Class II equipment bearing the
symbol.
EU RF Power(EIRP): -22.75dBm(2404MHz ~ 2480MHz)
Caution
1.The max operating of the EUT is 45°C. and shouldn’t be lower than
-10°C.
2.The device complies with RF specications when the device used
at 0mm form your body.
3.Declaration of Conformity.
We, Xiamen Huoshiquan Import & Export CO., LTD
hereby, declare that the essential requirements compliance with
the
Directive 2014/53/EU, the RoHS Directive 2011/65/EU and Safety
Directive 2009/48/EC have been fully fullled on our product with
indication below:
Product Name: Remote control four axis series
Model/Mark : HS210/HOLYSTONE
The Statement of compliance is available at the following address:
http://www.holystone.com/docs/HS210_EU_DOC.pdf
This product can be used across EU member states.
MANUFACTURER INFORMATION
Manufactured by
Xiamen Huoshiquan Import & Export CO., LTD
Room 703,No. 813-2 Xiahe Road, Siming District, XIAMEN, China
[phone]
