Home Aide Diagnostic Easy Neb Manual

COMPRESSOR NEBULIZER
Guidebook
Please read this guidebook
carefully before operating this unit.

Your Nebulizer is intended for use in the treatment of asthma, COPD
and other respiratory ailments in which an aerosolized medication is
required during therapy. Please consult with your physician and/or
pharmacist to determine if your prescription medication is approved for
use with this Nebulizer. This Nebulizer is intended for single patient
use.

1
COMPRESSOR NEBULIZER
Efficient Respiratory Therapy
INSTRUCTIONS
Contents
1. INTRODUCTION ...........................................................2
2. PRODUCT IDENTIFICATION .........................................3
3. IMPORTANT SAFEGUARDS ..........................................4
4. OPERATING YOUR COMPRESSOR NEBULIZER.............4
5. CLEANING....................................................................6
6. SPECIFICATIONS .........................................................7

2
1. INTRODUCTION
Thank you for purchasing the Easy Neb Compressor Nebulizer. It is a compact medical
device designed to efficiently deliver physician prescribed medication to the bronchial lung
passages. With proper care and use, it will provide you with many years of reliable
treatment.
This product is developed for successful treatment of asthma, allergies and other
respiratory disorders. It creates a stream of air that travels through a clear tube to the
nebulizer. When air enters the nebulizer, it will convert the prescribed medication into an
aerosol mist for easy inhalation.
Your Easy Neb Compressor Nebulizer should be used under the supervision of a licensed
physician and/or a respiratory therapist. We encourage you to thoroughly read this
guidebook to learn about the features of this product. Any use of this product other than its
intended use should always be avoided.

3

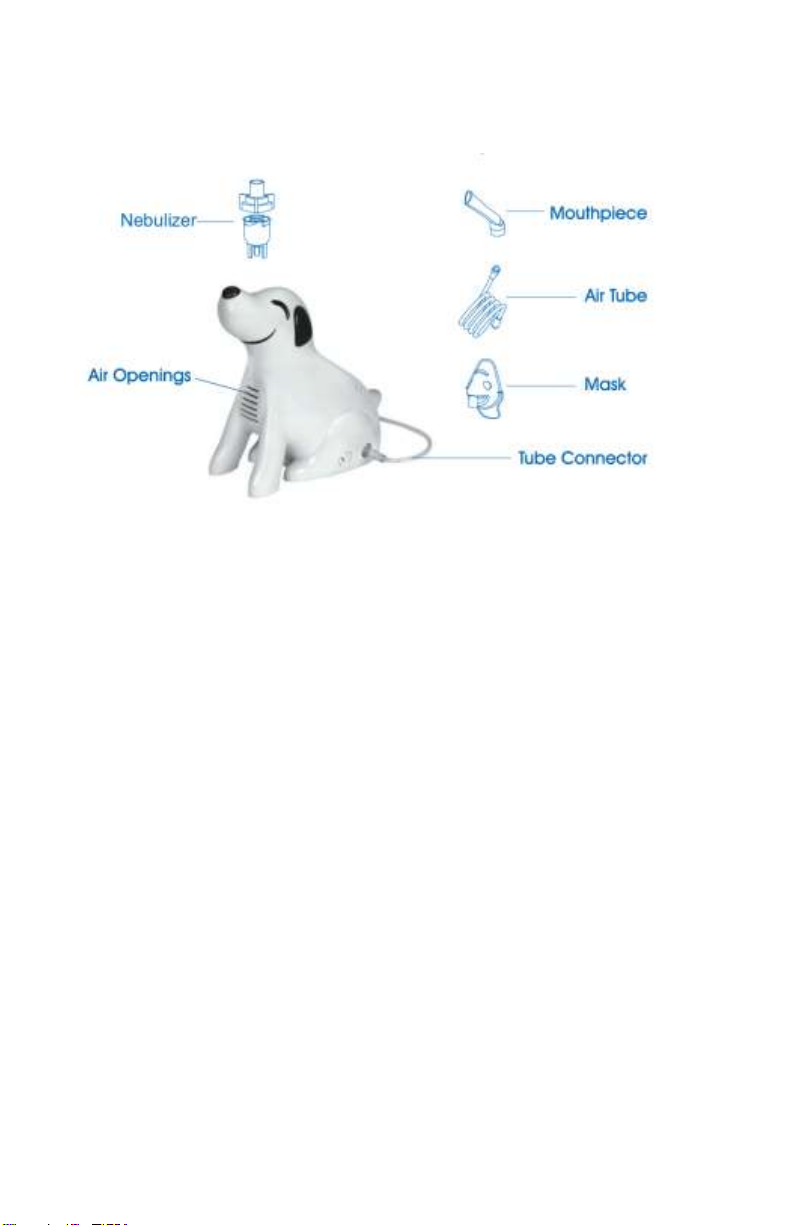

2. PRODUCT IDENTIFICATION

4
3. IMPORTANT SAFEGUARDS
Note: Read all instructions carefully before use.
The following lists the basic precautions needed when using an electrical product:
Caution: Failure to read and observe all precautions could result in personal injury or
equipment damage.
Product cautions:
1. To avoid electrical shock: Keep the unit away from water * Do not immerse the power
cord or the unit in liquid * Do not use while bathing * Do not reach for a unit that has
fallen into water - immediately unplug the unit.
2. Never operate the unit if it has any damaged parts (including power cord) or if it has
been dropped or submerged in water.
3. The unit should not be used where flammable gas, oxygen or aerosol spray products
are being used.
4. Disconnect the unit from the electrical outlet before cleaning, filling and after each use.
5. Do not use other attachments unless recommended by manufacturer.
Operating Cautions:
1. Connect this product to an appropriate voltage outlet for your model.
2. Do not run this product unattended.
3. Never operate the unit if it has a damaged cord or plug, if it has been dropped, or in
any way, submerged into water, or if it does not work properly.
4. If any abnormality occurs, discontinue use immediately until the unit has been
examined and repaired.
5. Always unplug the product immediately after use.
6. Never block the air openings of the main unit or place it where the air openings may
be obstructed.
Storage Cautions:
1. Do not store the unit under direct sunlight, high temperature or humidity.
2. Keep the unit out of reach of small children.
3. Always keep the unit unplugged while not in use.
Cleaning Cautions:
1. Do not immerse the unit in water. It may damage the unit.
2. Disconnect the unit from the electrical outlet before cleaning.
3. Clean all necessary parts after each use as instructed in this guidebook
4. OPERATING YOUR COMPRESSOR NEBULIZER
Note: Prior to initial operation, the nebulizer should be thoroughly cleaned.
1. Place your Compressor Nebulizer on a flat and stable surface. Be sure that you can
easily reach the controls when you are seated.
2. Gently twist the top part of the nebulizer cup counter-clockwise to disassemble.
3. Fill the bottom section of the nebulizer cup
with the medication prescribed by your
physician. Be sure that the cone is placed
inside the bottom section.

5
4. Gently twist the top part clockwise to reassemble the nebulizer cup. Be sure the two
sections fit well.
5. Attach one end of air tube to the base of the nebulizer cup.
6. Attach the other end of air tube to the tube connector located on the front of the
compressor.
7. Attach T-connector to the top section of nebulizer cup. Then attach mouthpiece to the
open end of the T-connector.
8. Plug the power cord into an appropriate electrical outlet. Make sure at this stage, the
power switch is at “Off” status.
9. Press power switch to begin your prescribed treatment.
10. When treatment is finished, shut off the unit and unplug it from the electrical outlet.
Important:
The compressor motor has a thermal protector, which will shut off the unit before the unit is
overheated. When the thermal protector shuts the unit off, please:
a. Switch off the unit.
b. Unplug the unit from the electrical outlet.
c. Wait 30 minutes for the motor to cool down before another treatment. Make sure
the air openings are not obstructed.

6
5. CLEANING
It is recommended that the nebulizer cup, T-connector and mouthpiece be thoroughly
cleaned with hot water after each use and cleaned with a mild detergent after the last
treatment of the day. If your physician or respiratory therapist specifies a different cleaning
procedure, follow their instructions.
Rinsing (after each treatment):
1. Disconnect the air tube, nebulizer cup, T-connector, and mouthpiece.
2. Gently twist the nebulizer cup to open it.
3. Rinse the nebulizer cup, T-connector, and mouthpiece with water.
4. Dry them with clean soft towel or let them air dry.
5. Reassemble the nebulizer cup when completely dry and put these parts in a dry,
sealed container.
Disinfections:
Please follow the steps below to disinfect your nebulizer unless otherwise specified by your
physician. It is suggested that the unit is disinfected after the last treatment of the day.
1. Use one part white vinegar with three parts distilled water. Make sure mixed solution is
enough to submerge the nebulizer cup, T-connector, and mouthpiece.
2. Wash nebulizer cup, T-connector, and mouthpiece in warm water and a mild
detergent. Then wash them in hot tap water.
3. Submerge these parts in the vinegar and water solution for thirty minutes.
4. Complete by rinsing the nebulizer cup, T-connector, and mouthpiece.
Cleaning the compressor
1. Wipe daily with a damp cloth.
2. Do not use any powdered cleaners or soap pads, which may damage the finish.
Filter change
1. Do not use cotton or any other materials. Do not wash or clean the filter. Only use
filters supplied by your distributor. And do not operate without a filter.
2. Change the filter every 30 days or when the filter turns gray.
3. Changing procedure:
A. Remove the filter cover
B. Replace the used filter with a new one.
C. Replace the filter cover.

7

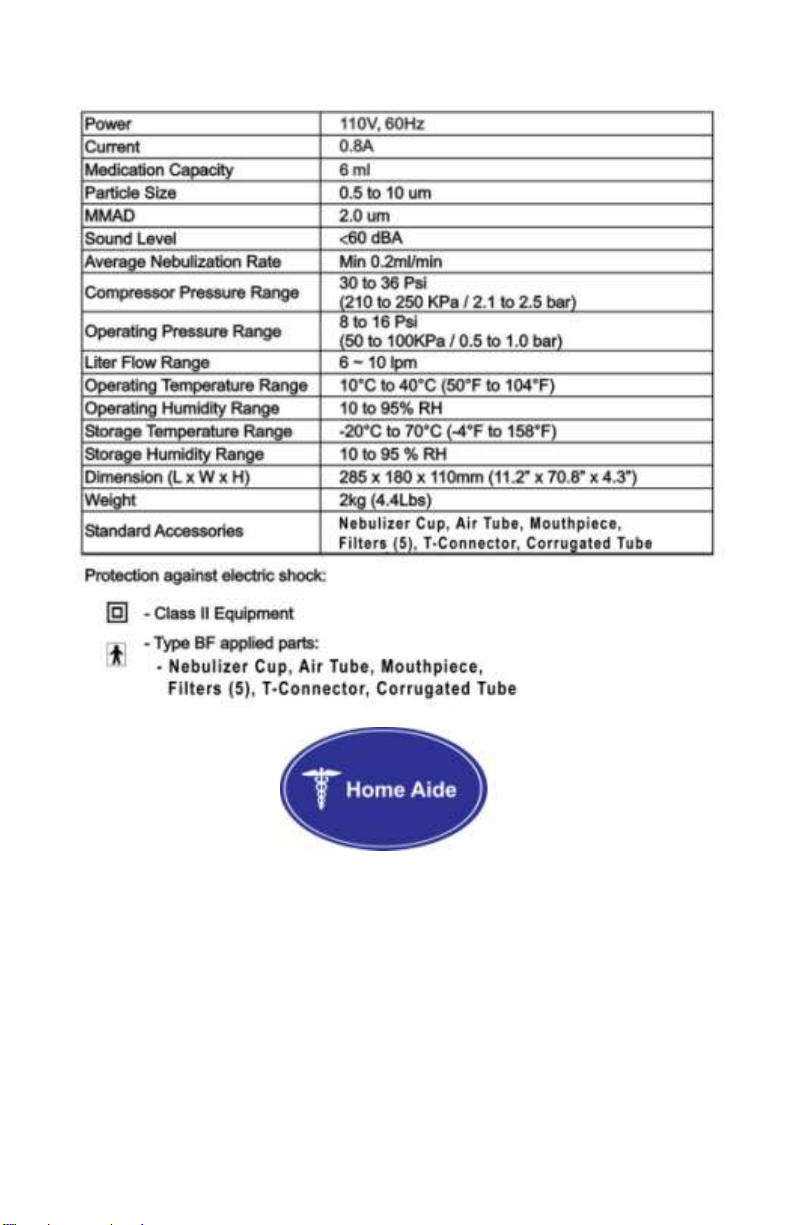

6. SPECIFICATIONS
Home Aide Diagnostics, Inc.
1072 S. Powerline Rd.
Deerfield Beach, FL. 33442
(800) 915 –0116
