Home & Camp BL4200C User manual

USER MANUAL

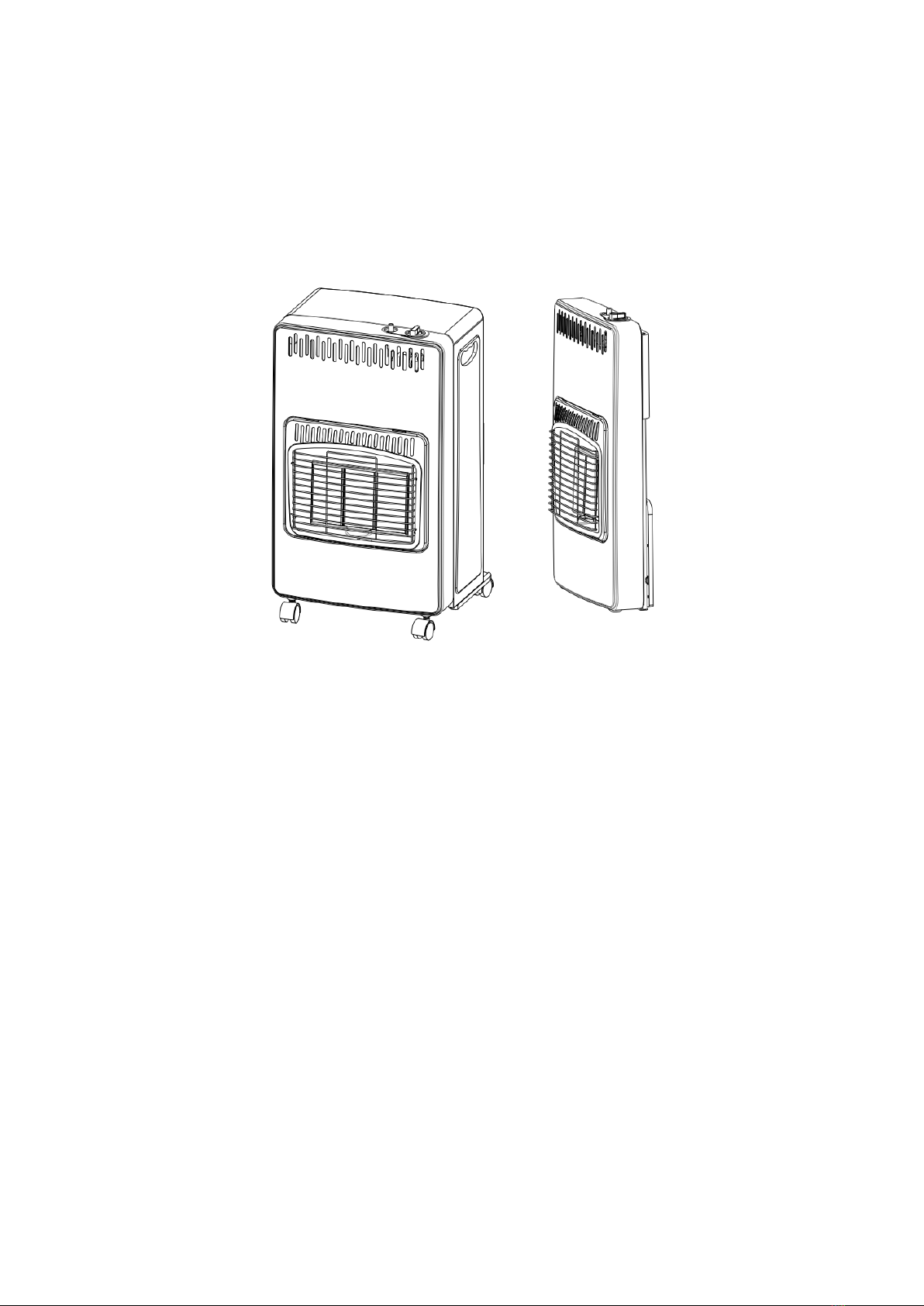

Domestic flueless space heaterBL4200C
Only for temporary use.
Use only in well ventilated space.
THE GUARD ON THIS APPLIANCE IS TO PREVENT RISK OF FIRE OR INJURY FROM
BURNS AND NO PART OF IT SHOULD BE PERMANENTLY REMOVED

2
INSTALLINSTRUCTION
PANKING LIST OF SPAREPARTS INSIDE THE PACKAGE
1. HEATER MACHINE
2. 5 WHEELS
3. SCREWS
4. INSTALL TOOLS(SCREW DRIVER AND WRENCH)

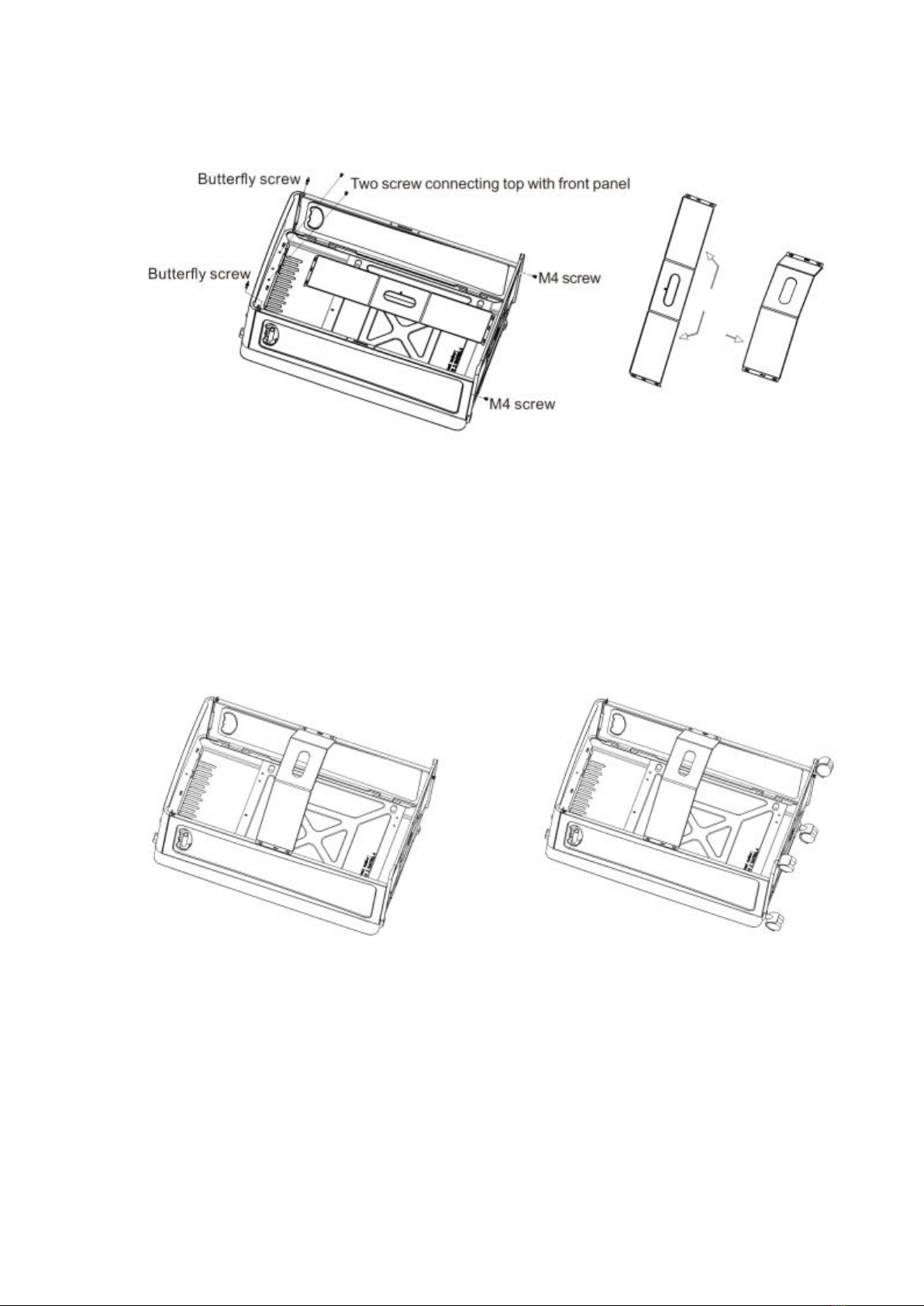

1. Put down the bottom cabinet as
per arrow direction
2. Lift up the top cabinet as per
arrow direction
3.Open the left side cabinet as
per arrow direction
4. Open the right side cabinet as
per arrow direction

3
7. Install the cylinder holder to heater 8. Install the five wheels to bottom
cabinet.
5. Fasten the top two screws.
Connecting the left/right cabinets with top
cabinet by two butterfly screws. Fixing the
left/right cabinets with bottom cabinet by 4 pcs
M4 screws.
6. Take out the cylinder holder and
bend it to the right shape.

4
SAFETY PRECAUTIONS:
1. Always use the heater in accordance
with the operating instructions supplied
with each heater. Keep these instructions
in a safe place.
castors if knocked by a child or dog etc.
1. Always use the heater in accordance
with the operating instructions supplied
with each heater. Keep these instructions
in a safe place.
3. DO NOT place the heater near
armchairs, fabrics, linens and furniture.
4. DO NOT move the heater from one
room to another during use.
5. DO NOT place the heater next to a wall
or near curtains and other flammable
materials. The following minimum
distances must be respected: 20 cm from
the sides, 150 cm from the front.
ALWAYS point the heater towards the
center of the room. Special care should
be taken if the heater is on a surface
where it can be knocked over by a child or
a dog, etc.
6. In the event of a gas leak, the heater's
gas supply must be switched off.
DO NOT remove the regulator. Turn off all
the lights. Check all connections. Turn on
the gas slowly and brush the connections
with soapy water or liquid detergent, the
gas leak will form bubbles. If a leak is
found, turn off the gas and notify your gas
supplier. DO NOT operate the heater
again until it has been inspected and
serviced by your dealer
NOTE: READ THE INSTRUCTIONS FOR USE BEFORE USING THE PRODUCT.
VENTILATION: USE ONLY IN AN AREA WITH ADEQUATE VENTILATION
DO NOT USE IN SPECIAL PURPOSE VEHICLES SUCH AS A CARAVAN OR A
MOTORHOME
DO NOT CHANGE THE GAS CYLINDER IN EXPOSED TO LIGHT.
THIS DEVICE REQUIRES INSTALLATION BY A QUALIFIED PERSON. THIS
DEVICE REQUIRES AN APPROVED HOSE AND REGULATOR. YOU CAN CHECK
THE REQUIREMENTS FROM YOUR GAS SUPPLIER.

5
E
TECHNICAL CHARACTERISTICS
Type:BL4200C Domestic Flueless Space Heater,
mobile, equipped with anti-tilt
switch, oxygen depletion system
and flame supervision device,
Domestic flueless Space heater
Model
BL4200C
Appliance Category
□I3+
□I3B/P
□I3B/P
□I3B/P
Burner type
Atmospheric burner
Siza of injector (mm)
0.59
0.59
0.54
0.56
Nominal Supply pressure
(mbar)
28-30/37
28-30
50
37
Type of gas
G30/G31
G30
G30
G30
Nominal
Heat input
(kW) (Hs)
Maximum
4.2
4.2
4.2
4.2
Medium
2.8
2.8
2.8
2.8
Minimum
1.5
1.5
1.5
1.5
Gas
Consumption
(g/h)
Maximum
305
305
305
305
Medium
200
200
200
200
Minimum
110
110
110
110
Ignition system
Piezo electric ignitor
Gas Container
From 5kg to 15kg [at maximum 32 cm (dia.) x 55 cm (H)]
VENTILATION
Your heater consumes oxygen while it is in operation. For that reason, adequate
ventilation should be provided in rooms in which the heater is used. This ensures
the removal of products of combustion and allows the entry of replacement air.
Adequate ventilation should considerably reduce the possibility of condensation occurring.
The following table shows the smallest sizes of room suitable for each heat setting and the
ventilation surface, which should be provided.
REQUIRED VOLUME OF ROOM AND VENTILATION SURFACE:
VOLUME OF LIVING ROOM
VENTILATION SURFACE
Low Level
High Level
84 cubic meters
105cm2
105 cm2
ENG

6
CONNECTING THE CONTAINER
1. Use an approved regulator according to gas supply pressure and approved tubing having a
length
of 50cm and in no case longer than 1m. When connecting the regulator to the container avoid
twisting of hose.
2. Slowly open the valve of the container and check if there is any gas leakage by brushing
the connections with soapy water. NEVER USE A MATCH! A gas leakage forms the bubbles.
In the event of gas leakage the appliance should be turned off by closing the valve and the
regulator disconnected from the bottle.
Place container in its proper space and attach the rear cover.
HOWTOCHANGELPGCONTAINER
1. Container must be replaced in a flame-free atmosphere.
2. Do not smoke while changing the container.
3. When you needed to replace your empty container, turn off gas container’s valve.
4. Make sure that the heater is extinguished completely.
5. Remove the regulator from the empty container.
6. Following the steps described in “Connecting the container” to connect a filled one.
IMPORTANT
1. It is important that all gas connections have been correctly connected to prevent any leakage.
Use soapy water instead of a match for gas leakage checking..
2. Put your container always in upright position. Using the container in horizontally laid down
position may damage your heater and create serious results.
3. If a newly fillneed container is used, ignition might impair as there may be some inert gas
present in the container. In this case, change the container with another one which is partially
used.
4. When you light your heater for the first time or if it has been a long time since you used it
last time. Please be noted that first light your heater in open air (garden or balcony). Take
your heater inside after 15 minutes operation.
5. Do not use your heater while sleeping.
Do not use your heater in high-rise flats.
Do not use your heater in basements, bathrooms or bedrooms.
6. This appliance requires a hose and a regulator, check with your gas supplier.
Please seek advice from your gas and regulator supplier so as to use correct hose.
The guard on the appliance is to prevent risk of fire or injury form burns and no part of it
should be permanently removed.
IT DOES NOT GIVE FULL PROTECTION FOR YOUNG CHILREN OR
THE INFIRM.

7
ENG

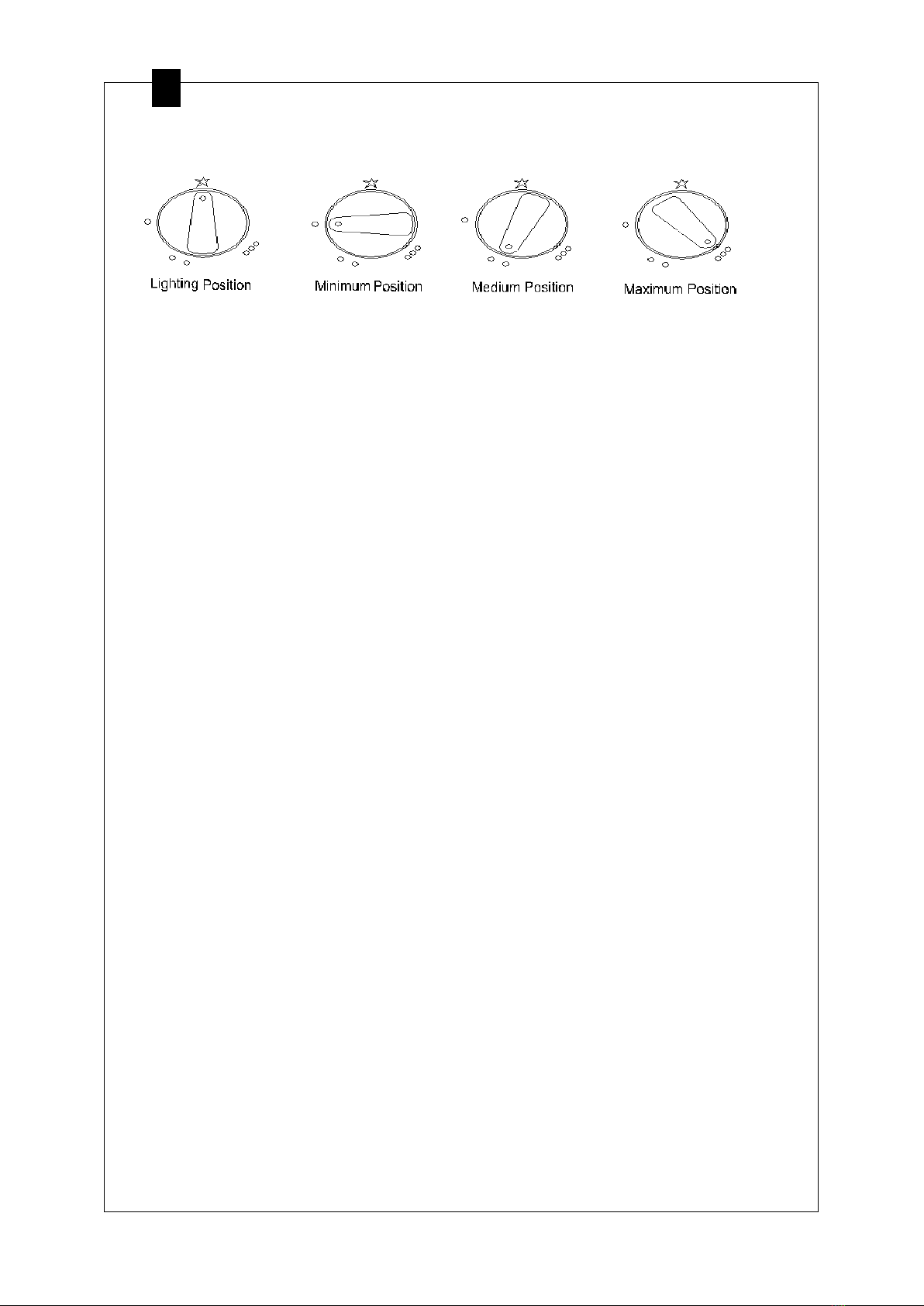

CONTROL BUTTON:
1.LIGHTING INSTRUCTION
A.The heater has three settings. Lighting position（Pos.1）Minimum position (Pos.2) ;
Medium position (Pos.3) Maximum position (Pos.4).
B.Turn on the gas on the container.
2. LIGHTING:
Use one hand Press down the control button for 10 seconds, at the same time press
down the piezo igniter key with thumb finger of another hand. Continue this
procedure until pilot is ignited. Approximately 20 seconds later release the control
button. At the moment if pilot is ignited, it means that the heater is at its minimum
position. If pilot flame goes out, please repeat this procedure.
3. HEAT LEVEL SETTINGS
To change from minimum to medium. Please gently press down the control button
and turn it to position 2.
To change from medium to maximum. Please gently press down the control button
and turn it to position 3.
4. SWITCHING OFF
Turn off the gas on the container. If the heater will not be used for a period of time,
please disconnect the regulator from the container and replace any valve protection
plug or cover. If the heater fails to extinguish, please do not disconnect the regulator
from the container and remove the heater outdoors and let the gas in the container
used up.
Attention!
Please be sure the control button has been locked after you changing the position of
control knob followed by the direction of arrow. Control button can`t be turned if
youhaven`t pressed it down.

8
WARNING ENG
1. Read these instructions before using this appliance.
2. Use an approved regulator which is adjusted to the gas supply pressure required.
3. Do not keep pressing the ignition button for more than 40 seconds.
4. Never disconnect the regulator while container valve is open.
5. Don’t change container with in areas in which open fire exists.
6. Don’t expose your container to extreme heat area.
7. Don’t locate any other container with in the space/room in which your heater is used.
8. Do not insert your finger or any other material through the front panel of the heater.
9. Leave at least 1 meter distance between your heater and the other heat source.
10. Do not let unauthorized persons to interfere with your heater.
11. Do not place appliance under socket outlet.
12. Don’t use the heater in surroundings of a bath, shower of swimming pool,
leisure vehicles such as caravans or auto caravans .
13. This heater must not be used without a gas container fitted for stability purposes.
14. Do not cover your heater.
15. Fabrics, clothing, hangings, net curtains, bed linens and other flammable materials may ignite
if placed against the outlets of your heater.
16. In the event of leakage, the appliance shall be turned off valve and the regulator disconnected
from the container.
17. After use, turn off the appliance at the gas valve.
18. Only use in a well ventilated area.
STORAGE
1.Disconnect container.
2.Store container in a well-ventilated area away from combustible material.
Storage should preferably be in an outhouse but must not be in a basement or high-rise flat.
3. The heater should be covered in a dry, dust-free medium in its original package.
CLEANING
1. Use a damp cloth wrung out in a solution of soapy water to clean the exterior and container
storage area of your heater.
2. Make sure that no water gets onto the burners or pilot/light area. Wipe the heater
completely dry before use.
3. Don’t use abrasive cleaners as they may damage the quality paint finish.
MAINTENANCE
1. Check flexible tube between regulator and heater before every operation and replace it
if perished, worn or damaged. In any case consider its expiration date to replace the tube
2. Contact agent named on last page of this manual if any major maintenance is needed.
3. It is recommended that the heater is maintained every two years by authorized personnel.

9
ENG
FAULT FINDLING CHART
SYMPTOMS
FAULT
REMEDY
1. Pilot will not light
automatically.
No spark across
electrode gap.
(a) Ensure that
pizeo-electric igniter is
functioning correctly.
(b) Check that
electrical lead is not
damaged.
2. Pilot will not light
automatically but points (a)
to (e) are satisfactory and
the pilot will light with a
match.
Incorrect position of
spark in relation to
pilot gas flow.
Re-position spark plug so
that spark jumps across gas
flow.
3. Heater will not remain
alight when pressure is
released from ignition
button.
Electro-magnetic
valve closes whilst
heater is alight.
(c) Ensure that
thermocouple probe is
located in pilot flame.
(d) Ensure good
connection between
thermocouple and valve.
(e) Check
thermocouple.
(f) Check
electromagnetic valve.(by
serviceman)
4. After changing to
maximum position with all
three plaques alight. One or
more plaques appear below
normal intensively.
(a) Blocked jets.
(b) Partially blocked
supply tube.
(a) Remove and clean
blocked jet.
(b) Remove supply tube,
remove jets and blow
through the tube.
5. Difficulty in cross lighting
from position 1 to position 2
or 3.
(a) Air draught
directed away
from first
plaque.
(b) Position of the
pilot flame.
(a) Change the location of
the appliance so that it
is not adversely affected
by air draught.
(b) Position pilot so that
flame impinges across
bottom corner of 2nd
plaque as well as 1st
plaque.
6. Smell of combustion.
Missing piece of
ceramic fireclay.
Inspect perimeter of each
plaque and locate place
where some fireclay has
been displaced.
Turn to the local service
(REPAIR TO BE CONDUCTED BY AUTHORISED PRESONNEL ONLY)

10
