USE AND CARE GUIDE
HAWKINGS POINT RUSTIC PINE MEDIA UNIT
XXX XXX/89499/25MM40080-PI07
XXX XXX/89505/25MM40080-PB01
We appreciate the trust and condence you have placed in Home Decorators through the purchase of this electric replace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
imporvement needs. Thank you for choosing Home Decorators!
THANK YOU
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HomeDepot.Com/HomeDeCorators

2

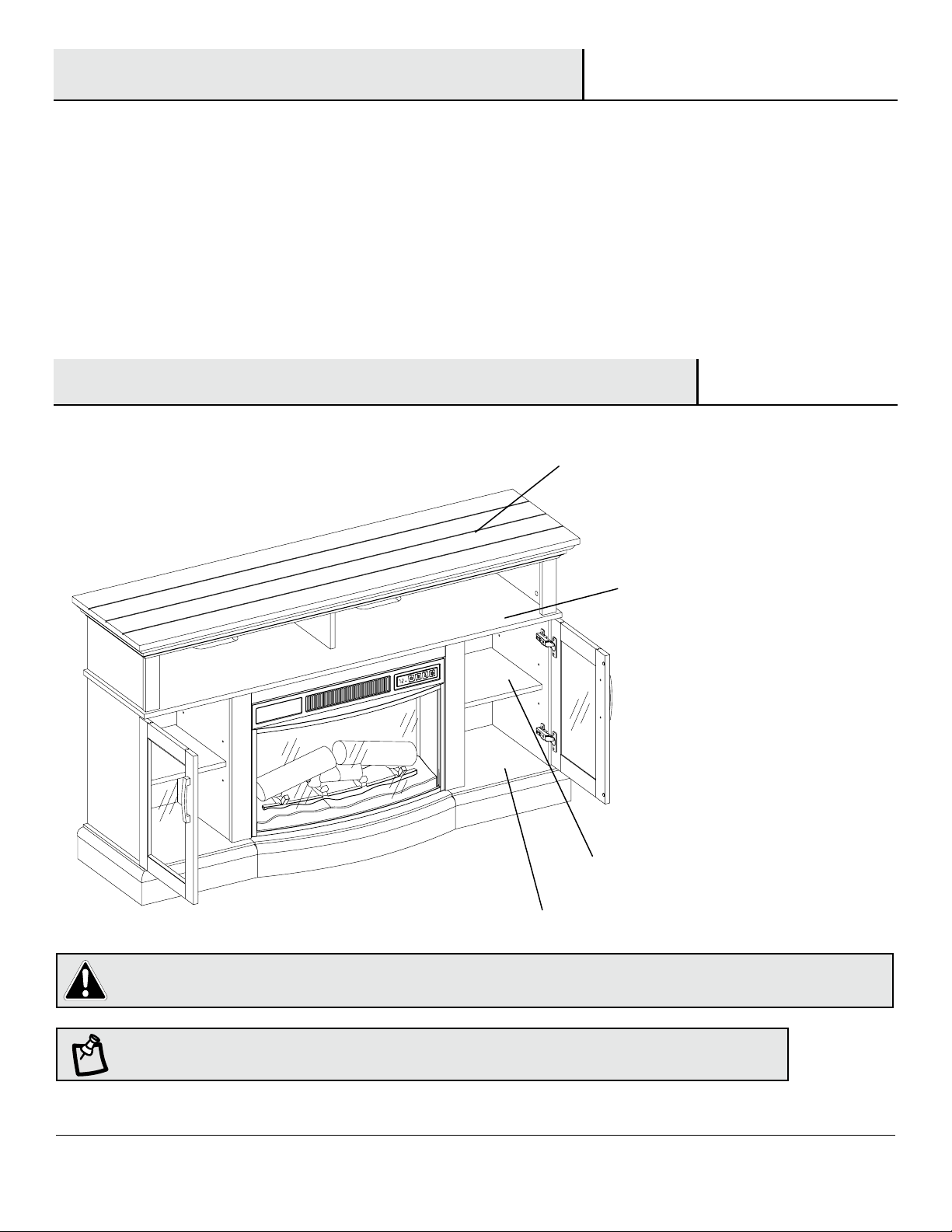

MAXIMUM LOAD 90 lb. (40.8 kg)
MAXIMUM LOAD 20 lb. (9.1 kg)
MAXIMUM LOAD 50 lb. (22.7 kg)
MAXIMUM LOAD 15 lb. (6.8 kg)
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.
NOTE: Flat Panel TVs with base support should be placed squarely in the center of the stand with no overhang on any side.
Maximum Load Warning...........................................2
Safety Information.....................................................3
Warranty ..................................................................... 5
Pre-Assembly............................................................. 6
Hardware Included ................................................... 6
Product Specications....................................................... 6
Tools Required ................................................................... 6
Package Contents.............................................................. 7
Assembly....................................................................8
Operation .................................................................19
FCC/IC Information......................................................... 21
Care & Cleaning.......................................................21
Troubleshooting....................................................... 22
Replacement Parts.................................................. 24
Maximum Load Warning
Table of Contents

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Please read and understand this entire manual before
attempting to assemble, operate or install the product. If you
have any question regarding the product, please call customer
service at service at 1-800-986-3460, 8 a.m.-7 p.m., EST,
Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electrical shock,
and injury to persons including the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5. Do not cover the cord under the carpeting. Do not cover
with throw rugs, runners or the like. Arrange the cord away
from trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8. This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code. For U.S.A. installations, follow
local codes and the National Electrical Code, ANSI/NFPA
NO.70.
9. This appliance has hot and arcing or sparking parts inside
Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be
used as a drying rack for clothing. Do not hang Christmas
stockings or other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply
to avoid damage to the replace or risk of re.
Safety Information
DANGER:
High temperatures may be generated under
certain abnormal conditions. Do not partially or fully cover
or obstruct the front of this heater.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: Under no circumstances should this fireplace be
modified. Parts that must be removed for servicing must be re-
placed prior to operating this replace again.
WARNING: In order to avoid overheating, do not cover the
heater.
WARNING:
Use extreme caution when operating heater
near children and the disabled.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
This heater may include an visual alarm to warn
that parts of the heater are getting excessively hot. If the alarm
illuminates, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may have blocked the
airow or otherwise caused high temperatures to have occurred.
DO NOT OPERATE THE HEATER WITH THE ALARM ILLUMINATING.
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.

4
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or
plug in the power cord until the missing or damaged part is
correctly replaced. To avoid electric shock, use only identical
replacement parts when servicing double-insulated tools.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Donotsitonanypartofthemantel.
NOTE:
SAVE THESE
INSTRUCTIONS
Safety Information (continued)

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for
a period of one year from date of puchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed
by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied –with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories used in conjunction with the
installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
Warranty

6

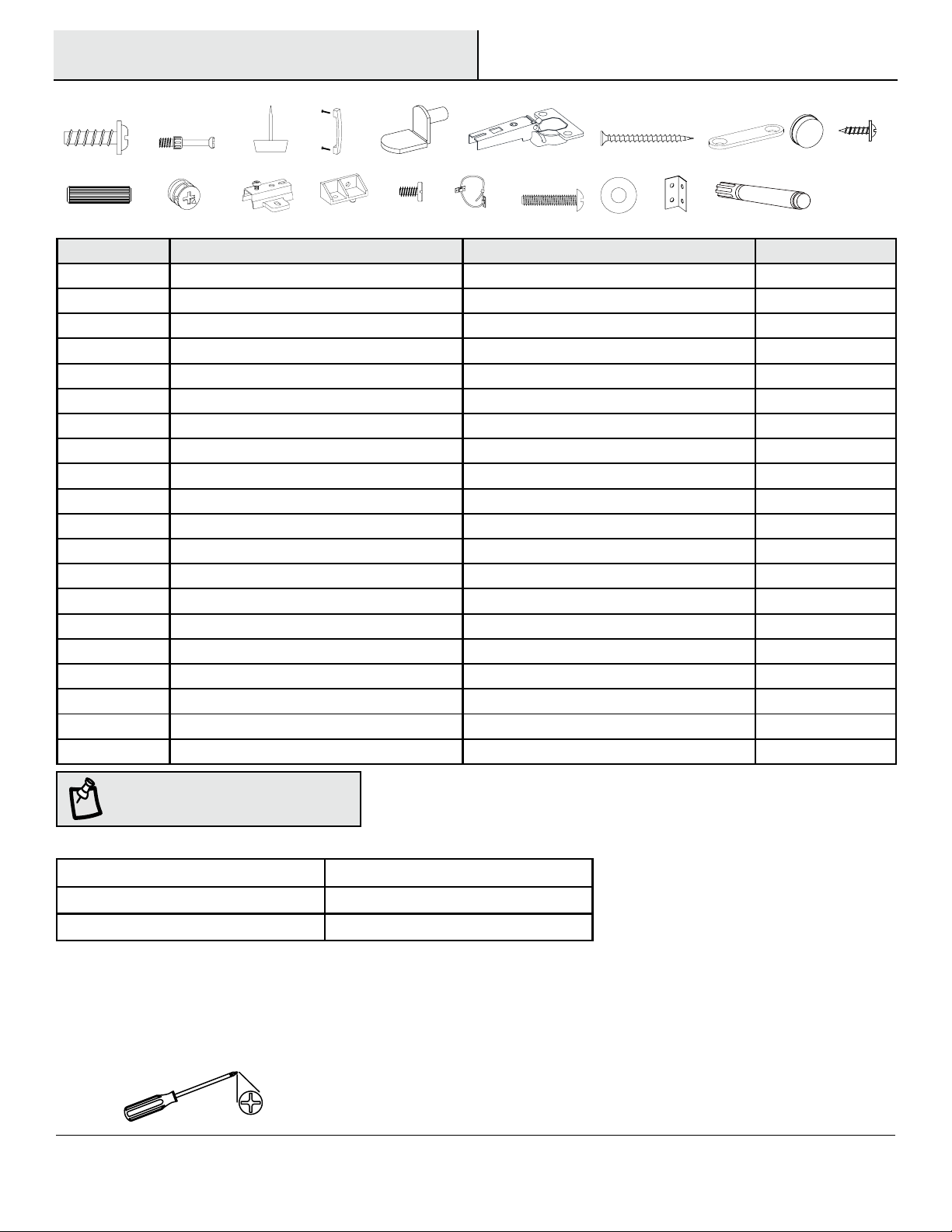

HARDWARE INCLUDED
DD
CC EE FF GG HH II JJ
KK LL MM NN OO PP QQ RR SS
Part Description Part Number Quantity
AA Machine Screw N/A 16
BB Camlock Bolt PH-KDBZNC002 26
CC Floor Glide (Pre-attached) PH-GLDBRW001 12
DD Handle (with Screw) N/A 2
EE Shelf Pin PH-SPNPCSPLB2 8
FF Euro Hinge PH-HNG2H26AR95 4
GG Long Screw PH-SCRBLK006 11
HH Metal Plate (Pre-attached) PH-PLBLK001 2
II Door Bumper PH-BMPCLR001 4
JJ Screw N/A 34
KK Wood Dowel PH-DWLNTL001 38
LL Camlock PH-KDCZNC001 26
MM Hinge Bracket N/A 4
NN 2 Hole Plastic Connector Block PH-PCBBLK001 6
OO Small Flathead Screw PH-BLTBLK002 20
PP Tipping Restraint Hardware PH-BKTWHT003 2
QQ Screw PH-BLTBLK001 4
RR Flat Washer N/A 4
SS Angle Bracket N/A 2
ZZ Touch-up Pen N/A 1
NOTE:
Hardware not shown to actual size.
Phillips Screwdriver
AA BB
ZZ
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
pLaNNING assemBLY
Before beginning assembly of product, make sure all parts are present. Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 60 Minutes
tooLs reQUIreD
Pre-Assembly

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

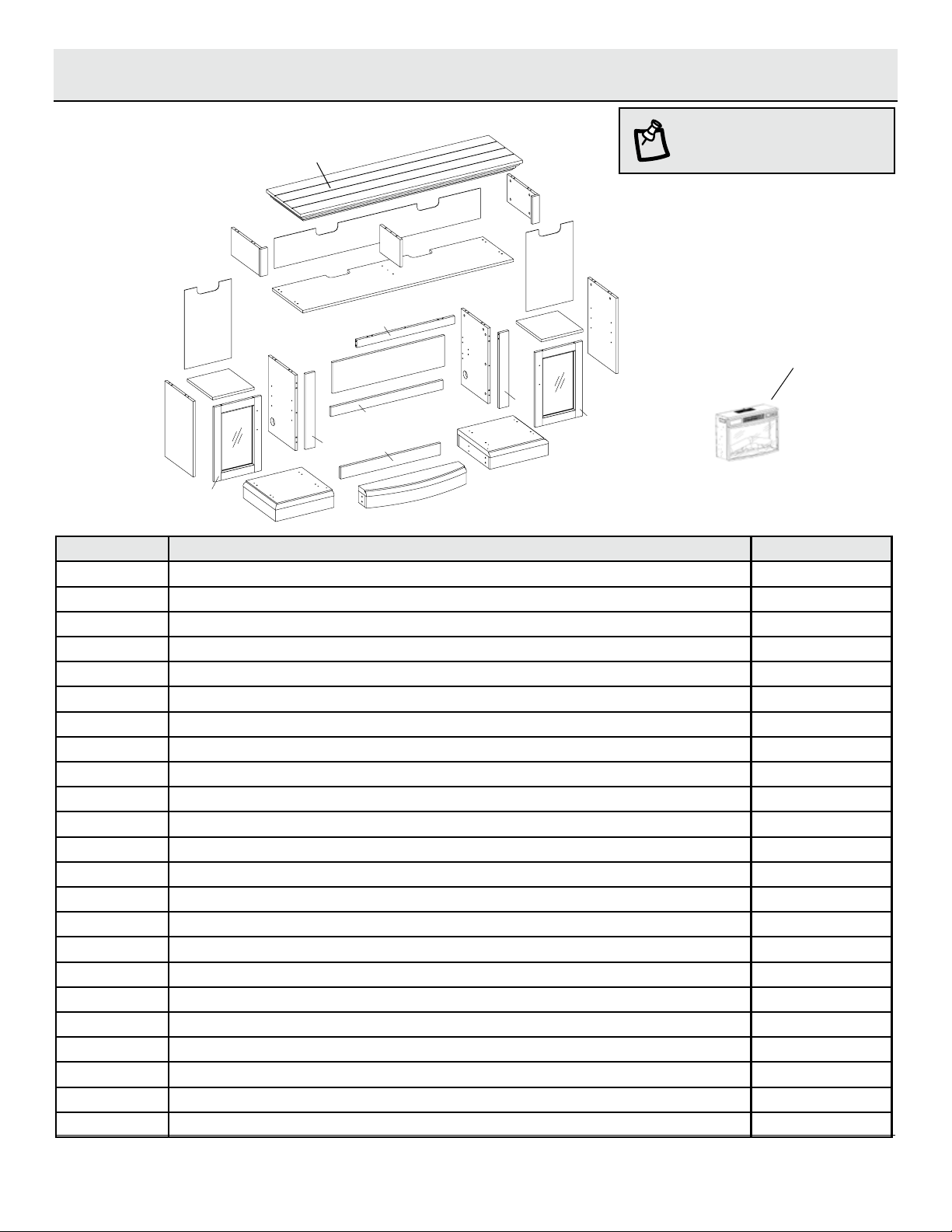

Part Description Quantity
A Left Base Panel 1
B Right Base Panel 1
C Back Base Panel 1
D Front Base Panel 1
E Decorative Left Front Panel 1
F Decorative Right Front Panel 1
GTop Assembly 1
H Left Center Panel 1
I Right Center Panel 1
J Left Side Panel 1
K Right Side Panel 1
L Upper Front Panel 1
M Center Shelf 1
N Divider 1
O Decorative Side Panel 2
P Upper Back Panel 1
Q Back Panel 2
R Left Door 1
S Right Door 1
T Adjustable Shelves 2
U Small Insert Securing Block 1
V Insert Securing Block 1
W Fireplace Insert 1
W
PACKAGE CONTENTS
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
A
I
V
S
CB
Q
Q
R
G
P
O
ON
K
T
T
U
L
M
D
E
J
FH
Pre-Assembly (continued)

8

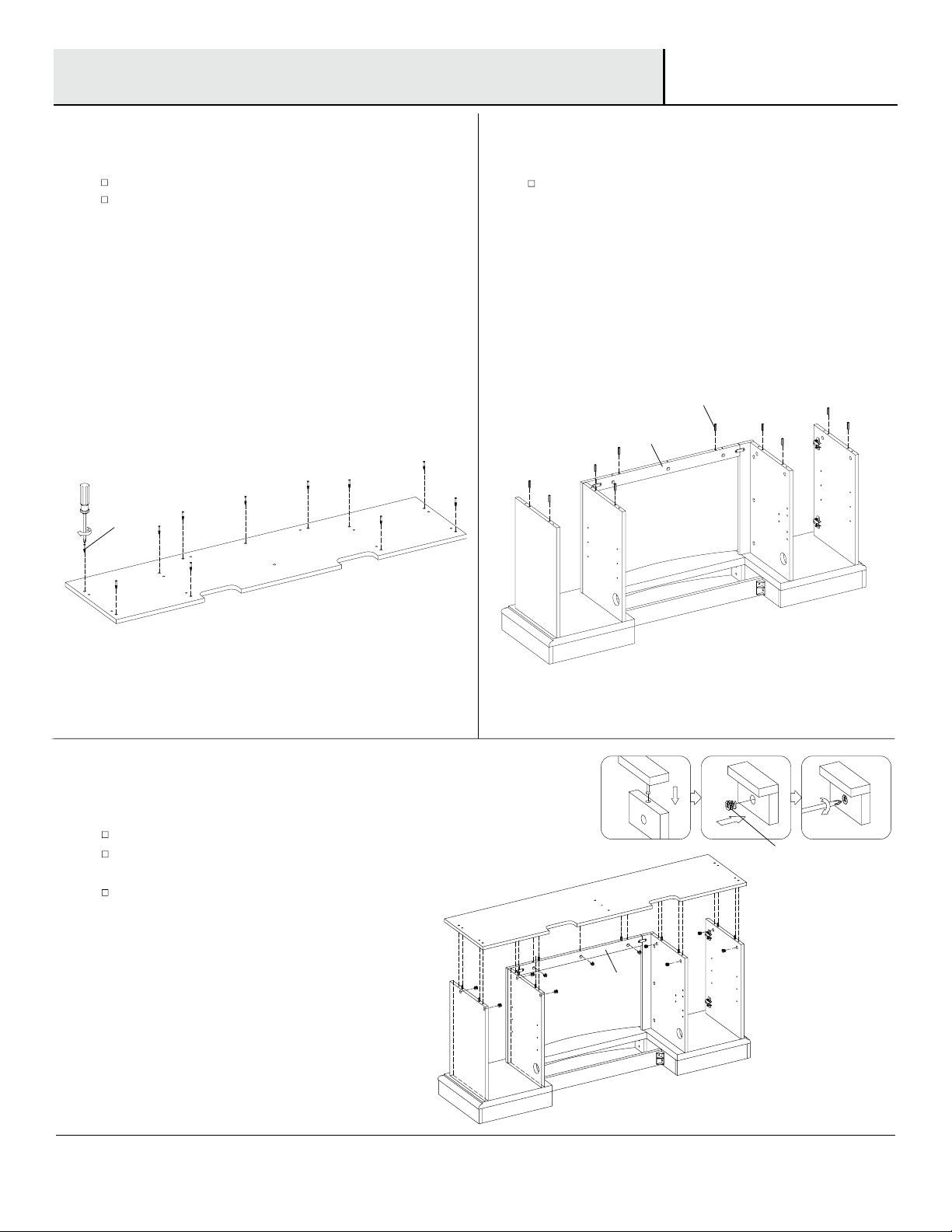

Insert the Camlock Bolts (BB) through the pre-drilled
holes in the Decorative Left Front Panel (E).
Repeat for the Decorative Right Panel (F).
3Preparing the decorative front panel

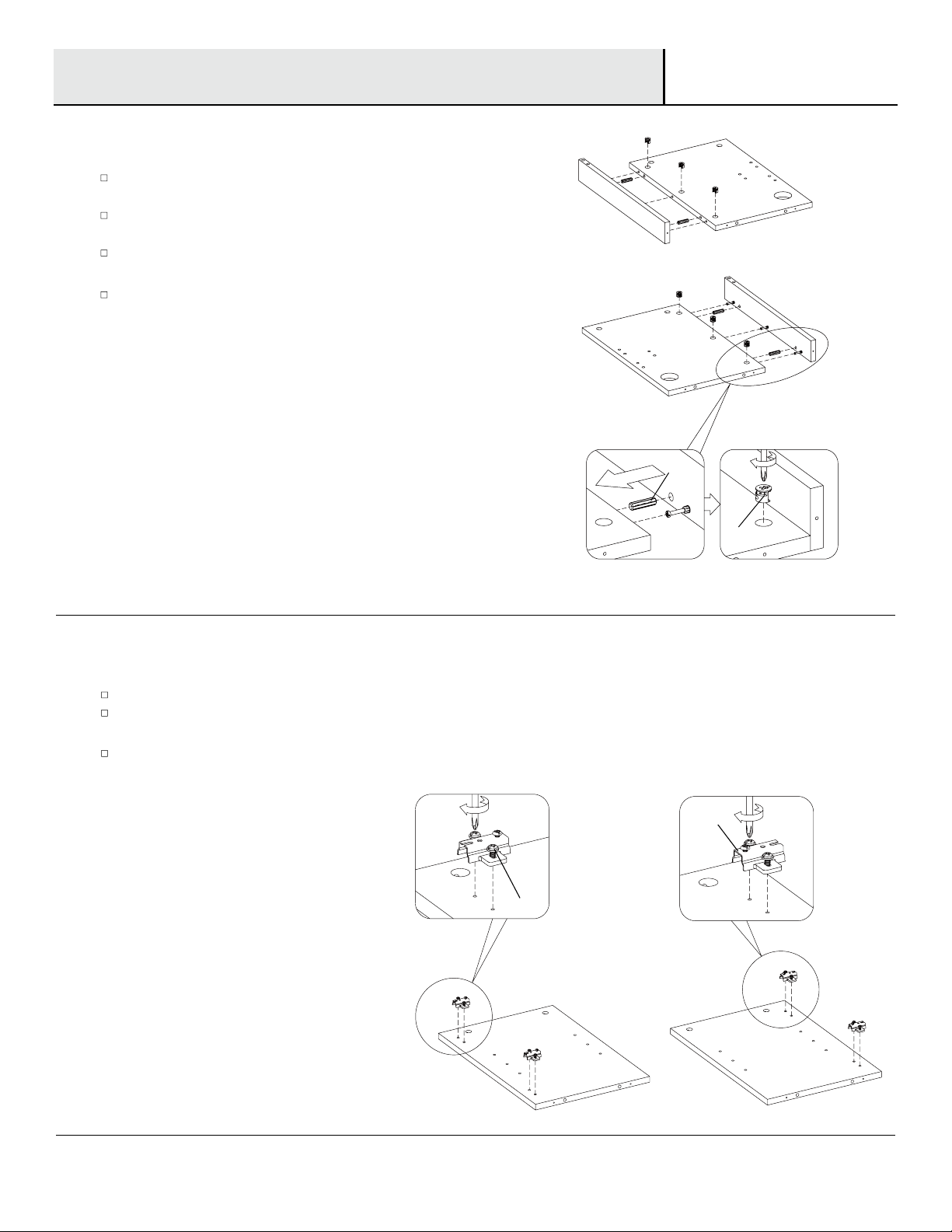

Put the Back Base Panel (C) on a at surface.
Inserts the Bolts (OO) through the 2 Hole Plastic
Connector Block (NN).
Put the Left Base Panel (A), Right Base Panel (B), Back
Base Panel (C) and Front Base Panel (D) on a at
surface.
Screw the Front Base Panel (D) and the Left Base Panel
(A) with the Washer (RR) and the Screw (QQ).
Insert the Small Screw (OO) through the 2 Hole Plastic
Connector Block (NN) to the Left Base Panel (A).
Repeat steps to connect the Right Base Panel (B).
1Preparing the base panel 2Assembling the base
C
C
A
D
NN
OO
QQ
RR
B
OO
NN
BB
E
F
Assembly

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Insert the Wood Dowels (KK) into the pre-drilled holes in
the Left Center Panel (H).
Push the Decorative Left Front Panel (E) and the Left
Center Panel (H) together.
Insert the Camlocks (LL) into the pre-drilled holes, and
turn clockwise to secure.
Repeat for the Decorative Right Front Panel (F).
Put the Left Side Panel (J) on a at surface.
Insert the Machine Screws (AA) through the Hinge
Bracket (MM), using the Phillips Screwdriver.
Repeat step for the Right Side Panel (K).
4
5
Attaching the decorative front panels
Preparing the side panels
H
E
F
I
LL
KK
J
AA
MM
K
Assembly (continued)

10
Insert the Wood Dowels (KK) into the pre-drilled holes
in the Left Side Panel (J), Left Center Panel (H), Upper
Front Panel (L), Right Center Panel (I) and Right Side
Panel (K).
Align the Left Base Panel (A) and the Right Base Panel
(B) with Left Side Panel (J) and the Left Center
Panel (H), push together.
Push together the Upper Front Panel (L) with the Left
Center Panel (H).
Repeat to attach the Right Side Panels.
Align the Metal Plate (HH), pre-attached to the Upper
Front Panel (L), with the Decorative Left Front
Panel (E).
Insert the Screw (JJ) through the Metal Plate (HH).
Repeat for the Decorative Right Front Panel (F).
To secure the panels to the base, insert the Long Screws
(GG) through the pre-drilled holes in the Left Base Panel
(A) and the Right Base Panel (B).
6
8
7
Attaching the panels
Securing the upper front panel
Securing the base
A
A
B
B
KI
H
L
L
E
F
J
KK
GG
HH
JJ
Assembly (continued)

11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Put the Center Shelf (M) upside down on a at surface.
Using the Phillips Screwdriver, insert the Camlock Bolts
(BB) into the pre-drilled holes.
Insert the Wood Dowels (KK) into the pre-drilled holes
located on the top of the Panels (H,I,J,K,L).
9
11
10
Preparing the center shelf
Attaching the center shelf
Preparing the center shelf
Align the Center Shelf (M) with the assembled unit. Push down.
To secure the Center Shelf, insert the Camlocks (LL) into the
pre-drilled holes located on the Panels (H,I,J,K,L).
Use the Phillips Screwdriver to tighten.
BB
M
M
K
K
I
I
H
H
J
J
L
L
LL
KK
Assembly (continued)

12
Insert Wood Dowels (KK) into the pre-drilled holes in the
Divider (N).
Push the Divider (N) down onto the Center Shelf (M).
Secure the Divider (N) to the Center Shelf (M) with the
Long Screw (GG).
Align the Decorative Side Panels (O) with the edge of the
Center Shelf (M).
Push the Decorative Side Panels (O) down onto the
Camlock Bolts (BB) and the Wood Dowels (KK).
Insert the Camlocks (LL) into the pre-drilled holes. Turn
clockwise with the Phillips Screwdriver to secure.
Insert the Camlock Bolts (BB) into the pre-drilled holes,
using the Phillips Screwdriver, into the Center Shelf (M).
Insert the Wood Dowels (KK) into the pre-drilled holes in
the Center Shelf (M).
12
14
13
Attaching the divider
Attaching the top decorative side panels
Preparing the center shelf
KK
BB
M
N
KK
GG
M
MO
BB
LL
KK O
Assembly (continued)

13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
G
G
O
O
O
O
N
N
KK
LL
BB
Put the Top Assembly (G) down on a at surface.
Insert the Camlock Bolts (BB) into the pre-drilled holes.
Insert the Wood Dowels (KK) into the pre-drilled holes in
the Divider (N) and the Decorative Side Panels (O).
15
17
16
Preparing the top assembly
Attaching the top assembly
Preparing the top assembly
Place the Top Assembly (G) on top of the Decorative Side
Panels (O) and the Divider (N). Push down.
Insert the Camlocks (LL) into the pre-drilled holes. Using
the Phillips Screwdriver, turn clockwise to secure.
Assembly (continued)

14
Insert the Screws (JJ) through the pre-drilled holes in
the Upper Back Panel (P) and the Side Back Panel (Q).
18
19
Installing the back panels
Q
Q
P
JJ
Preparing the doors
Put the Right Door (S) on a at surface.
Insert the Machine Screws (AA) through the Euro Hinges
(FF) to connect to the Right Door (S).
Apply the Door Bumper (II) onto the opposite corners of
the Right Door (S).
Repeat for the Left Door (R).
FF
II
AA
R
S
Assembly (continued)

15
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
S
S
DD
MM FF
R
R

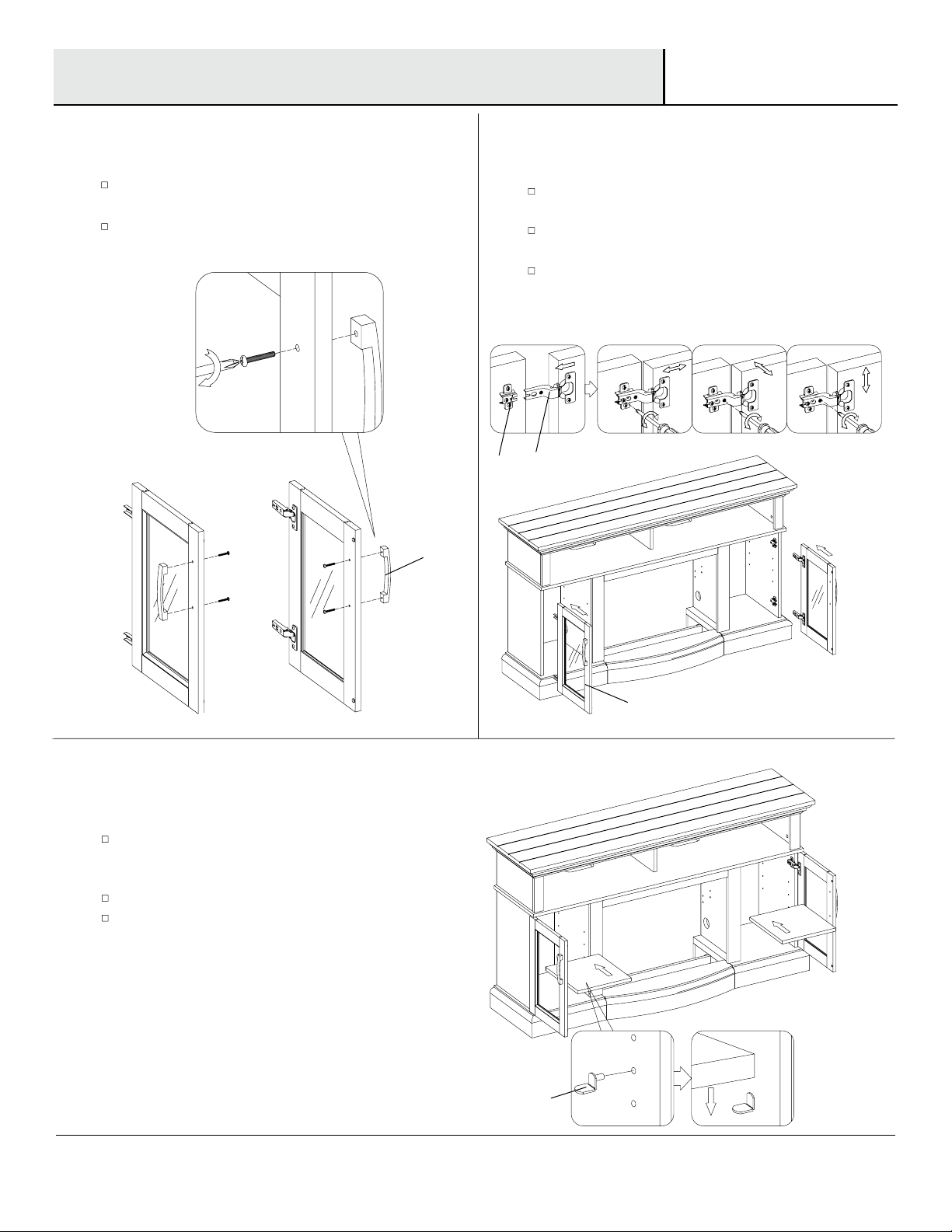

Insert the screws through the pre-drilled holes in the
Right Door (S), to attach the Handle (DD).
Repeat for the Left Door (R).
Locate the Right Door (S) and align the Euro Hinge (FF)
with the Hinge Bracket (MM).
Tighten the pre-assembly screws on Hinge Bracket
(MM) to secure each door in place.
Repeat to attach the Left Door (R).
20 21
22
Attaching the handles Attaching the doors
Attaching the adjustable shelves
Insert the Shelf Pins (EE) into the pre-drilled holes on
the inside of the Left Side Panel (J) and the Left Center
Panel (H).
Rest the Adjustable Shelf (T) on the Shelf Pins (EE).
Repeat for the right side.
T
H
J
EE
T
Assembly (continued)

16
U
H
U
I
SS
SS
OO
OO

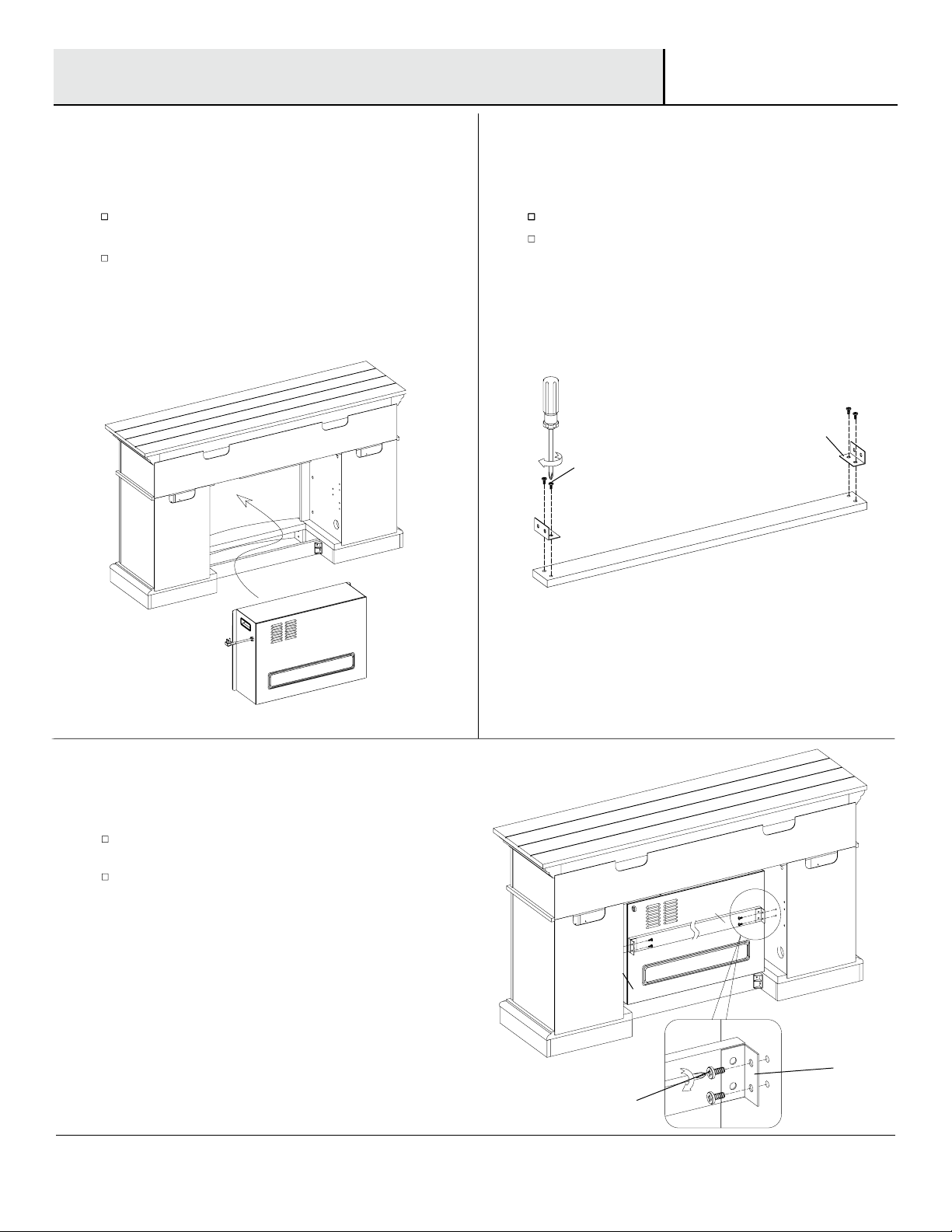

Lift the Fireplace Insert (W) carefully into the back of the
unit and center in the replace insert opening.
Do not drag the replace insert across the Base
as it may scratch your unit.
Put the Small Securing Block (U) on a at surface.
Insert the Small Screws (OO) through the Angle Bracket
(SS) to the Securing Block (U).
23 24
25
Installing the replace insert into
the mantel assembly
Preparing the securing block
Attaching the small securing block
Insert the Small Screws (OO) through the Angle Bracket
(SS) to the pre-drilled holes in the Left Center Panel (H).
Repeat to connect the Small Insert Securing Block (U) to
the Right Center Panel (I).
W
Assembly (continued)

17
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
V
OO
V
V
U
NN

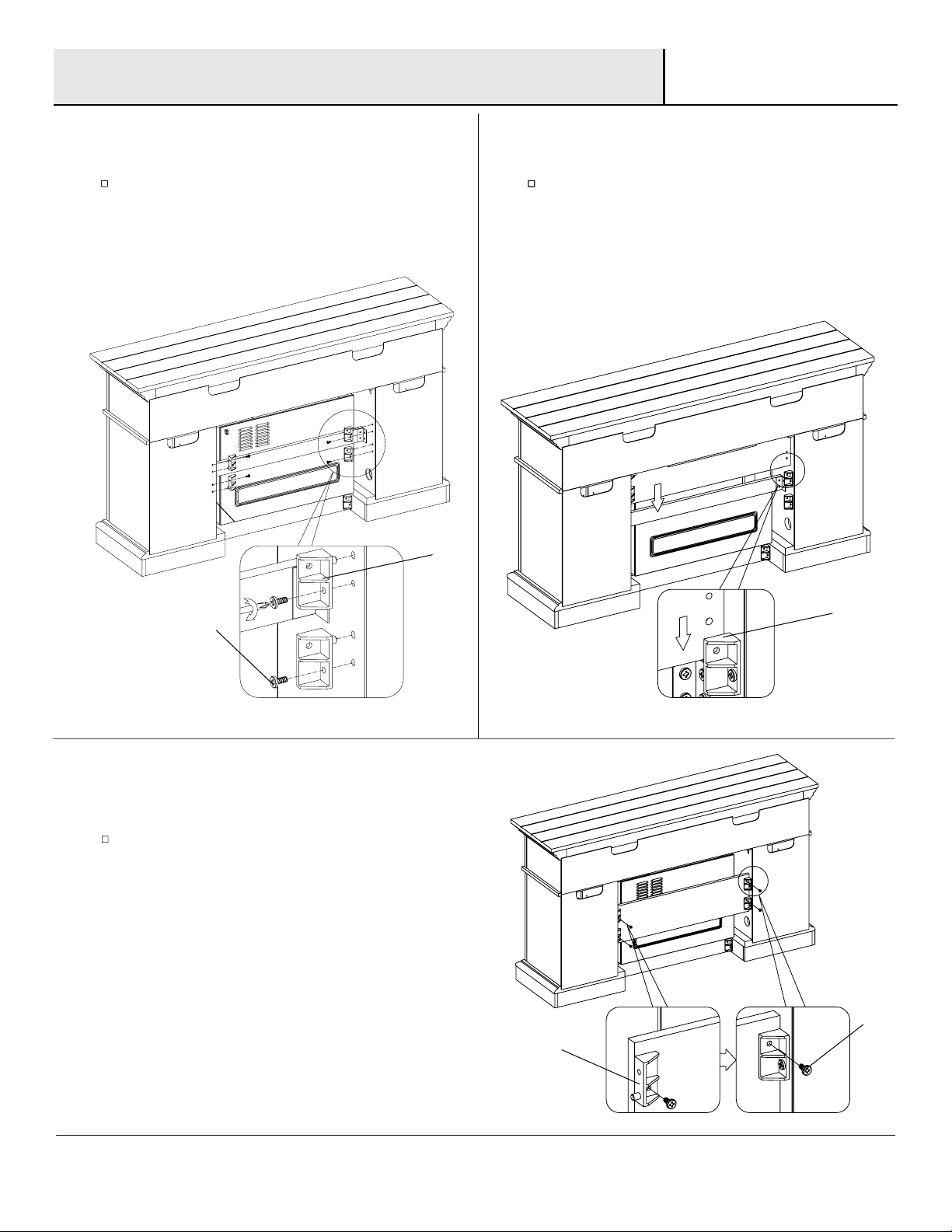

Insert the Small Screws (OO) through the 2 Hole Plastic
Connector Blocks (NN) to the pre-drilled holes in the Left
Center Panel (H) and the Right Center panel (I).
Slide the Insert Securing Block (V) in the space between
the 2 Hole Plastic Connector Blocks (NN) and the Small
Insert Securing Block (U).
26 27
28
Preparing the insert securing block Attaching the insert securing block
Securing the insert securing block
Insert the Small Screws (OO) through the pre-drilled
holes in the 2 Hole Plastic Connector Blocks (NN) to
secure the Insert Securing Block (V).
NN
NN
OO
I
H
Assembly (continued)

18
29
G
PP

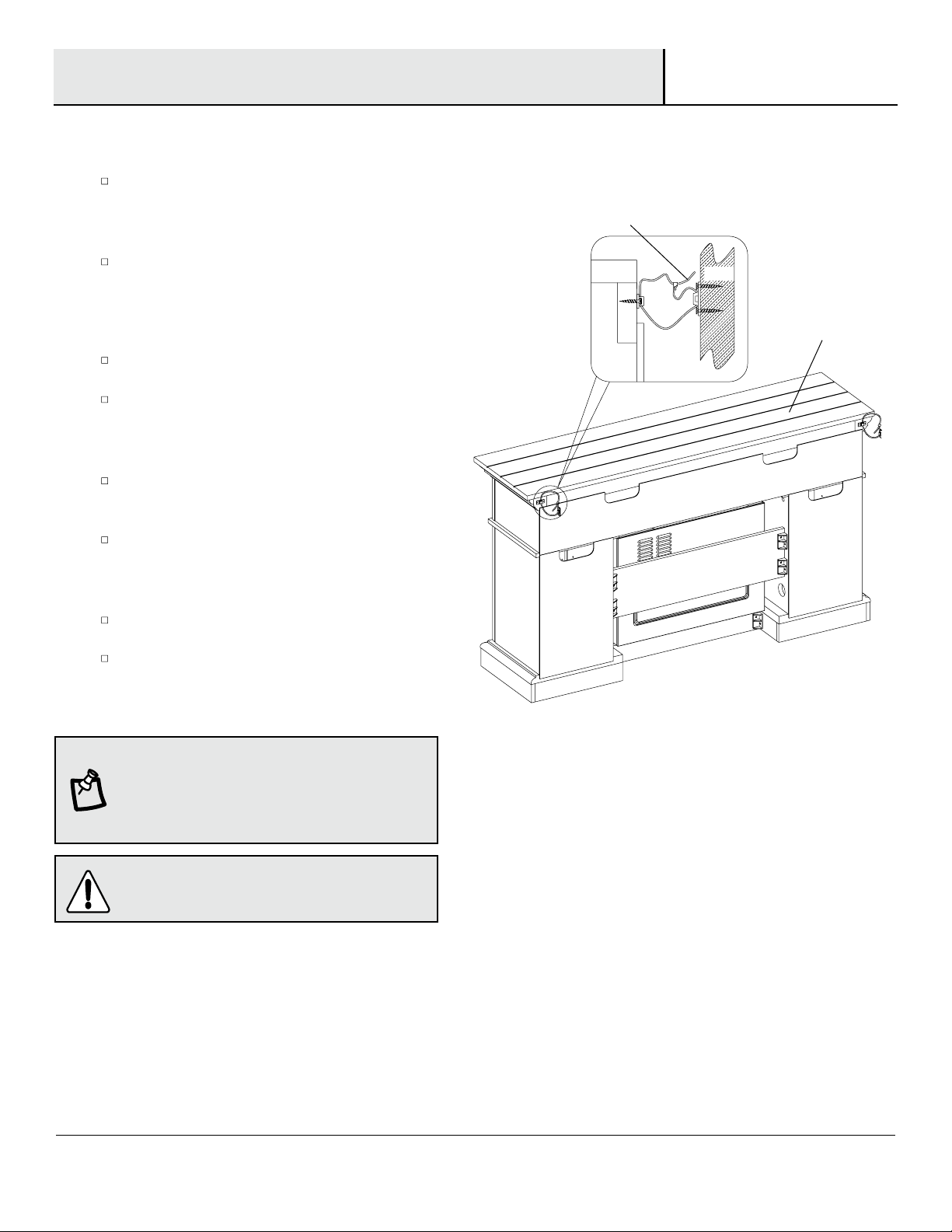

When the Tipping Restraint Hardware (PP) is properly
installed, it can provide protection against unexpected
tipping of the Unit due to small tremors, bumps
or climbing.
Your Unit comes with two Tipping Restraint Hardware
(PP). Each Tipping Restraint Hardware (PP) includes
one Unit Anchor, one Wall Anchor, one Anchor Tether,
and four Anchor Screws. Use these to complete the
following steps for a proper installation.
Locate a secure wall stud behind the unit closest to
left side.
Align the Unit Anchor with a wall stud and attach with
two Anchor Screws using a Philips Head Screwdriver.
The Anchor Screws must pass through the Top
Assembly (G) for proper installation.
Align the Wall Anchor in the center of the wall stud, at
level with the Unit Anchor, and attach with two Anchor
Screws using a Philips Head Screwdriver.
On the Anchor Tether, detach the cable from the
connector and loop the loose cable through the eyelets
on the Wall Anchor and Unit Anchor. Reattach the loose
cable to the connector, but do not tighten.
Locate a secure wall stud behind the unit closest to the
right side, and repeat the steps above.
Tighten both Anchor Tethers by pulling the cable
the through connector.
Installing the tipping restraint hardware
WARNING:
Installing the Tipping Restraint
Hardware will help prevent accidents or damage to the
unit.
NOTE:
Installation of the Tipping Restraint Hardware
(PP) will provide a small space between the wall and the
unit. This will allow you to run power cords and connector
cables to your television or other devices placed on top of
the Unit..
Wall
Assembly (continued)

19
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operation
Operation
3 4

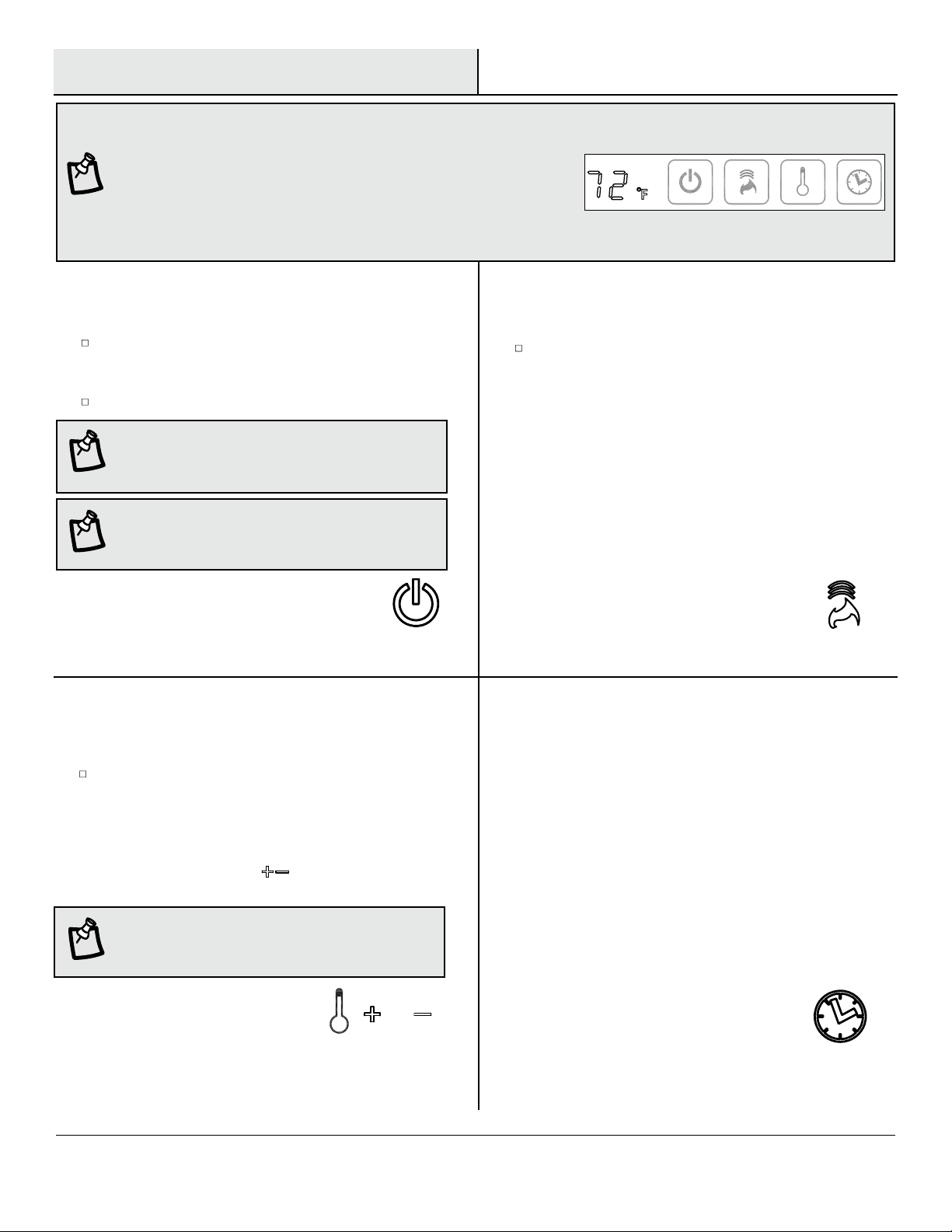

Adjusting the heater
Press the Heater button to set the thermostat. The replace
contains three infrared quartz heating elements.
The thermostat setting range is 62°F - 82°F or 17°C - 27°C
or always ON.
The thermostat is adjustable by 2°F or 1°C increments.
The up and down buttons“ ”on the remote will
increase / decrase temperature setting.
NOTE: To change between °F and °C press and hold the
HEATER button on the control panel for 3 seconds.
Push the Power button to supply power to all
functions of the replace and put the insert in a
standby mode.
Push the Power button again to turn off all functions.
1 2
Powering the replace
NOTE: Holding the Power button on the control panel for
10 seconds will disable the heater function.
NOTE: All previous settings are held in memory, so the
next time you power up the replace, the unit will turn on
with the same settings.
Adjusting the ame
There are 6 brightness levels that can be selected:
Settings F6 - F4 decrease in Amber brightness
Settings F3 - F1 decrease in Spectrare brightness
Pressing the Timer button will cycle through the timer
settings; 30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H,
8H, 9H and off.
Setting the timer
NOTE: The control panel can be accessed at the upper-right corner of the insert.
/

20
NOTE: Please operate the remote control at a slow
measured pace. Press the remote control buttons with
an even motion and gentle pressure. Repeatedly pressing
buttons in rapid succession may cause the transmitter to
malfunction.

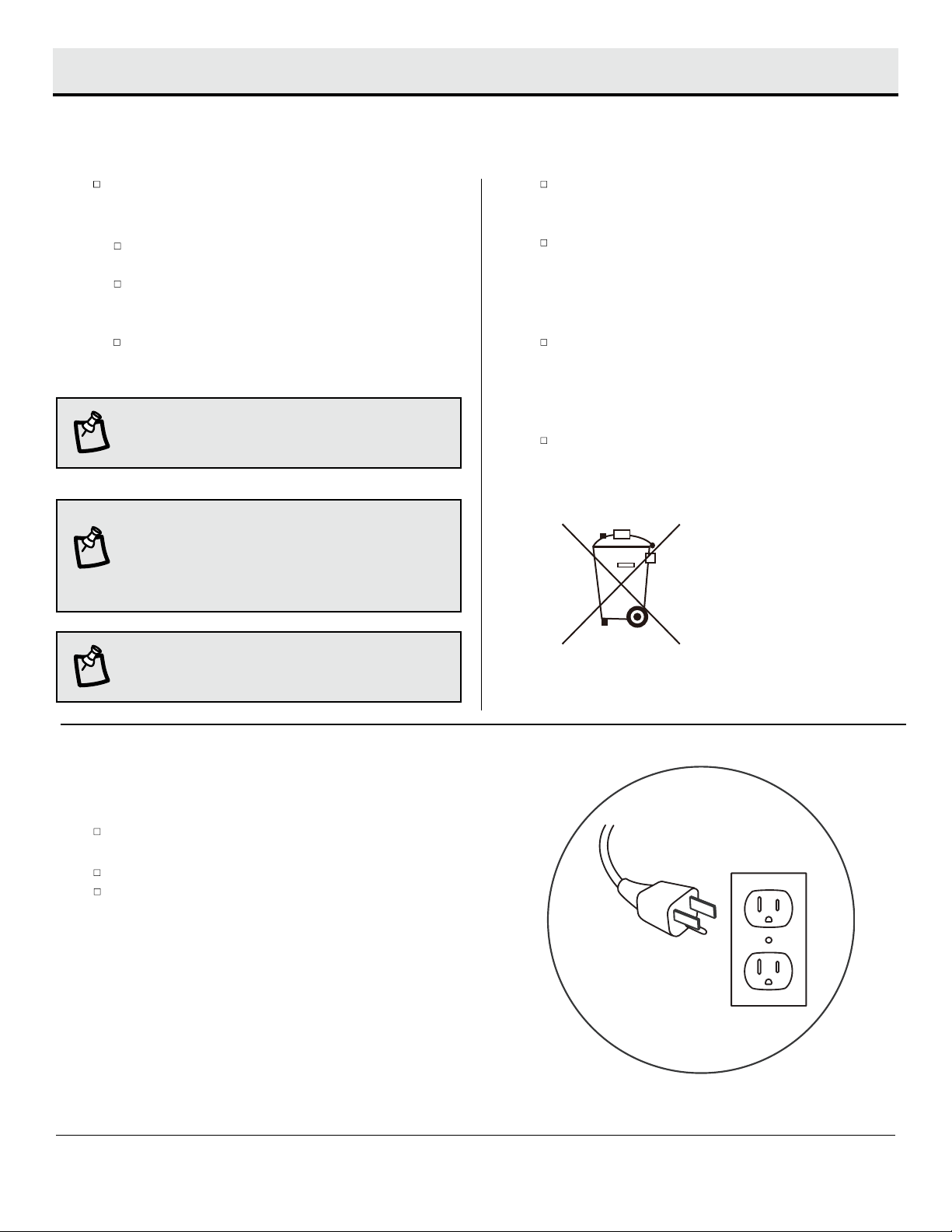

NOTE: Do not mix old and new batteries. Do not mix
alkaline, standard (carbonzinc), or rechargeable (nicad,
nimh, etc) batteries. Do not ingest batteries.
Operation (continued)
When the remote control stops operating or its range
seems reduced, it is time to replace the battery with
new ones.
On the back end of the remote, press and slide
the battery door open and remove the old battery.
Insert 2 AAA batteries, checking that the + and -
sides of the battery match inside the battery
compartment.
Replace the battery compartment door.
The battery may contain hazardous substances that
could endanger the enviroment and human health.
This symbol marked on the battery and/or packaging
indicates that used battery shall not be treated
as municipal waste. Instead it shall be left at the
appropriate collection point for recycling.
By correctly disposing used batteries, you prevent
potential negative consequences for the environment
and human health. Recycling used materials also
conserves natural resources.
For more information about collecting and recycling
used batteries, please contact your local municipality,
your waste disposal service or the point of sale where
you purchased this product.
5 6
Replacing the remote control battery Disposing of used batteries
7Power cord information
This heater is for use on 120 volts. The cord has a plug
as shown in the figure.
Connect to properly grounded outlets only.
Do not use a 2 prong adapter. Never use with an
extension cord or relocatable power tap (outlet/
power strip).
NOTE: Batteries should be removed if the product is
to be left unused for a long time.
