Home Decorators Collection 2479FP-1 User manual

TUCSON 30 IN. SQUARE STEEL TILE TOP LP GAS FIRE PIT
USE AND CARE GUIDE
THANK YOU
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this re pit. We strive to
improvement needs. Thank you for choosing Home Decorators Collection!
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Item #1007 503 548/1007 497 706
1007 503 494/1007 503 589
Model # 2479FP-1/2479FP-2
2479FP-3/2479FP-4

2
Table of Contents
Table of Contents .................................. . 2
Safety Information ................................ . . 2
Specications ..................... . . . . . . . . . . . . . . . 5
About propane (LP) gas . . ...........................
4
Warranty . . . . . . . . . . . . . . . ...........................
5
Planning assembly . . ..............................
5
Pre-assembly ......................................5
Hardware included . . ..............................
6
Package contents . . ...............................
6
Flame characteristic . . . ............................
10
Lighting .................................. . . . . . .
10
Before lighting . . . .................................
10
Shutdown ............................. . . . . . . . . . .
11
Operation ............................... . . . . . . . . . . 10
Care and Maintenance ..................... . . . . . . . . . .11
Assembly......................................... . 7
Leak check ..................................... . 11
Safety Information
Stop! Please read these instructions carefully before assembly.
Make sure you have all the parts and hardware as identified on the hardware and contents lists.
Keep these instructions for future reference.
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open ame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or re department.
WARNING: Improper installation, adjustment alteration, service or maintenance can cause injury or property damage.
Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
DANGER:
WARNING: Do not store or use gasoline or other ammable vapors and liquids in the
vicinity of this or any other appliance. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other appliance.
WARNING: If the information in this manual is not followed exactly, a re or explosion
may result causing property damage, personal injury, or loss of life.
WARNING: For Outdoor Use Only,Installation and service must be performed by a
qualied installer, service agency, or the gas supplier.
NOTICE: Installer, leave this manual with the appliance.
NOTICE: Consumer, retain this manual for future reference.
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an en closed space such as a camper, tent,
car or home.
DANGER CARBON MONOXIDE HAZARD
Failure to follow these instructions could result in fire or explosion, which could cause
property damage, personal injury, or death.

Safety Information (continued)
3 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
WARNING: Use factory approved replacement parts and accessories only. Use of unapproved parts or accessories can void the warranty
on this product and result in a hazardous condition. Please contact us for information regarding replacement hoses, electrodes,
ignition modules, re glasss, logs, etc.
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet
pressure of 11 inches water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code,ANSI Z223.1/NFPA 54;
International Fuel Gas Code; Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable.
The appliance area must be kept clear and free from combustible materials, gasoline and other ammable vapors and liquids.
The appliance must be isolated from the gas supply piping system by closing its equipment shut off valve during any pressure testing
of the gas supply system at test pressure equal to or less than 1/2 psi (3.5 kPa).
Do not use this appliance if any part has been under water. Immediately call a qualied service technician to inspect the appliance and
to replace any part of the control system and any gas control which has been under water.
Children and adults should be alerted to the hazards of high surface temperatures and kept at a safe distance to avoid burns or clothing
ignition.
Young children should be carefully supervised when they are anywhere near the appliance.
Clothing or other ammable material should not be hung from the appliance, or placed on or near the appliance.
Any screen or guard removed for servicing the appliance must be replaced prior to operating the appliance.
Installation and repair should be done by a qualied service person. The appliance should be inspected before use and at least annually
by a professional service person. More frequent cleaning may be required as necessary. It is imperative that the control compartments,
burners and circulating air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas re pit.
Do NOT ignite the burner before pouring all of the burner media (lava rocks) into the burner pan.The media must be evenly distributed
over the burner.
During initial ring of re pit, please stay away from the re pit for 20 minutes as re media (lava rocks) may pop and hit someone on
the face or eyes.
The maximum inlet gas supply pressure is 250 psi. The minimum inlet gas supply pressure is 25 psi.
Do NOT ignite or use the re pit if the burner media (lava rocks) are wet. Ensure the burner media are completely dry before igniting as
intense heat could cause the media to crack and pop.
Do not use this appliance for cooking.

Safety Information (continued)
Keep the fuel supply hose away from any heated surfaces.
Very hot while in operation! Never lean over the appliance while it is in use.
In order to protect the burner system, when the re is not in use and on rainy days, the cover should be used.
Do not use cover immediately after use, wait until the appliance has cooled down.
Do not sit or stand on this table.
Retain these assembly instructions for future reference.
Before each use of this gas appliance, open the LP (liquid propane) tank drawer and inspect the LP hose. If there is evidence of excessive
abrasion or wear, or the hose is cut, it must be replaced prior to the gas appliance being put into operation. Use only the replacement hose
assembly specied in this manual. Inspect the burner before each use of the appliance. The burner must be replaced prior to the appliance
being put into operation if it is evident that the burner is damaged. Use only the burner listed in these instructions.
A self contained LP gas cylinder for use with this appliance must have a capacity of 20 lb. and must be equipped with a Type 1 connector
and an OPD (overll protection device). See Figure 1.
The LP gas supply cylinder to be used must be constructed and marked in accordance with the specication for LP gas cylinders of the
U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinder, Sphere and Tubes for the
Transportation of Dangerous Goods.
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and shall not be used in a building,
garage or any other enclosed space.
When this appliance is not in use, the gas must be turned off at the supply cylinder.
Storage of this appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the reach of children. Disconnected cylinders must have threaded valve
plugs tightly installed and must not be stored in a building, garage or any other enclosed areas. CSA (Canadian Standards Association)
certied to ANSI Z21.97·CSA 2.41-2017 “Outdoor Decorative Gas Appliances”.
4

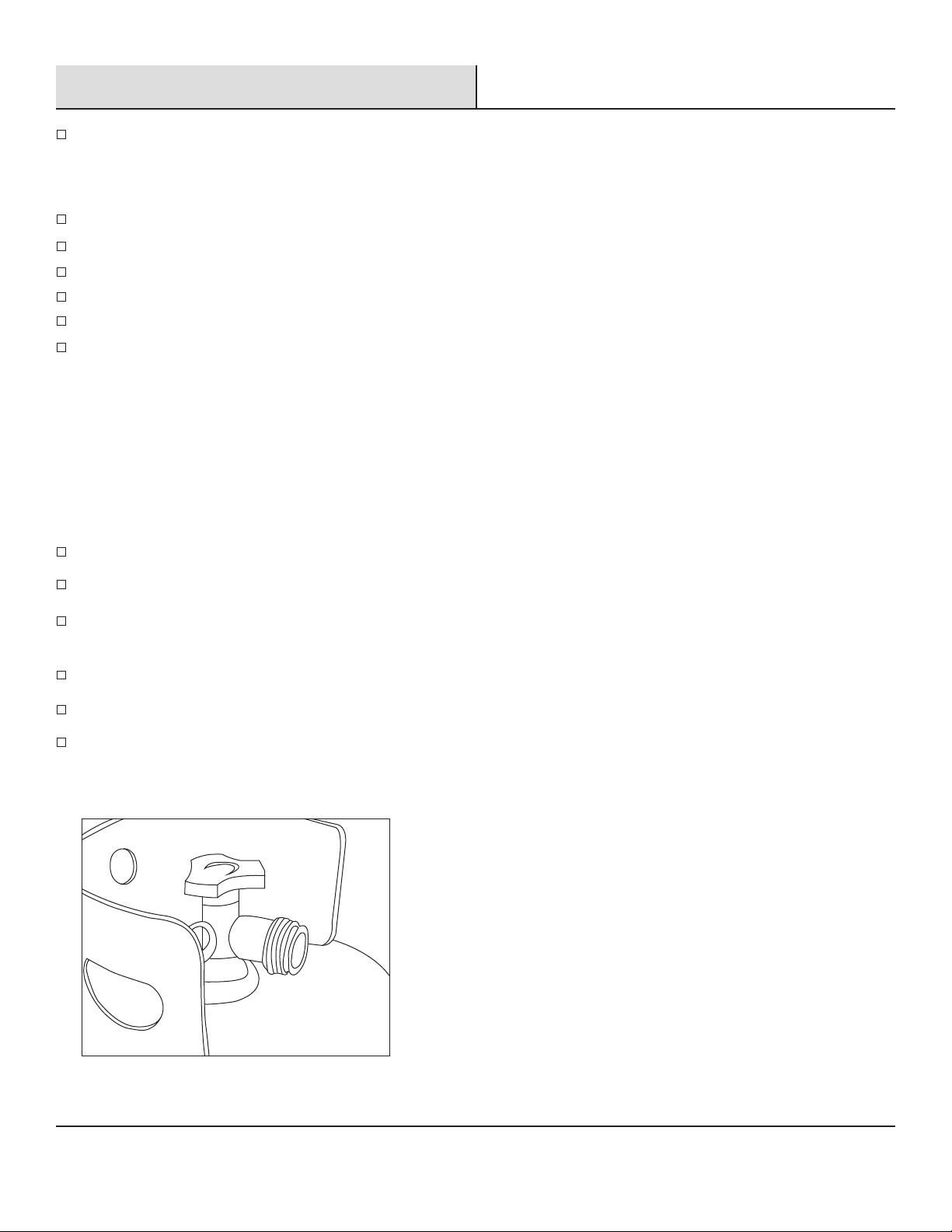

ABOUT PROPANE (LP) GAS
Figure 1

SPECIFICATIONS
INPUT 40,000 Btu/hr 30,000 Btu/hr Low re
Propane Regulator Pressure 11 inches water column
Sides: 24in./61cm Top: 60 in. / 152 cm
Clearances to
combustible surfaces
5
Pre-assembly
PLANNING ASSEMBLY
NOTE: Read all instructions before assembly. To avoid damaging this product, assemble it on a soft,
non-abrasive surface such as carpet or cardboard.
NOTE: More than one person may be required to assemble this product.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Safety Information (continued)
WARNING: Fuels used in liqueed propane gas appliances, and the products of combustion of such fuels, can expose you to chemicals
including benzene, which is known to the State of California to cause cancer and cause birth defects or other reproductive
harm. For more information go to: www.p65warnings.ca.gov.
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specically approved with this
appliance may result in property damage or personal injury.
Warranty
This warranty is for the original purchaser and applies to defects in materials and workmanship of your re pit, provided your unit is
maintained with care and used only for personal, residential purposes.
Frames are warranted to be free from defects in material or workmanship for two (2) years.
Exclusions: Items used for commercial, contract or other non-residential purposes, display models, items purchased “as is,” or items
damaged due to acts of nature, vandalism, misuse or improper assembly are not covered. Discoloration or fading of the nish or fabrics
as a result of exposure to the elements, chemicals or spills is not covered. Tabletop breakage, corrosion or rusting of hardware and damages
to frames or welds caused by improper assembly, misuse or natural causes are not covered.

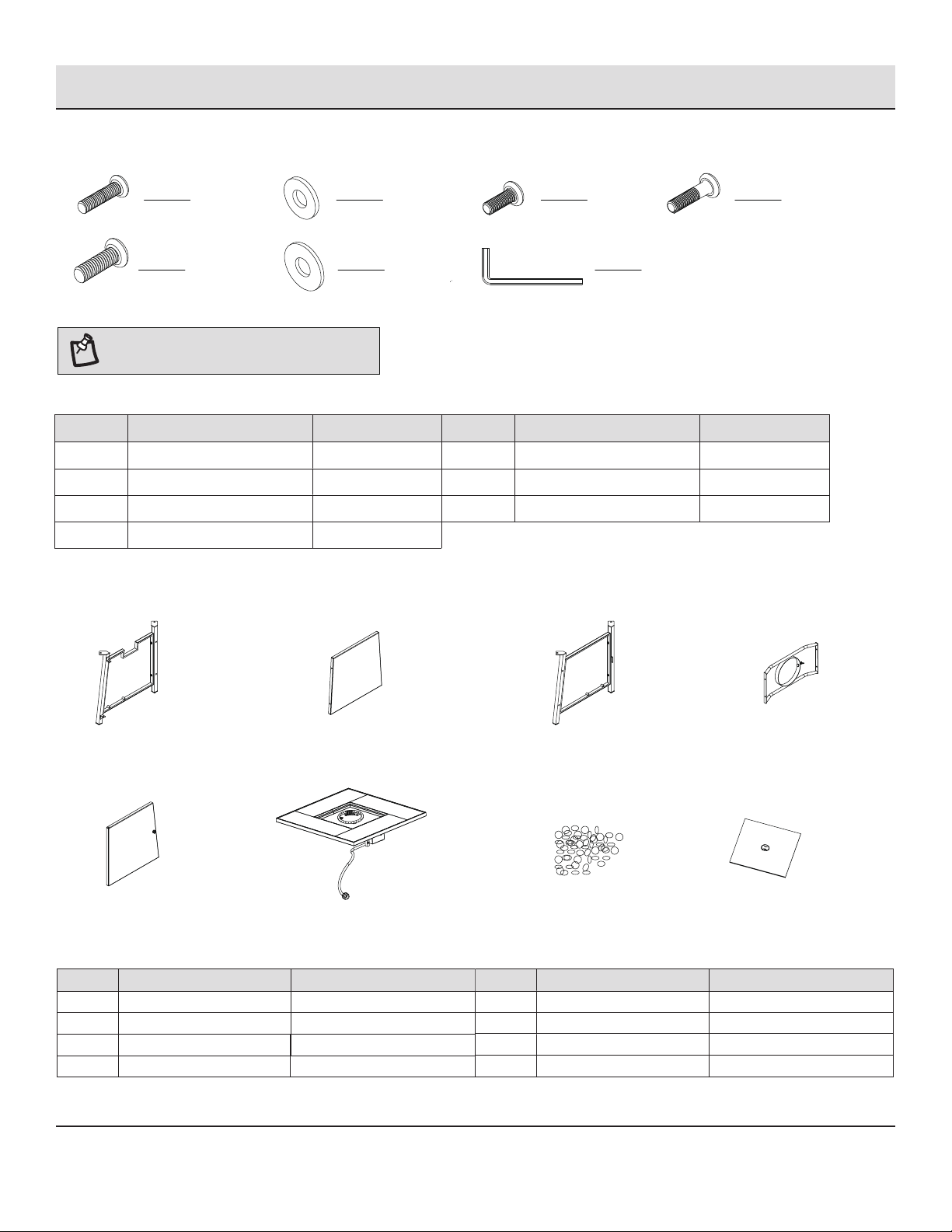

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
CCBB
AA
GG
FF
DD
EE
PACKAGE CONTENTS
A
E F
B C
G H
D
Part Description Quantity
AA Bolt 4
BB Gasket 8
CC Bolt 4
DD Bolt 2
Part Description Quantity
EE Bolt 4
FF Gasket 4
GG Allen key 1
6
Pre-assembly (continued)
Part Description Quantity Part Description Quantity
A Back panel 1
B Left panel 1
C Front panel 1
F Tabletop 1
E Right panel 1
G Lava rocks ~
H Lid 1
D Bottom bracket 1

7
Assembly
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

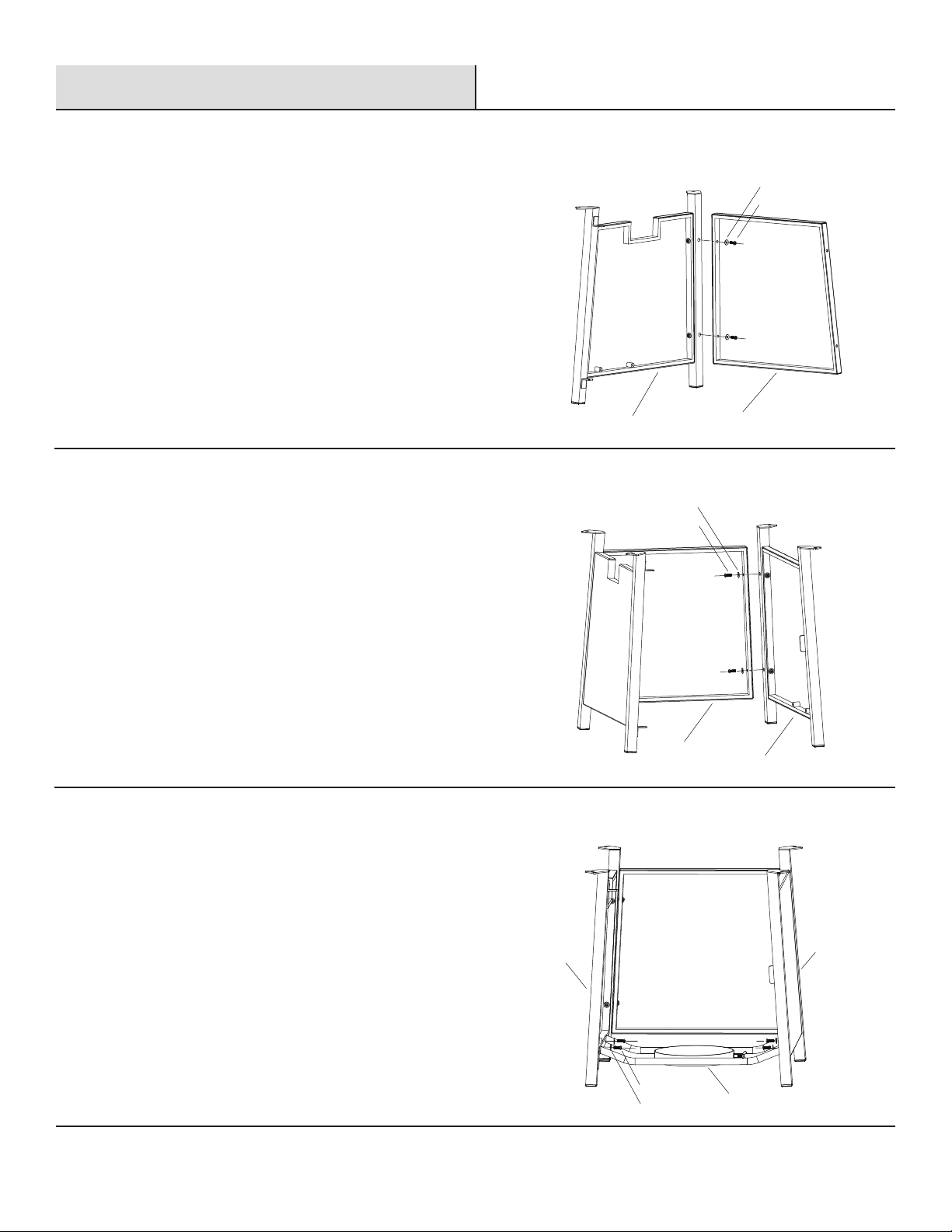

1Installing the back and left panels
2Installing the front panel
3Installing the bottom bracket
□
□
□
Place parts on a soft, non-abrasive surface.
Attach the left panel (B) to the back panel (A)
with bolts (AA) and gaskets (BB).
Do not tighten fully.
Attach the front panel (C) to the other side of
the left panel (B) with bolts (AA) and gaskets (BB).
□
Connect the bottom bracket (D) to the front panel (C)
and the back panel (A) using bolts (CC) and gaskets (BB).
□
BB
AA
AB
BB
AA
C
B
CC
BB D
AC

6Standing up the table
4Installing the right panel
5Installing the tabletop
8
Assembly (continued)
□
□

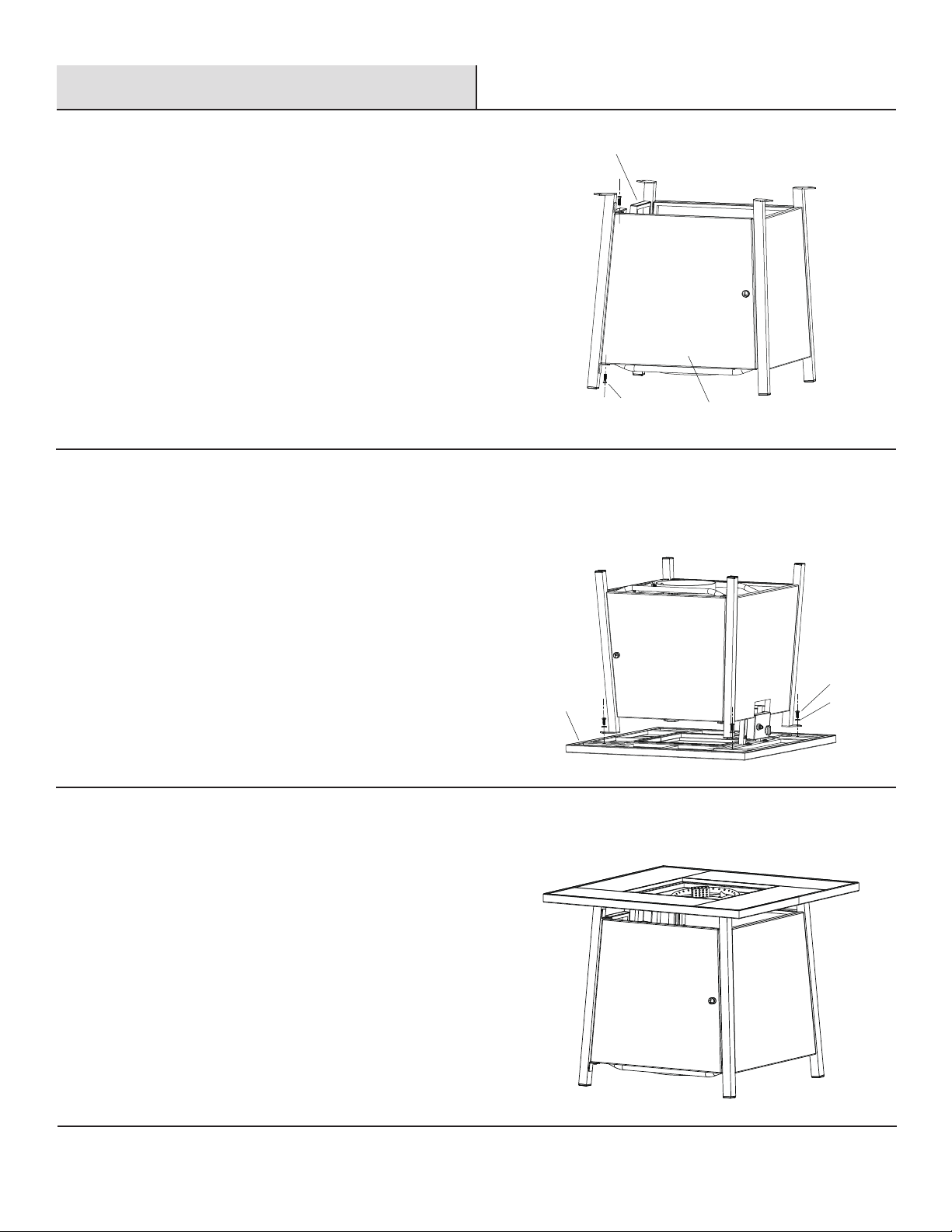

Carefully turn the frame upside down.
Attach the right panel (E) to the back panel (A) with bolts (DD).
□
□
Place the tabletop (F) facing down on a non-abrasive surface.
Attach the tabletop (F) to the frame with bolts (EE) and gaskets (FF).
□With the help of other people, carefully turn
the table over to an upright position.
DD E
A
F
EE
FF

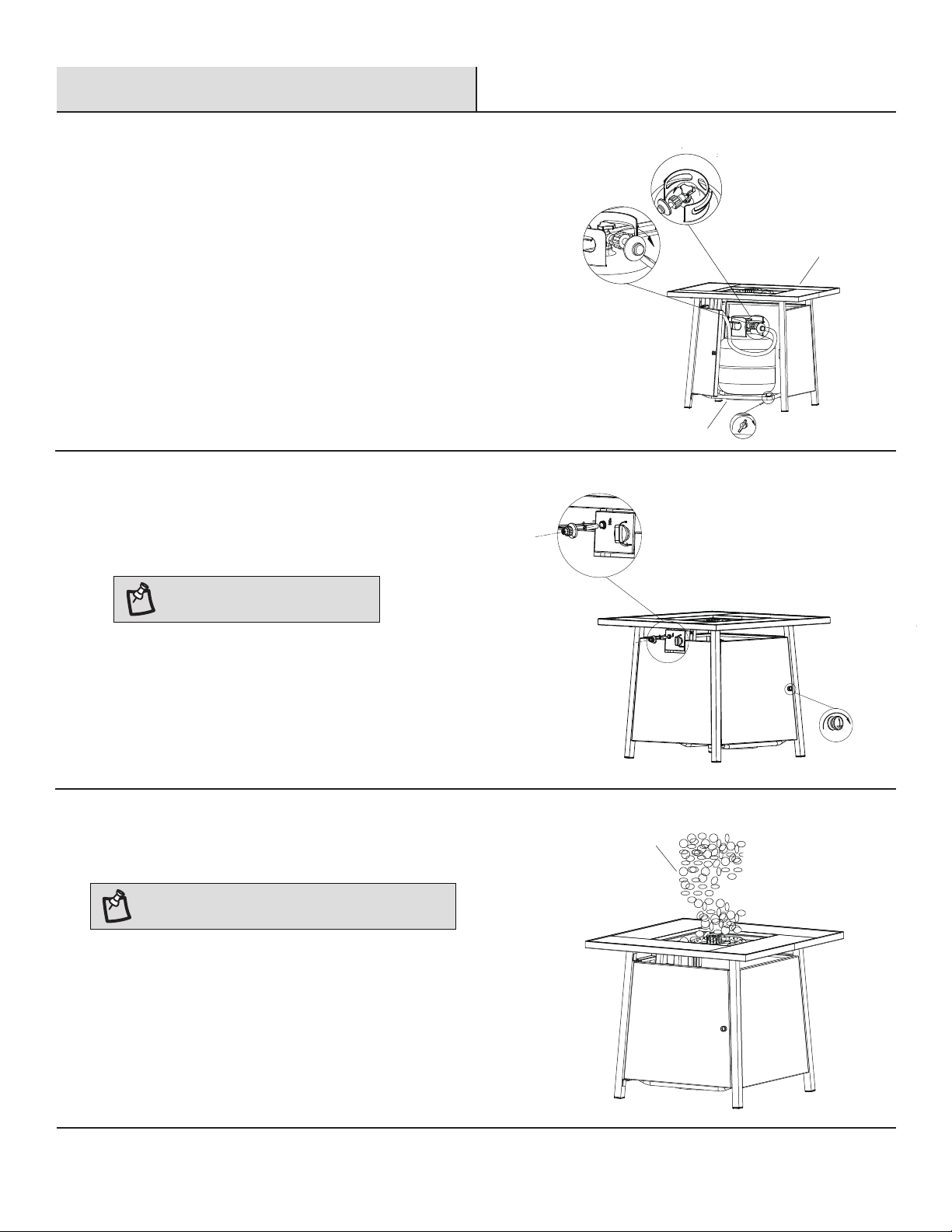

7Installing and using the gas tank
8Inserting the battery
9Putting in lava rocks
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
F
D
G
Assembly (continued)
9
□□
□
Connect the gas hose from the tabletop (F) to
the LP gas cylinder. Hand tighten clockwise only.
To disconnect the gas hose from LP gas cylinder,
loosen the connector by turning counterclockwise by hand.
□Position the LP gas cylinder (not included) in the ring in
the bottom bracket (D) inside the re pit and fasten with
an adjusting screw.
□Open the battery cap on the control panel and install one AAA battery
(not included).
□Add lava rocks (G) to the re bowl.
NOTE: Maximum recommended amount of
lava rocks (G) for use in the re bowl is 4~4.5 kg.
NOTE: Only one battery is needed.

Remove the cover before lighting.
Control knob must be in the OFF position.
Connect and open propane cylinder (see manual).
Push and turn control knob counter clockwise to LOW.
Press the igniter button repeatedly to light burner.
Press and hold control knob for 45 seconds after ame lights.
If re pit doesn’t ignite within a few seconds, push and turn the control knob clockwise to OFF.
Fan with newspaper or magazine to ensure there is no propane gas in the re bowl and inside of re pit.
Wait 5 minutes, repeat the lighting steps as outlined above.
Adjust ame to desired level with the control knob.
Lighting operations should comply with Lighting Instruction section.
Improper lighting operations will cause serious injury and explosion.
Normally the burner ame is yellow.
If the burner ame is blue and very small, please check the gas cylinder, as it may be low gas pressure or
empty. If there is enough gas in the cylinder, please contact customer service to change the burner of the
gas re pit.
If ames lift away from burner or backre happens, or if the ames
produce black smoke, the re pit should be turned off immediately.
The re pit should not be operated again until the unit is serviced
and/or repaired by a qualied service technician.
Fire pit should be thoroughly inspected before each use and by a qualied service person at least annually.
If relighting a hot re pit, always wait at least 5 minutes.
Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should be
leak tested. If the hose leaks, it must be replaced prior to operation. Only use the replacement hose assembly
specied by manufacturer. The burner must be replaced prior to the appliance being put into operation if it is
evident that the burner is damaged. The replacement burner should be specied by manufacturer.

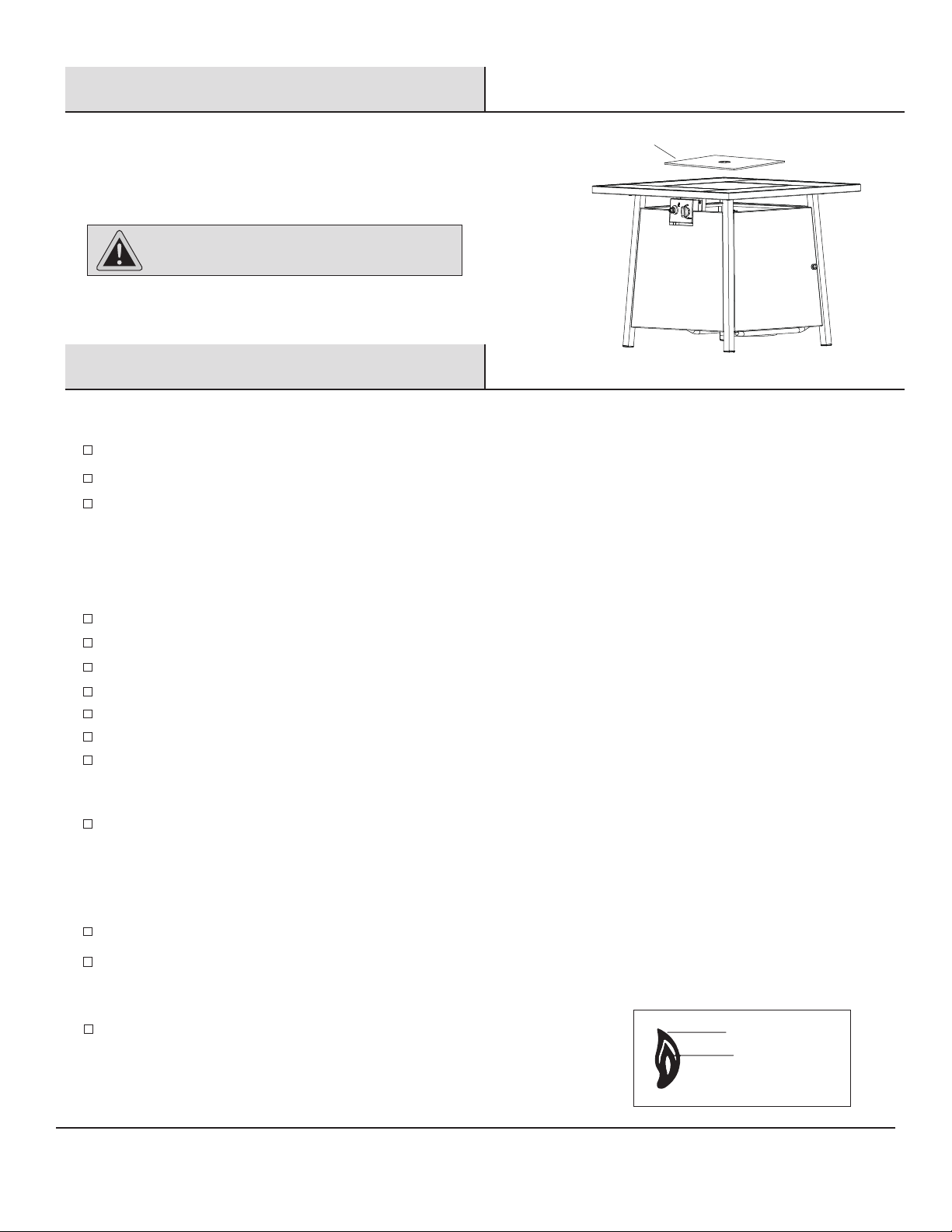

10 Placing the lid
□□ Place the lid (H) on the top of the re bowl to complete the assembly.
H
CAUTION: Keep the gas tank xed in the tank base.
BEFORE LIGHTING
LIGHTING
FLAME CHARACTERISTIC
Assembly (continued)
10
Yellow Tip
Primarily blue
Flame
Operation

WARNING:
Perform all leak tests outdoors.
Extinguish all open ames.
NEVER leak test when smoking.
Do not use the re pit until all connections
have been leak tested and conrmed no leakage.
Push in and turn control knob clockwise to OFF position.
Turn LP cylinder gas valve clockwise to OFF position when appliance is not in use.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
SHUTDOWN
Operation(continued)
CAUTION: The gas supply must be turned off at the LP gas supply cylinder when this appliance is not in use.

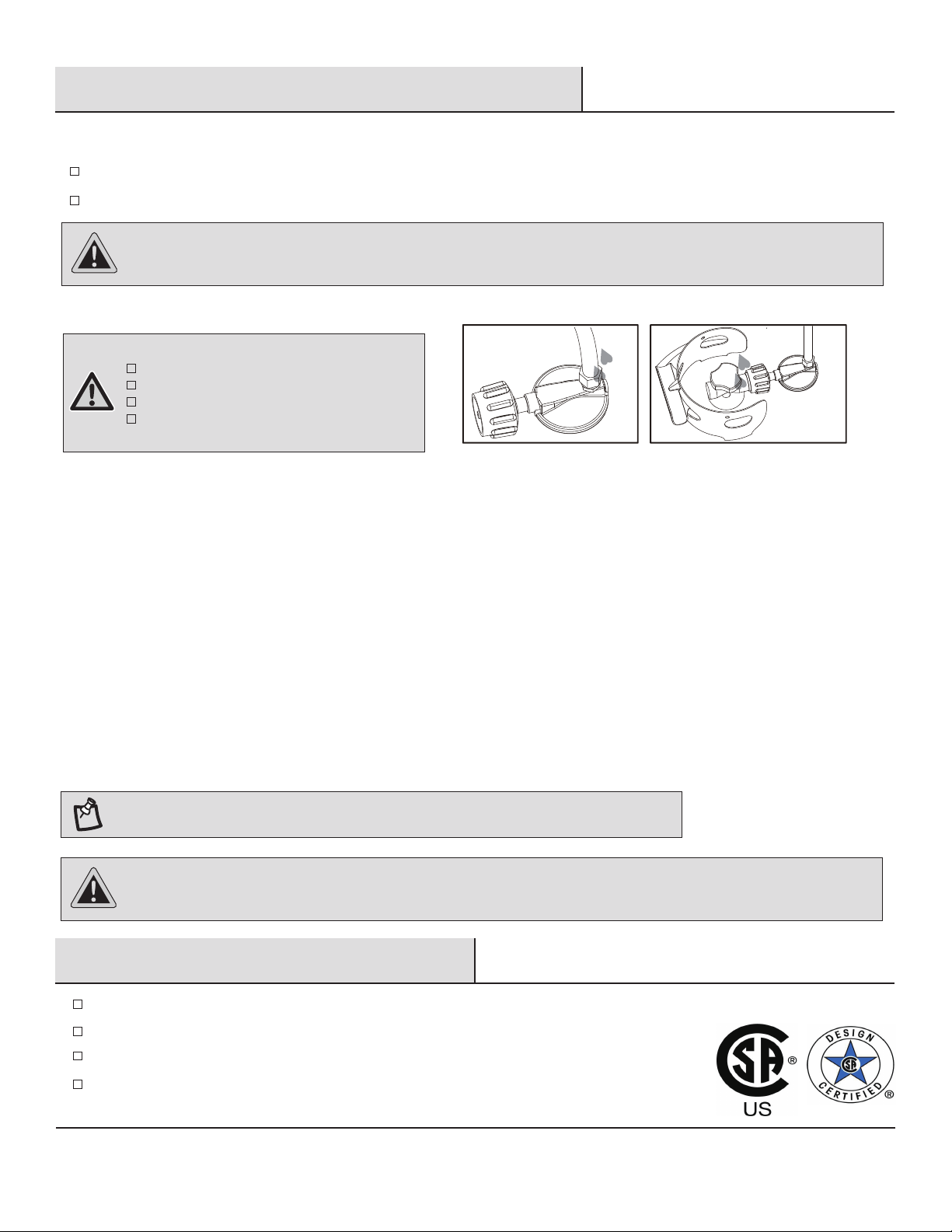

Leak Check
Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water).
Apply several drops of solution where hose attaches to regulator.
Apply several drops of solution where regulator connects to cylinder.
Make sure all re pit and light valves are OFF.
Turn cylinder valve ON.
If bubbles appear at any connection, there is a leak.
Turn cylinder valve OFF.
Regulator / Cylinder
connection
Hose / Regulator
connection
11
□
□
□
□
□
□
If leak is at hose/regulator connection: tighten connection and perform another leak test. If bubbles
continue appearing, the hose should be returned to the place of purchase.
If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform another leak
check. If you continue to see bubbles after several attempts, cylinder valve is defective and should be
returned to cylinder’s place of purchase.
If NO bubbles appear at any connection, the connections are secure.
□□
□
□
Immediately remove any spot or stain.
To clean, wash with a mild soap, rinse with water and let air dry.
Do not use strong solvents or bleach as they may damage the surface.
Use an outdoor cover to extend the life of the item.
Care and Maintenance
CAUTION: Surfaces of re pit can remain extremely hot for a period after use. Allow 45 minutes to cool down before touching or
moving the re pit.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test.

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
Master No. 267946
