Home Decorators Collection FG-BTB5PCFC-FP User manual

Item # 000-000
Model # FG-BTB5PCFC-FP
USE AND CARE GUIDE
NORTH LAKE 34 IN. SQUARE FIRE PIT
1-800-998-7021
ANSI Z21.97/CSA 2.41-2014
Outdoor Decorative Gas Appliances
S
E
D
G
N
R
E
C
T
I
F
I
I
E
D
R
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this firepit.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products
available for your home improvement needs. Thank you for choosing Home Decorators Collection!
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
HOMEDEPOT.COM/HOMEDECORATORS

2
Table of Contents
Table of Contents..........................................................2
Warranty.........................................................................4
What is Covered ....................................................................... 4
What is Not Covered ................................................................. 4
Pre-Assembly ................................................................5
Planning assembly ................................................................... 5
Tools required (not included)..................................................... 5
Hardware Included ................................................................... 5
Pre-Assembly (continued)............................................6
Package Contents .................................................................... 6
Assembly ....................................................................... 7
Operation– Gas Cylinder Installation........................ 10

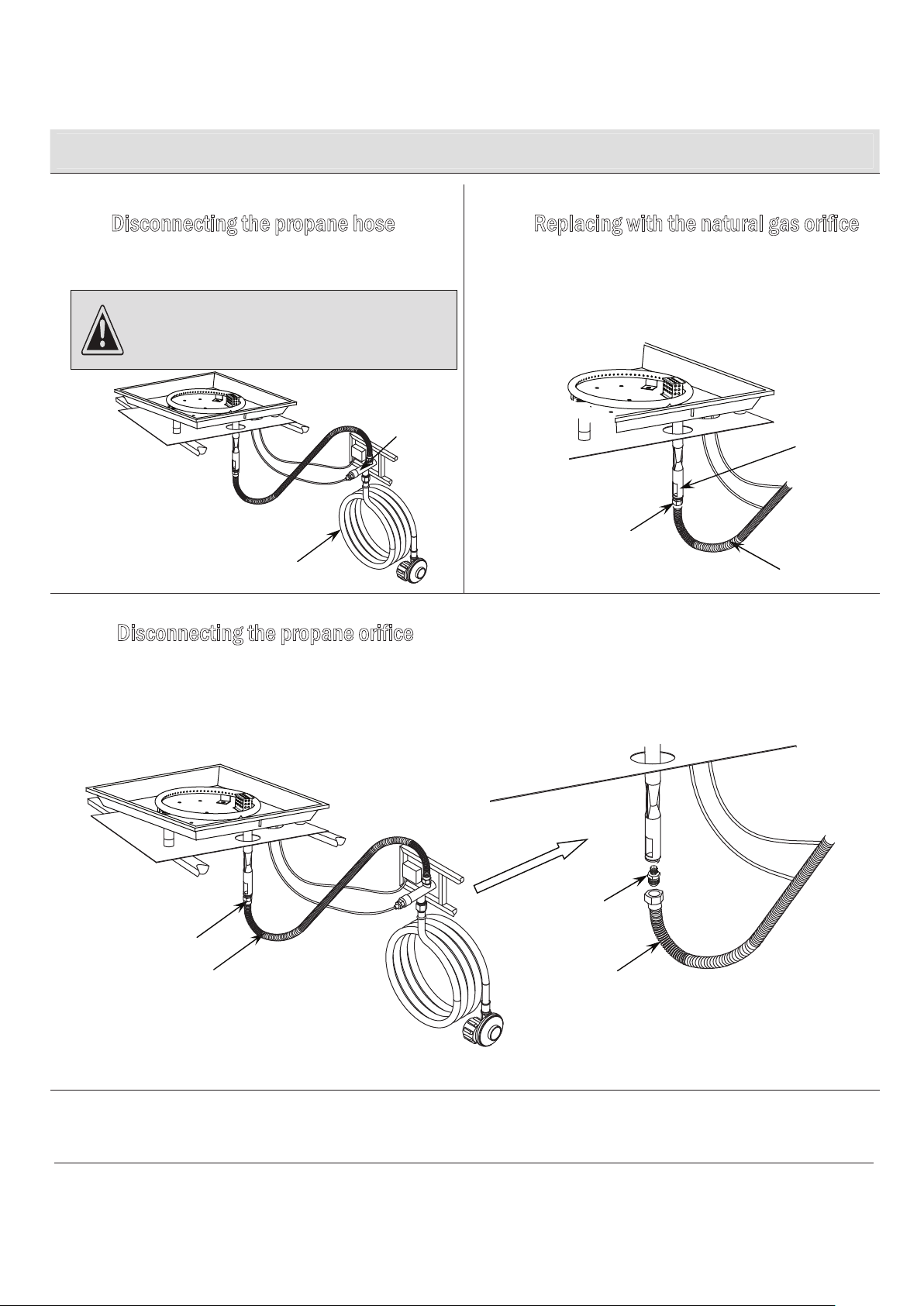

Operation- Natural Gas Conversion.......................... 11
Operation – Leak Check............................................ 13
Operation – Battery Installation and Lighting the Fire
Pit ................................................................................. 14
Maintenance ................................................................ 15
Care and Cleaning ...................................................... 15
Troubleshooting.......................................................... 15
Safety Information
IMPORTANT SAFETY INFORMATION
1. The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1●NFPA 54;
National Fuel Gas Code; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, CSA B149.2, as
applicable.
2. The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing
of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
3. The maximum inlet gas supply pressure is 250 psi.
4. The appliance area must be kept clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
5. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to
replace any part of the control system and any gas control that has been under water.
6. Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition.
7. Young children should be carefully supervised when they are in the area of the appliance.
8. Clothing or other flammable materials should not be hung from the appliance or placed on or near the appliance.
9. Any guard or other protective device removed for servicing the appliance shall be replaced prior to operating the appliance.
10. Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by
a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners,
and circulating air passageways of the appliance are kept clean.
11. DO NOT burn solid fuels in this appliance.
12.This outdoor gas appliance is for Outdoor Use ONLY.
13. This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
14. This outdoor appliance is not for use on wood decks or other flammable surface.
15. Before each use of this gas appliance, open the door and/or the LP (Liquid Propane) Tank Drawer and inspect the hose. If there is evidence
of excessive abrasion or wear or if the hose is damaged, the hose assembly must be replaced prior to the appliance being put into
operation. Use only the replacement hose assembly specified in this manual. Make sure to leak test.
16. Before each use of this gas appliance, inspect the burner. The burner must be replaced prior to the appliance being put into operation if it
is evident that the burner is damaged. Use only the replacement burner specified in this manual.
17. Make sure to properly locate the gas hose including locating the hose out of pathways where people may trip over it or in areas where the
hose may be subject to accidental damage.

Standard 20 lb.tank
SROTAROCEDEMOH/MOC.TOPEDEMOH3
.ecnatsissarehtrufrof1207-899-008-1tcatnocesaelP
IMPORTANT SAFETY INFORMATION -PROPANE LP GAS
18. Keep the fuel supply hose away from any heated surface.
19. Never use this appliance closer than 10 ft. from anything flammable, including houses or overhead tree branches.
20. Never use gasoline, kerosene, or any other liquid fuel to start a fire.
21. Always maintain a safe distance from the fire. Always supervise children around the fire.
22. Never leave a fire unattended.
23. The appliance is hot during and after use, always allow ample cooling time before touching or moving.
CAUTION: The propane gas pressure regulator provided with
this appliance must be used. This regulator is set for an outlet
pressure of 11 inches water column.
DANGER: If you smell gas, shut off gas to the appliance and
extinguish any open flames. If odor continues, keep away from
the appliance and immediately call your gas supplier or fire
department.
WARNING: Improper installation, adjustment, alteration,
service or maintenance can cause injury or property damage.
Read the installation, operating, and maintenance instructions
thoroughly before installing or servicing this equipment.
DANGER:
This appliance can produce carbon monoxide which has no
odor. Using it in an enclosed space can kill you. Never use this
appliance in an enclosed space such as a camper, tent, car or
home.
WARNING: Do not store or use gasoline, or other
flammable vapors and liquids, in the vicinity of this or any other
appliance. An LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
SPECIFICATIONS
Rated Heat Input (Liquid Propane & Natural
Gas)
50,000 BTU/hr
Propane Regulator Pressure
11 inches water column
Natural Gas Inlet Pressure
7 inches water column
Clearance to combustible surfaces
Sides: 24in. (610mm), Top: 72in.
(1829mm)
Safety Information (continued)
Carbon Monoxide Hazard
The LP-gas supply cylinder to be used must be constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and
Commission, CAN/CSA-B339, as applicable.
The LP-gas supply cylinder to be used must have a listed overfilling prevention device.
The LP-gas supply cylinder to be used must have a cylinder connection device compatible with the connection for the appliance.
A self-contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs cylinder (Height approximately 18 in., Tank
Body approximately 12 in. diameter, Base approximately 8 in. diameter).
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and shall not be used in a building, garage or any other enclosed
space.
When this appliance is not in use, the gas must be turned off at the supply cylinder.
Storage of this appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the reach of children. Disconnected cylinders must have threaded valve
plugs tightly installed and must not be stored in a building, garage or any other enclosed areas.
This appliance is certified by CSA (Canadian Standards Association) to ANSI Z21.97/CSA 2.41-2014, Outdoor Decorative Gas
Appliances.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.

4
Warranty
1
WHAT IS COVERED
Fire Pits
Burner,steelfire pit bowl, all mechanical parts and fittings to control panel and burner assembly, and all fire pit tops that are not cast
aluminum are warranted for a period of one (1) year from original date of purchase, against defects in material and or workmanship. Rust is not
covered.
Frames
Frames are warranted to be free from defects in materials and workmanship for a period of one (1) year. Damage to frames or welds due to
improper assembly or exposure to water and sub-freezing temperatures, is not covered. Breakage that is a result of product being dropped, acts of
God, acts of war, etc. are not covered.
Finish
The finish is warranted against peeling, cracking, or blistering for a period of one (1) year provided the product has not been scratched or abraded.
Scratches and chips resulting from normal wear and tear are not covered. Fading resulting from exposure to elements is not covered. Stains as a
result of chemical spills and certain food items are not covered.
Table Tops
All table tops are warranted for a period of one (1) year from original date of purchase, against defects in material and or workmanship. Breakage,
discoloration, staining, and or any other weather related issues are not covered.
WHAT IS NOT COVERED
Failure caused by unreasonable or abusive use. Fire pits that were clearance items, display models or items purchased in an "as is" condition,
freight damage, fire pit damaged by acts of nature, vandalism, fire, abuse, lack of proper care and maintenance, or improper assembly; straps and
normal fading or discoloration from exposure to elements, oils, spills, fluids or chemicals; Table top against breakage; hardware against corrosion
or rusting; buckling or splitting of tubing resulting from exposureto water and freezing temperatures; glass table tops, purchased or replacement
parts; plastics. Also excluded: loss of use of time and or inconvenience, money, travel, packaging or any other consequential or incidental
damages. In no event shall Foremost Groups Inc. responsibility exceed the value of the replacement product. Warranty is to the original purchaser
when items are purchased from one of our authorized retailers and is not transferable. All warranty claims must besubmitted with a dated register
receipt within the warranty period. Should replacement of the warranted item be unavailable, Foremost Groups Inc. reserves the right to substitute
items of our choice similar in style, color and quality. For quality control purposes and verification, we reserve the right to request photographs of
the damage item(s). The terms of this warranty are subject to change without notice.
Contact the Customer Service Team at 1-800-998-7021 or visit www.HomeDepot.com/HomeDecorators.
YEAR LIMITED WARRANTY

SROTAROCEDEMOH/MOC.TOPEDEMOH5
.ecnatsissarehtrufrof1207-899-008-1tcatnocesaelP

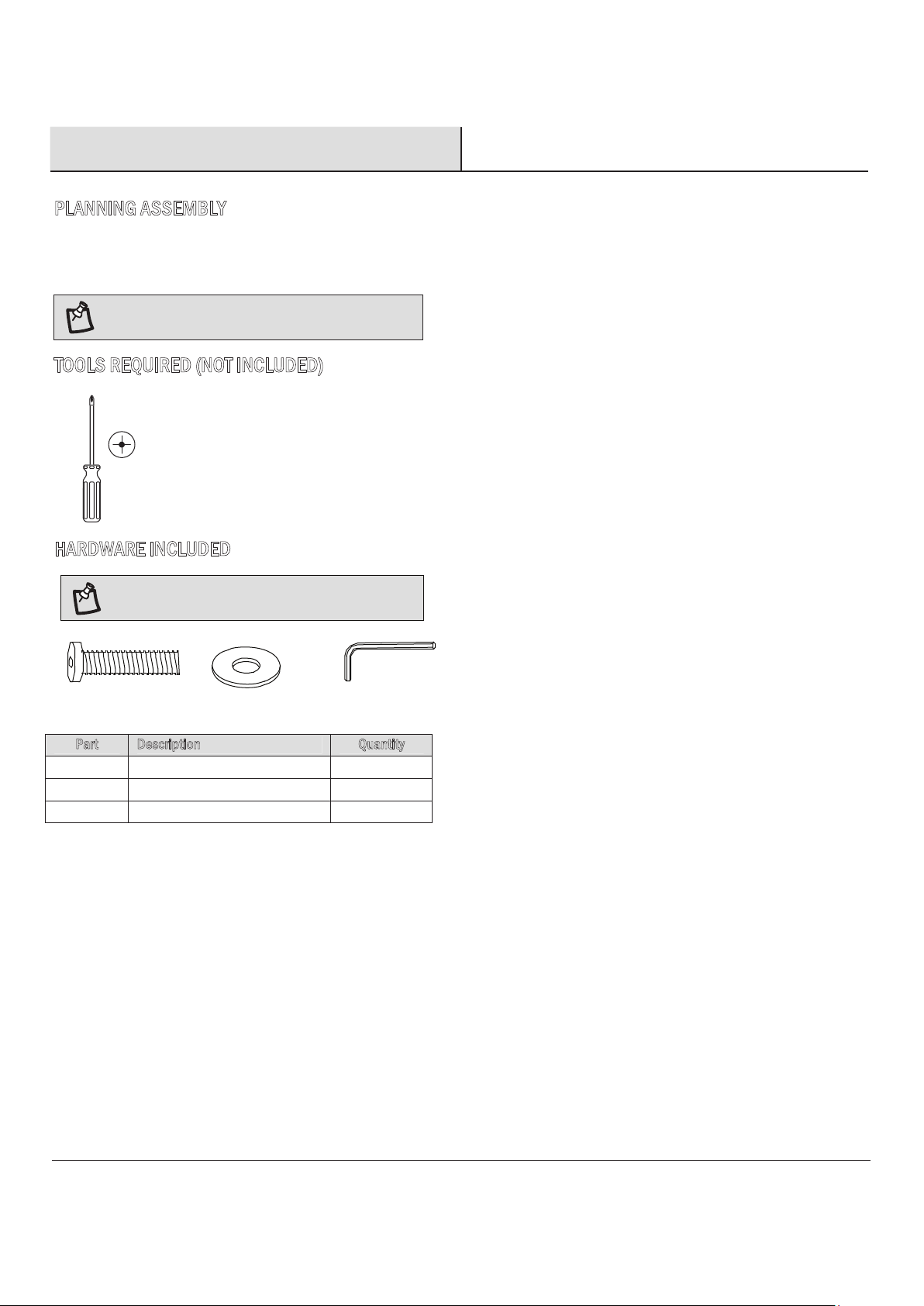

Pre-Assembly
PLANNING ASSEMBLY
Please read this entire instruction manual before beginning assembly.
Identify all parts packed in carton using the parts lists. Remove all protective materials. If any parts are missing or damaged, do not attempt to
assemble.
NOTE: Place parts on a nonabrasive surface to avoid
scratching.
TOOLS REQUIRED (NOT INCLUDED)
Phillips
screwdriver
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB CC
Part Description Quantity
AA Bolt
(
03)51x6M
BB Washe
r
03
CC Hex screw drive
r
1

P
Q
A
B
C
D
E
F
G
H
I
J
M K
L
N
O
6
Pre-Assembly (continued)

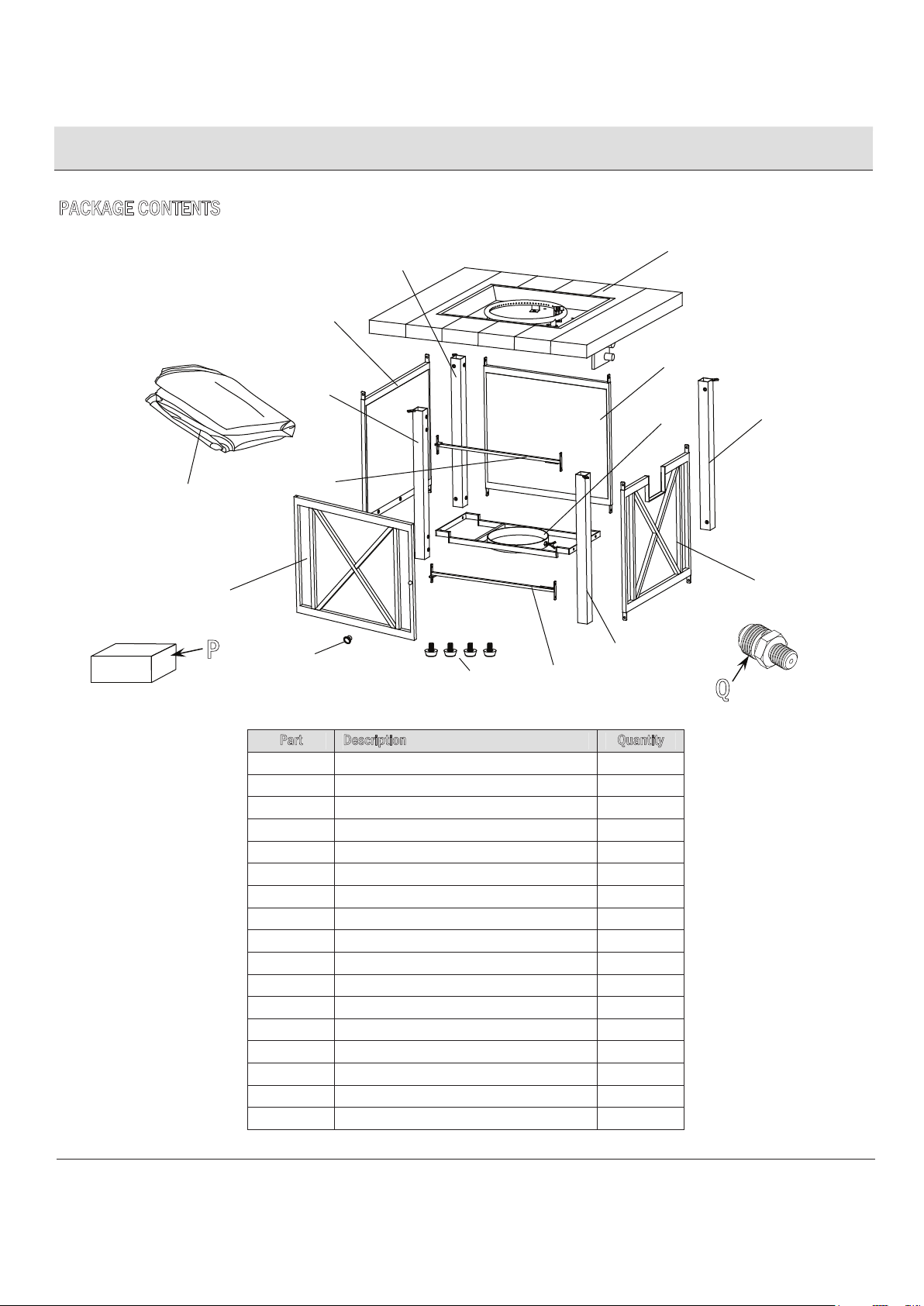

PACKAGE CONTENTS
Part Description Quantity
A Table top assembly 1
B Right panel 1
C Left panel 1
1rooDD
E Back panel 1
F
Fron
t
-right leg 1
G Back-right leg 1
H Fron
t
-left leg 1
I Back-left leg 1
J Upper beam 1
K Bottom beam 1
L Gas cylinder support 1
M Foot glider 4
N Weather cove
r
1
O Handle assembly 1
P Lava rock (13.2 lbs) 2 package
Q Natural gas orifice 1

SROTAROCEDEMOH/MOC.TOPEDEMOH7
.ecnatsissarehtrufrof1207-899-008-1tcatnocesaelP
Assembly
1
□
□
NOTE: Do not tighten bolts completely until assembly is
complete.
□
NOTE: Do not tighten bolts completely until assembly is
complete.
G
I
H
C
E
CC
AA
BB
F
G
B
CC
AA
BB
Attaching the left panel and back panel 2Attaching the right panel
Attach the Left Panel (C) to Front-Left Leg (H) and Back-Left
Leg (I) with four Bolts (AA) and four Washers (BB) using the
Hex Screw Driver (CC).
Attach the Back Panel (E) to the Back-Right Leg (G) and the
Back-Left Leg (I) with four Bolts (AA) and four Washers (BB)
using the Hex Screw Driver (CC).
Attach the Right Panel (B) to the Front-Right Leg (F) and the
Back-Right Leg (G) with four Bolts (AA) and four Washers (BB)
using the Hex Screw Driver (CC).

8
Assembly (continued)
3Attaching the upper beam and bottom
beam 4Attaching the gas cylinder support
□
□
NOTE: Do not tighten bolts completely until assembly is
complete.
□
NOTE: Do not tighten bolts completely until assembly is
complete.
5 6
□
NOTE: Do not tighten bolts completely until assembly is
complete.
□
NOTE: Do not tighten bolts completely until assembly is
complete.
Attaching the door Attaching the handle assembly
F
J
H
K
CC
AA
BB
B
C
L
CC
AA
BB
J
K
D
AA
BB
CC
O
D
O
Attach the Upper Beam (J) to the Front-Left Leg (H) and the
Front-Right Leg (F) with four Bolts (AA) and four Washers (BB)
using the Hex Screw Driver (CC).
Attach the Bottom Beam (K) to the Front-Left Leg (H) and the
Front-Right Leg (F) with four Bolts (AA) and four Washers (BB)
using the Hex Screw Driver (CC).
Attach the Gas Cylinder Support (L) to the Right Panel (B) and
the Left Panel (C) with four Bolts (AA) and four Washers (BB)
using the Hex Screw Driver (CC).
Attach the Door (D) to the Upper Beam (J) and the Bottom
Beam (K) with two Bolts (AA) and two Washers (BB) using the
Hex Screw Driver (CC).
Un-screw the Handle Assembly (O). Attach the Handle (O) to
the Door (D) using a Phillips screw driver to secure tightly.

CC
BB
AA
A
SROTAROCEDEMOH/MOC.TOPEDEMOH9
.ecnatsissarehtrufrof1207-899-008-1tcatnocesaelP
Assembly (continued)
7 8

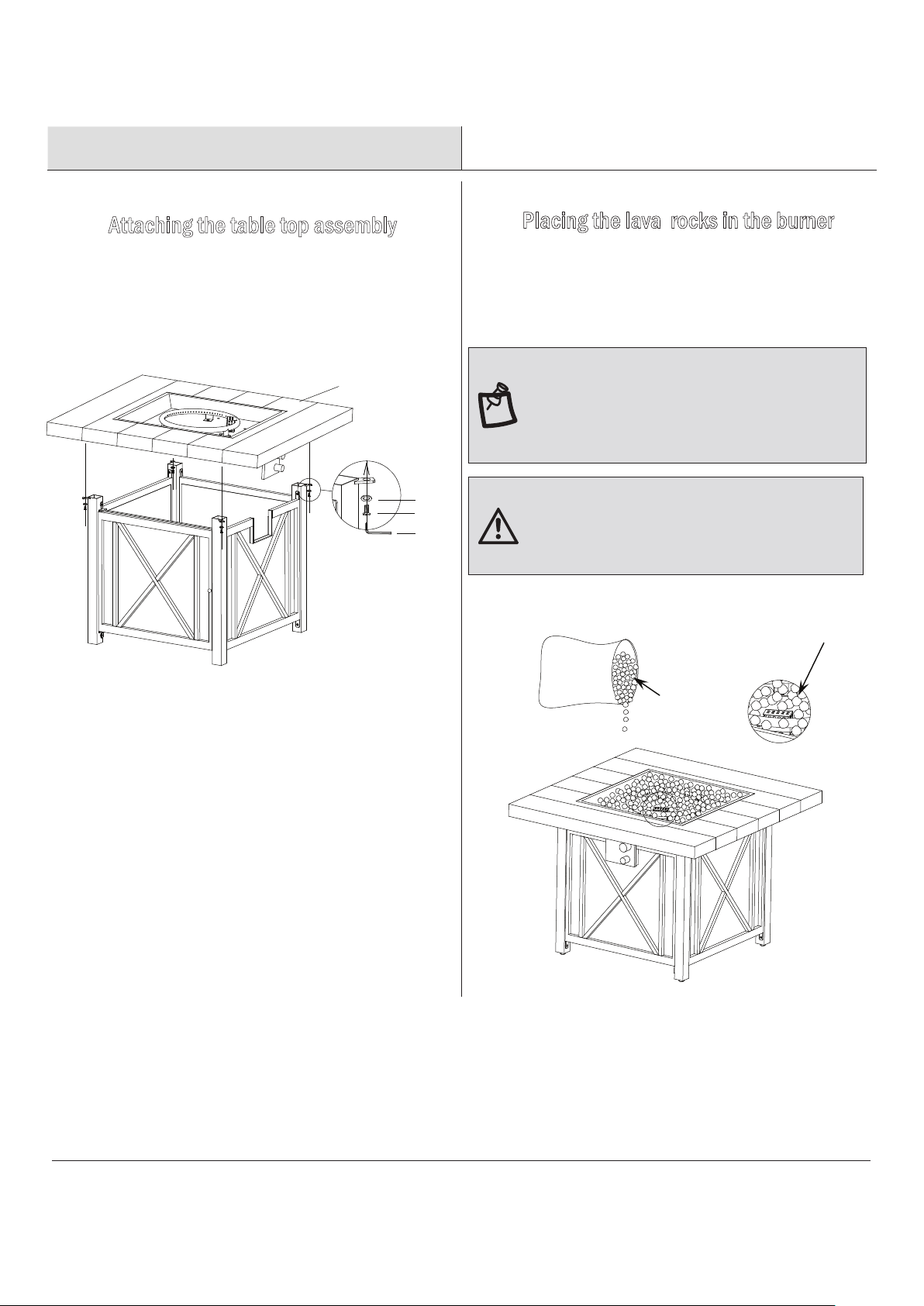

Placing the lava rocks in the burner
□
□Tighten all bolts completely.
□Place the Lava Rock (P) around the burner, and then remove the
label from the pilot box.
□A gas fire pit requires 13.2lbs lava rock.
□Do not tighten completely.
NOTE:DO NOT completely cover the burner element or block
the pilot box with the lava rocks. When the first use, preheat the
lava rocks for 15 minutes to burn out the impurities and air in
the natural lava rocks.
WARNING: Keep children away during assembly, as this
item contains lava rocks, which are small pieces and can be
swallowed by children.
pilot box
P
Attach the assembled base to the Table Top Assembly (A)
with four Bolts (AA) and four Washers (BB) by using the Hex
Screw Driver (CC).
Attaching the table top assembly

01
Operation – Gas Cylinder Installation
1
Installing the gas cylinder
2
Connecting the gas cylinder
□ □Connect the regulator, screw the black handle clockwise to
tighten, turn the black handle counterclockwise to remove. The
hose must point down. The knob on the control panel is turned
all the way to the “OFF” position when the fire pit is NOT in use.
3
Securing the gas cylinder and covering
the fire pit
□Secure the gas cylinder by tightening clockwise the butterfly
screw found on the Gas Cylinder Support (L), so that the gas
cylinder cannot move from side to side or fall down.
□
L
N
Open the door and place the gas cylinder into the Gas Cylinder
Support (L).
black handle
Close the Door (D). Cover the fire pit with the Weather Cover (N)
when not in use to protect it from the elements or when fire pit
is cool COMPLETELY after use.

SROTAROCEDEMOH/MOC.TOPEDEMOH11
.ecnatsissarehtrufrof1207-899-008-1tcatnocesaelP
Operation – Natural Gas Conversion
1
Disconnecting the propane hose
3
Replacing with the natural gas orifice
□Disconnect the propane hose from the gas valve.
CAUTION:Natural gas conversion must be performed only
by natural gas provider or service company.
□Replace the propane orifice with the natural gas orifice, screw
the natural gas orifice with the bellows tightly, then connect
and tighten the natural gas orifice with inlet tube.
□
2
Disconnecting the propane orifice
□Unscrew and disconnect the propane orifice from the bellows.
□
Natural gas orifice (4.18 mm diameter) is painted with black
mark.
gas valve
natural gas orifice
propane hose
inlet tube
bellows
propane orifice
propane orifice
bellows bellows
Propane orifice (2.09 mm diameter) is painted with red mark.

21
Operation – Natural Gas Conversion (continued)
4
Disconnecting the propane hose
5
Connecting to the natural gas supply
piping system
□Connect the natural gas hose with the gas valve by screwing
clockwise tightly.
□Plug the
natural gas fixture into the natural gas supply piping
system.
6
□Stick and cover the conversion label onto the propane rating
plate.
water column
Model Number: FG-BTB5PCFC-FPSerial Number:
DANGER
Minimum clearance from combustible constructions: Sides:24in. 610mm. Top:72in. 1829mm.
FOR OUTDOOR USE ONLY. If stored indoors, detach and leave cylinder outdoors. Do not connect to a remote
gas supply. It is shipped with LP gas orifice. You can find the orifices on the package with LP manual. Please
follow the instructions package with the orifices for gas conversion.
1. Push in gas control knob slightly and turn to “OFF”.
2. Turn gas control knob to “ON/MIN”.
3. Push in gas control knob all the way and hold. Continue to press the ignition
button for 15 seconds.
4. If the burner does not light in 15 seconds, release the knob and it will pop
back out. Wait 5 minutes before attempting to light the burner again, repeat step 1
to 3.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS
1. Push in gas control knob slightly and turn to “OFF”.
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
Design Certified by CSA Group
ANS Z21.97/CSA 2.41-2014
Outdoor Decorative Gas Appliances
WARNING: Improper installation, adjustment alteration, service or maintenance can cause injury
or property damage. Read the installation, operating, and maintenance instructions thoroughly
before installing or servicing this equipment.
WARNING: Do not store or use
gasoline, or other flammable
vapors and liquids, in the vicinity
of this or any other appliance.
An LP-cylinder not connected for
use shall not be stored in the
vicinity of this or any other
appliance.
Manifold Pressure : 11 inches
Distributed by Foremost Groups, Inc.
906 Murray Road, East Hanover, NJ 07936, U.S.A.
ϒ⁄ The instruction manual contains important information necessary for the proper assembly and safe use of the appliance.
ϒ⁄ Read and follow all warnings and instructions before assembling and using the appliance.
ϒ⁄ Follow all warnings and instructions when using the appliance.
ϒ⁄ If instructionsor parts are missing, contact Foremost Groups Customer Relations Department toll free number at
1-855-390-5474 (USA) or 001-855-286-4931 (Int) between the hours of 8:30 am and 5:00 pm EST, Monday through
Friday or fax your request to [phone] or email us at [email protected]
S
E
D
G
N
R
E
C
T
I
F
I
I
E
D
R
CAUTION: This appliance has been converted to use natural gas.
Propane orifice dia2.09mm, natural gas orifice dia4.18mm.
Rated Heat Input : 50,000 BTU/hr
Type of Gas : Natural gas
Max Gas Supply Pressure : 7 inches water column (1.74kPa)
Min. Gas Supply Pressure : 5 inches water column (1.24kPa)
Applying the conversion label to the
propane rating plate
gas valve
natural gas hose
natural gas fixture
natural gas hose
natural gas supply piping system
conversion label
propane rating plate

SROTAROCEDEMOH/MOC.TOPEDEMOH31
.ecnatsissarehtrufrof1207-899-008-1tcatnocesaelP
Operation – Leak Check
1
Safety Information
2
Checking for leaks
□Always perform the leak test as described below before
lighting this appliance or each time the cylinder is connected
for use.
□Do not smoke or allow other sources of ignition in the area
while conducting a leak test.
□Conduct the leak test outdoors in a well-ventilated area.
□Do not use matches, lighters or a flame to check for leaks.
□Do not use this appliance until any and all leaks are
corrected. If you are unable to stop a leak, disconnect the
propane supply. Call a gas appliance service shop or your
local propane gas supplier.
□Make 2~3 oz. of leak solution by mixing one part liquid
dishwashing detergent and three parts water.
□Apply several drops of solution where the cylinder attaches
to the regulator and inspect the solution at the connection looking
for bubbles. If NO bubbles appear, the connection is secure.
If bubbles appear, the connection has a leak. Disconnect
the regulator, and reconnect, and perform another leak check. If
you continue to see bubbles after several attempts, the cylinder
valve is defective and should be returned to the cylinder’s
supplier.
□Apply several drops of solution where the gas valve attaches to the
bellows, where the gas valve attaches to the hose, and where the inlet
tube attaches to the bellows. If NO bubbles appear, the
connections are secure. If bubbles appear, the connection
has a leak. Disconnect and reconnect, and perform another
leak check. If you continue to see bubbles after several
attempts, the part is defective and needs to be replaced.
NOTICE: Make sure control knob is “OF
F
”.
bellows
g
as valve
g
as valve hose inlet tube bellows
regulator
propane cylinder

CALIFORNIA PROPOSITION 65
Combustion by-products produced when using this
product contain carbon monoxide, a chemical known to
the State of California to cause birth defects (or other
reproductive harm), and other chemicals known to cause
cancer.
LIGHTING INSTRUCTIONS
1. Push in gas control knob slightly and
2. Turn gas control knob the “ON/MIN”.
3. Push in gas control knob all the way
4. If the burner does not light in 15
1. Push in gas control knob slightly and turn to “OFF”.
TO TURN OFF GAS
INSTRUCTIONS D'ALLUMAGE
POUR ÉTEINDRE L'ALIMENTATION EN GAZ
1. Enfoncer légèrement la poignée de la soupape de gaz et
2. Tourner la poignée de la soupape de gaz en position MARCHE/MIN.
3. Enfoncer complètement la poignée de la soupape de gaz et la
4. Si le brûleur ne s'allume pas en 15 secondes, relâcher la poignée et
5 minutes avant d'essayer d'allumer
le brûleur à nouveau. Répéter les étapes 1 à 3.
1. Enfoncer légèrement la poignée de la soupape de gaz et la tourner
turn to “OFF”.
and hold. ontinue to press the
ignition button for 15 seconds.
seconds, release the knob and it will
pop back out. Wait 5 minutes before attempting
to light the burner again, repeat step 1 to 3.
la tourner en position ARRÊT.
maintenir en place.Continuer d'appuyer sur le bouton d'allumage
pendant 15 secondes.
elle ressortira. Attendre encore
en position ARRÊT.
OFF (Arret)
MAX
(MAX)
1 AAA
1.5V
IGNITOR
Disposotof d’allumage
ON/MIN
(MARCHE/MIN)
Good Bad
Yellow
Yellow
Light Blue
Light Blue
Blue Blue
41
1Battery Installation 2Lighting Instruction
□Make sure the control knob is in the “OFF” position.
□Unscrew the push button cap on the igniter module located on
the control panel to access the battery compartment.
□The igniter module requires one AAA size battery.
WARNING:
1. Please observe proper polarity and use the correct
battery type when placing or replacing the battery.
Improper installation could result in ignition failure.
2. Please remove the battery if consumed or if product is
to be left unused for a long period of time.
□Push in gas control knob slightly and turn to “OFF”.
□Turn gas control knob the “ON/MIN”.
□Push in gas control knob all the way and hold. Continue to press
the ignition button for 15 seconds.
□If the burner does not light in 15 seconds, release the knob and
it will pop back out. Wait 5 minutes before attempting to light
the burner again, repeat above process.
□Observe Flame Height When Lit. The burner will display blue and
yellow flames. These flames should be a blue / yellow color
between 1~2 in. height . These flames should not be yellow or
produce thick smoke. This would indicate an obstruction of
airflow through the burners. The flames should be blue with
straight yellow tops. If excessive yellow flames are detected, turn
off the burner and consult “Troubleshooting” on Page 15.
WARNING:
1. For your safety, read and follow the Lighting
Instructions in this manual and in the Rating Plate on
the appliance.
IMPROPER LIGHTING PROCEDURES COULD RESULT
IN A FIRE HAZARD OR EXPLOSION HAZARD OR
PROPERTY DAMAGE, INJURY OR LOSS OF LIFE.
Operation – Battery lnstallation and lighting the Fire Pit

SROTAROCEDEMOH/MOC.TOPEDEMOH51
.ecnatsissarehtrufrof1207-899-008-1tcatnocesaelP
Maintenance
□Air flow must be unobstructed. Keep ventilation openings, controls, burner, and circulating air passageways clean and clear the debris.
Signs of possible blockage include the following:
(1) Gas odor with extreme yellow tipping of flame.
(2) Fire pit does NOT reach the desired temperature.
(3) Fire pit flame is excessively uneven.
(4) Fire pit makes popping noises.
(5) Spiders and insects can nest in burner or orifice. This dangerous condition can damage fire pit and render it usage for use. Clean the
burner ports by using a heavy-duty pipe clearer. Compressed air may help clear away small particles.
□Carbon deposits may create a fire hazard. Clean burner with warm soapy water if any carbon deposits develop.
□Cover your fire pit with an outdoor weather cover when not in use to protect it from the elements.
Care and Cleaning
To enjoy the outstanding performance from your fire pit, make sure you perform the following activities on a regular basis:
□Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
□While cleaning the fire pit, make sure to keep the area around the burner dry at all times.
□DO NOT submerge the control valve assembly. If the gas control is submerging in water, DO NOT use it again, it must be replaced.
□Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
□Do not obstruct the flow of combustion and ventilation air.
Troubleshooting
PROBLEM POSSIBLE CUASE CORRECTIVE ACTION
The burner will not ignite.
□
T
he propane cylinder is frosted over.
□An opening is blocked.
□The control knob is not in the “ON” position.
□There may be too much lava rocks covering the
burner bowl or small pieces may be blocking the
burner ports.
□Wait until propane cylinder warms up and
becomes unfrosted.
□Clear the blockage.
□Turn the control knob to “ON“position.
□Remove a portion of the lava rock. Make
sure the lava rocks just covers the upper
surface of the burner.
The burner flame is too low.
□The gas pressure is low.
□The outdoor temperature is less than 40 degree F,
and the cylinder is less than 1/4 full.
□
T
urn the cylinder valve off and replace the
cylinder.
□Use a full propane cylinder.
□Check the burner ports for blockage.
Carbon build-up and/or
thick black smoke is present.
□
□The burner is blocked.
□Clean the reflector and burner screen.
□Remove any blockage, and clean the
burner inside and outside.
NOTICE: Always allow fire pit to cool COMPLETELY before you cover the
fire pit with an outdoor weather cover or attempting to service or
performing maintenance.
There is dirt or film on the reflector and burner
screen.

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-998-7021
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
