EXTERIOR LED WALL LANTERN
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this
exterior LED wall lantern. We strive to continually create quality products designed to enhance your home. Visit us
online to see our full line of products available for your home improvement needs. Thank you for choosing Home
Decorators Collection!
Item:
Model:1000640382 HB7251-292

Before starting installation of this fixture or
removal of a previous fixture, disconnect
the power by turning off the circuit breaker
or by removing the fuse at the fuse box.
Consult a qualified electrician if you have
any electrical questions or need to replace
the driver.
If you have any non-electrical questions
about this fixture, please contact our
Customer Service Team at 1-800-986-3460
or www.homedepot.com/homedecorators.
WARNING: Disconnect the power prior to
removing or installing a light fixture.
Table of Contents
Safety Information
Warranty
WHAT IS COVERED
The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship
for a period of three (3) years from date of purchase. This warranty applies only to the original
consumer purchaser and only to products used in normal use and service. If this product is found to
be defective, the manufacturer‟s only obligation, and your exclusive remedy, is the repair or
replacement of the product at the manufacturer‟s discretion, provided that the product has not been
damaged through misuse, abuse, accident, modifications, alterations, neglect or mishandling.
WHAT IS NOT COVERED
This warranty shall not apply to any product that is found to have been improperly installed, set-up,
or used in any way not in accordance with the instructions supplied with the product. This warranty
shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence,
alteration, or faulty installation, or any other failure not relating to faulty material or workmanship.
This warranty shall not apply to the finish on any portion of the product, such as surface and/or
weathering, as this is considered normal wear and tear.
The manufacturer does not warrant and specially disclaims any warranty, whether expressed or
implied, of fitness for a particular purpose, other than the warranty contained herein. The
manufacturer specifically disclaims any liability and shall not be liable for any consequential or
incidental loss or damage, including but not limited to any labor/expense costs involved in the
replacement or repair of said product.
Contact the Customer Service Team at 1-800-986-3460 or visit
www.homedepot.com/homedecorators.
2
Operation 7
Getting Started 7
Setting Sensitivity in Test Mode 7
Selecting a Function 8
Manual Override 8
Care and Cleaning 9
Exterior Maintenance 9
Interior Maintenance 9
Driver Replacement 9
FCC Notice 9
Troubleshooting 10
Table of Contents 2
Safety Information 2
Warranty 2
Pre-Installation 3
Planning the Installation 3
Tools 3
Hardware 3
Package Contents 4
Selecting a Location 5
Installation 6

Pre-Installation
PLANNING THE INSTALLATION
Read all instructions before assembly and installation. Before starting installation of the fixture or
removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing
the fuse at the fuse box. To avoid damaging this product, assemble it on a soft, non-abrasive
surface such as carpet or cardboard.
NOTE: Keep your receipt and these instructions
for Proof of Purchase.

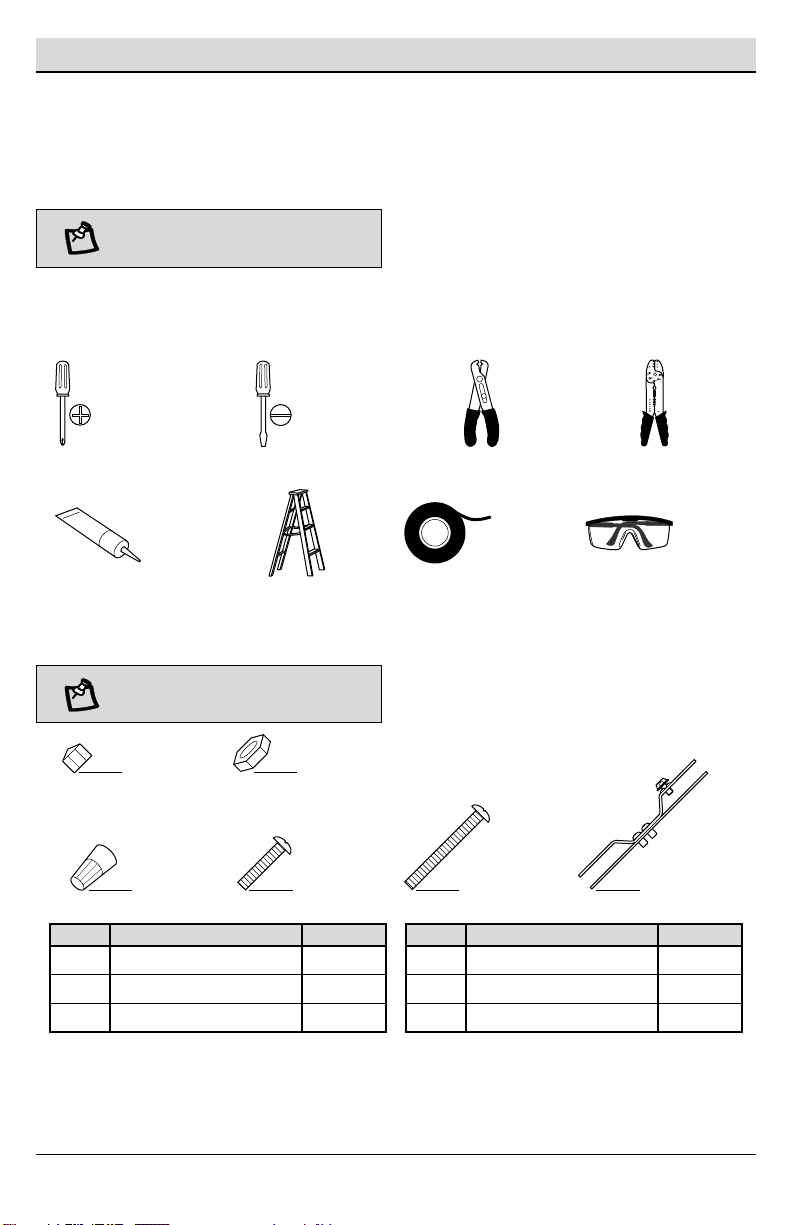

TOOLS REQUIRED
HARDWARE REQUIRED
NOTE: Hardware not shown to actual size.
www.homedepot.com/homedecorators
Please contact 1-800-986-3460 for further assistance.
3
Phillips
Screwdriver
Wire
Cutter
Wire
Stripper
Flathead
Screwdriver
Ladder Safety
Goggles
Electrical
Tape
Silicone Rubber
Sealant for
exterior use
DDCC FF
BB
Part
Description
Quantity
DD
Bracket Mounting Screw
2
EE
Fixture Mounting Screw
2
FF
Mounting Bracket
1
Part
Description
Quantity
AA
Lock Nut
2
BB
Hex Nut
2
CC
Wire Nut
3
AA
EE

Pre-Installation (continued)
PACKAGE CONTENTS
4
Part
Description
Quantity
A
Fixture Body
1
A

www.homedepot.com/homedecorators
Please contact 1-800-986-3460 for further assistance.
Pre-Installation (continued)
SELECTING A LOCATION
Be aware of the motion sensor‟s maximum
range of 30 ft. and 200º detection angle.
Be aware of the motion sensor‟s 15º
detection down-angle (from horizontal).
Mounting the fixture too high or in front of a
sloped surface, such as an uphill walkway
or driveway, may affect the motion
sensor‟s effectiveness.
Select locations away from heat sources,
such as heating vents, air conditioners,
and heated swimming pools.
Be aware that the motion sensor is more
sensitive to movement across its coverage
area and less sensitive to movement
toward or away from the motion sensor.
Select locations away from nighttime light
sources, such as street lamps or other light
fixtures. They may shine light onto the
fixture‟s photocell sensor (located at the
bottom of the back plate, between the two
switches). This light might cause the circuit
to “think” that it is daytime and not allow
the fixture‟s functions to operate.
Be aware that shade from a porch or an
eave may not allow enough daylight to
shine onto the photocell sensor and may
cause the circuit to “think” that it is
nighttime, and subsequently cause the
light to come on during the daytime.
Be aware that motorized equipment, such
as power tools, on the same electrical
circuit may cause oscillations on the
electrical line which might cause the fixture
to malfunction.
5
200º
SENSOR
Least Sensitivity
SENSOR
Most Sensitivity

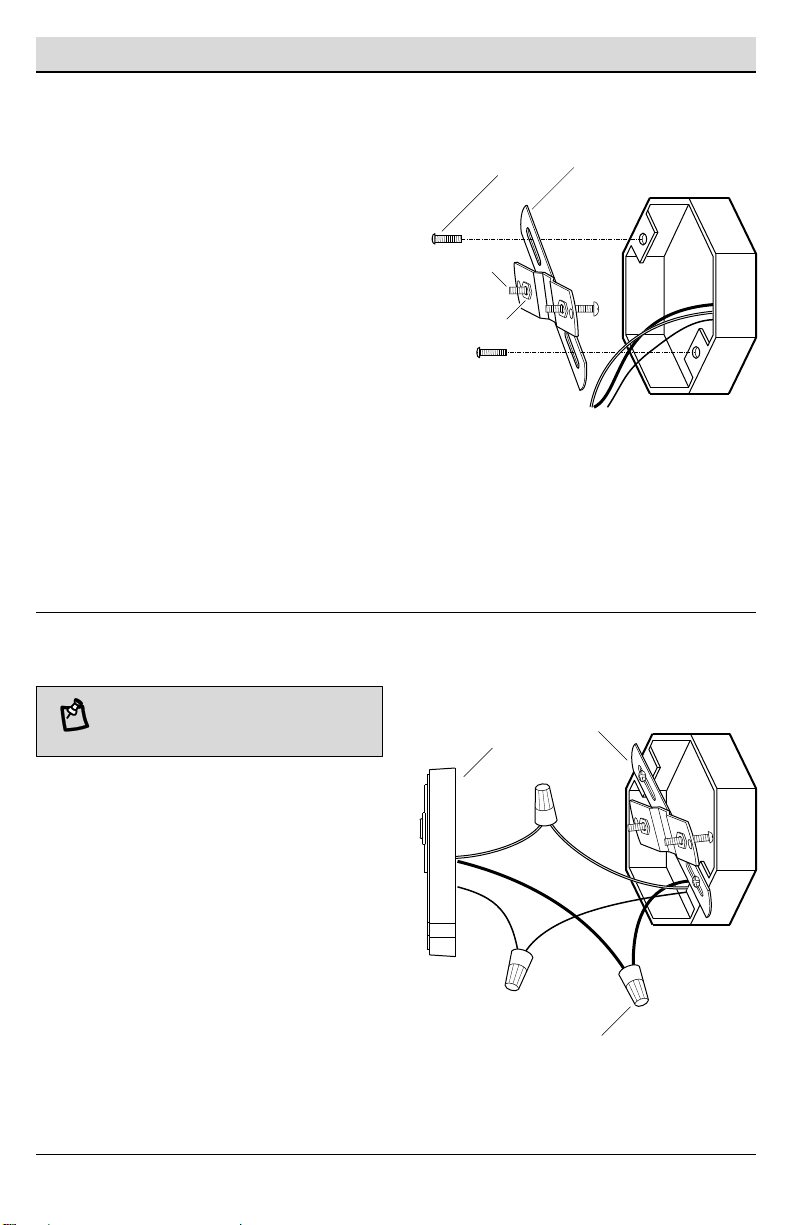

1Mounting the hardware
Thread the fixture mounting screws (EE)
into the provided holes of the mounting
bracket (FF).
Thread the hex nuts (BB) onto the fixture
mounting screws (EE). Do not tighten the
hex nuts (BB) at this time.
Pull the supply wires out from the outlet
box and mount the mounting bracket (FF)
to the outlet box using the bracket
mounting screws (DD).
Place the back plate of the fixture body (A)
over the outlet box and onto the fixture
mounting screws (EE).
Adjust the fixture mounting screws (EE)
until they protrude out from the back plate
1/4 in.
Remove the fixture body (A) and secure
the position of the fixture mounting screws
(EE) by tightening the hex nuts (BB)
against the mounting bracket (FF).
2Connecting the wires
Connect the black supply wire to the black
fixture wire using a wire nut (CC).
Connect the white supply wire to the white
fixture wire using a wire nut (CC).
Connect the fixture ground wire to the
supply ground wire using a wire nut (CC).
Wrap all wire connections with electrical
tape for a more secure connection.
Installation
6
NOTE: If you have electrical questions consult
your local electrical code for approved
grounding methods.
DD FF
EE
BB
CC
FF
A

www.homedepot.com/homedecorators
Please contact 1-800-986-3460 for further assistance.

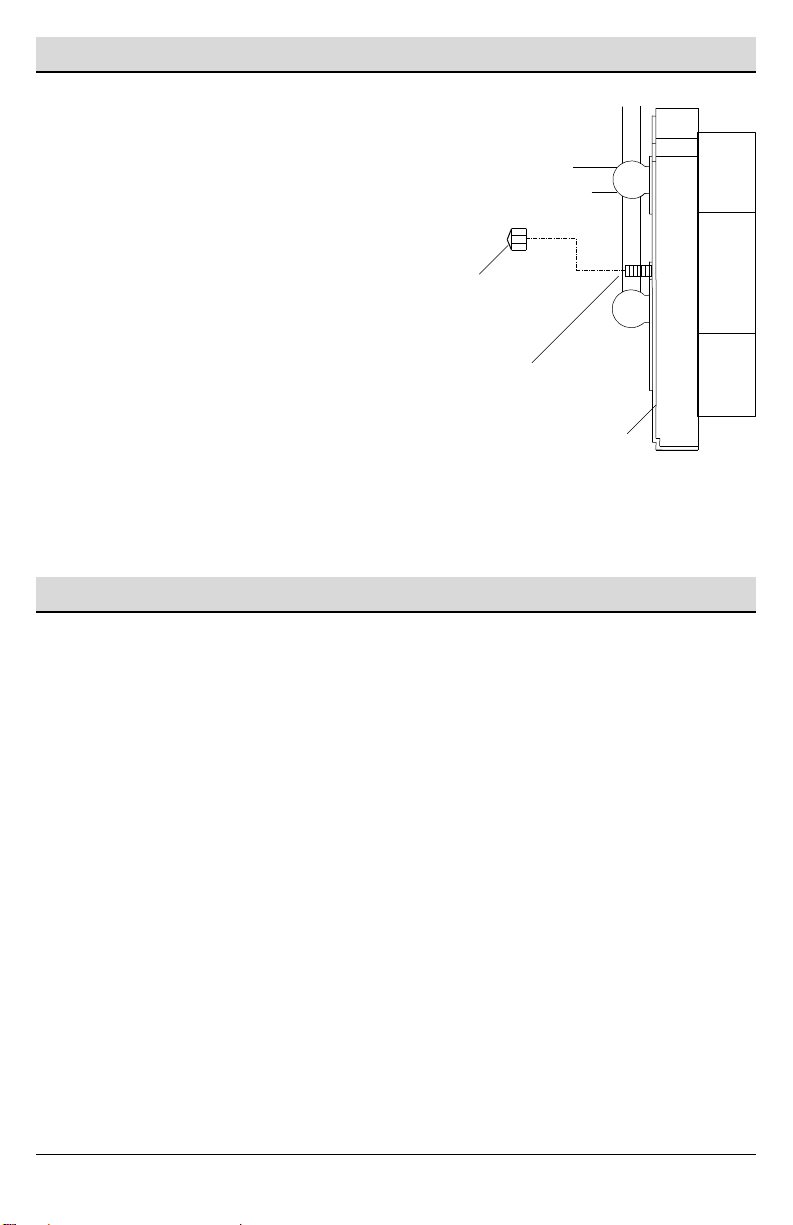

3Mounting the fixture
Place the back plate of the fixture body (A)
onto the fixture mounting screws (EE) and
secure it into place by using the lock nuts
(AA) provided.
Caulk the upper 2/3rds of the back plate on
the fixture body (A).
Leave the bottom 1/3rd un-caulked for
drainage of any water that may leak into
the enclosure.
Installation (continued)
7
Operation
GETTING STARTED
Slide the “TIMER” switch to “TEST”.
Turn on power at the circuit breaker or fuse box.
Turn the light switch on to activate the fixture.
The light will turn on and remain on for approximately 45 seconds and then flash 3 times before
turning off. In TEST mode, the motion sensor will turn on the light when it senses movement. Four to
five seconds after movement has stopped, the light will turn off.
SETTING THE SENSITIVITY IN TEST MODE
In TEST mode, slide the “SENSITIVITY” switch to a desired level: “L” for low, “M” for medium, or
“H” for high.
Test the sensitivity by walking towards the fixture from various angles, especially high traffic
paths such as driveways and walkways.
If necessary, select a different “SENSITIVITY” switch position to increase or decrease the
sensitivity or range.
Continue to adjust the sensitivity until optimum results are attained.
A
AA
EE

Operation (continued)
SELECTING THE FUNCTION
After setting the sensitivity, select the
function by sliding the “TIMER” switch to
one of the following positions:
8
“TIMER”
Switch
Position
Function
Description
4
Motion
Sensor
Motion sensor will activate (motion sensing mode) at dusk.
Any movement within the coverage area will cause the light to turn
on.
After movement has stopped, the light will remain on for the preset
time limit (4 or 10 minutes).
At the time limit, the light will turn off.
The motion sensor will remain active throughout the night.
The motion sensor will deactivate at dawn.
10
6 HOUR
Six Hour
Timer
The light will turn on and remain on for 5 to 6 hours at dusk.
At dusk, the light will turn off and the motion sensor will activate
(motion sensing mode).
Any movement within the coverage area will cause the light to turn
on and remain on for 10 minutes.
At 10 minutes, the light will turn off.
The motion sensor will remain active throughout the night.
At dawn, the motion sensor will deactivate.
NOTE: Always keep the wall switch in the “ON”
position, including the daytime, to make sure the
motion sensor functions properly.
MANUAL OVERRIDE
Flip the wall switch OFF-ON-OFF-ON
within a 3 second span. The light will
remain on until the override is deactivated.
To turn off the light and deactivate the
manual override, flip the wall switch OFF-
ON-OFF-ON again. This will return the
circuit back to motion sensing mode.
If you do not deactivate the manual
override, the light will remain for 8 hours
or until dawn, whichever comes first, at
which time the light will turn off
automatically.
Toggle the switch in this manner as many
times as you need to alternate between
the two modes, manual override mode
(light on) and motion sensing mode (light
off).
Motion Sensing
Mode (light off) Manual Override Mode (light on)
Flip wall switch
OFF-ON-OFF-ON
within 3 seconds
Switch in the
“ON” position
NOTE This switch toggling sequence alternates
the circuit between manual override (light on)
mode and motion sensing mode (light off).

www.homedepot.com/homedecorators
Please contact 1-800-986-3460 for further assistance.
Care and Cleaning
EXTERIOR MAINTENANCE
Use a dry or slightly dampened clean
cloth and wipe the surface of the fixture.
INTERIOR MAINTENANCE
Disconnect power to the fixture by turning
off the circuit breaker or by removing the
fuse at the fuse box.
Use a dry or slightly dampened clean
cloth to wipe the interior surface of the
fixture.
Driver Replacement
This product is ENERGY STAR ® listed. The driver can be replaced without having to cut wires.
Please contact a qualified electrician if driver replacement is needed.
FCC Notice
NOTICE: This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However, there is no guarantee
that interference can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interface by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
9
NOTE: Do not use any cleaners with chemicals,
solvents, or harsh abrasives. Use only a dry
soft cloth to dust or wipe carefully.

Troubleshooting
10
Problem
Solution
In motion sensing mode, the light does
not turn on when there is motion.
Turn on the switch or circuit breaker.
Check the wire connections.
Relocate the fixture away from a western
facing wall.
Eliminate or turn off other light sources.
Block other light sources from shining
onto the photocell sensor.
Relocate the fixture to a lower position or
a different location.
In motion sensing mode, the light stays
on continuously.
Eliminate the heat source.
Relocate the fixture.
The light comes on for no apparent
reason.
Lower the sensitivity.
Eliminate the heat source.
Relocate the fixture.
The light comes on during the daytime or
too early in the evening.
Relocate the fixture.
In the six hour timer function, the light
comes on too late in the evening.
Relocate the fixture away from a western
facing wall.
In the six hour timer function, the light
does not come on at night.
Eliminate or turn off other light sources.
Block other light sources from shining
onto the photocell sensor.
Relocate the fixture.
