Home Decorators SKY PARLOR 34611 User manual

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
USE AND CARE GUIDE
SKY PARLOR 56 IN. CEILING FAN
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Item #1005 724 514
1005 724 324
Model #34611
34612

READ AND SAVE THESE INSTRUCTIONS
Table of Contents
2
Specications ...........................................................................................
.........................................................................................
......................................................................................
.......................................................................................
.............................................................................................
..............................................................................................
........................................................................................
............................................................................
................................................................................
....................................................................................
...............................................................................................
....................................................................
....................................................................
.....................................................................................
........................................................................................
...........................................................................................
......................................................................................
...............................................................................................
.....................................................................................
........................................................................................
Reverse Switch Operating Instructions
Remote Control Operating Instructions 16
17
Table of Contents
Safety Information
Warranty
Pre-Installation
Tools Required
Hardware Included
Package Contents
Installation
Assembly
Hanging the Fan
Attaching the Fan Blades
Installing the Light Kit
2
3
4
Operation 16
Care and Cleaning 18
Troubleshooting
Service Parts 20
4
4
4
5
6
7
8
9
Preparing the Remote Control 10
13
14
18

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
WARNING: To reduce the risk of re or electric shock, this
fan should only be used with fan speed control part No.
AL-172.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs (15.9
kg) or less. Use only UL-listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All setscrews must be checked and retightened where
necessary before installation.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: 34611, 34612
Company Name: Minka Group
Company Address: 1151 W. Bradford Circle, Corona CA 9882, U.S.A
Full Name: Christian Gonzalez Title: Product Manager
Telephone Number: 1-951-735-9220 Fax: [phone]
Safety Information
3

Pre-Installation
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after
the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
4
Warranty

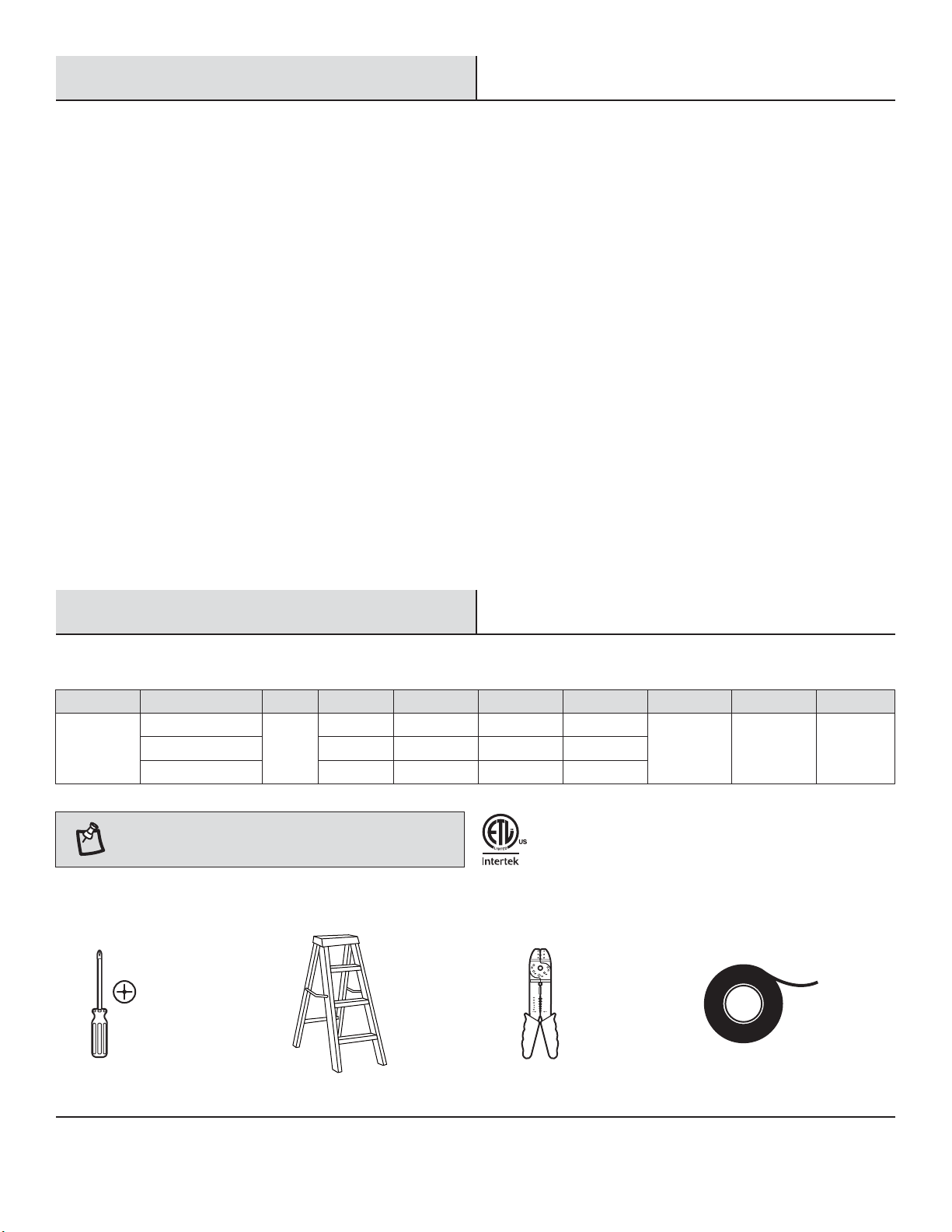

TOOLS REQUIRED
Phillips
screwdriver Ladder Wire stripper
Electrical
Tape
56 in.
Low (Speed 1)
Medium (Speed 4)
High (Speed 6)
120
Fan size Watts RPM CFMSpeed Volts Amps
2.16 cu. ft.
N.W. G.W. C.F.
0.101
0.325
0.62
4.09
20.89
48.22
49
98
135
2287
4929
6115
7.96 kg
(17.51 lbs.)
10.68 kg
(23.5 lbs.)

NOTE: Hardware not shown to actual size.
AA
BB
CC
DD
EE
Plastic wire nut
Blade attachment screw with lock washer
Blade arm screw and lock washer
23A 12V battery
Balancing kit
Part Description
3
15+1 (spare)
10+1 (spare)
1
1
Quantity

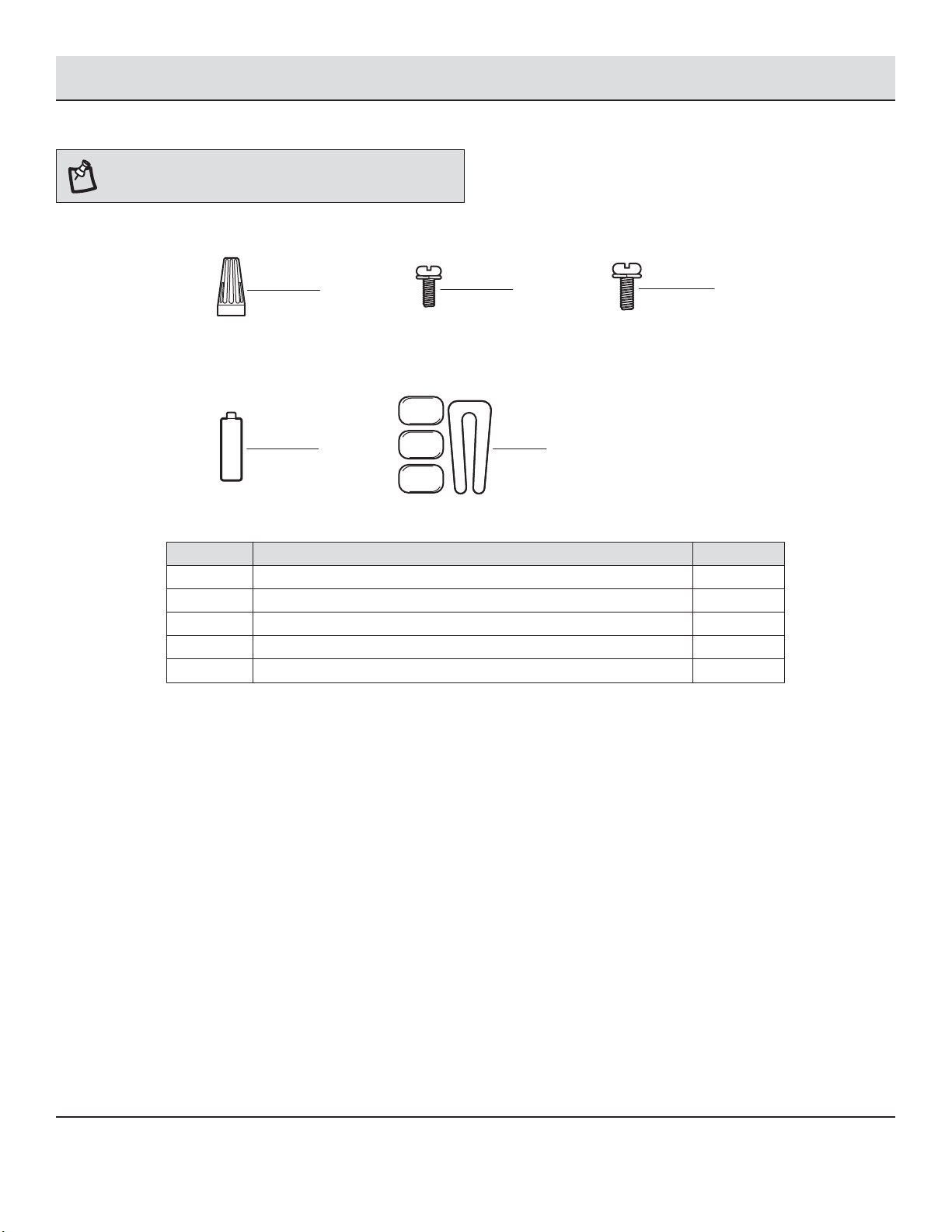

HARDWARE INCLUDED
5
Pre-Installation (continued)
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
CC
DD
AA BB
EE
23A 12V

Part
H
I
J
K
L
M
N
Description
Blade
Blade support plate
Light kit mounting plate
20 watt LED Light kit
Glass shade
Remote control
Remote holder
Quantity
5
5
1
1
1
1
1
Part
A
B
C
D
E
F
G
Quantity
1
1
1
1
1
1
5
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade arm
I
M
N
H
G
A
D
E
F
J
K
L

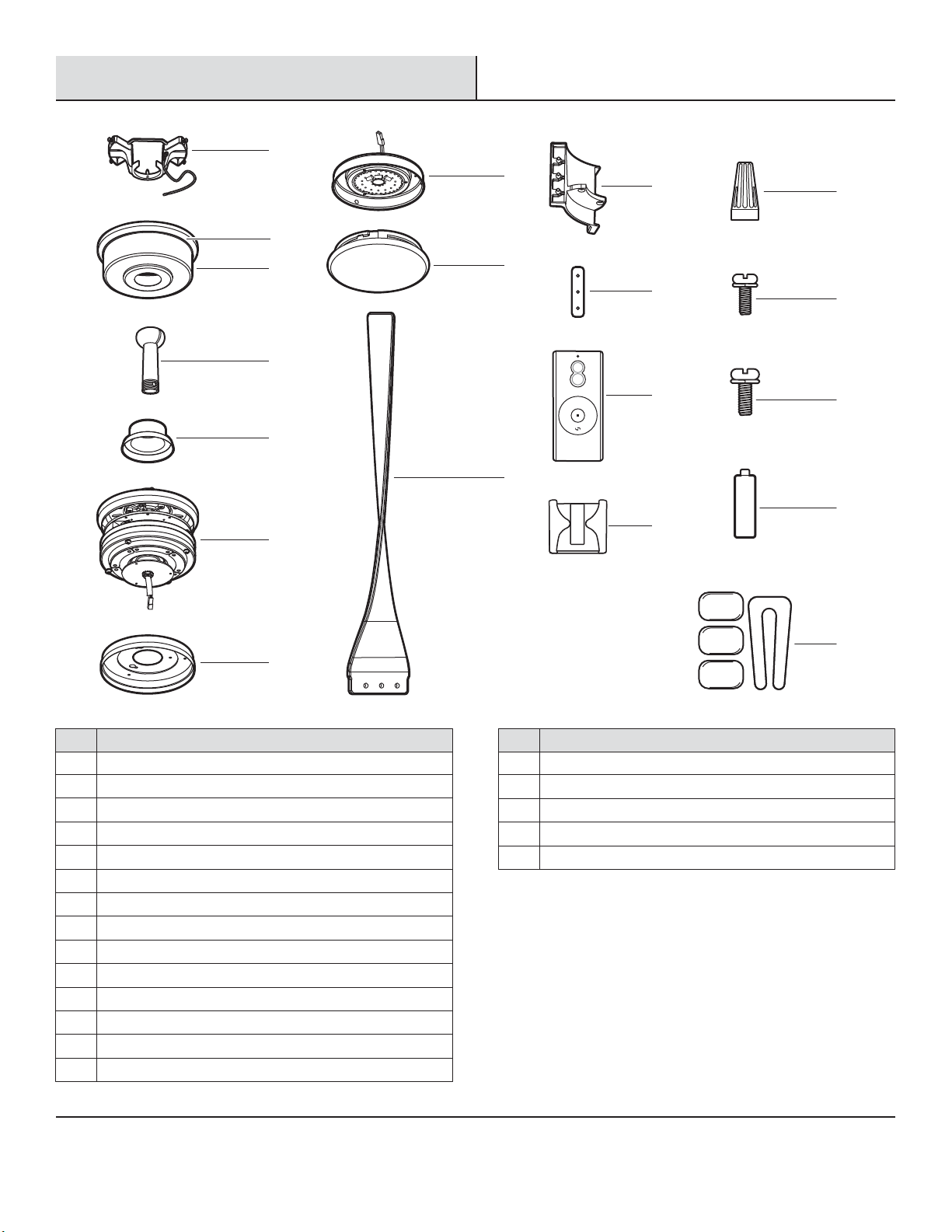

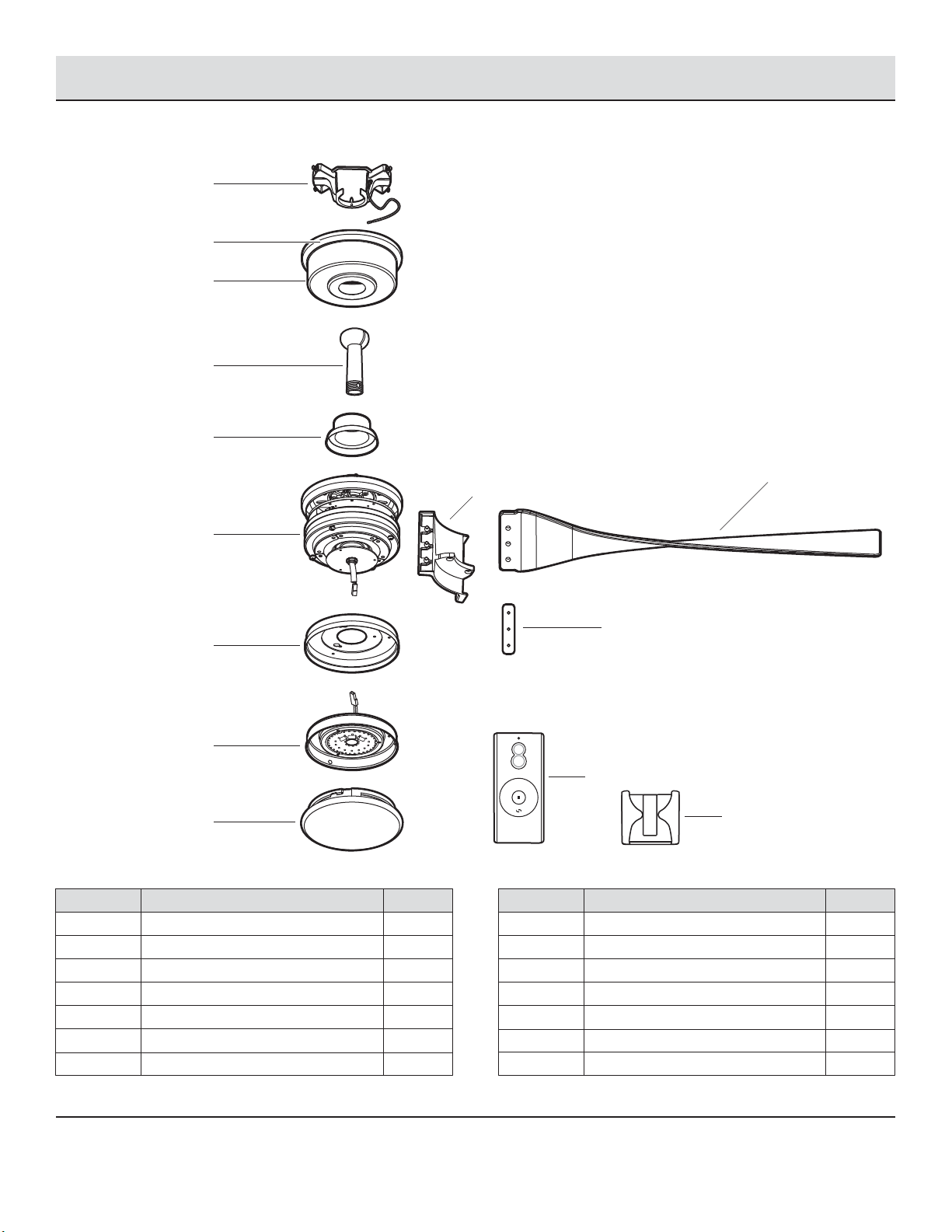

PACKAGE CONTENTS
6
Pre-Installation (continued)
B
C
1
2
34
5
6

If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to
fully support the weight of the moving fan (at least 35 lbs.).
Do not use a plastic outlet box.

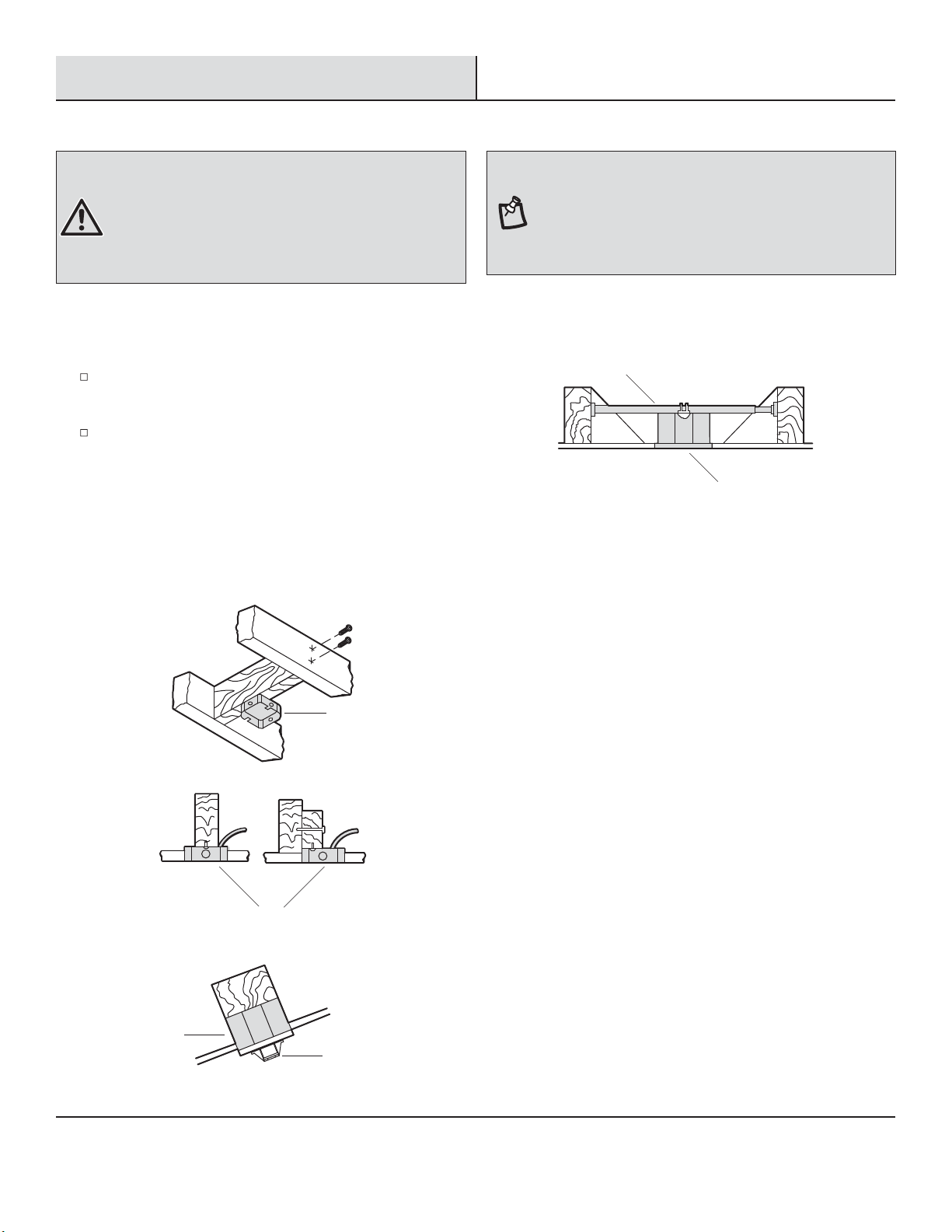

The illustrations below show three different ways to mount the
outlet box (not included).
To hang your fan where there is an existing xture but no
ceiling joist, you may need an installation hanger bar (not
included) as shown above.
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
Recessed
Outlet
Box Ceiling
Mounting
Bracket
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball/downrod assembly (E),
turn the canopy (C) 180° before attaching the canopy (C) to
the mounting bracket (A).
MOUNTING OPTIONS
Installation
7
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS

WARNING: Failure to properly install the cotter pin (GG)
could result in the fan loosening and possibly falling.

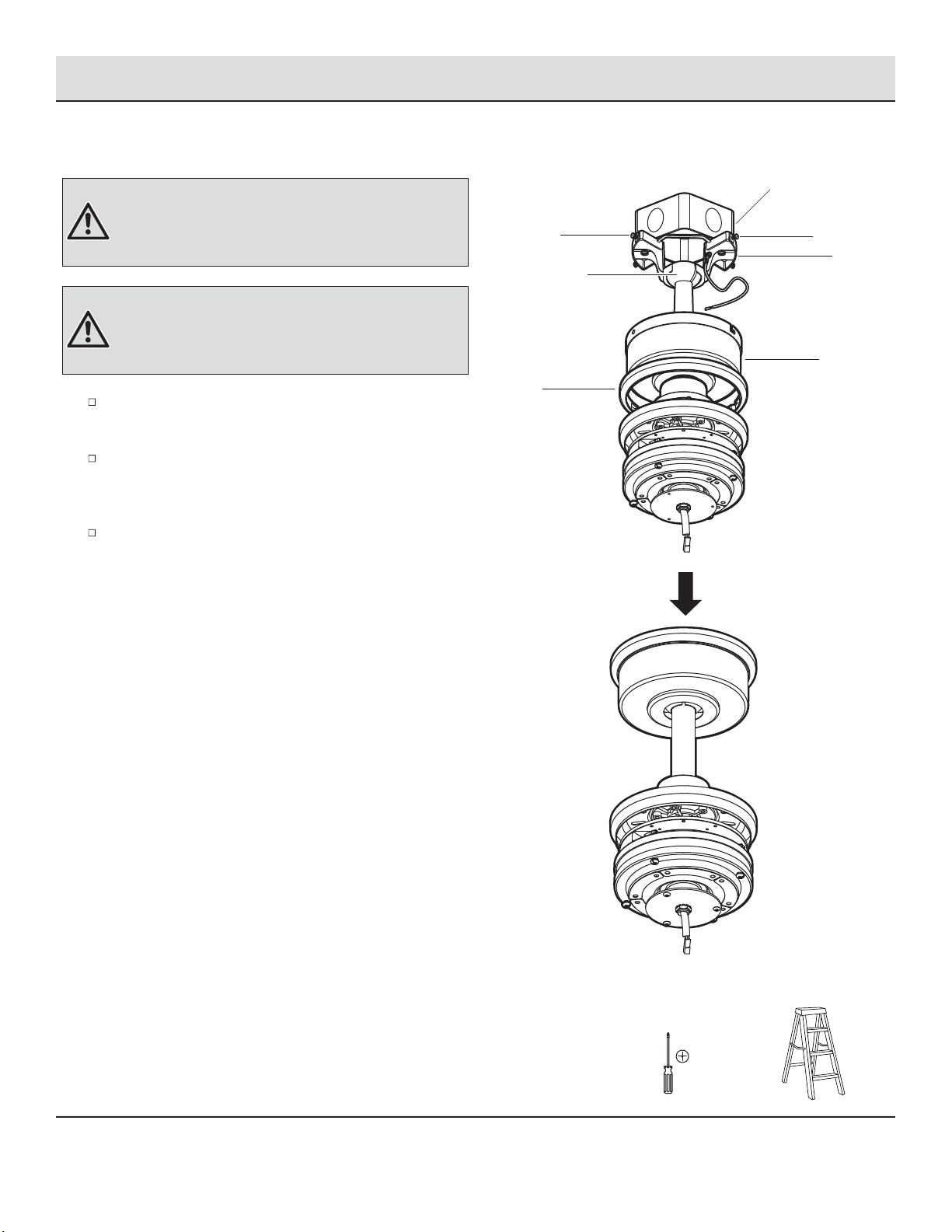

Carefully feed the motor wires up through the downrod
(NN). Thread the downrod (NN) into the collar.
Align the holes and replace clevis pin (HH) and cotter pin
(GG). Tighten the two collar setscrews (II).
Slip the coupling cover (E), canopy ring (B), and canopy (C)
onto the downrod (NN).
Carefully reinstall the hanger ball (KK) onto the downrod
(NN) and reinstall the ground lead (MM) onto the downrod
(NN), being sure that the cross pin (LL) is in the correct
position, the setscrew (JJ) is tightened and wires are not
twisted.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (KK), lower the hanger
ball (KK) and remove the pin (LL). Remove all three pieces
from the downrod and assemble them onto the new longer
downrod before proceeding to the downrod installation.
Assembly
1Preparing the canopy Preparing the motor 2
Remove the cotter pin (GG) and clevis pin (HH), and loosen
the two collar setscrews (II) from the motor collar.
Take out the setscrew (JJ) located in the hanger ball (KK),
lower the hanger ball (KK) and remove the cross pin (LL).
Remove the hanger ball (KK) from the hanger ball/downrod
assembly (D).
Remove the ground lead (MM) from the downrod assembly (D).
Remove the canopy ring (B) from the canopy (C).
Remove the two non-slotted canopy mounting screws (FF)
from the canopy (C), and loosen the slotted canopy
mounting screws (FF) on the canopy (C).
Remove the canopy (C) from the mounting bracket (A) by
turning the canopy (C) counterclockwise.
3Assembling the fan
8
II
II
HH
GG
Tools Required:
Phillips
screwdriver
B
F
E
NN
C
II
II
HH
GG
LL
JJ
MM
JJ
D
LL
KK
MM
KK
A
FF
FF
C
B

WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
Assembly — Hanging the Fan
4 Attaching the mounting bracket to
the electrical box
Attach the mounting bracket (A) on the outlet box by sliding
the mounting bracket (A) over the screws provided with the
outlet box. Note that the at side of the mounting bracket
(A) is toward the outlet box.
Securely tighten the two mounting screws.
9
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
WARNING: The tab in the ring must rest in the groove of
the hanger ball / downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
Hanging the fan to the mounting
bracket
5
Carefully lift the fan motor assembly (F) up to the
mounting bracket (A) and seat the hanger ball / downrod
assembly (D) in the mounting bracket (A) socket. Make
sure the tab on the mounting bracket (A) socket is
properly seated in the groove in the hanger ball / downrod
assembly (D). This will help to balance the ceiling fan.
D
A
F
A
Outlet Box
Tools Required:
Phillips
screwdriver Ladder

10
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of the used battery properly and keep
the battery out of the reach of children.
Assembly — Hanging the Fan (continued)
6Preparing the remote control
The “I (DIMMER)” selection is the light dimmable selection and
is to be used with all bulbs except for CFL bulbs. The “ON
(ON/OFF)” selection is the light on only (no dimming function)
and is to be used with CFL bulbs as CFL bulbs cannot be
dimmed properly.
Remove the battery cover on the back of the remote control
(M) by pressing rmly on the arrow and sliding the cover
off.
Install one 23A 12V battery (DD) (included).
Replace the battery cover on the remote control (M).
NOTE: This DC motor fans is equipped with a learning
frequency function which has 32 code combinations to
prevent potential interference from other remote units. The
frequency on your Receiver and Transmitter units have been
preset at the factory. No frequency change is necessary,
should you desire to install another DC motor fan within the
same home or area with a separate frequency code please
see the “operation” section of this instruction manual to learn
how to change the frequency.
DD
M
FREQUENCY
23A 12V
5
I
I

Assembly — Hanging the Fan (continued)
7Making the electrical connections
11
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
AA
NeutralHot
Black
Ground
conductor
White
Black
Green
White
Green
Outlet Box
A
D
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed
electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
Make wire connections as follows, using the wire nuts (AA).
From Fan To Outlet Box
Black ------------------------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (D).
Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on one
side of the outlet box and the black wire will be on the other
side. Carefully tuck the connections up into the outlet box.
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
CAUTION: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
Tools Required:
Phillips
screwdriver Ladder
Electrical
Tape
NOTE: If there is a 2nd hot (red wire) in the outlet box. Cap
the wire off from the fan. You will not need this wire.

WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball/downrod
assembly (D) before attaching the canopy (C) to the mounting
bracket (A) by turning the canopy (C) until it drops into place.
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (FF) are engaged and rmly tightened.
12
Assembly — Hanging the Fan (continued)
Installing the canopy
8
Slide the canopy (C) up to the ceiling. Make sure you
have placed the wires safely into the outlet box.
Secure the canopy (C) to the mounting bracket (A) with the
four canopy mounting screws with lock washers (FF)
included with your fan.
Slide the canopy ring (B) over the canopy (C) and tighten by
turning the ring (B).
FF
Outlet Box
A
FF
C
D
B
Tools Required:
Phillips
screwdriver Ladder

H
H
I
BB
G
F
G
CC
13
Assembly — Attaching the Fan Blades
9
Attaching the blades to the blade arms
Attach the fan blades (H) to the blade arms (G) using the
blade support plates (I) and screws with lock washers (BB)
provided. Tighten the screws with lock washers (BB)
securely. Repeat this process with the other blades.
10 Fastening the blade assemblies
to the motor
Align the fan motor assembly (F) holes to the blade arm (G)
holders and install using screws with lock washers (CC)
provided.
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (G) while installing, balancing the blades
(H), or cleaning the fan. Do no insert foreign objects between
rotating fan blades (H).
Tools Required:
Phillips
screwdriver Ladder
NOTE: Do not fully tighten the screws until all blade holders
with blade arms are installed. Once all blade holders and
blades have been installed you can securely tighten all the
screws. This will help proper alignment of the blade holders
and blades to the motor.

WARNING: To reduce the risk of personal injury, do not
bend the blade arms (G) while installing, balancing the blades
(H), or cleaning the fan. Do no insert foreign objects between
rotating fan blades (H).
14

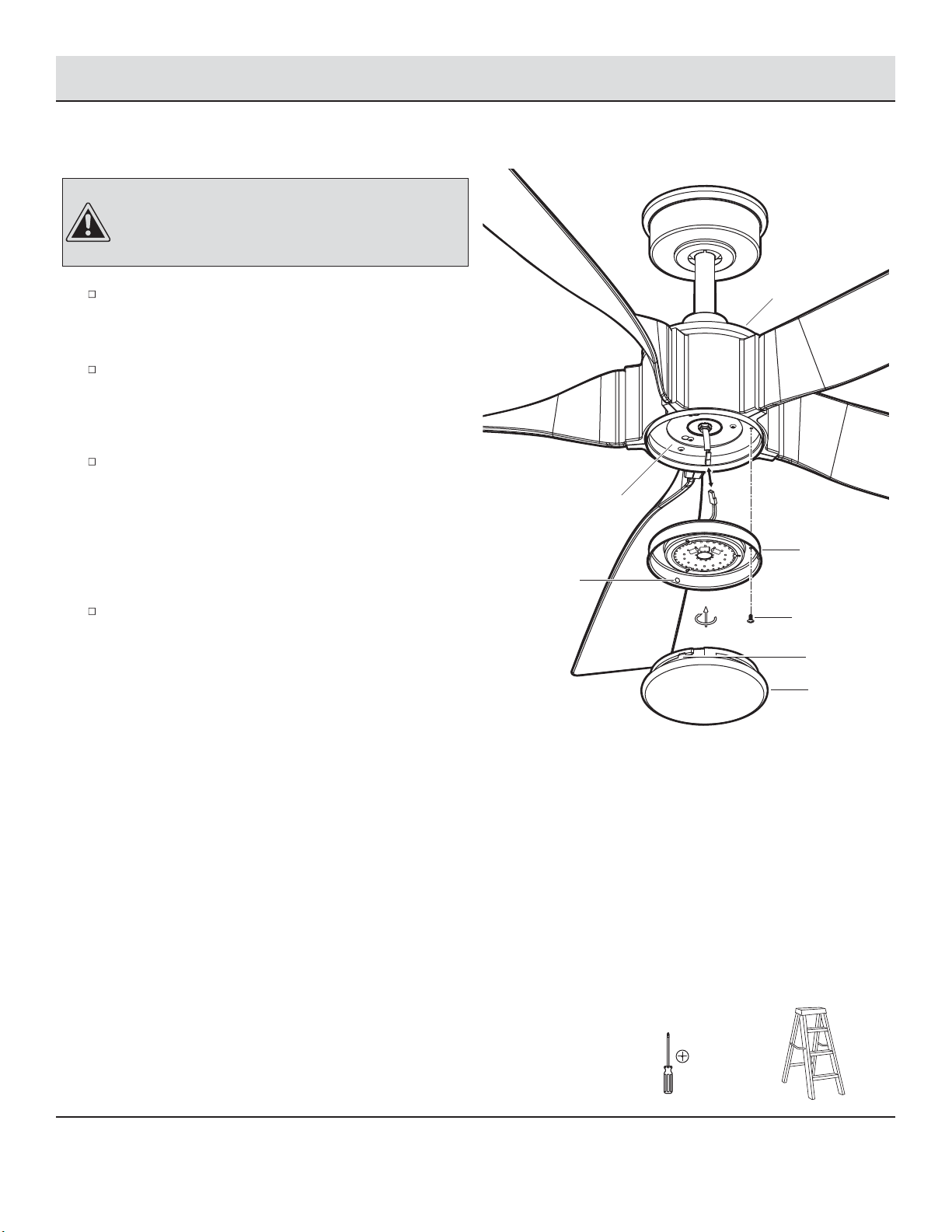

Assembly — Installing the Light Kit
Attaching the light kit mounting
plate to the mounting ring
11
Remove one of the three light kit mounting plate screws
(OO) from the mounting ring (PP) and loosen the other two
screws. (Do not remove.)
Place the key holes in the light kit mounting plate (J) over
the two screws (OO) previously loosened from the mounting
ring (PP). Turn the light kit mounting plate (J) until the light
kit mounting plate (J) locks in place at the narrow section of
the key holes.
Securely tighten the two light kit mounting plate screws
(OO) previously loosened and the one (OO) previously
removed.
OO
F
J
PP
Tools Required:
Phillips
screwdriver Ladder

15
Assembly — Hanging the Fan (continued)
12 Attaching the LED light kit
and glass shade
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
Remove one of the three light kit mounting screws (QQ)
from the light kit mounting plate (J) and loosen the other
two screws (QQ). (Do not remove.)
While holding the 20W LED light kit (K) under the fan motor
assembly (F), make the 2-pin wire connections:
- White to white
- Blue to black
Place the key holes in the 20W LED light kit (K) over the two
mounting screws (QQ) previously loosened from the light kit
mounting plate (J). Turn the LED light kit (K) until the LED
light kit (K) locks in place at the narrow section of the key
holes. Secure by tightening the two light kit mounting
screws (QQ) previously loosened and the one (QQ)
previously removed.
Position the notches (RR) in the outer rim of the glass
shade (L) so they line up with the tabs (SS) on the
inside of the rim on the 20W LED light kit (K).
Carefully lift the glass (L) up inside the 20W LED light
kit (K) and secure it to the fan by turning the glass
shade (L) clockwise until snug. DO NOT OVERTIGHTEN.
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
F
QQ
RR
K
L
J
SS
Tools Required:
Phillips
screwdriver Ladder

Operation
16
PAIRING PROCESS
Select desired frequency from the back of transmitter.
Press the transmitter’s “ ” button, and hold the “ ” button for over 5 seconds. Once the receiver has detected the frequency, the
fan will automatically begin to operate and start to run for 10 seconds. If a light kit is installed, the light will blink two times.
NOTE: The pairing function will only mandate within 60 seconds when turning the fan’s AC power ON.
M
REMOTE CONTROL OPERATING INSTRUCTIONS
1
2
34
5
6
Remote Control only: Install an A23 12 volt battery (included). To
prevent damage to transmitter remove the battery if not used for
long periods of time.
Your DC brushless motor is equipped with a self learning frequency
function remote control. Restore power to the ceiling fan and test
the transmitter as below for proper operation:
A. 1, 2, 3, 4, 5 and 6 button:
These six buttons are used to set the fan speed as follows:
1 = minimum speed
2 = low speed
3 = medium low speed
4 = medium speed
5 = medium high speed
6 = high speed
B. Reverse Button:
This button is used to change the direction of the rotation of the blades; counterclockwise for summer weather or clockwise for winter
weather.
C. Button:
This button turns the power Off to the Fan.
D. Button:
Fans that feature an UP light ( button) and a DOWN light ( button) that are controlled independent of each other. Press and release
the button for the desired light to turn the light ON or OFF. Press and hold the button to set the desired light brightness. The light will
cycle between bright and dim settings as long as the button is pressed. The light key has an automatic auto-resume feature that allows
the light to remain at the same brightness as the last time it was turned off.
NOTE: On each start up of your ceiling fan, the fan blades
will oscillate back and forth. This is a NORMAL OPERATION
for DC motor ceiling fans as they go through a calibration
cycle. The fan is NOT DEFECTIVE.

Operation (continued)
17
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
NOTE: The learning frequency function and self calibration test will continue to retain the last set frequency and calibration set even when
the AC power is shut off. If the frequency is changed, the self calibration test will occur again.
Lock position:
The DC motor has a built-in safety against obstruction during operation. The motor lock’s and disconnect’s power after 30 seconds if
interruption occurs. Please remove obstacles before re-setting.
Over 80W protection:
When the receiver detects motor power consumption which is greater than 80W, the receiver’s power will stop and operation will be
immediately discontinued. Turn the receiver power on after 5 seconds.
“D” and “ON” dip switch:
The “D” selection is the light dimmable selection and is to be used with all bulbs except for CFL bulbs. The “ON” selection is For CFL
bulbs.
NOTE: The fan reverse buttons must be pressed while the fan is running.
REVERSE SWITCH OPERATING INSTRUCTIONS
Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number of fans.

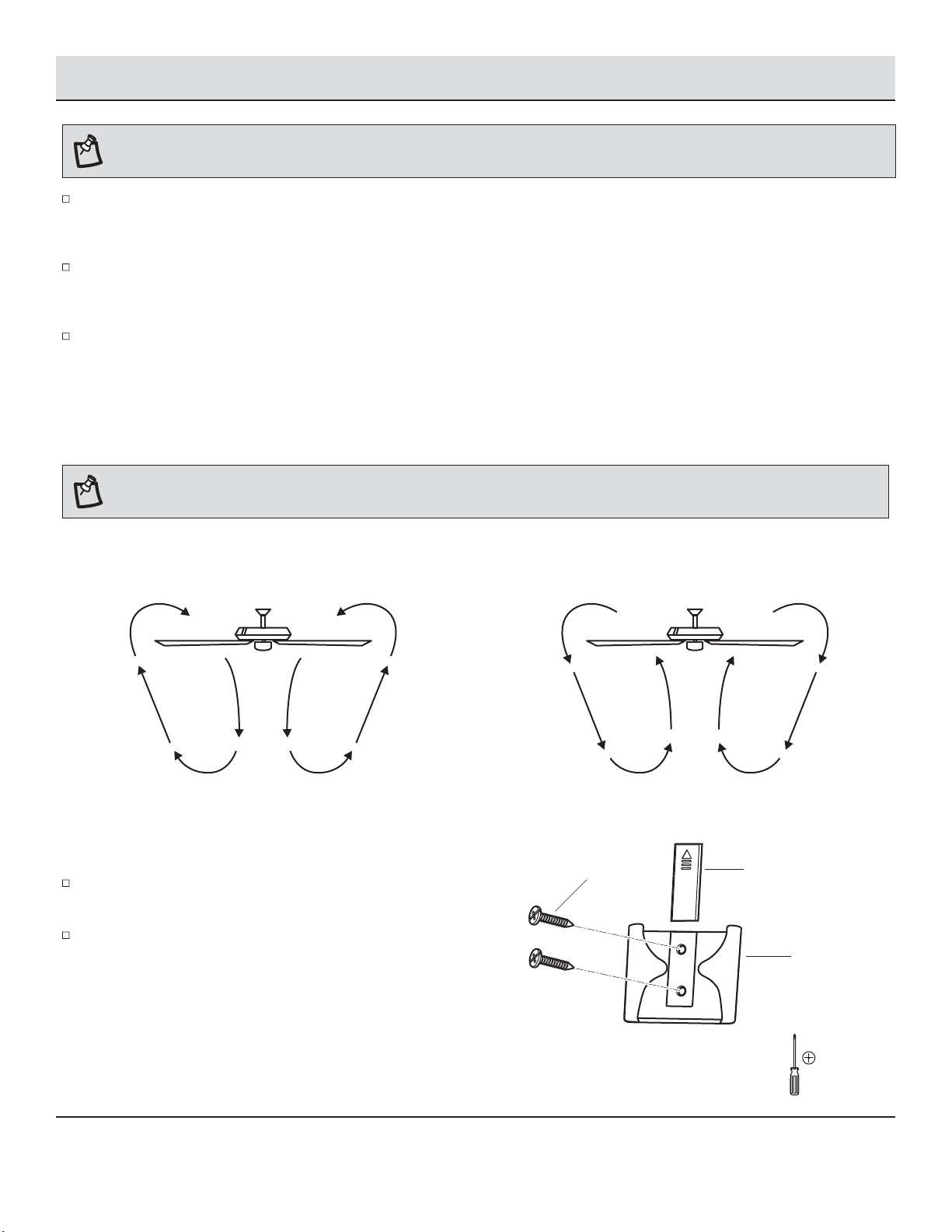

Summer weather - (Counterclockwise Direction) A downward air
ow creates a cooling effect. This allows you to set your air
conditioner on a warmer setting without affecting your comfort.
Winter weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit
on a cooler setting without affecting your comfort.
INSTALLING THE REMOTE CONTROL HOLDER
Attach the remote control holder (N) with the two remote
control holder mounting screws (TT).
Replace the remote control holder cover (UU) into the remote
control holder (N).
UU
N
TT
Tools Required:
Phillips
screwdriver

Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some connections
may become loose over time. It is not necessary to remove
the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
(Optional) Apply a light coat of furniture polish to the wood
blades.
(Optional) Cover small scratches with a light application of
shoe polish.
Do
Care and Cleaning
Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
18
Troubleshooting
Problem Solution
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
Reset the transmitter by going through the transmitter “PAIRING PROCESS”.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware is secured tightly.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 7
“Making the electrical connections” on page 11.

19
Troubleshooting (continued)
Do not connect the fan with wall mounted variable speed control(s).
Make sure the frequency switches are set correctly.
Reset the transmitter by going through the transmitter “PAIRING PROCESS”.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan wobbles.
Fan moves backwards and
forwards when turned on.
The remote control is
not working.
Problem Solution
Check that all blade and blade arm screws are secure.
Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a
point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade
to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for
each blade. Measurement deviations should be within 1/8 in. Run the fan for ten minutes.
Use the enclosed blade balancing kit if the blade wobble is still noticeable. Balancing kit includes
additional instruction manual within the packet.
This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result
of the DC motor aligning the internal magnetic poles for proper motor operation. This design saves
electricity and allows the fan to operate much quieter than standard AC motor fans.
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
The fan sounds noisy.

Part
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade arm
Blade
Blade support plate
Light kit mounting plate
20 watt LED Light kit
Glass shade
Remote control
Remote holder
Part
AA
BB
CC
DD
EE
Description
Plastic wire nut
Blade attachment screw with lock washer
Blade arm screw and lock washer
23A 12V battery
Balancing kit
A
D
E
F
J
Service Parts
20
B
CL
H
KG
I
AA
BB
CC
DD
EE
23A 12V
M
N
1
2
34
5
6
