The MX-1000 is a very powerful and flexible preprogrammed and
learning remote control with LCD touch screens.
It is designed to operate up to twelve home entertainment
components. You can program it for your components either from the
preprogrammed code library in the remote control or you can teach up
to 780 buttons into MX-1000 from your original remote controls.
The MX-1000 has many advanced operating features that can add
convenience and enjoyment of your home entertainment system. It
also allows you to change the button size and shape and edit the text
on the button in the LCD. You can also make these changes with the
aid of your personal computer.
Setting up the MX-1000 to work with your components is very easy
and simple. Please follow the instructions in the manual and retain the
manual for future reference.
For any questions or comments about the MX-1000, please contact
Universal Remote Control, Inc., 500 Mamaroneck Avenue, Harrison,
NY 10528 at 914-835-4484 or e-mail to www[email protected]
Customer service hours
are
9:00
AM
to
6:00
PM
EST,
Monday
–
Friday.
2
1. Introductions - General

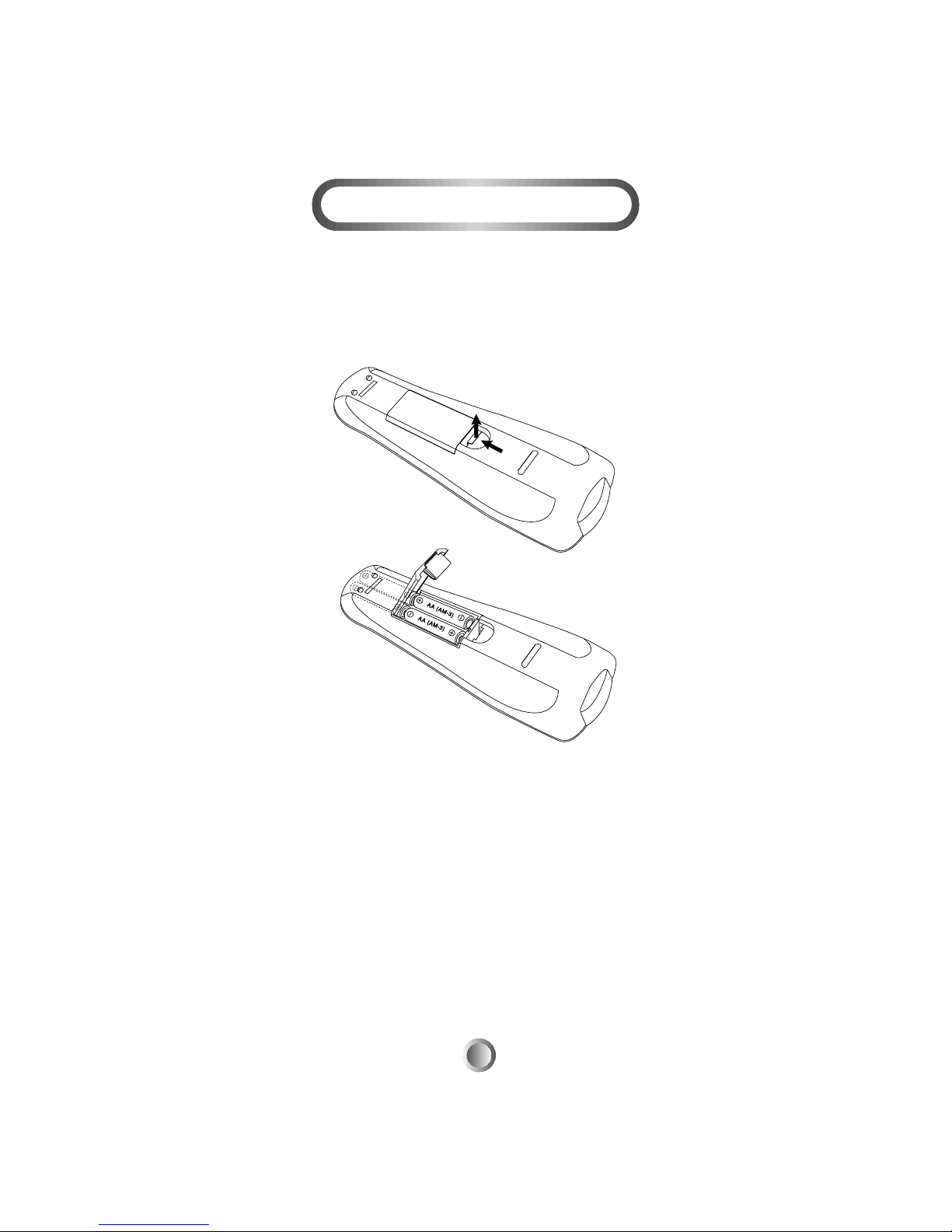

MX-1000 uses four AA batteries. Please be sure to match the
batteries with the (+) and (-) markings inside the battery compartment
during installation.
The remote control goes through self-testing for three seconds after
the batteries are installed and automatically moves to setting mode for
your programming.
NOTE: Please
do not
mix
old
batteries
with
new
ones
or
mix
different
types of batteries.
3
2. Battery Installation

A. Description of Devices:
The MX-1000 is designed to operate up to twelve components. They
are Audio, CATV, Satellite, TV, DVD, VCR1, VCR2, Laser Disc,
Tuner, CD, Tape and AUX. However, the device button name can
be changed to meet your exact needs. You can also create a favorite
device page and transfer the frequently used devices to the favorite
device page in order to change the device button sizes and shapes.
Once you create the favorite device page, it will appear as a default
device page. Please refer to COPY in EDITING Section on page 21
for details.
There are also four pages of the LCD screen for each device and you
can use them to create, delete or edit any functional buttons to
customize with your audio/video components. Please refer to
EDITING on page 20 for details.
B. Pre-programmed Codes:
The MX-1000 comes with preprogrammed codes for practically all
the major audio and video equipment that are on the market. You can
operate all of your components with the MX-1000 simply by
punching in the three-digit code number that is assigned to your
brand. The code numbers for various brands and components are
listed in the instruction manual. Please refer to the programming
instruction shown on page 9 for details.
C. Learning:
The MX-1000 can also learn practically all the codes from your
original remote controls. There are 50 LCD screens in the remote
control and all the functional buttons in the LCD can be taught. In
addition, there are eleven rubber buttons and a joystick that contains
five functions. Each of these buttons and the joystick functions can be
taught in each of the twelve devices. As a whole, you can teach up to
780 new functions into the remote control. Please refer to page 12 in
the instruction manual for details.
3. Summary of Operations
4

D. Macro Operation:
The remote control is capable of sending out a series of commands
with one button press. There are three types of macro buttons you can
use for such macro operations and they are as follows:
1. M1, M2 and M3 buttons on MAIN page.
Each of these three buttons are designed to send out up to 28 series of
commands you programmed into the buttons. It is typically used to
turn on and turn off all of your A/V components with one button
press.
2. Device buttons on Main page.
There are twelve device buttons on the MAIN page and each of these
device buttons can send out up to 14 commands you programmed into
the device button. It is typically used in sending out audio input codes
so that the audio receiver will make an automatic input switch when
you press the respective device button in the remote control.
3. Favorite Channel buttons.
You can create up to 60 favorite channel buttons in the remote control
by programming the most often watched channel numbers into these
buttons. Each of these buttons can send out up to 14 commands. You
can also use them for any other purpose. Please refer to page 16 of the
manual for programming the macro operations.
E. Punch Through.
This is designed to operate audio equipment volume control buttons
( VOLUME UP and DOWN and MUTE ) while all the other buttons
control video equipment. You can also operate transport functions
( PLAY, STOP, REWIND and FAST FORWARD buttons ) from
VCR, DVD, LD, CD or any other mode to operate while all other
buttons in the remote control are operating different components.
You can also make punch through on CHANNEL buttons. Please
refer to page 19 in the manual for details.
3. Summary of Operations
5

F. Editing the buttons on LCD screen.
You can change the size and shape of the buttons on the LCD screen.
You can also create, delete, copy and move the buttons from one
location to another on the LCD. In addition, you can erase and write
your own text with different font sizes on the buttons. This could be
done directly on the remote control without a personal computer or
with the aid of personal computer. Please refer to page 20 in the
manual for details.
G. Loading Program
The MX-1000 is capable of receiving software programs and data
through the Internet. You can also load programs and data in the
remote control to your personal computer and download them to
another MX-1000. Please refer to page 26 in the manual for details.
H. All other operations:
You can set the duration of the back light or the LCD display to stay
on as well as low battery warning level and the "beep" sound level.
Please refer to page 16 in the manual for details.
You can also set the time, date and year that are displayed in the
remote control by following the procedures shown on page 26 of the
manual.
3. Summary of Operations
6

All the programming is done by first entering the SYSTEM
SETTING mode in the remote control. Press both the MAIN and
PAGE buttons simultaneously for five seconds to enter the SYSTEM
SETTING mode.
Move the cursor on the screen with the joystick to your selection in
the list. Enter the selection by pushing down the joystick.
You can exit the setting mode by simply pressing the MAIN button or
bring the cursor to 8. TO EXIT with joystick and push the joystick
down
5. Getting Ready with System Setting
8

You can program the MX-1000 to make it compatible with all of your
components by following either the preprogramming method or
teaching it with your original remote controls.
A. Preprogramming Method:
1) Using a three-digit code number.
1. Turn on the component you plan to operate manually.
2. Go to the program setting mode by pressing both the MAIN and
PAGE buttons simultaneously for five seconds
3. Using the joystick, move the cursor down in the LCD screen to
3. PREPROGRAM.
4. Push the joystick down to enter the preprogramming mode.

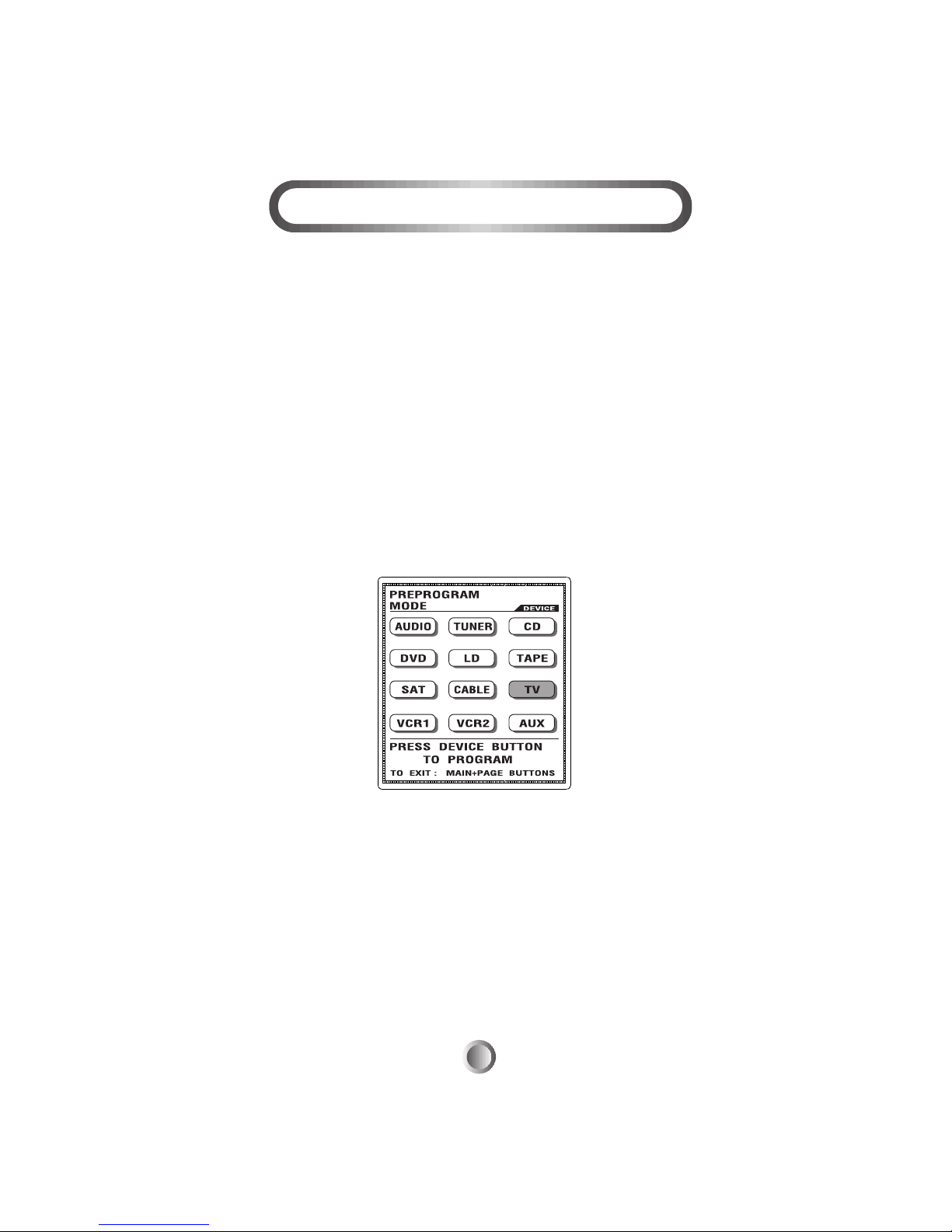

5. Select the device on the LCD screen that you wish to program.
(E.g. To program TV, press the TV device button. )
6. Select the device from which the three digit code number table will
be selected from. (E.g. If it is from the TV code table, press the TV
device button.)

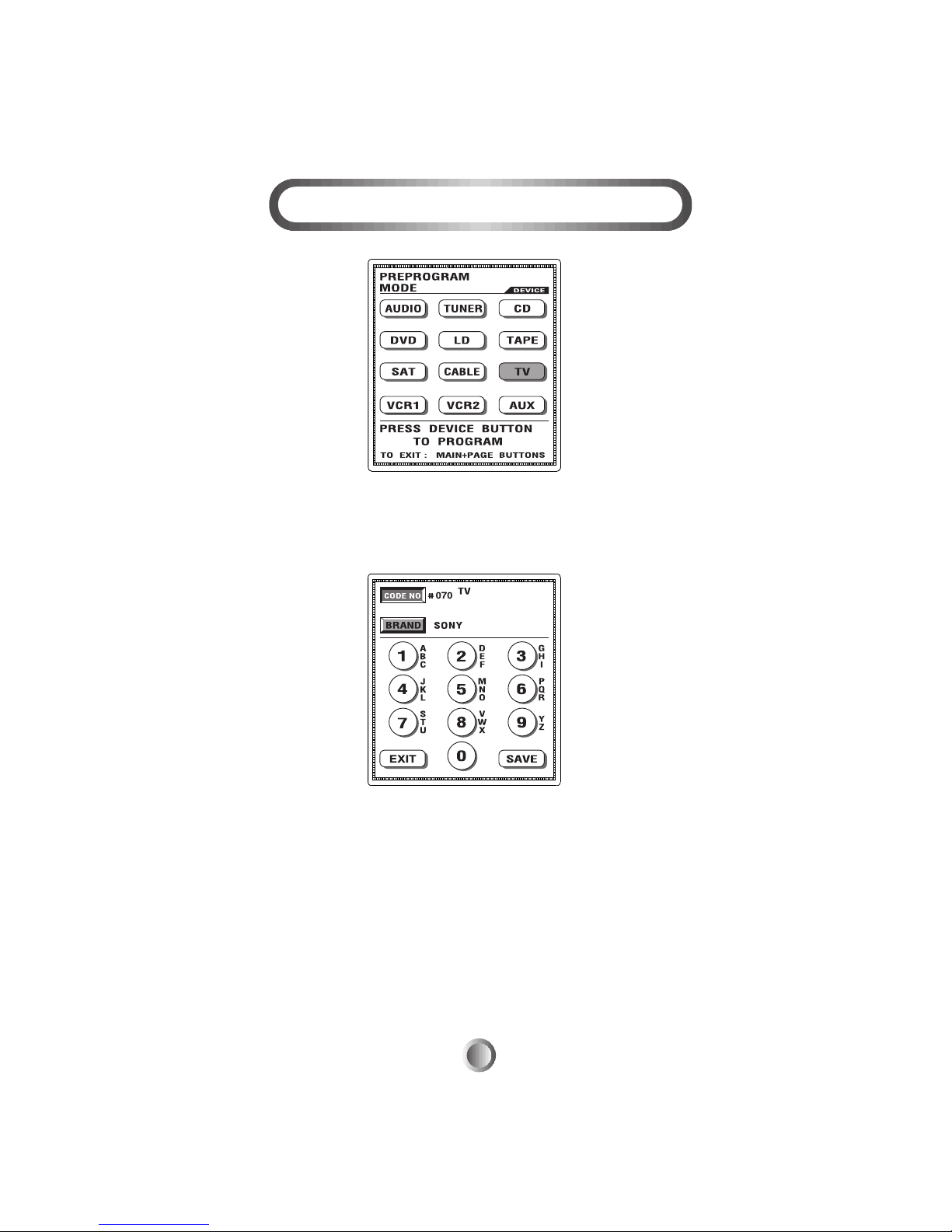

7. Point the remote control toward the component and enter the three-
digit code number you selected for your component from the code
table on page 40 – 53. ( Please enter the code number within 20
seconds of programming.) If there is more than one code number
assigned to your brand, try the one code number at a time until you
find the right code number. ( If you entered the right code number,
the component will turn off right after you entered the number.)
When the right code number is entered, save the code by pressing
the SAVE button on LCD.
6. Programming the Remote Control
9

8. Confirm that you entered the right code number that matches your
component by pressing other buttons such as POWER, VOLUME,
MUTE and CHANNEL. If any of the buttons do not operate as they
should, please repeat from Step 5.
9. Continue to program other components by repeating from the
above step 5.
10. Once you completed programming all the devices, exit from the
programming mode by pressing both the MAIN and PAGE
buttons simultaneously.
11. You will be in the setting mode once again. Move the cursor to
8. TO EXIT and press the cursor down or simply press the MAIN
button to exit to main menu.
2) Auto Scan with brand names.
You can also program your remote control by brand name with the
following steps:
1. Manually turn on the component you plan to operate.
2. Go to program setting mode in the remote control by pressing both
the MAIN and PAGE buttons simultaneously for five seconds.
3. Using the joystick, move the cursor down in the LCD screen to
3. PREPROGRAM.
4. Push the joystick down to enter the preprogram mode.
5. Select the device you wish to program in the LCD screen.
(E.g. To program TV, press the TV device button. )
6. Select the device from which the three digit code number will be
selected from. (E.g. If it is from the TV code table, press the TV device
button.)
10
6. Programming the Remote Control

7. Point the remote control to the component and press the BRAND button.
8. Press the number button on LCD screen that corresponds with the
first alphabetical character of your brand name. ( Please press the
number button within 20 seconds of programming.)
Plcase note that pressing the number button will only show the first
alphabet of the brand in that alphabet group.
9. If the first code number assigned to the brand is the right one, it
will turn off the component. If it is not the right one or if it is not the
right brand name, press the Channel Up button. It will automatically
send out a POWER OFF command either from the next code
number from the same brand or the code from the next brand. Keep
the Channel Up button pressed until it turns off the component.
When the component turns off, save the code by pressing the SAVE
button on the LCD. ( Note: It is quite possible that the code number
that works with your component may have a different brand name
because of the way it was made by its manufacturer. )
6. Programming the Remote Control
11

6. Programming the Remote Control
NOTE: Confirm that it is the right code number for your
component by pressing other buttons such as POWER,
VOLUME, MUTE and CHANNEL, etc. If any of the buttons
do not operate as they should, please repeat from Step 5.
10. Continue to program other components by repeating from Step 5.
11. Once you have completed programming all the devices, exit from
the programming mode by pressing both the MAIN and PAGE
buttons simultaneously.
12. You will be in the setting mode. Move the cursor to 8. TO EXIT
and press the cursor down or simply press the MAIN button to exit
to the main menu.
B. Learning Method:
You can also teach any of the buttons in the remote control except
the MAIN and PAGE buttons with the following steps.
1. Go to the program setting mode by pressing both the MAIN and
PAGE buttons simultaneously for five seconds.

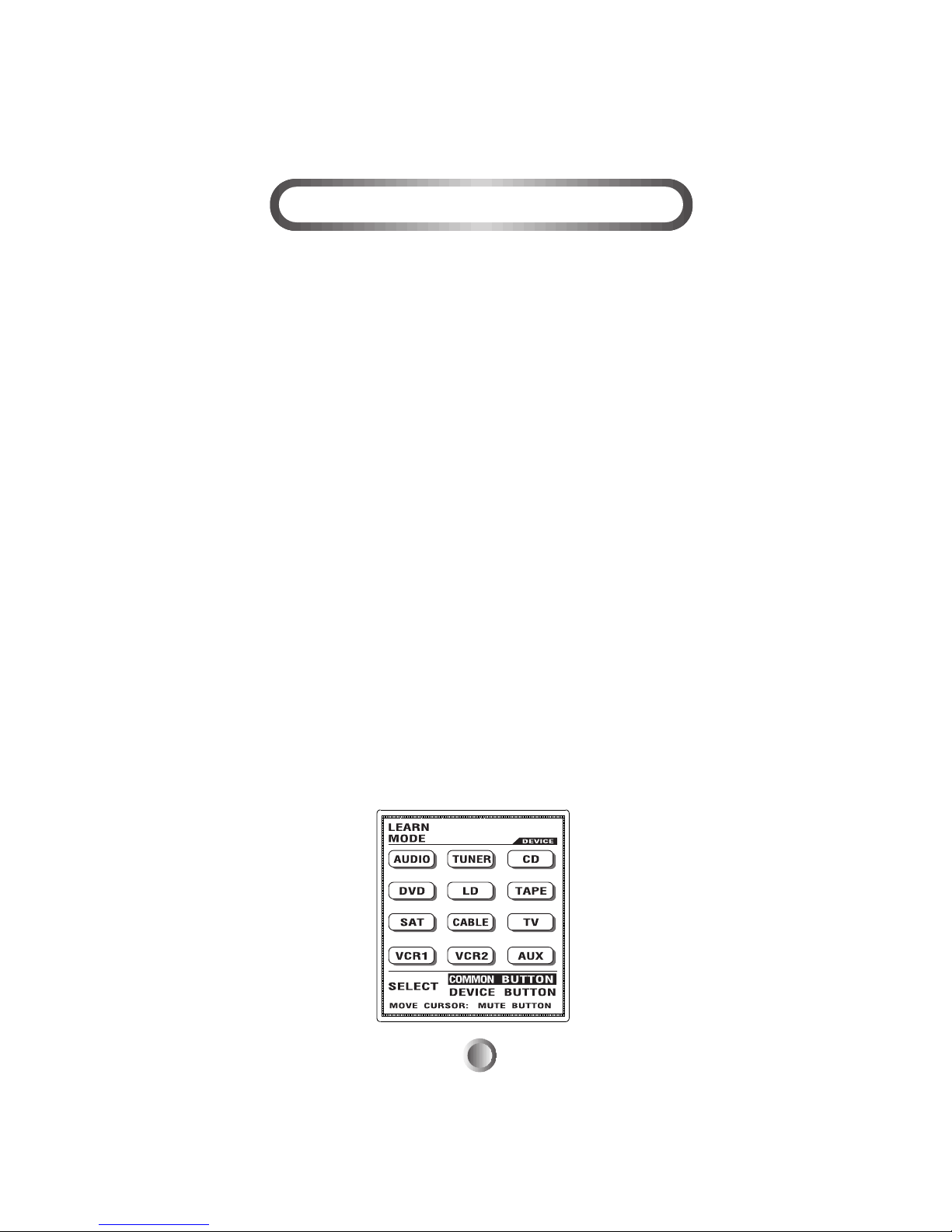

2. Move the cursor to 4. LEARNING with the joystick and then push
the joystick down to enter the learning mode.
3. If you wish to teach any of the functional buttons in the device,
keep the cursor to COMMON BUTTON and select the device that
you wish to enter. If you wish to teach the twelve device buttons
shown on the LCD, press the MUTE button to move the cursor to
the DEVICE BUTTON and select the device on the LCD that you
wish to teach into.
12

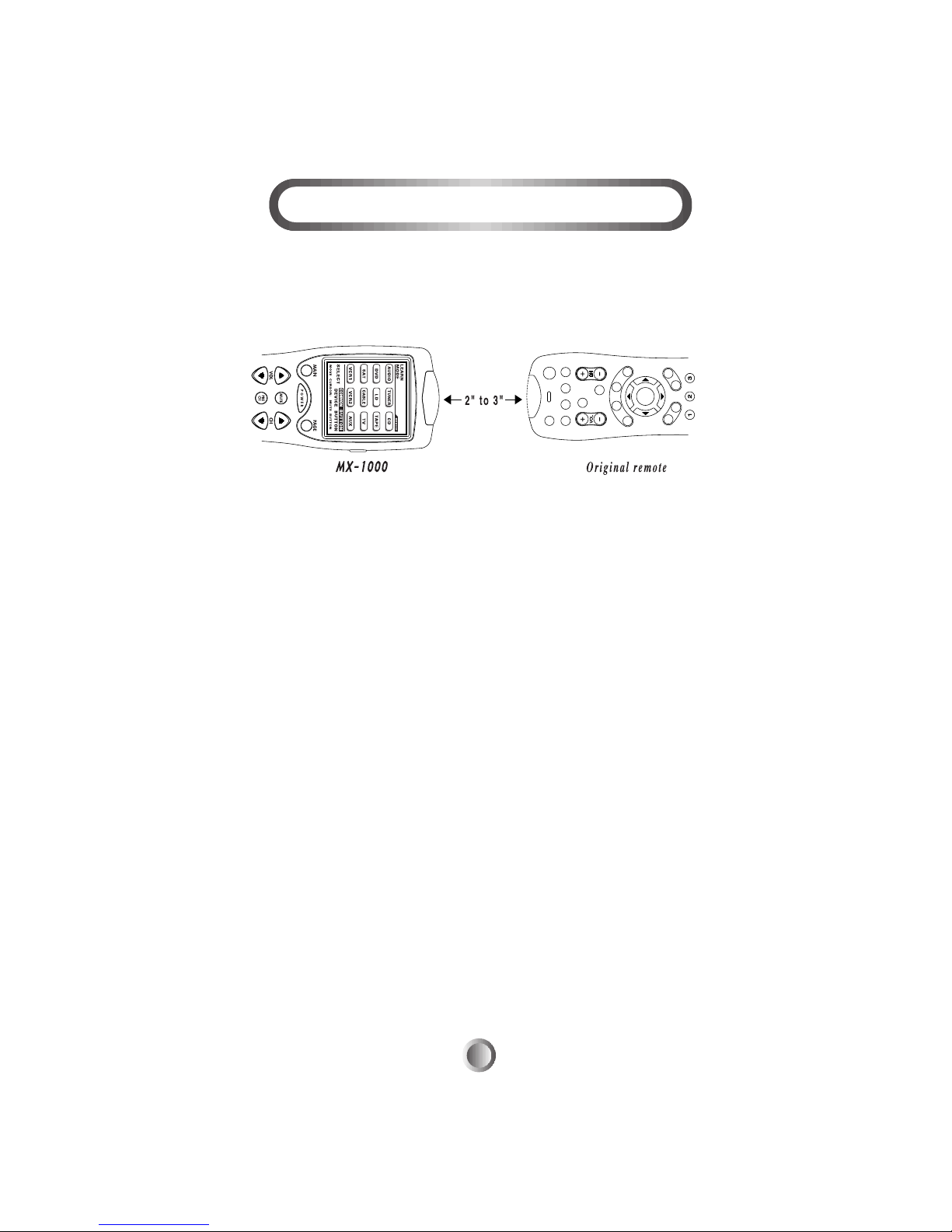

4. Place your original remote control to the MX-1000 head to head
about 2-3 inches apart as shown below.
5. Press either the device button or functional button, whichever you
wish to teach in the MX-1000. It is now ready to learn on the button
you selected.
6. Press the button on your original remote control that you wish to
teach into the MX-1000. The MX-1000 will "beep" indicating that
it received the signal and the LCD will show "RETRY".
( Please enter the code signal within 20 seconds of programming.)
7. Press the same button on the original remote control a second time
to ensure correct learning. The MX-1000 will beep a second time
with "GOOD" flashed on the LCD screen, indicating that it learned
the code correctly. If it flashes "FAIL", repeat from Step 5 until it
learns successfully.
8. Move on to the next button (or device) you wish to teach by
repeating from Step 5. If you are teaching functional buttons, you
can also move on to teach the buttons in the next page by pressing
the PAGE button.
9. Once you complete the teaching and wish to exit from the leaning
mode, press the MAIN button to go back to the main page of the
learning mode. Exit from the Main page by pressing both the MAIN
and PAGE buttons simultaneously.
10. You will be in the setting mode once again. Move the cursor to
8. TO EXIT and press down the cursor or simply press the MAIN
button to exit to the main menu.
13
6. Programming the Remote Control

C. To Erase the Learned Buttons
1) To erase a single button:
1. Go to the program setting mode by pressing both the MAIN and
PAGE buttons simultaneously for five seconds.
2. Move the cursor to 4. Learning with the joystick and then push the
joystick down to enter the learning mode.
3. Move the cursor to COMMON BUTTON and select the device
that contains the functional button you wish to erase. If you wish to
erase the function in the device button, move the cursor to DEVICE
BUTTON.
4. Press the functional button or device button you wish to erase for
three seconds or more and it will flash "ERASED". Repeat this step
for other buttons you wish to erase.
5. Once you completed erasing and wish to exit from this mode,
press the MAIN button to go back to the main page of the learning
mode. Exit from the Main page by pressing both the MAIN and
PAGE buttons simultaneously.
6. You will be in the setting mode once again. Move the cursor to
8. TO EXIT and press down the cursor or simply press the MAIN
button to exit to the main menu.
2) To erase all the learned commands in a single device:
1. Go to the program setting mode by pressing both the MAIN and
PAGE buttons simultaneously for five seconds.
2. Move the cursor to 4. Learning with the joystick and then push the
joystick down to enter the learning mode.
14
6. Programming the Remote Control

15
3. Press the MUTE button to move the cursor to the DEVICE
BUTTON and keep the device button you wish to erase all the
learned commands down for five seconds until the LCD shows
ERASED. This will erase the function taught in the device button.
If you continue to press the device button for another five seconds,
it will erase all the functions in the device.
4. Once you complete the erasing and wish to exit from this mode,
press the MAIN button to go back to the main page of the learning
mode. Exit from the Main page by pressing the MAIN and PAGE
buttons simultaneously.
5. You will be in the setting mode once again. Move the cursor to
8. TO EXIT and press down the cursor or simply press the MAIN
button to exit to the main menu.
3) To erase all the learned commands in all twelve devices:
1. Go to the program setting mode by pressing both the MAIN and
PAGE buttons simultaneously for five seconds.
2. Move the cursor to 4. LEARNING with the joystick and then push
the joystick down to enter the learning mode.
3. Press both the POWER and STOP buttons simultaneously for five
seconds in the learning mode. The LCD will show ERASED after
it erased all the learned commands in the remote control.
4. Once you complete the erasing and wish to exit from this mode,
press both the MAIN and PAGE buttons simultaneously.
5. You will be in the setting mode once again. Move the cursor to
8. TO EXIT and press down the cursor or simply press the MAIN
button to exit to the main menu.
NOTE:
Preprogrammed code will be automatically restored when learned
function is crased.
6. Programming the Remote Control

Go to the program setting mode by pressing both the MAIN and
PAGE buttons simultaneously for five seconds. Move the cursor on
the LCD screen to 2. SYSTEM & OPTIONS with the joystick. Enter
this mode by pushing the joystick down and the following can be
programmed:
A. Setting Up the System.
The LCD screen will list the following choices.
Range Default
Buzzer Status: High, Low, Off High
Back Light On Time: 0 – 120 seconds 20 seconds
LCD on Time: 5 - 120 seconds 30 seconds
Warning of Low Battery: 10% - 50% level 10 %
Select the button you wish to change from the list first. Press the UP
or DOWN buttons on the LCD to set them up. Once you set them up,
press the SAVE button to store them.
You will be in the setting mode once again. To return to the main
menu, move the cursor to 8. TO EXIT and press the cursor down or
simply press the MAIN button to exit to main menu.
B. Macro and Punch Through Programming
The MACRO and PUNCH THROUGH can be also programmed in
this mode. Press the button you wish to program and follow
procedures shown below:
16
7. System and Operations Set Up

B-1. Macro Programming:
There are three type of macro functions you can program. They are as
follows:
1. M1, M2 and M3 in the Main menu:
Designed to send out up to twenty eight commands from each of the
three buttons.
2. Twelve device buttons in the Main menu:
Send out up to fourteen commands from each device button.
3. Favorite Channel Buttons:
You can create and design up to 60 buttons as your Favorite Button in
video modes. Each favorite channel button can send out up to
fourteen commands with one button press.
B-2. To Program Macro Functions:

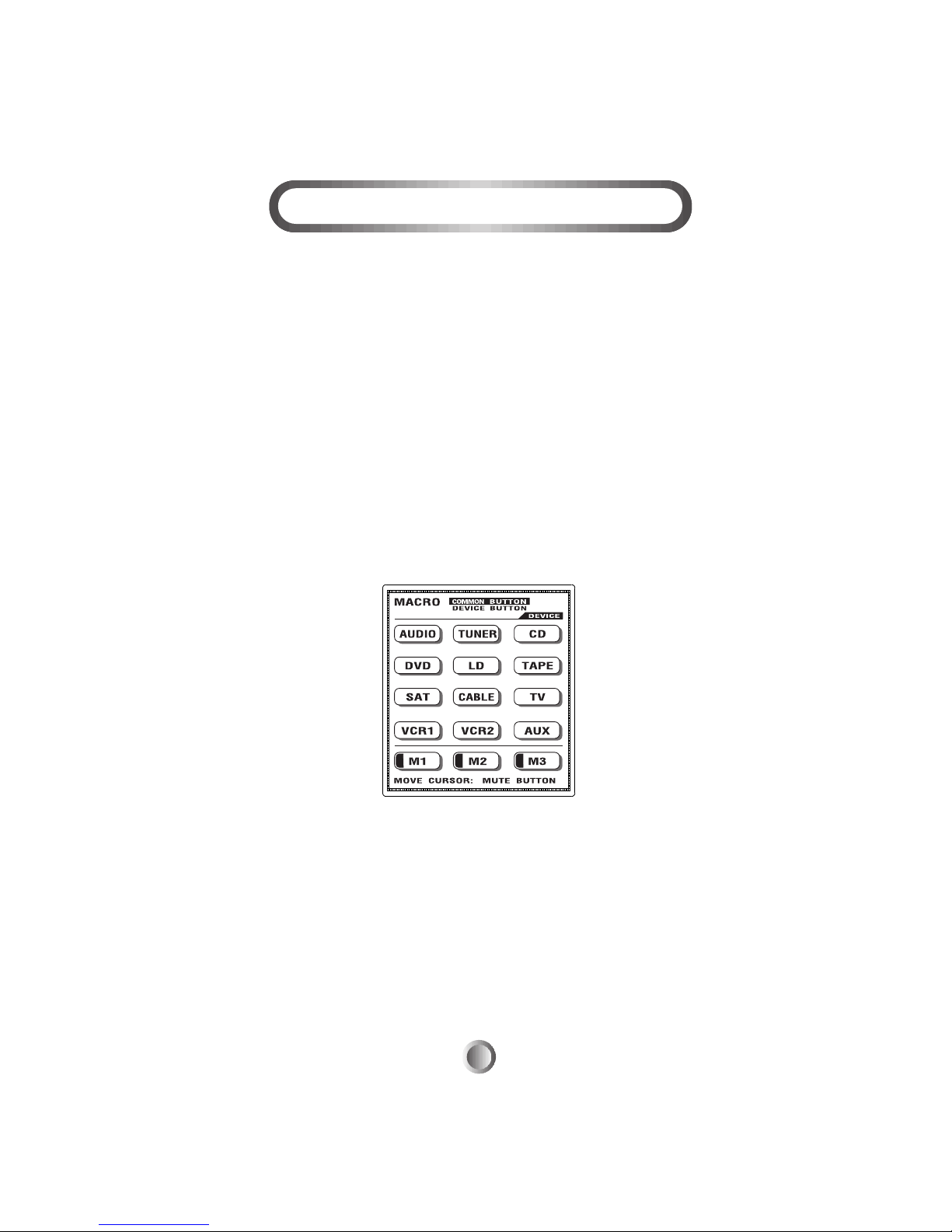

Press MACRO PROGRAM button in 2. SYSTEM & OPTIONS
Move the cursor on the LCD either to the COMMON BUTTON to
program M1 – M3 and favorite channel buttons or to the DEVICE
BUTTON to program the device buttons by using MUTE button.
1) For M1 – M3 Button:
1. Press one of the three macro buttons, M1 – M3, with the cursor
on DEVICE BUTTON.
2. Select functional buttons you wish to store in the macro button.
You can store up to 28 commands.
3. Store the commands you selected to the macro button by pressing
CH (UP) button. To cancel the macro commands, press CH ( DOWN ).
17
7. System and Operations Set Up

2) For Device Buttons:
1. Press one of the twelve device buttons you wish to store macro
functions with the cursor on DEVICE BUTTON.
2. Move the cursor to COMMON BUTTON and select again either
the same or another device button whose functional buttons you
wish to store in the device macro button you selected first. You
can store up to 14 commands into the device macro buttons.
3. Store the commands you selected to the macro button by pressing
CH (UP) button. To cancel the macro commands, press CH ( DOWN ).
3) For Favorite Channel Button:
1. Press the device you wish to program favorite channels with cursor
on COMMON BUTTON.
2. Press one of the favorite channel buttons and enter the channel
number you wish to store in the
FAVORITE channel button. You can store up to 14 commands.
3. Store the commands you selected in the Favorite channel button by
pressing Channel UP button. To cancel the macro commands, press
CH ( DOWN ).
Once you complete the macro programming and wish to exit, press
both the MAIN and PAGE buttons simultaneously. This will take you
to the setting mode. Move the cursor to 8. TO EXIT in setting mode
and press the cursor down to exit or simply press the MAIN button to
exit to main menu.
NOTE:
Pressing the Volume Up button during the macro programming will
add a time delay of 0.5 seconds between the commands. E.g. Pressing
the Volume Up button twice will cause a pause of 1 second between
the commands where the delay was inserted.
B-3. To Erase Macro Functions.
To erase the functions you stored in any of the macro buttons, press
the Channel UP button without entering any commands during the
macro programming mode.
18
7. System and Operations Set Up

7. System and Operations Set Up
C. To Program Punch Through Functions.
You can use audio receiver volume control in a different mode ( eg.
Audio receiver Volume Up and Volume Down and Mute in Satellite
mode ) using a volume punch through feature. You can also have four
VCR ( or DVD ) transport buttons, Play, Stop, Fast Forward and
Rewind, operate in another mode such as in Satellite, Cable and
Audio modes. You can also make CHANNEL punch through.
C-1 Programming:
1. Press PUNCH THROUGH in the LCD screen in 2. SYSTEMS &
OPTIONS mode.
2. Press VOLUME UP button for Volume Punch Through or press
the PLAY button for Transport Punch Through. or CHANNEL up
button for Channel Punch Through.
3. Select the device you wish to punch through to ( 1st device ).
4.Select the device you wish to punch through from ( 2nd device ).
5. Repeat from Step 2 to program Punch Through to other devices.
Once you complete the Punch Through programming and wish to
exit, press both the MAIN and PAGE buttons simultaneously. This
will take you to the setting mode. Move the cursor to 8. TO EXIT in
the setting mode and press down the cursor to exit or simply press the
MAIN button to exit to main menu.
C-2. To Erase Punch Through Functions.
Press the same device button in the PUNCH THROUGH TO? and
PUNCH THROUGH FROM? during the Punch Through
programming.
19
