Homewerks Worldwide AQUA VISTA 15-B42WTSP-CP-AV User manual

11-26-2019
BATHROOM FAUCET WITH POP-UP DRAIN
ASSEMBLY
15-B42WTSP-CP-AV – Polished chrome nish

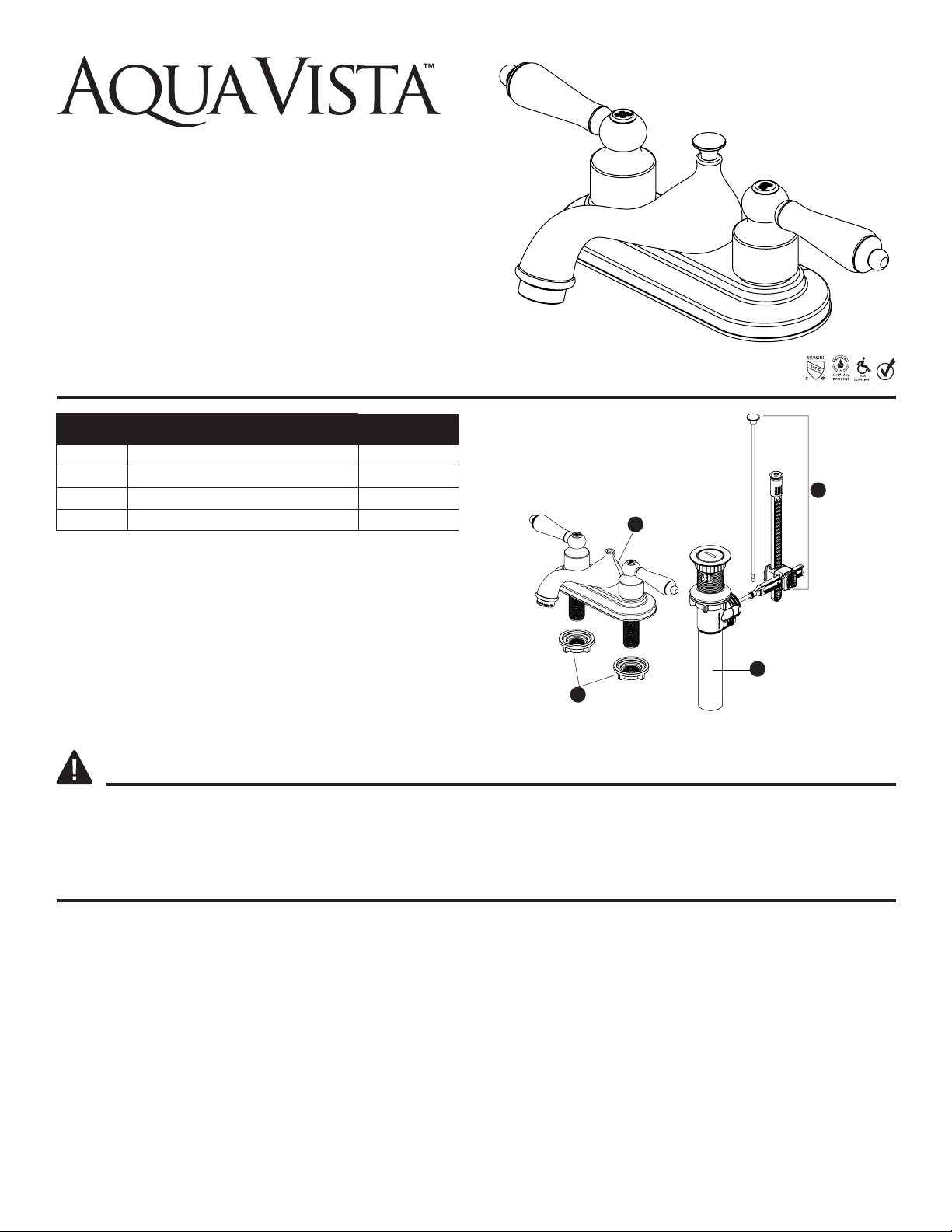

PACKAGE AND HARDWARE CONTENTS
PART DESCRIPTION QUANTITY
A
B
C
D
A Faucet assembly 1
B Lift rod assembly 1
CPop-up drain assembly 1
DMounting nut 2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to
assemble, operate or install the product.
WARNING
• Protect your eyes with safety glasses when cutting or soldering water
supply lines.
CAUTION
• If you solder the joints during installation, the seats, cartridges, and washers
must be removed before using a ame or the warranty will be voided on
these parts.
• Cover the drain to avoid losing parts.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare
parts with package and hardware contents list. If any part is missing or damaged, do
not attempt to assemble the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 30 minutes
Tools required for assembly (not included): adjustable wrenches, groove joint
pliers, pipe wrench, Phillips screwdriver, supply lines, thread seal tape, silicone.
Installation may vary depending on how the previous faucet was installed.
Supplies necessary for the installation of the faucet are not all included;
however, they are available wherever plumbing supplies are sold.
Prior to beginning installation, turn off the hot and cold water lines, then turn
on the old faucet to release built-up pressure. When installing the new faucet,
hand tighten the connector nuts. DO NOT OVERTIGHTEN. Connections
that are too tight will reduce the integrity of the system.
Need Help? Please call our toll-free line at [phone] (7:30 a.m. to 4:30 p.m. CST) for additional assistance or service.
Homewerks Worldwide, LLC • Lake Bluff, IL 60044 • HomewerksWW.com

2HomewerksWW.com
PRODUCT SPECIFICATIONS
Max. Flow Rate: 1.2 GPM (4.54 LPM) at 60 PSI Washerless cartridges
ASME A112.18.1/CSA B125 Manufactured to include no more than 0.25% weighted average lead content
on wetted surfaces
NSF 61-9
Polished chrome nish Total weight of item: 2.34 lbs.

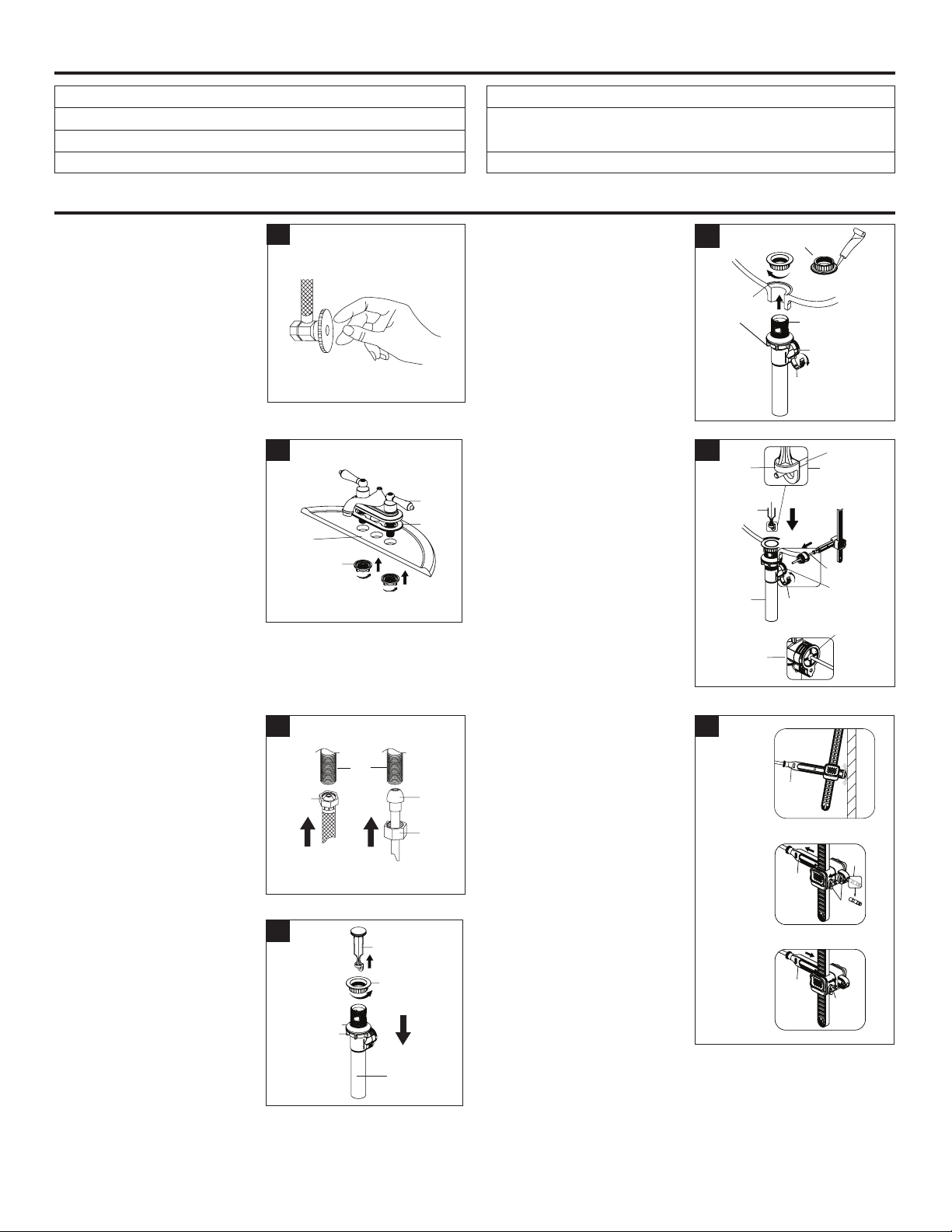

ASSEMBLY INSTRUCTIONS
1. Turn off water at the supply valve
under the sink or at the main water
supply. Disconnect the supply lines to
the faucet and remove the old faucet.
Clean and dry the surface area
where the new faucet will be
mounted.
15. Apply silicone to the underside of
the ange (5.1). From underneath
the sink, insert the pop-up drain
assembly (C) into the drain opening
(5.2) in the sink. From above the
sink, screw the ange (5.1) onto the
pop-up drain assembly (C). The
pivot hole (5.3) must face the back
of the sink.
Use groove joint pliers to tighten
the nut (5.4) or the sealant may not
seal properly. Do not overtighten.
Clean away any excess silicone.
Open the easy install rotating
clip (5.5).
silicone
5.3
5.4 C
5.1
5.2
5.5
5
2. Ensure the gasket (2.1) is in place on
the bottom of the faucet body (A).
Apply a thin bead of silicone sealant
to the underside of the gasket (2.1)
on the faucet body (A). Insert the
faucet body (A) through the
mounting holes in the sink (2.2).
Secure the faucet body (A) to the
sink using the mounting nuts (D).
D
A
2.1
2.2
26. Insert the stopper (6.1) down into
the pop-up drain assembly (C).
Install the horizontal rod (6.2)
from the lift rod assembly (B) into
the pivot hole (6.3) in the pop-up
drain assembly (C) as shown in
gure B. Make sure the horizontal
rod (6.2) is inserted completely
into the pop-up drain assembly
(C) and that it engages with the
stopper (6.1), as shown in gure A.
Close the easy install rotating
clip (6.4).
6.1
6.1
6.2
C
6.2
6.3
6.3
6.4
Figure A
Figure B
6
3. To connect the water supply, use
1/2 in. IPS faucet supply lines (3.1)
or coupling nuts (3.2) with 3/8 in.
O.D. ball-nose risers (3.3).
Wrap thread seal tape around each
faucet shank (3.4) in a clockwise
direction. Use a wrench to tighten
each supply line (3.1) tting or
coupling nut (3.2) to the faucet
shanks (3.4). Do not overtighten.
3.3
3.4
3
.1
3.
2
37. If the horizontal rod (7.1) is too
long, as shown in gure A, the
length can be adjusted.
As shown in gure B, remove the
clip (7.2) from the horizontal rod
(7.1). Slide the plastic portion of
the rod to adjust to the desired
length. The excess length (7.3) can
be removed where perforated by
snapping it off with pliers or cutting
it off with a saw.
After the plastic portion of the
horizontal rod (7.1) is positioned
properly, reinstall the clip (7.2) as
shown in gure C.
7.
Wall
1
7.2
7.1
7.3
7.1
7.2
Figure A
Figure B
Figure C
7
4. Remove the stopper (4.1) and
ange (4.2) from the pop-up drain
assembly (C). Screw the attached
mounting nut (4.3) down the pop-up
drain assembly (C) and then push the
gasket (4.4) down.
4.1
4.2
C
4.3
4.4
4

3
HomewerksWW.com

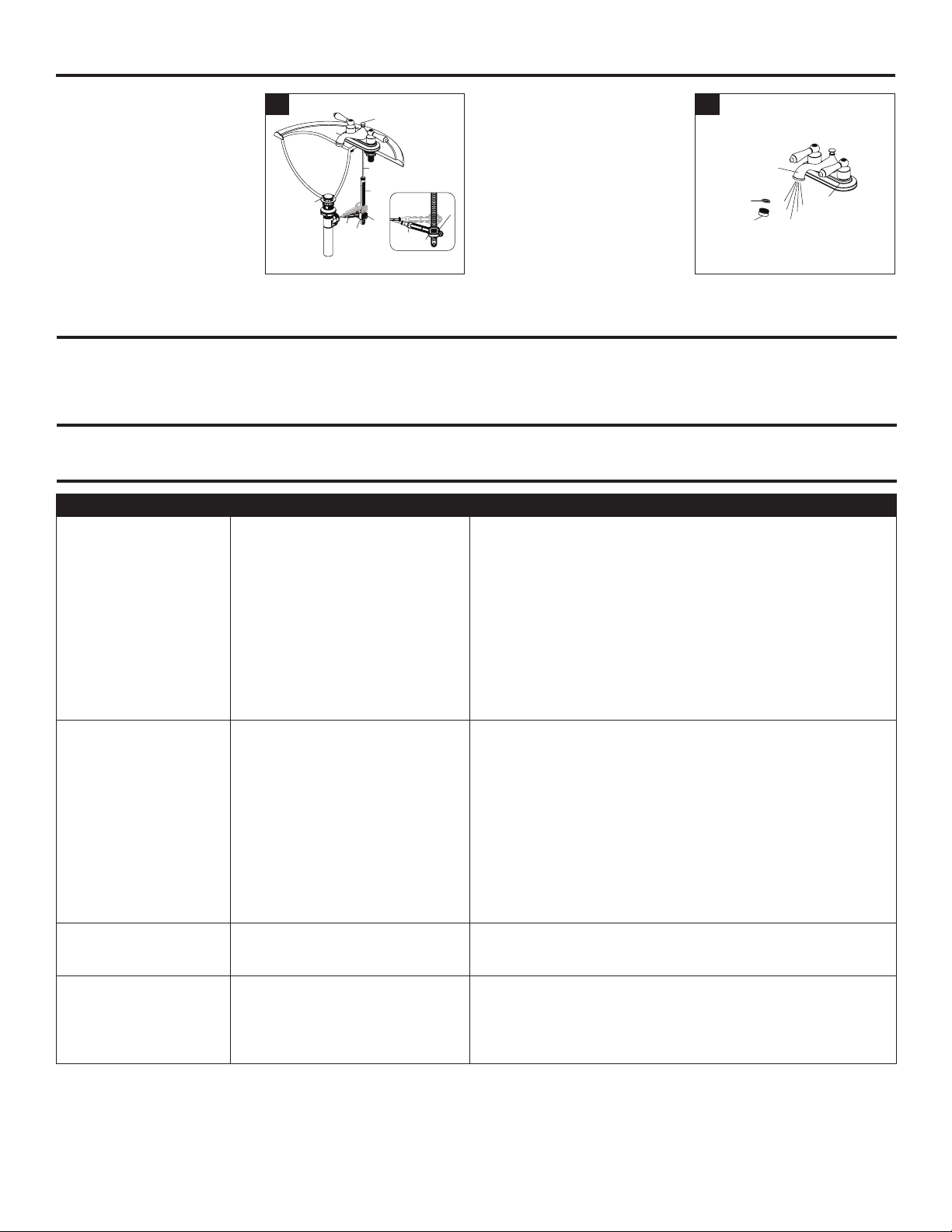

ASSEMBLY INSTRUCTIONS
8. Slide the lift rod (8.1) from the lift
rod assembly (B) down through the
faucet body (A). Push the pivot rod
(8.2) to the down position until the
stopper (8.3) is completely open.
Press the button (8.4) on the slip
joint assembly (8.5) and adjust the
vertical rod (8.6) along the pivot
rod (8.2) until the vertical rod (8.6)
is in the correct position to engage
with the lift rod (8.1). Press the lift
rod (8.1) into the top of the vertical
rod (8.6) until it engages. Operate
the lift rod (8.1) up and down to
verify the stopper (8.3) opens and
closes smoothly and completely.
A
B
8.3
8.2 8.5
8.4
8.2 8.4
8.5
8.6
8.1
89. After installation is complete,
remove the aerator (9.1) from the
spout (9.3) of the faucet body (A).
Do not lose the gasket (9.2) from
inside the aerator.
Turn on the water supply and
allow both hot and cold water to
run for at least one minute. This
ushes away any debris that could
cause damage to the internal parts.
While the water is running, check
for leaks. Turn off the water and
screw the aerator (9.1) back onto
the spout (9.3) of the faucet
body (A).
9.3
9.2
9.1
A
9
OPERATING INSTRUCTIONS
The lever handles control the ow of hot and cold water to the faucet.
Rotate the right handle forward for cold water. Rotate the left handle forward for hot water. Moving the handles forward opens the cartridges and causes water to ow
from the spout. The degree of handle opening determines the volume of water ow. Returning the handles to the original position stops the ow of water.
CARE AND MAINTENANCE
Clean periodically with a soft cloth. Avoid abrasive cleaners, steel wool, and harsh chemicals as these will dull the nish and void your warranty.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Faucet leaks underneath handle. Bonnet has come loose or O-ring on cartridge
is dirty or twisted.
1. Move the handle to the OFF position. Unscrew the handle screw and remove
the handle.
2. Tighten the bonnet by turning it clockwise. Move the cartridge stem to the ON
position. The leak should stop draining out from around the cartridge stem.
3. If the leak does not stop, shut off the water supply. Remove the bonnet by
turning it counterclockwise. Lift out the cartridge valve. Inspect the larger
O-ring on the cartridge bonnet and the smaller O-ring on the cartridge stem.
Remove any debris from the O-rings. If either O-ring is twisted, straighten it. If
either O-ring is damaged, replace the cartridge by calling customer service.
4. Position the cartridge back into the faucet body. Make sure the ridges on the
two sides of the cartridge bonnet t into the grooves on the two sides of the
faucet body. Tightly screw the bonnet onto the faucet body.
5. Reinstall the handle.
Water does not completely
shut off.
Rubber valve seat is dirty, stuck, or broken. 1. Shut off the water supply.
2. Remove the handle from the faucet body. Loosen the bonnet by turning it
counterclockwise. Lift out the cartridge assembly.
3. Inspect the rubber valve seat in the faucet body. If there is debris or brass
scrap on the surface of the seat, remove it. If the rubber seat is stuck tightly in the
water inlet hole, push it gently with a ngertip so it moves up and down
smoothly. The spring (smaller end up) must be placed back underneath the valve
seat. If the rubber valve seat is worn out or broken, replace the cartridge by
calling customer service.
4. Position the cartridge back into the faucet body. Make sure the ridges on the two
sides of the cartridge bonnet t into the grooves on the two sides of the faucet
body. Tightly screw the bonnet onto the faucet body.
5. Reinstall the handle.
Faucet leaks around aerator. The aerator is incorrectly tted, dirty, or
small parts inside the aerator are improperly
installed.
1. Remove the aerator from the spout by turning it clockwise. Inspect the black
rubber packing inside the aerator. The rubber packing should be at.
2. Screw the aerator back onto the spout and tighten.
Faucet has an improper water
pattern.
The aerator is dirty or small parts inside the
aerator are improperly installed.
1. Remove the aerator from the spout by turning it clockwise.
2. Gently ush the small parts inside the aerator to clear away any debris.
3. Reinstall the small parts as shown in the replacement parts exploded diagram.
Metal screens must be at and plastic supporter must be straight.
4. Screw the aerator back onto the spout and tighten.

4HomewerksWW.com
ROUGH-IN
4"
2-7/8"
1-1/4"
2-5/8"
1-1/8"
4-1/4"
6-1/8"
1/2"-14NPSM-2A
10-3/4"
REPLACEMENT PARTS
For replacement parts, call our customer service department at [phone], 7:30 am - 4:30 pm, CST, Monday - Friday.
PART DESCRIPTION PART #
2
1
7
6
8
9
10
11
3
5
12
13
14
15
4
1Hot index button RP10001CH
2Cold index button RP10002CH
3Screw RP50005
4Handle seat RP17027CH
5Handle assembly RP13073CH
6Hot inverter RP64041
7Cold inverter RP64042
8Bonnet RP70193
9Washer RP64123
10Cartridge RP22010
11 Washer and spring RP22008
12Mounting nut RP56001
13Aerator assembly RP30210CH
14Lift knob and rod assembly RP40204CH
15Pop-up assembly RP40191CH
LIMITED LIFETIME WARRANTY
The distributor warrants to the original consumer purchaser this product to be free from
defects in material and workmanship under normal use in residential applications. At its
option, the Company will provide repair parts or replace defective product when the
product is used in accordance with the manufacturer’s specications.
Use of mild abrasive, abrasive or chemical cleaners may damage the nish of the faucet.
We recommend cleaning your faucet with a soft cloth, moistened with water. Damage
resulting from the use of abrasive or chemical cleaners SHALL VOID THIS WARRANTY.
This warranty is not applicable to any products or parts of products where damage is caused
by use of non-genuine parts; is due to installation error, product misuse, negligence or faulty
maintenance; or where the product is not installed according to local building codes.
This warranty excludes labor charges or damage incurred during installation, repair or
replacement, and any indirect, incidental or consequential damages, losses, injury or costs
of any nature. This warranty is in lieu of and excludes all other warranties, conditions and
guarantees, whether expressed or implied, including without restriction those of
merchantability or tness of use.
Liability under this warranty will not exceed the purchase price for the product claimed to
be defective by the original consumer purchaser. Some states or provinces do not allow
the exclusion or limitation of consequential damages so the above limitations or exclusions
may not apply. This warranty gives you specic legal rights and you may also have other
rights which vary from state to state, or province to province.
Inquiries regarding warranty claims can be directed to [phone], 7:30 a.m. to 4:30 p.m.,
CST, Monday - Friday.
