Homtime D8-PD User manual

All safety and operation instructions should be read thoroughly before
proceeding and please keep the handbook for future reference.
D8-PD Bluetooth Speaker with Alarm Clock
and Wireless Charging Function

Power On
Setting The Time
Setting The Daylight-saving Time
Alarm Operation
Fm Radio Operation
Bluetooth Mode Operation
Listening To Music
Adjusting Display Brightness
Usb Charging
Backup Battery
1
2
3
3
3
4
6
6
6
6
6
6
7
7
8
8
8
8
9
10

1

2

3
Bluetooth Version: 5.0
Bluetooth Profiles: HSP, HFP, A2DP and AVRCP
Bluetooth Distance: Within 10 meters
Output Power: 3W+3W
Power Adapter: DC 9V 2A
'ULYHU 8QLW ȍ : LQ
Frequency Range: 40Hz-20KHz: 40Hz-20KHz
S/N Ratio: >65dB
Distortion Rate: <1%
FM Frequency Response: 87.5 - 108MHz
USB Charging Port Output: DC 5V 1A
Wireless Charging Current: 5V 1A / 9V 1.1A
Wireless Charger Output: 10W
Wireless Distance: 6mm
Wireless Charging Efficiency: 70%~80%
Product Size: 138(L)×138(W) × 60(H)mm

4
Bluetooth Mode
SLEEP
Alarm Time
SNOOZE
USB Charging Mode
USB Charging Mode
USB Play/Charging Mode
Wireless Charging Mode
FM Mode
AM/PM Mode
Daylight-Saving Mode
FM Antenna
Set clock & Daylight-Saving
Set clock time
Hour Mode Switch
12H/24H/＋SET
DST/GMT/－5V——1A
16
16
TPYE-C Charging Mode

5
Bluetooth&USB mode
NEXT SONG/Adjusting Alarm Time
VOL -
FM
BACKWARD SONG/Adjusting Alarm Time
Adjust LCD brightness levels
Short press to activate Snooze; Press and hold it for 3 seconds to turn off alarm
Turn on/off Alarm1 Set alarm clock and alarm ringtone
Turn on/off Alarm2 Set alarm clock and alarm ringtone
Play music: Backward song Set alarm: Time+
FM mode: Short press to select the radio station; Long press for auto scanning
Play music: Next song Set alarm: Time－
FM mode: Short press to select the radio station; Long press for auto scanning
Bluetooth&USB mode: Play/Pause FM mode: Mute
SLEEP
SNOOZE/DIMMER
Alarm 1
Alarm 2
MODE
Auto scan FM station
SNOOZE 90-80-70-60-50-40-30-20-10-00 Minute
Switch modes among Bluetooth,FM ,USB Play and OFF

It confirms the setting and exits automatically in 3
seconds if no operation on any key.
Note: If the RAD alarm sound source is selected for the
alarm, please store the FM radio station firstly. The last
stored FM radio station will be the default alarm sound
source. When catching your favorite station, press
on the top of the unit to stop the auto scanning, then
your favorite radio station is the default alarm sound
souce.
Before setting the alarm time, make sure Clock has
been set.
Setting the alarm 1
Press on the top of the unit to turn on the alarm 1.
The alarm 1 symbol will flash on the display. Press or
on the top of the unit to select an alarm sound source:
BU and RAD, and press to confirm. The hour digit
will flash on the display. Press or to set the hour.
Press to confirm. The minute digit will flash on the
display, short press or to set the minute, then short
press to confirm the alarm 1 setting.
6
POWER ON
SETTING THE TIME
ALARM OPERATION
Stop the alarm
Connect the power cable into the jack on the bottom of
the device labeled “DC 9V”,and then plug the power
cable into the socket. The LCD display will show “0:00”.
Under any mode, press on the rear of the unit.
The hour digit and minute digit will flash. Press /
to set the hour and press to confirm.
Press / to set the minute and press to
confirm the setting.( It exits the setting in 5 seconds if no
operation on any key.)
Press to select the 12H or 24H mode when time
setting is done.
SETTING THE DAYLIGHT-SAVING TIME
Press on the rear of the unit to display the
daylight-saving time. The “DST” symbol will display on
the LCD display. To display the standard time, Short
press then the“DST”symbol will disappear from the
LCD display.
SET
12H/24H/＋DST/GMT/－SET
SET
12H/24H/＋DST/GMT/－12H/24H/＋DST/GMT/－DST/GMT/－Setting the alarm 2 is same as setting the alarm 1. The
alarm 1 is one-off alarm. The alarm 2 works everyday.
Activating and deactivating the alarm
If the alarm is activated, the display will show the
symbol and/or the symbol .
To deactivate the alarm:
Press or on the top of the unit, the alarm
symbol will disappear from the display.
When the alarm sounds, the alarm will gradually
increase in volume for a more pleasant awakening.
Press or press and hold SNOOZE for 3 seconds
to turn off the alarm 1. The alarm will last for 30
minutes if no button is pressed. The alarm 1 will not
work in the next day when it is deactivated.
Press Alarm 2 or press and hold SNOOZE for 3
seconds to turn off the alarm 2. The alarm will last for
30 minutes if no button is pressed. The alarm 2 will
work again in the next day.

Snooze Function
Press SNOOZE to stop the alarm temporarily for
about 9 minutes once the alarm is activated. The
snooze function symbol will appear on the display.
The alarm sounds will stop and sound again after
about 9 minutes. Press and hold SNOOZE for 3
seconds or Press / to turn off the alarm.
7
FM RADIO OPERATION
BLUETOOTH MODE OPERATION
LISTENING TO MUSIC
Fully extend and reposition the wire aerial at the
rear of the unit for optimum reception.
Auto scan and save preset stations
Repeatedly press to select the radio mode.
The radio symbol and frequency will be shown on
the display.
Press to start auto scanning.

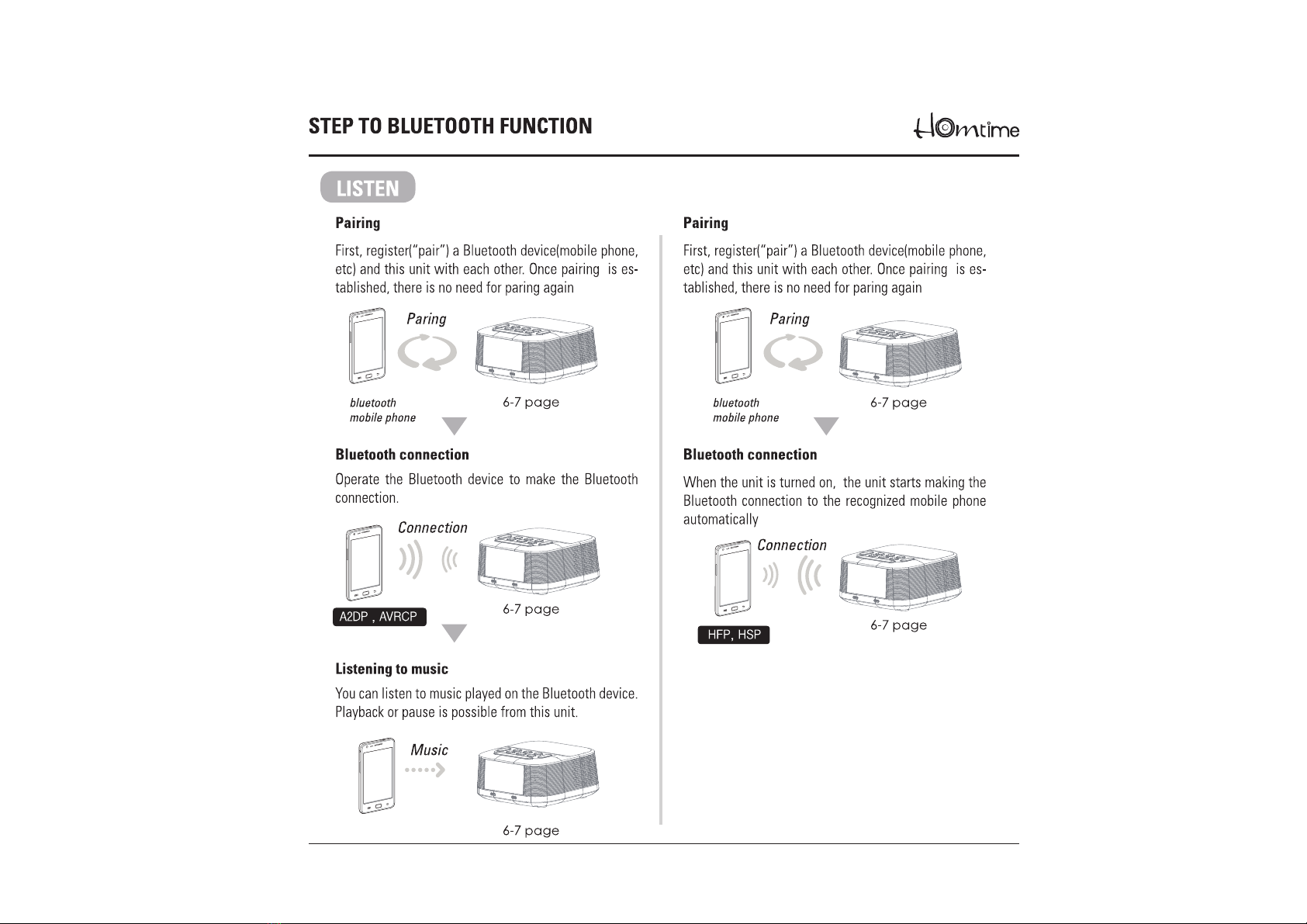

Paring with a Bluetooth-enabled device
Press on the top of the unit to select the
Bluetooth mode.
The Bluetooth symbol will flash on the display,
indicating that the unit is trying to pair with a
Bluetooth enabled device.
Go to the Bluetooth setting on your Bluetooth
enabled device .Search and connect to “D8qi”.
The Bluetooth symbol will stop flashing when your
Bluetooth device has been paired successfully. An
audible alert “Du” will sound.Bluetooth will be disconnected when the mode is switched
or the unit is off.
Once the Bluetooth device is connected for the first time,
the unit will remember the paired setting and will
automatically reconnect to the same Bluetooth device the
next time they are in range.
If the unit can not pair with the Bluetooth device
successfully within 3 minutes, you will hear a “DUDU”
warning tone. The unit will turn off the Bluetooth mode
automatically.
When the unit is successfully connected and no music
plays from the Bluetooth device within 18 minutes, the unit
will also turn off the Bluetooth mode automatically.
Disconnecting with a Bluetooth-enabled device
Bluetooth will be disconnected when the mode is switched
or the unit is off.
Press and hold for 3 seconds to disconnect with the
Bluetooth device
Once the unit has been successfully paired to your device,
you can listen to music.
Adjust the volume on your device to the desired level.
Repeatedly press or on the top of the unit to adjust
the volume of the unit.
Press to pause, Press to resume play.
Repeatedly press or to select the previous or next
song.
When you want to playback from another Bluetooth
device, disconnect the speaker from the Bluetooth device
already in use.

IMPORTANT NOTES ABOUT WIRELESS CHARGING
a. If your device does not support wireless charging,
please purchase a wireless charging case separately.
b. Use only the approved power supply, otherwise, it will
cause danger.
c. Do not put a wireless charging case on the unit
separately, which may cause the charging surface too
hot and then cause fire disaster. It may cause serious
burns or device failure.
d. To charge a device without wireless charging
function, please put on a wireless charger case for your
device, then put it on the unit for wireless charging.
e. Do not put any foreign objects including metal,
magnetic absorbers and IC cards in the charging
detective area, which may cause abnormal charging or
damage the unit because of too much heat.
f. Please take always the device from the charging area
when the device is fully charged.
g. Please place the device on the charging area
correctly to make sure the wireless charging works
properly.
h. Over 6mm thickness phone case may result in
charging intermittently or discontinued. Please take off
the phone case before charging.
j. During wireless charging, if connecting power supply
to the phone device, it will stop the wireless charging.
ADJUSTING DISPLAY BRIGHTNESS
Repeatedly press to select the
desired level of display brightness (High-Medi-
um-Low-Off).
USB CHARGING
To charge your USB-compatible devices, plug them
in the USB port on the rear of the unit and turn the
unit on.
The charging symbol will light up to indicate
charging. The symbol will disappear from the
display when the device is fully charged.
BACKUP BATTERY
The battery used for the unit is one CR2032
battery(included). You can only use AC power as
power supply. The battery is only for backup
purpose.
If the system is unplugged or if a power failure
occurs, the clock and alarm time settings of the unit
will be erased unless there is a battery in the unit.
WIRELESS CHARGING
Put the Qi receiver-enabled device on the top of the
unit, where the Qi logo is printed. During wireless
charging, the symbol will be on the display. It will
disappear from the display when the device is fully
charged. The symbol begins to flash quickly when
abnormal charging happens.
8

9

10
Homtime Group LTD
[email protected]
www.homtime.com
ZZZIDFHERRNFRPKRPWLPHJOREDO
* Please comply with the actural product if there
is any discrepancy between the product and the
content of the manual
