Homtone ICE-1560Y User manual

Homtone
INSTRUCTION MANUAL
Ice Cream Maker
Model: ICE-1560Y (DS-1138)
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

IMPORTANT NOTICES
When using an electrical appliance, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and/or
injury, including the following:
1. Read all instructions before using.
2. Ensure the voltage is compliant with the voltage range stated on
the rating label, and ensure the earthing of the socket is in good
condition.
3. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person
in order to avoid a hazard.
4. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
5. This appliance is intended to be used in household and similar
applications such as
–staff kitchen areas in shops, offices and other working
environments;
–farm houses and by clients in hotels, motels and other
residential type environments;
–bed and breakfast type environments;
–catering and similar non-retail applications
-1-

–Warning: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer
–WARNING: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
–WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
6. The plug must be removed before cleaning, maintaining or filling
the appliance
7. Do not upend this product or incline it over a 45℃angle.
8. To protect against risk of electric shock, do not pour water on cord,
plug and ventilation, immerse the appliance in water or any other
liquid.
9. Unplug the appliance after using or before cleaning.
10. Keep the appliance 8cm from other objects to ensure the good
heat releasing.
11. Do not use the accessories which are not recommended by
Manufacturer.
12. Do not use the appliance close by flames, hot plates or stoves.
13. Do not switch on the power button frequently (ensure 5min.
interval at least) to avoid the damage of compressor.
14. Metal sheet or other electric objects are not allowed to be inserted
into the appliance to avoid fire and short circuit.
15. When take out the ice cream, do not knock the barrel or edge of
barrel to protect the barrel from damage.
16. Do not switch on the power before install well the barrel or blender
blade.
17. The initial temperature of the ingredients is 20±3℃.Do not put
the ingredients into freezer for pre-freeze, as it will easily make
the blender blade blocked before the ice cream is in good
condition.
18. Do not remove the blender blade when the appliance is on
working.
-2-

19. Do not use outdoors.
20. Never clean with scouring powders or hard implements.
21. Please keep the instruction manual.
SPECIFICATIONS
Model Number ICE1560Y
Capacity 1.5L
Voltage AC 110-120V/60Hz
Power Consumption 150W
Unit Dimensions 400（L）*270（W）*260（H）mm
Packing Dimensions 465（L）*333（W）*335（H）mm
-3-

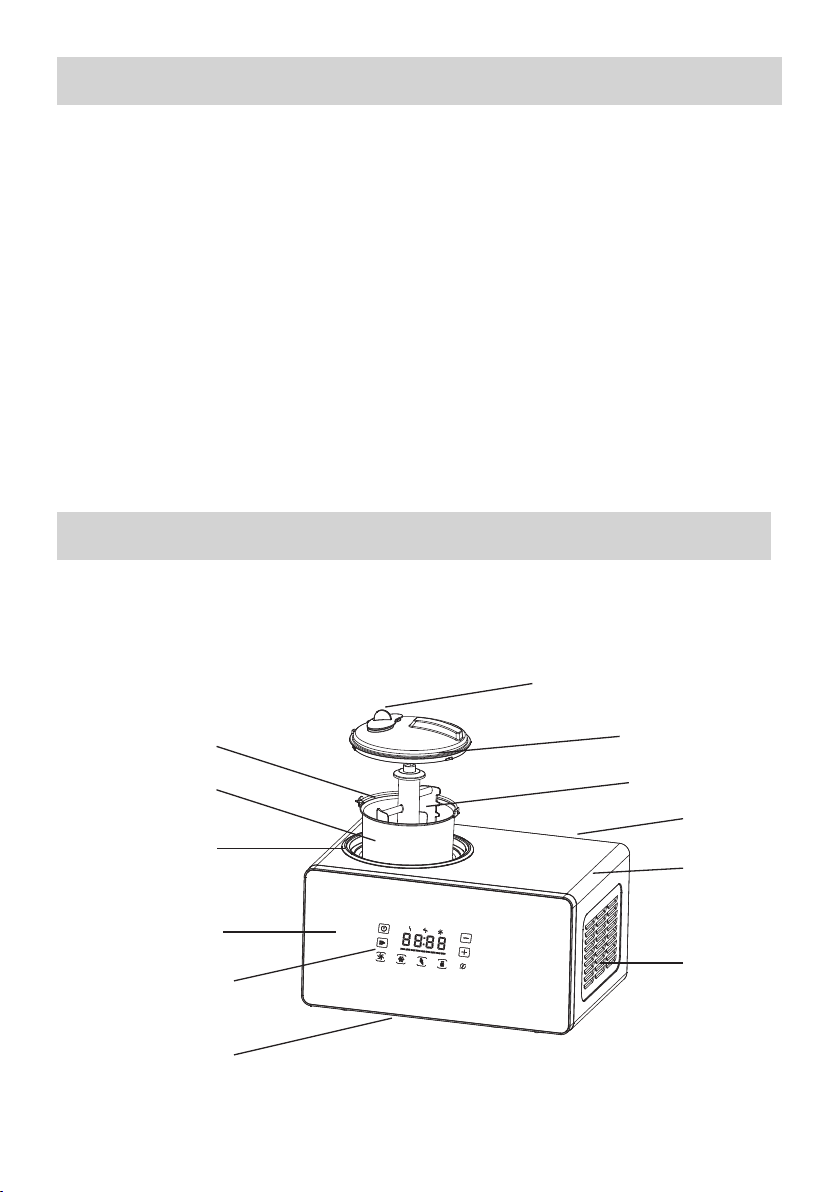

Transparent lid
Handle Transparent cover
Removable bowl
Dec
orative ring
Front panel
T
ouch control area
Blender blade
Rear cover
Housing
Air vent
Baseboard
PRODUCT FEATURE
1. A microcomputer automatic control, simple and reliable operation
and won’t cost you much trouble.
2. The large touch screen displays the working state, which is more
convenient to monitor the working state.
3. Stainless steel metal housing, which is elegant and fashionable.
4. All glass touch front panel, which is simple and popular.
5. Lower mixing and enough power.
6. Processing of 1.5L ice cream
7. The parts are detachable, easy to clean, sanitary and safe.
.PRODUCT INSTRUCTION
1) STRUCTURE
-4-

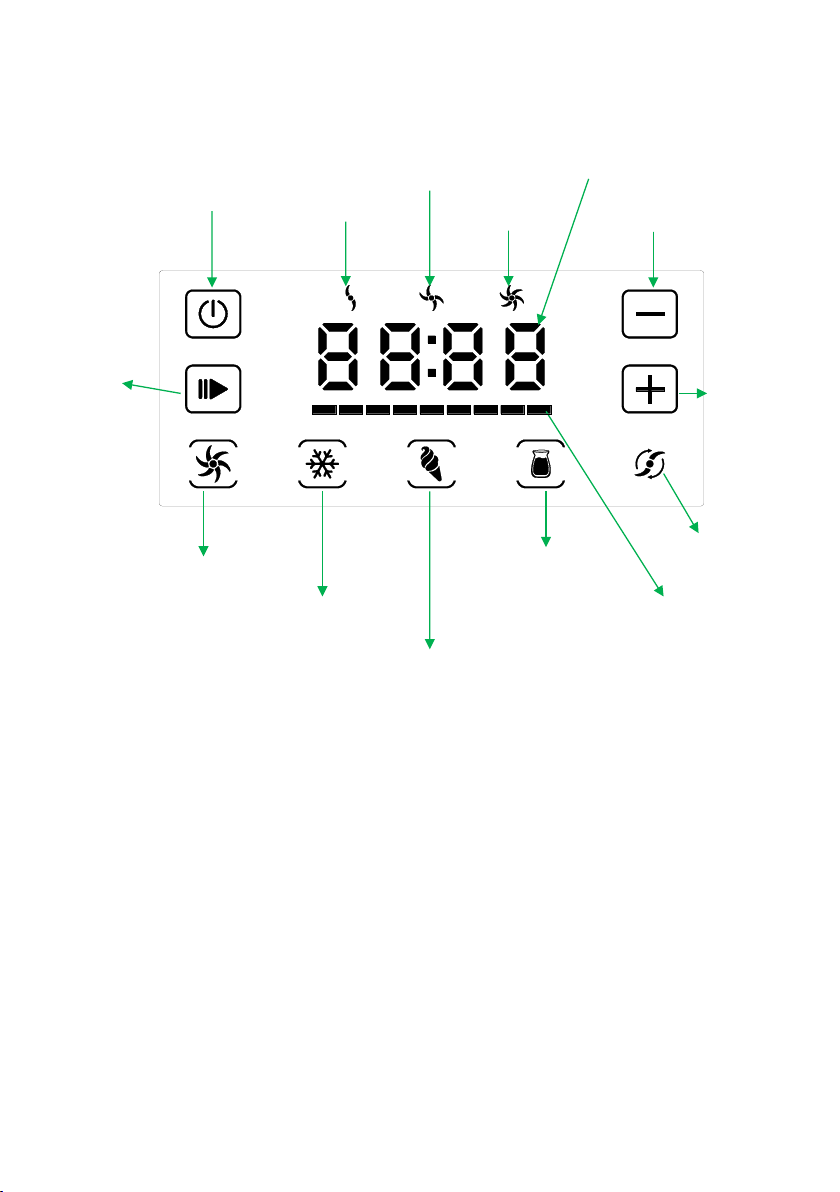

Time display area
Medium speed
ON/OFF Low speed High speed Decrease
Start/P
ause
Increase
Speedy switch
Stirring mode Yoghourt mode
Refrigeration Mode Softness-Hardness
Ice cream mode
2) CONTROL PANEL
-5-

HOW TO MAKE ICE CREAM
NOTE: Please thoroughly clean all parts that will contact with ice
cream before use, including: cooling bowl, loading bowl, mixing fan
blade, transparent lid, etc.
Before cleaning, you must ensure that the power cord plug is
disconnected from the outlet. When making ice cream, keep the
machine flat on a level surface to ensure that the compressor of the
machine is working properly.
Always place the Ice Cream Maker upright on a flat
surface in order that the build-in COMPRESSOR can provide best
performance.
Here are the steps to make an ice cream:
Step 1.
Pour the well prepared recipe ingredients and warm water into the
removable bowl, then have a uniform mixing (see below picture).
Step 2.

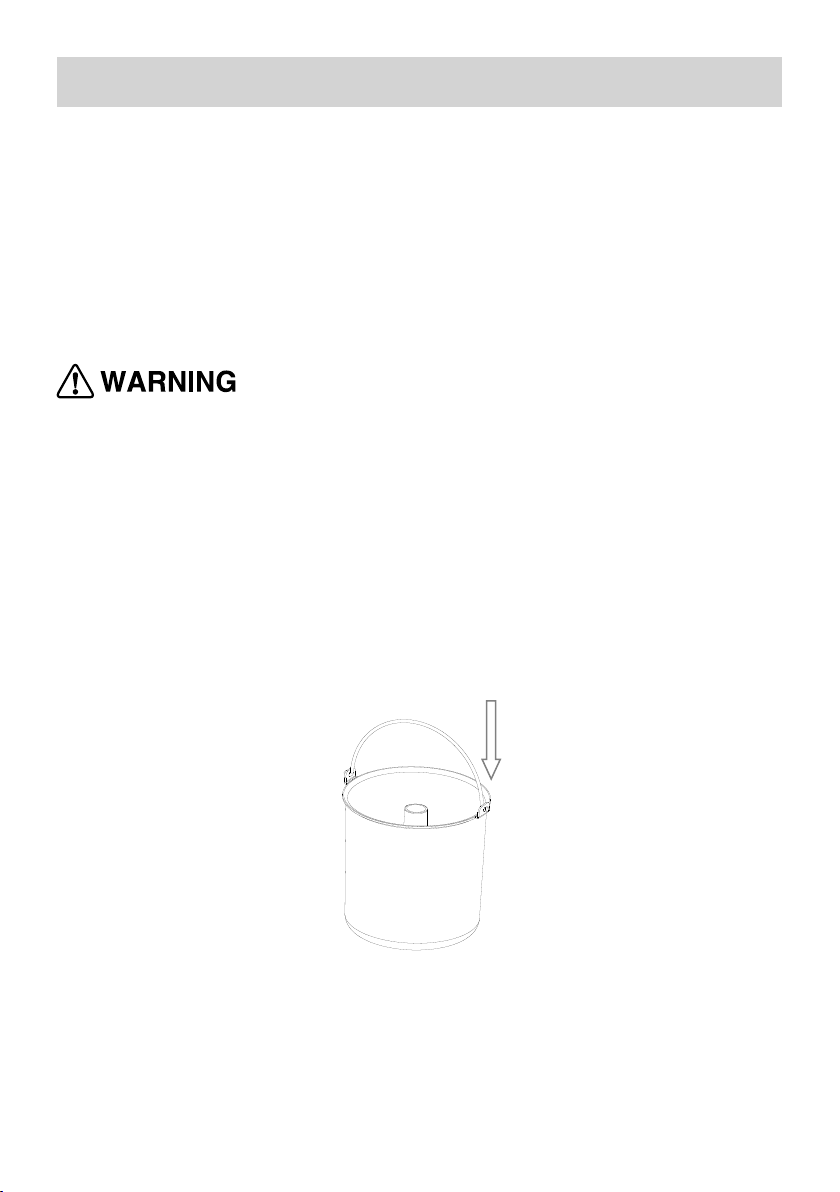

Then put the loading bowl into the ice cream maker and press it tightly
(see below picture).
-6-

Step 3. If choose the ice cream mode, please install the blender blade,
if choose the yoghourt, then remove the blender blade.

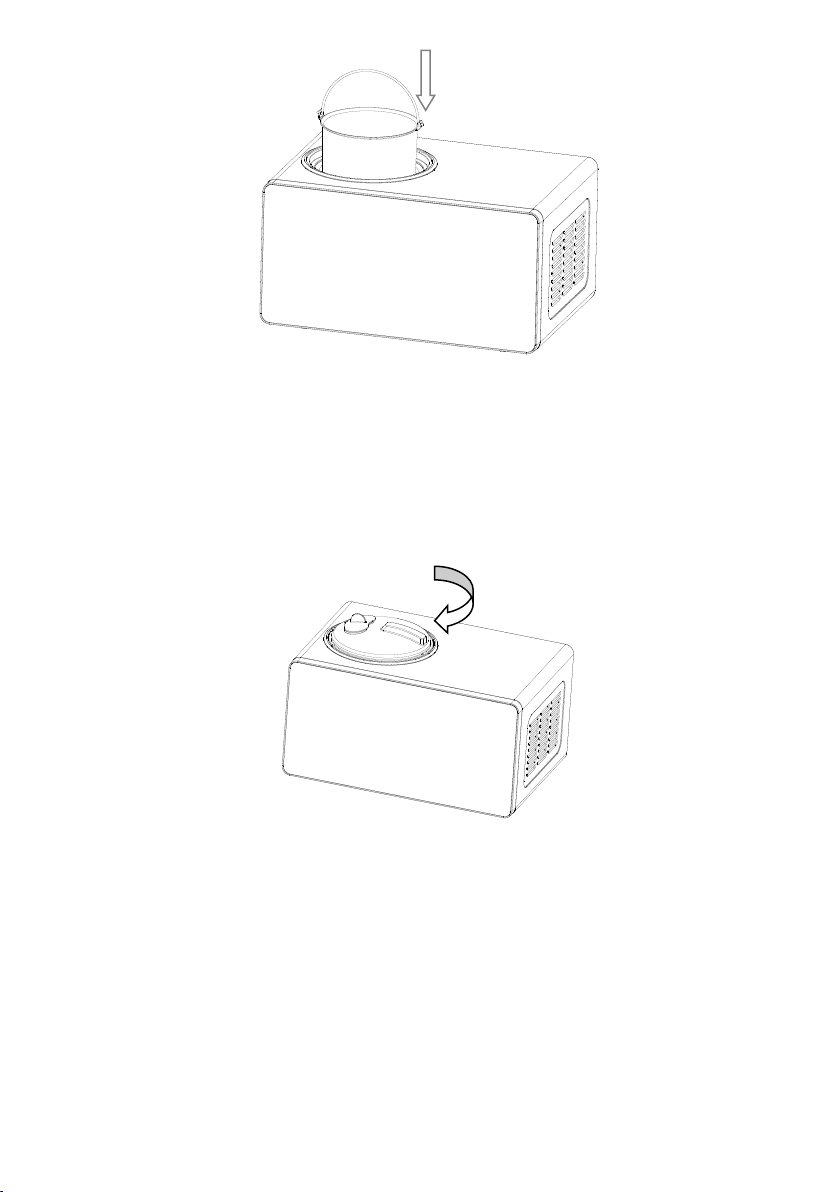

Step 4. Then put the transparent lid onto the machine and lock it
clockwise (see below picture).
Step 5. Plug in the power plug, touch the POWER button, and the
whole machine starts. The default mode is normal ice cream mode.
After pressing the ICE CREAM button, press the INCREASE or
DECREASE button to set the softness-hardness, and then press the
Start/Pause button to start making ice cream.
Step 6. You can add the favorite ingredients by opening the refill
cover (see below picture).
Lock
-7-

Step 7. After the operation is over, turn off the machine first, then pull the
removable bowl out.
Caution: Another common ice cream mode is that the fourth step
operation is changed to plug in the power plug, press the POWER
button, start the whole machine, and press the START/PAUSE button
to start making ice cream. Other operations are the same.
Open the refilling lid,
and add the ingredients
-8-

OPERATION
1. Connect the power supply and plug the power cord into a suitable
socket. The shape and voltage of the socket must be the same as
those indicated on the label. Connect the AC220-240V power supply.
2. Select the control button. For the button description, please refer
to the detailed description of the control button and silk screen
diagram above.
3. OPERATION PROCESS
3.1 Plug in the power supply, with a beep, the display area lights up
once, only the POWER switch icon " " is left to display and flash
and display “00：00”. Press the " " button and the touch screen
lights up with a beep. The product defaults to [ice cream] production
mode, and the icon of [ice cream mode] “ ” is displayed as shown
in the figure. Touch the " " icon with a beep to return to the power
on state.
3.2 When switching to other modes, press the corresponding icon.
The selected mode icons are as follows: [ice cream] “ ”, [single
cooling] “ ”, [single mixing] “ ”, [yogurt] " ”. Press the
Start/Pause button, and the product starts to work. Touch the " "
icon to return to the power on state.
3.3 [Ice cream] production mode is divided into time and hardness.
3.3.1 Hardness mode
-9-

In the ice cream mode, touch the “ ” icon to select the hardness
mode, press the increase icon " " once to increase the hardness
by one gear at a time, and touch the decrease icon " " once to
decrease the hardness by one gear at a time, with a total of three
kinds hardness. The time starts from "00:00" after startup.
When suspending the hardness ice cream mode, press the " " or
"" icon to adjust the ice cream forming hardness, but the
hardness of the real ice cream has reached the second level, which
can only be increased to the third level or the unfinished second level,
and the time is not adjustable.
3.3.2 Time mode
In precondition time ice cream mode, press " " or " " icon once
to increase or decrease 1 minute, long press for 2 seconds to
increase or decrease quickly, up to 70 minutes and reduce to 0
minutes at lowest.
In the pause time ice cream mode, press the " " or " " icon to
adjust the ice cream forming time. The adjustment method is the
same as the above, and the hardness cannot be selected.
3.4. Yogurt mode production time with memory function, factory
settings for 8 hours, display "08H". When you startup the machine
next time, display time for the last adjustment of production time (in
the working state to adjust the time is not saved). Press " " or "
" icon once can increase or decrease 1 hour, can be changed to
24 hours at most, can be changed to 4 hours at least.
-10-

3.5. The default time of single cooling mode is 10 minutes. The
display of "10:00" needs to increase the time. Please press " " or
"" icon. Touch once to increase or decrease 1 minute. Long press
for 2 seconds to increase or decrease quickly. The maximum time
can be changed to 70 minutes and the minimum time can be reduced
to 0 minutes.
3.6. The default time of single mixing mode is 30 minutes and "30:00"
is displayed. If you need to increase the time, please press " " or
"" icon. Touch once to increase or decrease the time by 1 minute.
Long press for 2 seconds to increase or decrease the time rapidly.
The maximum time can be changed to 70 minutes and the minimum
time can be reduced to 0 minutes.
3.7. Speed selection: after selecting ice cream mode or single mixing
mode, the speed can be adjusted. The default is medium speed, and
the " " icon is displayed on the screen. Every time " " icon is
pressed, the speed icon switches between high speed " ", medium
speed " " and low speed " ".
3.8. After setting the speed and time or hardness: press the " "
icon to start making ice cream. In the process of making ice cream,
the time mode is displayed by the selected time countdown. The
hardness mode is timed from 0. The hardness bar will flash in the
form of "horse racing bar" from the second to the ninth cell.
When the " " icon is pressed in the ice cream making process, the
mixing motor stops working and the time when it stops is displayed.
If the " " icon is touched again, it will continue to work according
-11-

to the current setting mode. If the " " icon is pressed and no other
operation is carried out within 3 minutes when the stirring motor stops
stirring, the compressor will stop working and return to the power on
state 10 minutes later, with 3 short beeps. Touch the " " icon for 2
seconds, the machine will stop working and return to standby mode.
The hardness mode is not controlled by the time, but the time mode
is controlled by the hardness mode when it reaches the hardest and
has the remaining time.
3.9. After the production process is completed, if there is no other
operation, it will automatically enter into the insulation program: in the
case of no operation, the ice cream machine will enter into the
insulation state after the production is completed. The display screen
will display cool and flash and measure the hardness bar, the
machine will stop working for 5 minutes first, then the motor will stir
for 15 seconds first, and then the hardness test will be carried out,
and the test result 1 is insufficient hardness, continue to make ice
cream, test result 2 hardness enough to continue to pause for 5
minutes, such cycle 120 minutes:
Test result 1: If the hardness is less than the selected hardness, start
the previously selected program, the screen displays “COOL”, and
the hardness bar will not change until the measured hardness
reaches the selected hardness, then stop the machine for 5 minutes.
Test result 2: If the hardness is enough, continue to shut down for 5
minutes, and enter the power on state after the end of insulation.
4. INSULATION FUNCTION
Ice cream insulation function: in order to prevent you from leaving in
the process of ice cream production, but you can not eat or preserve
the ice cream in time after the production, resulting in ice cream
melting, we add the following humanized design: when the ice cream
production is completed but nobody operates, the insulation time is
120 minutes.
-12-

5. Motor protection function
With the longer production time, ice cream becomes harder and
harder. When the current of the motor increases to a certain value,
the motor will stop working to prevent motor damage and ensure the
life of the blending motor.
6. The largest production capacity
To avoid unnecessary spillage and waste, make sure that the ice
cream ingredients do not exceed 50% of the inner barrel volume
(because the ice cream will expand to some extent after molding).

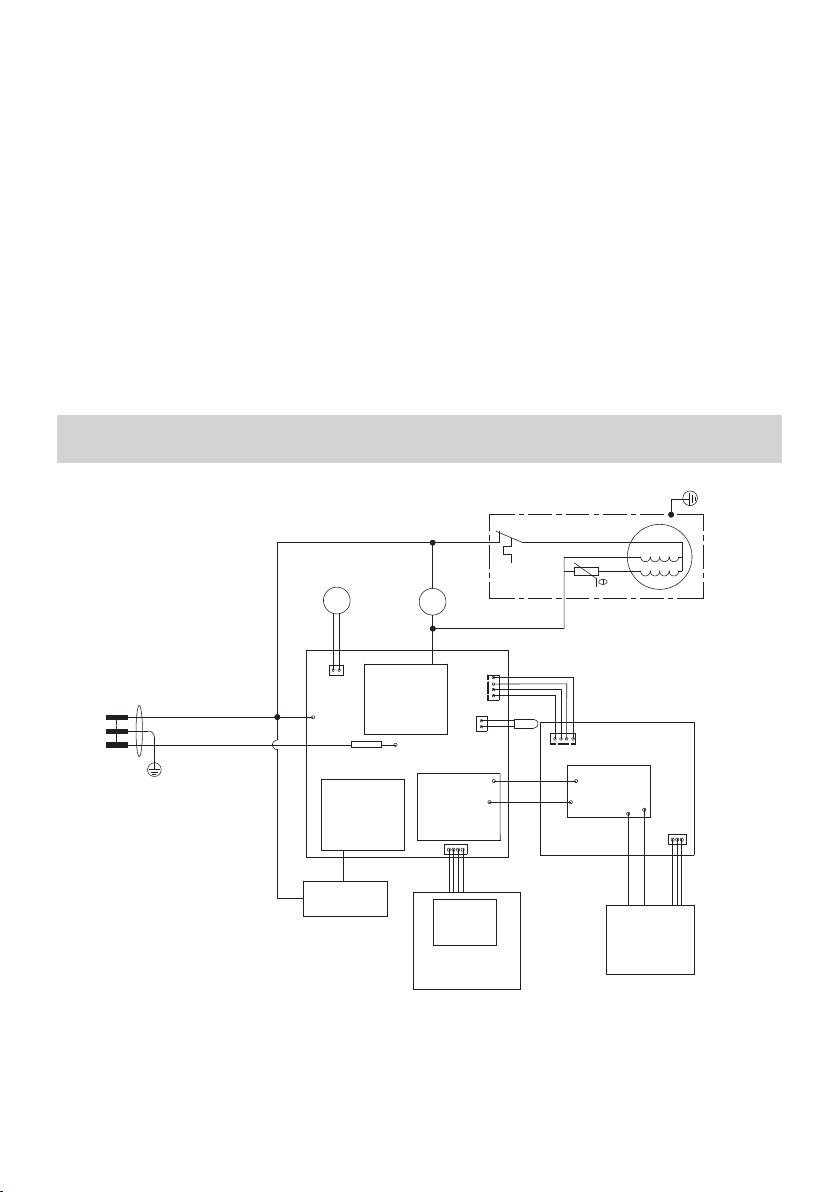

ELECTRICAL DIAGRAM
Compressor
Protector
Starter
M
Fan
M
Condenser
Motor
Communication
Control Signals
Power Plug
circuitry of
N
condenser
motor
Temperature
Fuse
sensor
220V~240V/50Hz
Control
Control Rectifier
circuitry of
circuitry of Circuit
heating element blending
motor
DC Voltage
Hall induction
heating element
display
screen Adjustable
speed
Control board DC motor
E
L
-13-

MAINTENANCE
Caution: The plug must be removed before cleaning to avoid electric
shock.
1) Take out the mixing blade, wipe it with a dampened cloth.
2) Take out the removable bowl, clean it with a dampened soft cloth.
3) Wipe the transparent lid and refill lid with a dampened cloth.
4) Remove the dirty on the body or other places with a dampened
cloth, and do not pour water on cord, plug and ventilation,
immerse the appliance in water or any other liquid.
5) Allow drying thoroughly with a dry cloth, then return the
component to the home position.
COMMON PROBLEM
No. Exist problem Reason analysis Resolutions
1
Not easy to take out
loading bowl after the
ice cream is finished
There are water drops
between the
refrigeration barrel and
the loading bowl that
are not wiped clean,
resulting in freezing
Wait 1-2
minutes before
taking out the
ice cream
bucket.
2
The production time of
ice cream maker is not
finished, but the mixing
has stopped
Normal phenomenon:
as the ice cream
hardens, the mixing fan
may be stuck. When
the motor temperature
rises, it will
automatically protect
and cut off the power
supply of the motor
Take out the
loading bowl
and restart it
after shutdown
to return to
normal
-14-

3
The transparent lid is
lifted to the mixing fan
blade, and it cannot be
stuck in place
The mixing fan blades
not in place, and pay
attention to the
alignment of the
hexagon
Put the mixing
fan in place and
rotate the
transparent
cover in place
4
The loading bowl
cannot be placed in the
cold bucket
Deformation caused by
improper use of loading
bowl
Buy a new
loading bowl
5
At the beginning of
making ice cream, the
mixing fan seriously
scratched or jammed.
Deformation caused by
improper use of loading
bowl
Buy a new
loading bowl
AFTER SALES SERVICE
One-year warranty service is available from the date of purchase. The
date of purchase of the invoice or after-sales service warranty card is
subject to the warranty service. The problems you encounter when
using our company's home automatic ice cream machine can be
helped and resolved through the service hotline. We provide technical
advice free of charge.
●One of the following conditions is not covered by the warranty;
1) Components are damaged due to improper use, maintenance and
storage;
2) Damage caused by Maintenance personnel or designated
personnel to disassemble the product by themselves.
3) No purchase invoice or purchase invoice does not match the
product;
4) Damage caused by force majeure;
5) Exceeding the warranty period;
★If you find any quality problems, please contact the service center
-15-

or special maintenance service point for repair. Do not disassemble
it yourself. The company will not bear any responsibility for quality
problems or accidents caused by self-disassembly.
★If the product is not under warranty, the maintenance fee will be
waived and only the parts fee will be charged. Manufacturer
reserves the right of final interpretation of the above commitments.
PART
S
Mixing blade
1
User guide
1
User manual
1
-16-

-17-
This marking indicates that this product should not
be disposed with other household wastes
throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To
return your used device, please use the return and
collection systems or contact the retailer where the
f
pr
or
oduc
envi
t
r
w
onm
as pur
ent
c
al
h
s
as
af
e
e
d.
r ec
T
y
hey
cli
c
ng.
an take this product
Correct Disposal of this product
