Owner’s Guide
For Model Series
5100X • 5150X • 5200X • 5250X • 5300X
Air Cleaners
I
II

PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT. Save these
instructions for easy reference.
When using electrical appliances, basic precautions should always be followed
to reduce breakage, risk of fire, electric shock and injury to persons including
the following:
1. Read all instructions before operating the air cleaner.
2. Place air cleaner where it is not easily knocked over by persons in
the household.
3. Always unplug when not in use.
4. Do not use any product with a damaged cord or plug or if product
malfunctions, is dropped or damaged in any manner. Keep the cord
away from heated surfaces.
5. Do not use air cleaner outdoors.
6. Never use air cleaner unless it is fully assembled.
7. Do not run power cord under carpets, and do not cover with throw rugs.
Arrange cord such that it will not be tripped over.
8. Do not use air cleaner where combustible gases or vapors are present.
9. Do not expose the air cleaner to rain, or use near water, in a bathroom,
laundry area or other damp location.
10. To disconnect the air cleaner, first turn speed control to OFF position and
remove plug from the outlet.
11. The air cleaner must be used in its upright position.
12. Do not allow foreign objects to enter ventilation or exhaust opening as
this may cause electric shock or damage to the air cleaner. Do not block air
outlets or intakes.
13. Locate air cleaner near power outlet and avoid using an extension cord.
14. The air cleaner has a polarized plug (one blade is wider than the other). To
reduce risk of shock, this plug is intended to fit in a polarized outlet only one
way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
15. A loose fit between the plug and the AC outlet (receptacle) may cause
overheating and a distortion of the plug. Contact a qualified electrician to
replace loose or worn receptacles.
16. Do not sit, stand or place heavy objects on the air cleaner.
17. Disconnect power supply before servicing.
18. WARNING: To reduce risk of fire or electric shock, do not use this product
with any solid-state speed control device.
Important Safety Instructions
1

Congratulations
You now own a quality portable HEPA air cleaner that has been engineered and
crafted for your satisfaction.
Our Consumer Relations representatives will be pleased to help with any
questions or concerns you may have about your Honeywell air cleaner.
Please call our Consumer Relations Dept. at [phone] for assistance.
We recommend that you operate your Honeywell air cleaner 24 hours a day
because indoor air can be quickly contaminated by activity in a room and infiltration
of outside air. While all the air in a room will not be processed by the air cleaner, the
more air circulated through the filter, the more filtered air returned to the room.
Portable air cleaners will be much more effective in rooms where all doors and
windows are closed.
The Honeywell HEPA air cleaner is ready to operate as soon as it is removed from
the carton and plugged in. Because it circulates air in a 360°pattern around the air
cleaner it can be placed on the floor in almost any location. However, for best
performance the air intake grille should not be blocked for at least 3 feet (1 meter) in
all directions.
Due to the large volume of air drawn towards the air cleaner, surrounding areas
should be cleaned and/or vacuumed frequently to prevent buildup. This may help
keep your home cleaner and may extend the life of the air cleaner pre-filter. If the
unit is placed on a light colored carpeting, a small mat or rug should be used to
ease cleaning and prevent any permanent staining. This is particularly important in
homes with heavier contamination from smoking or fireplaces.

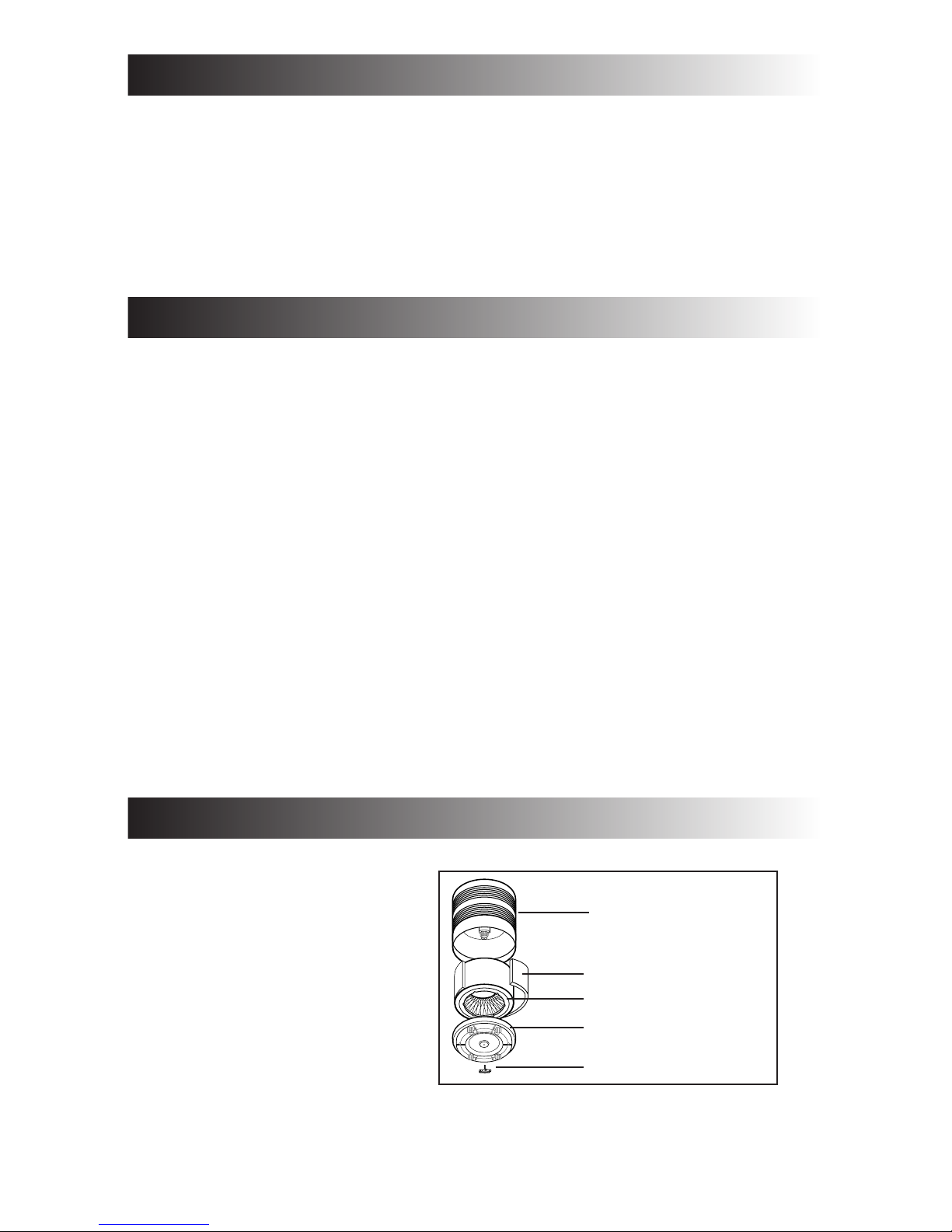

Construction
Your Honeywell air cleaner
has five basic components:
1. Powerhead Assembly
(with controls and motor)
2. Activated Carbon Pre-filter
3. HEPA Filter
4. Base Assembly
5. Locking Mechanism
Base Assembly
Activated Carbon Pre-filter
HEPA Filter
Locking Mechanism
Powerhead Assembly
For Best Performance
2

5150X Series
I
II
0

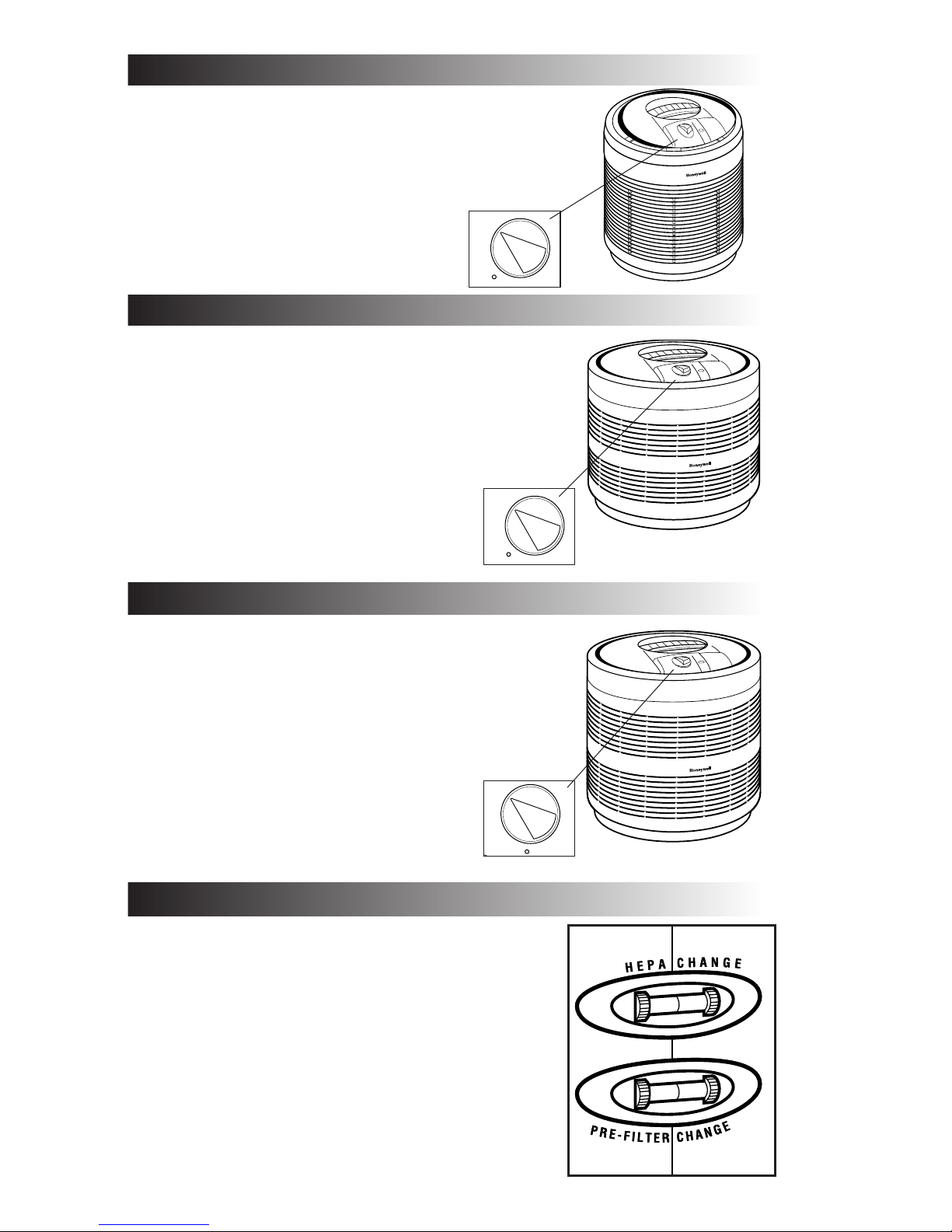

5200X, 5250X and 5300X Series
Filter Change Calendars
The Honeywell 5200X, 5250X and 5300X Series
air cleaners are 3 speed air cleaners operated by
a moving the speed control knob on the top panel
from the Off (O) position to the super (III) position.
Allow the unit to operate for a few seconds at
super speed, then leave the control knob in the
super position for faster, more powerful
room cleaning, or move the
knob to a lower setting for
quieter operation.
I
II
III O
FEB
01
MAY
8-14
If your air cleaner contains Filter Change Calendar
wheels, upon start of your air cleaner and upon
every pre-filter replacement, roll the pre-filter
change calendar ahead three months to indicate
when the next filter replacement is necessary.
Upon start of your air cleaner and upon every
HEPA filter replacement, roll the HEPA filter
change calendar ahead one to three years (depend-
ing upon use) to indicate when filter replacement is
necessary.
5100X Series
The Honeywell 5150X Series air cleaner is a 2
speed air cleaner operated by moving the speed
control knob on the top panel from the Off (O)
position to the high (II) position. Allow the unit to
operate for a few seconds at high speed, then
leave the control knob in the high position for
faster, more powerful room cleaning,
or move the knob to the lower
setting (I) for quieter operation.
The Honeywell 5100X Series air cleaner is a 2 speed
air cleaner operated by moving the speed control
knob on the top panel from the Off (O) position to the
high (II) position. Allow the unit to operate for a few
seconds at high speed, then leave the control knob in
the high position for faster, more
powerful room cleaning, or move
the knob to the lower setting (I)
for quieter operation.
I
II
POWER
II
I
I(LOW)
II (HIGH)
O(Off)
POWER
II
I
I(LOW)
II (HIGH)
O(Off)
POWER
III
II
I
I(LOW)
II (HIGH)
III (SUPER)
O(Off)
NOTE: The 53000 Model Air Cleaner has a CHANGE HEPA FILTER monitor light that glows when the HEPA filter needs replacement.
FEB
01
MAY
8-14
3

Replacement Filters
Replacement filters may be purchased from the dealer where you purchased the
product. If you cannot locate a dealer in your area, please call our Consumer
Relations Dept. at [phone] for assistance.
Select the proper replacement filter for your Honeywell HEPA air cleaner from the
chart below:
5100X
5150X
5200X
5250X
5300X
Kenmore 83154
21500
23500
24000
29500
32002 or 38002
33002 or 38002
34002 or 38002
35002 or 38002
Model No.
HEPA Filter
Part Number
Carbon Pre-filter
Part Number
Filter Replacement
With proper maintenance, your Honeywell air cleaner is designed to provide years
of high efficiency air cleaning. Your Honeywell air cleaner contains two filters: one
activated carbon pre-filter and one primary HEPA filter.
The activated carbon pre-filter is the element of your air cleaner that helps reduce
normal household odors, captures lint and other large particles and helps protect
the HEPA filter. It should be replaced at least every 3 months. If there are heavy
concentrations of odors, smoke, or large particles in the home, you may need to
change the activated carbon pre-filter more often.
We DO NOT recommend operating the air cleaner without the activated carbon pre-
filter or without following the filter replacement guidelines. The HEPA filter may
become contaminated and begin to emit any odors captured.
The primary HEPA filter should remain effective for 1 to 3 years, depending upon the
environment in which the air cleaner is operating. Honeywell recommends changing
the HEPA filter based upon operating conditions - every 3 years for light usage, 2
years for normal usage and 1 year for heavy usage. The 53000 Model Air Cleaner
features a Change HEPA Filter monitor light which will glow when the HEPA filter
needs replacement.
If your air cleaner contains Filter Change Calendar wheels, please refer to the “Filter
Change Calendar”section for date wheel use instructions.
Our recommendations regarding filter replacement intervals are intended as guide-
lines only. Life expectancy of any filter media is dependent on the concentration of
the contaminants to which the system is exposed. If there are sources of large
amounts of contaminant generation (such as woodworking or heavy smoking) the
useful life of the filter media in your air cleaner may be reduced.
Whenever the air resistance of the HEPA filter becomes excessive due to the amount
of contaminants it has captured, the air volume output will begin to reduce and the
sound level of the air cleaner will increase somewhat. A completely blocked filter will
cause a loud rumbling sound and almost no airflow.
4
Kenmore 83155, 83120, or Honeywell 38002

CAUTION: DISCONNECT FROM POWER SUPPLY BEFORE SERVICING.
Do not attempt to wash either the activated carbon pre-filter or the HEPA filter.
They are not washable and washing will damage the filters.
The only two parts requiring any service are the activated carbon pre-filter and the
HEPA filter. No tools are needed. To change either filter, disassemble the unit as
shown below:
Step 1: Turn the air cleaner off and unplug from the wall outlet.
Step 2: To open, gently place the air cleaner on its side and unscrew the locking
mechanism located under the base assembly. (Fig. 1)
Step 3: Remove the base assembly from the air cleaner.
Step 4: Remove the filter assembly (consisting of the HEPA filter and pre-filter) from
the internal chamber.
Step 5: Locate the seam of the pre-filter and carefully separate the fastener to
remove the pre-filter from the HEPA filter (Fig. 2).
Step 6: Discard used filter(s) being replaced. Remove any packaging and plastic
from the replacement filter(s).
Step 7: Carefully wrap the pre-filter around the HEPA filter so that the ends meet
(Fig. 3). Fasten the ends together with the fastener provided.
Step 8: Place the whole filter assembly into the internal chamber. Close the product
by replacing the base and tightening the locking mechanism.
Step 9: Turn the air cleaner into an upright position, plug into a wall outlet and it is
ready for operation.

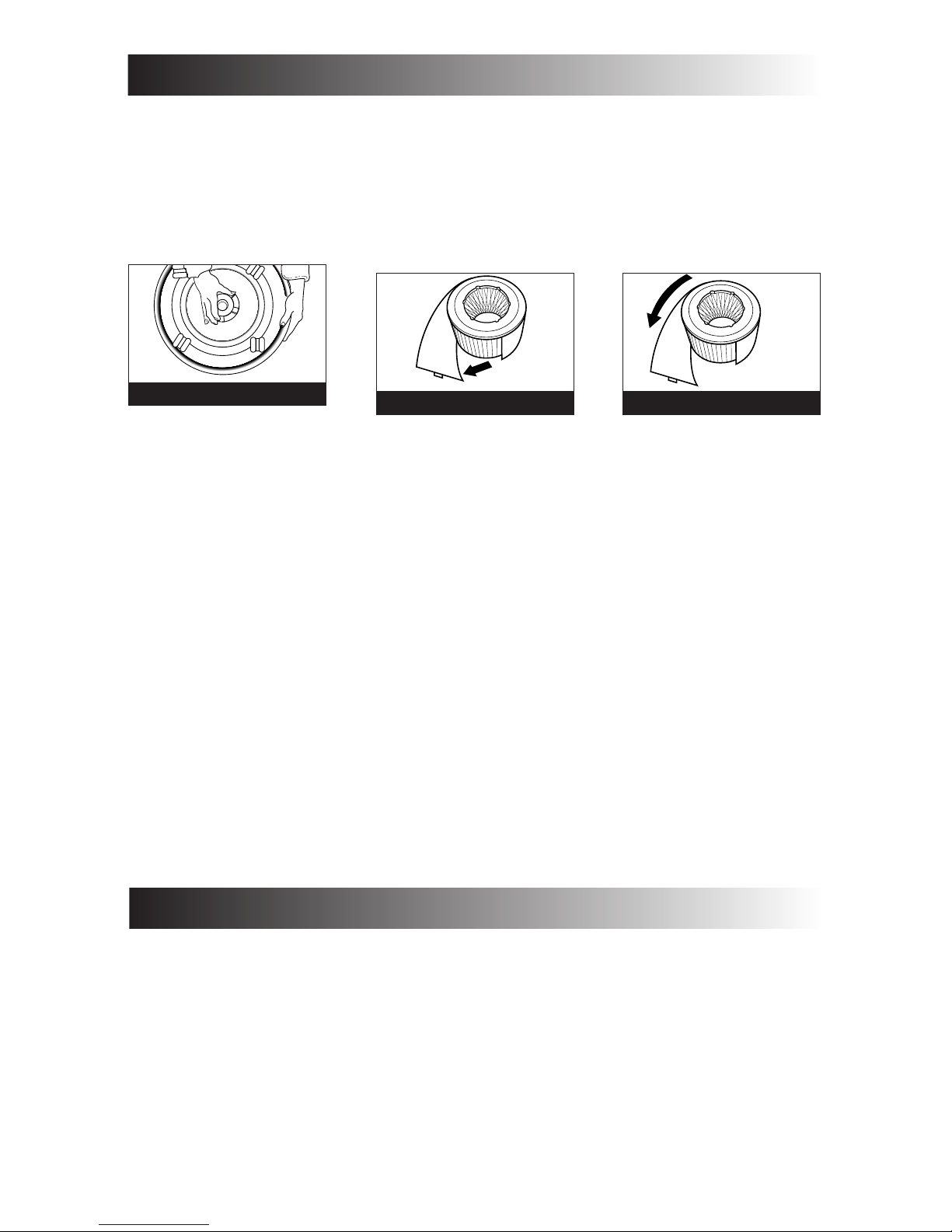

How to Change the Filters
Fig. 1 Fig. 3Fig. 2
If you store your Honeywell HEPA air cleaner for more than 30 days, we recommend:
•Remove both the primary HEPA filter and the activated carbon pre-filter from
the unit.
•Discard the pre-filter.
•Wrap the HEPA filter in an air-tight plastic bag or plastic wrap. Be sure that
the filter is totally sealed to protect it from its storage environment.
•To restore the air cleaner to service, unwrap the HEPA filter, install a new
activated carbon pre-filter, and replace both filters in the air cleaner. See
“How to Change the Filters”section for proper installation.
Storage
5

If the Air Cleaner Does Not Operate
•Check to make sure that the power cord is correctly connected to the outlet.
•Test that the outlet is functioning properly using another appliance or lamp.
•Check the fuse or circuit breaker. The outlet may be overloaded if other
appliances are also in use. Determine and correct the cause of the overload.
•If none of the above procedures restores operation, return your unit to the store
or if the store's return policy does not allow, return the complete unit per the
instructions in the warranty section of this owner's guide. Do not attempt to
repair the unit yourself.
Full One Year Warranty
Honeywell HEPA Air Cleaner
Model Nos. Series 5100X, 5150X, 5200X, 5250X, 5300X
This product has been engineered and crafted with great care for your satisfaction.
Be sure to fill out and return the enclosed card within 10 days of purchase.
Honeywell air cleaner performance ratings are based exclusively on use with a
genuine Honeywell true HEPA filter and activated carbon pre-filter.
FULL ONE YEAR WARRANTY – TERMS AND CONDITIONS
If within one (1) year from the date of purchase, this air cleaner fails due to a defect
in material or workmanship, Honeywell will repair or replace it free of charge or
refund the purchase price, less depreciation, after reasonable efforts to repair.
This warranty applies only while this product is in use in Canada and in the
United States.
This warranty gives you specific legal rights and you also may have other rights
which may vary from jurisdiction to jurisdiction.
This warranty DOES NOT cover the replacement HEPA filter or pre-filter.
HONEYWELL IS NOT LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES
OF ANY NATURE. Some jurisdictions do not allow the limitation or exclusion of inci-
dental or consequential damages, so the aforementioned limitation or exclusion may
not apply to you.
If you experience a problem with your air cleaner, please see owner’s guide for
instructions. Please do not attempt to repair the air cleaner yourself. Doing so will
void the warranty and could cause damage or personal injury. If the problem still
persists, please call our Consumer Relations Department at:
Toll Free 1-800-332-1110
© 2000 All Right Reserved. Honeywell Inc. 035-02306-002
AC 7094.99 www.honeywell.com/yourhome
6
