Honeywell High Performance Air Purifier HFD-135 User manual

IMPORTANT SAFETY
INSTRUCTIONS
READ AND SAVE THESE SAFETY
INSTRUCTIONS BEFORE USING
THIS AIR PURIFIER
When using electrical appliances, basic
precautions should always be followed to
reduce the risk of fire, electric shock, and
injury to persons, including the following:
1. Read all instructions before operating the air
purifier.
2. Place air purifier where it is not easily knocked
over by persons in the household.
3. Always turn the air purifier to the OFF position
and unplug from the wall outlet when not in
use.
4. To disconnect the air purifier, first press the
Power ( ) button to turn the air purifier off,
grip the plug and pull it from the wall outlet.
Never pull by the cord.
5. Do not use any product with a damaged cord
or plug or if product malfunctions, is dropped
or damaged in any manner. Keep the cord
away from heated surfaces.
6. Do not use air purifier outdoors.
7. Never use air purifier unless it is fully
assembled.
8. Do not run power cord under carpets, and do
not cover with throw rugs. Arrange cord such
that it will not be tripped over.
9. Do not use air purifier where combustible
gases, vapors or an oxygen rich environment
are present.
10. Do not expose the air purifier to rain, or use
near water, in a bathroom, laundry area or
other damp location.
11. The air purifier must be used in its upright
position.
12. Do not allow foreign objects to enter ventilation
or exhaust opening as this may cause electric
shock or damage to the air purifier. Do not
block air outlets or intakes.
13. Locate air purifier near the outlet and avoid
using an extension cord.
14. This appliance has a polarized plug (one blade
is wider than the other). To reduce the risk of
shock, this plug is intended to fit only one way
in a polarized outlet. If the plug does not fit
fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician.
DO NOT attempt to defeat this safety feature.
15. A loose fit between the AC outlet (receptacle)
and plug may cause overheating and a
distortion of the plug. Contact a qualified
electrician to replace loose or worn outlet.
16. Do not sit, stand or place heavy objects on the
air purifier.
17. Disconnect power supply before servicing.
WARNING: To Reduce the risk of fire or electric
shock, do not use this air purifier with any
solid-state speed control device.
The sealed UV bulbs contain a small amount of
mercury. Dispose of these items at household
hazardous waste collection sites only. If the UV
bulb breaks, do not vacuum or handle with your
bare hands.
IFD™HIGH PERFORMANCE
AIR PURIFIER
Model HFD-135
HFD-135 OM English.qxd 10/14/05 5:35 PM Page 1

YOUR IFD™AIR PURIFIER
SET-UP
• Select a firm, level and flat location. For proper air flow, locate the unit at least 3 feet (1 M) from any
wall or furniture.
• Ensure the exit grill faces away from the closest wall or furniture.
• Ensure no grilles are blocked.
• Plug into a grounded 120V outlet. See IMPORTANT SAFETY INSTRUCTIONS.
INTRODUCTION
Thank you for purchasing the Honeywell IFD™High Performance Air Purifier with a breakthrough
technology in air purification. Please read below on how to operate and care for your new air purifier.
Control Panel
Rear Door
IFD™Filter
Filter Basket
Pre-Filter
2
UV Bulbs
UV Cover
HFD-135 OM English.qxd 10/14/05 5:35 PM Page 2

OPERATION
• Ensure the air purifier is plugged into a working outlet.
• Touch the Power ( ) button to turn the air purifier On.
The LCD screen will display the current setting. (Fig. 2).
• When first starting the unit, you can hear a change in speed
and this is normal.
• To change speeds, press the up ( ) or down ( )
buttons. The display will indicate the current setting:
Low ( ), Medium ( ), High ( ).
• For best results, set the unit to operate at High ( ) speed.
For quieter settings, or during sleep, set the unit to Medium
( ) or Low ( ).
• Note that during normal operation, the rotating continuous
operation symbol ( ) will appear in place of timer hours.
• To turn the unit off, touch the Power ( ) button.
Timer Operation
Once the air purifier is turned on, you can program this unit to
turn off automatically after a set amount of time.
• Press the Timer button – the LCD screen flashes the number
18 (Fig. 3).
• Press the timer plus ( ) or timer minus ( ) buttons to
increase or decrease the desired number of hours (1 to 18).
The selected number will flash for a few seconds – once it
stops flashing, the air purifier is in Timer mode.
(Example: If you want the unit to turn off in 6 hours, touch
the Timer button, then press the timer minus ( ) button
until the number "6" is displayed.)
• The Timer button will be illuminated in Timer mode and the number of hours remaining will be displayed.
• To turn the Timer mode off, press the Timer button. The continuous operation icon ( ) will appear.
3
DUAL UV LAMP OPERATION
• Press the UV button to turn the Lamps on or off (Fig. 4).
• The Lamps will light and you will see a faint blue glow
along the top grille of the unit. This is a visual effect. The
UV bulbs are located in the lower portion of the unit.
• The UV button will be illuminated on the control panel.
NOTE: Removing the IFD™filter assembly or UV cover or
turning the unit off will cancel the UV Lamp function.
Fig. 4
Fig. 2
Fig. 3
Indicates continuous operation
Timer Button
UV Button
Filter Reset
Button
Power Button
UV Reset
Button Speed +/– Buttons
Timer +/–
Buttons
Fig. 1
HFD-135 OM English.qxd 10/14/05 5:35 PM Page 3

4

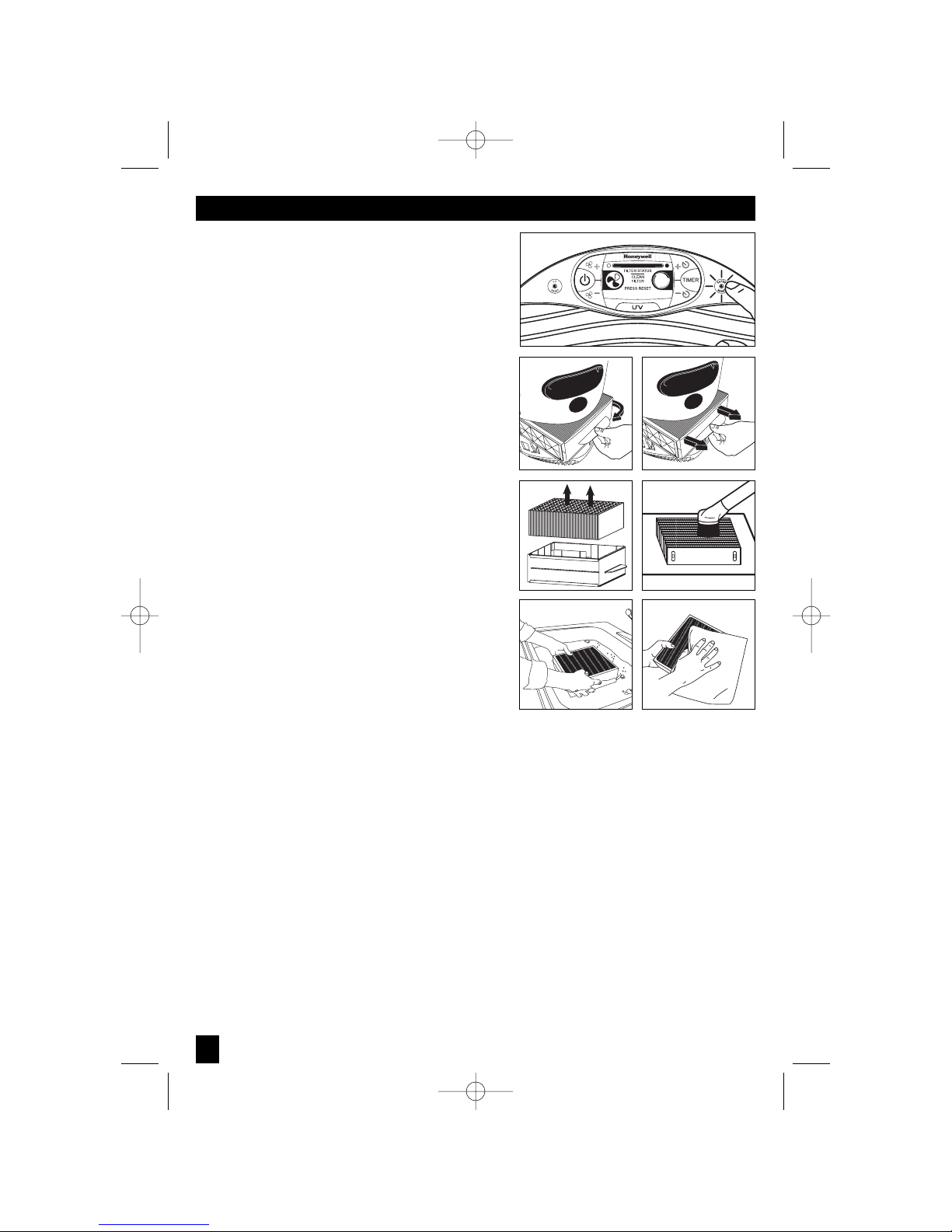

REMOVING / CLEANING THE IFD™FILTER
This IFD™air purifier is equipped with an electronic filter
indicator to serve as a convenient guideline for cleaning the
IFD™and pre-filter based on the air purifier’s hours of use
and operating power level. This is beneficial because a
filter’s life depends on the amount of air and contaminants
drawn through it. As you operate your IFD™Air Purifier, the
filter bar indicator will fill-up from left to right. The bar will
continue to fill as you use the unit. Once the bar is
completely full, the Filter Reset button will illuminate – it is
time to clean the filters and reset the filter indicator.
To reset the filter clean indicator:
• With the power on, press and hold the Filter Reset button
for 10 seconds, or until the filter bar clears itself (Fig. 5).
NOTE: Depending upon your individual usage (environment,
hours and power level of operation), you may need to check
and clean the filters more or less frequently.
To
remove the IFD™filter:
• Make certain that the air purifier is OFF and the unit is
unplugged.
• Remove the rear door panel by turning the rear knob
counter-clockwise and lifting the panel out and up.
• Gently tug the filter basket door towards you – the basket
will first rotate and then slide out of the unit (Fig. 6).
• Continue to slide the basket and remove from the filter
swing arm (Fig. 7).
• Take the IFD™filter out of the filter basket and clean the
filter (Fig. 8).
To
clean the IFD™filter:
• After removing the IFD™Filter from the air purifier, gently
run a vacuum cleaner with a nozzle or brush attachment along the filter to pick-up tiny particles (Fig. 9).
Repeat on both sides.
If your IFD™filter appears to have dirt that has not been removed by vacuuming, please follow the steps
below to wash the IFD™filter.
• Turn the power off and unplug the air purifier.
• Remove the IFD™filter from the unit.
• Fill the sink with lukewarm water and add a few drops of mild dish soap (Fig. 10).
• Gently swish the filter in the soap solution to clean.
• Soak the filter for 2-3 minutes. Do not leave for an extended period of time.
• Rinse the filter with clean tap water.
• Shake the filter to remove any excess water (Fig. 11).
• Place the filter with the honeycomb side down on a plush towel.
•Note that the filter may still be discolored even after washing.
This is acceptable and will not affect performance.
• Allow the IFD™filter to dry for a few hours or overnight.
• When the IFD™filter is completely dry, place back into the air purifier.
Fig. 6 Fig. 7
Fig. 5
Fig. 8 Fig. 9
Fig. 10 Fig. 11
HFD-135 OM English.qxd 10/14/05 5:35 PM Page 4

CAUTION:
•Never place a wet IFD™filter in your air purifier.
• The IFD™Filter is NOT dishwasher safe. Do not place the IFD™filter in a dishwasher or subject it to
other extreme hot water conditions.
• Do not use any solvents, strong cleaning agents or flammable liquids to clean the IFD™filter.
Resetting the Filter Clean Indicator
After cleaning the IFD™filter, you need to reset the filter monitor.
• Once the IFD™filter has been checked and cleaned, the filter monitor will need to be reset.
• With the air purifier unit powered on, press and hold the filter reset button for approximately 10
seconds or until the LCD display is clear.
CLEANING THE PRE-FILTER
The particle pre-filter helps pick-up large airborne particles that enter the filter. The pre-filter can be
removed and rinsed by hand under warm water. Let the pre-filter dry completely before inserting it back
into the unit.
5
REMOVING / CLEANING THE IFD™FILTER (CONTINUED)
REPLACING THE ULTRAVIOLET (UV) LAMPS
The UV Reset LED light will illuminate
when it is time to replace the dual UV
bulbs. “Replace UV Bulb” will also
appear in the control panel.
• Be sure to turn off and unplug your
air purifier.

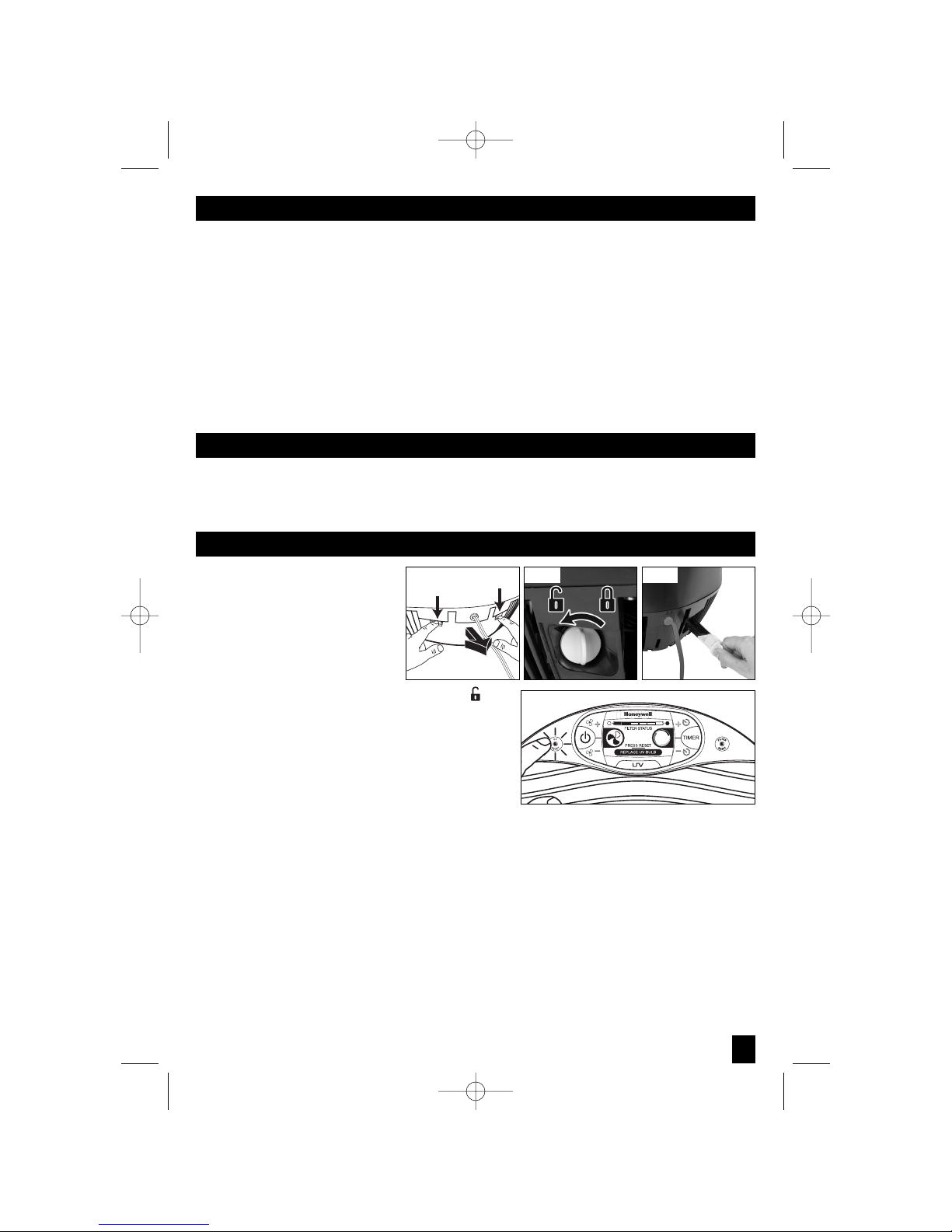

• Remove the UV cover (Fig. 12).
• Turn the UV bulb tab towards the unlock symbol ( )
(Fig. 13).
• Gently grasp the top of the tab and pull the bulb cartridge
straight out of the UV socket (Fig. 14). Do not touch the
bulb directly with your hands.
• Do the same for the other bulb and pull the bulb cartridge
out of the UV socket.
• Replace the left and right UV bulb sockets with new UV
lamps (part number 135UV).
• Discard old UV bulb cartridge(s) only at household hazardous waste collection sites.
• Place UV cover back in to its place until it clicks in position.
• Plug the air purifier back into an electrical socket and turn the air purifier on.
• Press and hold the UV Reset button for 10 seconds to clear the red LED light and “Replace UV Bulb”
message (Fig. 15).
NOTE: Bulb and bulb housing are not intended for use with any other product or purpose.
NOTE: This unit is equipped with a safety interlock. The unit will not operate while the UV cover is
removed.
Fig. 15
Fig. 14
Fig. 12 Fig. 13
HFD-135 OM English.qxd 10/14/05 5:35 PM Page 5

6
FREQUENTLY ASKED QUESTIONS
How often is cleaning required?
The IFD™filter reset light will illuminate to indicate that the IFD™filter should be cleaned. We
recommend cleaning the filter about once a month depending on the air quality of the room.
I just cleaned my filter but the filter indicator bar is still showing it is dirty, what’s wrong?
Each time you clean your filter you must reset the filter life indicator. It is a timer driven indicator to be
used as a guideline, but does not represent the actual amount of dirt in the IFD™filter. Press and hold
the appropriate button for up to 10 seconds and when you let go, the filter indicator bar should be
reset.
The filter indicator bar on my unit is completely full but my filter doesn’t really look dirty.
The filter indicator on your unit is timer-based and does not measure the amount of particles in the
IFD™filter. It is possible that your filter indicator could indicate that the filter is dirty but some particles
are so small that they cannot be seen but are present in the filter. We recommend cleaning the IFD™
filter (see Removing/Cleaning the IFD™Filter in the manual).
CLEANING AND MAINTENANCE
• Use a clean, dry cloth to wipe the external surfaces of the air purifier. DO NOT USE WATER, GASOLINE,
POLISH, OR ANY CHEMICAL SOLUTION.
• The IFD™filter and pre-filter should be cleaned at least once a month, or sooner depending on the air
quality of the room (See
“Removing/Cleaning the IFD™Filter” or “Cleaning the Pre-Filter” respectively).
Please make certain that the unit is OFF and unplugged.
To install the IFD™Filter and pre-filter:
• Insert the pre-filter into the basket first.
• Place the IFD™filter on top of the pre-filter, making certain that the
insert arrows match up with the label outside the basket (Fig. 16).
• Slide the filter basket onto the swing arm and gently push the filter
basket into the air purifier until it clicks into place.
• Replace the rear panel door by lining up the tabs on the
bottom portion of the door with the notches on the air
purifier and then turning the locking knob clockwise
(Fig. 17).
• Turn the locking knob clockwise to lock in place
(Fig. 18).
NOTE: This unit is equipped with a safety interlock. The
unit will not operate while the Rear Door is removed.
INSTALLING THE FILTERS
Fig. 17 Rear
Door
IFD™Filter
Notches
Fig. 16
Cartridge
IFD™Filter
Pre-filter
Fig. 18
HFD-135 OM English.qxd 10/14/05 5:35 PM Page 6

7
REPLACEMENT FILTERS / UV BULBS
To order a replacement pre-filter for the IFD™Air Purifier model HFD-135, visit our website at
www.kaz.com or call us at 1-800-477-0457.
Washable Pre-Filter #60007: $6.25
Replacement UV bulbs (2-pack), model number 135UV: $44.99
The ionizing process used by the air purifier produces small amounts of ozone as a byproduct. The air
purifier complies with U.S. Government limits for acceptable levels of ozone (less than 50 parts per billion
by volume of air circulating through the product). People with a history of respiratory problems or
heart/lung disease should consult a physician prior to using this product.
IMPORTANT NOTE
CONSUMER RELATIONS
Mail questions or comments to:
Kaz, Inc.
Consumer Relations Dept.
250 Turnpike Road
Southborough, MA 01772
Call us toll-free at: 1-800-477-0457
E-mail: [email protected]
Or visit our website at: www.kaz.com
Please be sure to specify a model number.
NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE
YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO
OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE
TO THE AIR PURIFIER OR PERSONAL INJURY.
FREQUENTLY ASKED QUESTIONS (CONTINUED)
My filter bar says my filter is still relatively clean but when I checked my filter it was really dirty.
In conditions where smoke, pets or air with a lot of contaminants are present it is possible that the filter
could be dirty sooner than indicated on the indicator. The filter life indicator on your unit runs on a
timer and if there are more particles in your air than in an average home, your filter could capture
airborne particles sooner than indicated on the display. The indicator is intended to be used as a
guideline and individual environmental conditions will vary.
My unit will not turn on.
The air purifier has a safety feature to ensure that all the covers are in place. The rear cover or the UV
cover may not be installed correctly. Check to make sure the rear cover is installed flush with the unit
and is locked. Check that the UV cover is flush with the unit and is snapped into place.
When do the UV bulbs need to be replaced?
The “Replace UV Bulb” message and light will turn on after 6 months of continuous use, so the bulbs
should be replaced at this time.
Is the IFD™Air Purifier considered an ozone generator?
No. Ozone generators produce large amounts of ozone and the EPA considers these unsafe for
household use.
HFD-135 OM English.qxd 10/14/05 5:35 PM Page 7

5 YEAR LIMITED WARRANTY
YOU SHOULD FIRST READ ALL INSTRUCTIONS
BEFORE ATTEMPTING TO USE THIS PRODUCT.
A. This 5 year limited warranty applies to repair or
replacement of product found to be defective in
material or workmanship. This warranty does
not apply to damage resulting from
commercial, abusive, unreasonable use or
supplemental damage. Defects that are the
result of normal wear and tear will not be
considered manufacturing defects under this
warranty.
KAZ IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE.
ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ON THIS PRODUCT IS
LIMITED IN DURATION TO THE DURATION OF
THIS WARRANTY.
Some jurisdictions do not allow the exclusion or
limitation of incidental or consequential
damages or limitations on how long an implied
warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty
gives you specific legal rights, and you also
may have other rights which vary from
jurisdiction to jurisdiction. This warranty applies
only to the original purchaser of this product
from the original date of purchase.
B. At its option, Kaz will repair or replace this
product if it is found to be defective in material
or workmanship. Defective product should be
returned to the place of purchase in
accordance with store policy. Thereafter, while
within the warranty period defective product
may be returned to Kaz.
C. This warranty does not cover the IFD™filter or
pre-filter except for material or workmanship
defects.
D. This warranty does not cover damage resulting
from any unauthorized attempts to repair or
from any use not in accordance with the
instruction manual.
E. Return defective product to Kaz, Inc. with a
brief description of the problem. Include proof
of purchase and a $10 US/$15.50 CAN check
or money order for handling, return packing
and shipping charges. Please include your
name, address and a daytime phone number.
You must prepay shipping charges. Send to:
In U.S.A.:
Kaz, Inc.
Attn: Returns Department
4755 Southpoint Drive
Memphis, TN 38118
USA
In Canada:
Kaz, Inc.
Attn: Returns Department
510 Bronte Street South
Milton, ON L9T 2X6
Canada
© 2005 Kaz, Incorporated. All Rights Reserved.
P/N: 31IM0135190
HFD-135 OM English.qxd 10/14/05 5:35 PM Page 8
