Honeywell CN75 User manual

Page | 1
GLOBAL
Honeywell Repair Services
SVCCN75-5FC3 CN75, PLUS, 5 Day Turnaround, 3 Year, Day One
WEH6.5 WEH6.5 WEH6.5 WEH6.5

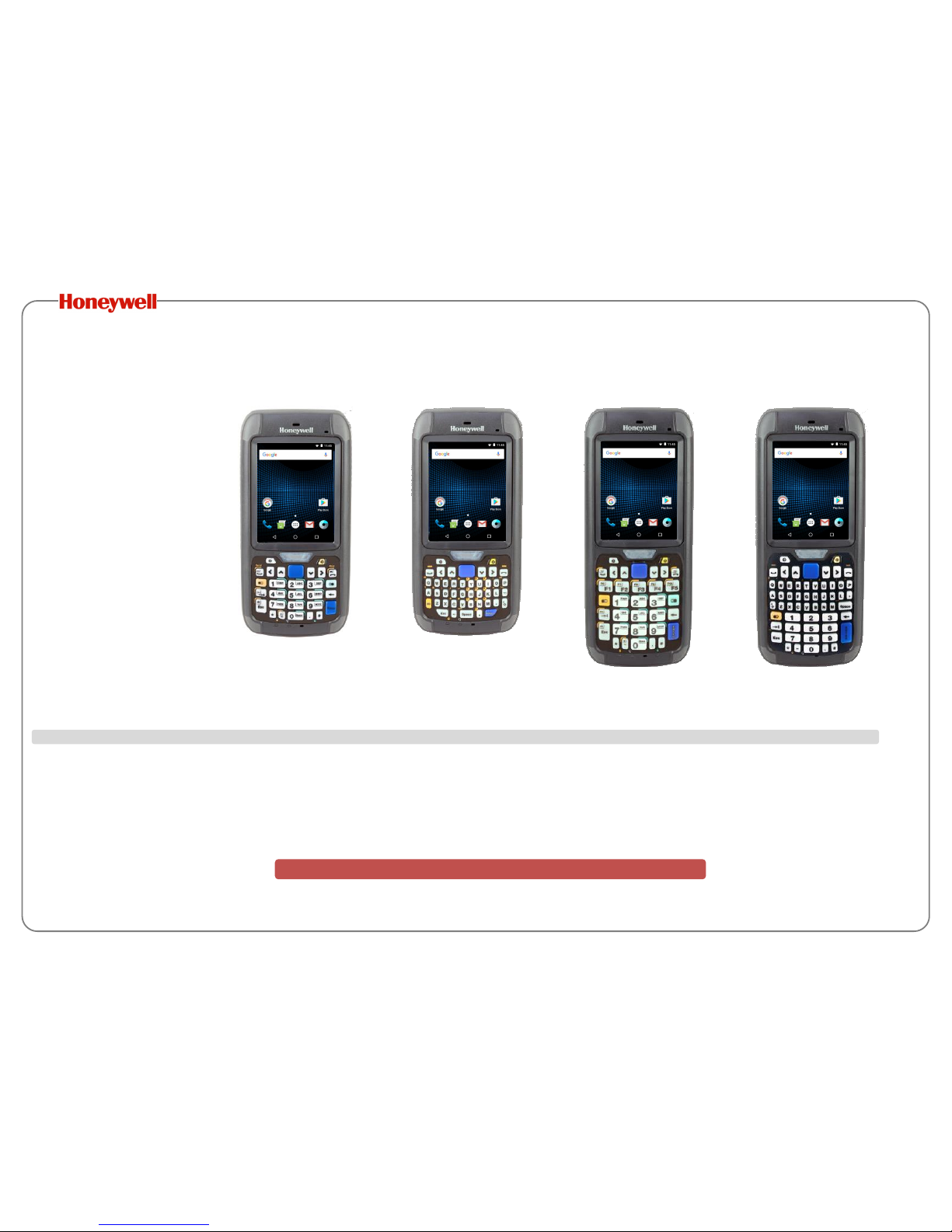

CN75 Numeric CN75 QWERTY CN75e Numeric Function CN75e QWERTY Numeric
3G UMTS + GPS + 802.11a/b/g/n + Bluetooth CN75AN5KCF2W710x CN75AQ5KCF2W710x CN75EN7KCF2W710x CN75EQ6KCF2W710x
(WiFi Only) 802.11a/b/g/n + Bluetooth CN75AN5KC00W410x CN75AQ5KC00W410x CN75EN7KC00W410x CN75EQ6KC00W410x
(Note: x = Domain, select appropriate Domain from Configuration Map on page 3 and 4)
All CN75 Computers include a battery
318-043-033 Battery Pack - CN7x
CN75/CN75e Computer - Configuration Guide
What are the options available on the CN75/CN75e?
Windows

Page | 2
GLOBAL
Honeywell Repair Services
SVCCN75-5FC3 CN75, PLUS, 5 Day Turnaround, 3 Year, Day One
Android 6 Android 6 Android 6 Android 6
CN75 Numeric CN75 QWERTY CN75e Numeric Function CN75e QWERTY Numeric
3G UMTS + GPS + 802.11a/b/g/n + Bluetooth CN75AN5KCF2A610x CN75AQ5KCF2A610x CN75EN7KCF2A610x CN75EQ6KCF2A610x
(WiFi Only) 802.11a/b/g/n + Bluetooth CN75AN5KC00A610x CN75AQ5KC00A610x CN75EN7KC00A610x CN75EQ6KC00A610x
(Note: x = Domain, select appropriate Domain from Configuration Map on page 3 and 4)
All CN75 Computers include a battery
318-043-033 Battery Pack - CN7x
CN75/CN75e Computer - Configuration Guide
What are the options available on the CN75/CN75e?
Android

Page | 3
GLOBAL

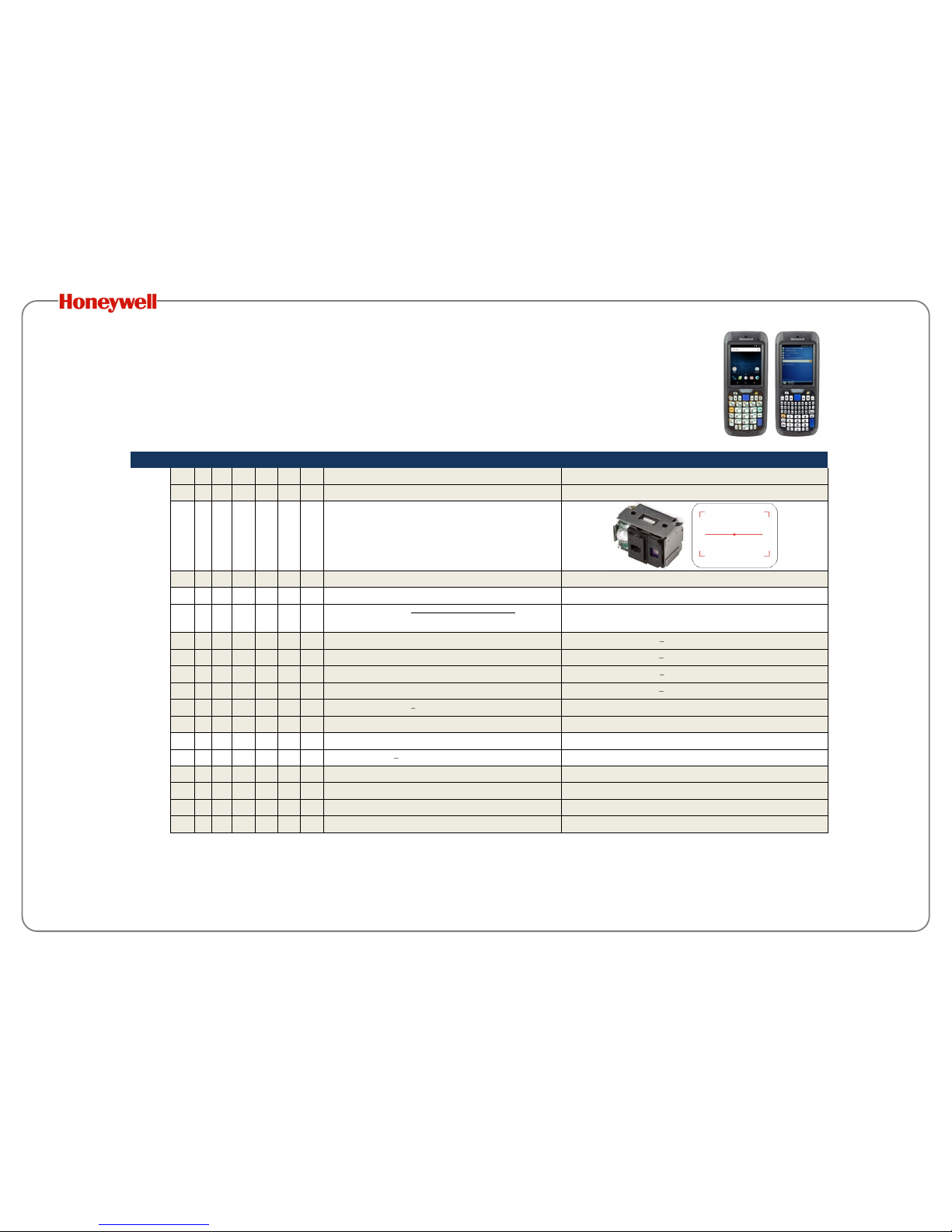

CN75 Configuration Map
Keyboard
Scan Engine
Camera
Radio
Operating System
Customization
Domain
Description
Notes
CN75A
N5
Numeric / 2GB RAM / 16GB Flash
Q5
QWERTY / 2GB RAM / 16GB Flash
K
EA30 Standard Range 2D Area Imager
C
5MP Camera
00
802.11a/b/g/n + Bluetooth® Power Class 1.5 Version 4
Requires OS Option W1, W4, A5 or A6
F2
Flexible Network Radio for NA, LATAM, Australia/NZ
GPS
WLAN - 802.11 a/b/g/n + Bluetooth® Power Class 1.5 Version 4
Requires OS Option W6, W7, A5 or A6
W1
Windows Embedded Handheld 6.5.3 WWE WLAN Only
World Wide English (WWE) WiFi Only Build
W4
Windows Embedded Handheld 6.5.3 LP WLAN Only
Language Provisioned (LP) WiFi Only Build
W6
Windows Embedded Handheld 6.5.3 WWE Professional
World Wide English (WWE) 3G UMTS Build
W7
Windows Embedded Handheld 6.5.3 LP Professional
Language Provisioned (LP) 3G UMTS Build
A5
Android 6 Marshmallow Non-GMS
A6
Android 6 Marshmallow - GMS
10
Standard Software
11
Standard Software Non-Incendive (NI) certified
0
FCC
North America
1
ETSI
Europe
2
ANZ / ARG
Australia/ New Zealand
3
Miscellaneous
2.4GHz Only

Page | 4
GLOBAL
CN75e Configuration Map
Keyboard
Scan Engine
Camera
Radio
Operating System
Customization
Domain
Description
Notes
CN75E
N7
Numeric Function / 2GB RAM / 16GB Flash
Q6
QWERTY Numeric / 2GB RAM / 16GB Flash
K
EA30 Standard Range 2D Area Imager
C
5MP Camera
00
802.11a/b/g/n + Bluetooth® Power Class 1.5 Version 4
Requires OS Option W1, W4, A5 or A6
F2
Flexible Network Radio for NA, LATAM, Australia/NZ
GPS
WLAN - 802.11 a/b/g/n + Bluetooth® Power Class 1.5 Version 4
Requires OS Option W6, W7, A5 or A6
W1
Windows Embedded Handheld 6.5.3 WWE WLAN Only
World Wide English (WWE) WiFi Only Build
W4
Windows Embedded Handheld 6.5.3 LP WLAN Only
Language Provisioned (LP) WiFi Only Build
W6
Windows Embedded Handheld 6.5.3 WWE Professional
World Wide English (WWE) 3G UMTS Build
W7
Windows Embedded Handheld 6.5.3 LP Professional
Language Provisioned (LP) 3G UMTS Build
A5
Android 6 Marshmallow Non-GMS
A6
Android 6 Marshmallow - GMS
10
Standard Software
11
Standard Software Non-Incendive (NI) certified
0
FCC
North America
1
ETSI
Europe
2
ANZ / ARG
Australia/ New Zealand
3
Miscellaneous
2.4GHz Only

Page | 5
GLOBAL
Honeywell Repair Services
CN75/CN75e Repair Services
For Best-In-Class Service
ur business. And our repair services are now available in over 70 countries with global
pricing and global standards of quality.
Choose from one of our new cost-effective Repair Service contract programs Complete, Plus or Basic to get the right amount of coverage and protection you need for your durable, rugged and ultra-rugged
products. And for equipment not covered by a contract service plan, you can choose from our Non-Contract Repair Service offerings, which include flat-rate repairs, time-and-materials repairs and more.
Ensure business continuity, workflow performance and protection of your technology investments with Honeywell Repair Services.
Part# Description
SVCCN75-5FC3 CN75, PLUS, 5 Day Turnaround, 3 Year Day One
SVCCN75-5FC5 CN75, PLUS, 5 Day Turnaround, 5 Year Day One
SVCCN75-2FC3 CN75, PLUS, 2 Day Turnaround, 3 Year, Day One
SVCCN75-2FC5 CN75, PLUS, 2 Day Turnaround, 5 Year, Day One
Plus Repair Services
Protect your technology year Plus comprehensive repair
eyond the plan enrollment for service on
covered devices and eligible accessories included with equipment sent to the depot for service.
Eligible accessories include damaged styluses, battery-door covers, screen protectors, hand
straps and clips.
Service Overview
Features and benefits include:
Comprehensive coverage including device replacement for rugged or stationary products
Day One multi-year pricing for lower annualized costs
Three years of locked-in service-price protection, with optional renewals
Options for 2-day and 5-day service levels
Cleaning and preventive maintenance
Telephone-based technical support
Convenient online Return Authorization requests and access to online service-history reports
Plus coverage must be purchased within 30 days of equipment purchase
Part# Description
SVCCN75-2PS5 CN75, COMPLETE, 2 Day Turnaround, 5 Year Day One,
Includes Power Management Protection,
Battery Refresh and Software Maintenance
Complete Repair Services
-year Complete comprehensive repair
services plan, one contract covers it all device, power management and accessories. Eligible
accessories and power management for mobile computers include: batteries, docks, chargers,
cradles, cables, damaged styluses, battery-door covers, screen protectors, hand straps and
clips.
Service Overview
Features and benefits include:
Comprehensive coverage including device replacement for rugged or stationary products
Coverage for power management and select accessories
Day One multi-year pricing for lower annualized costs
Five years of locked-in service-price protection
Options for overnight and 2-day service levels
Cleaning and preventive maintenance
Telephone-based technical support
Convenient online Return Authorization requests and access to online service-history reports
Complete coverage must be purchased within 30 days of equipment purchase

Page | 6
GLOBAL
Honeywell Repair Services
CN75/CN75e Repair Services
For Best-In-Class Service
Part# Description
SVCCN75-EXW2 CN75, BASIC, 10-15 Day Turnaround, 2 Years (1 Year Factory Warranty + 1 Year Extended)
SVCCN75-5FC3 CN75, PLUS, 5 Day Turnaround, 3 Year, Day One
SVCCN75-2PS5 CK75, COMPLETE, 2 Day Turnaround, 5 Year Day One, Includes Power Management Protection, Accessory Coverage and
Software Maintenance for Client Pack.

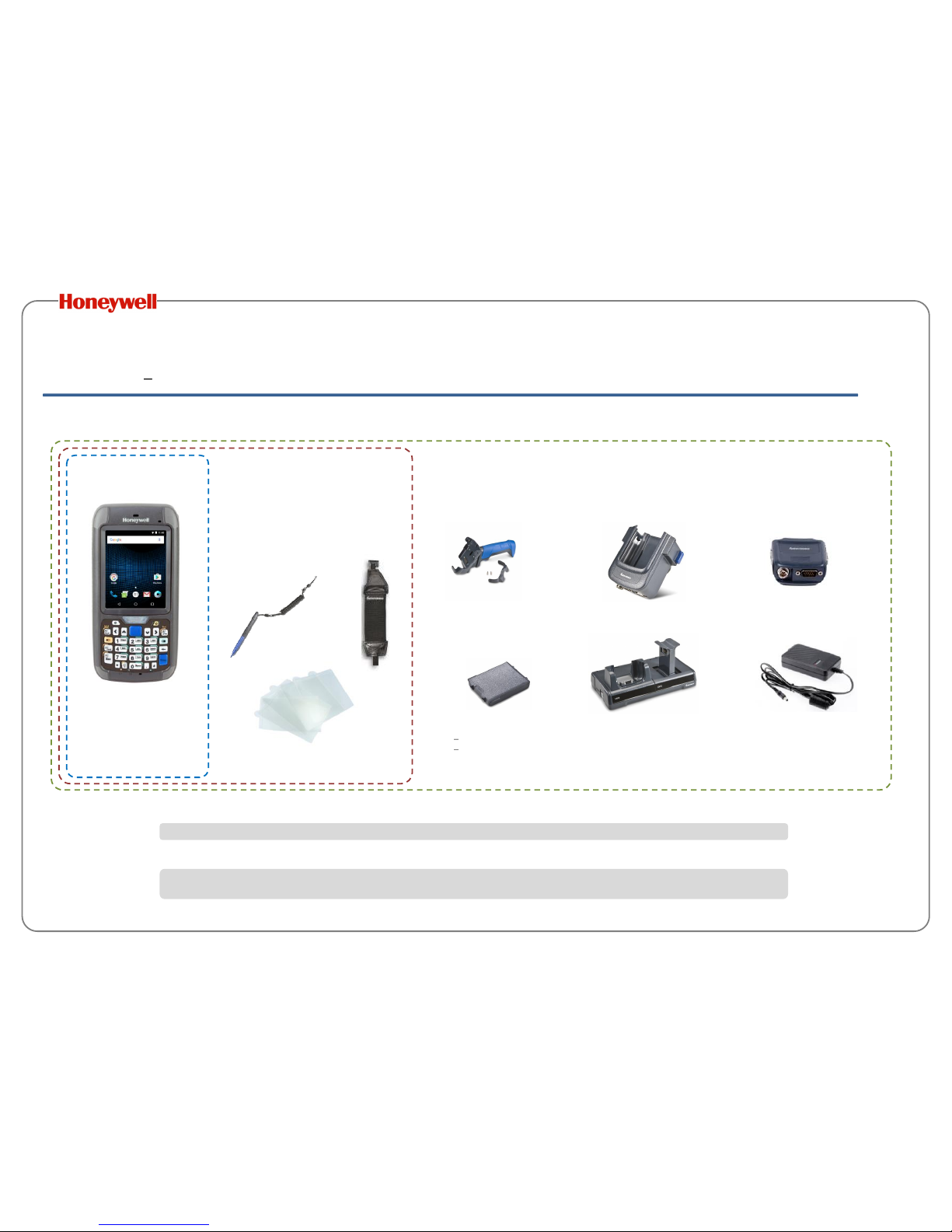

CN75/ CN75e
Warranty Cover
Against Product Defect
BASIC Service
Comprehensive Coverage:
Accidental Damage
Device Replacement
Wear & Tear
Includes Replacement of:
Hand Strap
Screen Protector
Stylus
PLUS Service
COMPLETE Service
Pistol Grip Vehicle Dock Snap-On Chargers
Battery FlexDocks Dock Power Supplies
(3 Year 1 replacement battery per CN75/CN75e)
(5 Year 2 replacement batteries per CN75/CN75e)
Complete Coverage
Battery Replacement
Coverage for Docks/ Chargers
Software Maintenance for Client Pack (Enterprise TE + Browser)
Accidental Damage
Device Replacement
Wear & Tear

Page | 7
GLOBAL
CN75/ CN75e Accessory
Scan Handle
Part Number Description
1805-835-001 Scan Handle, CN70/CN75/CN70e/CN75e
User installable Scan Handle for scan intensive applications.
Scan Handle Screws to the
CN75 back cover.

Page | 8
GLOBAL
CN75/CN75e Vehicle Install
Option 1 Fixed Vehicle Install with DC/DC Converter
Part Number Description
1871-034-001 Vehicle Dock, CN7x, RoHS (Provides USB (HDB15M) and RS232 (DB9M) receptacles).
2203-808-001 DC/DC Converter Kit, 6-60V DC, RoHS
OR 203-809-001 DC/DC Converter Kit, 15-96V DC RoHS
3805-638-001 Mounting Kit,CN3/70 Series/CS40 Vehicle Holder
Honeywell Repair Services
SVCCN7XACC-5FC3 CN7X Accessory (Chargers, Docks, Only), Full Comprehensive, 5 DAY, 3 Year, Day One
Best used when the vehicle input voltage varies, 12, 24, 36, 48V.
Variable Voltage

Page | 9
GLOBAL

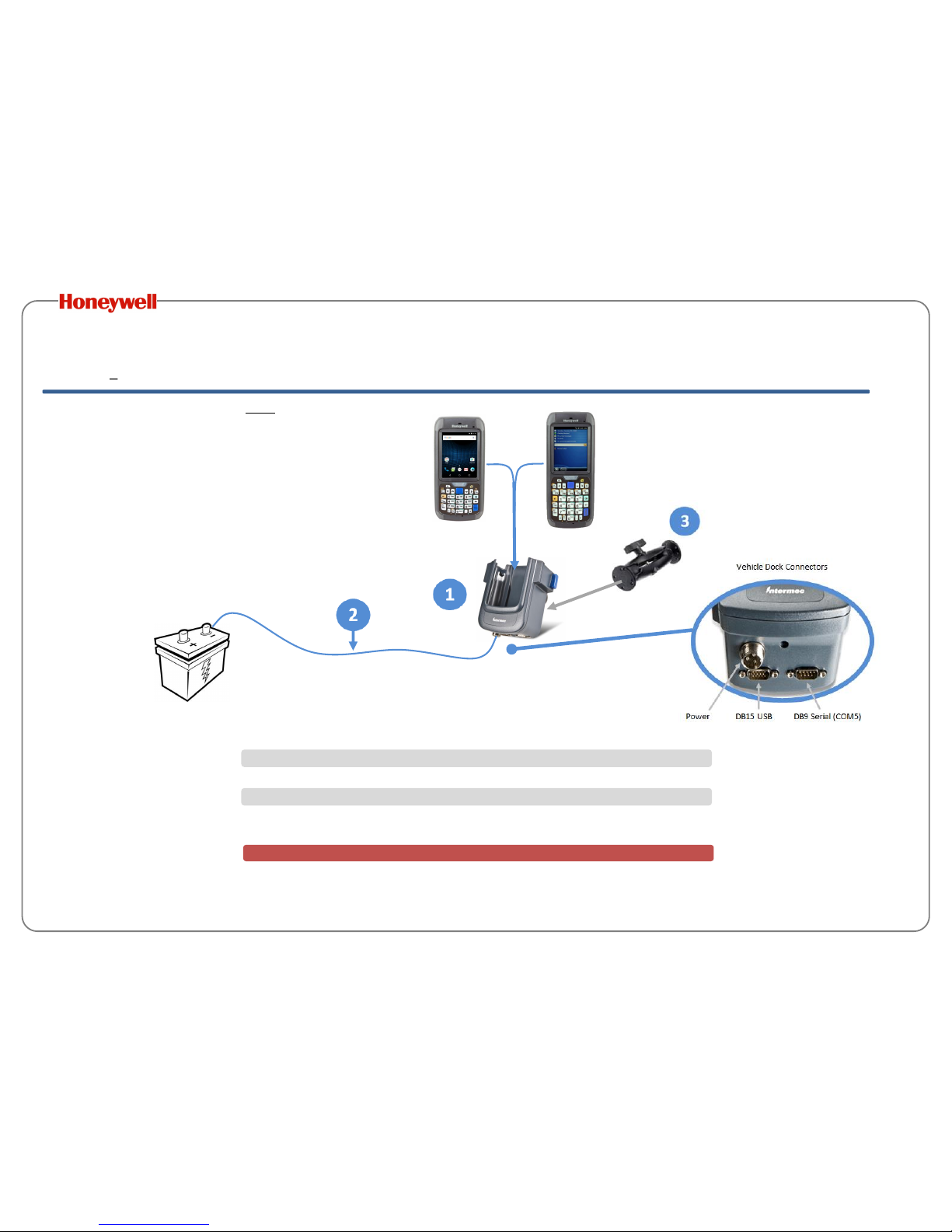

CN75/CN75e Vehicle Install
Option 2 Fixed Vehicle Install with direct connection to vehicle battery.
Part Number Description
1871-034-001 Vehicle Dock, CN7x, RoHS (Provides USB (HDB15M) and RS232 (DB9M) receptacles).
2203-802-001 Vehicle Dock Installation Kit RoHS (Includes power cables and cable mounting hardware.)
3805-638-001 Mounting Kit,CN3/70 Series/CS40 Vehicle Holder
Honeywell Repair Services
SVCCN7XACC-5FC3 CN7X Accessory (Chargers, Docks, Only), Full Comprehensive, 5 DAY, 3 Year, Day One
Only use when the vehicle input voltage is between 10-32V.
10-32V

Page | 10
GLOBAL
CN75/CN75e Vehicle Install
Option 3 Portable Charging in Vehicle Option 4 Portable Vehicle Install with Mount.
Part Number Description Part Number Description
1850-567-001 Snap-on Adapter, USB 1871-034-001 Vehicle Dock, CN7x, RoHS
2852-071-001 Vehicle Power Adapter, 70 Series 3-pin 2852-057-005 Auto Adapter, V-Docks, 3SCircular, RoHS
(3-pin connector for use with 70 Series Snap-on Adapters) 3RAM-B-166-202U Suction Cup Mount Kit
Honeywell Repair Services
SVCCN7XACC-5FC3 CN7X Accessory (Docks Only), Full Comprehensive, 5 DAY, 3 Year, Day One
Power Option: Connects to vehicle accessory port / cigarette lighter port)
Portable between vehicles, and mounts to the vehicle windscreen.
Power Option: Connects to vehicle accessory port / cigarette lighter port)
12-24V
12-24V

Page | 11
GLOBAL
CN75/CN75e Charging and Communications
Option 1 Snap-on Charging and USB Option 2 Single Dock with 2 x Spare Battery Charging
Part Number Description Part Number Description
1850-567-001 Snap-on Adapter, USB 1DX1A01A20 Desktop Dock,USB,Battery,CN7x No Power Cord (Power Supply Included)
2VE011-2018 Cable, Developers CN3/CN4/CV30/70 Series. 2871-238-012 Ethernet Module, Single Dock-FlexDock
3** AC Power Cord See Page 16 for Country Specific Power Cords 3** AC Power Cord See Page 16 for Country Specific Power Cords
4851-094-011 AC Power Supply, 70 Series 3-pin 4236-209-001 Cable Assy, USB-A to USB-microB, 1M
Honeywell Repair Services
SVCFLEXDOCK-5FC3 FlexDock, All Versions, Full Comprehensive, 5 Day Turnaround, 3 Year Day One
Portable charging and USB communications
USB and Spare Battery Charging
Can charge up to two
batteries simultaneously
DB15 USB Connector

Page | 12
GLOBAL
CN75/CN75e Charging and Communications

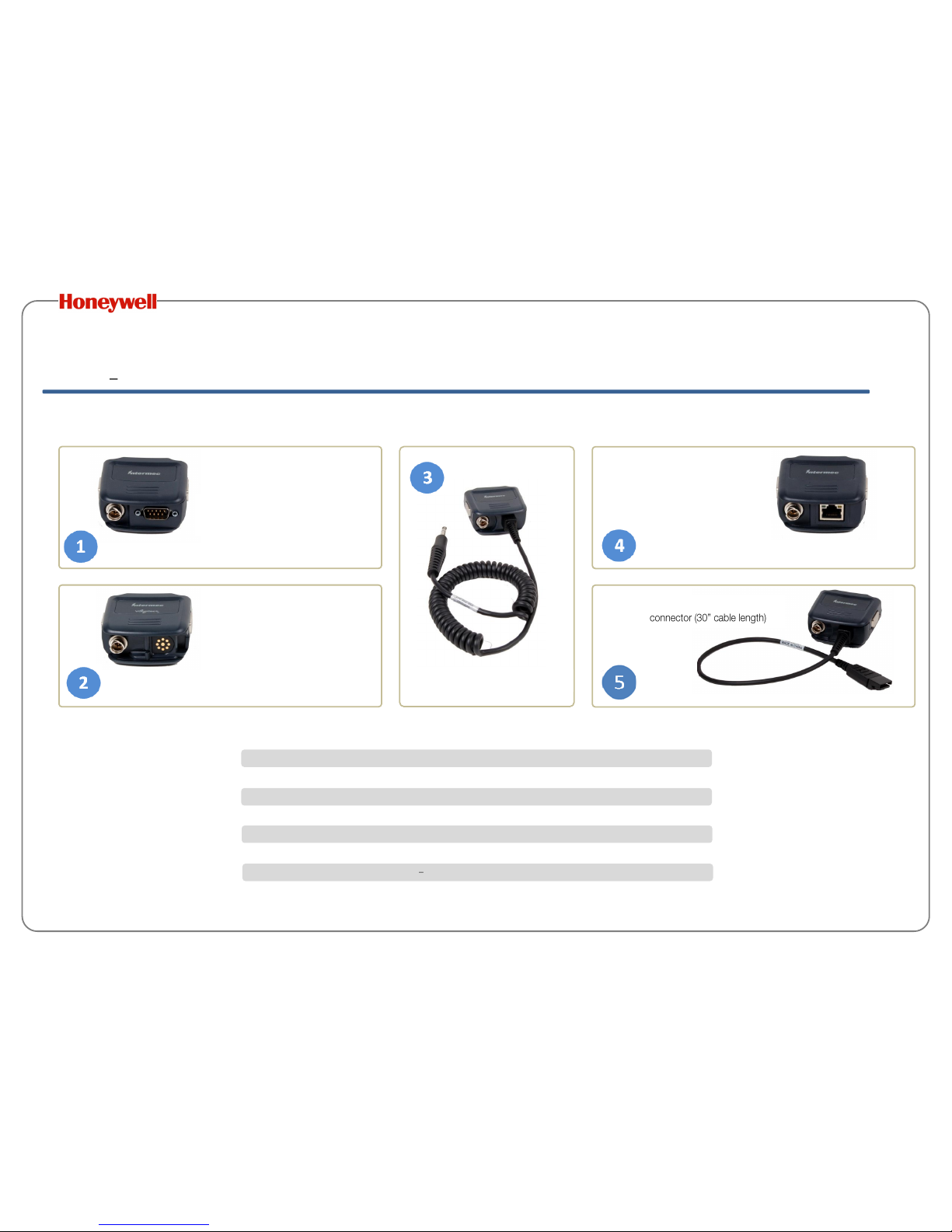

Option 3 Snap-On Adapters - Serial/ Vocollect/ DEX/ Ethernet and Audio.
Part Number Description
1850-566-001 Snap-on Adapter, RS232
2850-569-001 Snap-on Adapter, VOCOLLECT
3850-568-001 Snap-on Adapter, DEX
4850-565-001 Snap-on Adapter, Ethernet
5850-577-001 Snap-On Adapter, Audio, Standard RoHS
All Snap-On adapter use Power Supply ** 851-094-011 AC Power Supply, 70 Series 3-pin
** AC Power Cord See Page 16 for Country Specific Power Cords
Choose from a variety of Snap-On adapter to extend I/O on the CN75.
RS-232 baud supports 50 to 115.2kbps
5V @ 0.5A (2.5W) available on Pin 9
Full Speed 10/100Mbps
Supports HP_AUTO_MDIX for
automatic crossover cable correction
Quick Disconnect Audio cable
Audio connector supports standard
Vocollect headsets
DEX Baud rate 9600bps supported

Page | 13
GLOBAL
CN75/CN75e Charging and Communications

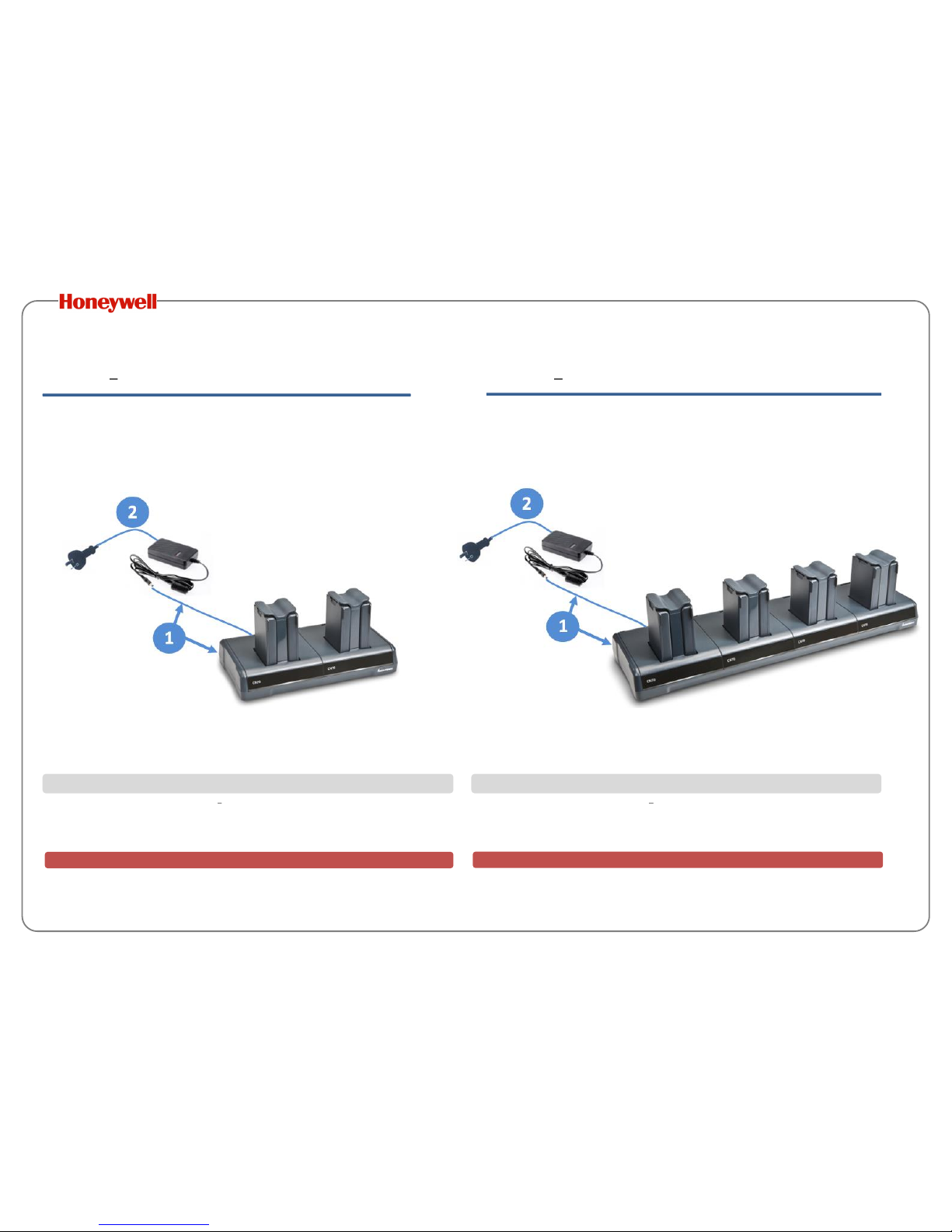

Dual FlexDock
Part Number Description
1DX2A11120 Dual Dock, Ethernet, CN7x, No Power Cord (Power Supply Included)
OR DX2A21120 Dual Dock, Charge Only, CN7x, No Power Cord (Power Supply Included)
2AC Power Cord See Page 16 for Country Specific Power Cords
Honeywell Repair Services
SVCFLEXDOCK-5FC3 FlexDock, All Versions, Full Comprehensive, 5 Day Turnaround, 3 Year Day One
Ethernet
Charge Only
Rear View Ethernet Dock

Page | 14
GLOBAL
CN75/CN75e Charging and Communications
Quad FlexDock
Part Number Description
1DX4A1111100 Quad Dock, Ethernet, CN7x, No Power Cord (Power Supply Included)
OR DX4A2111100 Quad Dock, Charge Only, CN7x, No Power Cord (Power Supply Included)
2AC Power Cord See Page 16 for Country Specific Power Cords
Honeywell Repair Services
SVCFLEXDOCK-5FC3 FlexDock, All Versions, Full Comprehensive, 5 Day Turnaround, 3 Year Day One
Ethernet
Charge Only
Rear View Ethernet Dock

Page | 15
GLOBAL
CN75/CN75e Charging and Communications
Option 1 4-Position Charging Option 2 8-Position Charging
Part Number Description Part Number Description
1DX2A2AA20 4-position Battery Charger, CN7x, No Power Cord (Power Supply Included) 1DX4A2AAAA00 8-position Battery Charger, CN7x, No Power Cord (Power Supply Included)
2** AC Power Cord See Page 16 for Country Specific Power Cords 2** AC Power Cord See Page 16 for Country Specific Power Cords
Spare 318-043-033 Battery Pack - CN7x Spare 318-043-033 Battery Pack - CN7x
Honeywell Repair Services Honeywell Repair Services
SVCFLEXDOCK-5FC3 FlexDock, All Versions, Full Comprehensive, 5 Day Turnaround, 3 Year Day One SVCFLEXDOCK-5FC3 FlexDock, All Versions, Full Comprehensive, 5 Day Turnaround, 3 Year Day One
Supports Batteries: 318-043-033- Battery Pack - CN7x (4000mAh)
Supports Batteries: 318-043-033- Battery Pack - CN7x (4000mAh)

Page | 16
GLOBAL
1
Miscellaneous
Part Number Description
1856-065-004 MICRO-SD CARD, 1GB, AF1GUDI, ROHS
OR 856-065-005 MICRO-SD CARD, 2GB, AF2GUDI, ROHS
OR 856-065-006 MICRO-SD CARD, 4GB, AF4GUDI, ROHS
OR 856-065-007 MICRO-SD CARD, 8GB, AF8GUDI, RoHS
Why ATP Industrial Grade SD?
ATP's SIP (System-In-Packaging) manufacturing process encapsulates all exposed components and
points of failure to ensure the products are fully waterproof, shockproof, and ESD (Electro-Static
Discharge) proof. ATP Industrial Grade SD/SDHC Cards can withstand at least an operating/storage
temperature range of at least -40 to 85 degrees Celsius. In addition to this temperature range, the
cards are completely waterproof, dustproof, and ESD (Electro-Static Discharge) proof. All ATP
Industrial Grade SD/SDHC cards are produced under a stringent RoHs and Green Package compliant
manufacturing process to guarantee a consistent high level of build quality and performance. ATP
Industrial SD cards deliver outstanding performance with read speed (seq) up to 18MB/sec and
write speed (seq) up to 16MB/sec. All ATP Industrial Grade CF, SD, USB drives, and SSDs are
constructed using best-in-class SLC(Single-Level Cell) components with enhanced Error Correction
Code(ECC) functions and wear levelling algorithms. This results in MTBF ratings over 2 million hours
and the highest write cycle lifetimes in the industry.
Honeywell Recommended ATP Industrial Grade Micro SD Cards
AC Cords
Part Number Description
9000097CABLE AC Power Cord, Australia
071918 AC Power Cord, China
9000091CABLE AC Power Cord, Denmark
9000090CABLE AC Power Cord, Europe
321-502-002 AC Power Cord, India & South Africa
9000092CABLE AC Power Cord, Italy
321-500-002 AC Power Cord, Japan
9000093CABLE AC Power Cord, Switzerland
9000094CABLE AC Power Cord, United Kingdom
1-974028-025 AC Power Cord, United States

Page | 17
GLOBAL
454-087-001 License, Android 6 Cx75, Conversion
OS Conversion
WEH6.5 Android 6
Operating System Conversion License
Convert the CN75/CN75e Operating System.
Windows Embedded Handheld 6.5 Android 6.0 Marshmallow

Page | 18
GLOBAL
Disclaimer
specification and other information contained in this document without prior
notice, and the reader should in all cases consult HII to determine whether any
such changes have been made. The information in this publication does not
represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages resulting the furnishing,
performance, or use of this material.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated into another language with-out prior written consent
of HII.
Web Address: www.honeywellaidc.com
The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A and
licensed to Honeywell.
Other product names mentioned in the manual may be trademarks of
registered trademarks of their respective companies and are the property of
their respective owners.
© 2018 Honeywell International Inc. All rights reserved.
