Dolphin™ 70e Black
powered by Android™4.0
Quick Start Guide
70E-AND-QS Rev B
6/13

Out of the Box
Verify that your carton contains the following items:
• Dolphin 70e Black mobile computer (terminal)
• 1GB, 2GB, or 4GB industrial grade microSD™ card (pre-installed)
• Rechargeable 3.7V Li-ion battery
• USB charge/communication cable
• Power adapter with regional plug adapters
• Quick Start Guide
• Compliance Regulatory Sheet
If you ordered accessories for your terminal, verify that they are also included
with the order. Be sure to keep the original packaging in case you need to
return the Dolphin terminal for service.
Note: Your Dolphin model may differ from the model illustrated in this guide;
however, the features noted are standard for all Dolphin 70e Black models
powered by Android™ unless otherwise indicated.
Memory Card Specifications
Applications on your Dolphin 70e Black terminal utilize the microSD card to
store files and application data. Memory card use is recommended to avoid
potential application errors or possible data loss.
Honeywell recommends the use of Single Level Cell (SLC) industrial grade
microSD or microSDHC™ memory cards with Dolphin terminals for maximum
performance and durability. Contact a Honeywell sales representative for
additional information on qualified memory card options.

Getting to Know the Dolphin 70e Black
Front
Microphone*
Scan Button
General Notification LED
Right Scan/
Image Button
USB Door/
Micro USB
Port
Search Button
Menu Button
Side
Microphone*
Home Button
Back Button
WAN Notification
LED
Front Speaker
Touch Panel
Display
Bottom Speaker
Note: Noise cancellation is available on WWAN models only.
*Important - Do not cover the side microphone with your hand
when using the terminal for phone calls. Both the front and side
microphones must be free from obstruction for the noise
cancellation feature to function during handset calls.

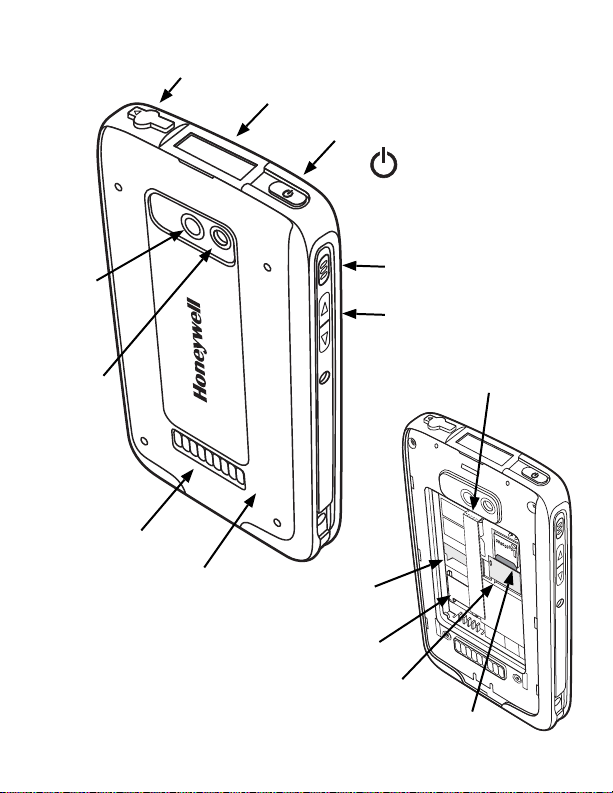

Camera
Flash
Color
Camera
Lens
I/O Connector
Battery Door
(standard model shown)
Volume Control Button
Left Scan/Image Button
Power Button
Audio Jack
Scan/Image Engine Window (LED aperture)
Memory Card Socket with microSD Card (pre-installed)
Memory Card Retention Flap
SIM Card
Retention Flap
SIM Card Socket
Battery Latch and Retention Strap
(battery and battery door not shown)

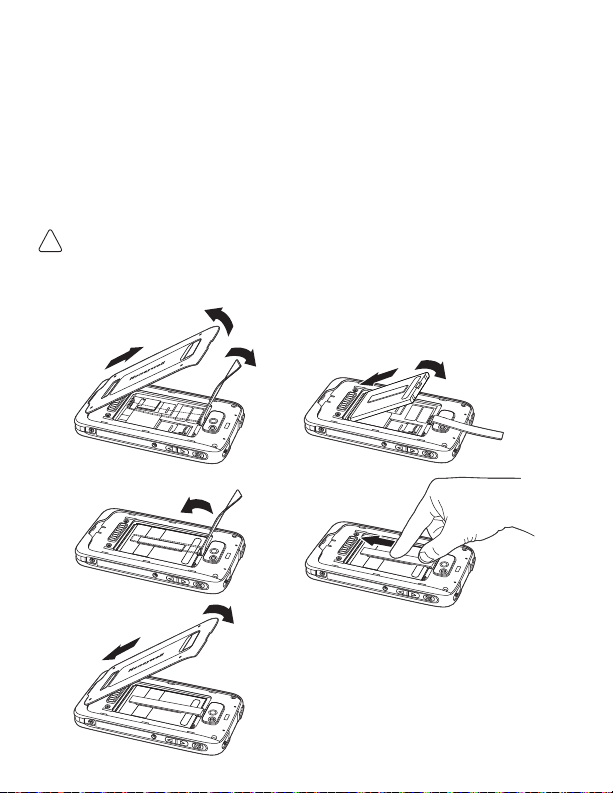

Installing the Battery
Dolphin 70e Black model terminals are designed for use with battery part
numbers BAT-STANDARD-01 (Li-ion 3.7 V, 6.179 watt hour) and
BAT-EXTENDED-01 (Li-ion 3.7 V, 12.358 watt hour), manufactured for
Honeywell International Inc.
The Dolphin 70e Black is shipped with the battery packaged separately from
the terminal. Perform the steps illustrated below to install the battery.
Ensure all components are dry prior to placing the battery in the
terminal. Mating wet components may cause damage not covered by
the warranty.
!
23
4
6
7
1
5
Note: Standard model battery
and battery door shown.
89

We recommend use of Honeywell Li-ion battery packs. Use of any non-
Honeywell battery may result in damage not covered by the warranty.
Once the battery is installed, connect the terminal to one of the Dolphin 70e
Black charging peripherals to charge the battery.
Charging the Dolphin 70e Black
Dolphin terminals ship with the battery significantly discharged of power.
Charge the battery with a Dolphin charging device for a minimum of 4 hours
for the standard battery and 6 hours for the extended battery. When using the
70e-USB Charge/Communication cable to charge from a 500mA USB port on
a host device, charge the battery for a minimum of 6 hours for the standard
battery and 8 hours for the extended battery.
Note: Using the terminal while charging the battery significantly increases the time
required to reach a full charge.
We recommend use of Honeywell peripherals, power cables, and power
adapters. Use of any non-Honeywell peripherals, cables, or power
adapters may cause damage not covered by the warranty.
Dolphin 70e Black model terminals powered by Android are designed for use
with the following charging devices and cables: 70e-HB, 70e-CB, 70e-MB,
70e-MC, and the 70e-USB ADAPTERKIT.
Ensure all components are dry prior to mating terminals/batteries with
peripheral devices. Mating wet components may cause damage not
covered by the warranty.
HomeBase (Model 70e-HB)
The 70e-HB charger is designed for use with Dolphin 70e Black model
terminals, and battery part numbers BAT-STANDARD-01 (Li-ion 3.7V,
6.179 watt hour) and BAT-EXTENDED-01 (Li-ion 3.7V, 12.358 watt hour),
manufactured for Honeywell International Inc.
Use only a UL Listed power supply, which has been qualified by Honeywell
with output rated at 12VDC and 3 amps with the device.
!
!
!

HomeBase Parts
HomeBase LED Indicators
AUX battery LED
Orange The auxiliary battery is charging.
Green The auxiliary battery has completed charging and is ready
for use.
Dock LED
Blue The terminal is properly seated in the base.
COMM LED
Green A USB connection is established with the host workstation.
2
AUX Battery Well
AUX
Battery LED
COMM LED
Dock LED
AC Power Cord
USB Port
DC Power
Jack
Power Adapter
Power Cable

USB Charge/Communication Cable (70e-USB ADAPTERKIT)
The USB Charge/Communication cable provides two options for charging
the terminal. Use the cable in conjunction with the provided power supply
adapter and plug adapter to charge the terminal from a power outlet or
connect the cable to a high-power USB port to charge from a host device.
Option 1: Charging from a power outlet
Use only a UL Listed power supply, which has been qualified by Honeywell
with an output rated at 5VDC and 1A with the device.
Option 2: Charging from a USB port on a host device
Note: Charging the battery through a USB port takes more time than direct AC
adapter charging. USB charging will not take place if the terminal is drawing
more current than supplied by the USB port.
Touch > Settings
> Battery to verify the battery is charging.
Power
Adapter
Micro USB Port
USB Door
Plug Adapter 70e-USB Charge/
Communication Cable
Micro USB
Port
USB
Door
Host Device
USB Port
70e-USB Charge/
Communication Cable

Turning Power On/Off
To turn the terminal On, press and release the Power button .
To turn the terminal Off:
1. Press and hold the Power button until the Phone Options menu
displays.
2. Touch Power Off.
Suspend Mode
Suspend mode automatically turns the touch screen off and locks the
terminal to save battery power when the terminal is inactive for a programmed
period of time.
1. Press and release the Power button to toggle the terminal in or out of
Suspend mode.
2. Drag to the right on the touch screen or press the menu button to
unlock the terminal.
To adjust the timeout limit, touch > Settings > Display > Sleep.
Note: You should always place the terminal into Suspend mode before removing
the battery.
Airplane Mode
1. Press and hold the Power button until the Phone Options menu dis-
plays.
2. Touch Airplane Mode to toggle the mode ON or OFF.
Note: When Airplane Mode is turned on, shows on the status bar.

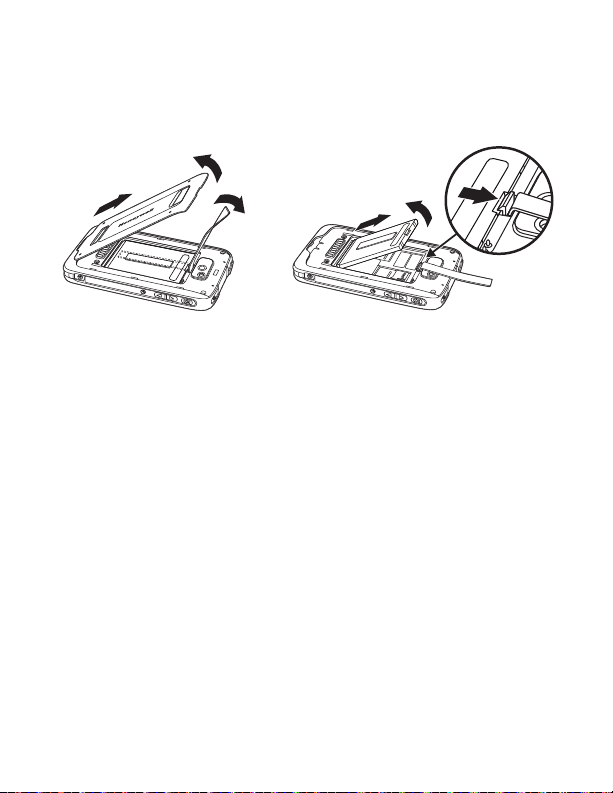

Removing the Battery
1. Place the terminal in Suspend mode.
2. Perform the steps illustrated below to remove the battery.
Installing the SIM Card and/or Replacing the Memory Card
A microSD memory card is pre-installed in the terminal. You can expand the
memory capacity by replacing the supplied card with a larger capacity
microSD or microSDHC card.
Honeywell recommends the use of Single Level Cell (SLC) industrial grade
microSD or microSDHC memory cards with Dolphin terminals for maximum
performance and durability. Contact a Honeywell sales representative for
additional information on qualified memory card options.
Note: Format replacement microSD/SDHC card to Fat32 before initial use.
To install the SIM card and/or replace the memory card:
1. Place the terminal in Suspend mode.
2. Remove the battery door and battery.
1
236
4
5

3. Lift the card retention flap for the appropriate socket.
4. If you are replacing the memory card, slide the existing card out of the
memory socket.
Note: Memory card use is recommended to avoid potential application errors
or possible data loss.
5. Slide the SIM or replacement memory card (contacts facing down) into
the socket, then close the retention flap.
6. Install the battery and battery door. The terminal begins booting as soon
as power is applied.
Virtual Keyboard
The enhanced Honeywell virtual keyboard appears when you open an
application or select a field that requires text or numerical input. The content
of the keyboard may vary depending on the application in use and the input
field requirements.
The enhanced Honeywell virtual keyboard is fully customizable using the
Honeywell Virtual Keypad Creator software available for download at
www.honeywellaidc.com. The user-friendly utility allows you to personalize
multiple keyboard features including key position, size, quantity, color, and
Memory Card
Retention Flap
SIM Card
Retention Flap
Chamfered
Corner of
SIM Card

the keyboard skin. In addition, you can make language changes, create
alternate or function keys for special character sets, and add application
launch keys to streamline common business tasks. Refer to the
Dolphin 70e
Black User's Guide
for additional information.

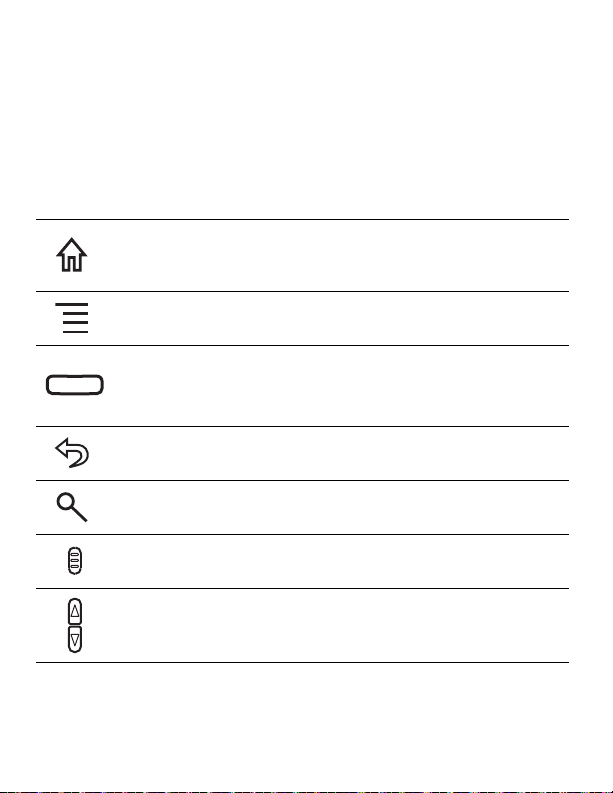

Navigation and Function Buttons
Note: Additional functionality varies according to the application in use.
Button Function
Home
A quick press returns you to the Home screen.
Press and hold the button to view and switch
between recently used apps.
Menu Opens additional menu options.
Scan
Wakes the terminal from Suspend Mode.
Triggers the scanner/imager in the following apps:
IQImage Demo, Imaging Demo and Scan Demo.
Back Back to the previous screen.
Search Initiate a search of the terminal or the Internet.
Right and
Left Side
Triggers the scanner/imager in the following apps:
IQImage Demo, Imaging Demo and Scan Demo.
Volume Raises or lowers the volume of the active speaker.

Home Screen
Personalize the Home Screen and Favorites Tray
To add a shortcut, touch , select and hold the app icon you want to add,
then drag and drop the icon into position on the Home screen panel or in an
open spot in the Favorites tray.
Note: To create a folder, drag and drop an app icon on top of another icon.
To add a widget, touch , tap the Widget tab, select and hold the item you
want to add, then drag and drop the widget into position on the Home screen
panel.
To delete items, touch and hold the shortcut or widget, then drag the item to
“Remove” at the top of the screen.
Favorites Tray
Notification/Status
Bar
Touch the Apps icon to view the Apps and
Widgets loaded on your device.
Search Bar
App Shortcut
Clock Widget
Touch to initiate
a voice search or
command.
Home Screen
Swipe left or right with
your finger to scroll
between 5 panels.
Personalize the
panels with your
choice of shortcuts,
folders, and widgets.

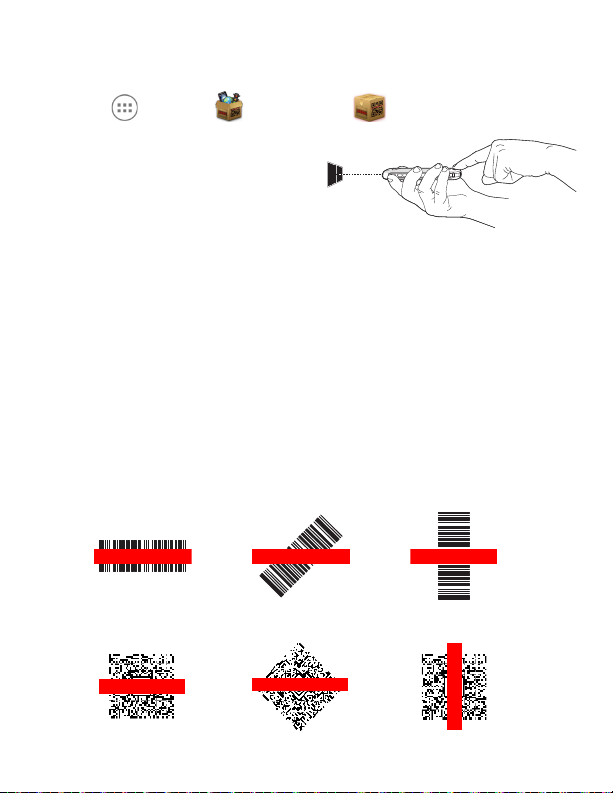

Using the Scan/Image Engine Demo
1. Touch > Demos > Scan Demo .
2. Point the Dolphin terminal at the
bar code.
Note: For optimum performance,
avoid reflections by scanning
the bar code at a slight angle.
3. Touch and hold Scan or press and
hold the Scan button. Center the aiming beam over the bar code.
Note: The left and right side buttons also trigger the scan/imager.
4. The decode results display on the touch screen.
Aiming Beam
The aiming beam is narrower when you hold the terminal closer to a bar code
and the aiming beam is wider when you hold it farther from the bar code.
The aiming beam must be aimed closer to symbologies that have smaller bars
or elements (mil size). The aiming beam must be aimed farther from
symbologies that have larger bars or elements (mil size).
Linear Bar Code
2D Matrix Symbol

Using the Color Camera
1. Touch Camera on the Home screen.
2. Verify camera is selected.
3. Point the camera lens at the object you want to capture, then touch
to capture the picture.
Note: The camera lens is located on the back of the terminal.
Resetting the Terminal
There are two types of system resets: a hard reset or a factory reset. The hard
reset preserves all data stored in the file system. Contact a Honeywell
technical support representative for more information on how to perform a
factory reset.
Hard Reset (Cold Boot)
A hard reset re-boots the device and closes any open applications running in
RAM at the time of the reset.
1. Press and hold the Power button until the Phone Options menu dis-
plays.
2. Touch Reboot.
Note: To perform a Hard Reset if the touch screen has stopped responding, press
and hold the Power
button for approximately 8 seconds until the terminal
starts to re-boot. When the reset is complete, the Home screen displays.
Technical Assistance
Contact information for technical support, product service and repair can be
found at www.honeywellaidc.com.

User Documentation
For localized versions of this document, and to download the User’s Guide,
go to www.honeywellaidc.com.
Limited Warranty
Refer to www.honeywellaidc.com/warranty_information for your product’s
warranty information.
Patents
For patent information, please refer to www.honeywellaidc.com/patents.
Trademarks
Dolphin is a trademark or registered trademark of Hand Held Products, Inc. in
the United States and/or other countries.
Android and other marks are trademarks of Google Inc.
Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in
specifications and other information contained in this document without prior
notice, and the reader should in all cases consult HII to determine whether
any such changes have been made. The information in this publication does
not represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages resulting from the
furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated into another language without the prior written
consent of HII.
©2013 Honeywell International Inc. All rights reserved.
Web Address: www.honeywellaidc.com
