Chapter 1: Introduction
The MX7 is a rugged, portable, hand-held mobile computer capable of wireless data communications. The MX7 can transmit
information using an 802.11 network card and it can store information for later transmission through an RS232 or USB port. The
MX7CS (Cold Storage) device functions normally in various temperature ranges.
The MX7 is vertically oriented and features backlighting for the display. Keypads are available in 55-key alphanumeric and 32-
key numeric-alpha versions. This device can be scaled from a limited function batch computer to an integrated RF scanning
computer.
Contact Technical Assistance for information on the latest upgrades for your MX7.
About this Guide
This MX7 User's Guide provides instruction for the end-user or system administrator to follow when setting up a new MX7.
This user's guide has been developed for aMX7with a Microsoft® Windows® CE 5operating system.
End User License Agreement (EULA)
When a new MX7 starts up a EULA is displayed on the touch screen. It remains on the screen until the Accept or Decline
button is tapped with a stylus.
Tap the Accept button to accept the EULA terms and the MX7 continues the startup process. The EULA is not presented to the
user again.
Tap the Decline button to decline the EULA and the MX7 will reboot. It will continue to reboot until the Accept button is tapped
with the stylus.
Note: The EULA will be presented after any operating system upgrade or re-installation, including language-specific
operating systems.
1-1

Laser Warnings and Labels
lDo not look into the laser’s lens.
lDo not stare directly into the laser beam.
lDo not remove the laser caution labels from the MX7.
lDo not connect the laser bar code aperture to any other device. The laser bar code aperture is certified for use with the
MX7 only.
Caution
Laser radiation when open. Please read the caution labels. Use of controls, adjustments or performance of
procedures other than those specified herein may result in hazardous radiation exposure.

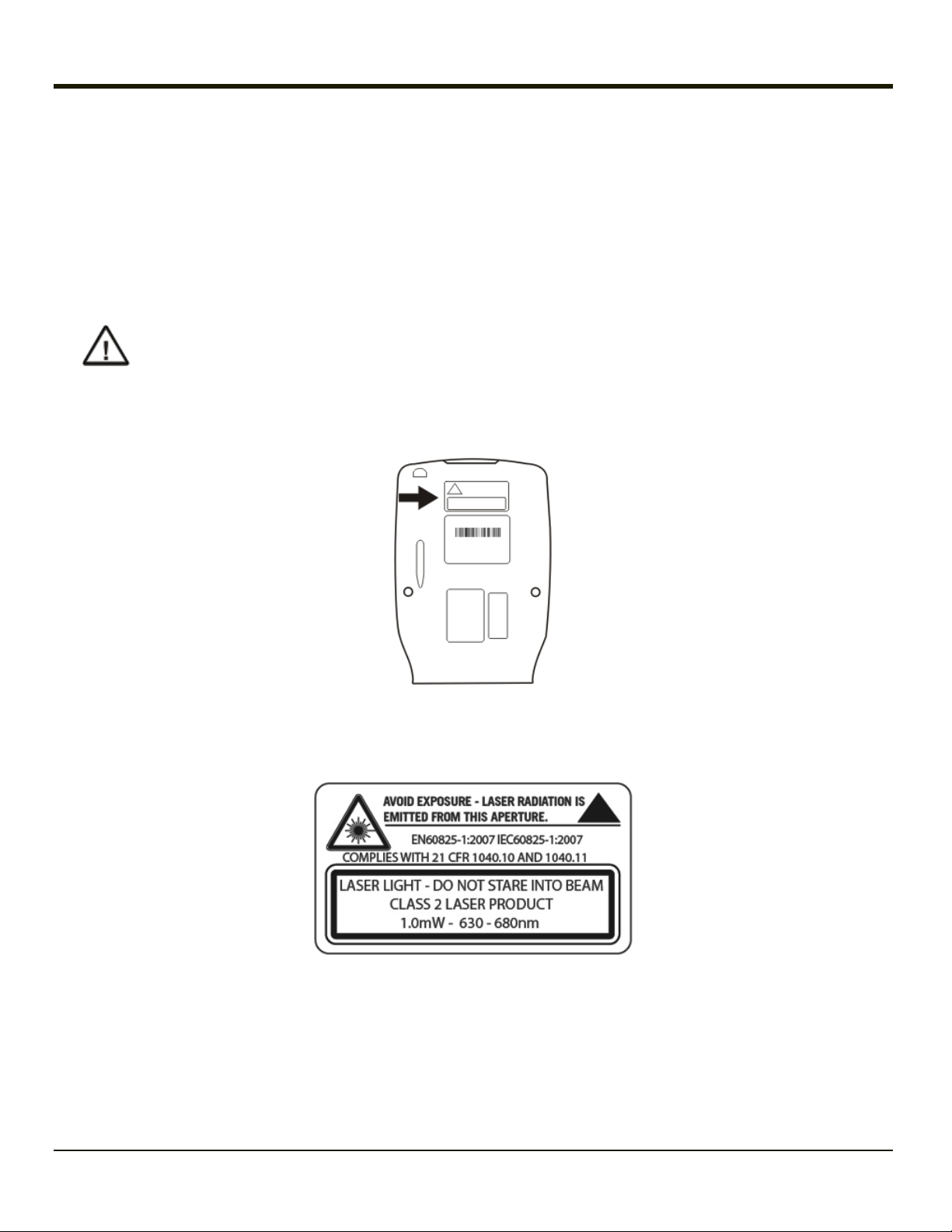

Label Location
Label
1-2

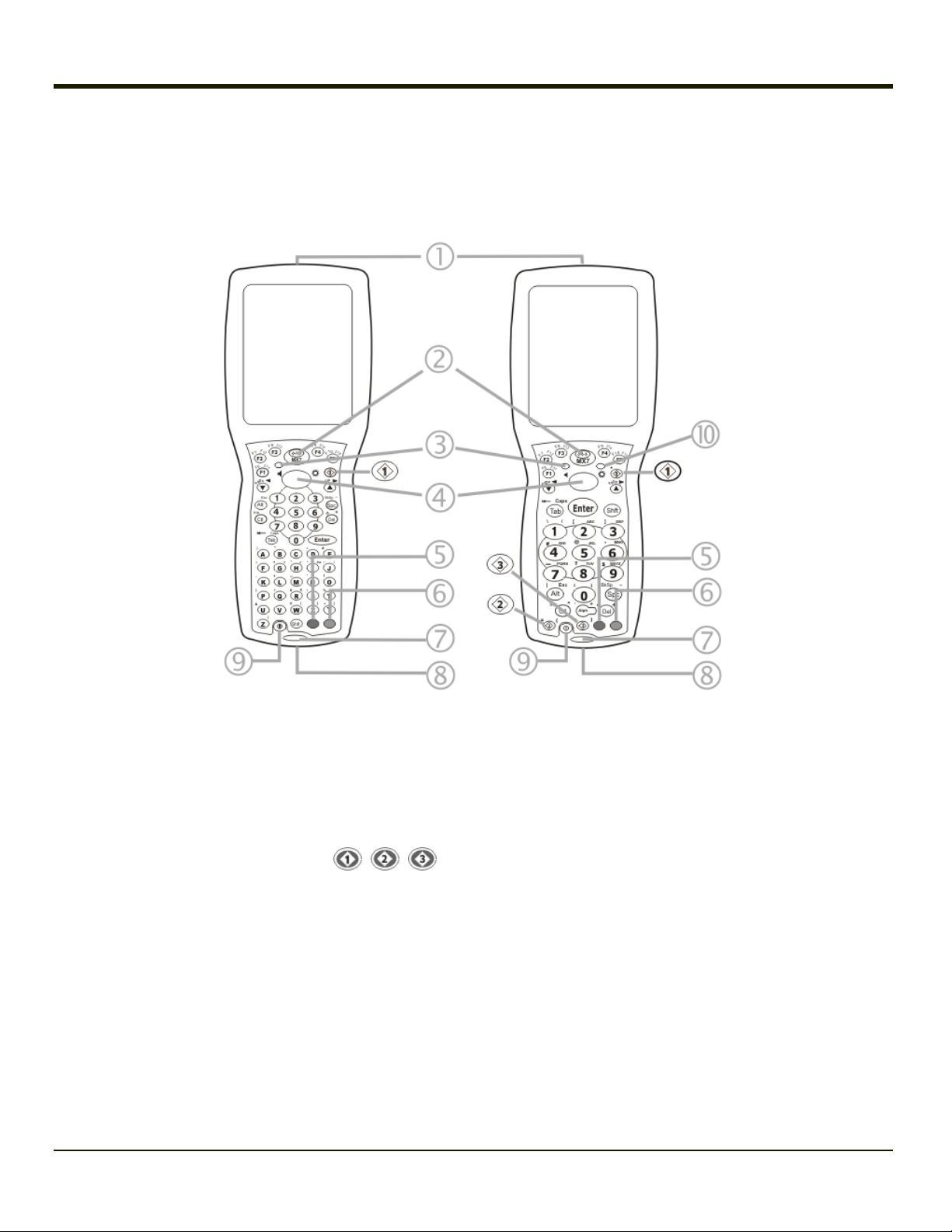

Components
Front
1. Scanner/Imager Aperture
2. Speaker
3. System Status LED
4. Scan Button
5. Orange Key (Sticky Key)
6. Blue Key (Sticky Key)
7. Scan Status LED
8. Cable Port
9. On / Off Button
10. Alpha Lock LED (32-Key only)
Diamond Keys
1-3

Back
1. Scanner/Imager Aperture
2. Stylus and Stylus Pocket
3. Trigger Handle Attach Points
4. Main Battery
5. Battery Fastener
6. Cable Port
1-4

I/O Port and Cables
Cable: Multipurpose RS232 and Power MX7055CABLE
Cable: Multipurpose USB and Power MX7052CABLE
Adapter/Cable: Audio MX7060CABLE
Adapter: RS232 PC port to D9 male MX7058CABLE
1-5

Scanner / Imager Aperture
1. Scanner / Imager Aperture
2. MX7 Front
Caution: Never stare directly into the beam aperture.
If Continuous Scan Mode has been enabled (default is disabled), the laser is always on and decoding. Caution: Laser beam
is emitted continuously. Do not stare into the laser beam.
Handle
1. Imager / Scanner Aperture
2. Trigger
3. Handle
4. Tether Attach Point
Handstrap
1. Handstrap
2. Handstrap Retainer Bracket and mounting screws
3. Handstrap Clip
1-6

Keypads

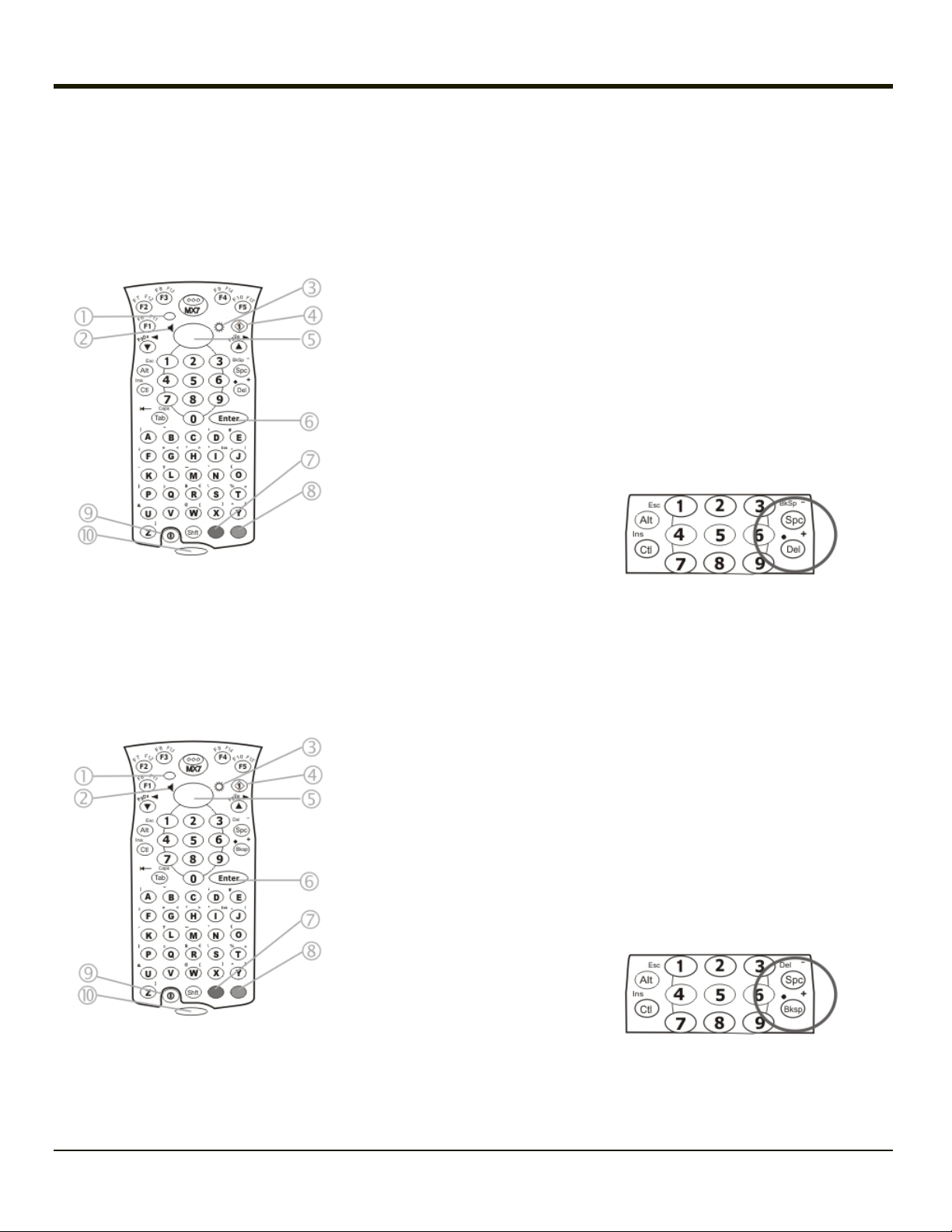

55 Key Delete Primary ANSI Keypad
1. System Status LED
2. Volume Control Icon
3. Display Brightness Icon
4. Diamond Key
5. Scan Button
6. Enter Key
7. Orange Key (Sticky Key)
8. Blue Key (Sticky Key)
9. On Off Button
10. Scan Status LED
Spc and Del key location
55 Key Backspace Primary ANSI Keypad
1. System Status LED
2. Volume Control Icon
3. Display Brightness Icon
4. Diamond Key
5. Scan Button
6. Enter Key
7. Orange Key (Sticky Key)
8. Blue Key (Sticky Key)
9. On Off Button
10. Scan Status LED
Spc and Bksp key location
1-7

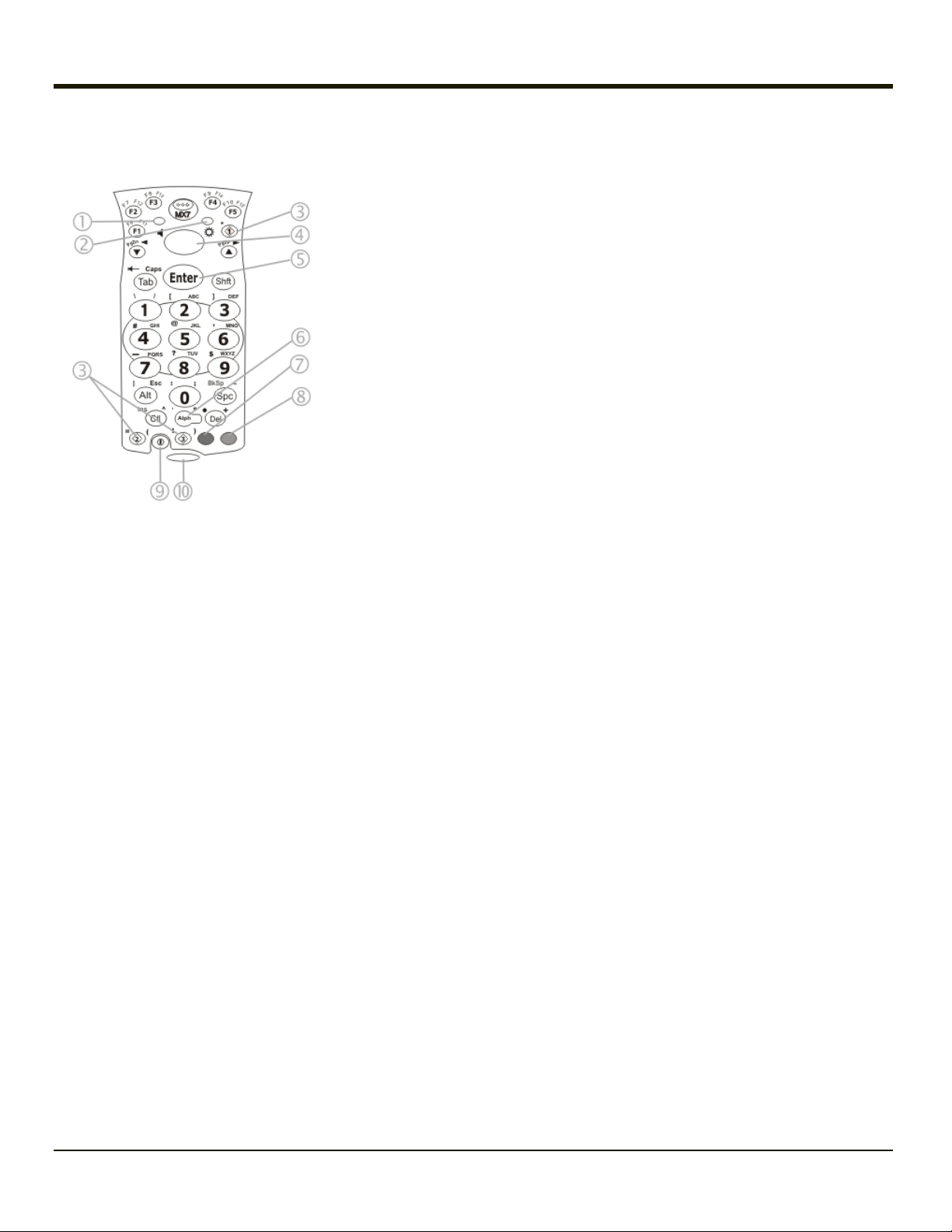

32 Key Numeric-Alpha Keypad
1. System Status LED
2. Alpha Status LED
3. Diamond Keys
4. Scan Button
5. Enter Key
6. Alph Key
7. Orange Key (Sticky Key)
8. Blue Key (Sticky Key)
9. On Off Button
10. Scan Status LED
1-8

Chapter 2: Set Up A New MX7
This page lists a quick outline of the steps you might take when setting up a new MX7. More instruction for each step is listed
later in this guide. Please refer to the MX7Reference Guide for additional information and instruction.
Contact Technical Assistance if you need additional help.
Note: Installing or removing accessories should be performed on a clean, well-lit surface. When necessary, protect the work
surface, the MX7, and components from electrostatic discharge.
Hardware Setup
1. Connect accessories.
2. Connect cables.
3. Insert/connect a fully charged battery
4. Press the Power key.
Software Setup
Prerequisite: Hardware setup is complete.
1. Calibrate Touch screen
2. Set Date and Time Zone
3. Set Power Schemes Timers
4. Set Speaker Volume
5. Pair Bluetooth devices
6. Setup Wireless client parameters
7. Setup terminal emulation parameters
8. Save changed settings to the registry
9. Setup the AppLock parameters
10. Set the Scanner Wedge parameters
Please refer to the MX7Reference Guide for additional information and instruction.
End User License Agreement (EULA)
When a new MX7 starts up a EULA is displayed on the touch screen. It remains on the screen until the Accept or Decline
button is tapped with a stylus.
Tap the Accept button to accept the EULA terms and the MX7 continues the startup process. The EULA is not presented to the
user again.
Tap the Decline button to decline the EULA and the MX7 will reboot. It will continue to reboot until the Accept button is tapped
with the stylus.
Note: The EULA will be presented after any operating system upgrade or re-installation, including language-specific
operating systems.
2-1

Battery
Connect or Remove the Battery Pack
The MX7 will not function unless the battery pack is in place and securely latched.
Be sure to place the unit in Suspend Mode before removing the battery. Failing to properly place the device in Suspend mode
will result in a loss of all unsaved data.
The main battery is located in a compartment on the back of the unit. The battery case serves as the back cover for the battery
well of the MX7.
An MX7 will retain data, while the main battery is removed and replaced with a fully charged main battery, for 5 minutes.
Important: When the internal battery power is Low or Very Low connect the AC adapter to the MX7 before replacing the main
battery.
Note: The battery should not be replaced in a dirty, harsh or hazardous environment. When the battery is not connected to
the MX7, any dust or moisture that enters the battery well or connector may transfer to the battery/well terminals,
potentially causing damage.
Warning. Only useHoneywell batteries as replacements:MX7A380BATT / MX7392BATT or a Low Temperature (CS) Battery :
MX7A381BATT / MX7393BATT / MX7396BATTERY
Insert/Replace Battery
To insert the main battery, complete the following steps:
1. Detach the bottom hook of the handstrap (if installed).
2. Tilt the end (without the latch) of the fully charged battery pack into the upper end of the battery compartment, and firmly
press the other end until it is fully inserted into the battery compartment
3. Push down on the battery until the retaining clip clicks into place.
4. Replace the handstrap clip in its holder (if installed).
The MX7 draws power from the battery immediately upon successful connection.
Check battery status by tapping the Start > Settings > Control Panel > Battery icon. Main battery level, internal battery
level, status and other details are displayed.
2-2

Remove Battery
To remove the battery, complete the following steps:
1. Place the MX7 in Suspend mode.
2. Detach the bottom hook of the handstrap (if installed).
3. Slide the battery retaining clip down to release the main battery.
4. Pull the battery up and out of the battery well with a hinge motion.
Place the discharged battery pack in a powered battery charger.
Hotswap the Main Battery
Place the MX7 in Suspend Mode. Honeywell recommends any work in progress be saved prior to replacing the battery pack.
Simply replace the discharged battery with a fully-charged battery. An MX7, with a fully charged internal battery, will retain data
during a battery hotswap for 5 minutes.
2-3

Charge or Recharge the Main Battery
Warning. Only useHoneywell batteries as replacements:MX7A380BATT / MX7392BATT or a Low Temperature (CS) Battery :
MX7A381BATT / MX7393BATT / MX7396BATTERY
Note: The MX7 Battery Charger is designed for an indoor, protected environment.
New batteries must be fully charged prior to use.
The main battery can be recharged in an AC powered Battery Charger after the battery has been removed from the MX7 or its
packing material when new.
The main battery while in the MX7 can be recharged using several different methods.
Note: An external power source is required before the main battery in the MX7 will recharge.
The main battery can be recharged while it is in the MX7:
lby connecting the MX7 AC power adapter to the I/O connector at the base of the MX7.
lby docking the MX7 in a powered desk cradle
lby docking the MX7 in a powered vehicle cradle
lor by connecting the car power adapter (CLA) to the I/O connector at the base of the MX7.
Note: An uninterrupted external power source (wall AC adapters) transfers power to the computer’s internal charging
circuitry which, in turn, recharges the main battery and internal battery. Frequent connection to an external power
source, if feasible, is recommended to maintain internal battery charge status as the internal battery cannot be
recharged by a dead or missing main battery.
2-4

Backlights and Indicators
Status LEDs
The MX7 System Status LED is located at the top left of the keypad, below the F3 key. The Alpha Mode LED is located below
the F4 key on the 32-key keypad.
LEDs (Light Emitting Diodes) are located on the front of the MX7. They are:
1. System Status LED indicates power management status.
2. Alpha Mode Status LED applies to the 32-key keypad only.
System Status LED
Blinking Red Battery power fail; critical suspend mode
Steady Red Main battery low
Blinking Green Display turned off
Yellow / Amber A few seconds when Power key is pressed
No Color No user intervention required.
Alpha mode Status LED
Steady Green Device is in “Alpha” character input mode
No Color Device is in “Numeric” key input mode
Scan Status
An oval indicator situated below the keypad and next to the On button.
Steady Green Good scan
Steady Amber Decoder engine storing changed parameters
Steady Red Scan in progress
No Color Scanner / Imager ready for use or no scanner installed.
2-5

Toggle Vibrate Indicator
Start > Settings > Control Panel > Scanner > Vibration tab
The MX7 vibration motor is activated when a scan is completed successfully (good scan vibration) or with a failure (scan key
released before good scan, timeout, or rejected because of Data Options configuration).
The vibrations can be detected under the handstrap or through the trigger handle.
Toggle the vibrate indicator on or off by tapping the desired radio button for Good Scan Vibration and Bad Scan Vibration.
Options are:
lOff
lShort
lMedium
lLong
2-6
