Honeywell TrueEASE HE100 User manual

69-2413EF-01
Humidifier
PROFESSIONAL INSTALLATION GUIDE
INCLUDED IN THIS HUMIDIFIER BOX
Tools needed to install humidifi er
Wire cutter/stripper
Tin snips or sheet metal cutter
#8 hex nut driver
Standard screwdriver
18-gauge wire (up to 5 conductor)
Other Requirements
If floor drain is not available, refer to Appendix B for
additional plumbing parts consideration.
If installed in or above a finished space, Honeywell
recommends installing a drip pan with water
sensor shut-off.
A1Humidifier Bypass
A2Humidifier Fan
Saddle valve
Water supply line
Drain hose (10 feet)
EOwner’s manual
FMounting template
GH8908 manual humidity control
Hardware (not pictured)
Additional accessories included in select
models
E
A1A2
F G
GETTING
STARTED MOUNTING PLUMBING WIRING APPENDICES
OPERATION
AND SERVICE
Replacement Table
Humidifier Honeywell® Aprilaire® GeneralAire®
HE100 and HE150 HE225 500 570
HE200 and HE250 HE265 600 900
HE300 HE365 700 1000

Humidifier
NEED HELP? For assistance with this product please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502.
Read and save these instructions.
® U.S. Registered Trademark. Patents pending. Copyright © 2010 Honeywell International Inc. All rights reserved.
?
Humidifier 69-2413EF—01
GETTING
STARTED MOUNTING PLUMBING WIRING APPENDICES
OPERATION
AND SERVICE
1
GETTING STARTED
Safety Definitions and Precautions . . . . . . . . . . . . . . 2
What to Expect From Your Humidifier . . . . . . . . . . . . 3
Important Installation Requirements . . . . . . . . . . . . . 4
MOUNTING
Choosing a Mounting Method . . . . . . . . . . . . . . . . . . 5
STEP ONE: Select the Mounting Location...... 6
STEP TWO: Install Mounting
Template to the Duct .................... 6
Bypass Model Installation . . . . . . . . . . . . . . . . . . . . . 7
STEP THREE: Configure
Humidifier Bypass ...................... 7
STEP FOUR: Installation................... 8
STEP FIVE: Bypass Duct Installation.......... 9
Fan Model Installation . . . . . . . . . . . . . . . . . . . . . . . 10
STEP THREE: Installation . . . . . . . . . . . . . . . . . 10
Humidifier Control Installation . . . . . . . . . . . . . . . . . 11
OPTION ONE: Duct Installation
H8908 Humidistat . . . . . . . . . . . . . . . . . . . . . 11
OPTION TWO: Remote Installation
H8908 Humidistat . . . . . . . . . . . . . . . . . . . . . 12
PLUMBING
Water Supply and Drain Connections . . . . . . . . . . . 13
STEP ONE: Connect the Water Supply ....... 13
STEP TWO: Tap into a Water Line ........... 13
STEP THREE: Connect to the Water Drain . . . . 14
WIRING
Before Wiring Humidifier . . . . . . . . . . . . . . . . . . . . . 15
STEP ONE: Remove the Humidifier Cover . . . . 15
STEP TWO: Understand the Wiring Terminals. . 15

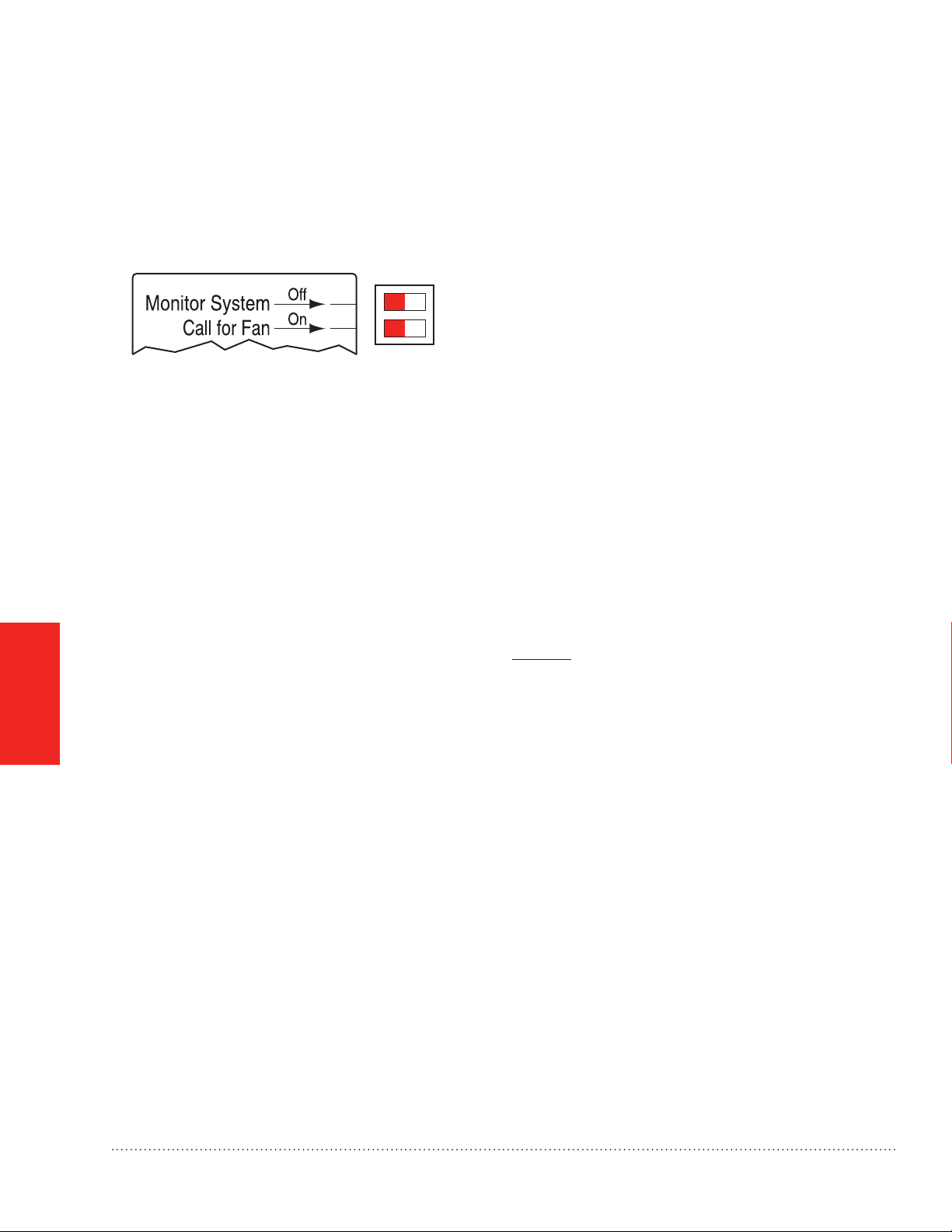

STEP THREE: Understand the DIP Switches . . 16
STEP FOUR: Install the Transformer
(Bypass Models Only).................. 16
STEP FIVE: Wiring Humidifier .............. 16
Wiring Configuration: Advanced Models
(HE150/HE250/HE300) ...................... 17
Wiring Configuration: Basic Models
(HE100/HE200) ............................ 19
OPERATION AND SERVICE
StartupandCheckout....................... 21
Routine Maintenance........................ 22
Troubleshooting ............................ 23
APPENDICES
A:Specifications ........................... 24
B: Advanced Draining . . . . . . . . . . . . . . . . . . . . . . . 25
C: Parts List ............................... 26

GETTING
STARTED
Safety Definitions and Precautions
Safety Definitions
These safety terms identify information you must read prior to installing or operating the humidifier.
CAUTION: Indicates a hazardous situation which, if not avoided, could cause bodily injury
or property damage.
WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Safety Precautions
Make sure you read and understand the following safety hazards before installing, using, or working with the
humidifier:
CAUTION: Voltage Hazard.
Can cause electrical shock or equipment damage.
Disconnect HVAC equipment and any electrical outlet being used for the humidifier installation.
WARNING: Electrocution and Water Hazard.
Can cause death, blindness, and water damage to the home and HVAC Equipment.
CAUTION: Condensation, Fire, and Freezing Water Hazard.
Can cause failure of fan or limit control or result in water damage to home.
Humidifier 69-2413EF—01
2

GETTING
STARTED
The installer should review these points with the homeowner and answer any questions they have before leaving
the job site.
Achieving Humidity Setpoint.• It may take up to a week of continuous operation to achieve the humidity
setpoint, especially if the home is dry when the humidifier is installed. This also depends on such factors as
weather, size of home, furnishings in the home, and insulation.
Ideal Humidity.• Home building industry experts cite 35% relative humidity as ideal for comfort and
safeguarding the home during the typical dry season. Homeowners can adjust to their own comfort or until
there is condensation on the windows. Lower the setpoint if condensation appears.
Unit Not Humidifying.• If the humidifier is not running but the humidity is below the setpoint, the humidity
control may have a frost protection setting to prevent window condensation from appearing.
Home Ventilation.• Excessive ventilation sends moist air outside and replaces it with dry air. This can make it
hard to maintain the humidity setpoint. If installing a ventilator, use a solution that retains moisture. An Energy
Recovery Ventilator (ERV) is recommended.
Cleaning Requirements.• At least once per year it is recommended to change the humidifier pad and clean
the water trays of the humidifier. See Operation and Service section for details.
Energy Consumption.• It is important to explain that with any humidification solution there is a cost
associated with converting water to humidity. The humidifier utilizes the air heat and air flow in your ducting to
make this conversion, which has gas and/or electric costs that depend on your HVAC system type and setup.
What to Expect From Your Humidifier
Humidifier 69-2413EF—01 3

GETTING
STARTED
Personal Safety
Wear safety glasses while installing the humidifier.•
Do not cut into any air conditioning or electrical line.•
Follow professional safety standards and all local regulations for plumbing, electrical, and mechanical•
considerations.
Mounting Location
Mount the humidifier in a level position to avoid water damage and ensure maximum output.•
Location must have access to a water line, drain, and power.•
Do not install the humidifier where the ambient temperature is lower than 34°F (1.1°C) or higher than 90°F•
(40°C).
Mounting area must be strong enough to support humidifier weight (up to 16 lbs [Fan] or 10 lbs [Bypass]).•
Do not mount directly to ductboard.•
If used near a pool or spa, make sure the humidifier can not fall into the water or be splashed.•
Ensure that the top and bottom covers of the humidifier can be removed and that the pad is accessible from•
the chosen location.
Water Supply and Drainage
Consult local plumbing codes for drain size, material, and maximum temperature allowed.•
If Replacing an Old Bypass Humidifier
The humidifier is not identical in size and shape to other Honeywell bypass humidifiers. Before performing a
retrofit installation, you might need to:
Dry-fit the humidifier to the existing ducting, plumbing, and wiring before fastening it to the duct to ensure that•
the existing connections will reach the humidifier.
If the duct opening of the old humidifier is not the right size for the humidifier, choose a new location or cover•
the old opening with a piece of sheet metal and cut a new opening specifically for the humidifier using the
template provided.
Important Installation Requirements
Failure to comply with these requirements will result in voided warranty, improper installation, and
service callbacks.
Replacement Table
Humidifier Honeywell® Aprilaire® GeneralAire®
HE100 and HE150 HE225 500 570
HE200 and HE250 HE265 600 900
HE300 HE365 700 1000
Humidifier 69-2413EF—01
4

MOUNTING
Whether you purchased a Bypass or Fan humidifier will determine how your humidifier will be installed:
Which humidifier do you have?
Bypass:
Bypass humidifiers use the pressure difference
between the supply and return to move duct
air through the humidifier. Access to both the
supply and return are required.
MCR29871
Fan:
Fan humidifiers use the fan inside the humidifier
to pull duct air through the humidifier. Access to
only the supply or the return is required.
MCR29929
Choosing a Mounting Method
Before beginning Mounting:
I have confirmed local codes for proper plumbing practices.
I have chosen an installation location that meets the requirements on page 4.
Humidifier 69-2413EF—01 5

MOUNTING
STEP ONE: Select the Mounting Location
Choose a location that has access to a water supply
pipe. Cold or hot water can be used.
Select a vertical or horizontal surface on the HVAC
duct work, with adequate space clearances,
where the humidifier can be mounted. For bypass
installation, access to both the return and supply are
required. Both humidifier models can be mounted to
either the supply or the return.
Location must also have access to 120 VAC power.
For the HE300 Fan humidifier, the power cord is 6 feet
long.
Ensure the location is near a drain. Consult local
plumbing codes for proper drainage. If no main
floor drain is available, see “Appendix B: Advanced
Draining.”
STEP TWO: Install Mounting Template to the Duct
Position the template on the duct.
Make sure the template is level and in the desired•
position on the duct.
Ensure proper clearances from the air-conditioning
coil inside the duct.
NOTE: The HE300 Fan model extends into the duct
1-3/4 inch. Bypass models extend into the duct 1/2
inch. Ensure clearance inside the duct.
For best performance, maintain at least 24 inches•
downstream of open air space inside the duct.
Use a marker to trace the template outline onto the
duct, then remove the template.
Cut the sheet metal, following the template outline.
MCR29877
M29873
1
M29874
A-COIL
1-3/4
(44)
1/2
(13)
FAN
BYPASS
4
2
2
4
3
3
2
1
Humidifier 69-2413EF—01
6

MOUNTING
STEP THREE: Configure Humidifier Bypass
Configure the humidifier bypass outlet to the side that
best fits the application.
If the bypass needs to be on the other side, remove
the top and bottom covers
Unplug the damper wire and plug in on the other side
(HE150/HE250 only).
Pull the bypass clamps apart from center to remove
the bypass; snap it back into place with the outlet on
the desired side.
Ensure that the pad is accessible. The handle of
the pad holder and side panel of the humidifier can
be switched so the pad holder can be removed
(opposite side of the bypass duct opening).
To remove the handle for the pad holder, slide it
toward the back of the humidifier, then pull it away
from the humidifier.
To remove the opposite side panel, place a
screwdriver into the two slots on the back of the
humidifier, and pop the panel off.
Snap the pad holder handle and side panel back into
place in the desired configuration.
MCR29875
If you are installing HE300 Fan model, proceed to page 10.
Bypass Model Installation
MCR29876
1
1
2
2
3
3
MCR29946
4
5
Humidifier 69-2413EF—01 7

MOUNTING

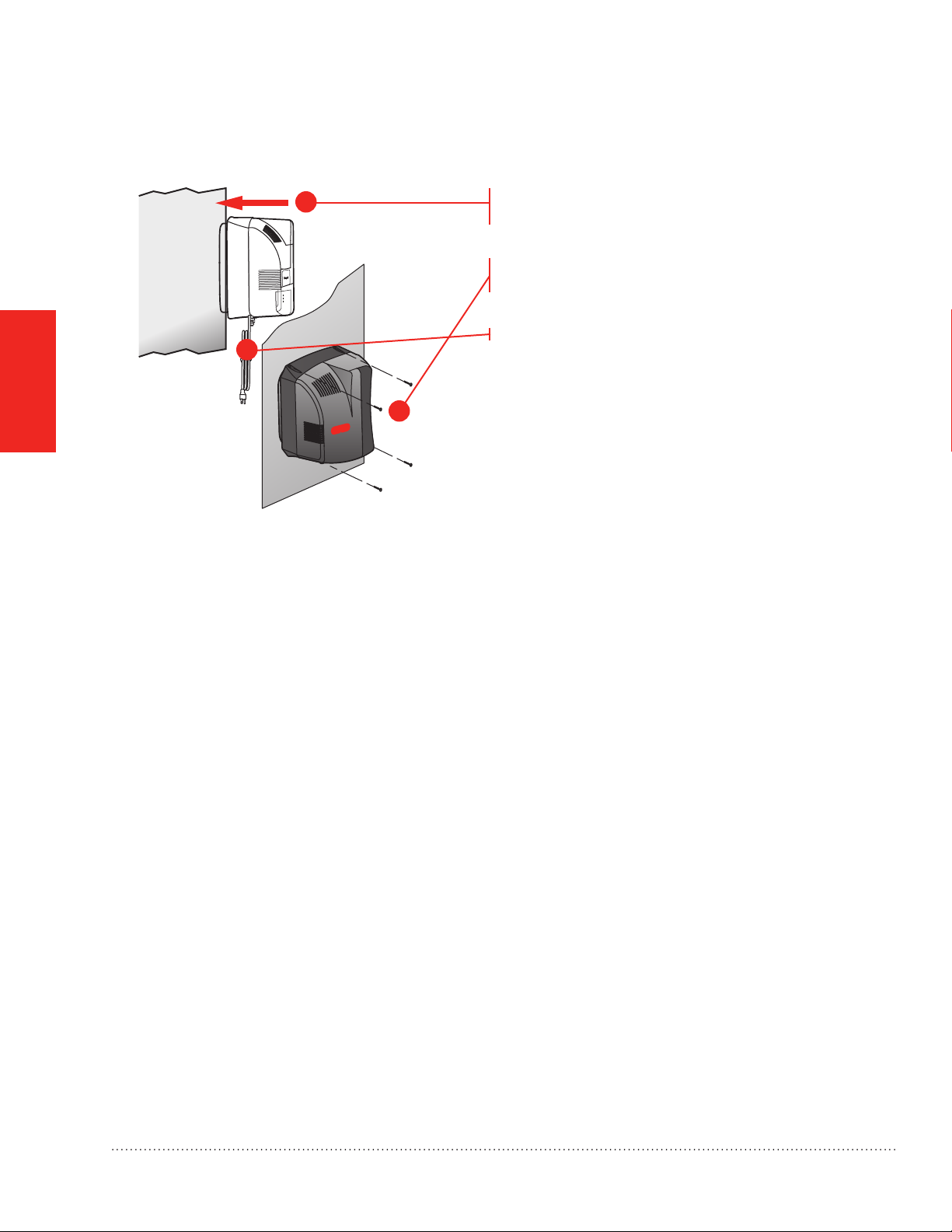

STEP FOUR: Mounting
Secure the support hooks on Bypass models to the
bottom lip of the hole.
Push the top of the humidifier back against the duct.
Verify the humidifier is level and fasten the humidifier
to the duct using two self-drilling sheet metal screws
provided.
MCR29870
2
1
Bypass Model Installation
Humidifier 69-2413EF—01
8

MOUNTING
Before proceeding to the next step:
I secured the humidifier to the duct as instructed.
Bypass mounting is complete. Go to page 11.
Bypass Model Installation
Humidifier 69-2413EF—01 9

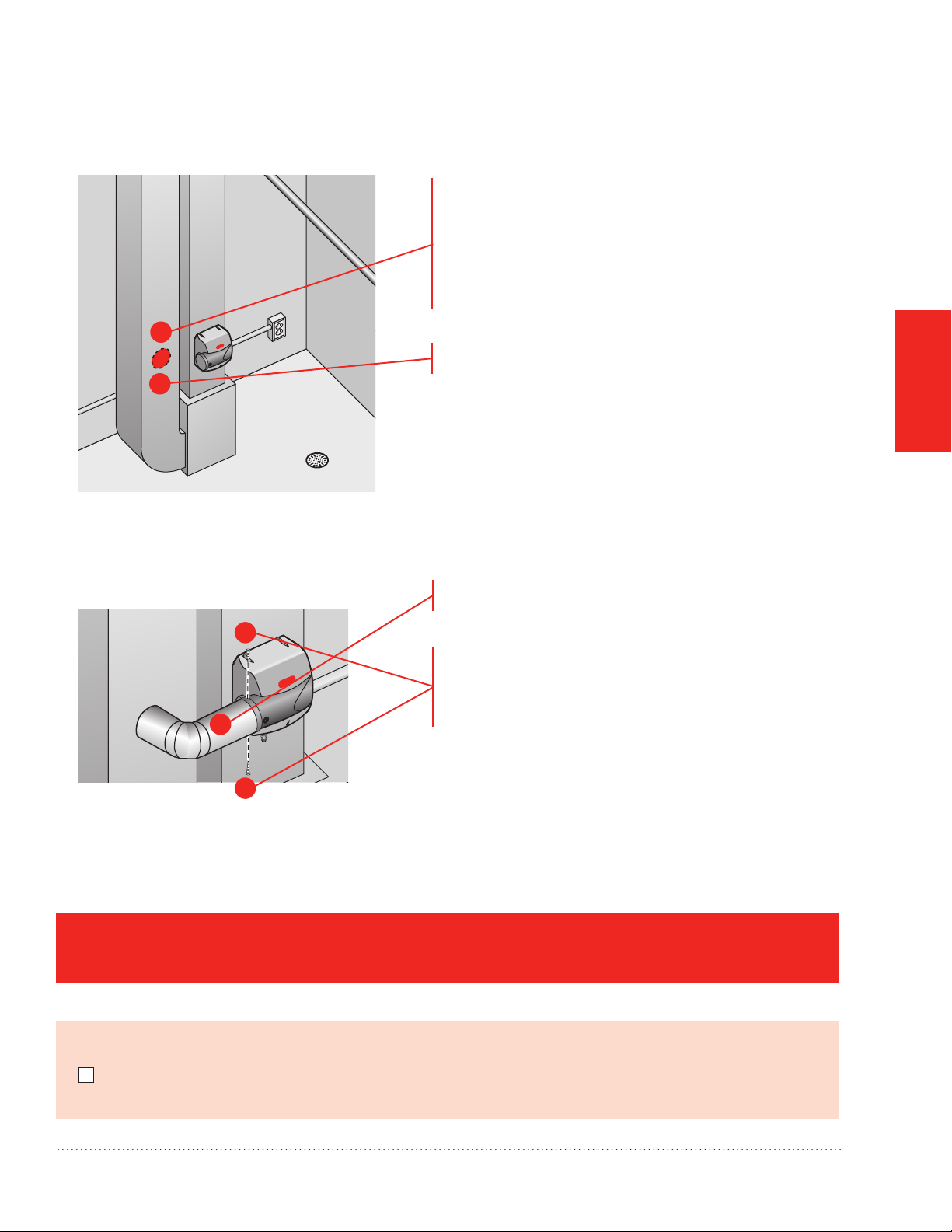

STEP FIVE: Bypass Duct Installation
On the duct opposite the humidifier Bypass install, cut
a 6-in. diameter duct hole.
If the humidifier is on the supply duct, the 6-in.•
diameter hole should be on the return.
If the humidifier is on the return duct, the 6-in.•
diameter hole should be on the supply.
Secure a 6-in. round duct starter collar into the 6-in.
duct hole.
Use rigid or aluminized flexible 6-in. duct to connect
the starter collar to the humidifier bypass port.
Secure the duct to the humidifier port with self-drilling
sheet metal screws using the pre-drilled holes on the
bypass port. For added seal, wrap sheet metal tape
around the duct to port connection point.
MCR29933
MCR29878
2
2
2
1
1

MOUNTING
STEP THREE: Mounting
Slide the Fan model evenly into the duct hole. Verify
the humidifier is level.
Fasten the humidifier to the duct using four self-drilling
sheet metal screws provided.
Do not plug the humidifier in yet.
MCR29934
1
2
3
Fan Model Installation
Humidifier 69-2413EF—01
10

MOUNTING
Humidifier Control Installation
Humidifier 69-2413EF—01 11
OPTION ONE: Duct Installation of H8908 Humidistat (provided)
If a different control is being used, refer to installation instructions provided with that control.
Choose a location on the duct.
Apply sticker template to duct and drill holes for
mounting screws. Cut along the dotted line of the
template with metal shears or tin snips.
Remove the base bracket from the humidistat. Slide
the black gasket onto the base bracket.
Secure the base bracket to the duct.
Secure to the duct with four 1-in. (25 mm)
screws (provided).
ALTERNATE LOCATION
RETURN
AIR
RETURN
AIR
6 in. (152 mm)
MINIMUM 15 in. (381 mm)
MINIMUM
BEST
LOCATION
RETURN AIR DUCT M13369
M24800
2
4
1
3
M24733
M29879

MOUNTING
Humidifier Control Installation
Humidifier 69-2413EF—01
12
OPTION TWO: Remote Installation of H8908 Humidistat (provided)
If a different control is being used, refer to installation instructions provided with that control.
Choose a location in the living area. Select a location
clear of drafts or excessive humidity. Avoid mounting
near doors or windows, or in bathrooms or kitchens.
Cut 1-in. diameter wire hole in wall.
Run two-fan, low-voltage wire to the mounting location
in the living area.
Remove the base bracket from the humidistat.
Secure the base bracket to the remote location with
two 1-in. (25 mm) screws (provided).
M29952
M24721
2
2
4
1
M29948
M29949
3

PLUMBING
Water Supply and Drain Connections
STEP ONE: Connect the Water Supply
Use hot or cold water.
Cut the water line so it reaches from the humidifier to
the main water supply tap
Insert the water line into the humidifier supply fitting.
Insert it fully, and apply modest pull pressure to
ensure a tight fit.
STEP TWO:Tap into a Water Line
Consult local codes for proper plumbing.•
Use the saddle valve provided or a T-fitting and•
manual shutoff valve to tap into the water line.
Refer to the literature included with the valve you•
chose and the local plumbing codes. Use proper
technique for the valve.
Connect the other end of the humidifier water line•
to the water valve.
MCR29880
Saddle Valve
T-fitting
Water Supply
Line
Manual Shutoff
Valve
M29605
2
1
Humidifier 69-2413EF—01 13

PLUMBING
STEP THREE: Connect to the Water Drain
Consult and follow local plumbing codes for drain•
pipe size and flow requirement.
The ideal installation is directly to the main floor•
drain using the rubber hose provided.
If direct floor drain access is not available,• see
“Appendix B: Advanced Draining.”
Connect the 1/2-in. drain hose provided to the drain
fitting on the bottom of the humidifier.
Use the hose clamp provided to secure the drain hose
to the fitting.
Route the drain hose to the floor drain. The hose must
have a continuous downward slope.
Direct the hose outlet into the floor drain. Secure
the hose to reduce the risk of water pooling or
splashing as it drains from the humidifier.
MCR29881
Before proceeding to Wiring:
I have connected the water supply line to the humidifier and the main water tap.
I have installed the drain connection.
I have checked all plumbing connections for leaks.
4
3
2
1
Humidifier 69-2413EF—01
14

WIRING
What humidifier model do I have?
The model number can be found on the bottom of the humidifier.
STEP ONE: Remove the Humidifier Cover
Remove the bottom cover.
STEP TWO: Understand the Wiring Terminals (HE150/HE250/HE300 only)
HE150/HE250 Bypass Terminal
Gf: Used to force system fan on when humidity is
needed.
R: Input from system R. Needed to power Gf when
forcing fan on.
Gt or W: Input from system G or W. Needed to
humidify only during fan or heat calls by system.
HUM: Dry contacts for humidity control.
C: Common. Needed for Gt or W input. Connect to
system C.
Power Out: 24V power for electric controls.
Power In: Power from 15VA transformer on HE150/
HE250 only.
SENSOR: Dry contacts for air proving device.
MCR29935
MCR29937
Before Wiring the Humidifier
Before wiring the humidifier:
I understand and will comply with applicable local wiring codes and regulations.
I will read the section “Using the DIP Switches” beginning on the next page.
CAUTION: Voltage Hazard.
Be sure the humidifier is not plugged in before beginning wiring.
1a
M29936
HE300 Fan Terminal
MCR29950
1b
Humidifier 69-2413EF—01 15

WIRING
Using the DIP Switches (HE150/HE250/HE300 only)
Two features are configured by DIP settings, which are described inside the humidifier cover.
STEP THREE: Understand the DIP Switches
DIP 1 (Top): This switch looks for inputs from the
HVAC system before allowing humidity. Set to the left,
the humidifier will look for input(s). Set to the right, it
will not.
DIP 2 (Bottom): This switch controls the fan. Set to
the left, the HVAC system controls the fan. Set to the
right, the humidifier will force the fan on when there is
a call for humidity.
STEP FOUR: Install the Transformer (Bypass Models Only)
Install transformer on the outside of a grounded metal junction box using only a 7/8 in. (22 mm) knockout hole.
Place mounting tabs into the knockout hole and firmly tighten the locking screw. Field wiring connections and
grounding means for the transformer and enclosure shall be in accordance with the National Electrical Code
(NEC) and the Canadian Electrical Code (CEC). Connect wires to the 120V side of the transformer.
For HE150 and HE250, the 15V transformer must provide constant power to the 24V IN terminals.
STEP FIVE: Wiring the Humidifier
Use a wiring diagram from the following pages that matches your equipment.
When wiring is complete, run the wires coming out of the humidifier into the wiring clip on the bottom of the
humidifier.
MCR29882
Humidifier 69-2413EF—01
16

WIRING
Wiring Configuration: Advanced Models (HE150/HE250/HE300)
Wiring H8908 to humidify only with a call for heat or fan.
Wiring TrueIAQ, VisionPRO IAQ, or Prestige, using the intelligent control to program humidity calls with heat,
cool, or on demand.
HUMIDIFIER
HE150 (PICTURED), HE250, HE300
H8908
10
OFFON
20
30 40
50
60
MCR29938
POWER IN
GT OR W G OR W
C
OR
AIR PROVING
DEVICE
AFS
AFS
HUM
HE150/HE250 USES A 15 VA TRANSFORMER WIRED INTO 24V IN.
HE100/HE200 USES A 10 VA TRANSFORMER WIRED INTO 24V IN.
HE300 USES A LINE CORD PLUG.
CONNECT G TO HUMIDIFY WHEN THERE IS A FAN CALL.
CONNECT W TO HUMIDIFY WHEN THERE IS A HEAT CALL.
NEVER CONNECT BOTH. CONNECT C WHEN USING G OR W.
USE AIR PROVING DEVICE INSTEAD OF THE G/W CONNECTION
TO HUMIDIFY ANY TIME THE FAN IS OPERATING.
1
1
2
3
3
2
MCR29939
HUMIDIFIER
HE150 (PICTURED), HE250, HE300
FROM
HUMIDITY
CONTROL
POWER IN
HUM
HE150/HE250 USES A 15 VA TRANSFORMER WIRED INTO 24V IN.
HE100/HE200 USES A 10 VA TRANSFORMER WIRED INTO 24V IN.
HE300 USES A LINE CORD PLUG.
1
1
Humidifier 69-2413EF—01 17

WIRING
Wiring Configuration: Advanced Models (HE150/HE250/HE300)
Wiring to force the HVAC system fan on whenever humidity is needed (on demand).
Wiring to force fan on and prove airflow in the duct.
MCR29940
POWER IN
HUM GT OR W
G (FURNACE)
G (THERMOSTAT)
R
24V OUT
24V OUT
R
GF
ONLY NEEDED IF SYSTEM’S THERMOSTAT DOES NOT ISOLATE Y FROM G.
IF NEEDED, BREAK THE THERMOSTAT G TO SYSTEM G CONNECTION
AND ROUTE THROUGH HUMIDIFIER AS SHOWN.
HE150/HE250 USES A 15 VA TRANSFORMER WIRED INTO 24V IN.
HE100/HE200 USES A 10 VA TRANSFORMER WIRED INTO 24V IN.
HE300 USES A LINE CORD PLUG.
1
1
POWER OUT
24V FOR
ELECTRONIC
HUMIDISTAT
2
2
FROM
HUMIDITY
CONTROL
MCR29941
POWER IN
HUM GT OR W
G (FURNACE)
G (THERMOSTAT)
AFS
AFS
AFS
GF
ONLY NEEDED IF SYSTEM’S THERMOSTAT DOES NOT ISOLATE Y FROM G.
IF NEEDED, BREAK THE THERMOSTAT G TO SYSTEM G CONNECTION
AND ROUTE THROUGH HUMIDIFIER AS SHOWN.
HE150/HE250 USES A 15 VA TRANSFORMER WIRED INTO 24V IN.
HE100/HE200 USES A 10 VA TRANSFORMER WIRED INTO 24V IN.
HE300 USES A LINE CORD PLUG.
1
1
POWER OUT
24V FOR
ELECTRONIC
HUMIDISTAT
2
2
FROM
HUMIDITY
CONTROL
R
24V OUT
24V OUT R
Humidifier 69-2413EF—01
18
