TrueEASE™ Humidification System
PROFESSIONAL INSTALLATION GUIDE
INCLUDED IN THIS HUMIDIFIER BOX
Tools needed to install humidier
Wire cutter/stripper
Tin snips or sheet metal cutter
#8 hex nut driver
Standard screwdriver
18-gauge wire (up to 5 conductor)
Other Requirements
If floor drain is not available, refer to Appendix C for
additional plumbing parts consideration.
If installed in or above a finished space, Honeywell
recommends installing a drip pan with water
sensor shut-off.
A1Humidifier Bypass
A2Humidifier Fan
Saddle valve
Water supply line
Drain hose (10 feet)
EOwner’s manual
FMounting template
GHumidiPRO Digital humidity control
Hardware (not pictured)
Additional accessories included in select
models
E
A1A2
F G
GETTING
STARTED MOUNTING PLUMBING WIRING APPENDICES
OPERATION
AND SERVICE
Cross Reference Table
Humidier Honeywell® Aprilaire® GeneralAire®
HE100 and HE150 HE225 500 570
HE200 and HE250 HE265 600 900
HE300 HE365 700 1000

Humidier
NEED HELP? For assistance with this product please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502.
Read and save these instructions.
® U.S. Registered Trademark. Patents pending. Copyright © 2011 Honeywell International Inc. All rights reserved.
?
Humidier 69-2413EF—09
GETTING
STARTED MOUNTING PLUMBING WIRING APPENDICES
OPERATION
AND SERVICE
1
GETTING STARTED
Safety Denitions and Precautions .............. 2
What to Expect From Your Humidier ............ 3
Important Installation Requirements ............. 4
MOUNTING
Choosing a Mounting Method .................. 5
STEP ONE: Select the Mounting Location...... 6
STEP TWO: Install Mounting
Template to the Duct .................... 6
Bypass Model Installation ..................... 7
STEP THREE: Congure
Humidier Bypass ...................... 7
STEP FOUR: Installation ................... 8
STEP FIVE: Bypass Duct Installation ......... 9
Fan Model Installation ....................... 10
STEP THREE: Installation ................. 10
PLUMBING
Water Supply and Drain Connections ........... 11
STEP ONE: Connect the Water Supply ....... 11
STEP TWO: Tap into a Water Line ........... 11
STEP THREE: Connect to the Water Drain .... 14
WIRING
Before Wiring Humidier ..................... 13
STEP ONE: Remove the Humidier Cover .... 13
STEP TWO: Understand the Wiring Terminals .. 13
STEP THREE: Understand the DIP Switches .. 14
STEP FOUR: Install the Transformer
(Bypass Models Only).................. 14
STEP FIVE: Wiring Humidier .............. 14
Installing the Humidistat ..................... 15
Remote Installation (H6062)................ 15
Duct Installation (H6062) ................15-16
Wiring the Humidistat ..................... 16
Wiring Conguration
Advanced Models (HE150/HE250/HE300) .... 17
Basic Models (HE100/HE200) .............. 17
Outdoor Sensor ..........................18-19
OPERATION AND SERVICE
Startup and Checkout ....................... 23
Routine Maintenance........................ 24
Troubleshooting ............................ 25
APPENDICES
A: Specications ........................... 26
B: Advanced Wiring ......................... 27
C: Advanced Draining ....................... 32
D: Parts List ............................... 33

GETTING
STARTED
Safety Denitions and Precautions
Safety Denitions
These safety terms identify information you must read prior to installing or operating the humidier.
CAUTION: Indicates a hazardous situation which, if not avoided, could cause bodily injury
or property damage.
WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Safety Precautions
Make sure you read and understand the following safety hazards before installing, using, or working with the
humidier:
CAUTION: Voltage Hazard.
Can cause electrical shock or equipment damage.
Disconnect HVAC equipment and any electrical outlet being used for the humidier installation.
WARNING: Electrocution and Water Hazard.
Can cause death, blindness, and water damage to the home and HVAC Equipment.
CAUTION: Condensation, Fire, and Freezing Water Hazard.
Can cause failure of fan or limit control or result in water damage to home.
Humidier 69-2413EF—09
2

GETTING
STARTED
The installer should review these points with the homeowner and answer any questions they have before leaving
the job site.
• Achieving Humidity Setpoint. It may take up to a week of continuous operation to achieve the humidity
setpoint, especially if the home is dry when the humidier is installed. This also depends on such factors as
weather, size of home, furnishings in the home, and insulation.
• Ideal Humidity. Home building industry experts cite 35% relative humidity as ideal for comfort and
safeguarding the home during the typical dry season. Homeowners can adjust to their own comfort or until
there is condensation on the windows. Lower the setpoint if condensation appears.
• Unit Not Humidifying. If the humidier is not running but the humidity is below the setpoint, the humidity
control may have a frost protection setting to prevent window condensation from appearing.
• Home Ventilation. Excessive ventilation sends moist air outside and replaces it with dry air. This can make it
hard to maintain the humidity setpoint. If installing a ventilator, use a solution that retains moisture. An Energy
Recovery Ventilator (ERV) is recommended.
• Cleaning Requirements. At least once per year it is recommended to change the humidier pad and clean
the water trays of the humidier. See Operation and Service section for details.
• Energy Consumption. It is important to explain that with any humidication solution there is a cost
associated with converting water to humidity. The humidier utilizes the air heat and air ow in your ducting to
make this conversion, which has gas and/or electric costs that depend on your HVAC system type and setup.
What to Expect From Your Humidier
Humidier 69-2413EF—09 3

GETTING
STARTED
Personal Safety
• Wear safety glasses while installing the humidier.
• Do not cut into any air conditioning or electrical line.
• Follow professional safety standards and all local regulations for plumbing, electrical, and mechanical
considerations.
Mounting Location
• Mount the humidier in a level position to avoid water damage and ensure maximum output.
• Location must have access to a water line, drain, and power.
• Do not install the humidier where the ambient temperature is lower than 34°F (1.1°C) or higher than 90°F
(40°C).
• Mounting area must be strong enough to support humidier weight (up to 16 lbs [Fan] or 10 lbs [Bypass]).
• Do not mount directly to ductboard.
• If used near a pool or spa, make sure the humidier can not fall into the water or be splashed.
• Ensure that the top and bottom covers of the humidier can be removed and that the pad is accessible from
the chosen location.
Water Supply and Drainage
• Consult local plumbing codes for drain size, material, and maximum temperature allowed.
If Replacing an Old Bypass Humidier
The humidier is not identical in size and shape to other Honeywell bypass humidiers. Before performing a
retrot installation, you might need to:
• Dry-t the humidier to the existing ducting, plumbing, and wiring before fastening it to the duct to ensure that
the existing connections will reach the humidier.
• If the duct opening of the old humidier is not the right size for the humidier, choose a new location or cover
the old opening with a piece of sheet metal and cut a new opening specically for the humidier using the
template provided.
Important Installation Requirements
Failure to comply with these requirements will result in voided warranty, improper installation, and
service callbacks.
Cross Reference Table
Humidier Honeywell® Aprilaire® GeneralAire®
HE100 and HE150 HE225 500 570
HE200 and HE250 HE265 600 900
HE300 HE365 700 1000
Humidier 69-2413EF—09
4

MOUNTING
Whether you purchased a Bypass or Fan humidier will determine how your humidier will be installed:
Which humidier do you have?
Bypass:
Bypass humidiers use the pressure difference
between the supply and return to move duct
air through the humidier. Access to both the
supply and return are required. The bypass
humidier can be positioned on either the
supply or return duct.
MCR29871
Fan:
Fan humidiers use the fan inside the humidier
to pull duct air through the humidier. Honeywell
strongly recomends mounting the HE300 on
the supply duct for maximum humidication
capacity. If a return duct installation is required,
a trap must be installed in the drain line. A hard
trap is recommended, but a coil in the line,
secured with tape or zip tie, is also acceptable.
See Water Supply and Drain Connections
section for details.
MCR29929
Choosing a Mounting Method
Before beginning Mounting:
I have conrmed local codes for proper plumbing practices.
I have chosen an installation location that meets the requirements on page 4.
Humidier 69-2413EF—09 5

MOUNTING
STEP ONE: Select the Mounting Location
Choose a location that has access to a water supply
pipe. Cold or hot water can be used.
Select a vertical or horizontal surface on the HVAC
duct work, with adequate space clearances, where
the humidier can be mounted.
Location must also have access to 120 VAC power.
For the HE300 Fan humidier, the power cord is 6 feet
long.
Ensure the location is near a drain. Consult local
plumbing codes for proper drainage. If no main
oor drain is available, see “Appendix C: Advanced
Draining.”
STEP TWO: Install Mounting Template to the Duct
Position the template on the duct.
• Make sure the template is level and in the desired
position on the duct. Peel adhesive backing
and press template rmly into place in desired
mounting location.
Ensure proper clearances from the air-conditioning
coil inside the duct.
NOTE: The HE300 Fan model extends into the duct
1-3/4 inch. Bypass models extend into the duct 1/2
inch. Ensure clearance inside the duct.
• For best performance, maintain at least 24 inches
downstream of open air space inside the duct.
Cut the sheet metal, following the template outline.
MCR29877
M29873
1
M29874
A-COIL
1-3/4
(44)
1/2
(13)
FAN
BYPASS
4
2
2
3
3
2
1
M32930
Humidier 69-2413EF—09
6

MOUNTING
STEP THREE: Congure Humidier Bypass
Congure the humidier bypass outlet to the side that
best ts the application.
If the bypass needs to be on the other side, remove
the top and bottom covers.
Unplug the damper wire and plug in on the other side
(HE150/HE250 only).
Pull the bypass clamps apart from center to remove
the bypass; snap it back into place with the outlet on
the desired side.
Ensure that the pad is accessible. The handle of the
pad holder and side panel of the humidier can be
switched so the pad holder can be removed (opposite
side of the bypass duct opening).
To remove the handle for the pad holder, slide it
toward the back of the humidier, then pull it away
from the humidier.
To remove the opposite side panel, place a
screwdriver into the two slots on the back of the
humidier, and pop the panel off.
Snap the pad holder handle and side panel back into
place in the desired conguration.
MCR29875
If you are installing HE300 Fan model, proceed to page 10.
Bypass Model Installation
MCR29876
1
1
2
2
3
3
MCR29946
4
5
Humidier 69-2413EF—09 7

MOUNTING
STEP FOUR: Mounting
Secure the support hooks on Bypass models to the
bottom lip of the hole.
Push the top of the humidier back against the duct.
Verify the humidier is level and fasten the humidier
to the duct using two self-drilling sheet metal screws
provided.
MCR29870
2
1
Bypass Model Installation
Humidier 69-2413EF—09
8

MOUNTING
Before proceeding to the next step:
I secured the humidier to the duct as instructed.
Bypass mounting is complete. Go to page 15.
Bypass Model Installation
Humidier 69-2413EF—09 9
STEP FIVE: Bypass Duct Installation
On the duct opposite the humidier Bypass install, cut
a 6-in. diameter duct hole.
• If the humidier is on the supply duct, the 6-in.
diameter hole should be on the return.
• If the humidier is on the return duct, the 6-in.
diameter hole should be on the supply.
Secure a 6-in. round duct starter collar into the 6-in.
duct hole.
Use rigid or aluminized exible 6-in. duct to connect
the starter collar to the humidier bypass port.
Secure the duct to the humidier port with self-drilling
sheet metal screws using the pre-drilled holes on the
bypass port. For added seal, wrap sheet metal tape
around the duct to port connection point.
MCR29933
MCR29878
2
2
2
1
1

MOUNTING
STEP THREE: Mounting
Slide the Fan model evenly into the duct hole. Verify
the humidier is level.
Fasten the humidier to the duct using four self-drilling
sheet metal screws provided.
Do not plug the humidier in yet.
MCR29934
1
2
3
Fan Model Installation
Humidier 69-2413EF—09
10

PLUMBING
Water Supply and Drain Connections
STEP ONE: Connect the Water Supply
Use hot or cold water.
Cut the water line so it reaches from the humidier to
the main water supply tap.
Insert the water line into the gray quick connect
tting. Insert it fully, and apply modest pull pressure to
ensure a tight t.
Note: The quick connect tting can be removed if you
prefer to use a standard 1/4-in. brass compression
nut plumbing connection. Do not remove the conical
screen if you select this option.
STEP TWO:Tap into a Water Line
• Consult local codes for proper plumbing.
• Use the saddle valve provided or a T-tting and
manual shutoff valve to tap into the water line.
• Refer to the literature included with the valve you
chose and the local plumbing codes. Use proper
technique for the valve.
• Connect the other end of the humidier water line
to the water valve.
MCR32931
Saddle Valve
T-fitting
Water Supply
Line
Manual Shutoff
Valve
M29605
2
1
Humidier 69-2413EF—09 11

PLUMBING
STEP THREE: Connect to the Water Drain
• Consult and follow local plumbing codes for drain
pipe size and ow requirement.
• The ideal installation is directly to the main oor
drain using the rubber hose provided.
• If direct oor drain access is not available, see
“Appendix C: Advanced Draining.”
Connect the 1/2-in. drain hose provided to the drain
tting on the bottom of the humidier.
Use the hose clamp provided to secure the drain hose
to the tting.
Route the drain hose to the oor drain. The hose must
have a continuous downward slope.
Direct the hose outlet into the oor drain. Secure
the hose to reduce the risk of water pooling or
splashing as it drains from the humidier.
HE300 ONLY: Return Duct Installation
If a return duct installation is required, a trap
must be installed in the drain line. A hard trap is
recommended, but a coil in the line, secured with tape
or zip tie, is also acceptable.
MCR29881
Before proceeding to Wiring:
I have connected the water supply line to the humidier and the main water tap.
I have installed the drain connection.
I have checked all plumbing connections for leaks.
4
3
2
1
M32929
Humidier 69-2413EF—09
12

WIRING
What humidier model do I have?
The model number can be found on the bottom of the humidier.
STEP ONE: Remove the Humidier Cover
Remove the bottom cover.
STEP TWO: Understand the Wiring Terminals (HE150/HE250/HE300 only)
HE150/HE250 Bypass Terminal
Gf: Used to force system fan on when humidity is
needed.
R: Input from system R. Needed to power Gf when
forcing fan on.
Gt or W: Input from system G or W. Needed to
humidify only during fan or heat calls by system.
HUM: Powered contacts for humidity control.
C: Common. Needed for Gt or W input. Connect to
system C.
Power Out: 24V power for electric controls.
Power In: Power from 15VA transformer on HE150/
HE250 only.
SENSOR: Powered contacts for an air proving device
when utilized.
MCR29935
MCR29937
Before Wiring the Humidier
Before wiring the humidier:
I understand and will comply with applicable local wiring codes and regulations.
I will read the section “Using the DIP Switches” beginning on the next page.
CAUTION: Voltage Hazard.
Be sure the humidier is not plugged in before beginning wiring.
1a
M29936
HE300 Fan Terminal
MCR29950
1b
Humidier 69-2413EF—09 13

WIRING
Using the DIP Switches (HE150/HE250/HE300 only)
Two features are congured by DIP settings, which are described inside the humidier cover.
STEP THREE: Understand the DIP Switches

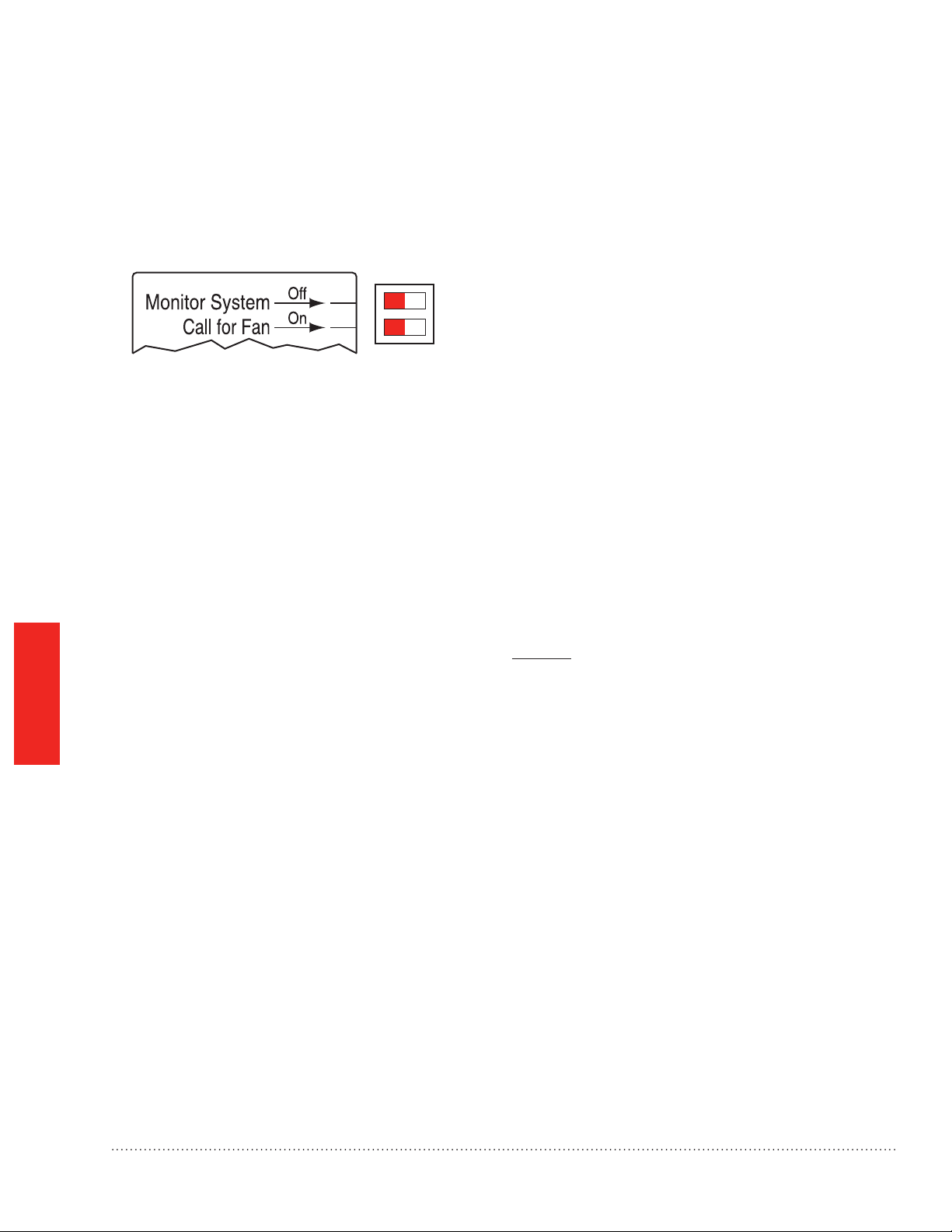

DIP 1 (Top): This switch looks for inputs from the
HVAC system before allowing humidity. Set to the left,
the humidier will look for input(s). Set to the right, it
will not.
DIP 2 (Bottom): This switch controls the fan. Set to
the left, the HVAC system controls the fan. Set to the
right, the humidier will force the fan on when there is
a call for humidity.
STEP FOUR: Install the Transformer (Bypass Models Only)
Install transformer on the outside of a grounded metal junction box using only a 7/8 in. (22 mm) knockout hole.
Place mounting tabs into the knockout hole and rmly tighten the locking screw. Field wiring connections and
grounding means for the transformer and enclosure shall be in accordance with the National Electrical Code
(NEC) and the Canadian Electrical Code (CEC). Connect wires to the 120V side of the transformer.
For HE150 and HE250, the 15V transformer must provide constant power to the 24V IN terminals.
STEP FIVE: Wiring the Humidier
Use a wiring diagram from the following pages that matches your equipment.
When wiring is complete, run the wires coming out of the humidier into the wiring clip on the bottom of the
humidier.
MCR29882
Humidier 69-2413EF—09
14

WIRING
Installing the Humidistat
Humidier 69-2413EF—09 15
Remote Mount Installation
Choose a location in the living area.
NOTE: Select a location clear of drafts or excessive humidity. Avoid
mounting near doors or windows, or in bathrooms or kitchens.
ALTERNATE
LOCATION
RETURN
AIR RETURN
AIR
6 IN (152 MM)
MINIMUM
15 IN (381 MM)
MINIMUM
BEST
LOCATION
RETURN
AIR DUCT M34579
YES NO
NO
M34567
Warning: Product must be mounted on the RETURN
side of the duct for proper RH% sensing.
Duct-Mount Installation (recommended)
-
05,,(%2%
3ETTING
,IGHT
!UTO
. EXT!UTO
3YSTEM

2EPLACE"ATT
)NSIDE

(5-)$)49"//34
Caution: Electrical Hazard
Can cause electrical shock or equipment damage.
Disconnect power before beginning installation.
3. Mark the duct-tube hole.
Hold the wallplate up to the desired location
on the duct and make a mark inside the duct
tube hole.
4. Drill the duct-tube hole.
Find your mark and drill a 1/2 in. hole in
the duct. This is where the duct tube will
be inserted to capture air.
M34581
M34580
OR
1. Choose a location on the RETURN duct. 2. Separate wallplate from humidistat.

WIRING
Humidier 69-2413EF—09
16
Wiring the Humidistat
This humidity control is wired the same way a manual
humidistat (H8908) is wired. The only difference is that
you also wire in power (24 VAC) and an outdoor sensor.
M34582
M34610
RUN WIRES
THROUGH THE
TOP OR BOTTOM
CHANNEL
C
R
U
U
S
S
M34865
TERMINAL DESIGNATION
C 24 VAC POWER FROM EQUIPMENT
R 24 VAC POWER FROM EQUIPMENT
U HUMIDIFIER
U HUMIDIFIER
S OUTDOOR SENSOR
S OUTDOOR SENSOR
NOTES: C AND R MUST BE CONSTANT 24VAC! RECOMMENDED TO WIRE TO
FURNACE/AIR HANDLER CONTROL BOARD.
DO NOT WIRE C AND R TO HUMIDIFIER TRANSFORMER!
C
R
U
U
S
S
24 VAC (CONSTANT)
TO HUMIDIFIER
OUTDOOR
TEMPERATURE
SENSOR
5. Insert the duct tube.
M34671
Insert the duct tube through the
wallplate before securing to the
duct.
Installing the Humidistat
Duct-Mount Installation (continued)
6. Secure the wallplate.
Secure the wallplate to the duct with
sheet metal screws (provided).
7. Run wires through the back plate.
Run wires through the top or bottom channel
on the back plate when duct-mounted. If
installing like a thermostat on a wall, run the
wires through the back.

WIRING
Wiring Conguration: Advanced Models (HE150/HE250/HE300)
Wiring Conguration: Basic Models (HE100/HE200)
Advanced Wiring Diagrams are shown in Appendix B
beginning on page 27.
Wiring HumidiPRO to TrueEASE Advanced Humidier with Fan Interlock (HE150/HE250/HE300).
Wiring HumidiPRO to TrueEASE Basic Humidier with Fan Interlock (HE100/HE200).
M34577
NOTE: SEE Tr ueEASE INSTALL GUIDE FOR DETAILED WIRING INFORMATION.
HumidiPRO
C
R
U
U
S
S
HVAC
GYWR C
THERMOSTAT
G “FAN”
24VAC
CONSTANT
POWER IN
NOT REQUIRED
ON HE300
OUTDOOR
SENSOR
M34570
1
TRANSFORMER
FURNACE
FAN
MOTOR
FAN CONTROL
L1
(HOT)
L2
POWER
SUPPLY
1
2
PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
24 VAC WIRING.
HUMIDIFIER
2
C
R
U
U
S
S
24 VAC (CONSTANT)
OUTDOOR SENSOR
Humidier 69-2413EF—09 17

WIRING
Humidier 69-2413EF—09
18
Mounting the Outdoor Sensor
(Not required if window protection isn’t needed)
Location
Mount the sensor where:
• it cannot be tampered with.
• there is good air circulation.
• surface is at.
• wire distance between sensor and humidistat is less than 200 feet.
• it can measure true outdoor ambient temperature.
Do NOT mount the sensor:
• in direct sunlight.
• where snow, ice or debris can cover it.
• where hot or cold air blows on the sensor. (For example, a discharge line from an outdoor compressor unit,
vent or fan can cause inaccurate temperature readings.)
Steps to mount the sensor
1. Remove the sensor from the mounting clip.
2. Mark the area on the location selected for mounting the sensor mounting clip.
3. Mount the clip. Image on right shows typical locations for outdoor sensor.
M7514A
