Honeywell HomMed Wireless Scale
Quick Reference Guide
Wireless Scale – Bluetooth Enabled ( ptional Peripheral)
Introduction
This Quick Reference Guide together with the Genesis DM Manual are both training materials provided to instruct the user on the
proper operation and installation of vital sign measuring equipment. Users need to review operating procedures on a regular basis, paying
special attention to Caution statements. Make sure to keep this training guide as well as the Genesis DM Manual available while using the
hardware. This document is designed as a Quick Reference Guide only, and it should be used in combination with the Genesis DM Manual,
and Telehealth Monitor Programming/Troubleshooting Guide, as it does not cover all aspects, features or functions of the Genesis DM
Telehealth Monitor.
This Quick Reference Guide is designed to help you perform the basic steps for adding/installing a wireless Bluetooth scale in the wireless
operational mode.
Honeywell HomMed Customer Service
Toll-free: 888-353-5404
Phone: [phone]
Fax: [phone]
Honeywell HomMed Corporate Offices
Honeywell HomMed
3400 Intertech Drive • Suite 200
Brookfield, WI 53045
Phone: [phone] • Fax: [phone]

P4607EN.01 12/2010 2
Customer Service Honeywell HomMed®, LLC
3400 Intertech Drive • Suite 200
Brookfield, Wisconsin 53045
Toll-free: [phone]
Phone: [phone]
Fax: [phone]
http://www.hommed.com/
Copyright Copyright © 2010 Honeywell HomMed®, LLC. All rights reserved. This document and any accompanying Honeywell HomMed
products are copyrighted by Honeywell HomMed, LLC. Any reproduction and/or distribution without prior written consent from
Honeywell HomMed is strictly prohibited. Please refer to any software End User License Agreement for additional details regarding
Honeywell HomMed software products.
Trademarks HomMed® is a registered trademark of Honeywell HomMed, LLC. LifeStream is a registered trademark of HomMed, LLC.
This Quick Reference Guide provides important information that you need to know before you start using the Honeywell HomMed Bluetooth Enabled
Wireless Scale and Genesis DM Monitor. The information herein supports software versions 4.11.xxA and later.
Indications for use
The Honeywell HomMed Genesis DM Monitor is intended for personal use where use of the system allows retrospective review of certain physiological
functions. The Genesis DM Monitor collects vital signs data (including noninvasive blood pressure, pulse rate, and weight plus data from optional add-on
devices) then can transmit the data to a central viewing station via a communication network. The Genesis DM Monitor is intended for use with adult
and pediatric patients over twelve years of age.
Contraindications
The Genesis DM monitor is not an emergency medical response device. The monitor does not have auditory or visual alarms for out-of-limit
parameters. The Genesis DM monitor does not provide real-time, critical-care monitoring of patient vital signs. All data is transmitted to your
monitoring platform, such as to the LifeStream™ platform or to Central Station 3.5 (Central Station) platform and examined in a retrospective manner
by qualified health professionals.
Who should read this guide?
This Honeywell clinician manual has been specifically prepared for those using the Genesis DM Monitor in healthcare applications, including but not
limited to administrative management personnel, clinicians such as medical care managers and nurses, and technical support staff. The information in this
guide provides the instructions needed to install, and use the Honeywell HomMed Wireless Scale with the Genesis DM Monitor.

P4607EN.01 12/2010 3
Product Description
Scale
The Honeywell HomMed scale is available in regular (Wired) and Bluetooth (Wireless) versions. The scale has a capacity of 500 lb (227 kg) and
collects weight using four load cells, one in each corner of the scale. The accuracy of the weight is +/- 0.5 lb (0.2kg). The Genesis DM supplies power
and communication to the scale through the scale cord, or the scale can operate in a battery powered mode.
OTE: Bluetooth is a proprietary, open wireless method for exchanging data within relatively short distances using radio signals. For more
information, see http://www.bluetooth.com.
Gravity Adjustment: The scale is adjusted for gravity in the location to which HomMed is shipping it. Any relocation to a different gravity zone
requires re-verification by HomMed. Any damage or recalibration may also require re-verification. The following table identifies distinguishing
features of each scale. The Bluetooth scale does N T have adjustable feet.
The Honeywell HomMed scale is not a stand-alone device. The scale must be connected to a Honeywell HomMed
monitor to operate.
Step-by-Step Instructions covered in this guide are:
• Installing the Honeywell HomMed Bluetooth adapter
• Connecting one wireless scale
• Connecting when multiple wireless scales are in the area.
• Using the Scale during a Scheduled Reading
• Troubleshooting
Feature
Honeywell HomMed Wireless Scale
Size Approximately 15.75" by 14"
Shape Curved
Surface texture Round textured pattern
Feet Fixed
Scale cord 4-pin MiniDIN Blue to monitor and DB9 serial connector to scale

P4607EN.01 12/2010 4
Connecting a HomMed Bluetooth (wireless) Scale
These instructions cover preparing the DM Monitor to use a Bluetooth adapter and wireless Honeywell HomMed Bluetooth Scale. Three
basic actions are involved:
1. Installing the Honeywell HomMed Bluetooth adapter.
2. Connecting one wireless scale.
3. Connecting when multiple wireless scales are in the area.
The DM Monitor must be configured to use a Bluetooth wireless scale. After completing the configuration process, the Scale is ready for
use. The configuration process would only need to be repeated if the monitor will be used with a different wireless scale or if the monitor
will be used with the regular “wired” scale.
Installing the Honeywell HomMed Bluetooth adapter

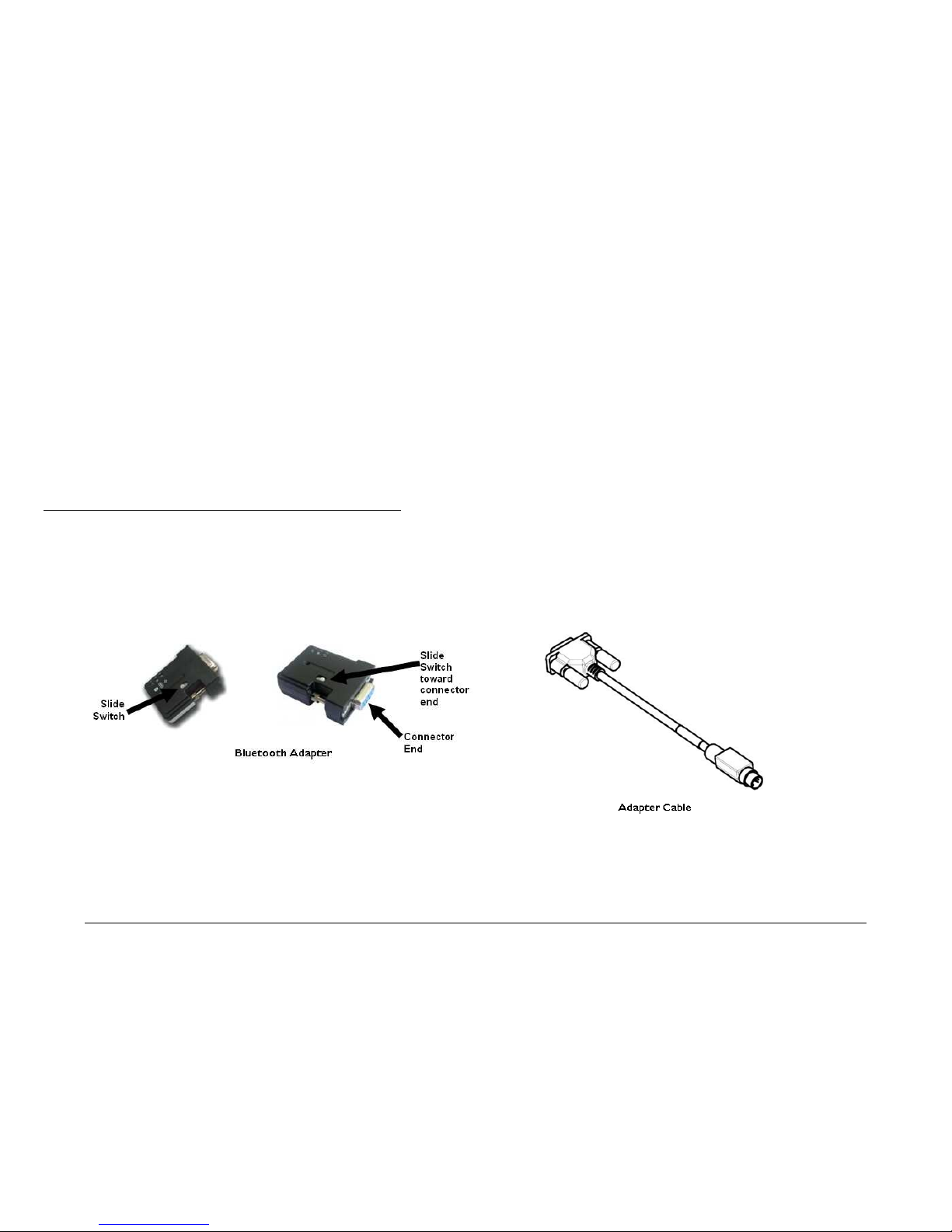

The wireless scale kit includes a Bluetooth Adapter and an Adapter Cable. If needed, securely connect the Adapter Cable to the
Bluetooth Adapter, (Note: they should arrive already connected together in the monitor kit). For the Bluetooth Adapter, assure that the
slide switch on the top of the Adapter is positioned toward the Connector end of the adapter to enable proper transmission and data flow between
the wireless scale and the DM Monitor.

P4607EN.01 12/2010 5
What is the slide switch?
The slide switch is part of the adapter. The slide switch allows different positions to be selected for different adapter functionality. The slide switch is
not an N / FF switch; therefore, the slide switch is not a “power” switch, but must be in the proper position in order to enable proper
transmission and data flow between the wireless scale and the DM Monitor.
With the DM monitor power FF, plug the Adapter Cable into the Scale port at the back of the monitor, or the wireless scale will not be
sensed properly. The adapter is equipped
The adapter is equipped with light emitting diodes (LEDs) to indicate various conditions:
•
••
• Blue Blinking = Scanning for / communicating with Bluetooth devices
•
••
• Solid Blue = Adapter has connected to scale
•
••
• Solid Red = Power n Light
•
••
• Green = Indicates data transfer
Bluetooth
Adapter
Adapter
Cable
Scale
Port

P4607EN.01 12/2010 6
After connecting the Bluetooth Adapter and Adapter Cable to the DM Monitor and making sure that the slide switch is toward the
connector end, power N the DM Monitor. When prompted, enter the Setup Wizard by pressing YES.
Connecting One Wireless Scale:
The monitor will direct the user to place the Scale in its final position and the display will indicate this, along with the request to press (Yes)
to continue.
Power up the scale (using either batteries or the AC power adapter supplied), and place the scale in a position convenient for the patient.
Press YES to allow the monitor to detect the scale.
OTE: The scale should be less than 30 feet (10 meters) from the monitor for signal acquisition. The reason that the scale should be less
than 30 feet (10 meters) from the monitor is that the signal between the two devices only works within such relatively short distances. If
Place Scale in Final
Position and Press YES
when done
Enter Setup Wizard?
(Yes/No)

P4607EN.01 12/2010 7
the scale and monitor are too far apart, or if items or personnel are blocking the signal, then the scale and monitor will not be able to
connect and communicate with one another as needed for proper functionality.
The monitor will display the “Please Wait Scanning Devices” message as it scans for suitable Bluetooth devices in the nearby vicinity. The
DM Monitor locates, senses, and pairs with a single scale automatically.
OTE: Establishing communications may take several minutes.
The Bluetooth adapter activity light emitting diodes will flash blue and red. When the blue diode is flashing, the Bluetooth devices in the
vicinity are being scanned, sensed, and connected to the DM Monitor. The blue LED is the Number ne LED. The red LED should be N,
indicating that the adapter is powered by the monitor. Check the DM Monitor-to-Bluetooth adapter connection if the red LED is not N.
Please Wait
Scanning Devices

P4607EN.01 12/2010 8
When a single scale is detected and paired with the monitor, the monitor will display the Pairing Successful message. If there is only one
scale in the vicinity, that scale will be the one that the monitor will pair with.
If the monitor is unable to detect the scale, it will display the “Pairing Failed” message.
If the pairing failed, check to make sure that the scale has power and that the adapter is properly connected to the monitor and that the
Bluetooth adapter red LED is N. Also, verify that the scale is located close enough to the monitor, and less than 10 meters or about 30
feet away.
After a failed attempt to detect a wireless scale, the DM Monitor screen will ask if you desire a scan for available Bluetooth devices. After
verifying that the scale has power and is the appropriate distance from the monitor, press YES to retry.
Pairing Failed
Pairing Success ul

P4607EN.01 12/2010 9
When the scale is detected, the monitor will display the Pairing Successful message.
Complete the Setup Wizard in the normal manner.
Scan or Available
BT Devices?
[YES] or [No]
Pairing Success ul

P4607EN.01 12/2010 10
Connecting when multiple wireless scales are in the area
To configure the DM Monitor for use when there are multiple wireless scales in the area, before beginning the pairing process,
verify the serial number of the scale that you wish to pair with the monitor. The serial number is located on the bottom of the scale.
You may write the Serial Number here for reference purposes: ___________________________
After verifying the serial number, power N the DM Monitor.
When prompted, enter the Setup Wizard by pressing YES.
The DM Monitor and Bluetooth Adapter will sense the presence of multiple devices. Press YES to continue.
STARTING
GENESIS DM
Enter Setup Wizard?
[YES] or [NO]

P4607EN.01 12/2010 11
OTE: Establishing communications may take several minutes.
The monitor will prompt the user to place the Scale in its final position.
Assure that there is power to the scale, supplied either by the scale batteries or the scale AC power adapter. Place the scale in a
position convenient for the patient.
OTE: The scale should be less than 30 feet (10 meters) from the monitor for signal acquisition.
Press YES to allow the monitor to detect the scale.
The monitor will display the “Please Wait Scanning Devices” message as it scans for suitable Bluetooth devices in the nearby vicinity.
Please Wait
Scanning Devices . . .
Place Scale in
Final Position

P4607EN.01 12/2010 12
OTE : Establishing communications may take several minutes.
During the Paring process the Bluetooth adapter blue LED (light emitting diode) will flash on and off, indicating activity. The red LED
should be N, indicating that the adapter is powered by the monitor. Check the DM Monitor-to-Bluetooth adapter connection if
the red LED is not N.
When the blue diode is flashing, the Bluetooth adaptor is searching for devices in the vicinity.
When the DM Monitor and Bluetooth Adapter have located the suitable devices in the area, a list will appear and prompt the user
to select a scale to pair to the monitor.
nly one device or serial number is displayed on the monitor at a time. Pressing the N button, for example, goes down the list,
from 1 to 2 to 3 to 4 . . . back to 1. Pressing the YES button goes up the list, from 1 to the end of the list . . . to 4 to 3 to 2 to 1.
The RETEST button selects the currently displayed serial number.
• IMPORTANT •
If a scale serial number appears on the monitor display screen for more than 30 seconds,
the monitor will automatically select and pair with that scale.
OTE: If the monitor pairs to a different scale than the one desired, see the Bluetooth Wireless Scale Troubleshooting section that
appears after this section.
Please Wait
Scanning Devices . . .
Select Scale To Pair. . .
1. 5094950014

P4607EN.01 12/2010 13
Press the N key to continue to the next number.
Again, press the N key to continue to the next number.
When the selected scale is detected and paired with the monitor, the monitor will display the Pairing Successful message.
After the Pairing Successful message appears, complete the Setup Wizard in the normal manner. The monitor will then be ready for
use, programmed with the wireless scale.
Select Scale To Pair. . .
2. 5094950020
Select Scale To Pair. . .
3. 5094950021
Pairing Success ul

P4607EN.01 12/2010 14
Using the Scale during a Scheduled Reading:
During a scheduled reading, the monitor will display the following message when attempting to communicate with the wireless scale:
When communication is established, the user will be prompted to step on the scale as in normal (wired) operation. If the monitor is
configured for voice prompting, the audible message will be “Please step on the scale”
When the scale senses, through a series of signal transactions, that the person being weighed has stabilized on the scale, then the weight will
display. The display of the weight may take a moment.
STEP
ON
SCALE
o o o o o
o o o o o
Preparing Scale
Please Wait

P4607EN.01 12/2010 15
When the weight sensing is complete, the audible message will be “Please, step off the scale.”
This completes the installation and use of the Wireless Scale. If you have any questions regarding the Wireless Scale please contact
Honeywell HomMed Customer Service at 1-888-353-5404.
STEP OFF
SCALE
o o o o o
o o o o o
220
LBS

P4607EN.01 12/2010 16
Troubleshooting:
If communication cannot be established, the monitor will display one of the following error messages; Error Code E203, E204 or E205,
Scale Disconnected:
E203 error code: The Bluetooth Adapter is not plugged in properly to the back of the monitor.
Solution: Check the connection on the rear panel and retry.
E204 error code: Bluetooth Adapter is not paired to the scale.
Solution: Check the Bluetooth Adapter. Make sure that the Bluetooth Adapter is powered N and that it is properly connected to the
Adapter Cable, and that the Adapter Cable is properly connected to the DM Monitor at the Scale port on the rear panel of the DM
Monitor. Retry.
ERROR CODE: E203
Scale Disconnected
ERROR CODE: E204
Scale Disconnected

P4607EN.01 12/2010 17
E205 error code: No Bluetooth connection because the scale is not powered, the scale batteries are absent, improperly installed, or
need replacement, or the scale is too far away from the monitor.
Solution: To correct the error, check that there is power to the scale, or that it is located within range of the monitor (approximately
10 meters, or 30 feet). Reschedule another vitals collection to retry.
Changing batteries (if applicable)
To change the batteries, turn the scale over. Use a Phillips screwdriver to remove the screw retaining the battery access panel to the scale.
bserve the orientation of the four AA batteries inside the scale. Remove the batteries and replace with four new AA batteries for best
results.
OTE: The DM Monitor MUST BE RESTARTED after changing the batteries. This is because the Bluetooth wireless scale is not
configured to give a zero weight reading (“zeroed”) on power up. The scale is only zeroed during monitor startup when the monitor does
the scale self test. This is unique to the Bluetooth wireless scale – including when the AC adapter is being used. For other scales, the DM
Monitor will automatically zero the scale on scale power up.
Zeroing the scale
After changing batteries on the Bluetooth wireless scale, return the scale to its normal position and assure that there are no items on the
scale. Re-start the DM Monitor. The monitor will conduct a scale self-test and zero the scale for optimal accuracy of weight readings. Check
the zeroing to assure that zero “0” appears on the monitor display.
ERROR CODE: E205
Scale Disconnected
