Honeywell PRO 4000 Series User manual

PRO
4000 Series
Programmable
Digital
Thermostat
User Guide
Read and save these instructions.
Your new thermostat is pre-programmed. Just set the time and day. For help
please visit yourhome.honeywell.com
Press to set desired temperature.
NOTE: Set SYSTEM switch to the system you want
to control (Heat or Cool).
Fan Switch is used to
control your fan.
Auto: Fan runs only when
heating or cooling system
is on.
On: Fan runs continuously.
System switch is used to control your heating
or cooling system.
Cool: Cooling system control.
Off: All systems off.
Heat: Heating system control.
Em Heat: Emergency & Auxiliary Heat control.
Compressor is locked out. (Select models only.)
Set: Sets time/day/schedule.
Hold: Overrides programmed temperature.
Run: Resumes program schedule.
Thermostat controls

2
Set the time and day
Set
Clock
AM
6:30
Wed
Set Day
1. Press the SET button, then press
sor tto set the clock time.
2. Press the SET button, then press
s or t to select the day of the
week.
3. Press RUN to save & exit.
NOTE: If the display flashes Set Clock,
the thermostat will follow your settings
for the weekday “Wake” time period
until you reset the time and day.
Current program
period
Wake/Leave/
Return/Sleep
Current day/time
Wake
Wed
Recovery
Em Aux
Heat On
Set To
Inside
AM
75
75
6:30
Replace Batt
Current inside
temperature
If flashing, compressor
protection is engaged.
Adaptive Intelligent
RecoveryTM
System Status
Cool On: Cooling system is on.
Heat On: Heating system is on.
Em: Emergency heat is on. **
Aux: Auxiliary heat is on. **
** Only for heat pumps with
this capability (select models
only).
Temperature setting
(or Desired Temperature
when changing temperature)
Low battery
warning
Display screen

3
It’s easy to program your system for maximum energy savings. You can program
four time periods each day, with different settings for weekdays and weekends.
Set to the time you awaken and the temperature you want
during the morning, until you leave for the day.
Set to the time you leave home and the temperature you
want while you are away (usually an energy-saving level).
Set to the time you return home and the temperature you
want during the evening, until bedtime.
Set to the time you go to bed and the temperature you want
overnight (usually an energy-saving level).
Save money by setting program schedules
WAKE
6:00 am
70 °
LEAVE
8:00 am
62 °
RETURN
6:00 pm
70 °
SLEEP
10:00 pm
62 °
This thermostat is pre-set with energy-saving program settings. We recommend
these settings, since they can reduce your heating/cooling expenses. If you need
to create a new schedule follow the steps on the next page.
To adjust program schedules
Wake
Set Schedule
MonTueWedThuFri
Heat
Set To
AM
75
6:30
Wake
Set Schedule
MonTueWedThuFri
Heat
Set To
AM
75
6:30
1. Press SET until Set Schedule is
displayed.
2. Press sor tto set your weekday
Wake time (Mon-Fri), then press SET.
3. Press sor tto set the temperature
for this time period, then press SET.
4. Set time and temperature for the next
time period (Leave). Repeat steps 2
and 3 for each weekday time period.
5. Press SET to set weekend time
periods (Sat-Sun), then press RUN to
save & exit.
NOTE: Make sure the thermostat is set
to the system you want to program (Heat
or Cool).
NOTE: To cancel an unwanted time
period (except Wake), press and hold
s+ HOLD for 4 seconds while in the Set
Schedule mode.

4
Program schedule override (permanent)
Press HOLD to permanently adjust
the temperature. This will override
the temperature settings for all time
periods.
The “Hold” feature turns off the program
schedule and allows you to adjust the
thermostat manually, as needed.
Whatever temperature you set will be
maintained 24 hours a day, until you
manually change it, or press RUN to
cancel “Hold” and resume the program
schedule.
This feature helps prevent damage to
the compressor in your air conditioning
or heat pump system.
NOTE: Make sure the thermostat is set
to the system you want to control (heat
or cool).
Set To
AM
70
6:30
Hold
Set To
AM
75
6:30
Press sor tto immediately adjust
the temperature. This will temporarily
override the temperature setting for the
current time period.
The new temperature will be maintained
only until the next programmed time
period begins. For example, if you want
to turn up the heat early in the morning,
it will automatically be lowered later,
when you leave for the day.
To cancel the temporary setting at any
time, press RUN.
NOTE: Make sure the thermostat is set
to the system you want to control (heat
or cool).
Program schedule override (temporary)
Set To
AM
70
6:30
Te mporary
Set To
AM
75
6:30

5
Adaptive Intelligent RecoveryTM (AIR)
Damage can occur if the compressor is
restarted too soon after shutdown. This
feature forces the compressor to wait
for a few minutes before restarting.
During the wait time, the display will
flash the message Cool On (or Heat
On if you have a heat pump). When
the safe wait time has elapsed, the
message stops flashing and the
compressor turns on.
Adaptive Intelligent Recovery eliminates guesswork when setting your
schedule. It allows the thermostat to “learn” how long your furnace and air
conditioner take to reach the temperature you want.
Just set your program schedule to the time you want the house to reach your
desired temperature. The thermostat then turns on the heating or cooling at just
the right time to reach your scheduled temperature at your scheduled time.
For example: Set the Wake time to 6 am and the temperature to 70°. The heat
will come on before 6 am, so the temperature is 70° by the time you wake at 6.
Wake
Wed
Cool
On
Set ToInside
AM
75
75
6:30
MCR29477
Built-in compressor protection
Batteries are optional (for backup
power) if your thermostat was wired to
run on AC power when installed.
Install fresh batteries when the REPLACE
BATT warning begins flashing. The
warning flashes about two months
before the batteries are depleted.
Replace batteries once a year, or
before leaving home for more than a
month. If batteries are inserted within
one minute, the time and day will not
have to be reset. All other settings are
permanently stored in memory, and do
not require battery power.
Battery replacement
Turn thermostat
over, insert fresh
AA alkaline
batteries, then
reinstall thermostat.
Pull at bottom
to remove
thermostat
from
wallplate.
Message flashes until safe
restart time has elapsed.

6

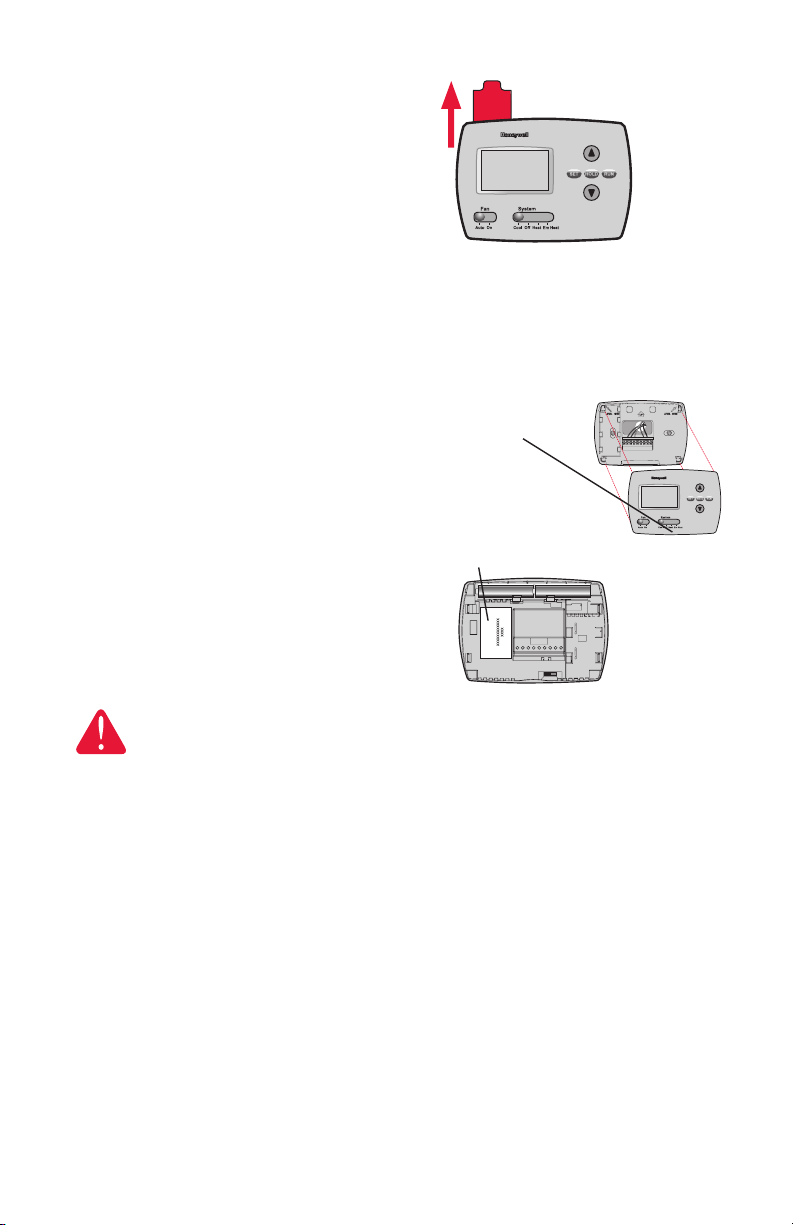

For assistance with this product, please
visit yourhome.honeywell.com.
Or call Honeywell Customer Care toll-
free at 1-800-468-1502.
Customer assistance
Turn thermostat
over to find model
number and date
code.
Pull at bottom
to remove
thermostat
from
wallplate.
CAUTION
Equipment damage hazard
To prevent possible compressor damage, do not operate cooling
system when outdoor temperature is below 50°F (10°C).
Grasp and pull to see basic operating
instructions at a glance.
Quick Reference

7
Troubleshooting
If you have difficulty with your thermostat, please try the following suggestions.
Most problems can be corrected quickly and easily.
Display is
blank
• Check circuit breaker and reset if necessary.
• Make sure power switch at heating & cooling system is
on.
• Make sure furnace door is closed securely.
• Make sure fresh AA alkaline batteries are correctly
installed (see page 5).
Heating
or cooling
system does
not respond
• Set system switch to Heat (see page 1). Make sure
the temperature is set higher than the Inside temperature.
• Set system switch to Cool (see page 1). Make sure
the temperature is set lower than the Inside temperature.
• Wait 5 minutes for the system to respond.
Temperature
settings do
not change
Make sure heating and cooling temperatures are set to
acceptable ranges:
• Heat: 40° to 90°F (4.5° to 32°C).
• Cool: 50° to 99°F (10° to 37°C).
“Cool On” or
“Heat On” is
flashing
• Compressor protection feature is engaged. Wait 5
minutes for the system to restart safely, without damage
to the compressor (see page page 5).
“Heat On” is
not displayed
• Set the System switch to Heat, and set the
temperature level above the current room
temperature (see page 1).
“Cool On” is
not displayed
• Set the System switch to Cool, and set the
temperature level below the current room
temperature (see page 1).

Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
yourhome.honeywell.com
Honeywell Ltd
705 Montrichard Avenue
Saint-Jean-sur-Richelieu, Québec
J2X 5K8
® U.S. Registered Trademark.
© 2013 Honeywell International Inc.
69-1760EFS—10 M.S. Rev. 11-13
Printed in U.S.A. 69-1760EFS-10
Honeywell warrants this product, excluding battery, to be free from defects in the
workmanship or materials, under normal use and service, for a period of five (5) years
from the date of purchase by the consumer. If at any time during the warranty period the
product is determined to be defective or malfunctions, Honeywell shall repair or replace it
(at Honeywell’s option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the place from which
you purchased it; or
(ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the
determination whether the product should be returned to the following address:
Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr. N., Golden Valley, MN
55422, or whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply
if it is shown by Honeywell that the defect or malfunction was caused by damage which
occurred while the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within the terms
stated above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE
OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY,
EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON
THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS
HEREBY LIMITED TO THE FIVE-YEAR DURATION OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you. This warranty gives you specific legal rights, and you may
have other rights which vary from state to state.
If you have any questions concerning this warranty, please write Honeywell Customer
Relations, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-468-1502. In Canada,
write Retail Products ON15-02H, Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive,
Toronto, Ontario M1V4Z9.
5-year limited warranty

Veuillez lire le mode d’emploi et le conserver en lieu sûr.
Votre nouveau thermostat est préprogrammé. Il suffit de régler l’heure et le jour.
Pour obtenir de l’aide veuillez visiter yourhome.honeywell.com
PRO
4000Série
Thermostat
numérique
programmable
Guide de l’utilisateur
Appuyer pour régler la température désirée.
REMARQUE : S’assurer que le sélecteur du SYSTEM
est bien placé au système à commander (chauffage
ou refroidissement
La commande FAN
(ventilateur) est utilisée pour
commander le ventilateur.
Auto : Ventilateur fonctionne
seulement quand le
système de chauffage ou
de refroidissement est en
marche.
On : Le ventilateur
fonctionne sans interruption.
La commande SYSTEM (système) est utilisée
pour commander le système de chauffage ou de
refroidissement.
Cool : Commande le système de refroidissement.
Off : Tous les systèmes sont à l’arrêt.
Heat : Commande le système de chauffage.
Em Heat : Commande le fonctionnement du système
de chauffage d’urgence et du système de chauffage
d’appoint. Le compresseur est mis sous sécurité.
(Certains modèles seulement.)
Set : Règle heure/jour/programme.
Hold : Déroge à la température programmée.
Run : Revient au programme prévu.
Commandes de thermostat

2
Régler l’heure et le jour
Set
Clock
AM
6:30
Wed
Set Day
1. Appuyer sur le bouton SET, puis
sur sou tpour régler l’heure.
2. Appuyer sur le bouton SET, puis
sur sou tpour choisir le jour
de la semaine.
3. Appuyer sur RUN pour enregistrer
les réglages et quitter.
REMARQUE :Si les mots Set Clock
clignotent à l’écran, le thermostat
respectera la consigné prévue pour la
période de réveil (WAKE) jusqu’à ce
que le jour et l’heure soient réglés.
Période du
programme en
cours
Réveil, Départ,
Retour, Sommeil
Wake
Wed
Recovery
Em Aux
Heat On
Set To
Inside
AM
75
75
6:30
Replace Batt
Lorsqu’elle clignote, la protection
du compresseur est activée.
Adaptive Intelligent
RecoveryTM
Réglage de la température
(ou température désirée lors
du changement du réglage
de la température)
Écran d’affichage
Température
ambiante actuelle
Avertissement
de piles
faibles
État du système
Cool On : Le système de
refroidissement est en marche.
Heat On : Le système de
chauffage est en marche.
Em : Le système de chauffage
d’urgence est en marche.**
Aux : Le système de chauffage
d’appoint est en marche.**
**Seulement pour les
thermopompes qui offrent cette
fonction (certains modèles
seulement).
Jour et heure
en cours
