Honeywell TH9000 Series User manual

Read and save these instructions.
Need Help?
For assistance with this product please call Customer Care toll-free at 1-800-468-1502
® U.S. Registered Trademark.
US Patent No. 6,208,263; 6,373,376; 6,448,901; 6,595,430;
7,012,927; 7,044,397; D509151 and other patents pending.
Copyright © 2010 Honeywell International Inc. All rights reserved.
BE CAREFUL! Never use sharp instruments, such as a pencil
or pen, to press touchscreen keys. To prevent damage to the
thermostat, always press keys with your fingertip.
This thermostat contains a Lithium battery which may contain
Perchlorate material.
Perchlorate Material—special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.

TH9000 Series
1 69-2404EFS—01
About your new thermostat
Programming at a glance ..................... 2
Quick reference to controls .................. 3
Quick reference to status display ........ 4
Programming & Operation
Clock setting.......................................... 5
Fan setting............................................. 6
System setting....................................... 7
Energy saving default schedule ........... 8
Using program schedules..................... 9
Program schedule overrides .............. 10
Vacation hold....................................... 12
Special features................................... 13
Screen lock.......................................... 14
Screen cleaning................................... 15
Optional remote sensors .................... 16
Humidity control.................................. 17
Ventilation control................................ 19
Appendices
Advanced functions ............................ 20
In case of difficulty.............................. 27
This thermostat is ready to go!
Your new thermostat is pre-
programmed and ready to go.
See page 2 to check settings.
Table of contents
CAUTION: EQUIPMENT DAMAGE
HAZARD. To prevent possible
compressor damage, do not oper-
ate cooling system when outdoor
temperature is below 50˚F (10˚C).

Operating Manual
69-2404EFS—01 2
About your new thermostat
Your new thermostat is pre-programmed and ready to go. Just set the time and day.
Then check the settings below and change if needed:
1. Set clock........................................................................................................See page 5
2. Select fan setting: Preset to Auto..............................................................See page 6
3. Select system setting: Preset to Heat ......................................................See page 7
4. Program schedules: Preset to energy-saving levels
while you’re at work or asleep (assumes you
wake at 6 am, leave at 8 am, return at 6 pm
and go to bed at 10 pm) ........................................................................ See pages 8-11
5. Set humification, dehumidification
& ventilation controls, if applicable............................................... See pages 17-19
ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time,
and manually adjust the temperature (see pages 10-11).

TH9000 Series
3 69-2404EFS—01
Press day(s) to set program schedule (see page 9)
Press to select fan
operation (see page 6)
Press to select system
type (see page 7)
Press to set program
schedule (see page 9)
Press to adjust
temperature settings
(see pages 9-11)
Press for more options
Press to override
program schedule
(see pages 10-11)
Press to set clock
(see page 5)
Press to lock keypad for 30
seconds to clean screen
(see page 14)
SCHEDHOLDCLOCK SCREEN MORE
MON TUE WED THU FRI SAT SUN
AM
FAN
AUTO
SYSTEM
HEAT
Following
Schedule
Inside Set To
OK TO PICK MULTIPLE DAYS
70
6:01
70
M29830
Quick reference to controls

Operating Manual
69-2404EFS—01 4

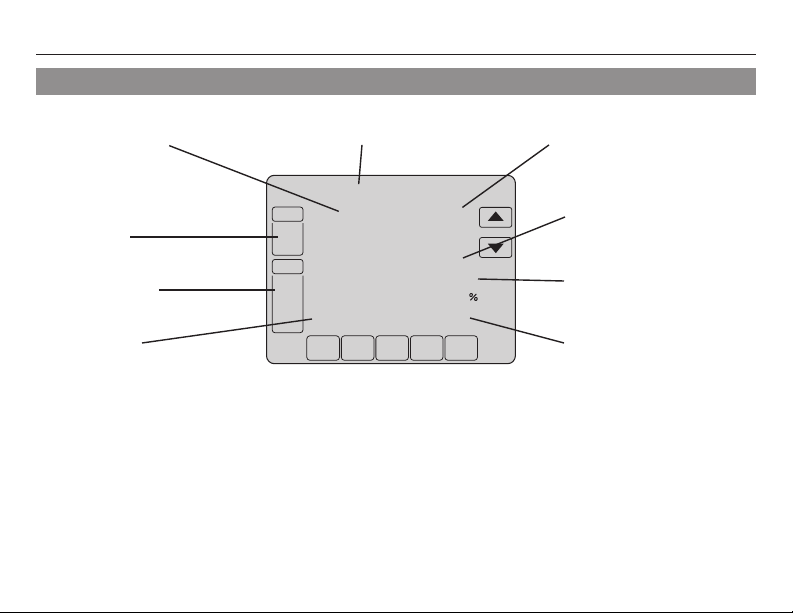

Current inside temperature Current day of week Temperature setting
Program schedule on
(does not display
when off)
Adaptive Intelligent
Recovery in effect
(see page 13)
Inside humidity (If
an outdoor sensor is
installed, the outdoor
temperature is shown
instead of the humidity
level. Press MORE to dis-
play the humidity level.)
Fan setting
Other display messages:
• Cool On: Cooling system is activated
• Heat On: Heating system is activated
• Aux Heat On: Auxiliary heating system is activated
• Wait: Compressor protection activated (see page 13)
• Screen Locked: See page 26 to unlock
SCHEDHOLDCLOCK SCREEN MORE
WED
AM
FAN
AUTO
SYSTEM
HEAT
Following
Schedule
Inside Set To
Recovery
Humidity
70
6:01
70
55
M29829
Quick reference to status display
System setting
Current time

TH9000 Series
5 69-2404EFS—01
To set the current time display, press CLOCK,
then press s or t to adjust the time. Press
and hold s or t to advance the time more
quickly.
Press DONE to save & exit (or press CANCEL to
exit without changing the time).
Note: The real-time clock should never require
adjustment since it automatically updates for
daylight savings time, and stores all date/time
information.
Note: To change the current week day display, see
page 21.
Press CLOCK
Adjust time, then press DONE
SCHEDHOLD CLOCK SCREEN MORE
WED
AM
FAN
AUTO
Inside Set To
70
6:01
70
M29828
DONE CANCEL
WED
AM
FAN
AUTO
Inside Set To
70
6:02
70
M29831
Clock setting

Operating Manual
69-2404EFS—01 6
Press FAN to select fan operation, then press
DONE:
• On: Fan is always on.
• Auto: Fan runs only when the heating or
cooling system is on.
• Circ: Fan runs randomly, about 35% of the
time, not counting any run time with the
heating or cooling system.
You can press FAN to override the fan settings
you’ve programmed for different time periods
(see page 9). If you select On or Circ, the
setting you select will remain active until you
press FAN again to select Auto, and return
to the fan schedule (see page 28 for more
information).
Note: If a fan schedule is programmed,
“Auto” will run the fan schedule.
Press FAN
SCHEDHOLDCLOCK SCREEN MORE
WED
AM
SYSTEM
HEAT
Following
Schedule
Inside Set To
70
6:01
70
FAN
AUTO
M29827
Fan setting

TH9000 Series
7 69-2404EFS—01
Press SYSTEM
SCHEDHOLDCLOCK SCREEN MORE
WED
AM
Following
Schedule
Inside Set To
70
6:01
70
FAN
AUTO
SYSTEM
HEAT
M29826
Press the SYSTEM button to select, then press
DONE:
• Heat: Thermostat controls only the
heating system.
• Cool: Thermostat controls only the
cooling system.
• Off: Heating and cooling systems are off.
• Auto: Thermostat automatically selects
heating or cooling depending on the
indoor temperature.
• Em Heat (only for heat pumps with
auxiliary heat): Thermostat controls
Auxiliary Heat. Compressor is not used.
System setting

Operating Manual
69-2404EFS—01 8
It’s easy to program your system for maximum energy savings. You can program four
time periods each day, with different settings for each day.
This thermostat is pre-set with energy saving program settings. We recommend these
settings, since they can reduce your heating/cooling expenses by as much as 33%.
(See next page to adjust times and temperatures of each time period.)
Wake
(6:00 am)
Leave
(8:00 am)
Return
(6:00 pm)
Sleep
(10:00 pm)
Cool (Mon-Fri)Heat (Mon-Fri) Heat (Sat-Sun) Cool (Sat-Sun)
70 °78 °70 °78 °
62 °85 °62 °
[Or cancel period]
85 °
[Or cancel period]
70 °78 °70 °
[Or cancel period]
78 °
[Or cancel period]
62 °82 °62 °82 °
Energy saving settings for maximum cost savings

TH9000 Series
9 69-2404EFS—01

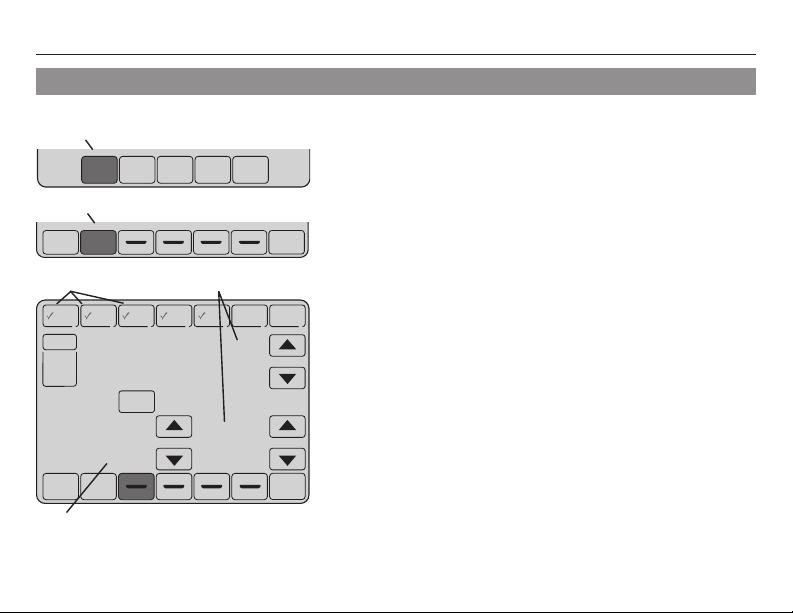

To adjust program schedules
1. Press SCHED,then EDIT.
2. Press day buttons (MON-SUN) to select
day(s).
3. Press s or t to set your Wake time for
selected day(s).
4. Press s or t to set Heat and Cool
temperature for this time period.
5. Press other time periods (LEAVE, RETURN,
SLEEP) to set time and temperatures for
each.
6. Press DONE to save & exit (or press CANCEL
to exit without saving changes).
Note: You can press CANCEL PERIOD to eliminate any
unwanted time period.
Note: Press FAN to customize fan settings for any
time period (see page 6).
Set time for program
period to start
Press EDIT
Select day(s) Set heat/cool levels
SCHED HOLD CLOCKSCREEN MORE
WED
AM
Following
Schedule
Inside Set To
70
6:00
70
FAN
AUTO
M29825
DONE WAKE LEAVERETURN SLEEPEDIT CANCEL
WED
AM
Following
Schedule
Inside Set To
70
6:00
70
FAN
AUTO
M29824
Press SCHED
DONE WAKE LEAVERETURN SLEEP CANCEL
MON TUE WED THU FRI SATSUN
AM
PM
CANCEL
PERIOD
HEAT
COOL
OK TO PICK MULTIPLE DAYS
70
6:00
78
FAN
AUTO
M29823

Operating Manual
69-2404EFS—01 10

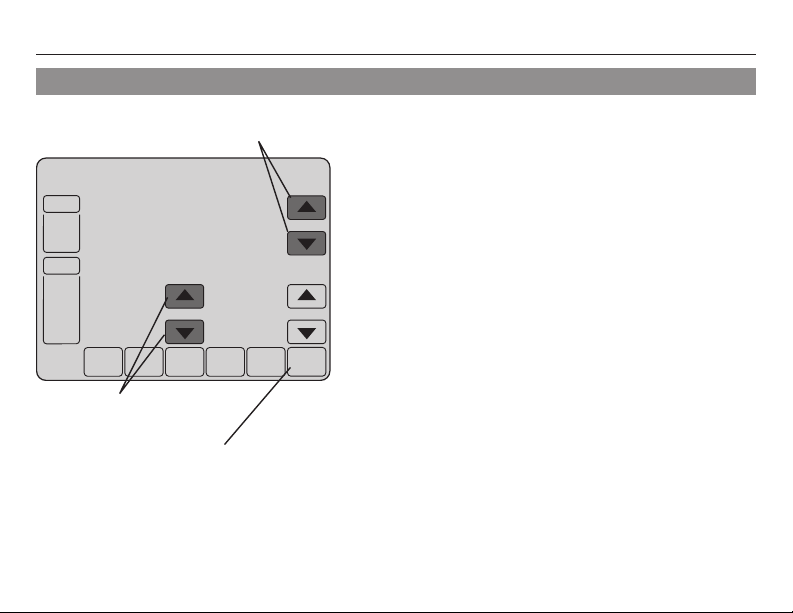

Program schedule override (temporary)
Press s or t to immediately adjust the
temperature. This will temporarily override the
temperature setting for the current time period.
The new temperature will be maintained only
until the time you set. When the timer expires,
the program schedule will resume and set the
temperature to the level you’ve programmed for
the current time period.
To cancel the temporary setting at any time,
press CANCEL (or SCHED). The program schedule
will resume.
Adjust temperature
Press to set timer
Press CANCEL (or SCHED) to
resume program schedule
Heat On
SCHEDHOLDCLOCK SCREEN MORE
CANCEL
WED
AM
PM
HEAT
COOL
Inside
Hold Temperature
Until
Set To
73
8:00
70
78
FAN
AUTO
SYSTEM
HEAT
M29832

TH9000 Series
11 69-2404EFS—01
Program schedule override (permanent)
Press HOLD Adjust temperature Press HOLD to permanently adjust the
temperature. This will turn off the program
schedule.
Whatever temperature you set will be
maintained 24 hours a day until you manually
change it or press CANCEL (or SCHED) to cancel
“Hold” and resume the program schedule.
Press CANCEL (or SCHED) to
resume program schedule
Heat On
SCHED HOLD CLOCKSCREEN MORE
CANCEL
WED
AM
Inside Set To
Permanent
Hold
73
8:00
70
FAN
AUTO
SYSTEM
HEAT
M29821

Operating Manual
69-2404EFS—01 12
Vacation hold

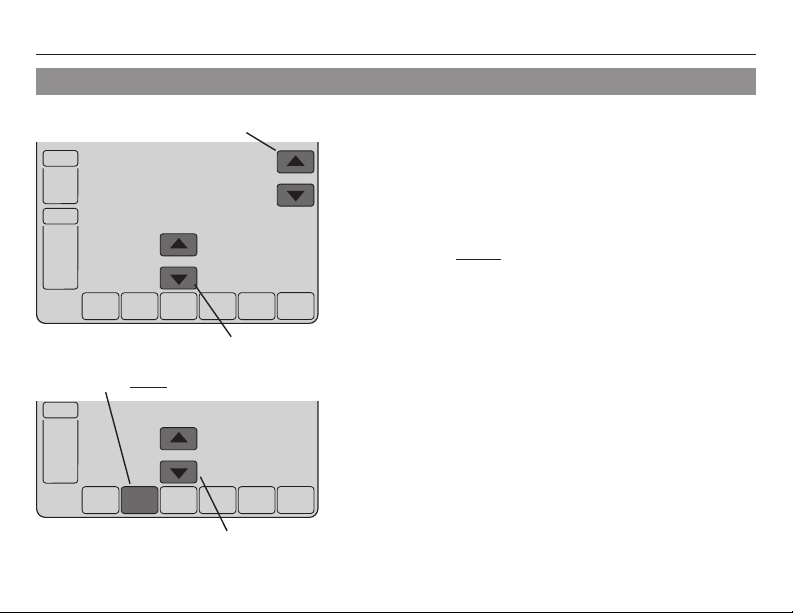

This feature can suspend the program sched-
ule for extended periods of time.
Press s or tto set the temperature you want,
then press s or tto set the time of day you
want the schedule to resume when you return.
Press HOLD twice, then press s or tto select
the number of days.
Whatever temperature you set will be main-
tained 24 hours a day for the number of days
you select. After this number of days have
elapsed, the previously programmed schedule
will resume at the time you set.
If you return earlier than expected, press
CANCEL (or SCHED) to cancel “Hold” and resume
the program schedule.
1Set temperature
2Press to set time for
schedule to resume
3Press HOLD twice
4Press to select number of days
SCHEDHOLDCLOCK SCREEN MORE
CANCEL
WED
AM
PM
Inside
Hold Temperature
Until
Set To
55
6:00
70
FAN
AUTO
SYSTEM
HEAT
M29820
SCHEDHOLDCLOCK SCREEN MORE
CANCEL
WED
Inside
DAYS
Hold Temperature
Until
Set To
55
14
70
FAN
AUTO
SYSTEM
HEAT
M29819

TH9000 Series
13 69-2404EFS—01
Special features
Auto Changeover: When set to Auto, the thermostat automatically selects heating or
cooling depending on the indoor temperature.
Adaptive Intelligent Recovery: This feature allows the thermostat to “learn” how
long the furnace and air conditioner take to reach programmed temperature settings,
so the temperature is reached at the time you set.
Compressor Protection: This feature forces the compressor to wait a few minutes
before restarting, to prevent equipment damage. During the wait time, the message
“Wait” is displayed on screen.
Flashing message: Reminder to replace filter or UV lamp. After replacement, press
RESET to reactivate the alert timer.
Southern Away Dehumidification: Your system may be programmed to control
humidity while your house is vacant during the humid season. Before you leave the
house, press the HOLD button three times to activate this feature. This will control
temperature and humidity to help protect your house and possessions while you are
away. (If this feature does not work, contact your installer.)

Operating Manual
69-2404EFS—01 14
Screen lock
To prevent tampering, the screen can be par-
tially or fully locked.
When partially locked, the screen displays
SCREEN LOCKED for several seconds if a locked
key is pressed.
When the screen is fully locked, no keys
function. To lock or unlock the screen, see
advanced function 0670 on page 26.
See advanced function
0670 (page 26) for
screen lock options
SCHEDHOLDCLOCK SCREEN MORE
WED
PM
Following
Schedule
Inside Set To
SCREEN LOCKED
70
6:00
70
43
FAN
AUTO
SYSTEM
HEAT
M29818

TH9000 Series
15 69-2404EFS—01

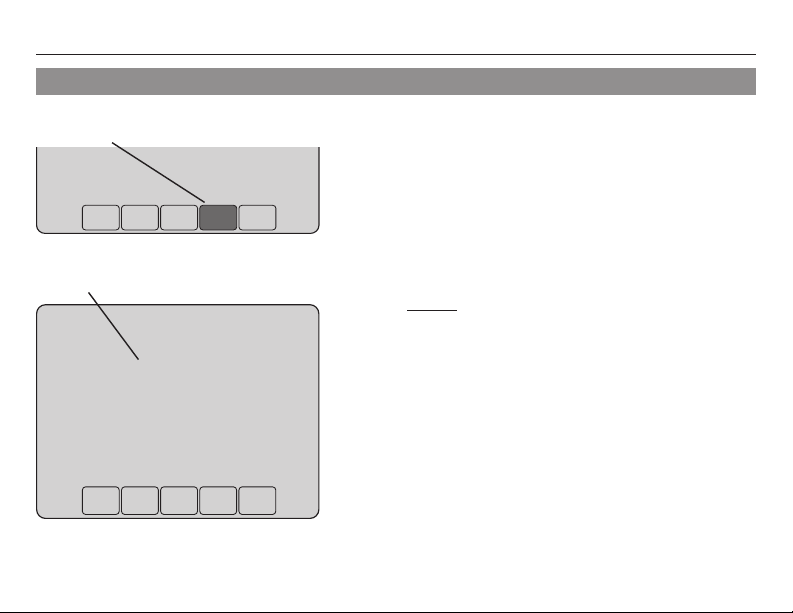

Screen cleaning
Press SCREEN to lock the screen for cleaning.
The screen will remain locked for 30 seconds
so you can clean the screen without changing
any settings.
After 30 seconds, press DONE to resume normal
operation, or press SCREEN again if you require
more time for cleaning.
Note: Do not spray any liquid directly on the
thermostat. Spray liquids onto a cloth, then use
the damp cloth to clean the screen. Use water or
household glass cleaner. Avoid abrasive cleansers.
Press SCREEN
Screen lock timer (30 seconds)
SCHEDHOLDCLOCK SCREEN MORE
WED
PM
Following
Schedule
Inside Set To
SCREEN LOCKED
70
6:00
70
FAN
AUTO
M29817
SCHEDHOLDCLOCK SCREEN MORE
OK TO
CLEAN
SCREEN
30
M29816

Operating Manual
69-2404EFS—01 16

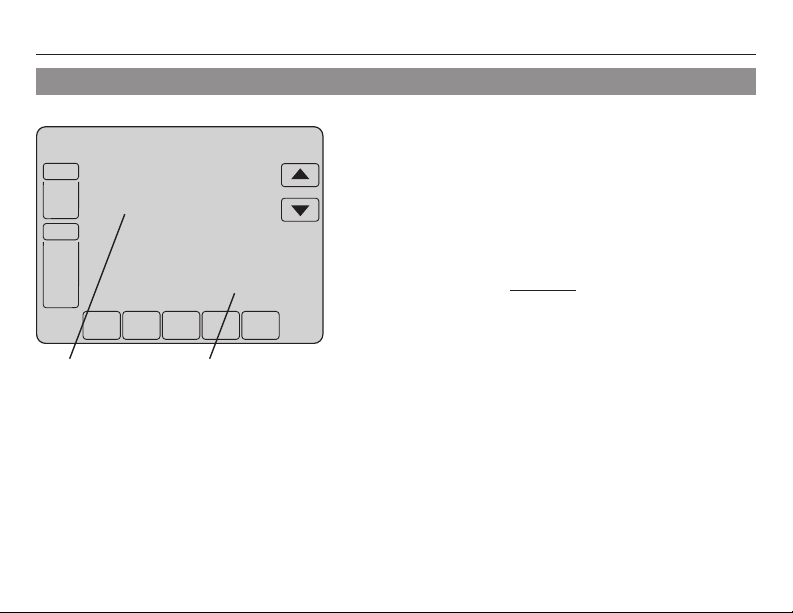

Optional remote sensors
If an outdoor sensor is installed, the current
outdoor temperature is displayed.
If an indoor remote sensor is installed, the dis-
play shows the indoor temperature at the loca-
tion of the sensor.
If more than one indoor sensor is installed, the
display shows an average of temperature read-
ings from all sensors or an average between
the thermostat and the sensor(s).
Inside Outside
temperature temperature
SCHEDHOLDCLOCK SCREEN MORE
WED
AM
Following
Schedule
Inside
Outside
Set To
70
6:01
70
43
FAN
AUTO
SYSTEM
HEAT
M29815

TH9000 Series
17 69-2404EFS—01
Humidification control
Press MORE until the humidifier screen is dis-
played, then press sor tto set the humidity
and Frost Control level.
When using Frost Protection, if frost/conden-
sation appears on windows, lower the frost
setting. Wait at least 1 day before adjusting the
frost level again. Once frost no longer appears,
the thermostat will control humidity to the
maximum level without frosting or fogging win-
dows and without further adjustment.
Press DONE to save and exit, or press CANCEL to
exit without saving changes.
Note: If you do not have an outdoor temperature
sensor, the Frost Control level will not be displayed.
Set Frost Control & humidity level
Press to save & exit
DONE CANCEL
DEHUMIDIFIER
Inside
FROST
5
32
55
M29814

Operating Manual
69-2404EFS—01 18

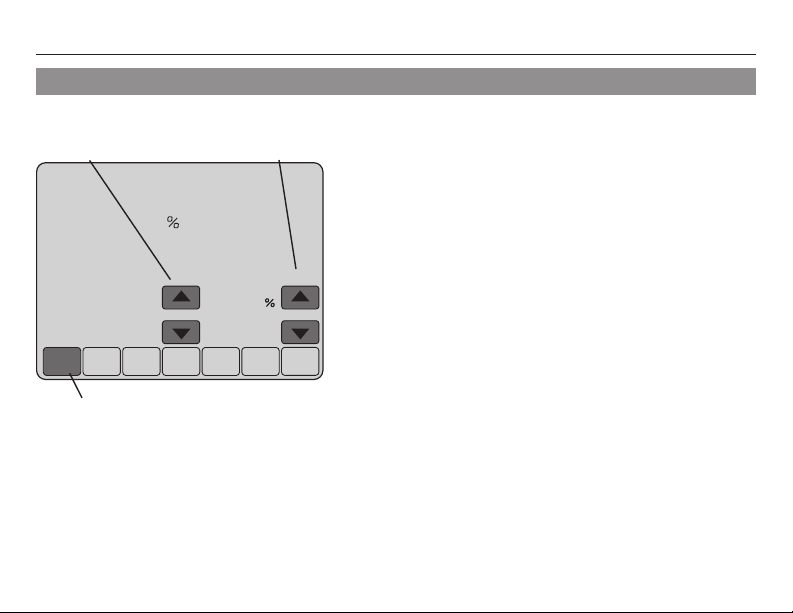

Dehumidification control
Press MORE until the dehumidifier screen is dis-
played, then press s or tto set the desired
humidity level and operation (Auto or Off).
If installed to control a dehumidifier, the ther-
mostat can activate it as needed to reduce
humidity.
If you don’t have a dehumidifier, the thermostat
activates the air conditioner to reduce humidity
(may cool as much as 3°F lower than your tem-
perature setting).
Press DONE to save and exit, or press CANCEL to
exit without saving changes.
Press to select
Auto or Off
Press to save & exit
Note: Auto/Off only present
when using a whole house
dehumidifier (not present when
dehumidifying with A/C).
DONE CANCEL
DEHUMIDIFIER
Inside
AUTO
73
55
M29813
Press to set
desired humidity
