Honeywell THX9000 Prestige HD User guide

PrestigeTM 2-wire IAQ and RF EIM
With wireless accessories
® U.S. Registered Trademark.
Copyright © 2010 Honeywell International Inc.
All rights reserved.
System
Installation
Guide
69-2445EFS-01
Control for up to 4 Heat/2 Cool heat pump systems or up to
3 Heat/2 Cool conventional systems.
Installation guide for:
• THX9000 Prestige IAQ
• Wireless remote control
• Equipment Interface Module
• Wireless Outdoor Air Sensor
DISCONNECT POWER BEFORE BEGINNING INSTALLATION. Can cause electrical shock or
equipment damage.
MERCURY NOTICE: If this product is replacing a control that contains mercury in a sealed tube,
do not place the old control in the trash. Contact your local waste management authority for
instructions regarding recycling and proper disposal.
Must be installed by a trained, experienced technician. Read these instructions carefully.
Failure to follow these instructions can damage the product or cause a hazardous condition.

Prestige
TM Installation Guide
2
69-2445EFS—01
System installation at a glance
Installation procedure
Mount and wire thermostat ...................................................... Pages 3-7
Mount and wire EIM.................................................................. Pages 3-7
Connect thermostat to EIM ...................................................... Pages 3-7
Customize thermostat (installer setup)........................................Pages 8
Install batteries in wireless accessories........................................Page 8
Link accessories to thermostat.............................................. Pages 9-10
Mount outdoor sensor ..................................................................Page 11
To replace system components if needed, see page 14
If you have more than one thermostat: Optional accessories must be linked to each
thermostat separately.
DISCONNECT POWER BEFORE BEGINNING INSTALLATION. Can cause electrical
shock or equipment damage.
MCR32049
HVAC equipment
Remote
control
Thermostat
1
2
3
4
6
5
7

369-2445EFS—01
Mount and wire thermostat
Install as shown below. Connect wires to the R and C terminals on the
thermostat.
The other ends of these wires should be connected to the Equipment
Interface Module R and C terminals or to a separate 24 volt transformer
(not provided).
Mount and wire Equipment Interface Module
1
2
MCR29241
MCR32050
Drywall: 3/16" hole
Plaster: 7/32" hole
Wall anchor
Mounting screw
Mount Equipment Interface Module
on wall near HVAC equipment, or
on the equipment itself.
Do not install inside HVAC equip-
ment. Use screws & anchors as
appropriate for mounting surface.
M32051

Prestige
TM Installation Guide
4
69-2445EFS—01
M32053

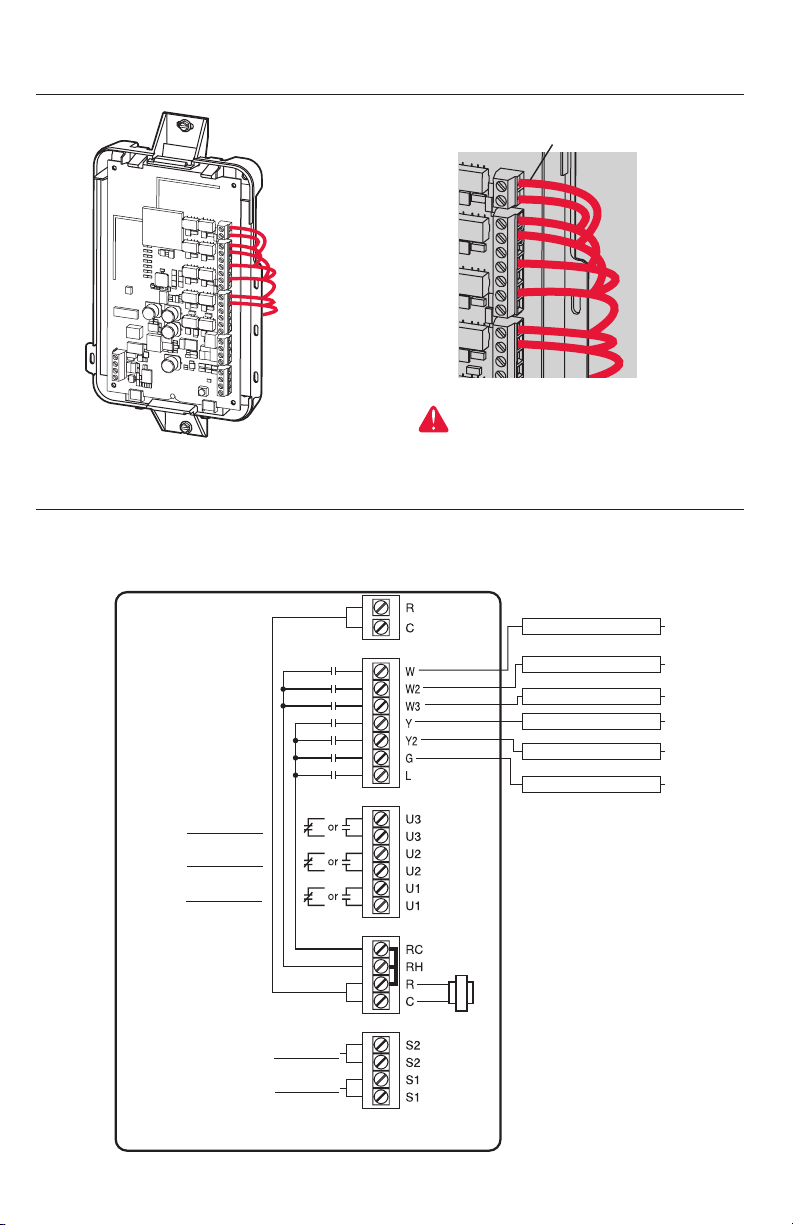

Equipment Interface Module wiring
Strip 1/4” insulation, then insert wires as shown.
Wiring must comply with local
electrical codes.
Wiring guide
Typical hookup of conventional system with up to three-stage heat and two-stage cool with one
transformer (3H/2C, 2H/2C, 2H/1C, 1H/2C, 1H/1C, 1H, 2H, 3H, 1C, 2C conventional).
HEAT 1 RELAY
HEAT 2 RELAY
HEAT 3 RELAY
COOL 1 RELAY
COOL 2 RELAY
FAN RELAY
SENSORS
24V
POWER
IAQ
CONTROL
(24 VAC)
TO
THERMOSTAT
IAQ DEVICE
EQUIPMENT
SENSOR TYPE
THM5421R
CONV
M32054
M32052

569-2445EFS—01
Typical hookup of heat pump system with up to four-stage heat and two-stage cool with one
transformer (4H/2C, 3H/2C, 2H/2C, 2H/1C, 1H/1C heat pump systems).
SENSORS
IAQ
CONTROL
(24 VAC)
TO
THERMOSTAT
IAQ DEVICE
EQUIPMENT
SENSOR TYPE
THM5421R
M32055
CHANGEOVER
AUX 1 (HEAT 3)
AUX 2 (HEAT 4)
COMP 1
COMP 2
FAN RELAY
24V
POWER

Prestige
TM Installation Guide
6
69-2445EFS—01
POWERED
HUMIDIFIER
RC
RH
R
C
24 VAC
U3
U3
U2
U2
U1
U1
OR
M32056
1

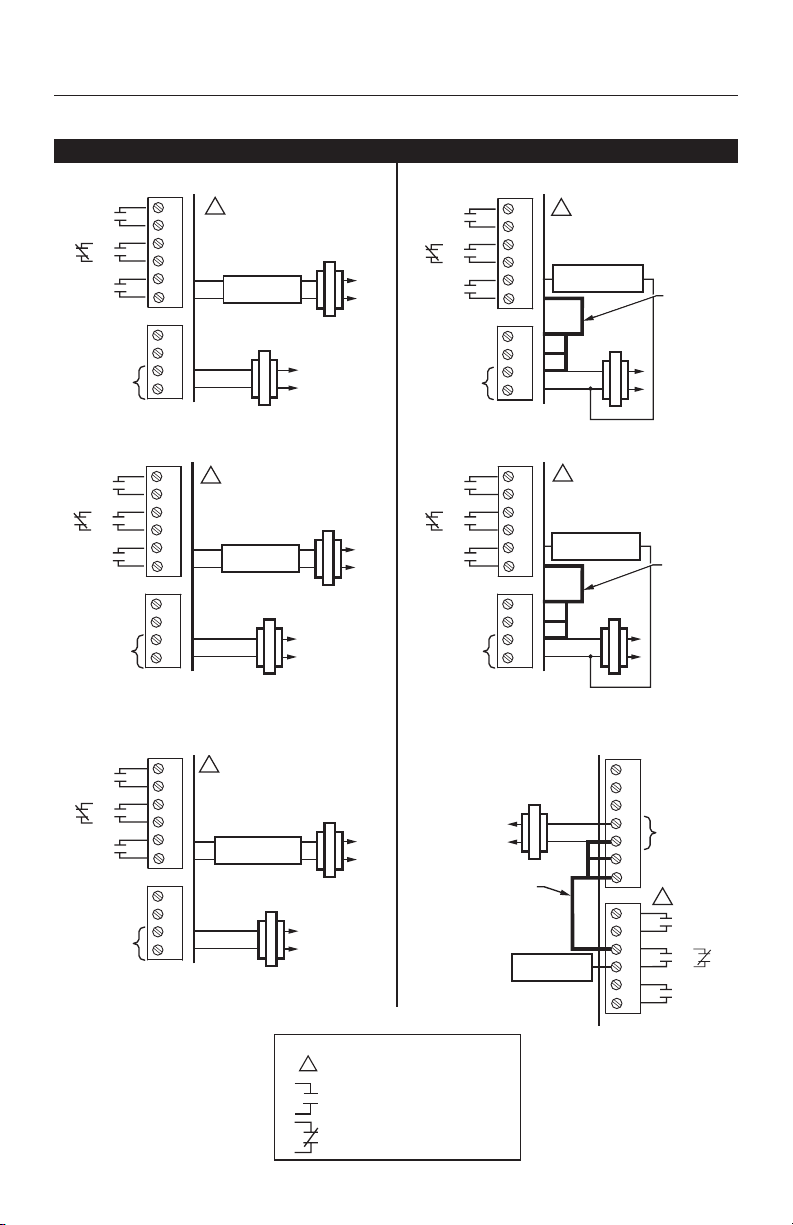

Wiring guide—equipment
Any combination of Universal relays (U1, U2, U3) can be used.
With power supply Without power supply
FIELD-
INSTALLED
JUMPER
BETWEEN
R AND U1
RC
RH
R
C
24 VAC
U3
U3
U2
U2
U1
U1
OR
NON-POWERED
HUMIDIFIER
M32057
1
Typical hookup of non-powered humidifier.Typical hookup of powered humidifier.
FIELD-
INSTALLED
JUMPER
BETWEEN
R AND U1
RC
RH
R
C
24 VAC
U3
U3
U2
U2
U1
U1
OR
NON-POWERED
VENTILATOR
M32059
1
Typical hookup of non-powered ventilation.
M32061
FIELD INSTALLED
JUMPER BETWEEN
R AND DHM 1
1
2
3
C
R
RC
RH
24 VAC
U1
U1
U2
U2
U3
U3
OR
LOW SPEED
FAN
1
Typical hookup of variable speed blower for
dehumidification in low speed.
POWERED
VENTILATOR
RC
RH
R
C
24 VAC
U3
U3
U2
U2
U1
U1
OR
M32058
1
Typical hookup of powered ventilation.
POWERED
DEHUMIDIFIER
RC
RH
R
C
24 VAC
U3
U3
U2
U2
U1
U1
OR
M32060
1
Typical hookup of powered dehumidifier
(whole house dehumidifier).
M28920
KEY
= NORMALLY OPEN, DRY CONTACTS
ANY COMBINATION OF UNIVERSAL
RELAYS (U1, U2, U3) CAN BE USED.
= NORMALLY CLOSED, DRY CONTACTS
1

769-2445EFS—01

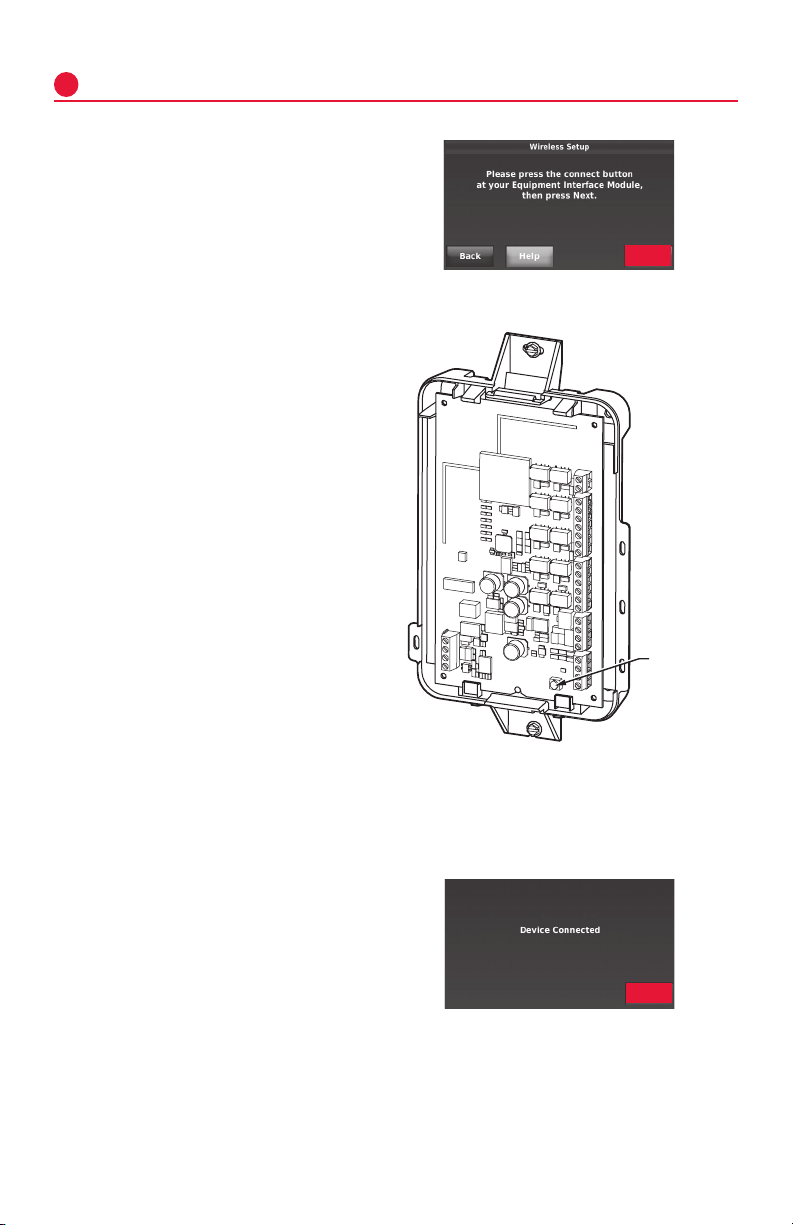

Enroll the thermostat
3
Navigate through the installer
setup to the Wireless Setup
screen:
Press the connect button on
the Equipment Interface Module:
Press Next at thermostat. Display
will show "Device Connected' when
the thermostat and Equipment
Interface Module are connected.
MCR32063
Next
MCR32065
Done
M32064
CONNECT
BUTTON

Prestige
TM Installation Guide
8
69-2445EFS—01
MENU
HELP
HELP
M28799
M29863
M28800
Customize thermostat (installer options)
Install batteries in wireless accessories
Press MENU.
Press t to scroll down, then press
INSTALLER OPTIONS. Enter security code
when prompted.
Security code is the thermostat date
code (printed on back of thermostat).
Or press MENU > EQUIPMENT STATUS to
find code.
Press CREATE SETUP to set all system
settings one by one.
Press VIEW/EDIT to select a specific
function and make quick changes. (See
complete list of system settings on pages
12-13.)
Press INSTALLER TEST to run system
tests. You should always test the sys-
tem after making changes to settings.
Note: Press HELP for
more information on
these and other options.
Remote control (optional) Outdoor air sensor (optional)
4
5
M29794
MENU
M29862
MENU
Install 3 fresh AA
batteries
Install 2 fresh AA
lithium batteries

969-2445EFS—01
View Connected Devices
M28804
Add Device
M28803
M28802
Wireless Device
Manager

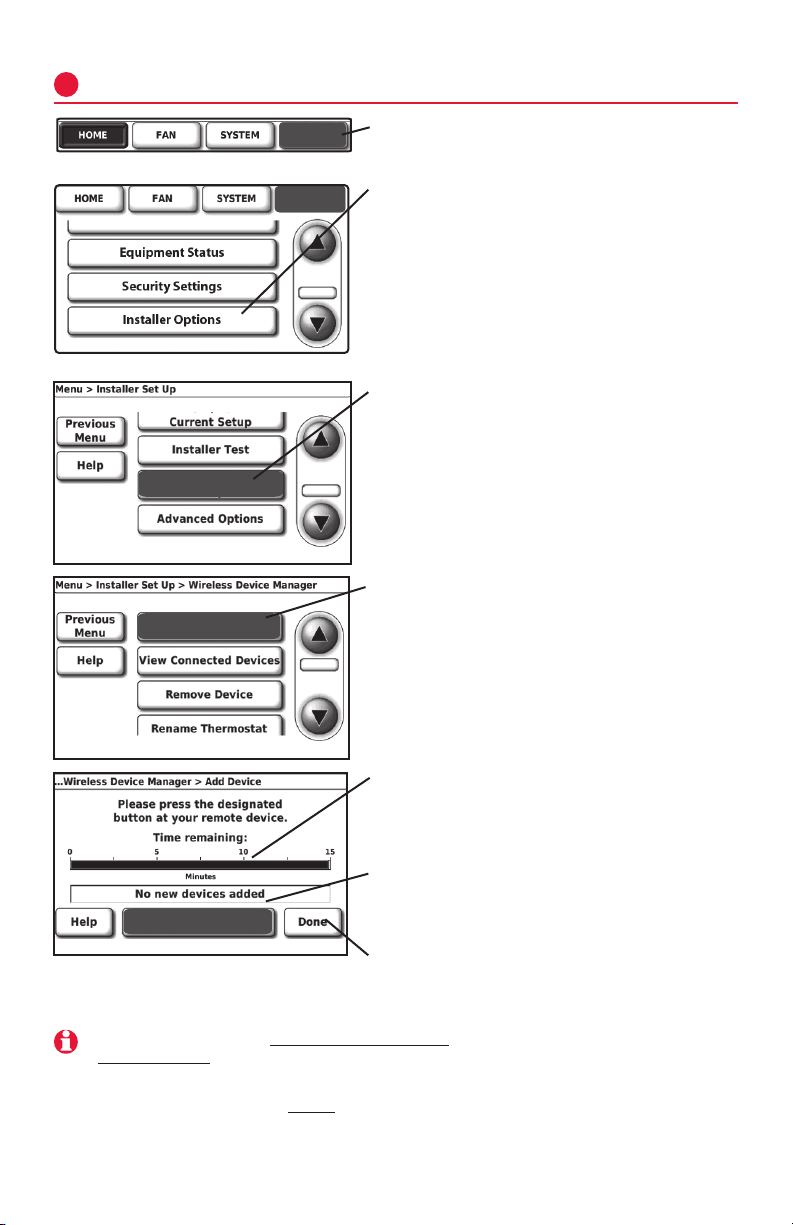

Link wireless accessories to thermostat (optional)
Press MENU.
Press t to scroll down, then press
INSTALLER OPTIONS. Enter security code
when prompted.
Security code is the thermostat date
code (printed on back of thermostat).
Or press MENU > EQUIPMENT STATUS to
find code.
Press t to scroll down, then press
WRELESS DEVICE MANAGER.
Press ADD DEVICE to start timer, then
press the Connect button on wireless
accessories to link them to the ther-
mostat (see next page).
Timer will re-set to 15 minutes after each
accessory is linked. Thermostat will exit
link mode after 15 minutes if there is no
activity.
Press VIEW CONNECTED DEVICES to verify
that all wireless accessories have been
linked to the thermostat.
Press DONE when finished.
Note: If you are installing more than one thermostat, repeat steps above and on page 10 for
each thermostat.
If you are installing multiple thermostats, you must press DONE to exit “Add Device”
mode at each thermostat before linking wireless accessories to the next thermostat.
6
MENU
M28801
M29862
MENU

Prestige
TM Installation Guide
10
69-2445EFS—01
CONNECT
WIRELESS SETUP
M28481

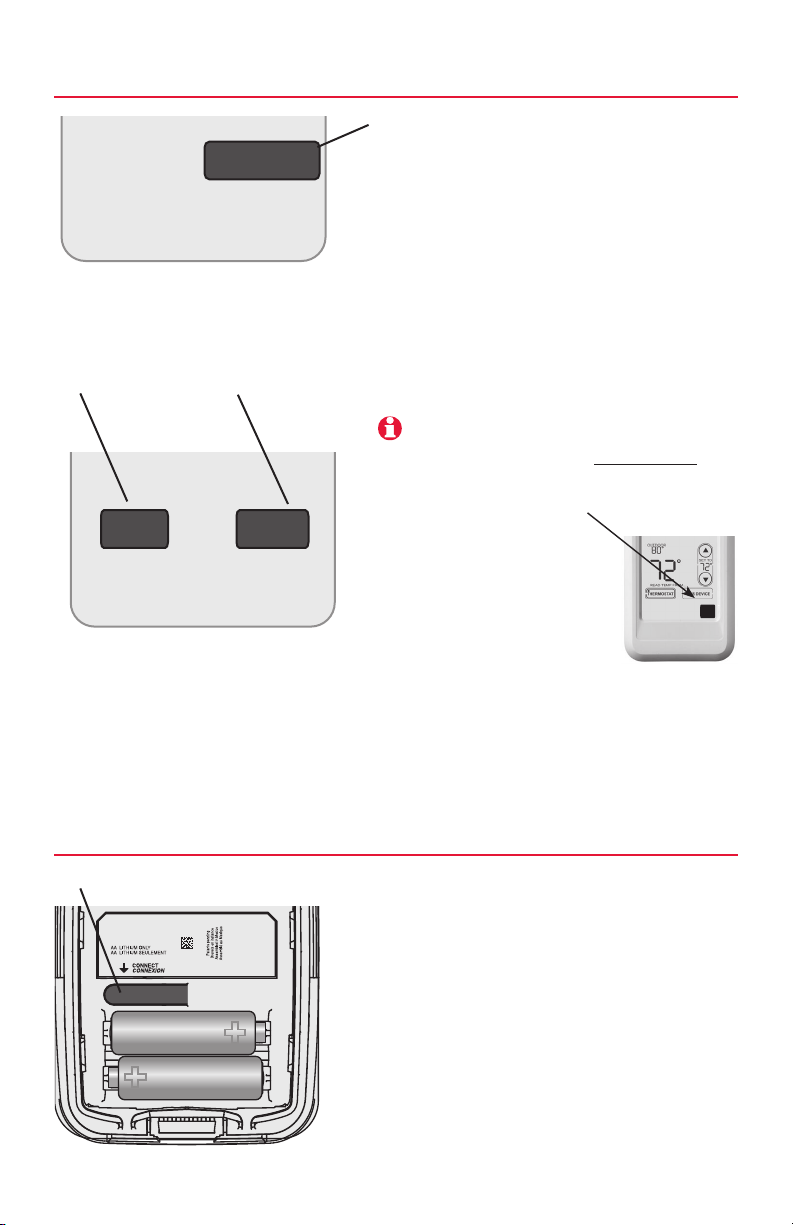

Link remote control to thermostat (optional)
Link outdoor sensor to thermostat (optional)
1 Make sure the thermostat displays
the “Add Device” timer screen (see
page 9).
2 Press CONNECT at the remote.
There will be a short delay as the
remote seeks a signal from the
thermostat.
3 When the screen displays
"Connected," press DONE.
4 Press NO at the next screen to save
and exit. (Or press YES and repeat
steps 1-4 to link another thermostat.)
1 Make sure the thermostat displays
the “Add Device” timer screen
(see page 9).
2 Press the CONNECT button on
the back of the sensor.
3 Check thermostat to verify that
the outdoor sensor is working.
After about 15 seconds, the
thermostat should display outdoor
temperature and humidity.
Press to link to
another thermostat
Press to save
and exit
Press and release
The linking procedure at the remote may
time out if there is no keypress within 30
minutes. To begin again, press and hold the
blank space (or arrow, if present) in the lower
right corner of the screen until the display
changes (about 3 seconds).
NOYES
CONNECT MORE?
M28482
M28846
M28847A

11 69-2445EFS—01

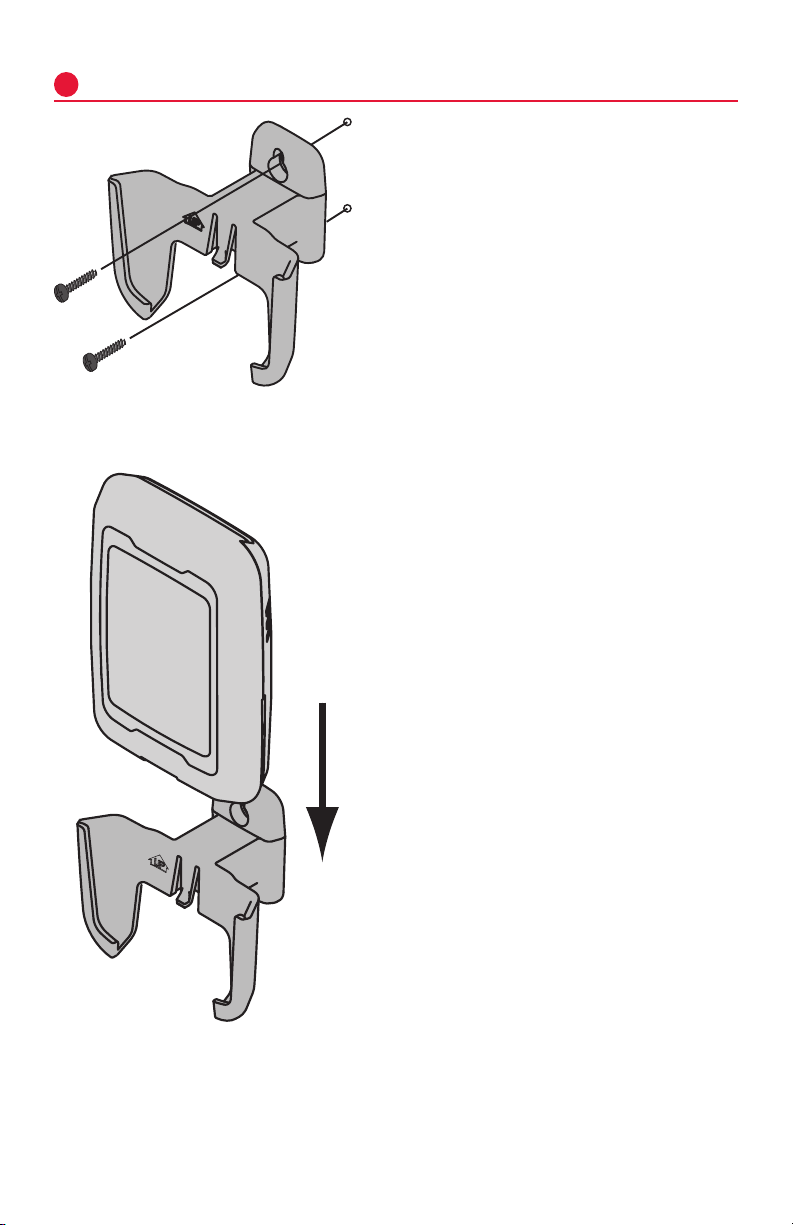

Install outdoor sensor (optional)
Mount the sensor on a vertical exterior
wall, at least 6 inches below any over-
hang. Choose a location protected from
direct sunlight.
Place sensor securely in bracket, facing
away from wall.
7
M28491
M28849A

Prestige
TM Installation Guide
12
69-2445EFS—01
Installer setup tables
Setup functions (factory default setting listed, other options available)
100 Language English
110 Zone Number Not Zoned
112 Device name Thermostat
130 Date year 2011
140 Date month June
150 Date day 15
160 Schedule options Programmable
165 Restore Energy Saver Schedule No
172 System selection Conventional
173 Heat Pump Type Air To Air
174 Compressor stages 1
175 Series 20 Control No
176 Heat stages 1
180 Fan operation System (gas/oil/heat)
190 Reversing valve O/B on Cool
200 Backup heat Electric
210 External fossil fuel Yes
220 Compressor stage 1 cycle rate 3
230 Compressor stage 2 cycle rate 3
240 Heat stage 1 cycle rate (Aux) 5
250 Heat stage 2 cycle rate (Aux 2) 5
260 Heat stage 3 cycle rate 5
281 Display inactive backlight level 5 (color models only)
300 Changeover Manual
310 Deadband 2° F
320 Temperature display Fahrenheit
330 Daylight savings time Auto change: On
342 Outdoor temperature sensor? No
346 Dual-fuel upstage timer 60 minutes
347 Droop Temperature 2
349 Backup Heat Control Comfort
350 Compressor lockout (balance point) Off
360 Auxiliary lockout Off
365 Discharge Air Temperature Sensor No
371 Humidification equipment None
372 Indoor humidity control Off
374 Humidifier fan action Humidify only with fan
379 Dehumidification equipment None
383 Overcooling limit 3° F (1.5° C)
384 Dehumidification fan control Forces fan on
386 Whole house Dehumidification Lockout Off
390 Dehumidification away mode Off

13 69-2445EFS—01
Installer setup tables
391 Away mode fan operation Automatic
392 Away mode low temp. setting 76° F (24.5° C)
393 Away mode high temp. setting 85° F (29.5° C)
394 Away mode dehumidification 65% relative humidity
400 Ventilation Control Off
401 Number of Bedrooms 2
402 Total Sq. Ft. of Home 1000
403 Ventilation CFM 160
404 Max Ventilation Percentage Limit 50%
405 Ventilation Fan Action Ventilation Forces Fan On
406 Ventilation in High Humidity On
431 Ventilation Lockout High Temperature None
432 Ventilation Lockout Low Temperature None
433 Ventilation Lockout High Outdoor Humidity Off
434 Ventilation Lockout High 75° dewpoint
Outdoor Humidity Setting
450 A-Coil Low Temperature Cutoff None
500 Reminder: Furnace filter Off
502 Furnace filter runtime counter Count heat and cool
510 Reminder: Humidifier pad Off
520 Reminder: UV bulb Off
525 Installer Custom Reminders Add Customer Reminder
530 Adaptive Intelligent Recovery On
540 Number of schedule periods 4
580 Minimum compressor off time 5 minutes
600 Maximum heat range 90° F (32° C)
610 Minimum cool range 60° F (15.5° C)
640 Clock format 12-hour
650 Extended fan on time (heat) Off
660 Extended fan on time (cool) Off
670 Keypad lock Unlocked
680 Temp. control (heat) Standard
690 Temp. control (cool) Standard
695 Finish on High Heat Stage No
696 Finish on High Cool Stage No
700 Temperature display offset No offset
701 Humidity display offset No offset
710 RESTORE FACTORY DEFAULTS No: Advanced Options
Setup functions (factory default setting listed, other options available)

Prestige
TM Installation Guide
14
69-2445EFS—01
Installer setup tables
Note: All installer options, including Dealer name, contact information and message can
be set up as a file and downloaded via the USB port on the thermostat.
Replacing system components
Thermostat
After installing a new thermostat, you must re-link all accessories to the new
thermostat, as described below.
1 Install and wire new thermostat (see pages 3-7).
2 Customize new thermostat (see page 8).
3 Link wireless accessories (see pages 9-10).
At the remote control:
• Press and hold the blank space (or arrow if present) in the lower
right corner of the screen until the display changes (see page 10).
• Press REMOVE, then yES to disconnect from old thermostat.
• Follow the procedure on page 10 to link to new thermostat.
At the outdoor air sensor:
• Press the CONNECT button to link to the new thermostat (see page
10).
4 Press DONE at the thermostat.
Remote control & outdoor sensor
To replace a remote control or outdoor air sensor, install batteries and follow the
procedures on pages 9-10 to link it to the thermostat.
Customer contact information (optional, but recommended)
1100 Dealer name Your company name
1150 Dealer phone number Your telephone contact
1200 Dealer email address Your email address
1250 Dealer website Your web site
1300 Dealer Message Edit
1350 Configurable S1 Sensor Input None
1355 Configurable S2 Sensor Input None
1400 Configurable U1 Relay None
1405 Configurable U2 Relay None
1410 Configurable U3 Relay None
1500 Low Speed Fan Position Normally Closed

15 69-2445EFS—01
Specifications & replacement parts
Operating Ambient Temperature
Thermostat: 32 to 120° F (0 to 48.9° C)
Remote control: 32 to 120° F (0 to 48.9° C)
Outdoor air sensor: -40 to 140° F (-40 to 60° C)
EIM: -40 to 165° F (-40 to 73.9° C)
Return air sensor: 0 to 200° F (-17.8 to 93.3° C)
Discharge air sensor: 0 to 200° F (-17.8 to 93.3° C)
Operating Relative Humidity
Thermostat: 5% to 90% (non-condensing)
Remote control: 5% to 90% (non-condensing)
Outdoor air sensor: 0% to 100% (condensing)
EIM: 5% to 95% (non-condensing)
Physical Dimensions (height, width, depth)
Thermostat: 3-9/16 x 5-13/16 x 1-1/2 inches (91 x 147 x 38 mm)
Outdoor air sensor: 5 x 3-1/2 x 1-11/16 inches (127 x 89 x 43 mm)
EIM: 9-5/16 x 4-13/16 x 1-19/32 inches (91 x 147 x 38 mm)
Electrical Ratings
Terminal Voltage (50/60 Hz) Max. Current Rating
W - O/B 18 to 30 VAC 1.00A
Y (cooling) 18 to 30 VAC 1.00A
G (fan) 18 to 30 VAC 0.60A
W2 - Aux 1 (heating) 18 to 30 VAC 0.60A
Y2 (cooling) 18 to 30 VAC 0.60A
W3 - Aux 2 18 to 30 VAC 1.00A
L (Output) 18 to 30 VAC 0.60A
U1 30 VAC max. 0.50A
U1 30 VAC max. 0.50A
U2 30 VAC max. 0.50A
U2 30 VAC max. 0.50A
U3 30 VAC max. 0.50A
U3 30 VAC max. 0.50A
Accessories & Replacement Parts
Item Part Number
Wireless adapter THM4000R1000
Remote control REM5000R1001
Outdoor air sensor C7089R1013
Cover plate (covers marks left by old thermostats) 50028399-001

Prestige
TM Installation Guide
16
69-2445EFS—01
Regulatory information
FCC Compliance Statement (Part 15.19) (USA only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may cause
undesired operation.
FCC Warning (Part 15.21) (USA only)
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
FCC Interference Statement (Part 15.105 (b)) (USA only)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Thermostats and outdoor sensor
To comply with FCC and Industry Canada RF exposure limits for general population/ uncontrolled
exposure, the antenna(s) used for these transmitters must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.
Remote control
This portable transmitter with its antenna complies with FCC and Industry Canada RF exposure
limits for general population/uncontrolled exposure.
Section 7.1.5 of RSS-GEN
Operation is subject to the following two conditions:
1 this device may not cause interference, and
2 this device must accept any interference, including interference that may cause undesired
operation of the device.

Module d’interface d’équipement RF et
IAQ Prestige™ à deux fils
Avec accessoires sans l
® Marque de commence enregistrée aux États-Unis.
Copyright © 2010 Honeywell International Inc.
Tous droits réservés.
Guide
d’installation
du système
Régulation de thermopompes offrant jusqu’à 4 étages de chauffage et 2 étag-
es de refroidissement ou de systèmes classiques offrant jusqu’à 3 étages de
chauffage et 2 étages de refroidissement.
Guide d’installation pour :
• IAQ Prestige THX9000
• Télécommande sans fil
• Module d’interface d’équipement
• Capteur d’air extérieur sans fil
COUPER L’ALIMENTATION ÉLECTRIQUE AVANT D’EFFECTUER LE RACCORDEMENT. Peut provoquer des
chocs électriques ou endommager le matériel.
AVIS SUR LE MERCURE : Si le nouveau thermostat remplace un ancien régulateur contenant un
contact à mercure, ne pas mettre l’ancien régulateur aux poubelles. Communiquer avec le
service local de cueillette des déchets pour obtenir de l’information sur le recyclage ou sur la
bonne façon de disposer d’un ancien régulateur contenant un contact à mercure.
Doit être installé par un technicien d'expérience ayant reçu la formation pertinente. Lire attentivement
les instructions. Le fait de ne pas les suivre risque d'endommager le produit ou de constituer un
danger.

Guide d’installation Prestige™
69-2445EFS—01 2
Installation du système en un coup d’oeil
Procédure d’installation
Installation et raccordement du thermostat............................ Pages 3-7
Montage et câblage du module d’interface d’équipement.... Pages 3-7
Branchement du thermostat au module
d’interface d’équipement.......................................................... Pages 3-7
Personnalisation du thermostat
(mode de configuration par l’installateur)....................................Pages 8
Insertion des piles dans les accessoires sans fil..........................Page 8
Connexion des accessoires au thermostat........................... Pages 9-10
Installation du capteur extérieur ..................................................Page 11
Pour remplacer les composants du système au besoin, voir la page 14
S’il y a plus d’un thermostat : Les accessoires en option doivent être liés à chaque
thermostat séparément.
COUPER L’ALIMENTATION ÉLECTRIQUE AVANT D’EFFECTUER LE RACCORDEMENT. Peut provoquer
des chocs électriques ou endommager le matériel.
Matériel de CVCA
MCR32049
Thermostat
Télécommande
1
2
3
4
6
5
7

3 69-2445EFS—01
Installation et raccordement du thermostat
Installer comme illustré ci-dessous. Brancher les fils aux bornes R et C
du thermostat.
Les autres extrémités de ces fils doivent être branchées sur les bornes R
et C du module d’interface d'équipement ou sur un transformateur séparé
de 24 V (non fourni).
1
MCR29241
MCR32050
Placoplâtre : Ouverture
de 3/16 po (0.19 mm)
Plâtre : Ouverture de
7/32 po (0.22 mm)
Cheville d’ancrage
Vis de fixation
Installation et raccordement du Module d’interface d’équipement
2
Installer le Module d’interface
d’équipement sur le mur à proximité
du système de CVCA ou sur le
système même. Ne pas l’installer à
l’intérieur du système. Utiliser les vis
et les chevilles d’ancrage fournies
pour une installation en surface.
M32051

Guide d’installation Prestige™
69-2445EFS—01 4
M32053
Raccordement électrique du Module d’interface d’équipement
Dénuder l’isolant sur 1/4 po puis insérer les fils
comme le montre l’illustration.
Le câblage doit être conforme aux
codes locaux de l’électricité.
Guide de raccordement
Raccordement type d’un système classique offrant jusqu’à 3 étages de chauffage et 2 étages de
refroidissement avec un transformateur (3C/2R, 2C/2R, 2C/1R, 1C/2R, 1C/1R, 1C, 2C, 3C, 1R, 2R
classique).
RELAIS CHAUFFAGE 1
RELAIS CHAUFFAGE 2
RELAIS CHAUFFAGE 3
RELAIS REFROIDISSEMENT 1
RELAIS REFROIDISSEMENT 2
RELAIS VENTILATEUR
CAPTEURS
ALIMENTATION
24 V
RÉGULATEUR
IAQ
(24 V C.A.)
VERS
THERMOSTAT
DISPOSITIF IAQ
ÉQUIPEMENT
TYPE DE CAPTEUR
THM5421R
CONV
MF32054
M32052
