Hored M1 User manual

User Manual
M1
Apollo Cloud Gateway

1
User Manual Introduction
<<User Manual>> It mainly introduces the product
introduction, hardware connection, usage method and
suggestions for use of Hored-M1 gateway.
Chapter 1: Product Overview. Product characteristics,
hardware / software specifications and appearance.
Chapter 2: Hardware Connections. Refers to the
connection between the gateway and other devices.
Chapter 3: Product Guide, guides the operation of the
gateway.
Chapter 4: Product Packaging and Use recommendations.

深圳
2
Chapter 1: Product Overview
1.1 Brief introduction
M1 is an Apollo-full Gigabit controller for switch applications
such as chains hotel, star hotels, small and medium-sized
businesses, etc., which is used for switch management of Hored's
total solution. The M1 provides five 10/100/1000Mbps adaptive
Ethernet ports for up to 128 switches. The attached switch and
the PD device can only implement the status check and
management monitoring function by the Apollo smart
transmission cloud management platform through the M1
gateway, and can actively send out mobile phone and email
alarms when abnormal, thereby achieving global unified
maintenance and intelligent management.
1.2 Features
Full Gigabyte Port
5 full Gigabit Ethernet ports, breaking through the traditional
100M limit, data transmission will not stuck.
Qualcomm chip, more stable and powerful performance
Qualcomm high-performance chip, with 128M large memory,
can greatly improve the network data processing rate
Support for standardized protocols

深圳
3
Automatically identify and manage information of attached
devices
Cloud pass-through function
Implement the data transmission between cloud-gateway-
switch-
Attached PD device.
Supports up to 128 devices
Unique multi-capacity access technology ensures simultaneous
access of 128 devices
1. 3 Hardware / software specifications
Hardware specification：
Chipset
Qualcomm high-performance chip
Flash
16M
RAM
128MBDDR
Network
interface
· 4 个 10/100/1000MbpsRJ45port（port 1~port 4）
·1 个 10/100/1000MbpsRJ45port（port5），can be
used as WAN
Standard Protocol：·IEEE802.3i、IEEE802.3u、
IEEE802.3x
LED
Indicator
·1power indicator
·1system indicator
·5LINK/ACT indicator

深圳
4
Power
supply
·Input：100-240V50/60HZ
·Output：12V- 1A
·Maximum power supply：5.21W
Resetbutton（long press 5~10s to restore factory
default configuration）
Physical
specification
·Dimension(LengthxWidth xHeight）：
159*104.5*37*mm
·Weight：0.6kg
Environment
al
specification
·Operation temperature: 0°~40°C
·Storage temperature：-40°~70°C
·Operation humidity：10%~90%, non-condensing
Safety
specification
·CE/ROHS/FCC/CCC
Software specificaiton：
Transmissi
on rate
· 1000Mbpsfull duplex
Performanc
e
specificatio
n
· Backplane bandwidth：10Gbps (Non-blocking）
· RAM：128M
· Support system alarms, log statistics
· Support for up to 128 devices
Protocol
· Support automatic discovery of cameras for
detailed information

深圳
5
function
• Support discovery and access to PC terminal
information
• Support SNMP protocol, discover and manage
devices which support SNMP protocol
• Cloud pass-through function. Realize data
transmission of the connected device
Safety
specification
· CE/ROHS/FCC/CCC
1.4 Appearance
Front panel
Includes port indicator, system indicator, and power
light, as shown below
Indicat
or
Name
Statu
s
Description
PWR
Power
indicator
On
Device power supply
normal
Off
The adapter is not
connected / the power
adapter is powered
abnormally.

深圳
6
SYS
System
indicator
Blinki
ng
Device connection is
normal
Off
The port is not connected
/ the connection is
abnormal.
LINK/A
CT
Device
connection
indication
Off
Corresponding port is not
connected / the
connection is abnormal.
on
Corresponding device
connection is normal
Rear panel
Includes RJ45 port, power port, reset hole, as shown
below
Port
Name
Description

深圳
7
RJ
45port
1-4
port1-4
Used to connect switches
RJ 45
port 5
port5
Used to connect switches,
also can be used as WAN
port
DC
DCpower
supply
Connect the power adapter
to power the gateway
(supports 12V-1A, it is
recommended to use its
own adapter)

深圳
8
Chapter 2 Hardware connection
Product connection diagram：
Chapter 3 Product Guidelines
Login---Login on the Gateway Management Page
1. After connecting to the gateway, enter the address:
192.168.254.254 to enter the management interface:

深圳
9
2. Enter the account number: admin, password: admin, you
can enter the gateway management interface
System Information---Overview of M1 Gateway
Version Information and Number of attached Devices

10
LAN port setting---automatically assign IP address
Cloud registration --- Support cloud registration, user binding
a. Cloud registration: Connect to the Apollo platform for
management and control devices through a registration code

11

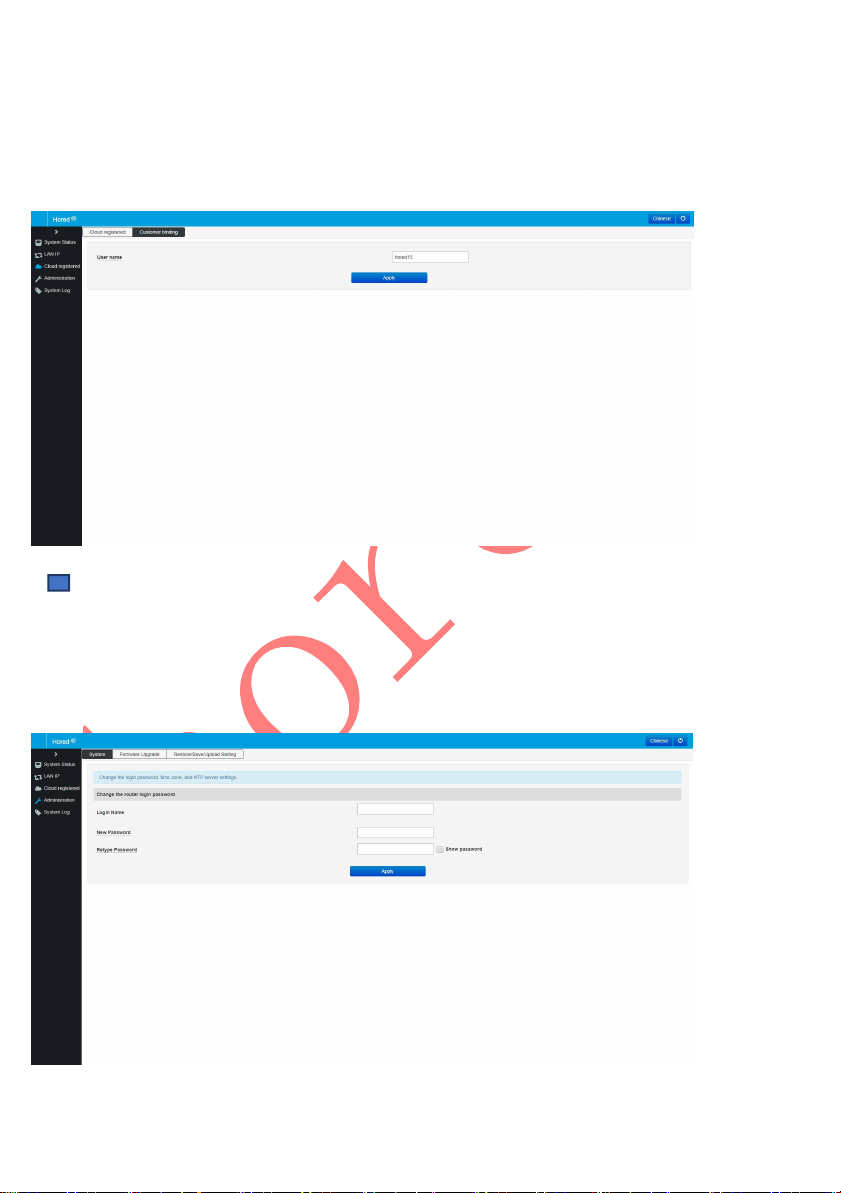

b.User binding: support binding between the gateway and the user
account
System Management---Support system settings, firmware
upgrade, configuration file upload/import, reset
a. System Settings: Manage System Account Password

12

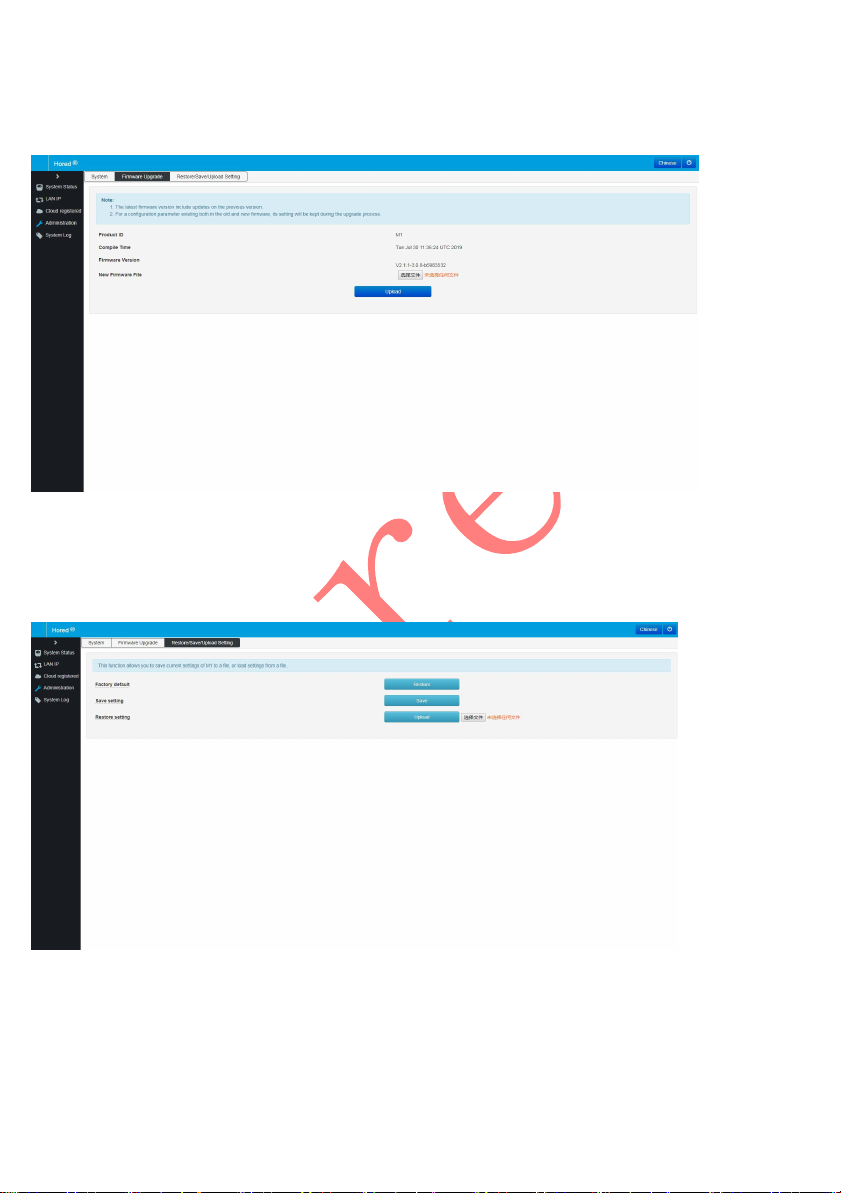

b.Firmware upgrade: support local firmware upgrade
c.Restore/Export/Upload Settings: Complete the configuration upload,
export and restore default configuration

13

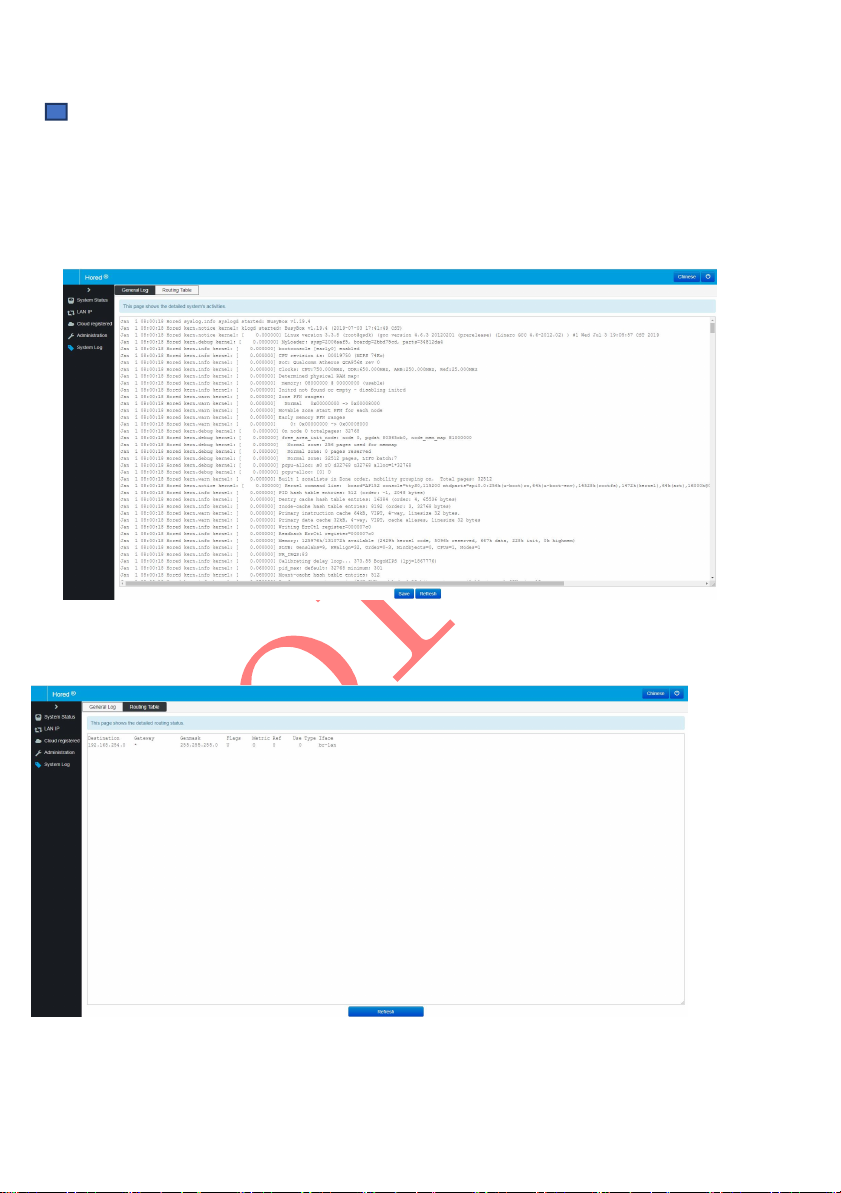

System record---Support system general record file and routing
table record
a. General record file: export view of system record
file
b.Routing table: View the specific routing status

14
Chapter 4. Packing list and usage recommendations
4.1 Open the package and check the list below.
Item
Quantity
Description
Gateway
one
\
Power cable
1
For power supply
Warranty Card
1
For after-sales maintenance
User manual
1
Used to guide users to install
and use the gateway
4.2 Suggestion
1. For safety reasons, non-professionals should not open the
product casing;
2. Pay attention to the danger of strong electricity and safe
protection when the product is powered on;
3. Please select the correct power adapter to supply power to the
gateway, and confirm whether it meets the requirements before use;
4. Do not use the gateway in a humid environment to prevent
water from entering the fuselage through the casing, resulting in
damage to the machine;
5. Please turn on the power after the line connection is
completed;
6. When the product is powered on, please do not plug or unplug
the cable except for special circumstances.
7. Do not use in places with excessive dust and electromagnetic
radiation. Do not use the gateway in places with high temperature

15
and no ventilation;
8. Please do not place heavy objects on the gateway to avoid
accidents;
9. It is recommended to use the gateway indoors. It is
recommended to add a waterproof box when using it outdoors.
Note: The pictures in the manual are for reference only, whichever is
subject to the actual product.
