horiba B-711 User manual

CODE:GZ0000297059

Refer to page 6 to page 22 for detailed instructions.

August, 2012 © 2012 HORIBA, Ltd.
Preface
This manual describes the operation of the COMPACT pH METER, B-71X.
Be sure to read this manual before using the product to ensure proper
and safe operation of the instrument. Also safely store the manual so it is
readily available whenever necessary.
Product specifications and appearance, as well as the contents of this
manual are subject to change without notice.
JWarranty and Responsibility
HORIBA, Ltd. warrants that the Product shall be free from defects in
material and workmanship and agrees to repair or replace free of
charge, at option of HORIBA, Ltd., any malfunctioned or damaged
Product attributable to responsibility of HORIBA, Ltd. for a period of one
(1) year from the delivery unless otherwise agreed with a written
agreement. In any one of the following cases, none of the warranties set
forth herein shall be extended;
zAny malfunction or damage attributable to improper operation
zAny malfunction attributable to repair or modification by any person
not authorized by HORIBA, Ltd.
zAny malfunction or damage attributable to the use in an
environment not specified in this manual
zAny malfunction or damage attributable to violation of the
instructions in this manual or operations in the manner not specified
in this manual
zAny malfunction or damage attributable to any cause or causes
beyond the reasonable control of HORIBA, Ltd. such as natural
disasters
zAny deterioration in appearance attributable to corrosion, rust, and
so on
zReplacement of consumables such as the sensor and standard
solutions
HORIBA, LTD. SHALL NOT BE LIABLE FOR ANY DAMAGES
RESULTING FROM ANY MALFUNCTIONS OF THE PRODUCT, ANY
ERASURE OF DATA, OR ANY OTHER USES OF THE PRODUCT.
JTrademarks
Generally, company names and brand names are either registered
trademarks or trademarks of the respective companies. (R), (TM)
symbols may be omitted in this manual.

Regulations
JConformable Directive
This equipment conforms to the following directives and standards:
QInformation on Disposal of Electrical and Electronic
Equipment and Disposal of Batteries and Accumulators
The crossed out wheeled bin symbol with underbar shown on the
product or accompanying documents indicates the product requires
appropriate treatment, collection and recycle for waste electrical and
electronic equipment (WEEE) under the Directive 2002/96/EC, and/or
waste batteries and accumulators under the Directive 2006/66/EC in the
European Union.
The symbol might be put with one of the chemical symbols below. In this
case, it satisfies the requirements of the Directive 2006/66/EC for the
object chemical.
This product should not be disposed of as unsorted household waste.
Your correct disposal of WEEE, waste batteries and accumulators will
contribute to reducing wasteful consumption of natural resources, and
protecting human health and the environment from potential negative
effects caused by hazardous substance in products.
Contact your supplier for information on applicable disposal methods.
Directives: the EMC Directive 2004/108/EC
Standards: [the EMC Directive] EN61326-1:2006
Class B,
Portable test and measurement equipment

JFCC Rules
Any changes or modifications not expressly approved by the party
responsible for compliance shall void the user's authority to operate the
equipment.
QWARNING
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the
interference at his own expense.
JKorea Certification
Q
JTaiwan Battery Recycling Mark
iἽ ὤὤ Oᴴ㥉㟝 ⵝ㋕䋩㐔ὤ㣄㣠P
㢨 ὤὤ⏈ ᴴ㥉㟝OiἽPG㤸㣄䑀㤵䚝ὤὤ⦐㉐ 㨰⦐ ᴴ㥉㜄㉐
㇠㟝䚌⏈ ᶷ㡸 ⯝㤵㡰⦐ 䚌⮤SG⯜☔㫴㜡㜄㉐ ㇠㟝䚔 ㍌ 㢼㏩⏼␘U

Contents
1 Introduction.......................................................................................... 1
1.1 Items in package .........................................................................1
1.2 Consumable parts sold separately ..............................................1
2 Part Names and Functions ................................................................. 2
3 Handling Precautions.......................................................................... 4
4 Basic Handling..................................................................................... 6
4.1 Inserting/removing batteries ........................................................6
4.2 Attaching/detaching the sensor ...................................................7
4.3 Power ON/OFF ............................................................................8
4.4 Storage ........................................................................................8
5 Calibration............................................................................................ 9
5.1 About calibration ..........................................................................9
5.2 One-point calibration at pH 7 (B-711/B-712/B-713) ...................10
5.3 One-point calibration at pH 4 (B-712/B-713) .............................10

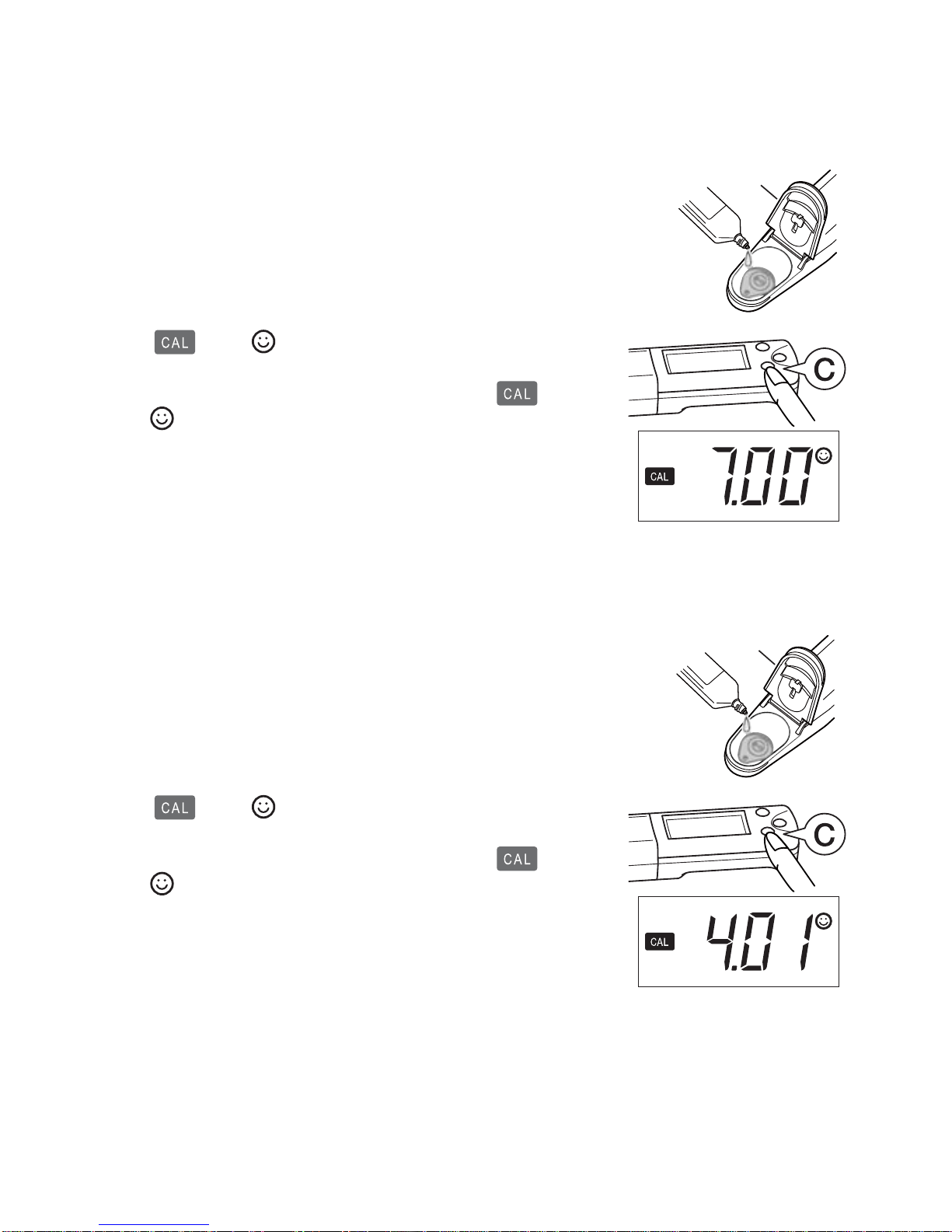

5.4 Two-point calibration (B-712/B-713) ..........................................11
6 Measurement...................................................................................... 12
6.1 Sample setting ...........................................................................12
6.2 Measurement operations ...........................................................15
7 Special Setting Mode......................................................................... 16
7.1 Temperature display mode ........................................................18
7.2 Calibration point setting (only for B-712/B-713) .........................19
7.3 Display digit setting (only for B-712/B-713) ...............................20
7.4 Sensor voltage display mode ....................................................21
7.5 Initialization mode ......................................................................22
7.6 Software version display mode ..................................................22
8 Appendix ............................................................................................ 23
8.1 Frequently asked questions .......................................................23
8.2 Specifications ............................................................................25

1
1 Introduction
The COMPACT pH METER B-711, B-712, and B-713 incorporate HORIBA
original flat sensor and enables accurate pH measurement from a single
drop of a sample.
1.1 Items in package
1.2 Consumable parts sold separately
Meter model B-711 B-712 B-713
Sensor S010 1 1 1
Meter
B-711 1 - -
B-712 - 1 -
B-713 - - 1
Storage case 1 1 1
Batteries CR2032 2 2 2
Standard solutions
pH 4 (pH 4.01) - 1 1
pH 7 (pH 6.86) 1 1 -
pH 7 (pH 7.00) - - 1
Pipette 1 1 1
Sampling sheet B 5 sheets 1 1 1
Instruction manual Common to all
model 111
Quick-start manual 1 1 1
Part No. Name Type Application
3200459834 Sensor S010, pH B-711, B-712, B-713
3200457725 Standard
solutions Y017, pH 6.86 B-711, B-712 (pH 7)
3200457726 Y014, pH 4.01 B-712, B-713 (pH 4)
3200459736 Sampling sheet
holder cover Y048 B-711, B-712, B-713, B-721, B-722,
B-731, B-741, B-742, B-743, B-751
3200053858 Sampling
sheet B Y046, 100 sheet-pack B-711, B-712, B-713, B-721, B-722, B-731, B-741, B-742, B-743, B-751

2
2 Part Names and Functions
No. Name Description
1 Flat sensor Place a sample on this sensor. This sensor consists of a liquid junction (A) and glass membrane (B). Both A and B
must be covered with the sample.
2 Light shield cover Shields the sensor from light, which affects the sensor.
Close the light shield cover before starting measurement.
If using the sampling sheet holder cover (refer to page 14),
shield the flat sensor from light with an alternative.
3 Lithium batteries CR2032 (u2)
4 MEAS switch Switches the calibration mode to the measurement mode,
activates/deactivates the reading locking function in the
measurement mode, and starts/applies settings in the
special setting mode.
5 ON/OFF switch Turns ON/OFF the meter.
6 CAL switch Starts calibration, and switches items/settings in the special
setting mode.
7 Waterproof gasket Makes the meter waterproof.
AB
1
2
3
45
6
7
8
9
10
11
12
13
14 15

3
8 Strap eyelet A strap can be attached here.
9 MEAS icon Blinks until the measured value is stabilized, and lights steadily when the measured value is settled, while the
reading locking function is active.
10 CAL icon Blinks during calibration, and lights steadily when calibration
is finished.
11 Battery alarm icon Lights up when the batteries are low and need to be
changed.
12 Temperature alarm
icon Blinks when the measuring environment temperature does not meet the specified operating temperature (5qC to 40qC).
13 Stability icon Lights up when the measured value is stabilized.
14 Measured value
display Displays a measured, set, or status value.
15 Measurement unit
display A unit symbol lights up corresponding to the value displayed
on the measured value display (14). But no unit symbol
lights up for a pH value.
No. Name Description

4

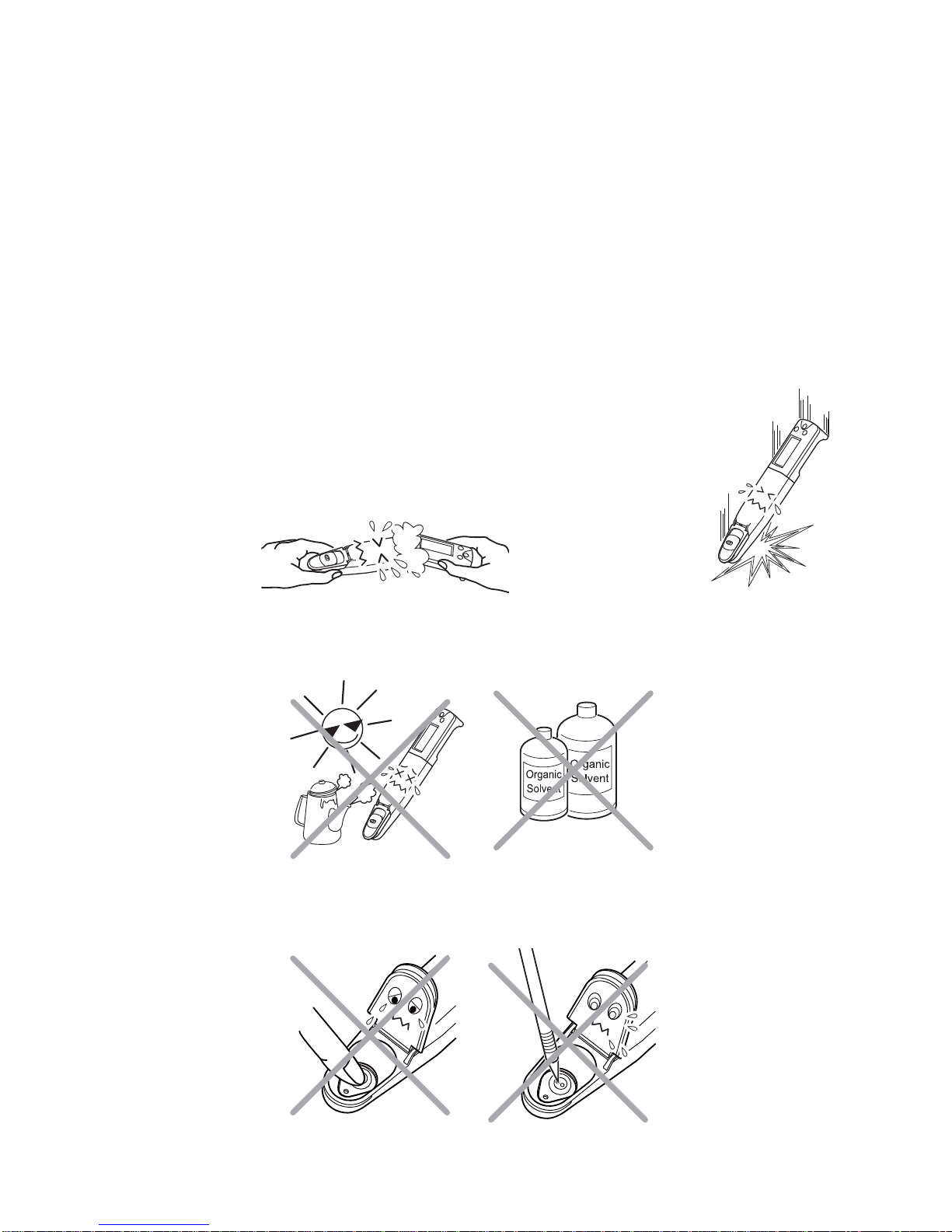

3 Handling Precautions
JMeter and sensor
zThe sensor is a consumable part. If it becomes damaged or its
performance deteriorates, replace it with a new one (the sensor can not
be repaired).
zDo not swing the meter and sensor by holding a strap.
zTo ensure the waterproof performance, confirm the followings when
attaching the sensor.
- The waterproofing gasket is clean and undamaged.
- The waterproofing gasket is seated properly in the groove with no
twisting or warping.
- The meter and sensor are not deformed.
zNeither the meter nor sensor is waterproof by itself.
The sensor must be securely mounted on the meter
before use.
zDo not drop the meter or apply excessive force to it.
zDo not leave the meter in areas of direct sunlight or high temperature/
humidity.
zDo not clean the meter with organic solvents.
zThe flat sensor is made of thin glass. Take care not to break it. If it is
damaged, remove the sensor avoiding injury and dispose of it in a
plastic bag.

5
zDo not measure samples such as the following, since they may
damage the sensor or shorten its life: Organic solvents, oils, adhesives,
cement, alcohols, concentrated acid (0 pH to 2 pH), concentrated
alkaline (12 pH to 14 pH) or surfactants.
zWhen using this product for the first time or after several days of
disuse, the sensor may be slow to respond. In this case, add some
drops of pH 7 standard solution to the sensor and wait a few hours
before use (there is no need to turn the power ON).
zFor some sample types (such as pure water), the measured value may
be unstable.
zA small amount of liquid or white powder may appear on the liquid
junction of the flat sensor. The appearance of this powder or solution is
normal. Simply rinse it off with water before use.
JBattery
zKeep batteries out of reach of children. If someone accidentally
swallows a battery, call a doctor immediately.
zDo not throw batteries in fire.
zDo not attempt to recharge batteries.
zThe provided batteries are intended for use in operation checking,
therefore their service life may be short.
zThe battery alarm icon lights up when the battery voltage is low.
Replace the batteries when the battery alarm icon lights up. The meter
power may not be turned ON/OFF when the battery voltage is low.
zReplace the 2 batteries at the same time.
JOthers
zWash off any calibration fluid that comes into contact with hands or
other exposed skin. If fluid gets in eyes, rinse them immediately and
see a doctor.

6
4 Basic Handling
4.1 Inserting/removing batteries
Note
zTurn OFF the meter before inserting/removing batteries.
zAlways replace both batteries at once. Do not use old and new
batteries together.
JInserting the batteries
1. Slide both batteries into the
battery case as shown.
Be sure to use two CR2032
batteries, and put them with the plus
sides (+) upwards.
JRemoving the batteries
1. Use a ball-point pen or other tool to pry
the batteries out from the clips as
shown.
Battery
Battery
clip

7
4.2 Attaching/detaching the sensor
Note
zTurn OFF the meter before attaching/detaching the sensor.
zIf the meter is turned ON with the sensor detached, the battery
alarm may light up. In this case, turn OFF the meter and attach the
sensor, and then turn ON the meter again.
Note
zMake sure that the sensor tongue is outside the meter case.
If the tongue is inserted between the case and the connector of
the meter, it may damage the connector.
zWhen removing the sensor, do not let any water get inside the
meter. If some moisture remains on the waterproof gasket, wipe it
off carefully.
JAttaching the sensor
1. Confirm that the waterproofing gasket is
clean and undamaged.
2. Slide the sensor onto the meter so that
catch "A" on the back of the meter fits
into hole "a" on the sensor tongue as
shown.
Note
Be careful not to twist the waterproof gasket.
JDetaching the sensor
1. Lift the sensor tongue tip and slide the
sensor a little away from the meter.
2. Pull out the sensor all the way from the
meter.
aA
Waterproof
gasket
Sensor tongue Meter
Connector Meter
Good
Sensor Meter
Sensor
Wrong

8
4.3 Power ON/OFF
4.4 Storage
1. Clean the sensor with tap water and remove moisture on the sen-
sor and meter with soft cloth or paper.
Note
Do not push the flat sensor strongly. It may damage the sensor.
2. Close the light shield cover and the slide cap, then store the
meter.
JPower ON
1. Press and hold the ON/OFF switch for
over 2 seconds.
The power is turned ON, and the meter
model number is displayed on the LCD.
JPower OFF
1. Press and hold the ON/OFF switch for
over 2 seconds.
The power is turned OFF.

9
5Calibration
5.1 About calibration
JCalibration points
The available calibration points depend on the meter models.
zOne-point calibration at pH 7: B-711, B-712, B-713
zOne-point calibration at pH 4: B-712, B-713
zTwo-point calibration: B-712, B-713
“One-point calibration at pH 7” is set by default.
Refer to the instructions on page 19 for switching the calibration points (for
B-712 and B-713 only).
The calibration point setting and calibration result are saved after the meter
is turned OFF.
Tip
For B-712 and B-713, two-point calibration is recommended especially
if sample pH is outside 1 pH from the pH of the standard solution.
JPrecautions for calibration

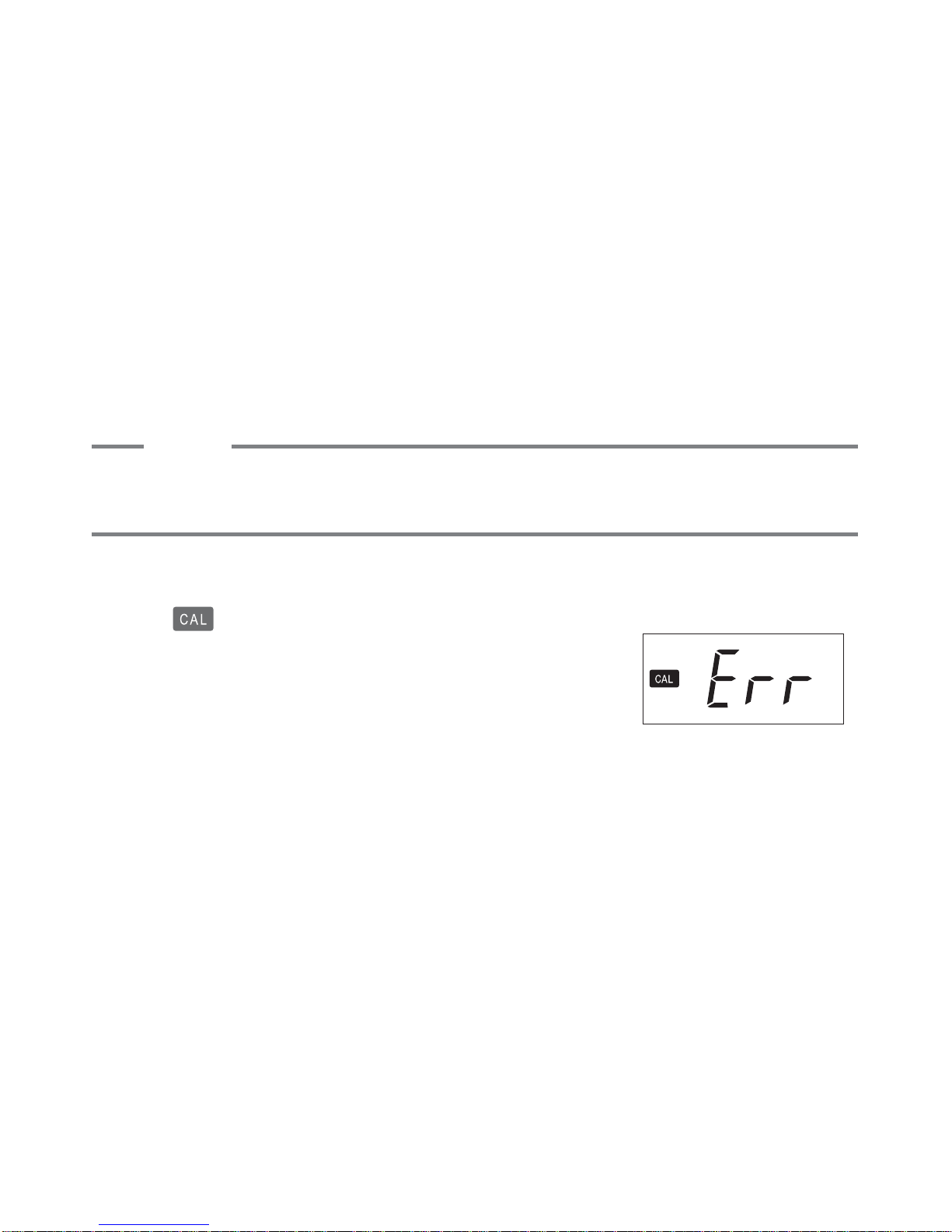

zIf remains blinking and Err (error display)
appears, the calibration is failed.
Check that the standard solution pH is correct,
and perform calibration again after cleaning the
sensor well.
zIf the calibration is failed using correct standard solution(s), the sensor
may be deteriorated. Replace the sensor with new one (part No.:
3200459834).
zIn two-point calibration, confirm that the calibration operations are
completed respectively for pH 7 and pH 4.
The calibration operation for pH 4 can not start until the calibration for
pH 7 is completed, and the whole calibration sequence is not com-
pleted until the calibration for pH 4.

10
5.2 One-point calibration at pH 7 (B-711/B-712/B-713)
5.3 One-point calibration at pH 4 (B-712/B-713)
1. (For B-712 and B-713 only) Set “One-point calibration at pH 7”
(refer to page 19).
2. Open the light shield cover and put some drops
of the pH 7 standard solution on the flat sensor
to cover the entire flat sensor.
Washing the sensor with the standard solution
beforehand may provide more accurate calibration.
3. Close the light shield cover and press the CAL
switch for over 2 seconds.
and blink and the calibration value is
displayed.
After the calibration is completed, and
stop blinking and light steadily.
4. Clean the sensor with tap water and
remove moisture.
5. Press the MEAS switch for 0.5 seconds to
enter the measurement mode and prepare
for measurement.
1. Set “One-point calibration at pH 4” (refer to page 19).
2. Open the light shield cover and put some drops
of the pH 4 standard solution on the flat sensor
to cover the entire flat sensor.
Washing the sensor with the standard solution
beforehand may provide more accurate calibration.
3. Close the light shield cover and press the CAL
switch for over 2 seconds.
and blink and the calibration value is
displayed.
After the calibration is completed, and
stop blinking and light steadily.
4. Clean the sensor with tap water and
remove moisture.
5. Press the MEAS switch for 0.5 seconds to
enter the measurement mode and prepare
for measurement.
Light shield
cover
Light shield
cover

11
5.4 Two-point calibration (B-712/B-713)
8. Press the MEAS switch for 0.5 seconds to enter the measurement
mode and prepare for measurement.
1. Set “Two-point calibration” (refer to page 19).
2. Open the light shield cover and put some drops
of the pH 7 standard solution on the flat sensor
to cover the entire flat sensor.
Washing the sensor with the standard solution
beforehand may provide more accurate calibration.
3. Close the light shield cover and press the CAL
switch for over 2 seconds.
and blink and the calibration value is
displayed.
After the calibration is completed, and
stop blinking and light steadily.
4. After the calibration for pH 7 is completed,
open the light shield cover to remove the
pH 7 standard solution and remove mois-
ture on the sensor.
5. Put some drops of the pH 4 standard solution
on the flat sensor to cover the entire flat
sensor.
Washing the sensor with the standard solution
beforehand may provide more accurate calibration.
6. Close the light shield cover and press the CAL
switch for over 2 seconds.
and blink and the calibration value is
displayed.
After the calibration is completed, and
stop blinking and light steadily.
7. Clean the sensor with tap water and
remove moisture.
Light shield
cover
Light shield
cover

12
6 Measurement
6.1 Sample setting
The following 4-type sampling setting methods are available.
zDrop: for a small-amount sample
zImmersion: for a large-amount sample
zScooping: for sampling a part of a sample
zSampling sheet: for a sample containing tiny particles
Note
Although this product is waterproof, avoid immersing it completely.
If the product is accidentally dropped into water, take it out of water
and remove the moisture on it.
Tip
JDrop
1. Open the light shield cover and put some drops of sample on the
flat sensor to cover the entire flat sensor.
2. Close the light shield cover.
Try to use the provided sampling sheet B
for a minute sample.
Using this sheet, the entire flat sensor can
be covered with only 50 PL to 100 PL
sample.
zNote that a reaction between a
sample and the sampling sheet B
may affect the measured value.
zHandle the sampling sheet B with tweezers to minimize possible
contamination.
zMake sure to close the light shield cover during measurement to
minimize possible sample evaporation.
Light shield cover
