horiba HP-200 User manual

Industrial pH Meter
HP-200
Instruction Manual
CODE:GZ0000214572

May, 2010 © 2010 HORIBA Advanced Techno, Co., Ltd.
Preface
This manual describes the operation of the Industrial pH Meter, HP-200.
Be sure to read this manual before using the product to ensure proper and safe operation of
the instrument. Also safely store the manual so it is readily available whenever necessary.
Product specifications and appearance, as well as the contents of this manual are subject to
change without notice.
Warranty and Responsibility
HORIBA Advanced Techno, CO., Ltd. warrants that the Product shall be free from defects in
material and workmanship and agrees to repair or replace free of charge, at option of HORIBA
Advanced Techno, CO., Ltd., any malfunctioned or damaged Product attributable to
responsibility of HORIBA Advanced Techno, CO., Ltd. for a period of one (1) year from the
delivery unless otherwise agreed with a written agreement. In any one of the following cases,
none of the warranties set forth herein shall be extended;
zAny malfunction or damage attributable to improper operation
zAny malfunction attributable to repair or modification by any person not authorized by
HORIBA Advanced Techno, CO., Ltd.
zAny malfunction or damage attributable to the use in an environment not specified in this
manual
zAny malfunction or damage attributable to violation of the instructions in this manual or
operations in the manner not specified in this manual
zAny malfunction or damage attributable to any cause or causes beyond the reasonable
control of HORIBA Advanced Techno, CO., Ltd. such as natural disasters
zAny deterioration in appearance attributable to corrosion, rust, and so on
zReplacement of consumables
HORIBA ADVANCED TECHNO, CO., LTD. SHALL NOT BE LIABLE FOR ANY DAMAGES
RESULTING FROM ANY MALFUNCTIONS OF THE PRODUCT, ANY ERASURE OF DATA,
OR ANY OTHER USES OF THE PRODUCT.
Trademarks
Generally, company names and brand names are either registered trademarks or trademarks
of the respective companies.

Regulations
Conformable Directive
This equipment conforms to the following directives and standards:
JInstallation Environment
This product is designed for the following environment.
zInstallation Categories II
zPollution degree 2
FCC Rules
Any changes or modifications not expressly approved by the party responsible for compliance
shall void the user's authority to operate the equipment.
JWARNING
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
Directives: the EMC Directive 2004/108/EC
the Low Voltage Directive 2006/95/EC
Standards: [the EMC Directive]
EN61326-1: 2006 Class A, industry
[the Low Voltage Directive] EN61010-1: 2001
Note
When the sensor cable, transmission cable, or relay cable is extended to 30 meters or
more, the surge test in the EMC Directive for CE Marking is not applicable.

For Your Safety
Hazard Classification and Warning Symbols
Warning messages are described in the following manner. Read the messages and follow the
instructions carefully.
QHazard classification
QWarning symbols
This indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury. This signal word is to be limited to the
most extreme situations.
This indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
This indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury. It may also be used to alert against
unsafe practices. Without safety alert indication of hazardous situation
which, if not avoided, could result in property damage.
Description of what should be done, or what should be followed
Description of what should never be done, or what is prohibited

Safety Precautions
This section provides precautions to enable you to use the product safely and correctly and to
prevent injury and damage. The terms of DANGER, WARNING, and CAUTION indicate the
degree of imminency and hazardous situation. Read the precautions carefully as it contains
important safety messages.
WARNING
When any load larger than the contact capacity or any induction load (e.g., a motor or a pump) is
used, be sure to connect that load via a power relay that has a rating larger than the load rating.
When the HP-200 may be subject to lightning, install a conductor rod on the output side of the HP-200
and on the side of receiving instruments.
Be sure to connect the grounding terminal (class D grounding) for safety.
Electric shock
Be sure to check that no power is supplied before starting work.
Strong acid
If dilute hydrochloric acid gets into the eye, mucous membrane may be irritated, resulting in the loss of
sight.
In handling hydrochloric acid, be sure to use protective goggles, protective gloves, and a protective
mask.
If hydrochloric acid gets into the eye, immediately rinse the eye with a large quantity of water for at
least 15 minutes and then receive medical attention. (When rinsing the eye, well open it with fingers
so that the eyeball and the eyelid can be fully cleaned.)
If hydrochloric acid adheres to your body or clothes, you may get burned. Therefore, immediately
remove the clothes and then rinse off hydrochloric acid with a large quantity of water.
CAUTION
If there is corrosive gas in the installation environment, send clean instrumentation air from the air
purge inlet on the HP-200.
When the HP-200 is OFF, the C-NC contact is short-circuited. Therefore, be careful about the
connection of any load.
Since operation of the HP-200 at any voltage outside the rated range can cause a fault, check the
power supply voltage. Also check that the voltage fluctuation range of the power source falls within
the range of rated voltage ±10%.
The electrode is a glass product, which is broken if it is exposed to an impact, strong force, or the like.
In handling the electrode, therefore, exercise sufficient care.

Product Handling Information
Operational Precautions
Use of the equipment in a manner not specified by the manufacturer may impair the protection
provided by the equipment. And it may also reduce equipment performance.
Therefore, exercise the following precautions:
zDo not press any operation key with the tip of your nail or any pointed thing.
zDo not use organic solvent or the like.
zDo not immerse the HP-200 in dilute hydrochloric acid for long hours.
Disposal of the Product
When disposing of the product, follow the related laws and/or regulations of your country for
disposal of the product.
Manual Information
Description in This Manual
Note
This interprets the necessary points for correct operation and notifies the important points for
handling the unit.
Reference
This interprets the necessary points for correct operation and notifies the important points for
handling the unit.
Tip
This indicates the part of where to refer the information.
Definitions of terms
This document uses the following terms as defined:
Term Definition
Hold down Maintain pressing a key until the indicator turns ON or the display changes.
Press Lightly press a key once.
Flash Quickly flash several times, indicating that the setting has been established.

Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

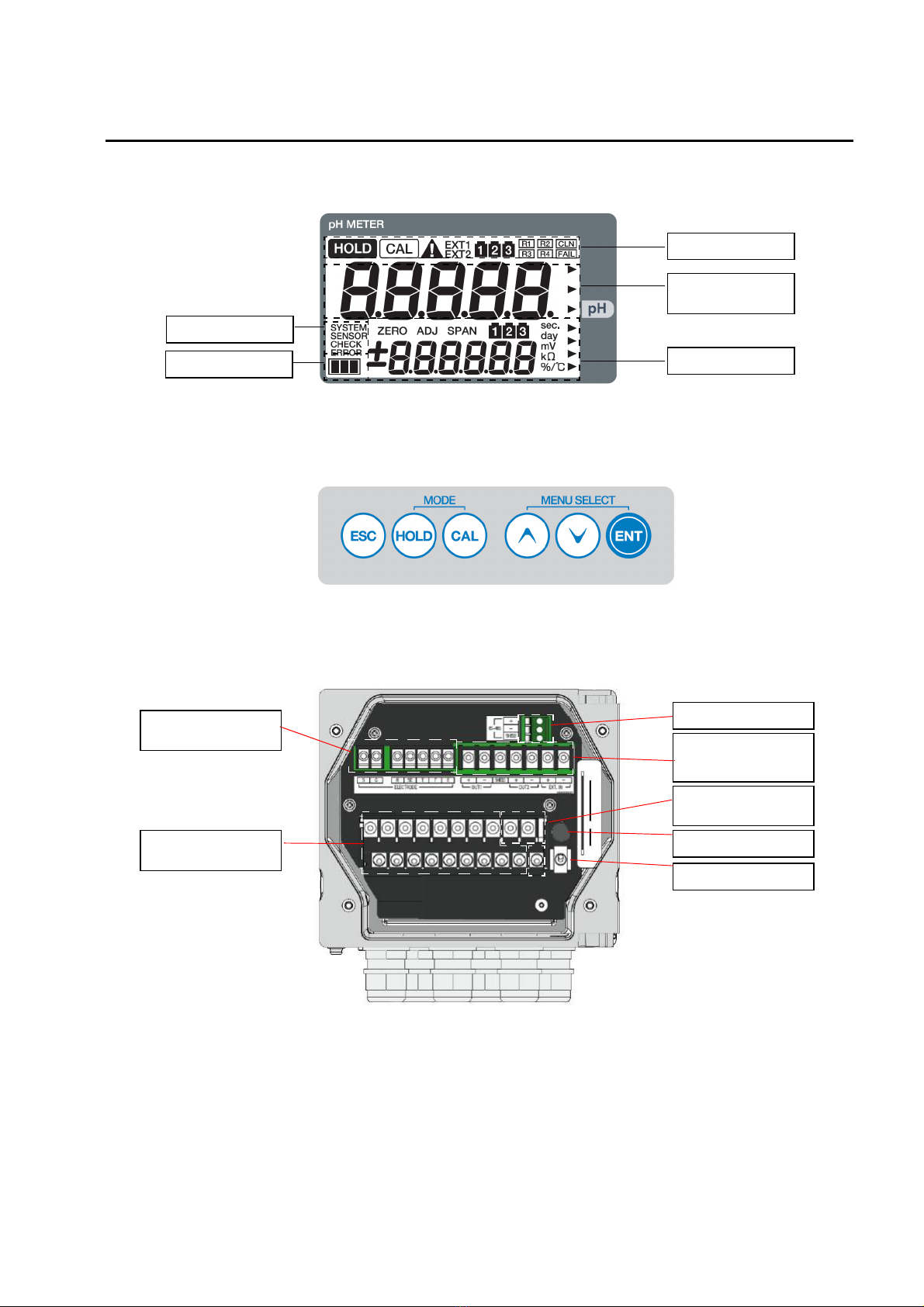

Description of each part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Description of operation keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

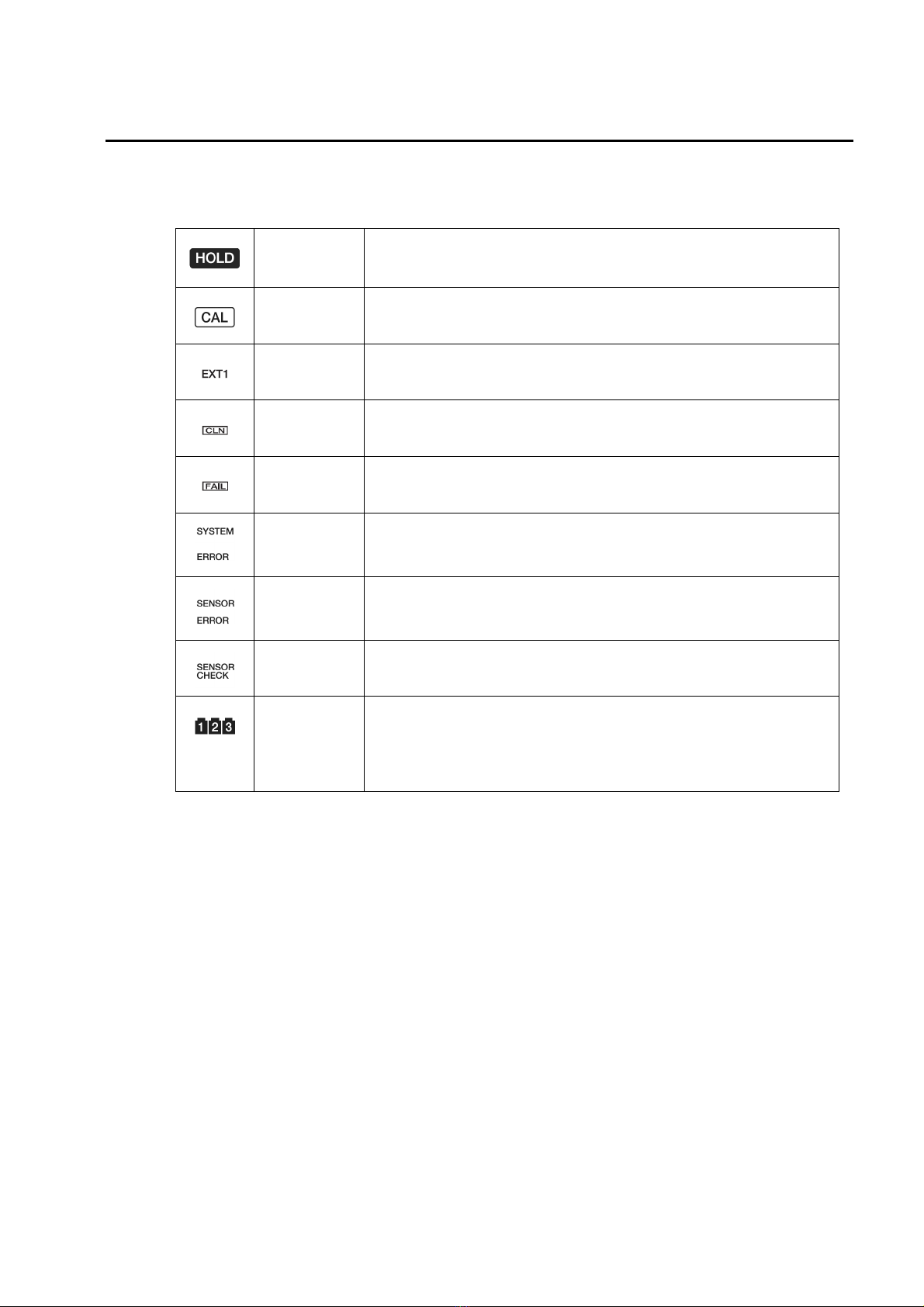

Description of indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description of operation modes and menu items . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installing the HP-200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the electrode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Procedures for connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting the power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting the contact output terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connecting the contact input terminal and the transmission output terminal. . . 15
Connecting the communication terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting the electrode cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Preparation for operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Starting operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Meas mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Calibration menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
User check menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
pH calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Temperature calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
pH calibration by manual input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Contact output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Cleaning output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Output conditions for various output types . . . . . . . . . . . . . . . . . . . . . . . . 63

Information for accurate measurements . . . . . . . . . . . . . . . . . . . 64
Daily calibration (cal mode). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Maintenance procedure for HP-200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Checks of HP-200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Maintenance of electrode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Cleaning the electrode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Adding KCl internal solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Replacing the electrode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Troubles with measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Measurements exceeding the measurable range. . . . . . . . . . . . . . . . . . 70
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Description of error codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Remedial action for error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Remedial action for pH electrode's fault . . . . . . . . . . . . . . . . . . . . . . . . . 75
Self-check capability for pH electrode. . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Self-check capability types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Self-check capability for different pH electrode types . . . . . . . . . . . . . . . . . . . . 76
Cases where the self-check capability does not work properly. . . . . . . . . . . . . 77
Reference data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Information on standard solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
List of parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Optionally available parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Disposal method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Overview
1
Overview
Introduction
Thank you very much for purchasing our model HP-200 pH Meter for industrial use.
The HP-200 allows you to make a measurement when the pH electrode and a power source
for 100 V to 240 VAC are connected.
The measured value and various parameters are displayed on the LCD part. When used with
our cleaner, the HP-200 allows you to control the cleaner.
A variety of self-diagnostic capabilities is provided to allow you to detect a trouble with the pH
electrode or the HP-200.
QFeatures
zOutdoor installation type (equivalent to IP65; splash-proof construction)
zSelectable simultaneous display of temperature
zAll settings available with front keys
zApplicable for 5 kinds of standard solutions (pH 7 plus one to three among pH 2, 4, 9, and
10)
zImproved maintenance feature (self-diagnostic capability)
zSelectable transmission output range
zBackup of stored data
zEasy-to-read display (150% larger than former display)
zImproved operability of keys by using an emboss sheet
zImproved mode display by using icons
z4 kinds of temperature compensation electrodes (500, 6.8 k, 1 k, and 10 k) self-detection
capability provided
Content
QItems included

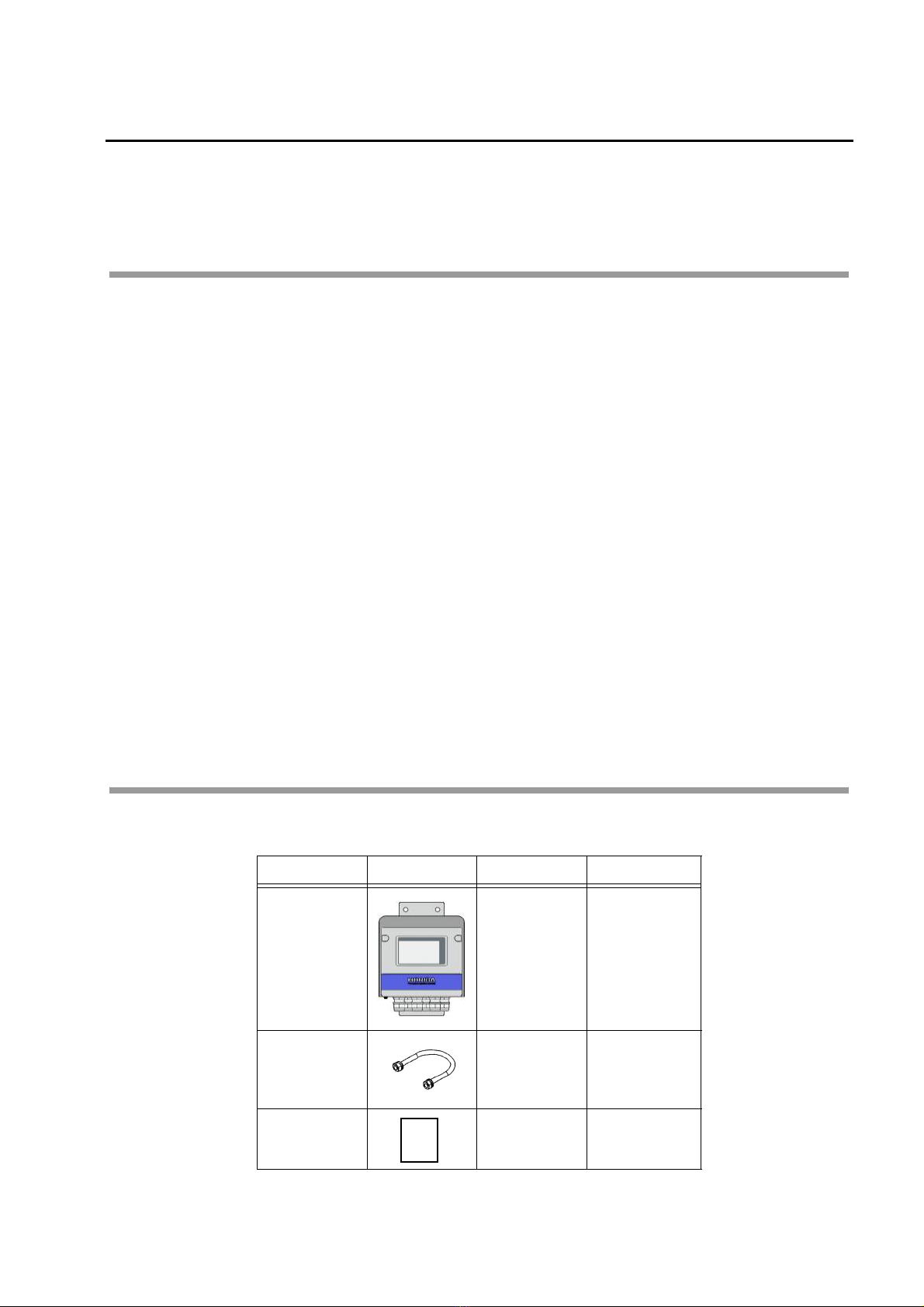

Name Illustration Quantity Remarks
Main body 1 set With bracket
With cover
U-bolt 2 sets
U-bolt: 2
M8 nut: 4
Spring washer:4
Flat washer: 4
Instruction
manual 1 copy This document
Instruction
manual

Overview
2
Description of each part
QFront view
Display part
The measured value
and other information
are displayed here.
When the cover is
opened, 6 operation
keys appear.
Up to 6 electric wires
of 9 mm to 11.5 mm
diameter can be
used.
Purge air is sent
through this inlet to
prevent internal
corrosion. Normally
no connection is
required.
Conduit
Cover
This cover is used for
outdoor installation.
Front cover
Purge air inlet
When the four screws
are removed, the front
case can be opened.
Front case screw
With the front cover opened
6 operation keys are
located.
Operation key
section
Screw cap
When the two screw
caps are removed, the
front case screws
appear.
Front case

Overview
3
QDisplay part
QOperation key section
QTerminal block
Status display
Indicator
Status display
Measured value
display
Auxiliary display
Electrode connection
terminal
Power connection
terminal
Transmission output
terminal and contact
input terminal
RS-485 terminal
Fuse box
Power switch
Contact output
terminal

Overview
4
JDescription of operation keys
The operation keys are used to change the displayed information, enter parameters, or
perform calibration.
The displayed value or item can be changed when it blinks.
Select a blinking value or item with the Sand Tkeys and then press the ENT key. The
setting will flash, indicating that it has been established.
Note
Do not press any operation key with the tip of your nail or any pointed thing.
Key Nomenclature
(meaning) in text Description
ESC key (escape)
Used to go back to the previous menu from any other menu.
During various settings in the Hold mode, pressing this key will go back to
the previous item.
The change that has been previously made to any setting is canceled.
Hold
down Holding down this key in the Hold mode will select the Meas mode.
HOLD key (hold) Hold
down
Holding down this key in the Meas mode will select the Hold mode.
Holding down this key in the Hold mode will select the Meas mode.
CAL key
(calibration)
Allows you to change the number of calibration points or perform
calibration again during the basic calibration in the pH cal mode.
Hold
down
Holding down this key until the CAL indicator turns ON will select
the pH cal mode.
[S]key
[T]key
(select)
Used to change the displayed item or value.
Pressing the key will increase/decrease the value by an increment/
decrement of 1. Holding down the key will continuously increase/decrease
the value.
The Sand Tkey are used to scroll up and down, respectively. If you
excessively scroll up or down with either key, press the other key to return.
ENT key (input)
Used to establish each setting or calibrated value.
Note
No change is reflected if you have returned to the previous menu by
pressing the ESC key.

Overview
5
JDescription of indicator
QStatus display
HOLD indicator
zTurns ON when the hold mode becomes active.
zStarts blinking when contact input is received or when the hold mode
becomes active due to an error
CAL indicator Turns ON when the cal mode becomes active.
EXT1 indicator Turns ON when contact input such as the cleaning signal is received
CLN indicator Turns ON when the cleaning output contact signal is output
FAIL Indicator Turns ON when the FAIL contact signal is output
SYSTEM
ERROR
indicator
Turn ON when system error E-90, E-91, or E-92 occurs
SENSOR
ERROR
indicator
Turns ON when one of sensor errors E-11 to E-72 occurs
SENSOR
CHECK
Illuminated during the check of the temperature sensor type when the
temperature sensor type was set to Auto
Bottle indicator
Illuminated during pH calibration
zUpper bottle indicator: The number of calibration points is indicated by
bottle indicator number.
zMiddle bottle indicator: The current calibration point is indicated by bottle
indicator number.

Overview
6
Description of operation modes and menu items
The HP-200 offers 3 kinds of operation modes and 4 kinds of menus.
QOperation mode
<Meas mode>
In this mode, measurements and control are performed.
<Cal mode>
In this mode, calibration is performed.
The cal mode is divided into the pH cal mode, the temp cal mode, and the pH manual input cal
mode.
<Hold mode>
In this mode, the measurement and output are stopped to make various settings.
QMenu
The meas and hold modes have the respective menus as shown below:
For selecting each mode or item, see the corresponding paragraph.
<Meas mode>
<Cal/controlled value menu>
This menu allows you to check the calibrated value or to set/change some controlled values
while checking the output.
<Hold mode>
<Setup menu > (SET)
Prior to operation, this menu allows you to set all the measurement-related parameters such
as the input of detector information and the allocation of output.
<Cal menu> (CAL)
This menu allows you to select the cal mode.
<User Check menu> (USr)
This menu allows you to check the output status, the measured value, and others. The set
values can be reset to the factory settings.

Overview
7

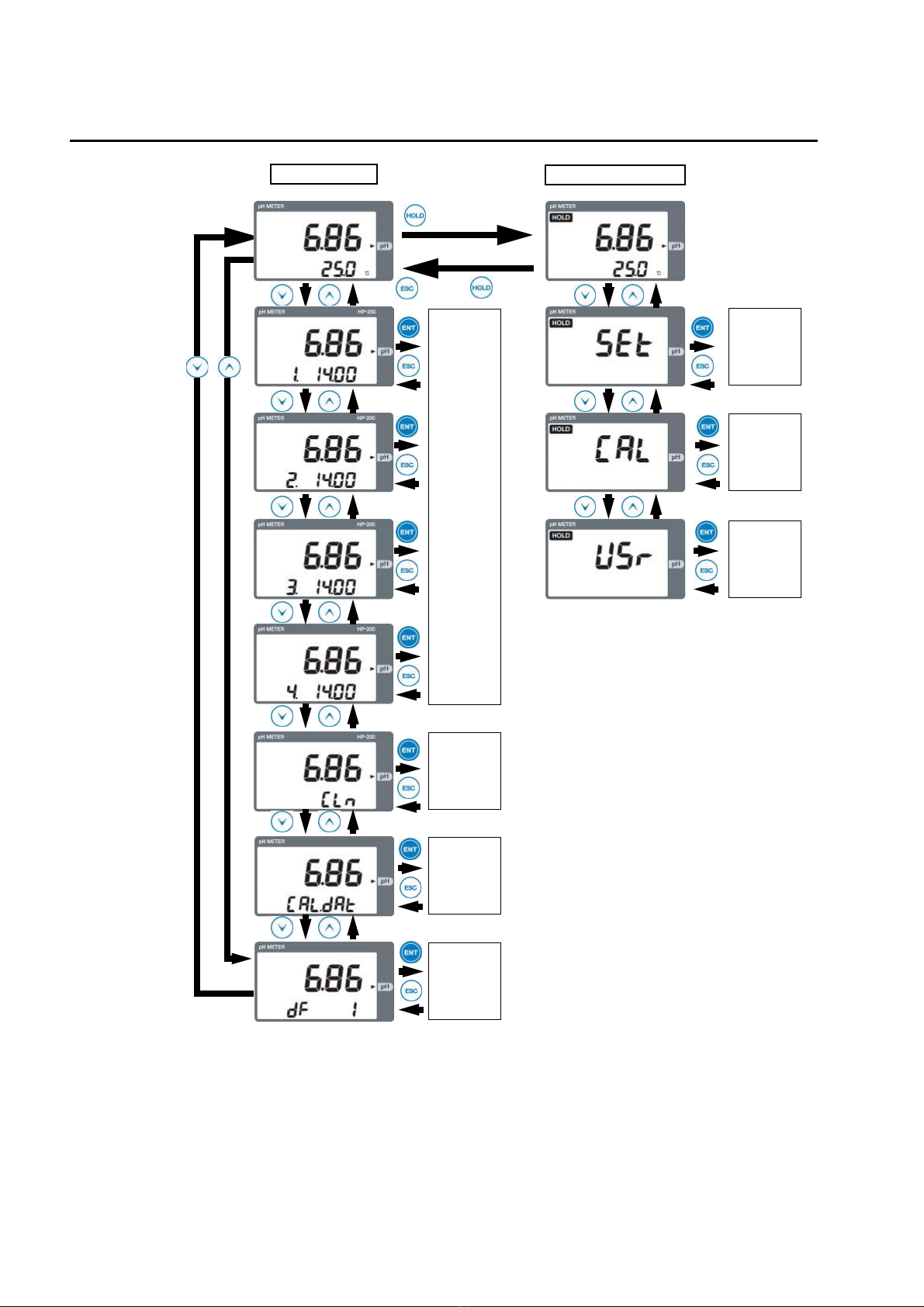

QModes and menus avaialble from meas mode
<Meas mode>
Hold down the
CAL key.
See P. 47.
<pH cal mode>
Hold down the
HOLD key
<Hold mode>
[T] key
<Setup menu>
[T] key
<Cal menu>
[T] key
<User Check menu>
Press the [S/T] key. <Cal/controlled value menu>
See P. 44.
See P. 39.
See P. 30.
See P. 26.
(ph/temperature
calibration)
(ph calibration)
The measurement output is held.

Overview
8
Check
contact
output
Check
cleaning
(Hold down)
<Meas mode> <Hold mode>
Checkthe
calibrated
value
Cal
menu
Checkthe
controlled
value
Setup
menu
User
Check
menu
or (Hold down)

Installation
9
Installation
Installation environment
To ensure the use of the HP-200 in stable condition, install the HP-200 in a location where the
following requirements are met:
QHP-200
zThe location shall be well ventilated.
zThe ambient temperature shall be between -20°C and 55°C both inclusive.
zHot air in the location shall be minimal.
zThe HP-200 shall not be exposed to direct sunlight.
zThe HP-200 shall not be exposed to direct high radiation heat.
zThe ambient relative humidity shall be 90% maximum.
zThe HP-200 shall not be exposed to splashed water or chemical agent
zThe mechanical vibration in the location shall be minimal.
zMaintenance and wire connections shall be possible in the location.
zThe location shall be free from dust and corrosive gas.
zThe location shall be least affected by an electromagnetic field.
zThe altitude shall be 2,000 meters max.
zThe variation range of power supply voltage shall fall within ±10%.
QElectrode
zThe location shall enable the check and maintenance of the electrode.
zThe solution under measurement shall be free from air bubbles.
zThe solution under measurement shall not corrode the wetted part of the electrode.
Note
zFor more information, refer to the instruction manual that comes with the electrode.
zTo measure any solution that has high SS content, the installation of a cleaner is recommended.

Installation
10
Installing the HP-200
The HP-200 can be installed on a pole (50A) or a wall.
QInstallation on a pole
QInstallation on a wall
Note
Provide the necessary area for the maintenance of the HP-200.
CAUTION
If there is any corrosive gas in the installation environment, send clean instrumentation air through the
air purge inlet on the HP-200.

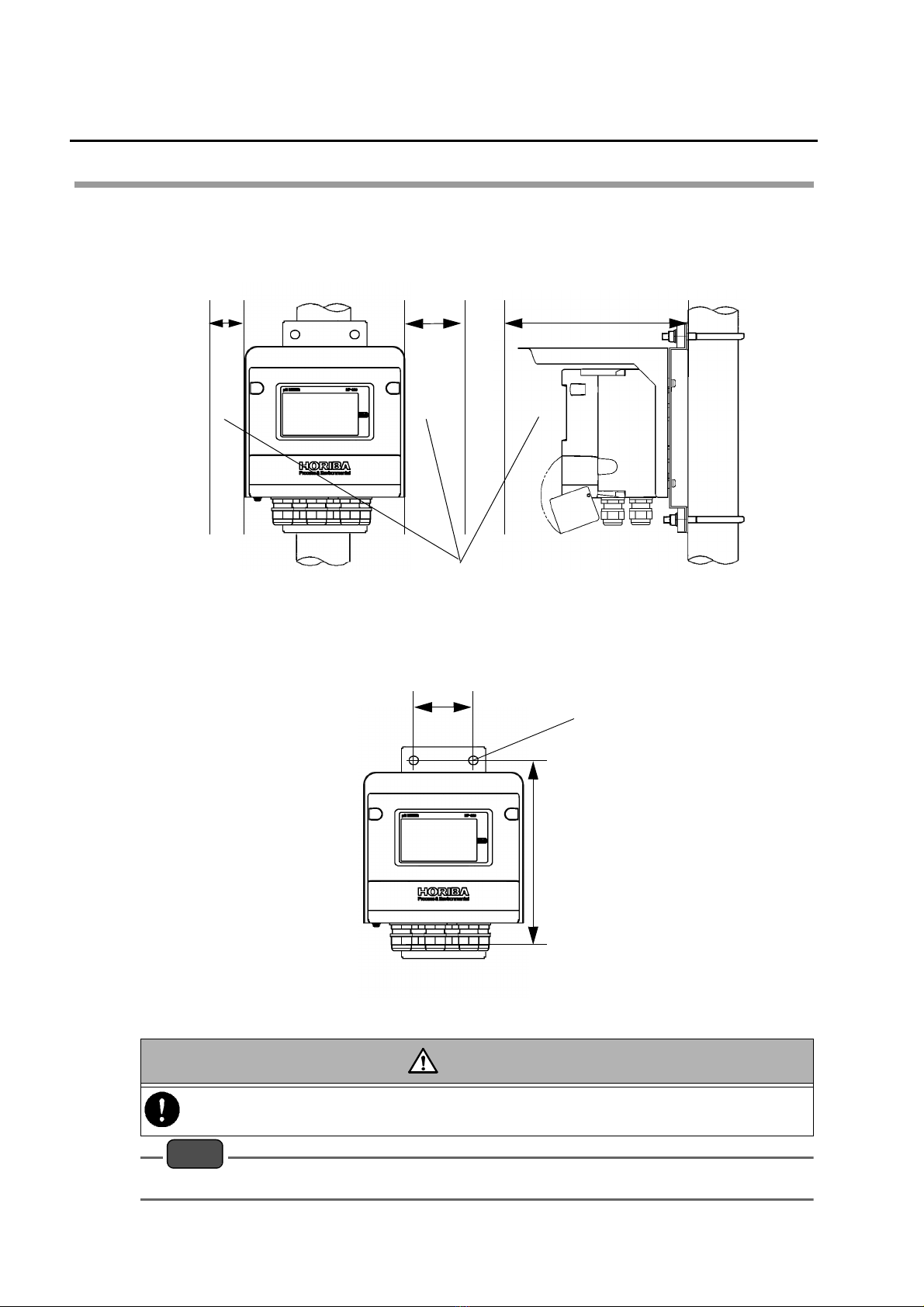

[Unit: mm]
View of the HP-200 installed on a pole
262
Maintenance
area
12050
[Unit: mm]
View of the HP-200 installed on a wall 71
220
Slotted hole of 4-10 x 11

Installation
11
Installing the electrode
The electrode can be installed by either of the following two methods:
zSet up the electrode with a holder and then directly immerse the holder in the solution
under measurement (immersion type holder).
zSet up the electrode with a holder and then directly insert the holder into the piping line
(distribution type holder).
For detailed handling of each holder type, refer to the instruction manual that comes with the
product.
QFor immersion type holder
1. Ensure that the electrode tip is always immersed in the solution under
measurement even if the solution level fluctuates.
2. Ensure that the level of the internal solution (KCl) in the holder is always higher
than the level of the solution under measurement.
Note
If the level of the internal solution (KCl) in the holder decreases, be sure to add the internal solution.
3. Slightly turn the cap at the top of the holder. The filling inlet will be slightly opened
so that large pressure is applied to the inside of the holder.
4. The maximum flow rate is 2 m/s. Even if the flow rate is within this limit, the folder
may be deformed. Therefore, take the following measures to prevent a decrease in
the flow rate.
QFor distribution type holder
1. Be sure to provide a bypass line on the piping line.
Note
Unless there is a bypass line, the HP-200 must be stopped when the maintenance or replacement of
the electrode is carried out.
2. Use the distribution type holder with its output side open to atmospheric air.
3. Before checking the electrode, close the valve located upstream from the holder.
The solution in the holder may flow back.
Holder cap
KCl filling inlet
Install a pipe of 50 to 100
A that has a introducing
hole at its end and then
insert the holder into that
pipe.
When a partition plate
can be installed, e.g., on
both sides of a street
gutter, install those plates
upstream for the benefit
of dust removal.

Installation
12
4. An excessively high flow rate may cause fluctuations in the reading. An
excessively low flow rate results in response delay. Control the flow rate in
accordance with the measurement conditions.
5. For any solution under measurement that has large SS content, install a strainer on
the incoming side.
Procedures for connections
QOpening the cover for the HP-200
1. Remove two screw caps located on the upper part of the front of the HP-200.
Carefully store the removed caps.
2. Open the front cover.
3. Loosen four screws located on the front of the HP-200. Check that the screws are
floated by springs.
4. Open the front case for the HP-200.
QDiagram of connection terminals
Note
zThe screws on the front case and the terminal block are structurally prevented from coming off.
To connect a terminal, turn the screw counterclockwise until the spring is floated.
zTo open the case immediate after it has rained, previously wipe off droplets on the case.
Communication
terminal
Contact input
terminal (M3.5)
Transmission
output terminal
(M3.5)
Power terminal
(M4)
Electrode
terminal
(M3)
Contact output
terminal (M4)
