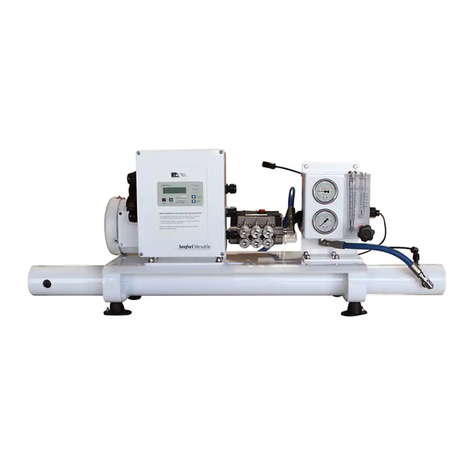

Horizon Reverse Osmosis Seafari Versatile SFC-450-1 User manual

Seafari 450 -1800
Owner’s Manual
Installation, Operation, Maintenance, & Repair
HORIZON Seafari Contained HORIZON Seafari Modular
Single Membrane (-1) Single Membrane (-1)
• HRO Seafari SFC-450-1 • HRO Seafari SFM-450-1
• HRO Seafari SFC-700-1 • HRO Seafari SFM-700-1
• HRO Seafari SFC-900-1 • HRO Seafari SFM-900-1
Double Membrane (-2) Double Membrane (-2)
• HRO Seafari SFC-900-2 • HRO Seafari SFM-900-2
• HRO Seafari SFC-1400-2 • HRO Seafari SFM-1400-2
• HRO Seafari SFC-1800-2 • HRO Seafari SFM-1800-2
P.O. Box 5463, Carson, California 90745-5463, U.S.A.
Tel: 1-310-631-6300 • Fax: 1-310-631-6395 • Email: sales@hrosystems.com • Web: www.hrosystems.com
Copyright 2001 HRO Systems
Initial Copy: March 1,2001 • Rev: Nov 1, 2001 • Mar 1, 2002 • May 1, 2002
HRO Systems, HRO, and the Horizon Seafari logos are trademarks of HRO Systems and are the sole property of HRO Systems.
All Rights Reserved 2007.

HROSystems Horizon Seafari Self Contained and Modular Style
i
INTRODUCTION
Thank you for purchasing an HRO Systems Reverse Osmosis Desalination System. Please read this
manual carefully before attempting installation or operation. A better understanding of the system
ensures optimum performance and longer service life from the system.
All HRO reverse osmosis desalination systems are designed and engineered to function as a complete
working unit. Generally speaking, the performance of each component within the unit is dependent on
the component prior to it and governs the performance of all components after it. Proper performance o
f
the system is thus dependent upon proper operation of every single component within the system.
The intent of this manual is to allow the operator to become familiar with each component within the
Horizon Seafari system. By understanding the function, importance, and normal operation of each
component within each subsystem of the unit, the operator can readily diagnose minor problems. Such
p
roblems, when they first develop, usually require minor
m
aintenance and are easily corrected.
However, left unattended, a problem in one component affects the rest of the system and leads to further
required repairs.

HROSystems Horizon Seafari Self Contained and Modular Style
HRO Systems™
SYSTEM IDENTIFICATION INFORMATION
INSTRUCTIONS: Please complete the following information at the time of purchase of the Horizon Seafari R.O.
Desalinator. This information will be requested to provide better service by the HRO Systems Service
Department whenever contacting HRO Systems for technical assistance or by the HRO Systems Marketing
Department whenever ordering parts.
System Information:
Model Number: Serial Number:
Operating Voltage:
Alternating Current Single Phase:
___ 120 VAC, 60 Hz; ___ 230 VAC, 60 Hz; ___ 220 VAC 50 Hz
Alternating Current Three Phase:
___ 208/230 VAC, 60 Hz; ___ 460 VAC, 60 Hz;
___ 220 VAC, 50 Hz; ___ 380 VAC 50 Hz
Date Purchased:
Date Commissioned (first tested or operated):
Dealer Information:
Dealer's Name:
Address:
City:
State:
Country: Postal Code:
Dealer's Invoice Number:
KEEP THIS COPY IN THE OWNERS MANUAL
HROSystems™
P.O. BOX 5463, CARSON, CALIFORNIA 90745-5463
U.S.A.
TELEPHONE 1-310-631-6300 FACSIMILE 1-310-631-6395
World Wide Web Site http://www.hrosystems.com
e-mail hrosystems @ hrosystems.com
ii

HROSystems Horizon Seafari Self Contained and Modular Style
HRO Systems™
WARRANTY REGISTRATION INFORMATION
INSTRUCTIONS: At the time of purchase of the Horizon Seafari R.O. Desalinator, please complete the
warranty information listed below. After completing this form please mail it, in the provided envelope,
to HRO Systems. Attn: Warranty Registration.
System Information:
Model Number: Serial Number:
Date Purchased:
Date Commissioned:
Dealer Information:
Dealer's Name:
Address:
City:
State:
Country: Postal Code:
Dealer's Invoice Number:
Customer Information:
Customer Name:
Street Address:
City:
State:
Country: Postal Code:
Mail this copy to:
HROSystems™
P.O. BOX 5463
CARSON, CALIFORNIA 90745-5463 U.S.A.
Attn: Warranty Registration
or visit our World Wide Web Site at http://www.hrosystems.com
and e-mail the Warranty Registration Information to us at
iii

HROSystems Horizon Seafari Self Contained and Modular Style
Fill Out the front side of this page and Mail it to:
HROSystems™
P.O. BOX 5463
CARSON, CALIFORNIA 90745-5463 U.S.A.
Attn: Warranty Registration
or visit our World Wide Web Site at http://www.hrosystems.com
and e-mail the Warranty Registration Information to us at
hrosystems @ hrosystems.com
iv

HROSystems Horizon Seafari Self Contained and Modular Style
TABLE OF CONTENTS
SECTION DESCRIPTION
A INTRODUCTION
B SPECIFICATIONS
C INTRODUCTION TO THE REVERSE OSMOSIS PROCESS
D SYSTEM SCHEMATIC & COMPONENT DESCRIPTIONS
INCLUDING ILLUSTRATED P&IDs (Piping and Interconnect Diagrams)
E SYSTEM INSTALLATION
ON SITE STORAGE & PREPARATION
INSTALLATION PROCEDURES
F COMMISSIONING / INITIAL START UP
INITIAL START UP
INITIAL NEW SYSTEM READINGS
G START-UP PROCEDURE
H SHUTDOWN PROCEDURE
I SYSTEM TROUBLESHOOTING GUIDE
J STORAGE & CLEANING PROCEDURE OF THE SYSTEM & R.O. MEMBRANE
R.O. MEMBRANE ELEMENT PROTECTION
SHORT TERM SHUTDOWN STORAGE PROCEDURE
LONG TERM SHUTDOWN STORAGE PROCEDURE
WINTERIZING AND FREEZING TEMPERATURE STORAGE
CLEANING PROCEDURE
K MAINTENANCE & REPAIR
OPERATOR'S PREVENTIVE MAINTENANCE
MAINTENANCE TIME CHART
OPERATOR MAINTENANCE & CLEANING
COMPONENT MAINTENANCE & REPAIR
APPENDIX A WIRING INFORMATION AND DIAGRAMS
ELECTRICAL COMPONENTS SPECIFICATIONS
SYSTEM CONTROLLER WIRING
MOTOR WIRING
APPENDIX B CONVERSION CHARTS
MEMBRANE PERFORMANCE CHARTS
COMMON CONVERSIONS
INDEX QUICK REFERENCE INDEX
v

HROSystems Horizon Seafari Self Contained and Modular Style
NOTES:
vi

SECTION “A”
WARRANTY

HRO Systems Horizon Seafari “Section A” Warranty
Page A - 1
LIMITED WARRANTY
HRO Systems warrants that the Horizon Seafari Desalination System performs according to the specifications for a period of twelve (12) months and
specifically listed components are warranted for up to 5 years from the date of shipment. HRO Systems, under no circumstances, is liable for damages
arising out of or in any way connected with the failure of the system to perform as set forth herein. This limited warranty is in lieu of all other expressed or
implied warranties, including those of merchantability and fitness for a particular purpose.
The warranty period is from the date of original shipment from HRO Systems factory.
The following items are covered under warranty for the periods designated:
System and Accessories 1 (one) year
High Pressure Vessel 5 (five) years
HP Pump (manifold) 5 (five) years
Repairs after warranty 3 (three) months
The following items are considered normal user maintenance and are not covered under warranty:
1. Sea Strainer Element 7. Pump Crankcase Oil
2. Cartridge Filter Elements 8. Gauge Instrument Calibration
3. Sand & Graven in the MMF 9. Fuses
4. Pump Packing Assemblies 10. Valve Seals and Packings
5. Pump Seal Assemblies 11. Exterior Corrosion
6. Pump Valve Assemblies
Installation of components not supplied by HRO Systems, are not covered by this or any limited warranty.
Improper installation, resulting in system failure or component failure or decline in performance is not covered by this or any limited warranty.
The Reverse Osmosis Membrane Element is warrantied for a period of one year from the date of shipment of the membrane. Any misuse or improper
operation or maintenance of the system that causes premature fouling of the Membrane Element is not warrantied. The Reverse Osmosis Membrane Element
is also guaranteed to be cleanable for a minimum of one year from the date of shipment, providing cleaning periods are adhered to and foulant is acid soluble
metal hydroxides and calcium carbonates or alkaline soluble organic, inorganic substances and microbiological slimes. The Membrane Element is not
warrantied for iron fouling (rust), chemical or petroleum products attack, extreme temperatures (over 120 F/under 32 F), drying out or extreme pressures
(over 1000 psi).
In the event of a defect, malfunction or failure, specifically covered by this warranty and during the warranty period, HRO Systems will repair or replace, at
its option, the product or component therein, which upon examination by HRO Systems appears to be defective.
To obtain warranty service, the defective product or part must be returned to an authorized HRO Systems Factory Service Center (dealer) or direct to HRO
Systems. The end user must pay any transportation and labor expenses incurred in removing and returning the product to the service center or HRO Systems
pending evaluation and warranty approval. . Upon warranty approval, reasonable expenses will be reimbursed.
The limited warranty does not extend to any system or system component which has been subjected to alteration, misuse, neglect, accident, improper
installation, inadequate or improper repair or maintenance or subject to use in violation of instructions furnished by HRO Systems, nor does the warranty
extend to components on which the serial number has been removed, defaced or changed.
HRO Systems reserves the right to make changes or improvements in its product, during subsequent production, without incurring the obligation to install
such changes or improvements on previously manufactured equipment.
The implied warranties, which the law imposes on the sale of this product, are expressly LIMITED in duration to the time period above. HRO Systems shall
not be liable for damages, consequential or otherwise, resulting from the use and operation of this product, or from the breach of this LIMITED
WARRANTY.
CAUTION: Use of non HRO Systems supplied parts and accessories, including but not limited to maintenance parts, prefilter elements, cleaning and
storage chemical, pump oil, spare parts, replacement parts, system components, installation components and/or system accessories, shall void all warranty
expressed or implied.

HRO Systems Horizon Seafari Self Contained and Modular Style
Page A - 2
NOTES:

SECTION “B”
SPECIFICATIONS

HROSystems Horizon Seafari Specifications
SPECIFICATIONS
Single Membrane (-1)
•HRO Seafari SFC-450-1
•HRO Seafari SFC-700-1
•HRO Seafari SFC-900-1
Double Membrane (-2)
•HRO Seafari SFC-900-2
•HRO Seafari SFC-1400-2
•HRO Seafari SFC-1800-2
Single Membrane (-1)
•HRO Seafari SFM-450-1
•HRO Seafari SFM-700-1
•HRO Seafari SFM-900-1
Double Membrane (-2)
•HRO Seafari SFM-900-2
•HRO Seafari SFM-1400-2
•HRO Seafari SFM-1800-2
PERFORMANCE:
PRODUCT WATER PRODUCED PER 24 HOURS OF OPERATION:
( +-15% at 850 psig / 56 BAR, 77°F / 25°C & 35,000 ppm TDS Feed Water Salinity )
Model Number Production per 24 hours of operation:
HRO Seafari (SF) 450-1 450 U.S. Gallons / 1,703 liters
HRO Seafari (SF) 900-2 900 U.S. Gallons / 3,407 liters
HRO Seafari (SF) 700-1 700 U.S. Gallons / 2,650 liters
HRO Seafari (SF) 1400-2 1400 U.S. Gallons / 5,300 liters
HRO Seafari (SF) 900-1 900 U.S. Gallons / 3,407 liters
HRO Seafari (SF) 1800-2 1800 U.S. Gallons / 6,814 liters
PRODUCT WATER PRODUCED PER HOUR OF OPERATION:
(+-15% at 850 psi / 56.5 bar, 77°F / 25°C & 35,000 ppm TDS Feed Water Salinity)
Model Number Production per 1 hour of operation:
HRO Seafari (SF) 450-1 19 U.S. Gallons / 71 liters
HRO Seafari (SF) 900-2 38 U.S. Gallons / 142 liters
HRO Seafari (SF) 700-1 29 U.S. Gallons / 110 liters
HRO Seafari (SF) 1400-2 58 U.S. Gallons / 211 liters
HRO Seafari (SF) 900-1 38 U.S. Gallons / 142 liters
HRO Seafari (SF) 1800-2 75 U.S. Gallons / 284 liters
SALT REJECTION (CHLORIDE ION): Minimum 99.2 %, Average 99.4%
PRODUCT WATER TEMPERATURE: Ambient to feed water temperature
Page B - 1

HROSystems Horizon Seafari Self Contained and Modular Style
SPECIFICATIONS:
SALINITY MONITORING:
Automatic computer controlled electronic monitoring. Temperature compensated with the Water Quality
Indicator. The salinity monitoring components of the system give a continuous readout in micromhos per
cubic centimeter, are temperature compensated and of a fail-safe design.
SALINITY RANGE OF FEED WATER:
Seawater up to 50,000 ppm TDS (NaCl) (typical seawater salinity is 35,000 ppm)
TEMPERATURE RANGE: Max. 122°F / 50°C, Min. 33°F / .5°C
SYSTEM FEED WATER:
Power Source
Model Number Cycles (Hz) Feed Water Flow Per Minute:
HRO SFC 450-1 & 900-2 50Hz 3.5 U.S. Gallons / 13.2 liters
HRO SFM 450-1 & 900-2 50Hz 3.5 U.S. Gallons / 13.2 liters
HRO SFC 700-1 & 1400-2 50Hz 3.5 U.S. Gallons / 13.2 liters
HRO SFM 700-1 & 1400-2 50Hz 3.5 U.S. Gallons / 13.2 liters
HRO SFC 900-1 & 1800-2 50Hz 3.5 U.S. Gallons / 13.2 liters
HRO SFM 900-1 & 1800-2 50Hz 3.5 U.S. Gallons / 13.2 liters
HRO SFC 450-1& 900-2 60Hz 3.0 U.S. Gallons / 11.4 liters
HRO SFM 450-1 & 900-2 60Hz 3.0 U.S. Gallons / 11.4 liters
HRO SFC 700-1 & 1400-2 60Hz 4.2 U.S. Gallons / 15.9 liters
HRO SFM 700-1 & 1400-2 60Hz 4.2 U.S. Gallons / 15.9 liters
HRO SFC 900-1 & 1800-2 60Hz 4.2 U.S. Gallons / 15.9 liters
HRO SFM 900-1 & 1800-2 60Hz 4.2 U.S. Gallons / 15.9 liters
REVERSE OSMOSIS MEMBRANE:
TYPE: Specifically selected High Rejection / High Yield aromatic tri-polyamid, thin film composite, spiral
wound, single pass reverse osmosis membrane element.
CHLORINE TOLERANCE: 0.1 PPM.
pH RANGE: 3-11 (typical seawater pH is 8)
SYSTEM PRESSURE:
FEED WATER: Minimum 6 psi / .41 bar / .42 Kg/cm2. Maximum 35 psi / 2.41 bar / 2.46 Kg/cm2
OPERATION: Seawater nominal 850 psi / 56.5 bar / 57.66 Kg/cm2. Brackish Varies w/ppm
Page B - 2

HROSystems Horizon Seafari Specifications
DIMENSIONS & WEIGHT:
MODEL WEIGHT MODEL WEIGHT
HRO SFC 450-1 147 lbs / 67 kg HRO SFM 450-1 113 lbs / 51 kg
HRO SFC 900-2 159 lbs / 72 kg HRO SFM 900-2 125 lbs / 57 kg
HRO SFC 700-1 150 lbs / 68 kg HRO SFM 700-1 116 lbs / 53 kg
HRO SFC 1400-2 165 lbs / 75 kg HRO SFM 1400-2 131 lbs / 59 kg
HRO SFC 900-1 152 lbs / 69 kg HRO SFM 900-1 118 lbs / 54 kg
HRO SFC 1800-2 170 lbs 77 kg HRO SFM 1800-2 136 lbs / 62 kg
EXTERNAL INSTALLATION WATER CONNECTIONS: Pipe sizes to be supplied by the installer for
connection of the Sea Recovery supplied components
Feed Inlet: 3/4 MNPT (Male National Pipe Thread, American Standard).
Brine Discharge 1/2 FNPT (Male National Pipe Thread, American Standard).
Product 3/8 FNPT (Female National Pipe Thread, American Standard)
CAUTION: The Horizon Seafari Reverse Osmosis Desalination Systems are designed to be as electrically
efficient as possible. RPM supplied to and Pressure created by the High Pressure Pump govern the amount of
energy required by the High Pressure Pump’s Electric Motor. In order to maintain a sufficient flow of feed
water into the Reverse Osmosis Membrane Element, Horizon Seafari utilizes several different High Pressure
Pumps with different displacement characteristics. These different High Pressure Pumps, in turn, have
different power requirements.
As such, several different Electric Motors are used in the Horizon Seafari Systems. In order to maintain
maximum operational versatility HRO Seafari Systems utilize dual Cycle (Hz) Electric Motors capable of
operating from both 50 Hz and 60 Hz.
In a Boat application, use caution when switching from your auxiliary AC on board generator to shore power.
In many cases, due to insufficient wiring or long distances from the power source to the end of the dock, shore
power from a Marina may be insufficient to operate your Horizon Seafari System. Low voltage to the Horizon
Seafari System causes damage to the electric motor. Damage caused to the system due to low voltage is not
covered by Warranty.
Page B - 3

HROSystems Horizon Seafari Self Contained and Modular Style
ELECTRICAL MOTOR SPECIFICATIONS:
(H.P. = Horse Power; FLA = Full Load Amperes; LRA = Locked Rotor Amperes @ Start Up)
HIGH PRESSURE PUMP MOTOR:
450-1 & 900-2 SYSTEMS
50 Hz H.P. 60 Hz H.P.
PHASE VAC 50 Hz FLA LRA VAC 60 Hz FLA LRA
Single 110 2.2 21 121 115 2.2 18 94
Single 220 2.2 10.5 60.5 230 2.2 9 47
Three 220 3.0 9.2 78 230 3.0 8.2 70
Three 380 3.0 4.6 39 460 3.0 4.1 35
700-1 & 1400-2, and 900-1 & 1800-2 SYSTEMS
50 Hz H.P. 60 Hz H.P.
PHASE VAC 50 Hz FLA LRA VAC 60 Hz FLA LRA
Single 110 2.2 21 121 115 2.6 21.2 109
Single 220 2.2 10.5 60.5 230 2.6 10.6 54.5
Three 220 3.0 9.2 78 230 3.0 8.2 70
Three 380 3.0 4.6 39 460 3.0 4.1 35
BOOSTER PUMP MOTOR:
1/2 horse power
PHASE Hz VAC H.P. FLA LRA
Single 50/60 115 .5 7.4 34
Single 50/60 220/230 .5 3.7 17
Three 50/60 220/230 .5 2 12
Three 50/60 380/460 .5 1 6
RECOMMENDED CIRCUIT BREAKER:
Operating Voltage Hz & Phase Recommended Circuit Breaker Size
115 VAC Single Phase 35 Amperes
230 VAC Single Phase 15 Amperes
208/230 VAC Three Phase 10 Amperes
380 VAC Three Phase 7.5 Amperes
460 VAC Three Phase 7.5 Amperes
Additional specifications to this system are provided in the Supplemental Specification Sheet.
Further operation requirements are given in the Installation Section. Also, consult the
Temperature vs. Production Chart near the back of this manual.
Page B - 4

HROSystems Horizon Seafari Specifications
HIGH PRESSURE PUMP ELECTRICAL MOTOR SPECIFICATIONS WITH SOFT
MOTOR STARTER (SINGLE PHASE ONLY):
(H.P. = Horse Power; FLA = Full Load Amperes; LRA = Locked Rotor Amperes @ Start Up)
450-1 & 900-2 SYSTEMS
50 Hz H.P. 60 Hz H.P.
PHASE VAC 50 Hz FLA LRA VAC 60 Hz FLA LRA
Single 110 2.2 21 54.5 115 2.2 18 42.3
Single 220 2.2 10.5 27.2 230 2.2 9 21.2
700-1 & 1400-2, and 900-1 & 1800-2 SYSTEMS
50 Hz H.P. 60 Hz H.P.
PHASE VAC 50 Hz FLA LRA VAC 60 Hz FLA LRA
Single 110 2.2 21 54.5 115 2.6 21.2 49.1
Single 220 2.2 10.5 27.2 230 2.6 10.6 24.5
BOOSTER PUMP MOTOR:
1/2 horse power
PHASE Hz VAC H.P. FLA LRA
Single 50/60 115 .5 7.4 34
Single 50/60 220/230 .5 3.7 17
Three 50/60 220/230 .5 2 12
Three 50/60 380/460 .5 1 6
RECOMMENDED CIRCUIT BREAKER:
Operating Voltage Hz & Phase Recommended Circuit Breaker Size
115 VAC Single Phase 35 Amperes
230 VAC Single Phase 15 Amperes
Soft Motor starters are available for single phase only. The Soft Start lowers the starting
torque of the high-pressure pump motor only. This reduces the locked rotor amps required to
start the system. These reduced locked rotor amp values are shown in the above High
Pressure Pump Motor Specifications with Soft Motor Starter.
Page B - 5

HROSystems Horizon Seafari Self Contained and Modular Style
NOTES:
Page B - 6

SECTION “C”
INTRODUCTIONS

HROSystems Horizon Seafari “Section C” Introduction
C. INTRODUCTION
The Obstacle:
Osmosis is the naturally occurring
diffusion of two miscible (mixable)
solutions through a semipermeable
membrane in such a manner as to
equalize their concentration by
allowing a lessor concentration,
potable water, to naturally diffuse
through a semipermeable
membrane into a higher
concentration, sea or brackish
water.
Sea water or brackish water is a high
concentration solution. Potable
water is a low concentration
solution.
Therefore, sea water or brackish
water cannot naturally diffuse
through a semipermeable
membrane to provide potable, or
drinking water.
The HRO Solution:
A manmade process, Reverse
Osmosis, overcomes this natural
phenomenon. By forcing sea or
brackish water (under high pressure)
through a semipermeable
membrane, potable water can be
realized. Reverse Osmosis
Desalination Systems by
HROSystems make possible the once
impossible, potable water from
undrinkable water sources.
Low Pressure: Feed Water (Salt
Water or Brackish Water) enters the
system through an Inlet Valve and is
then filtered by a raw water Sea
Strainer. The pressure of the Feed
water is increased by the Booster
Pump and filtered several more times
through standard and optional
prefiltration units including Media
Filter, Plankton Filter, Prefilter and
Oil Water Separator.
High Pressure: The Stainless Steel
High Pressure Pump then increases
the filtered feed water to a high
pressure level and forces it into the
Reinforced Fiberglass Membrane
Vessel Assembly. The Back Pressure
Regulator controls and automatically
maintains the necessary high
pressure level in the membrane.
Concentrated brine enters the Brine
Water Flow Meter which allows
observation of the condition of the
High Pressure Pump. The Brine
Water is then discharged through the
Brine Discharge Connector and
diverted back to the feed source.
Product Water: The product
water flows out of the R.O.
Membrane and passes into a Salinity
Probe which adjusts automatically
for temperature changes and
registers,
electronically, the salt content of
the product water. Next, the
Product Flow Meter registers the
amount of potable water being
produced. The product water then
proceeds into the 3-Way Solenoid
Diversion Valve. Here, potable
water is diverted to the Charcoal
Filter where gasses or odors present
are absorbed and removed from the
product water. The final filtration
process occurs in the Ultraviolet
Sterilizer where 99.9% of all
microorganisms, including viruses
and bacteria, are destroyed.
Main Power
Enclo sure
"Horizon Seafari" Series450-1800 U.S. GPD
Reverse OsmosisDesalination System Illustrated with All Options
Inlet
Valve
U.V.
Sterilizer
Clean
&Rinse
Tank
Sea
Strain er
Media
Filt er Fresh
Water
Flush
Oil/Water
Separator
Rem ot e
Controller
Charcoal
Filter
Brine
scharge
Prefi lt er
Potable
Water
Booster
Pum p
R.O . M em bran es
Rinsing and Cleaning: The
3-way valves are provided for
System Rinsing and Cleaning. The
Automatic Fresh Water Flush
System maintains fresh water
within the System during shut
down periods.
Electronics: All electrical
connections terminate at the
Salinity Controller. Highly
advanced, the Salinity Controller
features computer controlled
reliable solid state electronics with
advanced proprietary logic features
found in no other desalination
system. Various Remote Control
units are available for remote
operation of the System.
Di
Low Pressure
Sw i t ch
Control
Manifold
High Pressure Pump
ntrollerCo
Page C - 1

HROSystems Horizon Seafari Self Contained and Modular Style
1. ANATOMY OF A REVERSE OSMOSIS
MEMBRANE ELEMENT:
Page C - 2
This manual suits for next models
11
Table of contents
Other Horizon Reverse Osmosis Water Filtration System manuals
Popular Water Filtration System manuals by other brands

Bluewater
Bluewater Pro Series owner's manual

Vanair
Vanair F200-15-1/4 Installation, operation and maintenance instructions

Puretec
Puretec Sparq S4 user guide

AlkaViva
AlkaViva Vesta H2 owner's manual

Waterco
Waterco AQUABIOME Installation instructions manual

SPX FLOW
SPX FLOW Seital Separation SE 40CX-Q2P2 instruction manual
