Hoshizaki KM-2400SRF3 User manual

PARTS LIST
HOSHIZAKI
STACKABLE CRESCENT CUBER
MODELS
KM-2400SRF3
KM-2400SRH3
NO.
JAN. 7, 2000ISSUED:
71162
AUG.12, 2003REVISED:

HA
2
KM-2400SRF3 J-0 SEPT., 1999
K-0 JAN., 2000
KM-2400SRH3 L-0 DEC., 2000
M-0 DEC., 2001
M-1 MARCH, 2002
M-2 MAY,2002
N-0 DEC., 2002
N-1 MARCH, 2003

HA
3
MATERIALABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PIFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARYCODES
Ex.1 K-0 (Note) - = Part deleted.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part (interchangeable).
skipped. So, "K" indicates "2000". o = New part for "x"
Ex.2 L- 0 in the same auxiliary code.
"L" is the next in alphabetical
order. So, "L" indicates "2001".
Ex.3 L- 1Each time a part is changed (non-interchangeably)
in a year, this number advances.

HA
4

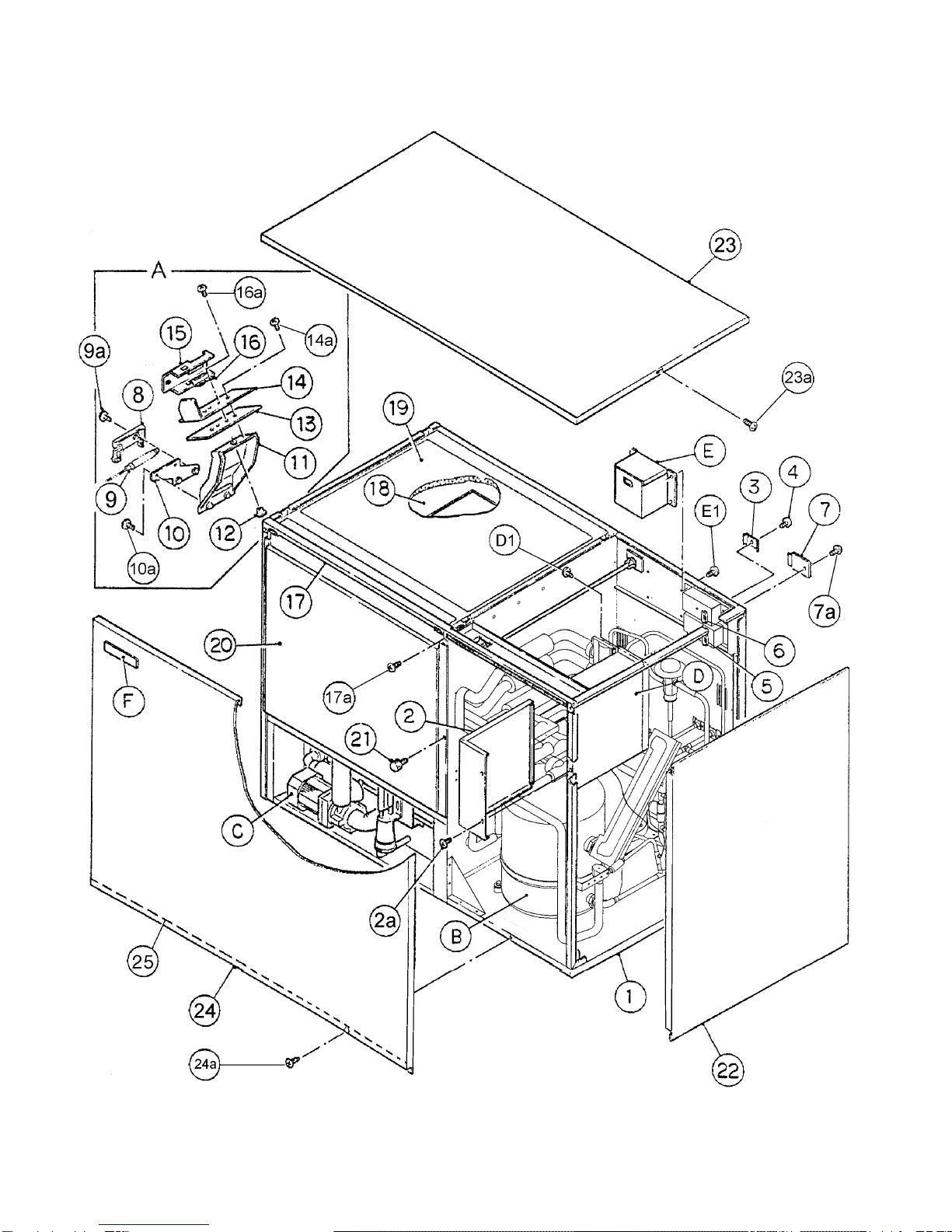

KM-2400SRF3, KM-2400SRH3 A. ICE CUBERASSEMBLY J-0, K-0, L-0, M-0, M-1,
M-2, N-0, N-1

HA
5
MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
KM-2400SRF3 KM-2400SRH3
NUMBER J-0 K00006M
K00355E
K00356G
K00555L
L-0
M-0
M-1 M-2
N-0
N-1
B REFRIGERATION
CIRCUIT
- 1A0484A01 1 x1
- 1A0484A02 o1 1 1 x1
- 1A0484A03 o1 1
C WATER CIRCUIT - 105122A05 1 1 1 1 1 1
D CONT. BOX ASSEMBLY HS-1105 2A1122A03 1 1 -
- 2A1122A04 1 1 1 -
- 2A2527A02 1
D1 T2 SCREW 4X8 7P31-0408 3 3 3 3 3 3
E TRANSFORMER BOX
ASSEMBLY
- 326680A01 1 1 1 1 1 1
E1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4 4 4 4 4 4
F LABEL LOCATION - 2A1704A01 1 1 1 1 1 -
- 2A2562A01 1
1 EVAP. CASE GS, SS 2A1102G11 1 1 1
GS, SS 2A2100G01 1 1 1
2 CONT. BOX COVER GS 3A0174-01 1 1 1 1 1 -
GS 3A2386-01 1
2a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2
3 SQUARE WASHER BRASS 433537-02 2 2 2 2 2 2
4 SCREW-GROUNDING BRASS 433304-02 2 2 2 2 2 2
5 BUSHING SR-30-1 420472-03 1 1 1 1 1 1
6 BUSHING SR-31-2 420472-08 1 1 1 1 1 1
7 JUNCTION BOX COVER GS 433410-01 2 2 2 2 2 2
7a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2
8 BULB HOLDER PE 328919-01 1 1 1 1 1 1
9 SPACER PE 443545-01 1 1 1 1 1 2
9a T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2 2

HA
6
MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
KM-2400SRF3 KM-2400SRH3
NUMBER J-0
K-0 L-0
M-0
M-1 M-2 N-0 N-1
10 BULB HOLDER (C) ABS 325845G01 1 1 1 1 1 1 1
10a TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2
11 BULB HOLDER (D) ABS 215644G01 1 1 1 1 1 1 1
12 BUSHING EP RUBBER
425307-01 1 1 1 1 1 1 1
13 SPACER ABS 439727-01 1 1 1 1 1 1 1
14 BULB HOLDER (E) GS 439725-01 1 1 1 1 1 1 1
14a TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2
15 BULB HOLDER (F) GS 328743-01 1 1 1 1 1 1 1
16 BULB HOLDER (G) GS 439726-01 1 1 1 1 1 1 1
16a TRUSS HEAD SCREW 4X6, SS 7C32-0406 2 2 2 2 2 2 2
17 FRONT PANEL-BRACKET SS 323903-01 1 1 1 1 1 1 1
17a T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3 3 3
18 SPACER ABS 324321-01 1 1 1 1 1 1 1
19 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1 1
20 FRONT INSULATION ABS, PE 326041G01 1 1 1 1 1 1 1
21 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1 1
22 SIDE PANEL (R) SS 215381G01 1 1 1 1 1 1 1
23 TOP PANEL SS 213669-02 1 1 1 1 1 1 1
23a TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3 3 3
24 FRONT PANEL (A) SS 215382-01 1 1 -
FRONT PANEL - 3A1838G01 1 1 1 1 1
24a TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2 2 2
25 GASKET L=1219 4A0808L02 1 1 1 1 1 1

HA
7

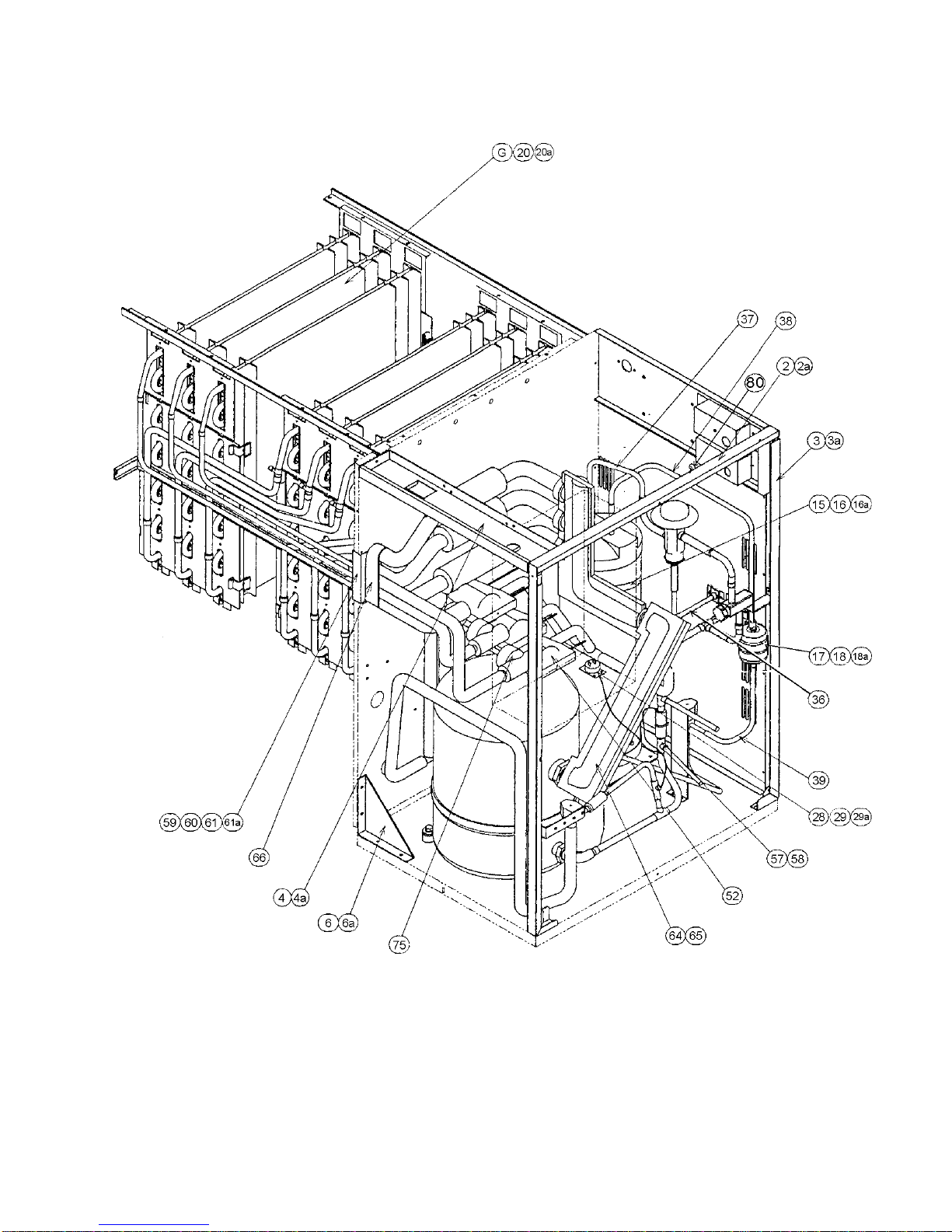

KM-2400SRF3, KM-2400SRH3 B. REFRIGERATION CIRCUIT (1/2) J-0, K-0, L-0
M-0, M-1, M-2
N-0, N-1

HA
8

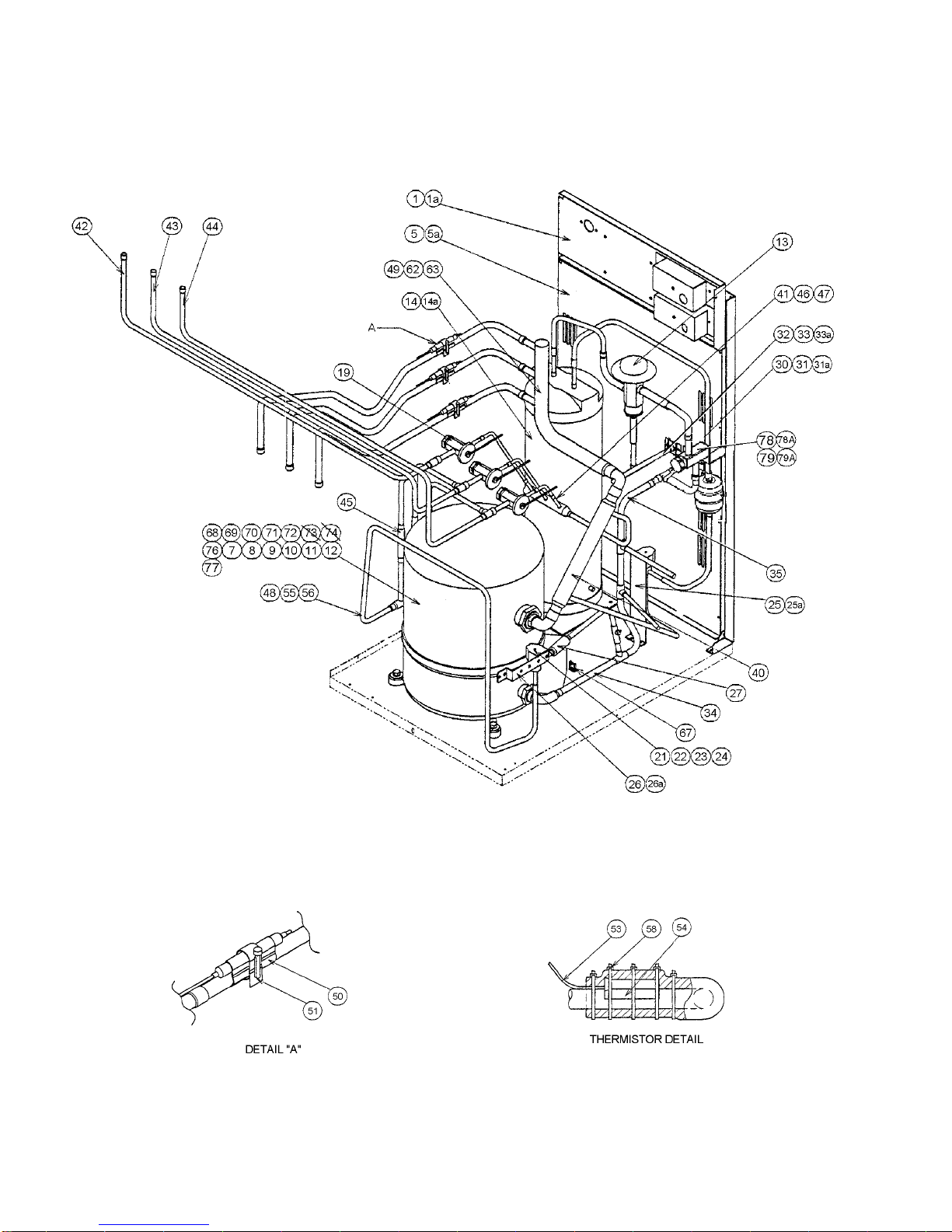

KM-2400SRF3, KM-2400SRH3 B. REFRIGERATION CIRCUIT (2/2) J-0, K-0, L-0
M-0, M-1, M-2
N-0, N-1

HA
9
MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0
K-0 L-0 M-0 M-1 M-2 N-0 N-1
G EVAPORATOR - 105288A02 1 1 1 1 1 1 1 1
1 REARFRAME GS 326687G03 1 1 1 1 1 1 1 1
1a T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4 4
2 SIDEFRAME (A) GS 215375G01 1 1 1 1 1 1 1 1
2a T2 SCREW 4X8 7P31-0408 3 3 3 3 3 3 3 3
3 SIDEFRAME (B) GS 215376G01 1 1 1 1 1 1 1 1
3a T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4 4
4 FRONT FRAME GS 325857-01 1 1 1 1 1 1 1 1
4a T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4 4
5 REARPANEL GS 2A1700-01 1 1 1 1 1 1 1 1
5a T2 SCREW 4X8 7P31-0408 8 8 8 8 8 8 8 8
6 BRACE GS 325858-01 1 1 1 1 1 1 1 1
6a T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4 4
7 COMPRESSOR MTZ56HL3VE 4A2043-01 1 1 1 1 1 1 1 1
8 BOLT 8X45 437889-01 4 4 4 4 4 4 4 4
9 GROMMET - 4A2043F01 4 4 4 4 4 4 4 4
10 SPACER - 4A2043F02 4 4 4 4 4 4 4 4
11 SUCTION FITTING - 4A2043F03 1 1 1 1 1 1 1 1
12 DISCHARGE FITTING - 4A2043F04 1 1 1 1 1 1 1 1
13 C.P. REGULATOR Y1038-LAC-5-210 4A2063-01 1 1 1 1 1 1 1 1
14 RECEIVER RR MN WP450 440366-01 1 1 1 1 1 1 1 1
14a HEXHEADBOLT W/WASHER 5X10 7B0130510 3 3 3 3 3 3 3 3
15 RECEIVER BRACKET (A) GS 327093-01 1 1 1 1 1 1 1 1
16 RECEIVER BRACKET (B) GS 440860-01 1 1 1 1 1 1 1 1
16a T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4 4
17 DRIER CW-053-S 4A1461-01 1 1 1 1 x1
C-05E84 4A2663-01 o1 1 1 1
18 DRIERBRACKET GS 445251-01 1 1 1 1 x1
NYLON TIE - 8911-0301 o1 1 1 1
18a T2 SCREW 4X8 7P31-0408 1 1 1 1 -

HA
10
MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0
K-0 L-0 M-0 M-1 M-2 N-0 N-1
19 EXP. VALVE ANE1-1/4SW75 4A2053-01 3 3 3 3 3 3 3 3
20 FRAME SEAL EPDM 323925-01 4 4 4 4 4 4 4 4
20a T2 SCREW 4X12, SS 7P32-0412 4 4 4 4 4 4 4 4
21 VALVE BODY 70 440352-01 2 2 2 2 2 2 2 2
22 COIL-VALVE ABS-25-1-HD-2 440353-01 2 2 2 2 2 2 2 2
23 BOLT 4X6 440353F01 2 2 2 2 2 2 2 2
24 TRUSS HEAD SCREW 4X8 7C31-0408 4 4 4 4 4 4 4 4
25 LINE VALVE BRACKET GS 438213-01 1 1 1 1 1 1 1 1
25a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2 2
26 VALVE BRACKET GS 4A2059-01 1 1 1 1 1 1 1 1
26a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2 2
27 STRAINER - 441569-02 1 1 1 1 1 1 1 1
28 PRESSURE SWITCH ACB-1UB09 433441-07 1 1 1 1 1 1 1 1
29 PRESSURE SWITCH BRACKET GS 434938-01 1 1 1 1 1 1 1 1
29a T2 SCREW 4X8 7P31-0408 1 1 1 1 1 1 1 1
30 COUPLING COPPER 434136G01 1 x1
COPPER 434136G03 o1 1 1 1 1 1 1
31 TUBE HOLDER-L GS 438245-01 1 1 1 1 1 1 1 1
31a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2 2
32 COUPLING COPPER 433751G01 1 1 1 1 1 1 1 1
33 TUBE HOLDER-S GS 438246-01 1 1 1 1 1 1 1 1
33a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2 2
34 COPPER TUBE (A)-HIGH SIDE COPPER 3A1558G01 1 1 1 1 1 1 1 1
35 COPPER TUBE (B)-HIGH SIDE COPPER 3A1557G01 1 1 1 1 1 1 1 1
36 COPPER TUBE (C)-HIGH SIDE COPPER 3A1555G01 1 1 1 1 1 1 1 1
37 COPPER TUBE (D)-HIGH SIDE COPPER 3A1556-01 1 1 1 1 1 1 1 1
38 COPPER TUBE (E)-HIGH SIDE COPPER 3A0220-01 1 1 1 1 1 1 1 1
39 COPPER TUBE (F)-HIGH SIDE COPPER 3A1543-01 1 1 1 1 -
COPPER 3A2338-01 1 1 1 1
40 HEAT EXCHANGER COPPER 2A1710G01 1 1 1 1 1 1 1 1
41 COPPER TUBE (J)-HIGH SIDE COPPER 3A1552G01 1 1 1 1 1 1 1 1

HA
11
MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
KM-2400SRF3 KM-2400SRH3
NUMBER J-0 K00006M
K00405G
K00406H
K00555L
L-0
M-0
M-1 M-2
N-0
N-1
42 COPPER TUBE (A)-LOW
SIDE
COPPER 3A1540G0
1
1 1 1 1 1 1
43 COPPER TUBE (B)-LOW
SIDE
COPPER 3A1541G0
1
1 1 1 1 1 1
44 COPPER TUBE (C)-LOW
SIDE
COPPER 3A1542G01 1 1 1 1 1 1
45 CHECK VALVE SKC31220 4A2054-01 3 3 3 3 3 3
46 HEADER COVER (C1) PE FOAM 326815-01 1 1 1 1 1 1
47 HEADER COVER (C2) PE FOAM 326815-02 1 1 1 1 1 1
48 COPPER TUBE-HOT GAS COPPER 2A1709G01 1 1 1 1 1 1
49 COPPER TUBE-LOW SIDE COPPER 2A1712G01 1 1 1 1 1 1
50 HOLDER/EXP. VALVE --- 1/2 SS 3A0112-01 3 3 3 3 3 3
51 CLAMP - 443461-01 3 3 3 3 3 3
52 EXP. VALVE COVER PE FOAM 4A1168-01 3 3 3 3 3 3
53 THERMISTOR - 429006-03 1 1 1 1 1 1
54 THERMISTOR HOLDER - 435563-01 1 1 1 1 1 1
55 HEADER COVER (B1) PE FOAM 326698-01 1 1 - -
PE FOAM 3A1764-01 1 1 1 1
56 HEADER COVER (B2) PE FOAM 326698-02 1 1 - -
PE FOAM 3A1764-02 1 1 1 1
57 INSULATION TUBE L=40 7762-1020 1 1 1 1 1 1
58 CABLE TIE CV-200 7920-0010 1 1 1 1 1 1
59 RUBBER INSULATION (A) EPDM
(BLACK)
326700-01 1 1 1 1 1 1
60 RUBBER INSULATION (B) EPDM
(BLACK)
326701-01 1 1 1 1 1 1
61 INSULATION HOLDER SS 325863-01 1 1 1 1 1 1
61a T2 SCREW 4X8, SS 7P32-0408 2 2 2 2 2 2
62 HEADER COVER (A1) PE FOAM 327839-01 1 1 1 1 1 1
63 HEADER COVER (A2) PE FOAM 327839-02 1 1 1 1 1 1

HA
12
MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0
K-0 L-0 M-0 M-1 M-2 N-0 N-1
64 HEAT EXCHANGER COVER (A1) PE FOAM 3A1578-01 1 1 1 1 1 1 1 1
65 HEAT EXCHANGER COVER (A2) PE FOAM 3A1578-02 1 1 1 1 1 1 1 1
66 INSULATION PE FOAM 436671-02 1 1 1 1 1 1 1 1
67 WIRE SADDLE - 4A0338-02 3 3 3 3 3 3 3 3
68 INSULATION-COMPRESSOR
TOP
VNN 2C1 4A2078-01 1 1 1 1 1 1 1 1
69 INSULATION-COMPRESSOR
RIGHT
VNN 2C1 4A2079-01 1 1 1 1 1 1 1 1
70 INSULATION-COMPRESSOR
LEFT
VNN 2C1 4A2080-01 1 1 1 1 1 1 1 1
71 TEFLON RING-DISCHARGE - 4A2043F05 1 3 3 1 3 3 3 3
72 TEFLON RING-SUCTION - 4A2043F06 1 1 1 1 1 1 1 1
73 NUT-SUCTION A104174P02 4A2088-01 1 1 1 1 1 1 1 1
74 NUT-DISCHARGE A104174P01 4A2089-01 1 1 1 1 1 1 1 1
75 CONNECTION TEE COVER PE FOAM 4A1379-01 3 3 3 3 3 3 3 3
76 CRANKCASE HEATER 9HT5-35 4A2090-01 1 1 1 1 1 1 1 1

HA
13

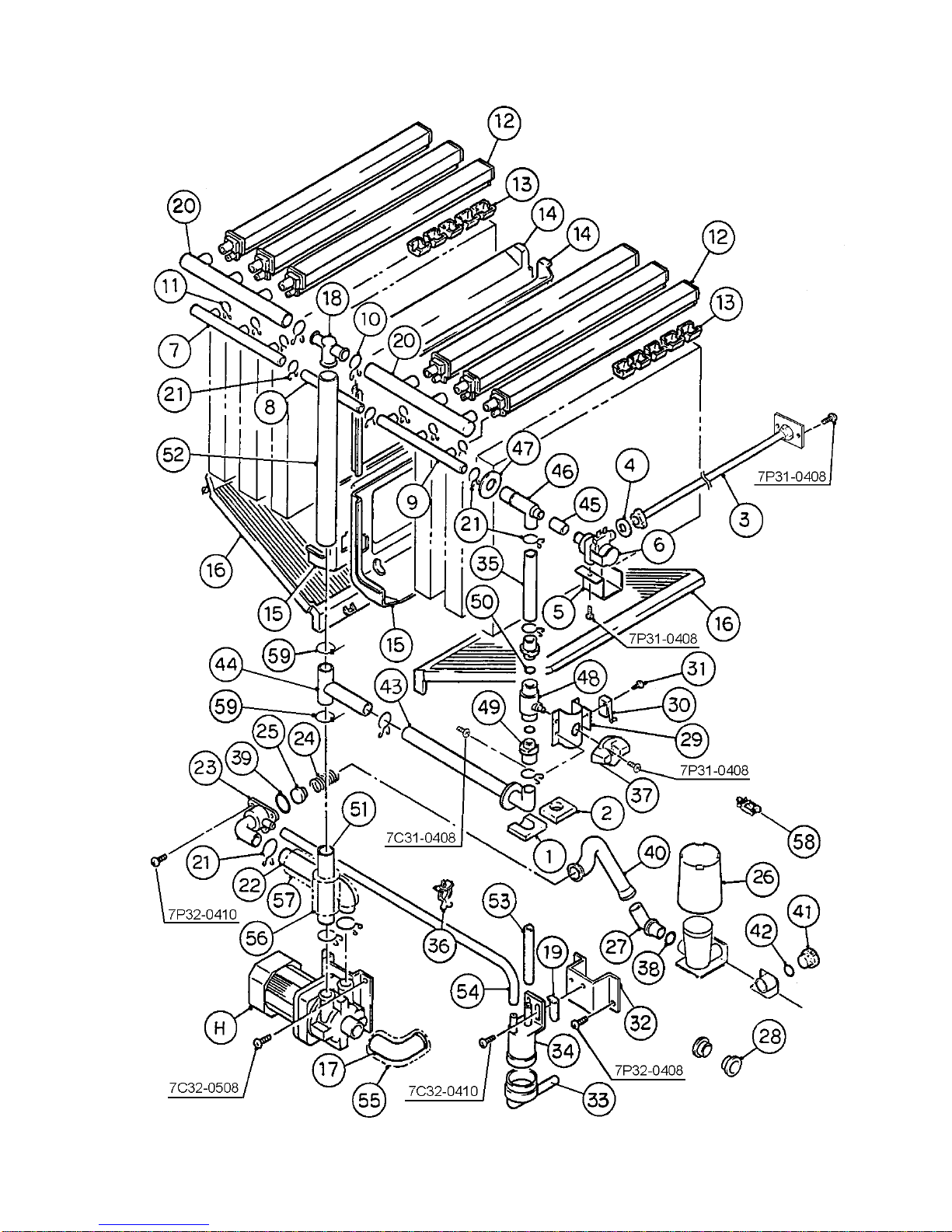

KM-2400SRF3, KM-2400SRH3 C. WATER CIRCUIT J-0, K-0, L-0, M-0, M-1, M-2, N-0, N-1

HA
14
MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:C. WATER CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0
K-0 L-0 M-0 M-1 M-2 N-0 N-1
H PUMPMOTORASSEMBLY (S-0730) 215692A01 1 1 1 1 1 1 1 1
1 CORNERINSULATION(A) PE FOAM 439376-01 1 1 1 1 1 1 1 1
2 CORNERINSULATION(B) PE FOAM 439392-01 1 1 1 1 1 1 1 1
3 WATER SUPPLY PIPE COPPER 4A0768G03 1 1 1 1 1 1 1 1
4 RUBBER GASKET SI.R 413854-03 1 1 1 1 1 1 1 1
5 WATERVALVEBRACKET GS 321443-01 1 1 1 1 1 1 1 1
6 WATERVALVE J248-106 3U0136-01 1 1 1 1 1 1 1 1
7 DISTRIBUTOR HOSE (A) EPDM 325738-01 1 1 1 1 1 1 1 1
8 JOINTPIPE ABS 439297-01 1 1 1 1 1 1 1 1
9 DISTRIBUTOR HOSE (B) EPDM 325738-02 1 1 1 1 1 1 1 1
10 HOSECLAMP SS, 32MM 427443-09 4 7 7 4 7 7 7 7
11 HOSECLAMP SS, 13.5MM 427443-07 6 6 6 6 6 6 6 6
12 SPRAY TUBE ABS 437049G01 6 6 6 6 6 6 6 6
13 SPRAY GUIDE (A) PE 208586-01 18 18 18 18 18 18 18 18
14 SEPARATOR (A) ABS 215046-01 2 2 2 2 2 2 2 2
15 SEPARATOR (B) SS 2A0100-01 2 2 2 2 2 2 2 2
16 CUBE GUIDE ABS 214243-01 2 2 2 2 2 2 2 2
17 HOSE(A) EPDM 435091-01 1 1 1 1 1 1 1 1
18 DISTRIBUTOR(A) ABS 439266-01 1 1 1 1 1 1 1 1
19 FLOAT SWITCH STOP SS 4A0137-01 1 1 1 1 1 1 1 1
20 DISTRIBUTOR HOSE (C) EPDM 325739-01 2 2 2 2 2 2 2 2
21 HOSECLAMP SS, 25MM 427443-03 9 9 9 9 9 9 9 9
22 HOSE(B) EPDM 325867-01 1 1 1 1 1 1 1 1
23 VALVE HOUSING --- DRAIN ABS 323613-01 1 1 1 1 1 1 1 1
24 SPRING SS 322110-01 1 1 1 1 1 1 1 1
25 VALVE SHEET EPDM 433705-01 1 1 1 1 1 1 1 1
26 OVERFLOWCAP PE 325866-01 1 1 1 1 1 1 1 1
27 JOINT --- OVERFLOW ABS 323923-02 1 1 1 1 1 1 1 1
28 BUSHING - 420470-06 2 2 2 2 2 2 2 2

HA
15
MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:C. WATER CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0 K-0 L-0 M-0 M-1 M-2 N-0 N-1
29 VALVE HOLDER GS 3A1178-01 1 1 1 1 1 1 1 1
30 MICRO SWITCH V3L-111-08 4A0365-01 1 1 1 x1
- 4A2546-01 o1 1 1 1 1
31 TAPPING SCREW 3X14 431415-02 2 2 2 2 2 2 2 2
32 FLOAT SW. BRACKET SS 3A0449-01 1 1 1 1 1 1 1 1
33 CONNECTOR ---FLOAT SWITCH EPDM 3A1325-03 1 1 x1
- 426799-04 o1 1 1 1 1 1
34 FLOAT SWITCH 163795 4A0886-01 1 1 1 1 1 1 1 1
35 JOINT HOSE EPDM 439309-01 1 1 1 1 1 1 1 1
36 CLAMP NO.4253 427902-05 1 1 1 1 1 1 1 1
37 HANDLE JH1352 215383-01 1 1 1 1 1 1 1 1
38 ‘‘O’’ RING 1AP18 7611-P018 1 1 1 1 1 1 1 1
39 ‘‘O’’ RING 1AG35 7611-G035 1 1 1 1 1 1 1 1
40 DRAIN HOSE EPDM 325869-01 1 1 1 1 1 1 1 1
41 DRAIN AC 309246-01 1 1 1 1 1 1 1 1
42 ‘‘O’’ RING 1AP15 7611-P015 1 1 1 1 1 1 1 1
43 BYPASS HOSE EPDM 439237-02 1 1 1 1 1 1 1 1
44 DISTRIBUTOR (C) ABS 439238-01 1 1 1 1 1 1 1 1
45 JOINT HOSE EPDM 439296-01 1 1 1 1 1 1 1 1
46 DISTRIBUTOR (B) ABS 439239-01 1 1 1 1 1 1 1 1
47 FLANGE EPDM 439267-02 1 1 1 1 1 1 1 1
48 BALL VALVE PVC (S-0761) 439293-01 1 1 1 1 1 1 1 1
49 MALE ADAPTOR ABS (S-0761) 325826-01 2 2 2 2 2 2 2 2
50 ‘‘O’’ RING 1AP18 (S-0761) 7611-P018 2 2 2 2 2 2 2 2
51 VINYL HOSE L=230 7716-2732 1 1 1 1 1 1 1 1
52 VINYL HOSE L=550 7716-2732 1 1 1 1 1 1 1 1
53 SILICONE HOSE L=190 7730I3812 1 1 1 1 1 1 1 1
54 SILICONE HOSE L=430 7730I3896 1 1 1 1 1 1 1 1
55 INSULATION HOSE L=120 7762-3555 1 1 1 1 1 1 1 1

HA
16
MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:C. WATER CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0
K-0 L-0 M-0 M-1 M-2 N-0 N-1
56 INSULATION HOSE L=130 7762-3555 1 1 1 1 1 1 1 1
57 INSULATION HOSE L=200 7762-3555 1 1 1 1 1 1 1 1
58 WIRE SADDLE VWS4238-C 4A0338-02 9 9 9 9 9 9 9 9
59 CABLE TIE CV-200 7920-0010 3 3 3 3 3 3 3 3

HA
17

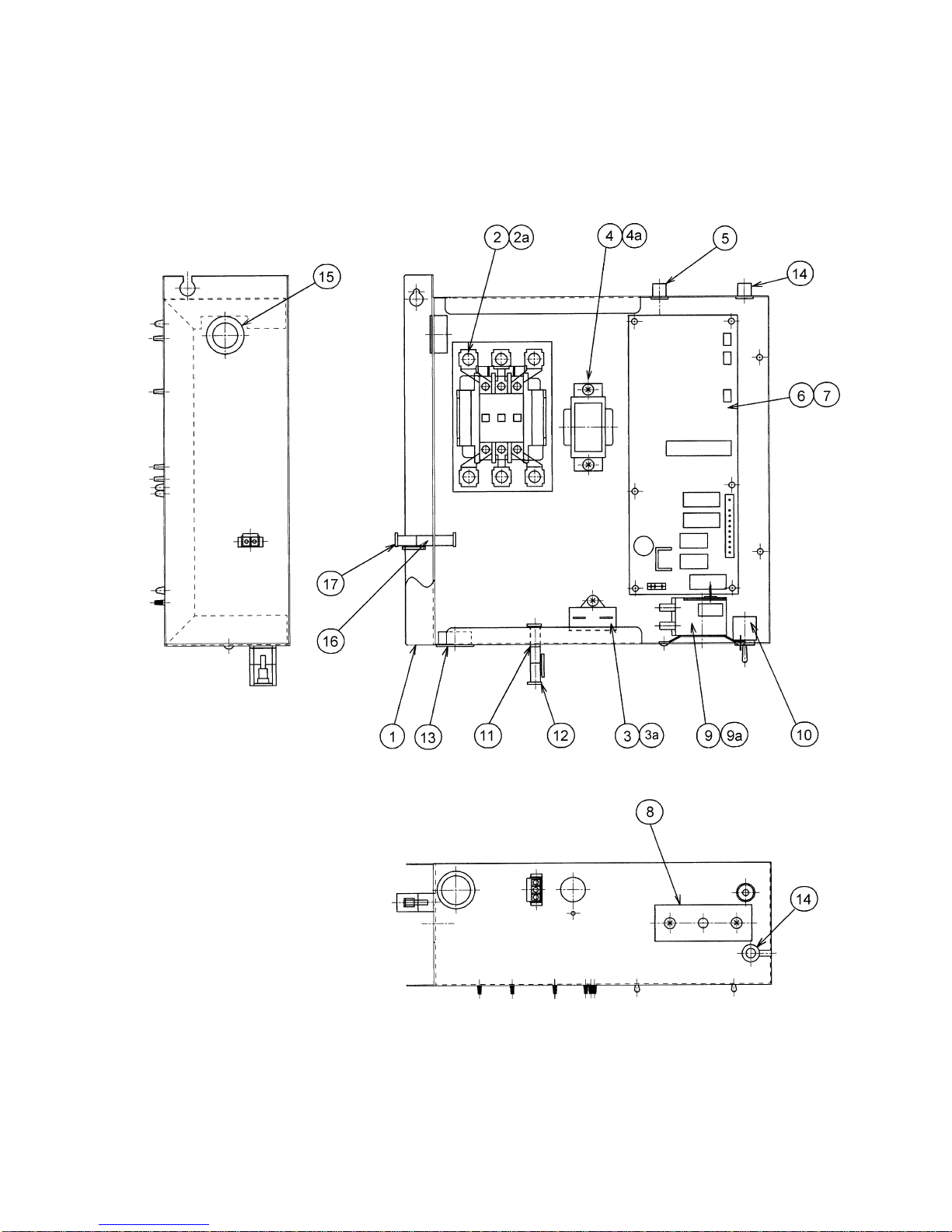

KM-2400SRF3, KM-2400SRH3 D. CONTROLBOXASSEMBLY J-0, K-0, L-0, M-0,
M-1,

HA
18
KM-2400SRH3 D. CONTROL BOXASSEMBLY M-2, N-0, N-1

HA
19
MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:D. CONTROL BOX ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
KM-2400SRF3 KM-2400SRH3
NUMBER J-0 K00006M
K00355E
K00356G
K00555L
L-0
M-0
M-1
M-2 N-0
N-1
1 CONTROL BOX GS 2A1082G02 1 1 1 1 -
GS 2A2524G01 1 1
2 MAGNETIC CONTACTOR A77-309040A-
226
4A0794-01 1 1 1 1 1 1
2a TRUSS HEAD SCREW 4X12 7C31-0412 2 2 2 2 2 2
3 CAPACITOR 250V AC,
10MFD
443192-01 1 1 -
250V AC,
10MFD
439705-01 1 1 1 1
3a T2 SCREW 4X10 7P31-0410 2 2 2 2 2 2
4 TRANSFORMER 26D285H 3A0172-01 1 1 1 1 1 1
4a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2
5 BUSHING OCB-875 428394-04 1 1 1 1 1 1
6 CONTROLLER BOARD HOSHIZAKI-
001A
2A1410-01 1 1 1 1 1 1
7 BOARD SUPPORT CBLS37-M
4A0336-03
4 4 4 4 4 4
8 CONTROL LABEL PES FILM 4A1758-01 1 1 1 1 1 1
9 THERMOSTAT A30-3842-00
4A0824-02 1 1 1 1 x1
- 4A2879-02 o1 1
9a TRUSS HEAD SCREW 4X6 4C31-0406 2 2 2 2 2 2
10 TOGGLE SWITCH 8966K84 443119-01 1 1 1 1 1 1
11 3P PLUG HOUSING 3191-03P 412832-06 1 1 1 1 1 1
12 3P RECEPTACLE
HOUSING
3191-03PR1
412831-06 1 1 1 1 1 1
13 BUSHING SB-1093-15
420470-03 1 1 1 1 1 1
14 BUSHING OCB-500 428394-02 2 2 2 2 2 2
15 BUSHING SB-1093-13
420470-12 1 1 1 1 1 1
16 2P PLUG HOUSING 3191-02P 412832-07 1 1 1 1 1 1

HA
20
MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:D. CONTROL BOX ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
KM-2400SRF3 KM-2400SRH3
NUMBER J-0 K00006M
K00355E
K00356G
K00555L
L-0
M-0
M-1
M-2 N-0
N-1
17 2P RECEPTACLE
HOUSING
3191-02PR1 412831-07 1 1 1 1 1 1
18 FUSE HOLDER HTB-921 4A0892-01 1 1
19 FUSE AGC-10 4A0893-07 2 2
