Hoshizaki DCM-500BWF User manual
NO.
ISSUED:
71143
MODELS
HOSHIZAKI
CUBELET ICE DISPENSER
PARTS LIST
DCM-500BAF
DCM-500BWF
JAN. 12, 1999
REVISED: JAN. 27, 2003
2
DCM-500BAF H-0 June, 1998
J-0 Dec., 1998
J-1 July, 1999
K-0 Dec., 1999
K-1 July, 2000
K-2 Oct., 2000
L-0 Dec., 2000
L-1 Nov., 2001
M-0 Dec., 2001
N-0 Dec., 2002
DCM-500B F H-0 June, 1998
J-0 April, 1999
J-1 Aug., 1999
K-0 Dec., 1999
K-1 May, 2000
K-2 Nov., 2000
L-0 June, 2001
M-0 Jan., 2002
M-1 April, 2002
N-0 Dec., 2002
3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitritrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
G.S = Galvanized steel
S.S = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
(Note) - = Part deleted.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part
skipped. So, "K" indicates "2000". (interchangeable).
Ex.2 L-0 o = New part for "x"
"L" is the next in alphabetical in the same auxiliary code.
order. So, "L" indicates "2001".
Ex.3 L-1
Each time a part is changed non-interchangeably
in a year, this number advances.
4
HA

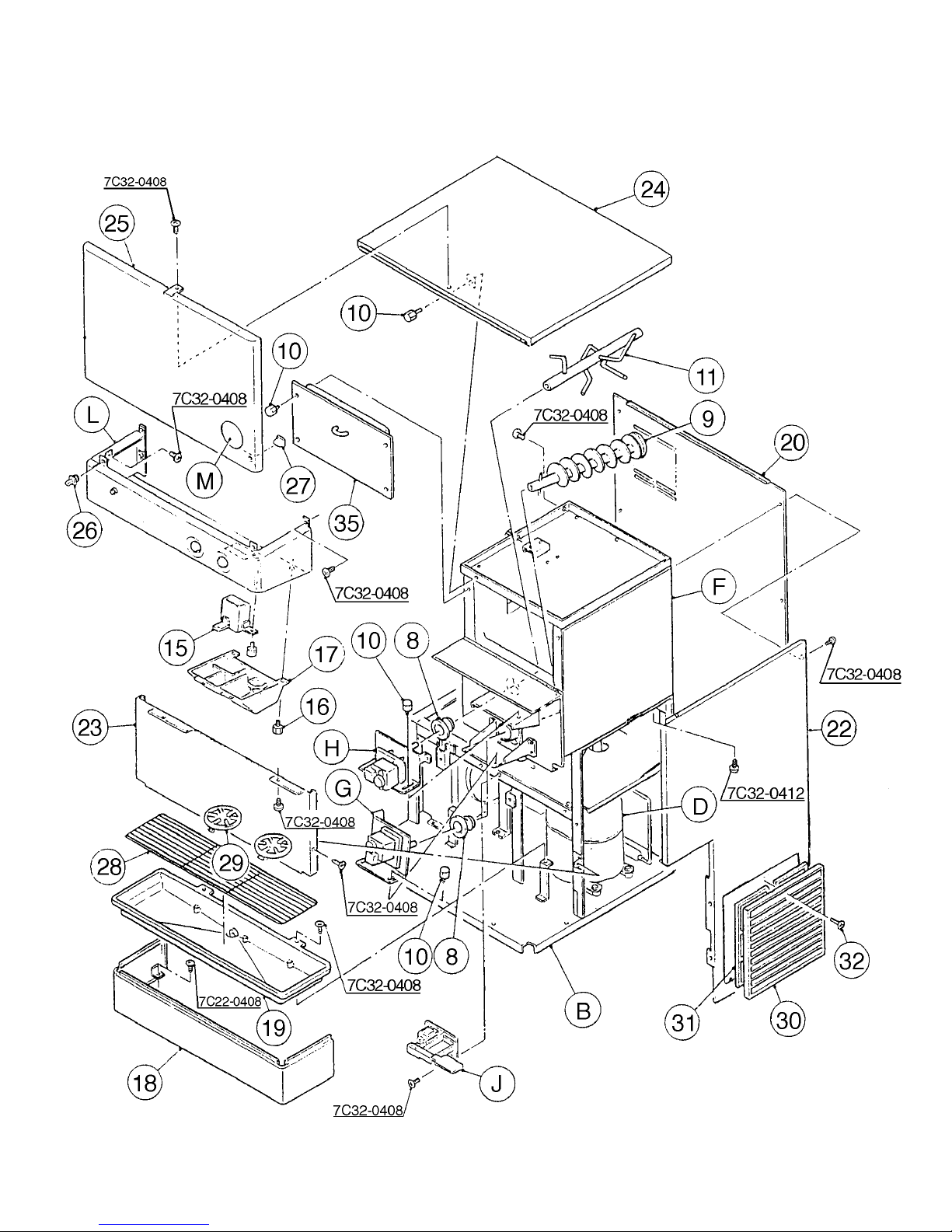

DCM-500BAF A. ICE DISPENSER ASSEMBLY (1/2) H-0, J-0, J-1, K-0, K-1,
K-2, L-0, L-1, M-0, N-0
5
HA
DCM-500BAF A. ICE DISPENSER ASSEMBLY (2/2) H-0, J-0
6
HA

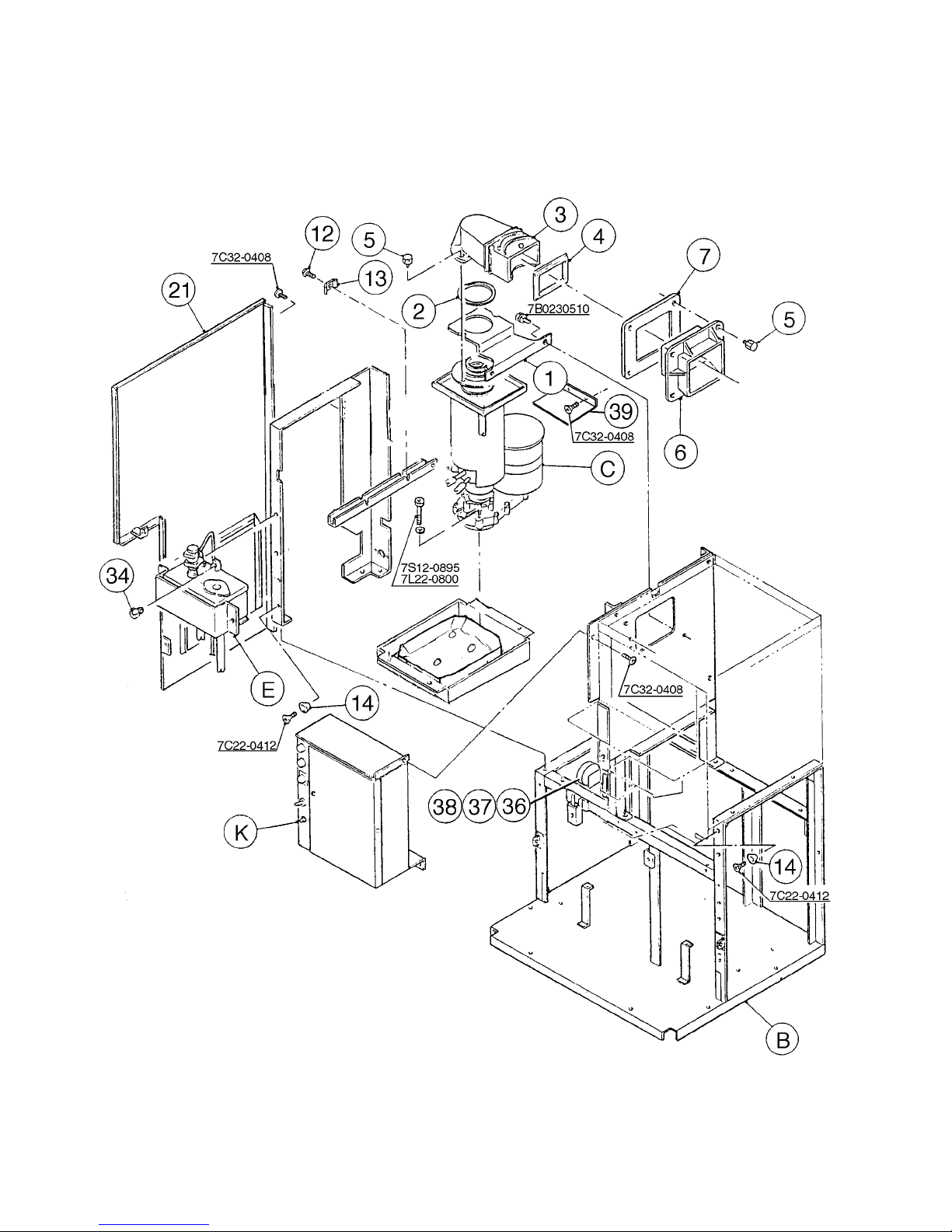

DCM-500BAF A. ICE DISPENSER ASSEMBLY (2/2) J-1, K-0, K-1, K-2,
L-0, L-1, M-0, N-0
7
MODEL: DCM-500BAF TITLE:A. ICE DISPENSER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
H-0 J-0 J-1 K-0
K-1
K-2 L-0 L-1
M-0
N-0
B FRAME ASSEMBLY - 2A0388A05 1 1 -
- 2A0388A01 1 1 1 1 1 1
C EVAPORATOR ASSEMBLY - 3A0623A02 1 1 1 1 -
- 3A0623A03 1 1 1 1
SOCKET HEAD HEX BOLT SS, 8 X 90 7S12-0890 3 3 3 3 3 x3
SS, 8 X 95 7S12-0895 o3 3 3
SPLIT LOCK WASHER SS, 8 7L22-0800 3 3 3 3 3 3 3 3
D REFRIGERATION CIRCUIT - 227494A01 1 1 1 1 -
- 227494A02 1 1 1 1
E WATER CIRCUIT - 2A0395A02 1 1 1 1 1 1 1 1
F BIN ASSEMBLY - 2A0413A01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 3 3 3 3 3 3 3 3
TRUSS HEAD SCREW 4 X 12 7C31-0412 2 2 2 2 2 2 2 2
G GEAR MOTOR ASSEMBLY - 4A0622A01 1 1 1 1 1 1 1 1
H GEAR MOTOR ASSEMBLY - 4A0620A01 1 1 1 1 1 1 1 1
J SHUTTER ASSEMBLY - 2A0410A01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 2 2 2 2 2
K CONTROL BOX ASSEMBLY - 227498A03 1 1 -
- 227498A05 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 3 3 3 3 3 3 3 3
L MIDDLE FRONT PANEL
ASSEMBLY
- 2A0409A03 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 2 2 2 2 2
M LABEL LOCATION - 2A0407A05 1 -
- 2A0407A07 1 -
- 2A0407A09 1 1 1 1 1 1
1 BRACKET - EVAPORATOR - 3A0360-01 1 1 1 1 1 1 1 1
HEX HEAD BOLT
W/WASHER (LF)
SS, 5 X 10 7B0230510 2 2 2 2 2 2 2 2
8
MODEL: DCM-500BAF TITLE:A. ICE DISPENSER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
H-0 J-0 J-1 K-0 K-1 K-2 L-0
L-1
M-0
N-0
2 PACKING - 427151-02 1 1 1 1 1 1 1 1
3 SPOUT - 103329G01 1 1 1 1 1 1 1 1
4 PACKING (A) - SPOUT - 427195-01 1 1 1 1 1 1 1 1
5 THUMBSCREW - 415949G03 7 7 7 7 7 7 7 7
6 SPOUT (B) - 208807-01 1 1 1 1 1 1 1 1
7 PACKING(B) - SPOUT - 427196-01 1 1 1 1 1 1 1 1
8 GASKET - 429758-01 2 2 2 2 2 2 2 2
9 AUGER - 339192G01 1 1 1 1 1 1 1 1
10 THUMBSCREW - 415949G05 11 11 11 11 11 11 11 11
11 AGITATOR - 3A0895G01 1 1 1 1 1 1 1 1
12 SCREW - GROUNDING - 433304-02 1 1 1 1 1 1 1 1
13 WASHER - 433537-02 1 1 1 1 1 1 1 1
14 COLLAR - 4H0171-01 2 2 2 2 2 2 2 2
FLAT HEAD SCREW SS, 4 X 12 7C22-0412 2 2 2 2 2 2 2 2
15 ICE CHUTE - 439788G01 1 1 1 1 x1
- 4A2204-01 o1 1 1 1
16 THUMBSCREW - 415949G08 4 4 4 4 4 4 4 4
17 SPOUT COVER - 215773-01 1 1 1 1 1 1 1 1
18 PANEL (LO) - 2A0699G01 1 1 1 1 1 1 1 1
FT SCREW SS, 4 X 8 7F32-0408 6 6 6 6 6 6 6 6
19 TRAY - DRIP - 105219G01 1 1 1 1 1 1 1 x1
- 2A2591G01 o1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 4 4 4 4 4 4 4 4
20 REAR PANEL - 2A0405-01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 4 4 4 4 4 4 4 4
21 SIDE PANEL (L) - 2A0696-01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 6 6 6 6 6 6 6 6
22 SIDE PANEL (R) - 2A0695-01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 6 6 6 6 6 6 6 6
9
MODEL: DCM-500BAF TITLE:A. ICE DISPENSER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
H-0 J-0 J-1 K-0 K-1 K-2 L-0 L-1
M-0
N-0
23 APRON PANEL - 2A0720-01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 2 2 4 4 4
FLAT HEAD SCREW SS, 4 X 12 7C22-0412 2 2 2 2 2 -
24 TOP PANEL - 3A0640G01 1 1 1 x1
- 3A1728G01 o1 1 1 1 1
25 FRONT PANEL - 3A0638G01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 1 1 1 1 1 1 1 1
26 STRIKE - 4A0515-01 2 2 2 2 2 2 2 2
27 LATCH - 4A0508-03 2 2 2 2 2 2 2 2
28 GRILLE - 2A0827G01 1 1 1 1 1 1 1 1
29 GUIDE - CUP - 326702-01 2 2 2 2 2 2 2 2
30 LOUVER (B) - 103121-03 2 2 2 2 2 2 2 2
31 AIR FILTER (B) - 208283G03 1 1 1 1 1 1 1 1
32 TAPPING SCREW - BLACK - 433954-01 2 2 2 2 2 2 2 2
33 - - - - - - - - - - -
34 BUSHING - 420472-03 1 1 1 1 1 1 1 1
35 COVER – BIN - 2A0880A01 1 1 1 x1
- 2A0880A02 o1 1 1 1 1
36 TIMER - 4A0889-01 1 1 -
37 CONNECTOR - 4A0889-02 1 1 -
38 SCREW #6 - 32 X 3/8 4A0898-01 2 2 -
39 MOTOR COVER - 3A1058-01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 2 2 2 2 2
10
HA
DCM-500BWF A. ICE DISPENSER ASSEMBLY (1/2) H-0, J-0, J-1, K-0, K-1,
K-2, L-0, M-0, M-1, N-0
11
HA

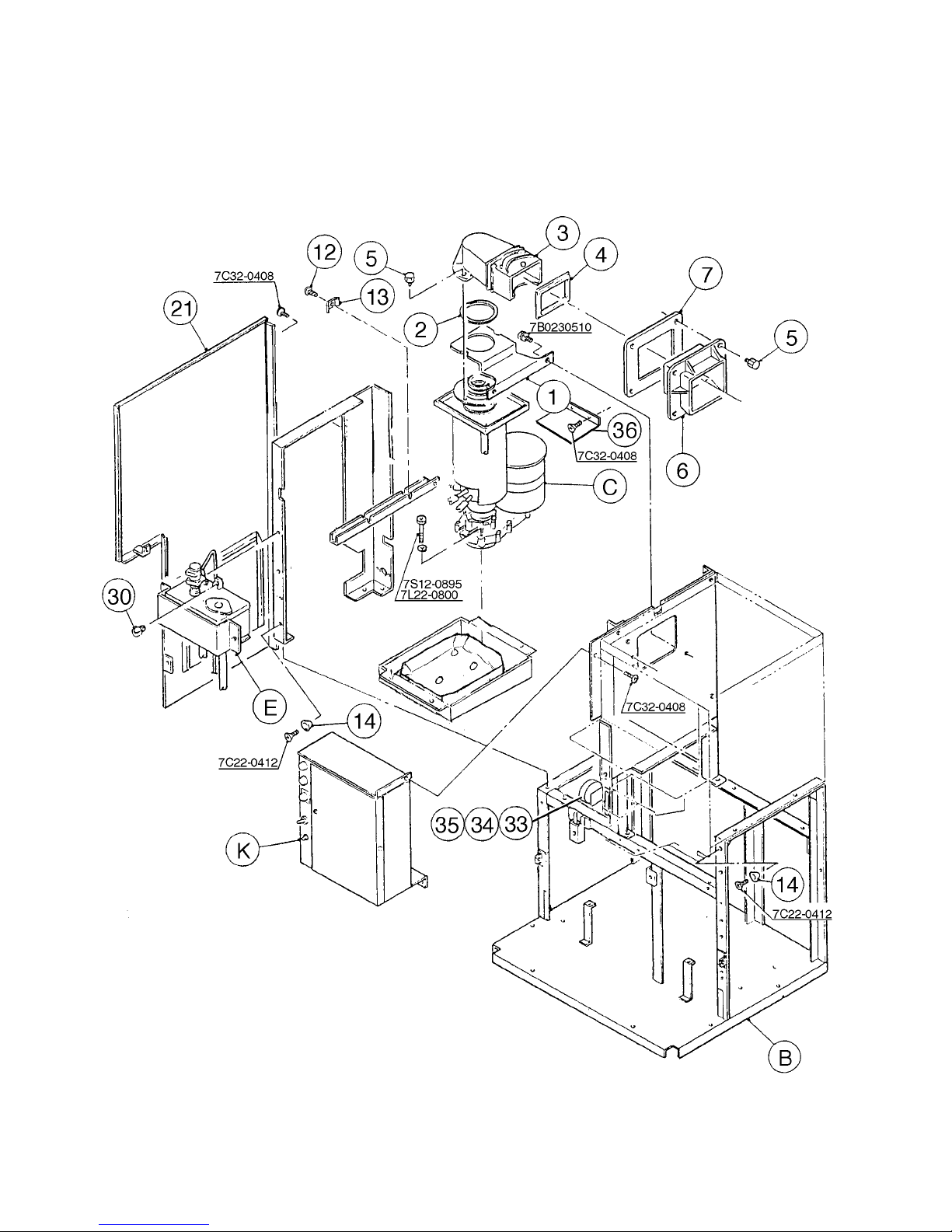

DCM-500BWF A. ICE DISPENSER ASSEMBLY (2/2) H-0, J-0
12
HA
DCM-500BWF A. ICE DISPENSER ASSEMBLY (2/2) J-1, K-0, K-1, K-2, L-0, M-0, M-1, N-0
13
MODEL: DCM-500BWF TITLE:A. ICE DISPENSER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
H-0 J-0 J-1 K-0
K-1
K-1 K-2 L-0
M-0
M-1
N-0
B FRAME ASSEMBLY - 2A0388A05 1 1 -
- 2A0388A01 1 1 1 1 1 -
- 2A0388A06 1
C EVAPORATOR ASSEMBLY - 3A0623A02 1 1 1 1 -
- 3A0623A03 1 1 1 1
SOCKET HEAD HEX BOLT SS, 8 X 90 7S12-0890 3 3 3 3 3 x3
SS, 8 X 95 7S12-0895 o3 3 3
SPLIT LOCK WASHER SS, 8 7L22-0800 3 3 3 3 3 3 3 3
D REFRIGERATION CIRCUIT - 227495A01 1 1 1 1 -
- 227495A02 1 1 1 -
- 2A2399A01 1
E WATER CIRCUIT - 2A0395A02 1 1 1 1 1 1 1 1
F BIN ASSEMBLY - 2A0413A01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 3 3 3 3 3 3 3 3
TRUSS HEAD SCREW 4 X 12 7C31-0412 2 2 2 2 2 2 2 2
G GEAR MOTOR ASSEMBLY - 4A0622A01 1 1 1 1 1 1 1 1
H GEAR MOTOR ASSEMBLY - 4A0620A01 1 1 1 1 1 1 1 1
J SHUTTER ASSEMBLY - 2A0410A01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 2 2 2 2 2
K CONTROL BOX ASSEMBLY - 227498A04 1 1 -
- 227498A06 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 3 3 3 3 3 3 3 3
L MIDDLE FRONT PANEL
ASSEMBLY
- 2A0409A03 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 2 2 2 2 2
M LABEL LOCATION - 2A0407A06 1 -
- 2A0407A08 1 -
- 2A0407A10 1 1 1 1 1 -
- 2A0407A11 1
14
MODEL: DCM-500BWF TITLE:A. ICE DISPENSER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
H-0 J-0 J-1 K-0
K-1
K-2 L-0 M-0
M-1
N-0
1 BRACKET - EVAPORATOR - 3A0360-01 1 1 1 1 1 1 1 1
HEX HEAD BOLT
W/WASHER (LF)
SS, 5 X 10 7B0230510 2 2 2 2 2 2 2 2
2 PACKING - 427151-02 1 1 1 1 1 1 1 1
3 SPOUT - 103329G01 1 1 1 1 1 1 1 1
4 PACKING (A) - SPOUT - 427195-01 1 1 1 1 1 1 1 1
5 THUMBSCREW - 415949G03 7 7 7 7 7 7 7 7
6 SPOUT (B) - 208807-01 1 1 1 1 1 1 1 1
7 PACKING(B) - SPOUT - 427196-01 1 1 1 1 1 1 1 1
8 GASKET - 429758-01 2 2 2 2 2 2 2 2
9 AUGER - 339192G01 1 1 1 1 1 1 1 1
10 THUMBSCREW - 415949G05 11 11 11 11 11 11 11 11
11 AGITATOR - 3A0895G01 1 1 1 1 1 1 1 1
12 SCREW - GROUNDING - 433304-02 1 1 1 1 1 1 1 1
13 WASHER - 433537-02 1 1 1 1 1 1 1 1
14 COLLAR - 4H0171-01 2 2 2 2 2 2 2 2
FLAT HEAD SCREW SS, 4 X 12 7C22-0412 2 2 2 2 2 2 2 2
15 ICE CHUTE - 439788G01 1 1 1 x1
- 4A2204-01 o1 1 1 1 1
16 THUMBSCREW - 415949G08 4 4 4 4 4 4 4 4
17 SPOUT COVER - 215773-01 1 1 1 1 1 1 1 1
18 PANEL (LO) - 2A0699G01 1 1 1 1 1 1 1 1
FT SCREW SS, 4 X 8 7F32-0408 6 6 6 6 6 6 6 6
19 TRAY - DRIP - 105219G01 1 1 1 1 1 1 x1
- 2A2591G01 o1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 4 4 4 4 4 4 4 4
20 REAR PANEL - 2A0404-01 1 1 1 1 1 1 1 -
- 2A2471-01 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 4 4 4 4 4 4 4 4
15
MODEL: DCM-500BWF TITLE:A. ICE DISPENSER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
H-0 J-0 J-1 K-0 K-1 K-2 L-0
M-0
M-1
N-0
21 SIDE PANEL (L) - 2A0698-01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 6 6 6 6 6 6 6 6
22 SIDE PANEL (R) - 2A0697-01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 6 6 6 6 6 6 6 6
23 APRON PANEL - 2A0720-01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 4 4 4 4 4
FLAT HEAD SCREW SS, 4 X 12 7C22-0412 2 2 2 -
24 TOP PANEL - 3A0640G01 1 1 1 x1
- 3A1728G01 o1 1 1 1 1
25 FRONT PANEL - 3A0638G01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 1 1 1 1 1 1 1 1
26 STRIKE - 4A0515-01 2 2 2 2 2 2 2 2
27 LATCH - 4A0508-03 2 2 2 2 2 2 2 2
28 GRILLE - 2A0827G01 1 1 1 1 1 1 1 1
29 GUIDE - CUP - 326702-01 2 2 2 2 2 2 2 2
30 BUSHING - 420472-03 1 1 1 1 1 1 1 1
31 - - - - - - - - - - -
32 COVER – BIN - 2A0880A01 1 1 1 x1
- 2A0880A02 o1 1 1 1 1
33 TIMER - 4A0889-01 1 1 -
34 CONNECTOR - 4A0889-02 1 1 -
35 SCREW #6 - 32 X 3/8 4A0898-01 2 2 -
36 MOTOR COVER - 3A1058-01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4 X 8 7C32-0408 2 2 2 2 2 2 2 2
16
HA
DCM-500BAF, BWF B. FRAME ASSEMBLY H-0, J-0
17
HA
DCM-500BAF, BWF B. FRAME ASSEMBLY J-1, K-0, K-1, K-2, L-0, L-1, M-0, M-1, N-0
18
MODEL: DCM-500BAF TITLE:B. FRAME ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
H-0 J-0 J-1 K-0
K-1
K-2
L-0
L-1
M-0
N-0
1 BASE - 3A0614G01 1 1 1 1 1 1
2 FRONT FRAME - 2A0665G01 1 1 1 1 1 1
FT SCREW SS, 4 X 8 7C22-0408 3 3 3 3 3 3
3 REAR FRAME - 2A0666-01 1 1 1 1 1 1
FT SCREW SS, 4 X 8 7C22-0408 3 3 3 3 3 3
4 SEPARATOR - 3A0615-01 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 2 2 2 2 2 2
5 SIDE FRAME (R) - 3A0355G01 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 4 4 4 4 4 4
6 DRAIN PAN - 2A0667G01 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 4 4 4 4 4 4
7 SIDE FRAME (UP) - 3A0616G01 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 4 4 4 4 4 4
8 CENTER PANEL - 3A0617G01 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 2 2 2 2 2 2
9 BRACKET - 4A1598-01 1 1 -
TRUSS HEAD SCREW 4 X 8 7C31-0408 2 2 -
19
MODEL: DCM-500BWF TITLE:B. FRAME ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
H-0 J-0 J-1 K-0
K-1
K-2
L-0 M-0
M-1 N-0
1 BASE - 3A0614G01 1 1 1 1 1 1 1 1
2 FRONT FRAME - 2A0665G01 1 1 1 1 1 1 1 1
FT SCREW SS, 4 X 8 7C22-0408 3 3 3 3 3 3 1 1
3 REAR FRAME - 2A0666-01 1 1 1 1 1 1 -
- 2A2472-01 1 1
FT SCREW SS, 4 X 8 7C22-0408 3 3 3 3 3 3 3 3
4 SEPARATOR - 3A0615-01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 2 2 2 2 2 2 2 2
5 SIDE FRAME (R) - 3A0355G01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 4 4 4 4 4 4 4 4
6 DRAIN PAN - 2A0667G01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 4 4 4 4 4 4 4 4
7 SIDE FRAME (UP) - 3A0616G01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 4 4 4 4 4 4 4 4
8 CENTER PANEL - 3A0617G01 1 1 1 1 1 1 1 1
TRUSS HEAD SCREW 4 X 8 7C31-0408 2 2 2 2 2 2 2 2
9 BRACKET - 4A1598-01 1 1 -
TRUSS HEAD SCREW 4 X 8 7C31-0408 2 2 -
20
HA
DCM-500BAF, BWF C. EVAPORATOR ASSEMBLY H-0, J-0, J-1, K-0, K-1, K-2, L-0
This manual suits for next models
2
Table of contents
Other Hoshizaki Ice Maker manuals
Hoshizaki
Hoshizaki F-1002MRJZ User manual
Hoshizaki
Hoshizaki KMS-750MLH User manual
Hoshizaki
Hoshizaki HS-5530 User manual
Hoshizaki
Hoshizaki KM-800MAB User manual
Hoshizaki
Hoshizaki KMD-860MWJ User manual
Hoshizaki
Hoshizaki KM-1300SAF-E User manual
Hoshizaki
Hoshizaki C-100BAF-AD User manual
Hoshizaki
Hoshizaki KM-800MRE-FM User manual
Hoshizaki
Hoshizaki KMH-2100SWJ3 User manual
Hoshizaki
Hoshizaki KM-2500SRH3 User manual
Hoshizaki
Hoshizaki IM-240DNE User manual
Hoshizaki
Hoshizaki KMD-201AB User manual
Hoshizaki
Hoshizaki KMD-201AWB User manual
Hoshizaki
Hoshizaki DCM-60KE User manual
Hoshizaki
Hoshizaki IM-30M User manual
Hoshizaki
Hoshizaki IM-45CNE User manual
Hoshizaki
Hoshizaki IM-21CNE User manual
Hoshizaki
Hoshizaki IM-501DSU Guide
Hoshizaki
Hoshizaki DCM-751BAH-OS Service manual
Hoshizaki
Hoshizaki KM-1600MRB3 User manual
Popular Ice Maker manuals by other brands
DEVANTI
DEVANTI IM-ZB-12B-RD user manual
Whirlpool
Whirlpool ECKMF-281 installation instructions
Ice-O-Matic
Ice-O-Matic ICE0605 Series Specification sheet
U-Line
U-Line ADA SERIES User guide & service manual
Manitowoc
Manitowoc QM30 Series Installation and use manual
Scotsman
Scotsman Self Contained Cuber CU1526 user manual
