HOSSEVEN HRK-7 User manual

0
DN08.05.20Rev 00 www.hosseven.com.tr
HRK15
s
USER MANUAL
HRK-7 / HRK-11 / HRK-18
HRG-7/ HRG-12

1
DN08.05.20Rev 00 www.hosseven.com.tr
INFA-RED HEATING DEVICES and
USER MANUAL
MODELS:
HRK-7 / HRK-11 / HRK-18 / HRG-7 / HRG-12
1839

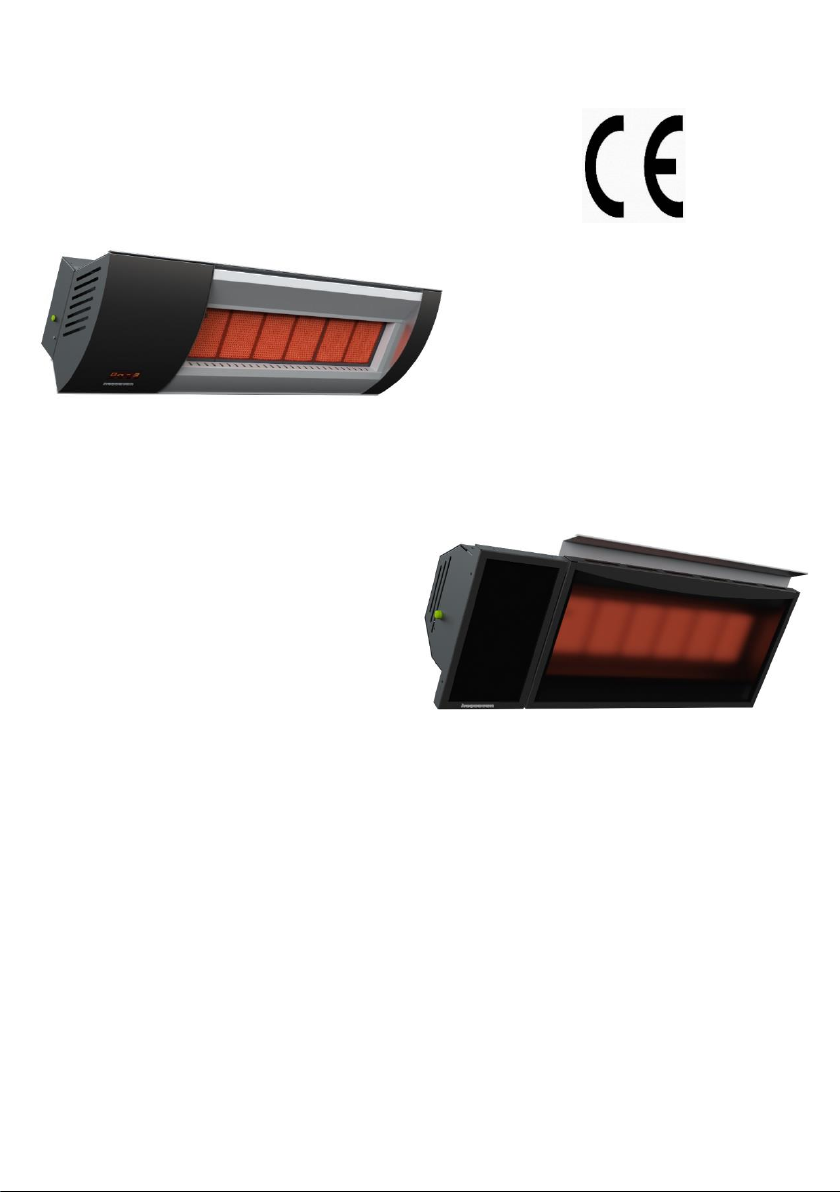

HRK Model
HRG Model

2
DN08.05.20Rev 00 www.hosseven.com.tr
Thank you for choosing our company; Our products are a
great heating solution with high quality manufacturing and
modern design, developed with the highest technology aiming to
live the feeling of heat that a device gives you completely safely.
Hoşseven Isı & Yalıtım San. Tic. A.Ş.
CONTENTS:
1.IMPORTANT INFORMATION and WARNINGS .………….………………………………..3
2.GENERAL INFORMATION ABOUT THE PRODUCT ……………………………….……...6
2.1.Product Introduction …..…………………………………..…………………….….….6
2.2.Product Technical Information …………………..………………………..….…...7
3.INFORMATION REQUIRED FOR INSTALLATION .………………….……..……….…..…9
3.1.Mounting Distances ..…………………………………………………………………...10
4.INSTALLATION INSTRUCTIONS …..………..………..............................................12
4.1.Device Installation Instructions ……………………………………………..……..13
4.2.Gas Line Installation ………………………………………………………………..……14

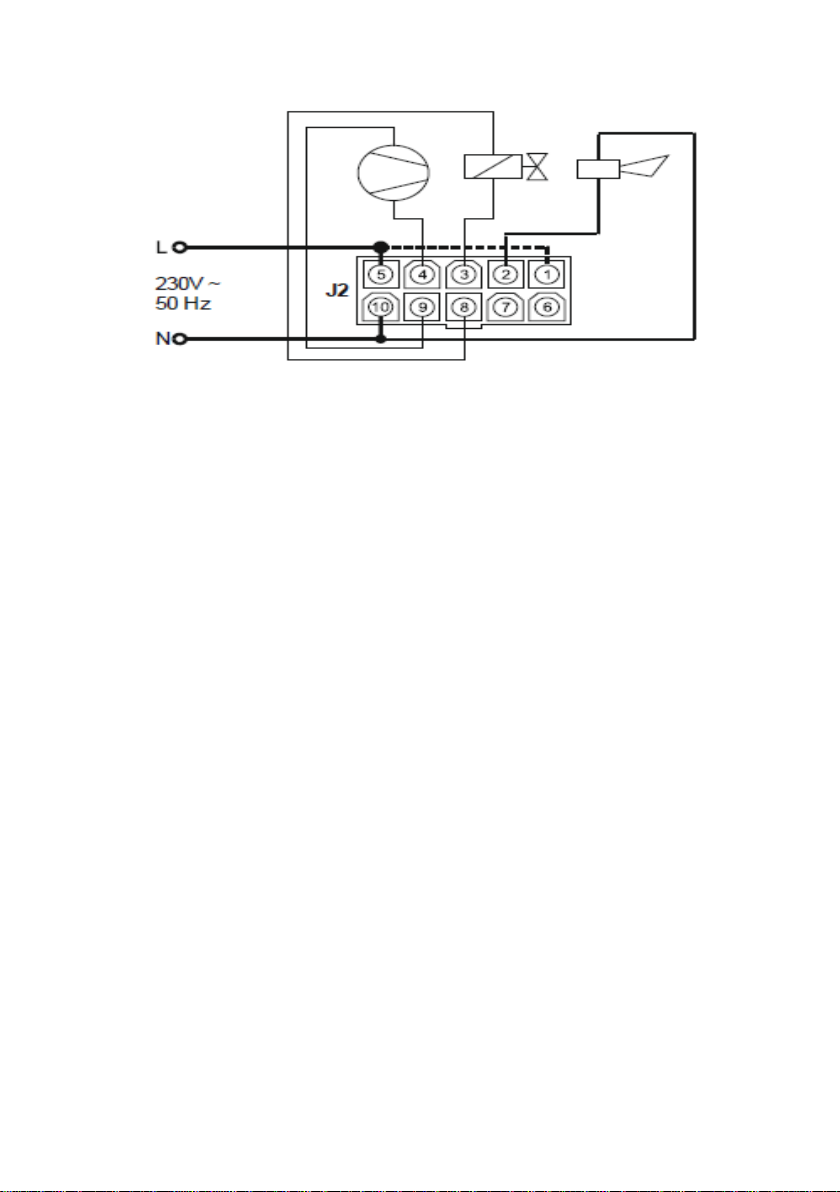

4.3.Electrical Connection System .……………………………………………………….15
4.4.Gas Leak Control ….……………………………………………………………………….16
4.5.Heat Reflector Installation Instruction …………………………………………..17
5.OPERATING INSTRUCTIONS OF THE DEVICE ...………………………….............…17
5.1.Operation of the device ………………………………………………………………..19
5.2.Device Shutdown ..………………………………………………………………………..20
6.MAINTENANCE and SERVICE ……………………..…………………………………..…...…21
6.1.Regular Maintenance ……………..…………………………………………………….22
7.OPTIMUM INSTALLATION DISTANCES ……….…………………………..……………….22

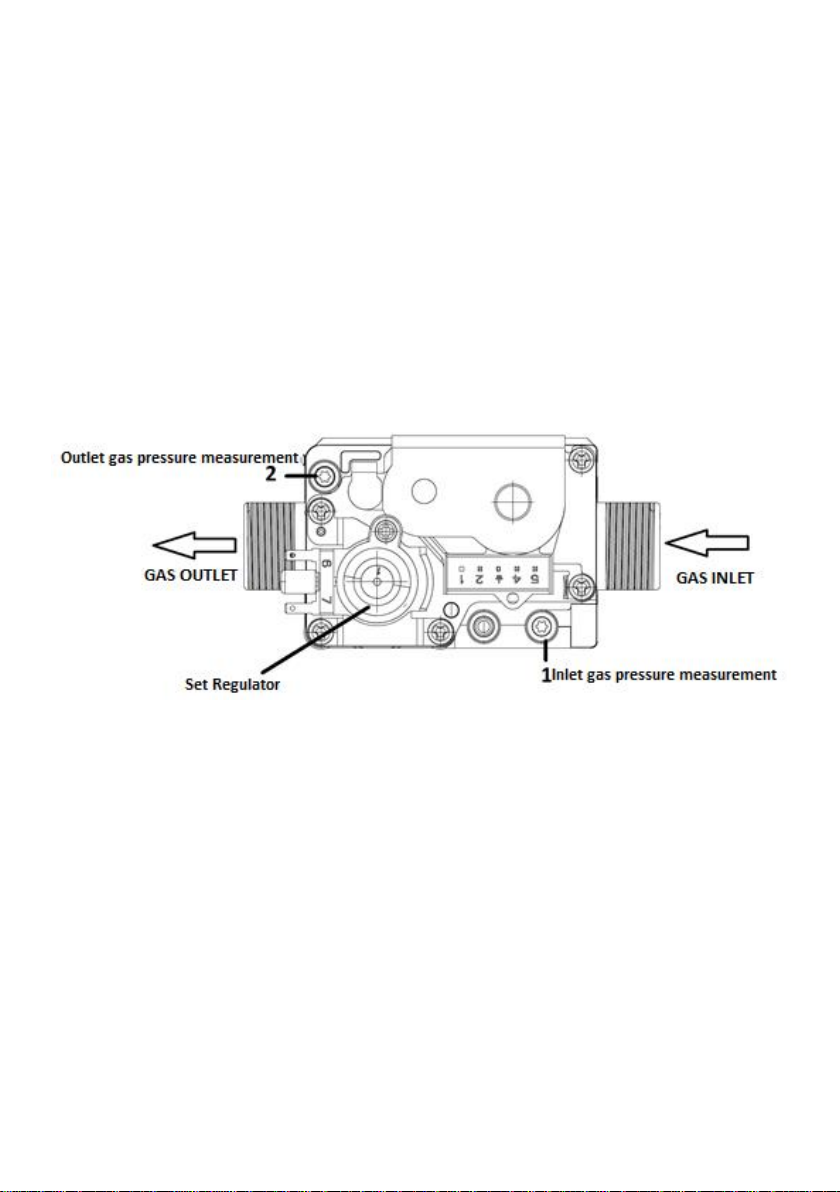

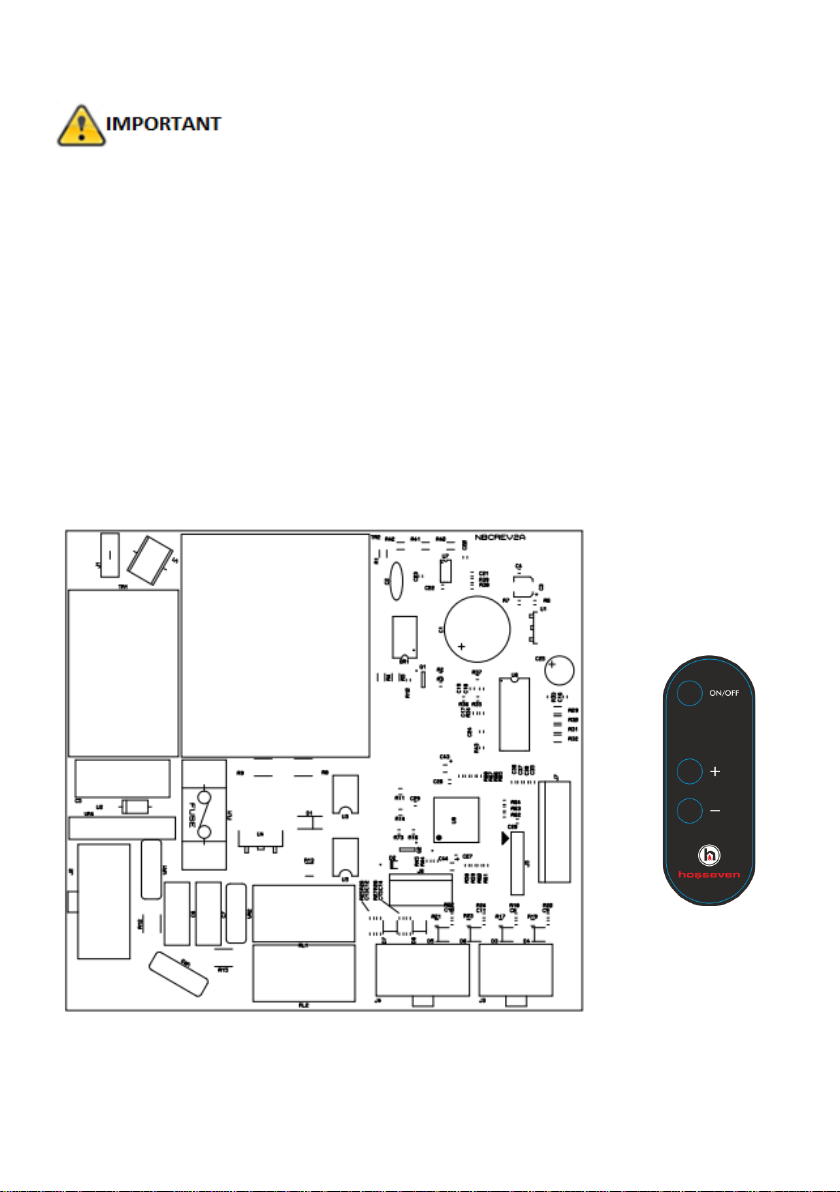

8.SIEMENS VALVE AND CONTROL CARD .……………..……………………………………24
9. TROUBLESHOOTING …..………………………………….………………………………………24
10. WARRANTY……………...………………………………….………………………………………27

3
DN08.05.20Rev 00 www.hosseven.com.tr
This manual is to provide information on how to install, operate and maintain a
ceramic radiant heater. Please read the safety-related information described in
this manual carefully.
Safety information is indicated by the following symbols.
•READ THIS MANUAL CAREFULLY before assembling and operating your
device. Then keep it for review when you find it necessary.
•Improper installation, operation, or maintenance can lead to injury,
death, or damage to your property.
•This device must be installed according to mandatory standards and rules
in the country of use. Before installation, gas distribution conditions and pressures
in the region where they are located should be adjusted by checking the
compatibility of the device with the operating conditions.
•The electrical connection grounding of the device must be done.
•This device is produced for outdoor use, well-ventilated spaces or spaces
not used for domestic purposes.
•Devices installed outdoors must be protected against rain.

4
DN08.05.20Rev 00 www.hosseven.com.tr
1. IMPORTANT INFORMATION and WARNINGS
•THIS DEVICE CANNOT BE INSTALLED AND USED IN RESIDENCES AND INTERIORS.
•ATTENTION TO KEEP CHILDREN AWAY FROM THE HEATING ZONE.
•NO MATERIALS AVAILABLE NEAR THE DEVICE.
•FABRIC AND IRRITABLE ITEMS SHOULD NOT BE HANGED BEFORE OR NEAR THE
APPLIANCE.
•THE PERFUME CAN BE COMPRESSED WHEN THE DEVICE IS OPERATING.
•ANY CONSERVATION, PROTECTIVE AND SERVICE PREVENTIVE SHOULD NOT BE
INSTALLED INTO THE ENVIRONMENT. (In this case, it should be asked to the authorized
person.) THE DEVICE SHOULD NOT BE OBTAINED FROM THE SERVICE PURPOSE.
•INSTALLATION AND REPAIRING MUST BE DONE BY THE AUTHORIZED PERSON,
THE DEVICE SHOULD BE CONTROLED BY THE AUTHORIZED PERSON.
Failure to comply with the specified warnings may result in injury to people and damage
to the place where the device is mounted.
•The rules stated in the manual should not be exceeded during assembly,
operation and maintenance.
•This device has been produced for outdoor use or in well-ventilated areas. The
construction of the exterior spaces to be mounted is shown schematically in the annex.
•Do not perform maintenance work without turning off the device, disconnecting
the electrical connection and reaching the ambient temperature.
•Do not expose the device to water and moisture. THE DEVICE MUST BE
PROTECTED FROM RAIN.
•If the device has been exposed to rain and moisture, do not use it without
checking authorized personnel.
•The installer must install according to the gas connection rules.
•Materials under or near the device can be damaged by radiant heat. Wall, floor,
furniture, plants etc. affected by extreme heat. objects must be at least 1100 mm from the
top and side edges of the device.

5
DN08.05.20Rev 00 www.hosseven.com.tr
•If there is a material that will be damaged by heat, pay attention to the distance
of the device to this substance. In such cases, ask the person (s) who installed the heat
(separator), which also provides the heat direction, from the installer. Isıkes device is
charged externally.
•The entire gas system, hose connection, regulator, pipes and burner device
should be checked for any leaks or damage by the authorized person before using it.
•Leak tests should be done with soap bubbles, never with a flame.
•The device must not be used without all leak checks carried out by an authorized
person.
•The hose connection should be checked before each use. Before operating the
device, the hose must be checked and replaced if it is worn or damaged.
•The replaced hose must be approved and suitable for gas.
•The gas connection hose must be connected to the area where the connection
area will not be damaged and cause an accident.
•Radiant heater cannot be used by mounting on caravans and / or boats.
•Maintenance and repair should be done by an authorized person ONLY.
•Improper assembly, adjustment, and modification other than the rules can cause
injury to people, damage to the building, and death.
•Do not attempt to make illegal changes regarding the device.
•Never operate the device in an explosive atmosphere, in stock areas of
flammable vapors.
•When you feel the smell of gas, close the gas valve immediately.
•Do not paint around the device.
•Do not throw any object towards the device.
•In case of any damage, stop using, turn off the electricity and gas connection and
protect the place where the damage is.
•Control panel, burner, air circulation transition areas should be kept clean. If it
should be cleaned frequently, it should be cleaned.
•Gas valve should be kept closed when the device is not in use.
•Check the device if the following situation has occurred.
•1- If the temperature does not increase in the device
•2- If the burner sounds noise during operation (not the sound coming during the
ignition and burning)

6
DN08.05.20Rev 00 www.hosseven.com.tr
•Make sure that young children do not play around the device.
•Children and persons with disabilities should not be allowed to operate the
device unless they are adults and responsible persons.
•The device should be checked regularly for damage. When any damage is
detected to the cable and socket, the device should be stopped and the authorized person
should be informed and repaired.
•If the cable has a problem with the electrical connection or the device is
damaged, disconnect the electrical connection and stop operation immediately. Only allow
it to be repaired by authorized person.
•Some smoke may come out of the appliance during the first start-up. This smoke
and steam consists of oils and paint used during the manufacture of the device. It will
disappear in 30 minutes.
•Always make sure that the control board is protected against water.
•Check if the rubber (gasket) parts are damaged, if it is damaged, have it repaired
by authorized person.
•The device should not be covered with insulation or similar material.
2. GENERAL INFORMATION ABOUT THE PRODUCT
2.1. Product introduction
Radiant heaters of Hoşseven brand are designed for effective heating. The
heater is equipped with an electronic card controlled by a remote control.
NOTE: The device has been designed in accordance with the rules of use
outdoors.

7
DN08.05.20Rev 00 www.hosseven.com.tr

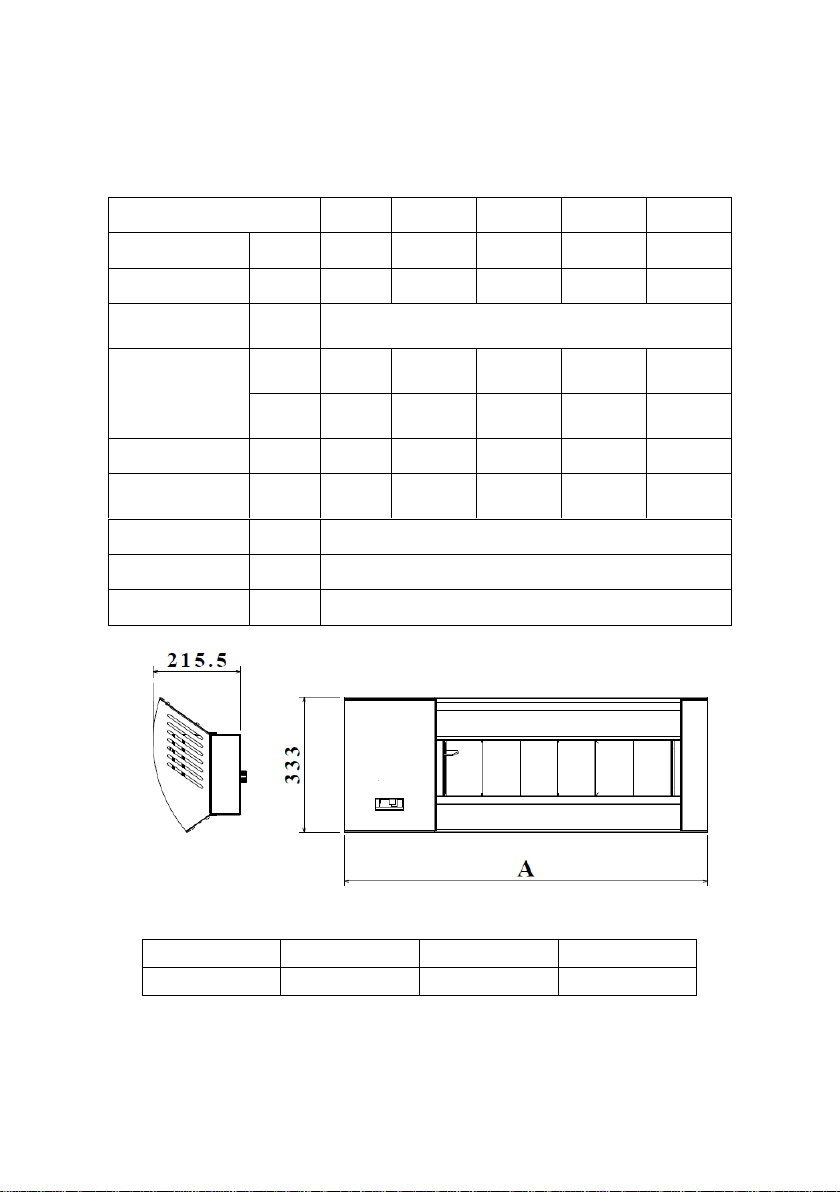

2.2.Product Technical Information
MODELS
HRK-7
HRK-11
HRK-18
HRG-7
HRG-12
Ceramic Stone
Piece
4
6
10
4
6
Power
kW
7
11
18
7
11.2
Gas type and
pressure
G20 20 mbar / LPG 30 mbar
Gas
Consumption
m3/ h
NG
0.73
1.14
1.83
0.73
1.14
kg / h
LPG
0.55
0.84
1.37
0.55
0.84
Weight
kg
12.7
15.6
18.3
14.5
17.2
Mounting
m
2 –
2.5
2 –3
2.5 –
3.5
2 –2.5
2 –3
Supply
230 V 50 Hz
Gaz Bağlantısı
İnc
1/2 “
Nox
4
Models
HRK-7
HRK-11
HRK-18
A (mm)
716
898
1262

8
DN08.05.20Rev 00 www.hosseven.com.tr
Models
HRG-7
HRG-12
A (mm)
657
839

9
DN08.05.20Rev 00 www.hosseven.com.tr
This device is used for outdoor and well-ventilated interiors. Includes installation
by authorized personnel.
This device must be protected against rain. It is mounted in a protected place.
This device is installed according to the rules. The gas pressure in the installed place
before it is installed is for gas distribution conditions.
The device can be found in conditions that can operate up to a maximum speed
of 15km / h. Performance and flame vitality negatively affect the effect of higher
speed wind.
• In the case of water and moisture in the burner, it should not be burned. THE
DEVICE SHOULD BE PROTECTED AGAINST RAIN.
• If some parts of the device are wet, never use them without checking the
authorized person.
3. INFORMATION REQUIRED FOR INSTALLATION
• In mounting in a well-ventilated area, minimum 25% of the surfaces must
be open.
•A part of the wall surfaces has been defined as the open area.

10
DN08.05.20Rev 00 www.hosseven.com.tr
• DISTANCE A IS REQUIRED
TO BE BIG FOR ANY TIME.
• The pipe and flexible hose
will be replaced within the
specified time.
3.1.Mounting Distances
After choosing the place where the device will be mounted, the device should
be mounted in accordance with the dimensions and rules specified below.
• During ignition, it may damage the surrounding gas cylinder or gas line.
• It should not be near combustible materials.
• It should not be close to where it can get rain.
• It should not be installed indoors.
• It should not be installed in places that are not suitable for installation (see
pictures below).

11
DN08.05.20Rev 00 www.hosseven.com.tr

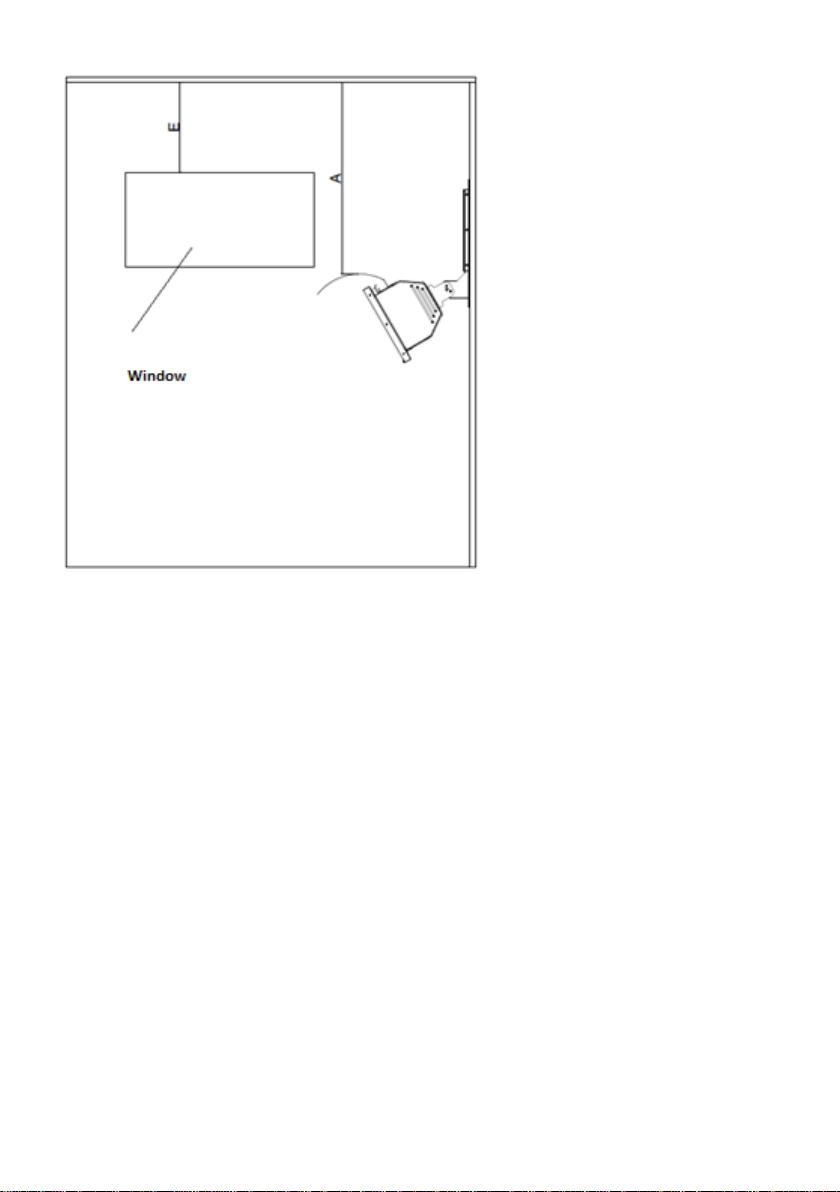

Distances to flammable materials
Model
A (mm)
B (mm)
C (mm)
HRK-7
300
1100
2500
HRK-11
350
1100
2500
HRK-18
450
1200
3000
HRG-7
300
1100
2500
HRG-12
350
1100
2500

12
DN08.05.20Rev 00 www.hosseven.com.tr
• It cannot be used indoors.
• Ventilation should comply with EN13410 standards.
• Minimum room dimensions should be according to EN 13410: 2001 standard.
• Local authorities must approve the minimum room volume.
4. INSTALLATION INSTRUCTIONS
The rules for the installation rules of this device manual and
the signs of gas assembly standards are installed in accordance with the rules.
Checks the gas pressure and distribution conditions before assembly.
Installation should be done by authorized person.
Please learn the weight of the device before assembly
and assemble the relevant worker health & safety rules accordingly.

13
DN08.05.20Rev 00 www.hosseven.com.tr

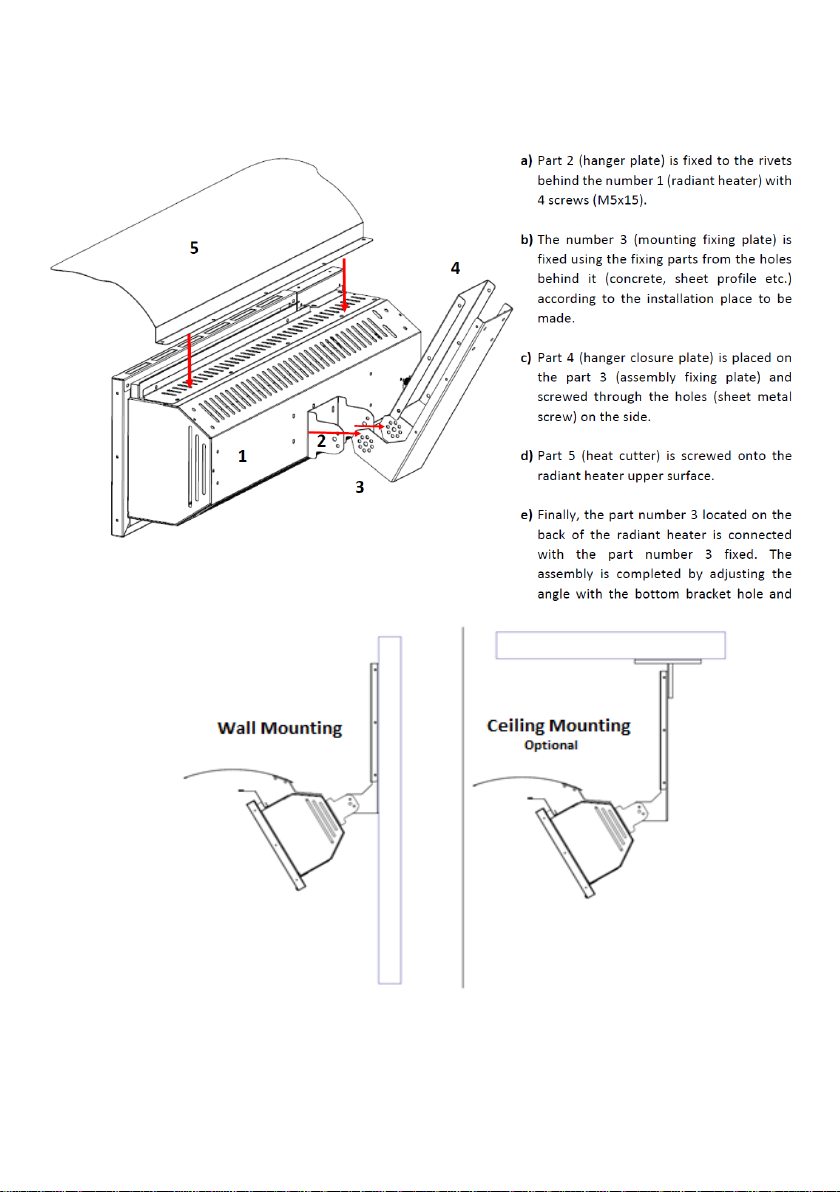

4.1. Device Installation Instructions

14
DN08.05.20Rev 00 www.hosseven.com.tr
4.2. Gas Line Installation
Before assembly, check the gas distribution conditions that the gas pressure is
suitable for the device. For proper operation of the devices, the gas inlet pressure
should be 20mbar while the devices are in operation. If more than one device will
be installed, check that the pipes are installed according to the power of the
devices.
• The personnel who carry out gas installation and installation works are for
authorized persons.
• Devices are manufactured to operate at G20 20 mbar gas inlet pressure. 20
mbar inlet pressure should remain constant while the devices are in the working
environment.
• For leak testing of pipe joints with stray soap bubbles.
• Gas connection hoses should not be installed in places where people pass. The
information on which the gas will work with should be checked on the device.
The gas valve mounted on the gas pipeline inlet should be the valve that
complies with the gas rules. It should be reviewed that all connections are tight and
leakage control should be done with soap bubbles. DO NOT LEAK THE OPEN FLAME
WITH OPEN FLAME.

15
DN08.05.20Rev 00 www.hosseven.com.tr
When the heater is running, check the manifold gas
pressure from the test point. If the gas pressure increases according to the value
set in the gas line, the gas pressure regulator should be used to keep it constant.
Shut off valve should be installed so that the gas pressure does not exceed 35 mbar
in the gas line.
4.3. Electrical connection system
The electrical connection must be connected to a grounded line. Connect the
device to a 2 A automata. Connection V automat must be 900 mm from the left and
right of the device. Electric cables should be kept away from hot surfaces and places
where burnt gases are discharged.

16
DN08.05.20Rev 00 www.hosseven.com.tr
4.4. Gas Leak Control
The gas leak tests of the heater are carried out from the factory before
shipment. Once the device has been installed, it must be checked again, including
the complete gas connection line.Isıtıcı gaz hattı, hatta gaz verildikten sonra kontrol
edilmelidir.
• Make sure that the gas valve on the heater is closed.
• Spray the foam made with a mixture of detergent and water or apply it to the
joints with a brush and check the formation of the balloons. If the balloon is formed,
there is a leak and close the gas inlet.
• Re-tighten the leak connection, open the gas and check for leaks again.
• Do not smoke during the test.
• Continue to check for leaks at other connections.

17
DN08.05.20Rev 00 www.hosseven.com.tr
4.5. Heat Reflector (separator - heat cutter) Installation Instruction
Heat reflector is necessary to
prevent damage to the place on
the top of the device.
It is also called heat cut,
separator.
Heat cut is screwed onto the
radiant heater device in the
direction of the arrows as shown
in the picture on the right.
5. OPERATING INSTRUCTION OF THE DEVICE
THE HEATER SHOULD BE OPERATED AFTER THE GAS LEAK
CHECK.
INSTALLATION OR NOT DIFFERENT TO THE INSTRUCTIONS
MAY CAUSE INJURY AND DAMAGE THE STRUCTURE. READ THE INSTALLATION
AND OPERATION INSTRUCTIONS BEFORE INSTALLING THE HEATER.
A) Check the gas inlet pressure;
Loosen the screw at the gas inlet test point on the Siemens gas valve (1 or 2
turns). Connect the silicone flexible hose to the test point, connect the other end
to the U-Manometer or digital manometer, measure the pressure, check its
suitability according to the pressure previously given in the table.

18
DN08.05.20Rev 00 www.hosseven.com.tr
B) Check burner pressure;
On the Siemens gas valve, loosen the screw on the gas outlet test point (1 or 2).
Connect the silicone flexible hose to the test point, turn on the device. (at least 5
min.) Measure the pressure with a U-Manometer or digital manometer. If it is more
than the pressure value given in the table, remove the regulator cover and turn the
screw clockwise with a suitable screwdriver to increase the pressure and
counterclockwise to decrease it. Turn off the heater hose when it provides the
desired pressure.
C) Replacing the regulator cover
D) After adjusting to the appropriate pressure, replace and tighten the
regulator cover.
The gas inlet and outlet direction of the Siemens gas valve are shown in the
picture above. The torque (torks 15) shown in the No. 1 location in the gas inlet
section is loosened and the pressure value is measured. While the device is running,
the pressure measured here must be 20 mbar. Be sure to tighten the screw back
after the measurement.
The torque (torx 15) screw shown in the gas outlet section number 2 is loosened
and the pressure value is measured. While the device is running, the measured
value must be the same as the pressure value indicated in the tables. Be sure to
tighten the screw back after the measurement.

19
DN08.05.20Rev 00 www.hosseven.com.tr
• If the gas inlet pressure is less than 20 mbar, it should be brought to 20 mbar.
To increase the gas inlet pressure, regulator in the gas line should be used. Pressure
increase and decrease cannot be made on the radiant device.
• If the gas outlet pressure (injector pressure) is different from the value
indicated in the table, we can increase or decrease the gas outlet pressure from the
regulating regulator.
5.1. Operation of the Device
1. Make sure that gas and electrical connections comply with the rules specified
in the manufacturer's user manual.
2. Open the gas through the gas valve.
3. Make sure that the gas pressure is set correctly.
4. Turn on the heater electrical connection.
5. Press the on / off button on the remote control once. (you can also operate
the device with the green button next to the device)
6. The device will continue to burn in Stage 1 after burning has occurred. You
can get the desired level from the remote by pressing (+ and -) keys.
7. To switch off the device, you can switch the device off by pressing the on / off
button.
8. If the device did not work, switch off the device.
9. Wait about 5 seconds before turning it back on. If the burner does not light
after firing the intermittent spark plug 3 times, find the cause from the fault finding
table given in the manual. If you can not solve, call the company service.
5.2. Device Shutdown
1. If you are temporarily closing, just turn it OFF with the REMOTE CONTROL
2. If you are closing permanently, turn off the electricity and gas valve.
