Hotone OMP-6 User manual

DESIGN INSPIRATION
Owner's Manual
The contents of this manual are subject to change without notice.

Contents
Welcome
Features
Panel Introduction
Connections
Main Display
Select a Preset
Bypass/Mute (default setting)
Edit
Select a different IR file    
Edit detailed parameters 
Preset Edit Menu
Save
Assign Footswitch Function
Software
Factory IR files list
Specifications
·································································································1
···································································································1
·················································································2
····························································································2
···························································································4
·······················································································4
·····························································4
············································································································4
·······································································4
······································································5
···················································································5
··········································································································5
································································6
··································································································6
·················································································6
·························································································7
DESI G N INSPI RATION

Welcome
Thank you for purchasing a Hotone product.
Please read this manual carefully to get the most out of your Omni IR.
Please keep this manual in a safe place to use for further reference.
The Omni IR is a compact-sized, Impulse Response based cabinet simulator delivering organic, precise
guitar/bass cabinet sounds. An internal voltage boost circuit provides tons of headroom, a clear, detailed
OLED screen lets you get set up quickly, and variable I/O makes it perfect for any live or recording
scenario.
✪ Compact, easy-to-use IR loader pedal
✪ Advanced DSP platform with high quality 24-bit A/D/A conversion and great dynamic response
✪ Internal voltage boost circuit for great headroom with standard 9V DC power supply
✪ 40 high quality legendary guitar/bass cabinet IRs
✪ Detailed 4-band EQ with flexible frequency range and 12dB max. boost/cut
✪ Supports 3rd party IR files
✪ USB jack for firmware updating, loading/managing IRs with free PC/Mac software
✪ Aux In and headphone output for practicing and jamming
✪ 40 Presets
✪ Built-in hi-res OLED screen
✪ Assignable footswitch with LED
✪ 9V DC power supply
Features
DESI G N INSPI RATION ·1·

1. MASTER: Controls the overall output
2. FUNC. : For switching presets/IRs, editing presets, saving, etc.
3. XLR OUT: Feeds balanced signal to mixers, interfaces, etc.
4. LIFT/GND: Switch to LIFT position to lift the ground wire of XLR OUT jack
5. OUT: Unbalanced output jack
6. OLED SCREEN: Shows preset numbers, setting values and other operation info
7. THRU: Feeds unprocessed dry signal to other devices or reamping
8. IN: For plugging in instruments or other effects
9. ASSIGNABLE FOOTSWITCH

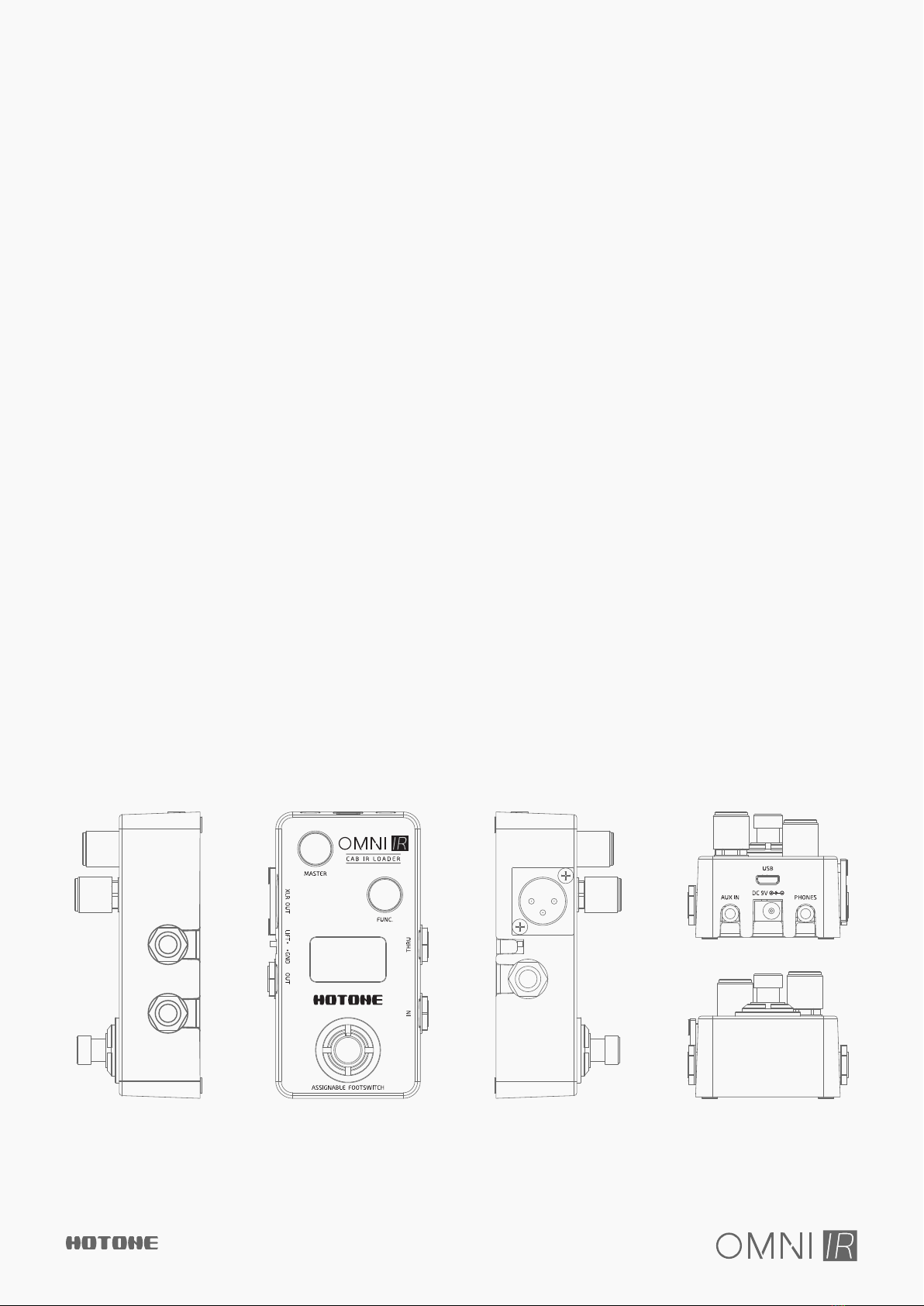

Panel Introduction
1
2
3
4
5
6
7
8
9
11 12 13
10
Connections
●For practicing/jamming
DESI G N INSPI RATION
10. USB: Micro USB jack for connecting to computer
11. AUX IN: Stereo aux in jack for connecting audio players (won’t be
affected by Omni IR)
12. DC 9V: Plug in your power supply here (DC 9V, center egative)
13. PHONES: Stereo headphones jack
MA NU
·2·

Connections
●For live performance
●For reamping
Note:
Always mute the mixer/audio interface or turn down the volume knob on your amp before plugging or unplugging power jacks, cables, etc. This will
reduce the chance of hearing/device damage.
OR
DESI G N INSPI RATION ·3·

The Main Display will come up as shown below after you plug in your power supply:
1- Current preset number, Omni IR supports 40 presets ranging from 00 to 39
2- Indicates the IR name you’re using in current preset
3- Shows only when the EQ is on
Main Display
2
3
1
2
3
1
Select a Preset
In Main Display, turn the FUNC. knob to change presets. Turn the knob clockwise to cycle through presets in the order of 00, 02, 03, …, 39 then 00. Turn
the knob counterclockwise to change presets in the opposite order.
Bypass/Mute (default setting)
To set the unit to bypass: tap the footswitch. “BYPASS” will appear on the screen. Tap the footswitch again to go back to normal.
To set the unit to mute: hold the footswitch until “MUTE” appears on the screen. Hold the footswitch again to go back to normal.
Note:
1. In bypass/mute status, the LED halo will go out.
2. AUX IN will not be affected in mute status.
DESI G N INSPI RATION
Edit
1. Select a different IR file
In Main Display, press the FUNC. knob to enter IR Select menu. The screen will come up as shown below:
Turn the FUNC. to select an IR file. The file name will be inverted.
·4·

2. Edit detailed parameters
In IR select menu, press the FUNC. knob to enter Edit Menu. The screen will come up as shown below:
Turn the FUNC. knob to move the cursor on EDIT PRESET, then press FUNC. knob to enter Preset Edit Menu:
Edit
Preset Edit Menu:
1- Return to previous menu
2- Indicates current cursor position (the PRESET VOL is now selected).
In this menu, turn FUNC. knob to select a parameter (hollow cursor) or edit parameters (solid cursor), press the FUNC. knob to confirm selection/finish editing.
All available parameters are shown below:
(1) PRESET VOL: Controls the current preset volume
(2) EQ: Switches the EQ on/off
(3) LOW FREQ: Controls the EQ low frequency range
(4) LOW GAIN: Controls the EQ low frequency boost/cut amount
(5) MID FREQ: Controls the EQ mid frequency range
(6) MID GAIN: Controls the EQ mid frequency boost/cut amount
(7) HIGH FREQ: Controls the EQ high frequency range
(8) HIGH GAIN: Controls the EQ high frequency boost/cut amount
(9) PRES FREQ: Controls the EQ presence range
(10) PRES GAIN: Controls the EQ presence boost/cut amount
(11) SAVE: Enter Save Menu
1
2
The EQ frequency and boost/cut range are shown below:
BAND
FREQ range
GAIN range
LOW
50Hz-500Hz measured by 10Hz
-12~0~+12(dB)
MID
500Hz-1kHz measured by 10Hz
-12~0~+12(dB)
HIGH
1kHz-5kHz measured by 0.1kHz
-12~0~+12(dB)
PRES
5kHz-16kHz measured by 0.1kHz
-12~0~+12(dB)
Save
To enter Save Menu, select SAVE in Preset Edit Menu or hold FUNC. knob in IR Select menu. The screen will come up as shown below:
Turn FUNC. knob to choose a location. Press the FUNC. knob to confirm saving.
Press the footswitch to cancel saving.
DESI G N INSPI RATION ·5·

Assign Footswitch Function
In Edit Menu, select FS FUNCTION to enter Footswitch Function Assign Menu. The screen will come up as shown below:
You can assign 2 different functions to FS TAP (tap the footswitch) and FS HOLD (hold the footswitch):
● MUTE
● BYPASS
● PRESET +
● PRESET –
The functions cannot be same.
DESI G N INSPI RATION
Software
Connect Omni IR to your computer and access the free software to manage your Omni IR device, adjust tonal settings, update firmware, restore settings,
and upload third party IR files. Omni software is compatible with Windows and macOS platforms.
Log on to www.hotoneaudio.com/support to download the free software--it’s easy to install and comes with a software user manual.
PRESET
OMNI IR NAME
BASED ON
MIC TYPE
SPEAKER
4X12 Cabinet
0
BRIT 60A 4x12
Marshall 1960A* 4x12
Shure SM57*
4x12
1
BRIT 60B 4x12
Marshall 1960B * 4x12
Royer R121*
4x12
2
FLY BOY 4X12
Boutique UK-style 4x12 cabinet
Neumann U87*
4x12
3
JUIC M25 4x12
Orange PPC412*
Shure SM57*
4x12
4
EGNL PRO 4x12
Engl Pro* 4x12
Shure SM57*
4x12
5
GVH 5153 4x12
EVH 5150 III* 4x12
Gefell UMT70S*
4x12
6
DIZZ RLD 4x12
Diezel* 4x12
Royer R121*
4x12
7
MES STAT 4x12
Mesa/Boogie Standard * 4x12
Shure SM57*
4x12
8
RDL XL 4x12
Randall RS412XLT* 4x12
Shure SM57*
4x12
9
EC ELCT 4x12
4x12 cabinet with Electro-Voice EVM-12L* speakers
Shure SM57*
4x12
10
BGR STAD 4x12
Bogner * 4x12
Beyerdynamic M160*
4x12
11
MES TDST 4x12
Mesa/Boogie Traditional * 4x12
Shure SM57*
4x12
12
BRIT 60TV 4X12
Marshall 1960TV* 4x12
Shure SM57*
4x12
13
MES SRF 4x12
Mesa/Boogie Rectifier* 4x12
Sennheiser MD421*
4x12
2X12 Cabinet
14
ZIDA TWIN 2x12
Selmer Zodiac* 2x12
Royer R121*
2x12
Factory IR files list*
15
TR 65 2x12
Two-Rock* 2x12
Royer R121*
2x12
16
US 65TW 2x12
Fender 65 Twin Reverb* 2x12
Shure SM57*
2x12
17
BOST ZC30 2x12
Vox AC30 * 2x 12
Sennheiser E609*
2x12
18
MES RF 2x12
Celestion G12H* loaded Mesa /Boogie* cabinet
Shure SM57*
2x12
19
JUIC PPC 2x12
Orange PPC 212*
Royer R121*
2x12
* The Manufacturers and product names mentioned above are trademarks or registered trademarks of their respective owners. The trademarks were used merely to identify the sound character of the products.
·6·

Factory IR files list*
30
PRO JR 1x10
Fender Pro Junior* 1x10
Shure SM57*
1x10
4x10 Cabinet
31
LOW MAN 4x10
Fender ’59 Bassman Reissue* 4x10
Shure SM57*
4x10
32
BGR BLUE 4x10
Bogner* 4x10
Shure SM57*
4x10
33
BRIT 65B 4x10
Marshall 1965B* 4x10
Royer R121*
4x10
Bass Cabinet
34
US PRFX 1x15
Ampeg B-15N* 1x15
Royer R121*
1x15
35
ED XLT 4x10
Eden * 4x10
Shure Beta 87A*
4x10
36
US SVT 8x10
Ampeg SVT-810E* 8x10
Neumann U67*
8x10
37
SVT HLF 4x10
Ampeg SVT-410HLF* 4x10
Shure SM57*
4x10
38
SVT AV 2x10
Ampeg SVT-210AV* 2x10
Neumann U67*
2x10
39
US GKCX 4x10
Gallien-Krueger CX410* 4x10
Neumann U67*
4x10
* The Manufacturers and product names mentioned above are trademarks or registered trademarks of their respective owners. The trademarks were used merely to identify the sound character of the products.
PRESET
OMNI IR NAME
BASED ON
MIC TYPE
SPEAKER
2X12 Cabinet
20
BRIT 66B 2x12
Marshall 1966B* 2x12
Royer R121*
2x12
21
US STDO 2X12
1980s Mesa/Boogie* 2x12 cabinet
Shure SM57*
2x12
22
BGR SVA 2x12
Bogner Shiva* 2x12
Shure SM57*
2x12
23
MESH RC 2x12
Mesa/Boogie Rectifier* 2x12
AKG C414*
2x12
1x12 & 1x10 Cabinet
24
DELX VERB 1x12
Fender Deluxe Reverb* 1x12
Shure SM57*
1x12
25
US CHAP 1x12
Fender Champ* 1x12
Shure SM57*
1x12
26
BRIT 74CX 1x12
Marshall 1974CX* 1x12
Beyerdynamic M160*
1x12
27
GIBS 30RV 1x10
Gibson GA-30* 1x10
Shure SM57*
1x10
28
JUIC PPC 1x12
Orange PPC 112*
Shure SM57*
1x12
29
BOST ZC15 1x12
Vox AC 15* 1X12
Shure SM57*
1x12
Input Impedance: 1MΩ
Output Impedance: 100Ω
Power Requirement: 9V DC center negative
Current Consumption: 200mA
Dimensions: 101mm (D) x58mm (W) x47mm (H)
Weight: 220g
Specifications
DESI G N INSPI RATION ·7·
