Hotpoint Ultima WD860 User manual

Instructions
WD865
WD860

Congratulations on choosing
Ultima!!
2
Front adjustable feet
Dispenser drawer
Hot water inlet
point and
attached fill hose
(red connector)
Cold water inlet
point and
attached fill hose
(blue connector)
Hooked end
support
Drainage
hose
Rating plate
Transit bolts
(both must
be removed
before use)
Plumbing
Indicator Line
label
Control panel
Interlocking
door and
release lever
Mains
cable
Rear feet
Please record the Model number and the Serial number of
your machine on the Back Cover of the book for future
reference.
The Model number can be found on the control panel.
The Serial number can be found on the inner door trim.

The following instructions and information will help you to
get the most out of your new machine...
Safety first!
Installing your machine

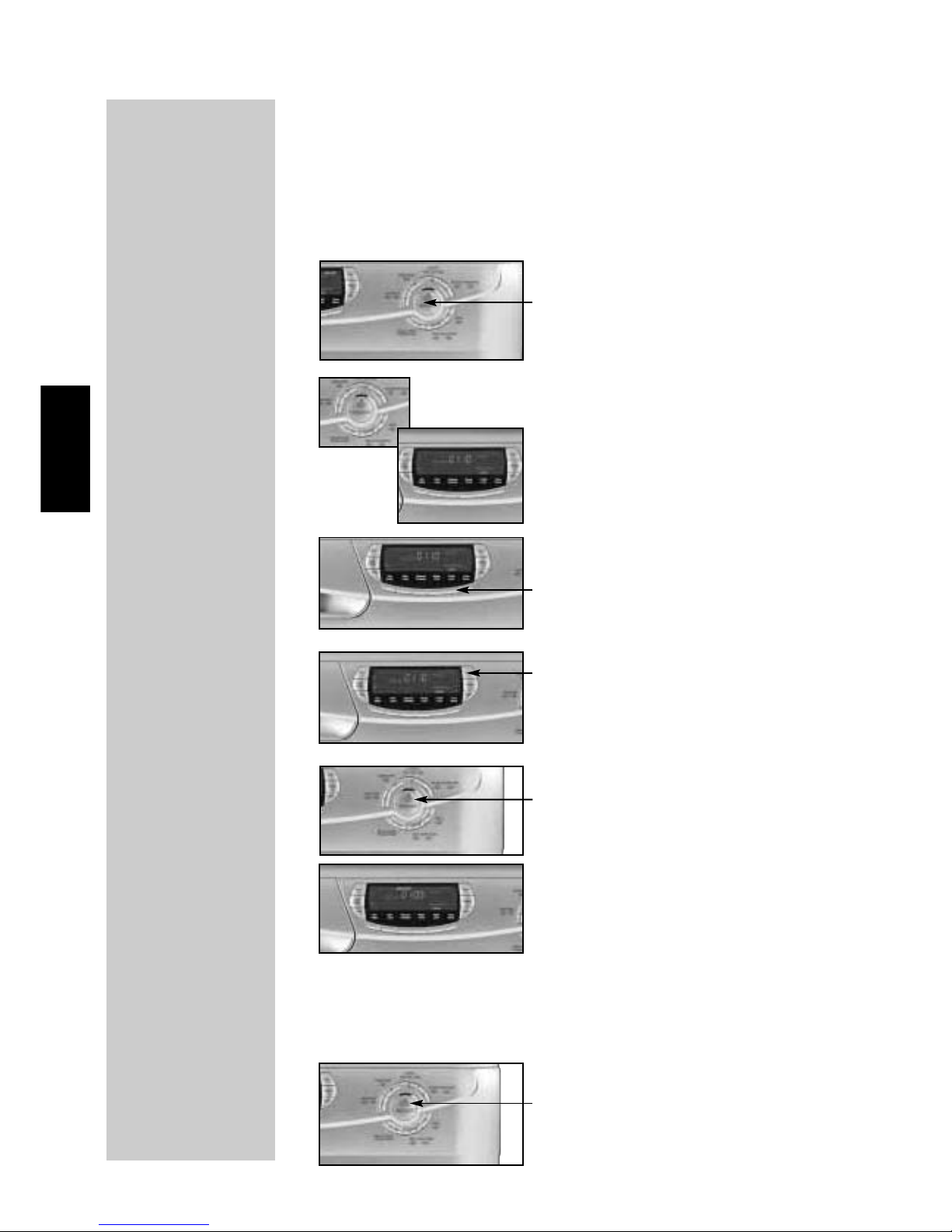

A typical wash and dry programme

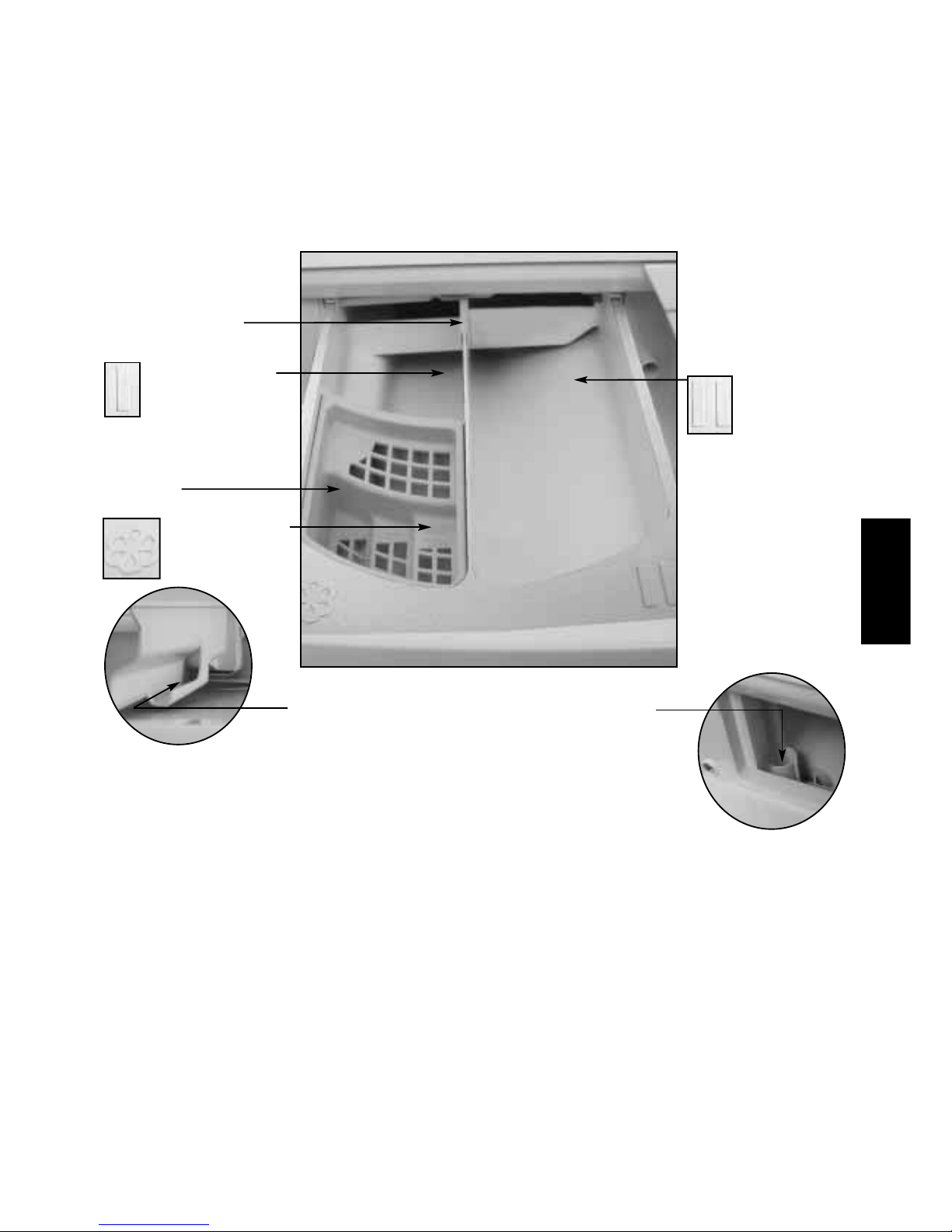

The dispenser drawer
Cleaning and maintenance
Troubleshooting
After sales service and guarantee
SAFETY
Page 4
INSTALLING YOUR
MACHINE
Pages 5-10
A TYPICAL WASH &
DRY PROGRAMME
Pages 11-12
THE DISPENSER
DRAWER
Pages 13-14
CLEANING &
MAINTENANCE
Page 25
TROUBLE
SHOOTING
Pages 26-27
SERVICE &
GUARANTEE
Pages 28-29
This instruction manual contains important details on using your machine
safely. If you pass the machine onto someone else, make sure that you
give them this manual.
Follow these steps for trouble free installation:
location, transit bolt removal, electricity, water supplies and drainage.
Moving the machine and adjusting the feet.
Washcare tips and a simple step by step guide to using your machine.
Programmes, options and other features
PROGRAMMES
AND OPTIONS
Pages 15-24
Select a programme for any wash and/or dry, including automatic functions,
pre-washes, economy loads, variable temperature and spin speeds.
Guidance on getting the most out of your wash using powders, liquids, tablets and
fabric conditioners.
How to care for your machine by removing and cleaning the dispenser drawer and
compartments, cleaning the door bowl and machine exterior plus the recommended
Maintenance wash.
In the unlikely event that you have problems with your machine, the following
guide may help you to get your machine working correctly straight away.
We give you a unique ‘satisfaction guaranteed’ promise - valid for ninety days
after you have purchased your machine.
3

Safety first
This instruction manual contains important details on using your machine safely.
Please keep it safe for your future reference.
If you pass the machine onto someone else, please make sure that you give them this
manual so that the new owner can read these safety warnings.
✔✘
4
SAFETY
●Dispose of packaging
materials carefully and
keep them well away
from children.
●
When disposing of your
old machine, to minimise
risk of injury to children,
isolate from the electrical
supply, remove the door,
the plug and cut the mains
cable off flush with the
appliance. Dispose of
them separately to make
sure that the appliance
can no longer be plugged
into a mains socket.
●This washer dryer is
designed for domestic
use only.
●Before using your
machine remove the
transit bolts and spacers
from the back of the
machine.
Keep the parts you
remove for future
transportation.
●Any electrical work
necessary to install this
machine should be
carried out by a qualified
electrician.
●Do not plug your
machine into a socket
when your hands are
wet.
●Do not connect the
washer dryer to a
single outlet
instantaneous water
heater.
●Do not try to modify
this machine in any way.
●Do not connect the
washer dryer directly to
an artificial water
softening unit.
Use the recommended
amount of detergent for
the water hardness in
your area.
●Do not let children play
with the machine or its
controls.
●Do not stand on the
machine or in the door
opening.
●Do not lean on the door
or use the door to lift or
move the machine.
●Do not wash or dry
garments that have
previously been treated
with solvents.

1. Choose a location...
Where you install the machine will affect its performance.
●For your safety and to comply with electrical
regulations, seek professional advice if you want to
install your machine in a bath or shower room.
●Make sure that the electrical socket and water taps are
easily accessible. You should switch off the machine’s
electrical and water supplies when you are not using it.
●Make sure that you allow enough space for the
machine. Select a space at least 600mm wide, 600mm
deep and 850mm high. Also leave enough space to
open the door fully so you can load and unload it easily.
●Where possible the machine should be positioned on a
solid level floor to minimise vibration.
●Take care when you move the machine not to rip any
floor coverings. There are wheels on the bottom rear of
the machine, so tilting it backwards a little is the easiest
way to move it. The weight of the machine may cause
indentations in some floor coverings.
Follow these steps for trouble free installation:
Installing your machine
5
INSTALLING YOUR
MACHINE
This is part of the polystyrene base and should
have stayed intact when you remove the base.
If it has broken off and is still in the machine....
to remove it, carefully lay the machine on its side
onto the polystyrene top cap and then remove
the polystyrene block.
Note: You will need a second person to help you lower and raise the machine.
WARNINGS:
● Do not plug
the machine in
and switch it
on at the mains
until the
installation is
completed.
●You will be
charged for a
service call if a
problem with
your machine
is caused by
incorrect
installation or
misuse.
Remove the polystyrene base...
Important check when unpacking your machine:

6
Hold the transit bolt and
slide to the side and then
pull out.
The bolt and spacer
should be removed
intact. (see below)
Using a screwdriver,
remove the screw to
release the plastic cover.
Firstly, unhook the grey
drainage hose and
proceed as follows, taking
care not to loosen the hot
and cold water fill hoses.
Use a standard 13mm
spanner to undo the bolt
until three threads can be
seen on the bolt.
(see below)
3
For safety, you must
replace the plastic cover
over the hole left by the
transit bolt.
(Repeat steps 1 to 4 to
remove the second
transit bolt).
4
2. Remove the transit fixings...
There are two transit bolts fitted under plastic covers, one at
either side of the rear of your machine. These bolts prevent
damage to the machine while it is being transported.
Remove both transit bolts complete with spacers, by
following the instructions below.
Use a screwdriver to release the covers and a standard 13mm
spanner to remove both bolts.
INSTALLING YOUR
MACHINE
Location of
transit bolts.
1
2
WARNINGS:
●Before you use
the machine,
remove the two
transit bolts
complete with
spacers.
If you do not
do this,
damage may
occur to your
machine.
Keep the parts
in case you
need them for
future
transportation.
●If and when
you replace the
bolts complete
with spacers
make sure
you do not
overtighten
them.
Example transit bolt
complete with spacer.

Make sure that the electrical socket is accessible. Take the
mains lead from the back of the machine and plug it into the
socket. We do not recommend wiring your machine directly
into the mains supply.
Changing the mains lead
If you have damaged the existing lead and need a new one,
contact Hotpoint Service UK on 08709 066066 or
www.theservicecentre.co.uk (or in the Republic of Ireland on
1850 302 200). A charge will be made.We strongly advise that
fitting the new lead is carried out by a qualified electrician.
Changing the plug
If you need to change your plug, ie. if it does not fit your socket;
isolate the machine from the mains supply. Cut off the
supplied plug and safely dispose of the discarded plug.
Note: If you change the plug, the colour of wires in the mains
lead may not match the colour of the markings which show
the different terminals in the plug. You must wire it as shown
below.
Fuses
Your machine comes fitted with a plug and a 13 amp (13A)
fuse. If you need to replace the fuse, use only those rated at 13
amp (13A) and ASTA approved to BS1362. To change the fuse,
lift the holder to vertical position and lift the fuse out. To
replace the fuse, insert the fuse and push the fuse holder down
into the locked position. Correct replacement is identified by
colour coding or the marking on the base of plug.
WARNING:
Do not use the plug unless the fuse holder is in the locked
position and the top cover firmly replaced.
We do not recommend the use of extension leads. If you need
to do so, consult a qualified electrician.
CE marking shows that this machine meets the
following EEC directives.
Low Voltage Equipment - 72/23/EEC & 93/68/EEC
Electromagnetic Compatibility - 89/336/EEC, 92/31/EEC
& 93/68/EEC.
3. Connect your machine to the electricity supply
7
WARNINGS:
●This machine
must be
earthed.
●Do not use the
plug unless
the fuse cover
is fitted.
●To avoid a
shock hazard,
when
changing a
plug, always
safely discard
the cut off
plug. Do not
insert into any
other socket.
●Seek
professional
advice if you
need to use an
extension
lead.
INSTALLING YOUR
MACHINE
13A ASTA
approved fuse
to BS1362.
Brown (Live)
wire this to
the
terminal
marked ‘L’ or
coloured red.
Green and yellow
(Earth) wire this to the
terminal marked
‘E’, symbol, or
coloured green
and yellow.
Blue (Neutral)
wire this to the
terminal
marked ‘N’ or
coloured black.

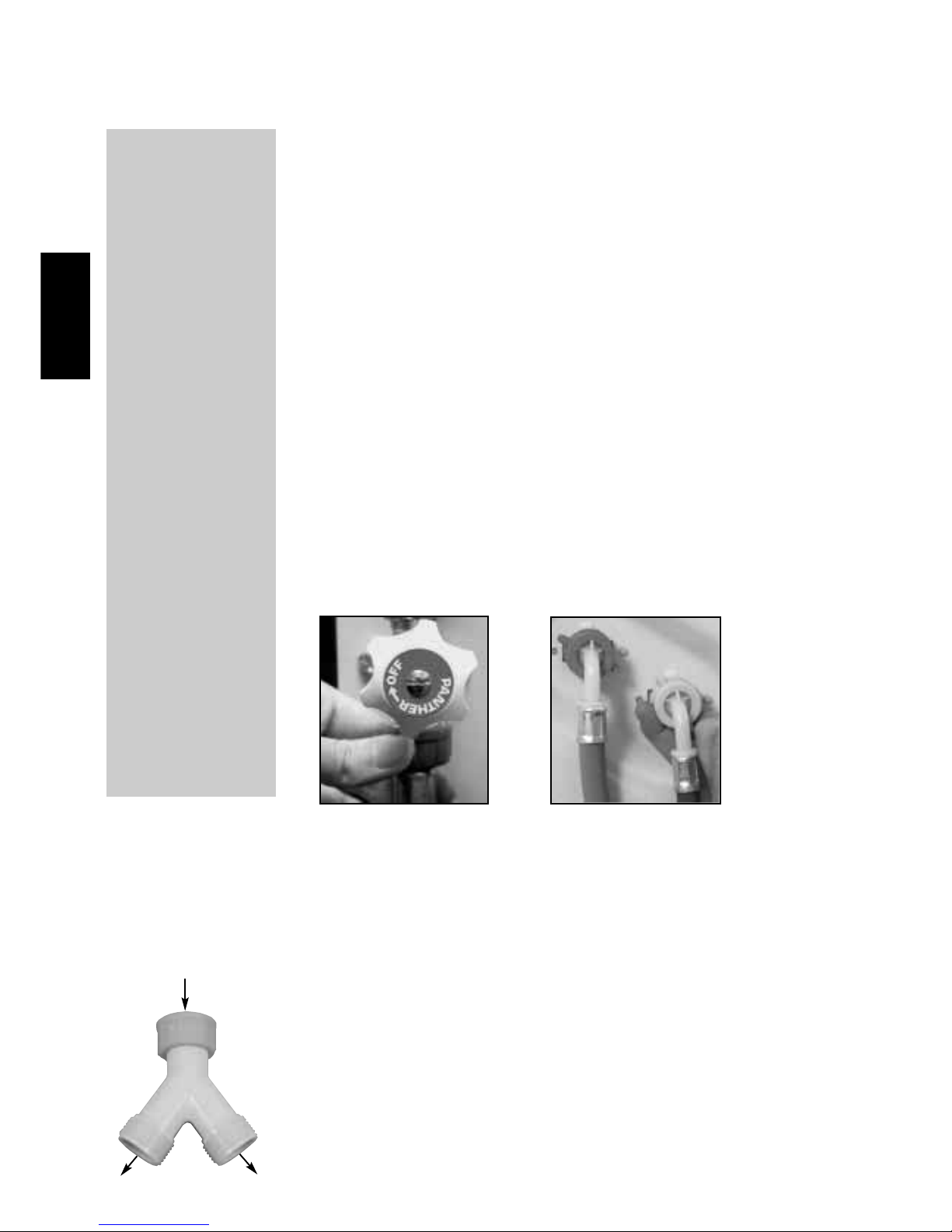

Hot and cold fill
1 Unclip both of the fill hoses from the back of the machine.
2 Connect the free end of the grey fill hose with the red
connector to the HOT water supply (see figure1).
Connect the free end of the grey fill hose with the blue
connector to the COLD water supply.
3 Turn on your water supply and check for leaks.
If there is a leak, turn off the water supply, remove the
connector and check that the sealing washer is in place.
Refit the connector and tighten it.
Turn on the water supply.
4 When moving the machine into its final position, make
sure that the hoses are not trapped or kinked.
If the fill hoses are too short:
Longer fill hoses are available from our Genuine Parts and
Accessories Mail Order Hotline UK on 08709 077 077 or
www.theservicecentre.co.uk (or in the Republic of Ireland
on [phone]).
Remove the existing fill hoses from the inlet valves on the
back of the machine and fit the new longer fill hoses as
shown above with the angled ends of the hoses
connected to the machine (see figure 2).
If you have no hot water supply or your hot water
pressure is low:
A cold fill adaptor (figure 3) and fitting instructions are
available from your local Hotpoint authorised Service
Centre or by calling the Genuine Parts and Accessories
Mail Order Hotline UK on 08709 077 077 or
www.theservicecentre.co.uk
(or in the Republic of Ireland on [phone]).
● Your hot and cold water pressure must be in the range Max.
1Mpa (10 bar) and Min. 0.05Mpa (0.5 bar). Incorrect pressures
could lead to flooding.
●The water supply taps should be accessible when the
machine is installed.
●Before connecting the fill hoses, check that water is running
from the water supply taps you will use for your machine.
●Connect the machine to the water supply using the fill
hoses fitted to the machine. Do not use old hoses.
8
WARNINGS:
●The
temperature
of your hot
water supply
should ideally
be 60°C and
no higher
than 70°C as
this could
cause
damage to
your laundry
and the
machine.
●Do not
connect the
machine to a
single outlet
instantaneous
water heater.
4. Connect your machine to the water supply...
figure 1 figure 2
figure 3
INSTALLING YOUR
MACHINE
cold water supply

● Take care when you remove the drain hose from the clips on
the back of the machine. All machines are tested with water
before they leave the factory so a small amount of water may
still be in the hose.
● Do not remove the hooked end support from the GREY
drainage hose when using any of the drainage methods
detailed below. You may need to reposition it as required along
the drainage hose.
● For drainage into a standard work top sink, ensure the outlet
pipe has a minimum diameter of 32mm. If your sink is inset,
the front edge of the basin must be less than 75mm from the
front edge of your worktop, so that the drain hose will hook
securely into the sink. Unclip the drainage hose from the back
of the machine and hook over into the sink. Make sure that the
sink is free of any obstructions and that the sink plug can not
fall into the sink, preventing the water from draining away
freely. Pumped out water may be very hot.
We recommend one of the following drainage
methods:
Standpipe
1 Make sure that the standpipe has a
minimum diameter of 38mm.
2 Remove the drainage hose from the
clips on the back of the machine.
3 Make sure that the top of the
standpipe is positioned at least
500mm from the floor (see figure1).
Use the plumbing indicator line label
on the back of the machine as a
guide.
4 Place the drainage hose
approximately 100mm into the
standpipe.
Under sink waste system
1 Cut out the membrane, bung or
blanking plug (see figure 2).
2 Unclip the drainage hose from the
back of the machine.
3 Move the hooked end support along
the drainage hose as required.
4 Attach the drainage hose securely to
the under sink drainage unit, using a
hose clip (see figure 3).
5 Raise the hooked end support up to
at least 800mm to avoid water being
drawn back into the machine.
figure 3
figure 2
Hose clip
Cut off end
WARNINGS:
●Take care
when using
the sink
drainage
system. The
discharge
water may be
very hot.
●Do not
position the
standpipe
near an
electrical
socket.
●Flooding
could occur
if any part
of the
installation is
not carried
out correctly.
●Remember
you will be
charged for a
service call
for problems
caused by
incorrect
installation,
non-removal
of transit
bolts or
packaging,
leaks from
household
pipework,
loose or
blocked fill
and drain
hoses.
5.Connect the machine to a drainage system...
INSTALLING YOUR
MACHINE
If the GREY drainage hose is too short
A longer drainage hose is available from our Genuine Parts
& Accessories Mail Order Hotline
UK on 08709 077 077 or www.theservicecentre.co.uk
(or in the Republic of Ireland on [phone]).
Hooked end support
500 mm
figure 1
9

7. Adjust the feet...
Once the machine is in place
10
6. Move the machine into position...
Your machine is heavy so care must be taken when moving
it.
●When moving the machine, take care not to kink or
damage the hoses at the back of machine.
●Please take care not to damage any floor coverings
when moving the machine.
WARNING:
●Do not drag
or lift the
machine by
it’s door.
INSTALLING YOUR
MACHINE
● The spring on each foot will stop them coming loose.
● Switch the machine on at the plug socket.
● When your machine is in its intended
location, make sure that it is level
by turning one or both of the front
feet clockwise until the machine
stands firm and level.
The maximum slope of the table top
must not exceed 2˚.
Your machine may become noisy or move about if it is not
level. If necessary, to level the machine adjust the two front
feet, as follows:
Now that you have successfully
installed your new machine, we
advise that you run it through a
95˚ White Cotton programme
without any laundry and without
any detergent in it.
This will check your installation,
connections and drainage, and
will thoroughly clean the interior
before you carry out an actual
wash programme on your laundry.
NOTE: This will take approximately 2
hours to complete.
Continue reading this book to get
to know the various features of
the machine.
TECHNICAL DETAILS
Models
Dimensions
Capacity
Electric
Connections
Spin Speed
Control
programmes
according to
IEC50229
directive
WD865, WD860
59.5cm wide
85cm high
60cm deep
from 1 to 6kg Wash
from 1 to 5kg Dry
voltage 220/230 Volts 50Hz
maximum absorbed power 1700W
up to 1600rpm
Cotton wash
temperature 60˚C
Wash run with a 6kg load
Dry run with a 1kg load followed
by a 5kg load

Using your machine
11
The rest of this instruction book will help you to make the most of your new
washer dryer. We have created the machine for the way you live, by listening to
people just like you who use our products. You will find that your new machine has
many useful features and is easy to use.
Washcare tips...
Weight of
Wash Load
Two examples
of maximum
wash loads for
different types
of fabric.
COTTON
2 Bath Towels
1 Hand Towel
6 Shirts
6 Blouses
1 pair of
Pyjamas
4 items of
Underwear
= 6kg
SYNTHETIC
2 Children’s
Dresses
4 Shirts
4 Blouses
1 pair of
Pyjamas
4 items of
Underwear
= 3kg
●Your machine can wash a maximum load of 6kg (cotton)
and dry a maximum load of 5kg.
●Do not overload the machine (maximum load 6kg).
In addition to reducing the quality of the wash, this may
also damage your laundry and the machine.
●We strongly recommend that you do not wash
underwired bras in this machine. Should the wires
become detached it could cause damage to your clothes
and the machine. If the washcare label states that the bra
is machine washable, then we advise placing it in a sealed
pillow case or a similar washbag.
●Do not use the machine if the item to be washed does not
have a wash label.
Before washing laundry we recommend that you do the
following:
●Pre-treat awkward stains with washable treatments.
Do not wash any items that have previously been treated
with solvents.
●Close zips, fasten belts, tie strings and close press studs to
prevent tangling.
●Empty all objects from pockets as they may damage
clothes and the machine.
●Limit the size of absorbent loads, for example towels to
3kg (7lb) to give good washing and rinsing results.
●Place small items in a wash bag.
●Always follow the care label on items when choosing a
wash programme.
●Wash non-colourfast items or really dirty clothes
separately as they may affect other items.
A TYPICAL WASH &
DRY PROGRAMME

Sort your laundry into groups with the same wash and dry
care labels. Load the machine, making sure that clothes
are not trapped in the door. Close the washing machine
door by pushing it until it clicks.
Press ‘START/CANCEL’ to begin
the programme.
During the programme, status
lights will glow to indicate at what
stage in the cycle the programme
has reached.
The ‘Time to End’ displayed will
count down the programme time
to the end of the programme.
3
1
4
5
2
7
WARNINGS:
●Do not allow
children to
play with the
machine or
tamper with
the controls.
This machine
has a Child
Lock feature,
which when
activated
disables all
controls (see
‘Options’).
●Do not
overload the
machine! It
may damage
laundry and
reduce the
quality of
the wash.
●Do not try to
open the door
when a
programme is
running.
●Do not open
the dispenser
drawer
during any
programme.
●In the unlikely
event of
something not
working see
the Trouble-
shooting
section.
At the end of the programme ‘End’ will illuminate in the
display window. Also a ‘Keyhole’ will glow indicating the
door is locked. The machine will bleep and the light will go
out when the door can be opened.
8
9
A typical wash & dry programme
12
Select the programme you require.
You will hear a bleep and the
programme temperature will
illuminate in the display window
followed by the spin speed. After 4
seconds the programme length,
‘Time to End’, will be displayed.
Select any optional wash feature(s)
that you may require by pressing
the appropriate button(s),
indicator lights will show what you
have chosen.
Switch the machine off by pressing
the ‘ON/OFF Pause’ button.
We also recommend that you
switch off the electricity and water
supply.
Add detergent and fabric conditioner, if required, to the
dispenser drawer. Refer to the detergent manufacturer’s
dosage instructions.
Switch the machine on by pressing
‘ON/OFF Pause’.
‘On’ will illuminate in the display
window.
A TYPICAL WASH &
DRY PROGRAMME
6
Press either the timed dry or sensor
dry button until you see the setting
you require in the display.

Choose a suitable detergent
●Follow the detergent manufacturer’s recommendations to make sure you
use the correct amount for your wash.
●To achieve the best wash results, the water hardness, degree of soiling and load
size need to be considered and the recommended amount of detergent used.
●Choose ‘lowsuds’ automatic powder, liquid or tablets, designed specifically for
automatic washing machines. Do not use handwash detergent, even on the
handwash programme as excessive suds will occur.
●Do not use too much detergent or exceed the maximum level indicators.
●Do not use too little detergent, you will not achieve a clean wash. Follow the
detergent manufacturer’s recommendations.
Prewash detergent
compartment.
Maximum 200ml
powder or 100ml
liquid.
Fabric conditioner
compartment.
120ml maximum
Grate
Fabric conditioner exit channel
(viewed from the rear of the
dispenser drawer).
The dispenser drawer
If you wish to use liquid detergent:
We recommend the use of a detergent ball as provided by your detergent manufacturer.
Main detergent
compartment.
Maximum
400ml powder
or 200ml liquid.
Outlet pipe
13
THE DISPENSER
DRAWER
Drawer release latch

When you are using
the pre-wash
option with your
selected programme
add detergent to
the pre-wash
compartment
(lsymbol).
Add the detergent
for the main wash
to the main
compartment
(ll symbol).
Dispensing liquid detergent
We recommend the use of a detergent dosing ball, as provided by
your detergent manufacturer.
Using in-drum
dosing
Pre-wash
Dispensing tablets
Dispensing powder detergent
To achieve the best wash results the
manufacturer’s recommended amount
of detergent should be measured and
added to the main detergent compart-
ment (II symbol) (max. 400ml).
Adding fabric
conditioner
Pour the
recommended
dosage of fabric
conditioner into
the compartment
(flower symbol).
Do not exceed
the maximum fill
line.
14
WARNING:
●Do not put any
item(s) into
the drawer
other than
detergents
that are
designed to be
released from
the drawer as
they may cause
damage or
blockage. Most tablets are dispensed via the machine drum using a
net, or similar device, which is placed on top of the
washload towards the back of the drum. However, some
tablets are designed to be placed in the dispenser drawer.
Check the pack for details.
Dosing devices -
balls, nets etc can
be used.
Place upright, on
top of the wash
load and towards
the back of the
machine.
DO NOT use with
the pre-wash
option.
DO NOT use if
selecting a drying
programme.
THE DISPENSER
DRAWER

Door Locked Indicator...‘Keyhole’ symbol
The ‘Keyhole’ symbol will illuminate 2 seconds after you have
pressed the ‘START/CANCEL’ button and will remain lit
throughout the wash programme.
The ‘Keyhole’ symbol will be flashing at the end of the
programme to indicate that the door is still locked. When the
symbol goes off you will hear a bleep and the door can then
be opened.
Door not closed
If a flashing ‘Door’ message appears in the display window,
the door has not been closed properly and the programme
will not start. Ensure that the door is closed properly by
pushing it until you hear the catch click.
WARNINGS:
●Do not try to
open the
door during
the wash
programme.
●Do not allow
children to
play with the
machine or
tamper with
the controls.
●If you cancel a
programme
part way
through a
wash or there
is a power
cut, take care
when
opening the
door. The
machine may
contain hot
water.
●This machine
has a Child
Lock feature,
which when
activated
disables all
controls (see
‘Options’).
Progress indicators
Wash programmes
PROGRAMMES
AND OPTIONS
15
On-Off / Selecting a wash programme
Switch the machine ‘On’ by pressing the ‘ON/OFF Pause’
button.
To begin the selected programme press ‘START/CANCEL’. I n
order to switch the machine off at the end of the wash
programme press the‘ON/OFF Pause’ button.
To change a programme
Press the ‘START/CANCEL’ button once.The machine will
bleep and enter a 2 minute pump out programme.
‘0:02’ will be displayed in the window. Pressing the
‘START/CANCEL’ button again will cancel the programme
totally and ‘On’ will appear in the display window. A different
programme can now be selected by pressing the required
programme button. You might need to add detergent and
fabric conditioner. Press the ‘START/CANCEL’ button to begin
the new programme.
The progress status lights
This set of lights indicate what stage in the wash cycle
the selected programme has reached.
Each light will appear in sequence as each stage of the
programme is reached.
‘START/CANCEL’ button
‘ON/OFF Pause’ button
Programme selection buttons

Wash programmes
Spin speed
(rpm)
Wash
Temp
˚C
Wash
Label Press Button
Display
Window
shows Fabric
6kg
White cotton and linen
without special finishes
95
6kg
Non-Colourfast cotton,
linen or viscose
40
6kg
Colourfast cotton
linen or viscose without
special finishes
60
16
1600
1600
1600
Three
times
Twice
Once
PROGRAMMES
AND OPTIONS
Fabric type - Cotton
Maximum
dry weight
load
To select a programme to suit your individual requirements use the following
series of tables, explaining the wash programme buttons and programme details.
The programmes have been listed by Fabric Type.
The programme times ‘Time to End’...
For each wash programme and option(s) selected the machine automatically
calculates the estimated programme length ‘Time to End’. This is displayed in
hours and minutes shortly after the wash programme temperature has been
displayed.The ‘Time to End’ will then remain lit throughout the wash programme
and counts down to the end of the programme.
Note: These estimated programme times are dependant on the temperature and
pressure of the incoming water supply, the option(s) selected and the load being
washed. They may, therefore change during the fill stages of each programme to
take into account the extra heating or filling time required.
To review the current wash programme during the wash cycle...
This feature allows you to check the running wash programme.
●To view the temperature of the selected programme - press the
‘Variable Temperature’ button once.
●To view the spin speed of the selected programme - press the
‘Variable Spin Speed’ button once.
After a few seconds the display window will return to the ‘Time to End’ showing
the remaining programme length.
If you decide the selected programme does not suit your requirements you can
change the programme, see previous page ‘To change a programme’.

Wash programmes
17
PROGRAMMES
AND OPTIONS
1.5kg
Wool mixtures with cotton or
rayon.
40
2.5kg
Shrink resistant hand
washable wool, woollen
blankets.
40
Once
600
600
Spin
speed
(rpm)
Wash
Temp
˚C
Wash
Label Press Button
Display
Window
shows Fabric
Fabric type - Hand Wash Wool
Maximum
dry weight
load
3kg
Silk
Printed acetate
30
Once 800
Spin
speed
(rpm)
Wash
Temp
˚C
Wash
Label Press
Button
Display
Window
shows Fabric
Fabric type - Silks and Hand Wash
Maximum
dry weight
load
3kg
Synthetics
Coloured nylon, polyester,
acrylic and cotton mixtures,
cotton or viscose with special
finishes, coloured polyester
and cotton mixtures.
50
3kg
Acrylics
Acrylics and tri-acetate blends
of these fabrics with wool,
polyester and wool blends
40 Once
Twice
800
800
Spin speed
(rpm)
Wash
Temp
˚C
Wash
Label Press Button
Display
Window
shows Fabric
Fabric type - Acrylics and Synthetics
Maximum
dry weight
load
4kg
Handwash
A cool gentle action wash.
25
Twice 800

Wash programmes
18
PROGRAMMES
AND OPTIONS
5kg
For freshening up lightly
soiled items.
Warning: not for woollen, silk
or delicate items.
For freshening up lightly
soiled items.
Warning: not for woollen, silk
or delicate items.
60
Once 1600
Spin
speed
(rpm)
Wash
Temp
˚C
Wash
Label Press
Button
Display
Window
shows Fabric
Fabric type - Cottons, Fast Wash
Maximum
dry weight
load
6kg
3kg
6kg
3kg
Rinse and Spin Fast
Cottons
Rinse and Spin Slow
Delicates
Fast Spin
Cottons
Slow Spin
Delicates
Once
Twice
Three
times
Four
times
1600
1600
Spin
speed
(rpm)
Press
Button
Display
Window
shows Fabric
Fabric type - Cottons and Delicates, Rinse and Spin programmes
Maximum
dry weight
load
800
800
Once
Spin
speed
(rpm)
Wash
Temp
˚C
Wash
Label Press
Button
Display
Window
shows Fabric
Fabric type - Super Wash Cottons
Maximum
dry weight
load
6kg
An intensive wash programme
to get your whites even whiter.
60
1600
3kg
30
Twice 800

Dry programmes
19
PROGRAMMES
AND OPTIONS
Drycare tips...
Items not suitable for tumble drying:
●Garments with the ITCL code - .
●Woollens.
●Large, bulky items eg. quilts, bedspreads, pillows etc...
expand when dry, preventing air flow through the
appliance.
●Items containing plastic film, foam rubber or rubber like
materials eg. pillows, cushions, PVC rainwear or
inflammable articles which contain inflammable
substances eg. towels contaminated with hair lacquer.
●Fibreglass (eg. some types of curtains).
●Items which have been dry cleaned.
Important information:
●A 20 minute ‘cool tumble’ is included at the end of drying,
allowing fabrics to cool down, minimising creasing.
●A spin cycle may be carried out during drying if you have
set a cotton programme.
●Select HIGH heat (for Cottons) by pressing the Drying
Heat button. If not selected the programme will
automatically default to LOW heat (for Synthetics).
●This machine incorporates a sensor dry programme that
can be used with either HIGH or LOW heat settings.
●Your washer dryer is fitted with a revolutionary self-clean
filter, which will flush with water during drying.
Dry
Weight
Loads...
Two examples
of maximum
wash loads for
different types
of fabric.
COTTON
2 Bath Towels
6 Shirts
6 Blouses
2 sets of
Pyjamas
4 items of
Underwear
2 Pillow cases
= 5kg
SYNTHETIC
3 Children’s
Dresses
5 Shirts
6 Blouses
2 sets of
Pyjamas
4 items of
Underwear
= 3kg

Dry programmes
20
PROGRAMMES
AND OPTIONS
2
3
4
1
6
Press the Drying Heat button to
select high heat (if required) for
Cotton.The indicator light will
show selection.
Set the required drying time or
Sensor dry option.
A short time after the programme has finished the
‘Keyhole’ will go out and you can open the door.
Remove the wet laundry and dosing ball (if used) until the
correct ‘Drying Weight Load’ is left in the drum. Close the
door until it clicks shut.
Press the ‘ON/OFF Pause’ button.
‘On’ will illuminate in the display
window.
5
When all the selections have been
made press the‘START/CANCEL’
button.
The door will lock, the ‘Keyhole’
will glow in the display.
Independent drying programme...
WARNINGS:
●If your
machine is not
permanently
plumbed in,
turn on the
cold water
supply to the
appliance and
hook the drain
hose over the
sink to enable
the condensing
action to work.
●The dryer is
intended for
use only where
water is used
for the cleaning
process.
●Be careful not
to touch the
drum at the
top as this area
gets hot
during drying.
●On no account
should liquid
fabric
conditioner be
added during
the drying
process.
●Misuse of the
dryer may
create a fire
hazard.
Once 180
Twice 150
Three times 120 Cotton or Synthetic
Four times 90 dependent upon 1kg - 5kg
Five times 60 Drying Heat
Six times 45 selection
Seven times 30
Eight times OFF
Press Button Display
Window shows Fabric
Timed Dry
Maximum dry
weight load
Once Cupboard Dry
Twice Hanger Dry 1kg - 5kg
Three times Iron Dry
Press Button Display
Window shows Fabric
Sensor Dry
Maximum dry
weight load
Once High Heat Cotton 5kg
Twice Low Heat Synthetics 3kg
Press Button Display
Window shows Fabric
Drying Heat
Maximum dry
weight load
