Hott S066 User manual

S066 User Manual
Warning:
This device is recommended to use in house. Don’t use this
device in high temperature and poisonous environment. Don’t
put this device into water to avoid damage. Inserted battery,
and don’t put the device close to fire to avoid exploding. Don’t
repair and change the device yourself avoid losing warranty.
Don’t use for long time, especially in high volume, which will hurt
your ear.

Important safety notice
1. Please read the User Guide.
2. Please save the User Guide
3. Please pay attention to the Warning
4. Please use the device according to the User Guide
5. Don’t use this device exceed the function definition.
Specification
Support Bluetooth call, FM, time display.
ode/Device name: HOTT
Bluetooth Version: BT5.0
Range: 10m (Free space)
Output power: 3W
Frequency: 20Hz~20kHz
SNR: ≥80dB
Battery capacity: 3.7B 1000mA
Play time: >10H (Default volume)
Charging time: 3~4h
Inserted MIC
IPX4 waterproof

Micro USB interface
Charging IN: DC 5V
Packaging；
Bluetooth kit
Micro USB cable
User Guide

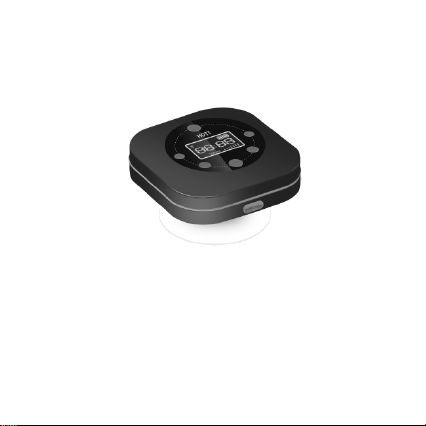

Product Diagra

Main function
1. Press power key for 3s to power on or off.
2. Short press can play/ pause. Disconnect Bluetooth in
BT mode.
3. Volume up/ Next
4. Volume down/ Previous
5. Answer/Reject/Dial call
6. Screen display user interface
7. Charging with USB cable, connect to DC 5V or PC.
8. Blue LED on when working, Red LED on when charging.
9. FM/M mode change, BTFMTime
10．MIC whole
Charging can reset the device if work abnormally.

Product operation
A. Running station
Press the power button for 3 seconds, hear the warning tone,
the blue led will flash, and it will be on if connected successfully.
B. Power off
Press the power button for 3 seconds, after hearing the warning
tone, the device will power off.
C. Bluetooth pairing
If not connected before, you need connect your loudspeaker box
with the Bluetooth device according the program below.
1. Power on, after hearing the warning tone, the box will be in
pairing mode, and the blue led will flash.
2. Activate your Bluetooth device, and search.
3. Select the box name, which was searched by your Bluetooth
device.
Notice: If the box is being connected with other device, you
need disconnect, and search again.
4. The password is “0000” if need, and choose “OK”. The
password would be different between different manufactures.
5. If paired successfully, the blue led will be on all the time. Now,

you can use your box to play music and call. When playing the
music, the blue led will breath slow. When pause the music, the
blue led will flash several seconds, the be on all the time.
Notice:
If connected with the box before, you need connect according to
the instruction below.
Activate Bluetooth function in your device, the loudspeaker box
will connect with your device automatically and can hear the
warning tone.
Play music after Bluetooth connecting
Short press to play and pause if playing.
Long press to play next, and short press to volume up.
Long press to play previous, and short press to volume
down.

Hands free call mode
If connected, you can press to answer the call, and press
to hang up when talking.At the same time, music will stop
automatically.
Charging for the loudspeaker box
Battery inside, can connect the USB cable to PC to charge the
box, or connect the USB cable to DC 5V adaptor. When
charging, the red led will be on. If charging finished, the red led
will be off. Please remove the cable.
The working time will depend on the volume level, the higher
volume, the shorter time. You need re-charge the box if you
didn’t use it for a long time. It’s recommended to charge the box
once per month, so that can protect the battery better, and the
battery will work for longer time.

FM mode
Long press into FM scan mode, and save automatically.
Short press can play the channel saved.
Long press to change the channel saved, long press to
delete the channel.
Long press / to modify frequency, short press can
change volume.
Time mode
Press change key into time mode, long press and type
12h/24h system, press / to change.
Short press to M/S mode and short press / to set
time.

Absorbed function when having a bath
When having a bath, can listen to the music and answer the call,as the
product can absorb the wall with the pedestal.
Notice:
Don’t dip the product into water, which will damage the product.
Capacity
Bluetooth version: BT5.0, support profile: A2DP /HFP/AVRCP
This device complies with Part 15 of the FCC Rules.
Operation is subject to thefollowing two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
FCC ID: YB2-S602

Question and instruction
If find some problem when using this product, you can solve
according to the solution below.
Trouble
Trouble shooting
Solution
Charge failure
USB power charger (not
included in this package
) is not inserted into the
wall socket or USB
cable (included in the
package) is not inserted
into the 2.0mm interface
on the side of the
speaker
Insert the charger
into the wall socket or
USB cable into the
2.0mm interface on
the side of the
speaker
The wall socket doesn't
work.
Insert the device into
another wall socket to
make sure the
playback fails
The USB port of the
computer doesn't work.
Make sure your
computer is turned on
and try another USB
port.

There is
no sound
The battery in the
speaker is dead
Recharge
Phone not connected. Read the "speaker
actions" section to
connect speakers
Volume is too low. Volume up your
product
Can’t connect
with the
product.
Can’t pair Check your Bluetooth device if support
A2DP profile
Sound source off Open the sound
source/
The Bluetooth is off Open the Bluetooth in
your device
Bluetooth is
incompatible
Use different play
device
Poor quality/
interrupt
The device exceeds the
range
10m in free space.
Notice, all the information above only for your reference.

S066 中文参考说明书
警告
此设备只限于室内使用。
请不要在高温或者有毒环境下存放或者使用此设备。
请勿将设备浸于水中，会损坏机器。
设备内含可充电电池，所以请不要将其放在火上，以免发生爆炸；
保修范围不包括因用户擅自修理、修改的情况。
不要长时间地在高音量下听音乐，这有可能会损害你的耳朵；
重要安全提示
1.请阅读指导说明；
2.请保存指导说明；
3.注意所有的警告部分；
4.遵循所有的指导说明；
5.除该设备的定义的功能使用以外，请不要用此设备用于其它用途。

规格:
（支持蓝牙通话功能， FM 收音，时钟显示功能）
型号/设备名称：HOTT
蓝牙版本：BT5.0
传输距离为 10M（根据周围环境的不同传出距离也会有所不同）
输出功率：3W
频率：20Hz – 20KHz
信噪比：≥80dB
内置电池：3.7V 1000MA
播放时长： 默认音量>10H
充电时间：3-4H
内置麦克风
IPX4 防水等级
Micro USB 充电接口
充电输入：DC5V
包材：
说明书 蓝牙音箱 Micro USB 充电线

产品图解

主要功能
1. 长按电源键 3秒进行开/关机。
2.短按可选择播放或者暂停音乐。蓝牙模式长按断开蓝牙
3.音量增加/下一曲
4.音量减小/上一曲
5. 接听/挂断/拔打电话
6. 显示屏 显示界面模式功能
7.使用配带的 USB 线来充电，连接 DC5V 充电器或者电
脑都可进行充电。
8.蓝色 LED 灯亮时表示正在工作，红灯表示充电。
9. 模式切换键，蓝牙-FM 收音-时钟模式顺序切换
10．麦头孔
.如果设备无法工作，请插入 USB 充电激活设备。

音箱操作
A.开机状态
长按电源键 3秒，将听到提示音，蓝色指示灯将开始闪烁，一旦
配对成功，蓝灯显示为长亮，
B.关机
长按电源键 3秒，将听到提示音，机器将处于关闭状态。
C.蓝牙配对
如果蓝牙音箱从未与设备连接过，你需要遵循以下指导来将音箱
与你的蓝牙设备进行连接。
1.开机，在听到提示音后，蓝牙音箱将进入蓝牙配对模式，且蓝
色指示灯将一直闪烁。
2.激活你的蓝牙设备，让其开始搜索要配对的蓝牙设备名称。
3.从发现的蓝牙设备名称列表中选择蓝牙设备名称。
注意：如果该设备已经连接到另外一台蓝牙设备，那么蓝牙音
箱设备将不会出现在列表里面，你需要将已经连接的蓝牙设备
断开，并再次搜索。

4.如果你的设备询问密码，请输入数字 0000 并且选择 OK(会随着
不同的蓝牙制造商，型号及软件版本不同而不同)
5.如果配对成功了，蓝牙音箱指示灯为蓝色长亮，而不是快速闪
烁。此时你的蓝牙音箱可以进行音乐播放以及接听手机来电。当
你播放音乐的时候，蓝色 LED 灯将缓慢闪烁。当暂停音乐时指示
灯将缓慢闪烁几秒，然后保持长亮。
注意:如果音箱以前连接过蓝牙设备，则需要遵循以下指导来
进行蓝牙连接：在要配对的设备上激活蓝牙，蓝牙音箱将自动
连接到你的蓝牙设备，将听到提示音。
蓝牙模式下的音乐播放
蓝牙连接成功后，短按一次 播放音乐，再短按 为暂停
音乐，
长按 为播放下一首歌曲，长按 为播放上一首歌曲。
短按 为加大音量，短按 为减小音量。

将音箱用作免提蓝牙电话
当你的蓝牙设备已经与音箱配对后，如果有来电或者去电，音箱
会自动从音乐播放模式转到电话模式。如果有来电，短按 来
接听电话。完成通话后，再短按一次 来挂断电话。通话结束
后，音乐将自动继续播放。
音箱充电
音箱内置可充电电池，用自带的 USB 线来连接电脑，或者 DC 5V
的充电器来充电。当音箱处于充电状态时，充电指示灯变成红色。
当音箱充满电时，红色 LED 灯将关闭。充满电后，请将音箱从电
源上拔下。
电池的播放时间取决于播放时的音量大小（音量越大，播放时间
越短）。如果长时间没有使用蓝牙音箱，则在重新使用前请充电。
我们也建议一个月充一次电，这样可以保护电池，延长电池的寿
命。

FM 模式
按切换键进入 FM 收音模式
长按 键，进入自动收台模式，自动收索到的电台，会自动保
存。
自动保存的电台，短按 键，可以按顺序切换播放不同的电台
长按 模式切换键可以保存当前电台，长按 键可以删除已
保存的电台。
长按 /可以手动调节频率，短按时可以调节音量的大
小
时钟模式
按切换键，进入时钟模式长按 键进入 12 小时/24 小时制，按
/键来切换。
短按 键，进入时/分数字调节模式，短按 /手动
调节所需的数字时间
