Hoval 30-BioLyt 8 User manual

Subject to modifi cations | EN
Technical information
Installation instructions
4 211 326 / 01 - 09/12
Hoval products must be installed and commissioned
by specialists. These instructions are intended for the
specialist. Electrical installation must be performed by
a licensed electrician.
BioLyt (8-36)
Wood pellet boiler
These instructions apply to the following
models:
30-BioLyt (8) 7.9 kW
30-BioLyt (13) 13.0 kW
30-BioLyt (15) 14.9 kW
30-BioLyt (23) 23.0 kW
30-BioLyt (25) 24.9 kW
30-BioLyt (31) 31.0 kW
30-BioLyt (36) 36.0 kW

1. Important notes
1.1 On delivery...........................................................................................................................................................................4
1.2 Warranty and liability ..........................................................................................................................................................4
1.3 Instructions..........................................................................................................................................................................4
1.4 Approvals and identification...............................................................................................................................................4
1.5 Regulations, official approvals ...........................................................................................................................................4
1.6 Key to symbols used...........................................................................................................................................................4
1.7 Standards and directives ....................................................................................................................................................5
1.7.1 Germany §........................................................................................................................................................................5
1.7.2 Switzerland § ....................................................................................................................................................................5
1.7.3 Austria § ...........................................................................................................................................................................5
1.7.4 Europe §...........................................................................................................................................................................5
2. Installation
2.1 Characteristics of the boiler room......................................................................................................................................6
2.2 Installation and set-up.........................................................................................................................................................6
2.2.1 Installation ........................................................................................................................................................................6
2.2.1.1 Removing refractory lining elements (Option) ...................................................................................................................................6
2.2.1.2 Fitting refractory lining elements.......................................................................................................................................................7
2.2.2 Set-up...............................................................................................................................................................................7
2.3 Installing the boiler..............................................................................................................................................................8
2.3.1 Installing the bottom section..............................................................................................................................................8
2.3.2 Changing the boiler door attachment side (Option)............................................................................................................8
2.3.3 Fitting the heat exchanger.................................................................................................................................................9
2.3.4 Fitting the burner.............................................................................................................................................................10
2.3.5 Fitting the control, routing probes and sensors................................................................................................................12
2.3.6 Fitting the casing and the pellet hopper...........................................................................................................................14
2.3.7 Fitting the RAS 81 suction system (Option) .....................................................................................................................16
3. Technical information
3.1 Brief description................................................................................................................................................................18
3.2 Technical data....................................................................................................................................................................19
3.3 Dimensions........................................................................................................................................................................20
3.4 Space requirement ............................................................................................................................................................21
3.5 Overall unit dimensions and weights ...............................................................................................................................22
4. Installation
4.1 Water connections.............................................................................................................................................................23
4.1.1 General provisions..........................................................................................................................................................23
4.1.2 Safety equipment............................................................................................................................................................23
4.1.3 Return temperature control .............................................................................................................................................23
4.1.4 Insulation of the heat distribution system.........................................................................................................................23
4.1.5 Additional installation information....................................................................................................................................23
4.1.6 Hydraulic integration .......................................................................................................................................................24
4.2 Connection of the flue gas system and flue duct dimensions ........................................................................................26
4.3 Electrical connections.......................................................................................................................................................27
4.3.1 General information ........................................................................................................................................................27
4.3.2 Electrical connection.......................................................................................................................................................27
4.3.3 Wiring diagram................................................................................................................................................................28
4.3.4 Connection diagram........................................................................................................................................................33
4.3.5 Legend, wiring diagram, connection diagram...................................................................................................................34
24 211 326 / 01
TABLE OF CONTENTS

5. Commissioning
5.1 Water quality......................................................................................................................................................................35
5.1.1 Heating water..................................................................................................................................................................35
5.1.2 Filling and replacement water .........................................................................................................................................35
5.2 Filling up the heating system, the calorifier (if fitted) and hot water buffer storage tank..............................................36
5.3 Commissioning..................................................................................................................................................................36
5.4 Installation inspection.......................................................................................................................................................36
6. Maintenance
6.1 Cleaning the boiler ............................................................................................................................................................37
6.2 Annual maintenance by the heating engineer..................................................................................................................37
6.2.1 Heating system ...............................................................................................................................................................37
6.2.2 Boiler ..............................................................................................................................................................................37
7. Overview of settings
7.1 Table of parameters...........................................................................................................................................................38
7.2 Fault messages TopTronic®T.............................................................................................................................................50
7.3 Fault messages, automatic firing device FFA101 ............................................................................................................52
3
4 211 326 / 01
TABLE OF CONTENTS

1. Important notes
1.1 On delivery
Carry out an immediate visual inspection of the boiler
on receipt of the delivery. If damage is ascertained,
immediately take the steps specied in the delivery contract.
The respective risk carrier bears the cost of repairs.
1.2 Warranty and liability
The warranty does not cover defects as a result of:
• Non-observance of these instructions
• Non-observance of the instructions in the operating
manual
• Faulty installation
• Unauthorised modications
• Incorrect handling
• Contaminated operating materials (pellets, water,
combustion air)
• Unsuitable chemical additives to the heating water
• Malicious damage
• Corrosion caused by halogen compounds (e.g. in paints,
adhesives, solvents)
• Corrosion resulting from non-observance of the required
water quality
1.3 Instructions
You will nd all instructions relevant to your system
compiled in the Hoval system manual - please retain all
instructions for future reference!
In exceptional cases, the instructions can be found in the
documentation for the components!
Further sources of information:
• Hoval catalogue
• standards, regulations
1.4 Approvals and identification
Wood pellet boilers of the type series BioLyt are designed
and approved for use as heat generators for hot water
heating systems with ow temperatures of up to 75 °C.
They comply with the requirements of the European
standard for solid fuel boilers EN 303-5. The boilers
have been tested by TÜV SÜD (Technical Inspectorate
South Germany) (Munich).
The type label with the technical data is attached to one
of the casing side panels. The label includes the serial
number identifying the boiler.
1.5 Regulations, official approvals
The standards and directives listed under point 1.7 must
be observed when installing and operating the system.
1.6 Key to symbols used
Tool:
Shows the tools required to perform the work
described below.
Result:
Shows the expected reaction to your action.
i
Note:
Provides important information
Safety instruction:
Indicate an immediate hazard to persons
Voltage:
Warns of dangerous voltages.
Cautionary note:
Warns of danger to machines and systems.
§
Provides important information. Refers you to
standards and directives.
44 211 326 / 01
IMPORTANT NOTES

1.7 Standards and directives
1.7.1 Germany §
EnEV Energy conservation ordinance in the
current version.
1.BimSchV 1st Act for the implementation of
the applicable Federal Immission
Protection Act, in the current version.
TRD 721
Safety valves for steam boilers of group
II (also applies to heat generators with
safety temperatures below 100 °C)
TRD 414 Wood-red combustion systems on
steam boilers
DIN 4702 Part 4 Boilers, general; Boilers for wood and
other biomass fuels
DIN 4807 Expansion tanks
DIN 4753 Part 1 Caloriers for drinking and process
water
DIN 1988 Part 2 Technical rules for drinking water
installations (DVGW)
VDI 2035 Guidelines for the prevention of
corrosion and scale formation in water
heating systems
DIN V 18160 Planning and design of waste gas
systems.
DIN 4795 Secondary air devices for domestic
chimneys
Local building
regulations
The relevant local building regulations
must be observed when installing
or modifying a combustion system
(combustion and waste gas systems).
FeuV Ordinance for ring installations and
boiler rooms - passed as a result
of the building regulations for the
corresponding federal state.
1.7.2 Switzerland §
• Hydraulic regulations and those pertaining to
instrumentation and control
• Cantonal and local re prevention authority regulations
as well as state-specic regulations
• Fire protection regulations of the VKF
• SVGW (Swiss Association of Gas and Water Experts)
directives and guidelines for the use of gas
• SWKI BT-102-01 guidelines on water composition for
heating, steam, cooling and air conditioning systems
• SWKI 91-1 guidelines on boiler room ventilation
• SWKI 93-1 safety guidelines for the installation of
heating systems
• Observe the SIA recommendations No. 384/4 Flue
systems for heating systems in buildings, calculation of
cross-sections
• Procal/FKR guidelines Ready-to-connect electrical
connections on heating boilers and burners
• Technical bulletin - Procal Corrosion by halogen
compounds
• The LRV regulations must be adhered to
1.7.3 Austria §
ÖNORM H5151-1 Design of hot water central heating
systems with or without water heating.
ÖNORM H5170 Heating systems - Requirements
with respect to building and safety
technology, re and environmental
protection.
ÖNORM H5190 Heating systems – Sound insulation
measures.
ÖNORM H5195
Part 1 and 2
Heat transfer media for building
services systems
Prevention of damage by corrosion
and the formation of scale in closed
hot water heating systems.
Frost protection in heating systems
and other systems containing heat
transfer media.
TRVB H118 Automatic wood-fuelled combustion
systems (re protection)
ÖNORM M7137 Wood pellets: Requirements with
regard to the storage of pellets by the
end customer
1.7.4 Europe §
EN 303-5 Boilers for solid fuels with a heat
output of up to 300 kW
EN 1443 Waste gas systems, general
requirements
EN 14868 Corrosion protection – Guidelines for
water circulation systems
EN 12828 Heating systems in buildings - Design
of hot water heating systems
EN 14961-2 Fuel wood pellets (A1)
EN 13384-1 Waste gas systems – Procedures for
heat and flow calculations
Waste gas systems with a fireplace
and further regulations and standards decreed by the
CEN, CEN ELEC, DIN, VDE, TRD and regulations and
standards prescribed by law. The regulations of the local
building authorities, insurers and chimney inspectors
must also be taken into account. Ofcial authorisation
may also be required.
5
4 211 326 / 01
IMPORTANT NOTES

2. Installation
2.1 Characteristics of the boiler room
The architectural and ventilation requirements for boiler
rooms are dened in the building regulations applicable
to the relevant installation site.
Ensure an adequate supply of fresh air to the boiler
room to make sure that there is an unobstructed ow
of the combustion air required for the operation of all
combustion devices in the boiler room and so that there
is no shortage of oxygen for operating personnel. Ensure
that the air intake can not be closed or blocked.
Minimum free cross-section for the air intake = 200 cm2.
2.2 Installation and set-up
As a rule, the modules are delivered on two pallets:
Content of the packaging units
Item Designation Content
1 Bottom section Bottom section with post-combustion ring and
ash separator; including sensors
2 Heat exchanger Heat exchanger with all regulators, induced-
draught fan and ue gas pipe connection;
including lambda probe and other sensors
3 Pellet burner Burner including ash wiper ring and secondary
air connection
4 Installation
accessories
Lifting aid, underlay plates, burner fan,
connection hose for connection pellet hopper-
burner, corrugated tube connection bottom
section-heat exchanger, installation aids
5 Ash box Pre-assembled ash box
6 Control Combustion regulation, completely pre-
assembled on retaining plate, wiring harness
and safety temperature limiter. Heat distribution
controller (TopTronic®T) pre-installed in the
boiler control panel. Assembly material
7 Casing Boiler casing, red powder-coated, complete,
including assembly material
8 Pellet hopper Pellet hopper, red powder-coated, completely
pre-assembled, including cover
9 Burner cover Sheet metal panelling for installation beneath
the pellet hopper
10 Pellet feed unit
RAS81 (optional)
Suction module for installation in the pellet
hopper
11 System manual Instructions, type label
2.2.1 Installation
The modular system, lightweight and compact
components and the carrying aids provided make
installation extremely easy.
For overall unit dimensions, see Chapter 3.5.
• Prevent damage to the fragile refractory lining elements
by avoiding jolting and vibration.
• Move the packaging units carefully to avoid scratching
the panelling components.
• A clear door width of 60 × 100 cm is sufcient to allow
the components of BioLyt boilers of all types to pass
through.
2.2.1.1 Removing refractory lining elements (Option)
The post-combustion ring (10.7 kg) and the dust separator
(6.7 kg) can be removed to facilitate installation of the
bottom section.
1. Open the boiler door (1a, Figure 02) by loosening the
two palm grips (1).
2. Release the 4 screws (2, Figure 01) and remove the
sealing plate.
2
Figure 01
6 4 211 326 / 01
INSTALLATION

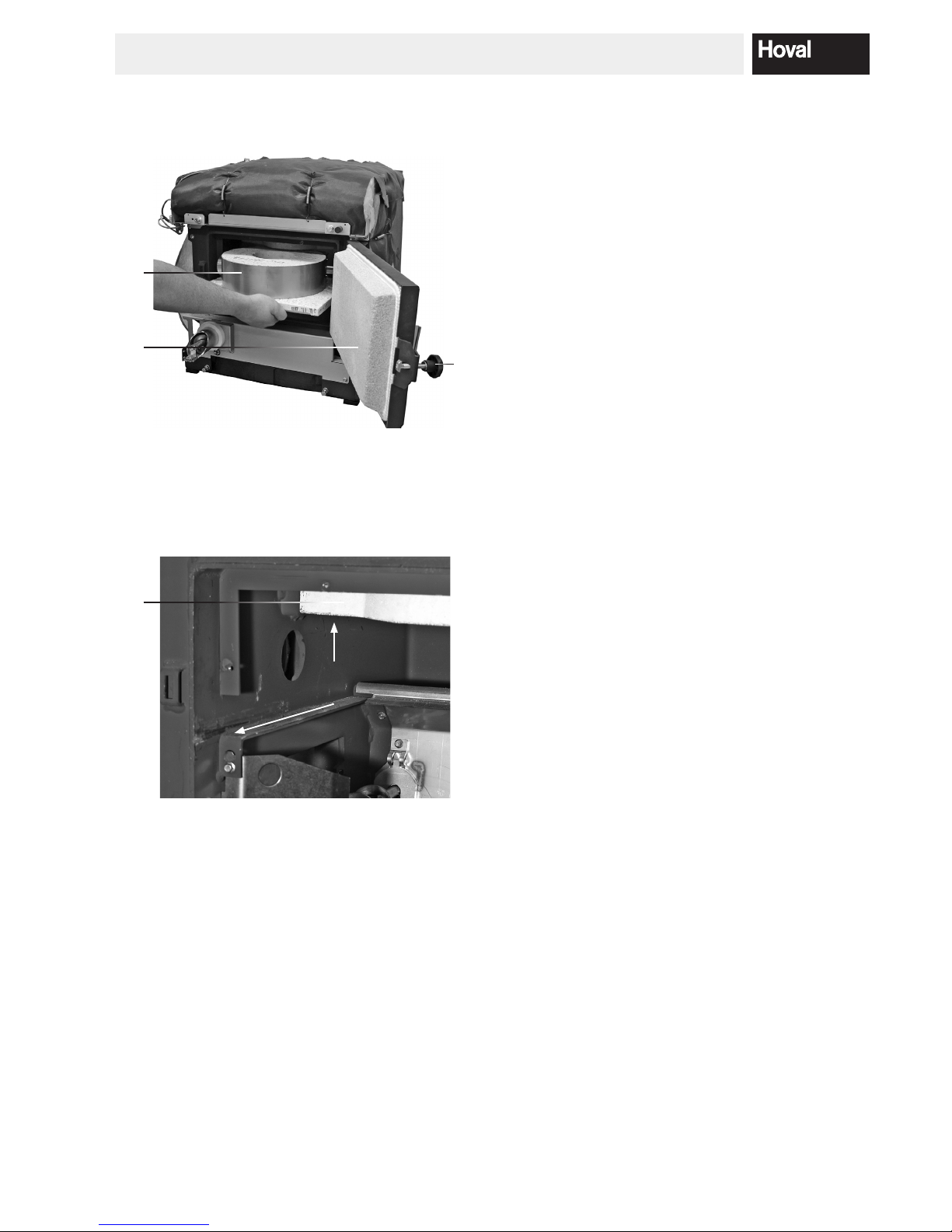

3. Using both hands, pull the post-combustion ring
(3, Figure 02) horizontally out of the bottom section.
1a
3
1
Figure 02
4. Lift the dust separator (4, Figure 03) straight upwards,
guide it towards the rear over the retaining bracket
and via the post-combustion ring rail towards the
outside.
4
Figure 03
2.2.1.2 Fitting refractory lining elements
The elements are tted by following the instructions above
in reverse order. Pay attention to the side nipple on the
post-combustion ring (3, Figure 02). It must always point
towards the left, in the direction of the burner mechanism.
2.2.2 Set-up
Observe the minimum wall clearances (see Chapter 3.4
and 3.5). If required, the boiler door can also be attached
on the left.
7
4 211 326 / 01
INSTALLATION

2.3 Installing the boiler
2.3.1 Installing the bottom section
i
Mark the position of the bottom section.
Refer to Chapter 3.5 for the minimum wall
clearances.
1. Position the bottom section at the point marked.
2. Place the 4 green metal plates over the 4 red
rubber plates; under each of the adjustable feet.
Use the 4 adjustable feet to align the bottom section
horizontally.
3. The insulation has a perforated opening on each
side to make it easier to expose the burner aperture.
Remove the insulation over the aperture on the left
side (later, it can be clamped between the casing and
the heat exchanger).
4. Remove the ash screw (4, Figure 04) – otherwise, it
will not be possible to install the burner!
- Release the vertical screw (4a) (Torx T25) on the
underside of the ash screw tube.
- Remove the bearing (4b).
- Pull the ash screw out (4) of the bottom section.
4a
4b
4
Figure 04
2.3.2 Changing the boiler door attachment side
(Option)
It is possible to change the boiler door attachment side,
allowing the door to be opened to the left. This may be
advantageous where space is restricted.
Proceed as follows:
1. Release the two screws (1, Figure 05) on the frame.
2. Loosen the two palm grips of the boiler door (2).
3. Turn the boiler door through 180° and position it so
that the hinge points towards the left.
4. Roughly position the door with the palm grips (2)
before xing it in place with the screws (1).
1
1
22
Figure 05
Make sure that the boiler door closes
tight! The system will not operate if the
boiler door does not seal tight, as it will
not be possible to generate the necessary
vacuum in the combustion chamber!
84 211 326 / 01
INSTALLATION

2.3.3 Fitting the heat exchanger
i
Check the position of the bottom section
again – It could have been moved while
performing the steps described above!
1. Remove the tension springs and bend the insulation
mat (1, Figure 06) on the bottom section towards the
boiler door.
1
1a
Figure 06
2. Place the heat exchanger on the bottom section
(Figure 08).
-Caution: It weighs 85/104/143 kg!
- Use the lifting aids provided on the front and at
the bottom (2, Figure 07) and the ow and return
connections (2a) on the back to stabilise it.
- Take care that the seal (1a, Figure 06) is NOT
displaced or damaged!
2
2b
2a
Figure 07
The heat exchanger must NOT be
suspended by the handles on the cover
(2b, Figure 07).
3. Remove the three thread protection caps (3, Figure 08)
from the connections between the bottom section and
the heat exchanger.
3
Figure 08
4. Fit each of the three corrugated pipe elbows
(see enclosed assembly instructions) individually,
together with the seals, and bolt them in position
as follows:
- If necessary, loosen the union nuts on the heat
exchanger side in order to align the pipe elbow
precisely over the connection on the bottom section.
- Grease the thread with a lubricant.
- Simultaneously t the two union nuts by hand.
Insulate the three corrugated pipe elbows,

Number 2023 563; enclosed in the
«Control» package).
5. Then x the union nuts successively in position with high
expenditure of force (using a pipe wrench without
extension; brace with an open-end wrench!).
6. Fix the heat exchanger in position on the bottom
section using the 8 collar nuts (M8).
9
4 211 326 / 01
INSTALLATION

2.3.4 Fitting the burner
1. Remove the ash wiper ring (1, Figure 09) from
the burner plate (1a) to facilitate insertion of the
burner (1c).
1
3a
1b
1a
3
Figure 09
2. To do this, turn the ash wiper ring with the marking
(Figure 10) towards the recess. Use a felt-tip marker
to mark the ash wiper ring on the opposite side
(for «front»); this makes later installation easier.
Lift the ring at the arrow marking on the rear and pull
it away from the burner plate.
Figure 10
3. Loosen the two screws (3, Figure 09) of the secondary
air connection (3a) and pull the secondary air
connection off; this makes it easier to insert the
burner into the bottom section.
7. Fold the insulation mat back into place and secure
with the tension springs.
The connection between the bottom
section and the heat exchanger must seal
tightly!
If possible, now pressure-test the bottom
section with the heat exchanger, checking
for leakage (mains water pressure is

If a leak is not detected until after the
electrical connections and the casing
have been installed, it is much more

10 4 211 326 / 01
INSTALLATION

4. Turn the two hammer-head bolts on the burner to
vertical position.
Figure 11
5. Lift the prepared burner up obliquely and guide it
carefully into the bottom section. Fit the burner onto
the two pins (5, Figure 12) on the bottom section.
5
6
Figure 12
6. Insert the secondary air connection into the bottom
section through the opening in the side. As you do so,
pay attention that the sealing cord (6, Figure 12) is
seated correctly. Reattach the secondary air connection
to the burner – the screws should be located fully
inside the recess on the mounting plinth (secondary air
connection must be fully inserted).
7. Press the burner rmly onto the bottom section. Press
the two hammer-head bolts against the bottom section
and turn them clockwise through 90°. This locks the
rear part of the bolt in position, and you can now
screw the burner to the bottom section using the nut.
i
Never turn the hammer-head bolts anti-
clockwise - turning them just a short
distance in anti-clockwise direction will
release them from their anchoring in the
bottom section!
8. Check that the burner is tightly seated on the
bottom section.
9. To make it easier to t the ash wiper ring, release screw
(9, Figure 13) and remove the ash wiper plate (9a).
10. Fit the front section of the ash screw (10) by inserting
the released screw into the rear screw located in
the bottom section. It can be positioned precisely by
holding the screw and guiding it by hand in the cavity
(Figure 13).
11. Reattach the ash screw (4, Figure 04) with the screw
bearing (4b).
12. Fit the ash wiper ring as follows:
- Turn the ash wiper ring so that the notch points
towards the recess on the burner plate. The recess
is located in the BACK of the combustion chamber.
- Place the ash wiper ring on the burner plate at
the front and press the wiper ring back towards
the recess.
- Test the ash wiper ring for ease of movement.
13. Using the screw (9), attach the ash wiper plate
(9a, Figure 13) as far as the lower stop of the bracket.
9
10
9a
Figure 13
114 211 326 / 01
INSTALLATION

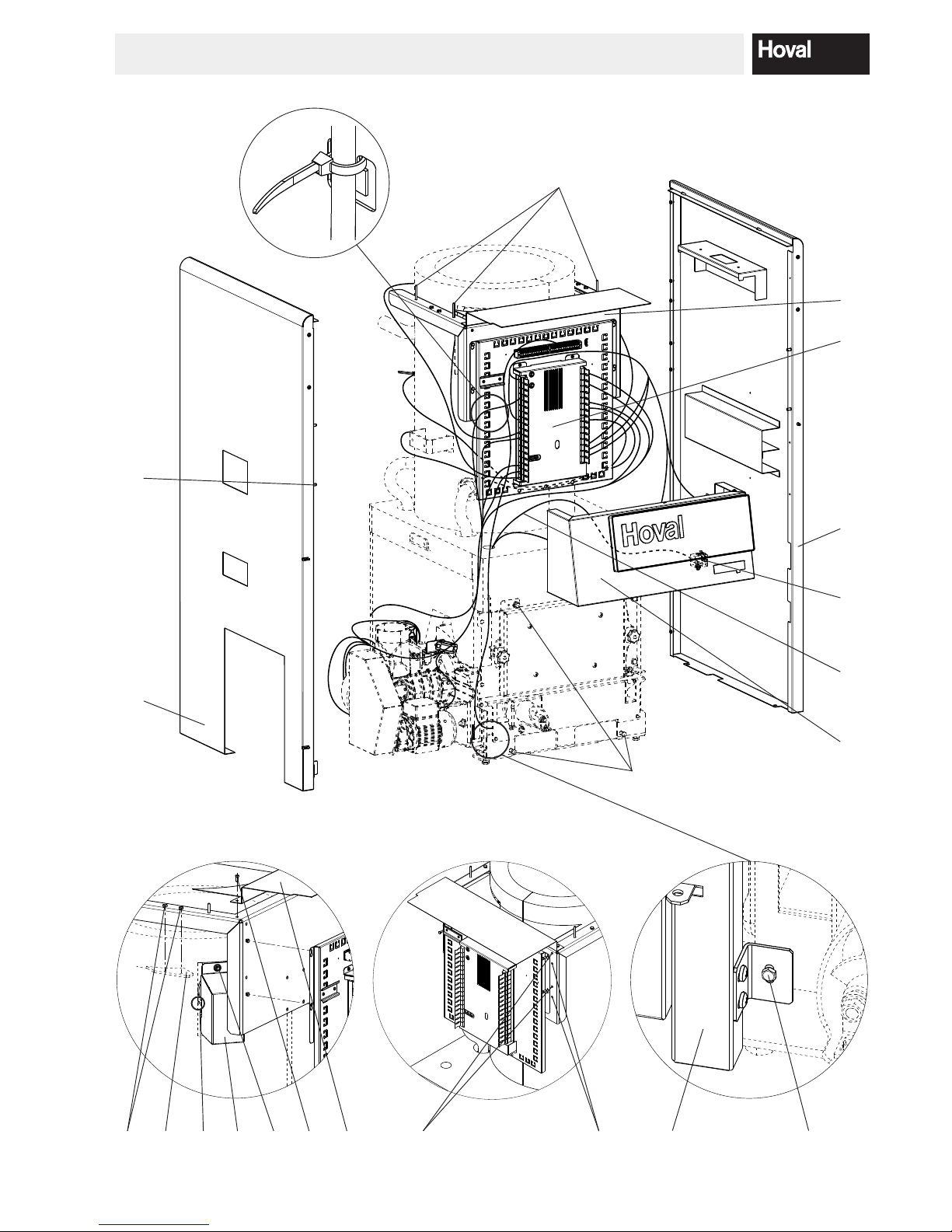

2.3.5 Fitting the control, routing probes and sensors
1. Remove the transport locking device (1, Detail A) from
the heating surface motor by releasing the nut (1a)
and remove screw with locking nut (1b). Reattach
the heating surface motor by replacing the M8 nut
and locking ring.
2. Fit the automatic ring device:
-Insert the four M5x50 screws (2, Figure 14) into the
support plate (2a) from below.
- Place the support plate on the bracket on the boiler
(2b, Detail A) and x it in position with two M6x12
screws (2c) each on the left and right.
- Turn the four M5x12 screws (Detail B) half-way into
the support plate.
Pos. 2d, type BioLyt (8-13)
Pos. 2e, type BioLyt (15-36)
Then hook the automatic ring device (2f, Figure 14)
onto the previously tted screws (2d, 2e) and x it
in position.
3. Route all cables from the burner, bottom section
and heat exchanger to the automatic ring device
(cable routing as shown in Figure 14).
When routing the cables, ensure that the
cables do not touch any hot or sharp-
edged components and that they are not
damaged in any way.
- Negative pressure switch (PU)
- Bottom lling level sensor (PBSu)
- Combustion chamber sensor (BRF)
- Ignition element (Z)
- Pressure fan voltage supply (DG)
- Pressure fan speed control (DG-PWM)
- Modulating stoker (HS)
- Stoker/feeder screw rotation monitoring (ESDU)
- Lambda probe (O2)
- Boiler sensor (BK)
- Flue gas sensor (BAG)
- Rotating grate (DR)
- Heating surface motor (HFR)
- Induced-draught fan (SZG)
4. After all the cables have been routed, proceed to t
and secure the plug-in connections according to the
diagram on the automatic ring device.
5. Fit the side walls:
- Remove screw (5, Detail C) on the bottom section
(attachment bracket is pre-tted on the left side wall).
- Working from above, hook the left side wall (5a) into
the support plate (2a) and into the bolts on the oor
of the boiler. Then secure by replacing the screw (5)
which was removed before.
- Working from above, hook the right side wall (5b)
into the support plate (2a) and into the bolts on the
oor of the boiler.
6. Fit the cables on the edge of the automatic ring
device (2f) and attach with a cable tie (Detail D).
7. Mount the controller box:
-Remove the shoulder screw (7, Figure 14).
-Establish the plug-in connections between the
control (7a) and the automatic ring device (2f)
(bus connection RS485, connector XU).
-Route the return sensor (RLF/VE1) from the bottom
section to the control and plug it in.
-Hook the controller box (7a) into the side walls
(5a, 5b) and t the shoulder screw again.
-Connect the safety temperature limiter (STB) (7b)
by attaching at connector at mounting tongues 1
and 2. Position and attach the capillary sensor (7c)
in the immersion sleeve on the bottom section.
8. Fit the protection plate (8, Detail A) with one screw
(8a, M5x12) each on the left and right.
12 4 211 326 / 01
INSTALLATION

Detail C
5a 5
5b
7a
5a
Figure 14
Detail D
2f
2a
2c
Detail A
1 88a1a2b
7
1b
2
7b
7c
2d 2e
Detail B
11b
134 211 326 / 01
INSTALLATION

2.3.6 Fitting the casing and the pellet hopper
1. The controller box (1, Figure 15) was already pre-
mounted in Chapter 2.3.5.
2. Holding it at a slight angle, mount the lower back
panel (2) on the screws of the casing side panel.
3. Mount the middle (3a) and upper back panel (3b) on
the casing side panel.
4. Fit the pellet hopper using screws:
- First, turn the four M8x25 screws with collar (in the
pellet hopper screw set included with the delivery)
into the brackets (4) on the boiler (spacing approx.
1 cm).
- BioLyt (8,13) only:
Remove the pellet hopper lid (4b, Figure 15) by
releasing the screws (4c). Attach the cover plate
(4d, Detail F) to the pellet hopper using two M5
nuts (4f) and serrated washers (4e) and two self-
tapping screws Ø 3.5x10 (4g).
- Hook the pellet hopper (4a) into the two brackets
on the boiler and lock the screws (access from
the rear).
5. Fit the connection hose (Detail E):
- Loosely t the two jubilee clips (5) onto the
connection hose (5a).
- Align the connection hose with the burner mechanism
and the pellet hopper.
- Secure the connection hose in position at the top
and bottom with the jubilee clip (5).
i
      
(Option), proceed from Chapter 2.3.7.
6. Mount the burner cover:
- Working from below, hook the burner cover
(6, Figure 15) into the pins provided on the pellet
hopper and push towards the front.
Fit self-tapping locking screw M4,8x16
(6a) at the back on the pellet hopper
bracket to prevent the burner cover (6)
being removed.
7. Mount the cover plate (7) on the side walls using four
self-tapping screws M4,8x13 and serrated washers
(in the casing screw set).
8. Hook upper front cover (8) into the side walls and
secure with self-tapping screw M3.5x10 (8a).
9. Fit cover (9) onto the casing side panel.
10. Attach the front door (Detail G):
- Attach the front door (10) by lifting the hinge
pin (10a) on the top and bottom of the left side wall.
11. Fit the ash box (for detailed information, see the
BioLyt (8-36) operating manual).
- Open the cover for the ash screw on the back.
- Slide the ash box (11, Figure 15) onto the ash pipe.
- The ash box must be positioned at the top right with
the help of the stop.
- Fix the ash box in position by closing the two bottom
spring clips (11a)!
- If the spring clips close too rmly or too loosely,
they can be adjusted with the four stop screws
(11b, Figure 14).
14 4 211 326 / 01
INSTALLATION

1
6
4a
2
4c
3a
3b
10
7
8
5a 5 10 10a
9
Figure 15
Detail E Detail G
11a 114
8a
6a
4f 4e
Detail F
4g 4d
4b
154 211 326 / 01
INSTALLATION

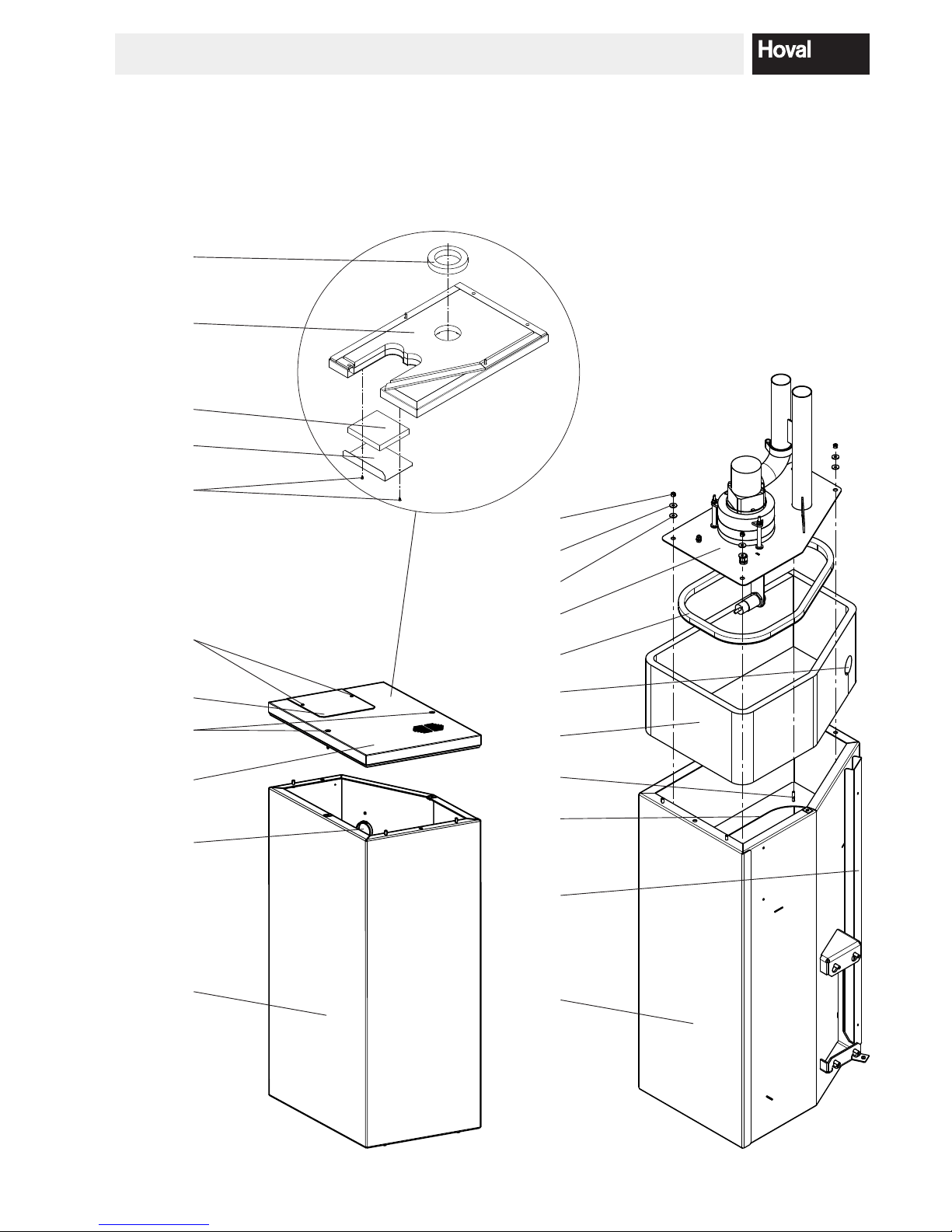

2.3.7 Fitting the RAS 81 suction system (Option)
1. Dismantle the additional cover (1a, Figure 16)
and then the pellet hopper lid (1b) by releasing
screws (1c) and (1d). The additional cover (1a) is no
longer required!
2. Fix the edge protection prole (2b) in position (2a) in
the pellet hopper (2, Figure 17).
3. Remove the round plastic cover (3) on the back right
of the pellet hopper (2, Figure 16). Fit the plastic
rings provided at the top and bottom of the apertures.
The plastic cover is no longer required!
4. Pull the protective lm off the sound absorbing mat (4,
Figure 17). When attaching the mat, ensure that it is
aligned precisely with the aperture (4a) on the pellet
hopper (see Figure 17).
5. Place the suction system (5) on the four M6 threaded
bolts (5a). Place a plastic insulating sleeve (5b)
(with the collar facing downwards) and a large
washer (5c) on each bolt and then x the suction
system in position with self-locking nuts (5d).
6. Route the extension cable of the suction system
out through the top aperture (3, Figure 16) on the
pellet hopper and downwards towards the burner.
Then route the extension cable in again through the
bottom aperture to the automatic ring device and
connect it as shown in the wiring diagram.
7. Attach the cable duct (7, Figure 17) to the pellet
hopper (2) using M5x35 screws.
8. Attach the round sound absorbing mat (8)
(remove protective lm) at the position provided (Detail
H). Attach the pellet hopper lid (1b, Figure 16) to the
pellet hopper (2) using screws (1c). Then attach sound
absorbing mat (8a) to the additional lid (8b) (remove
protective lm) in centred position and x in place with
screws (1d).
16 4 211 326 / 01
INSTALLATION

2
1b
1c
1d
1d
8b
8a
1b
8
1a
2
4
2b
5
2a
Figure 16 Figure 17
4a

View from below
5b
5c
5d
5a
3
7
174 211 326 / 01
INSTALLATION

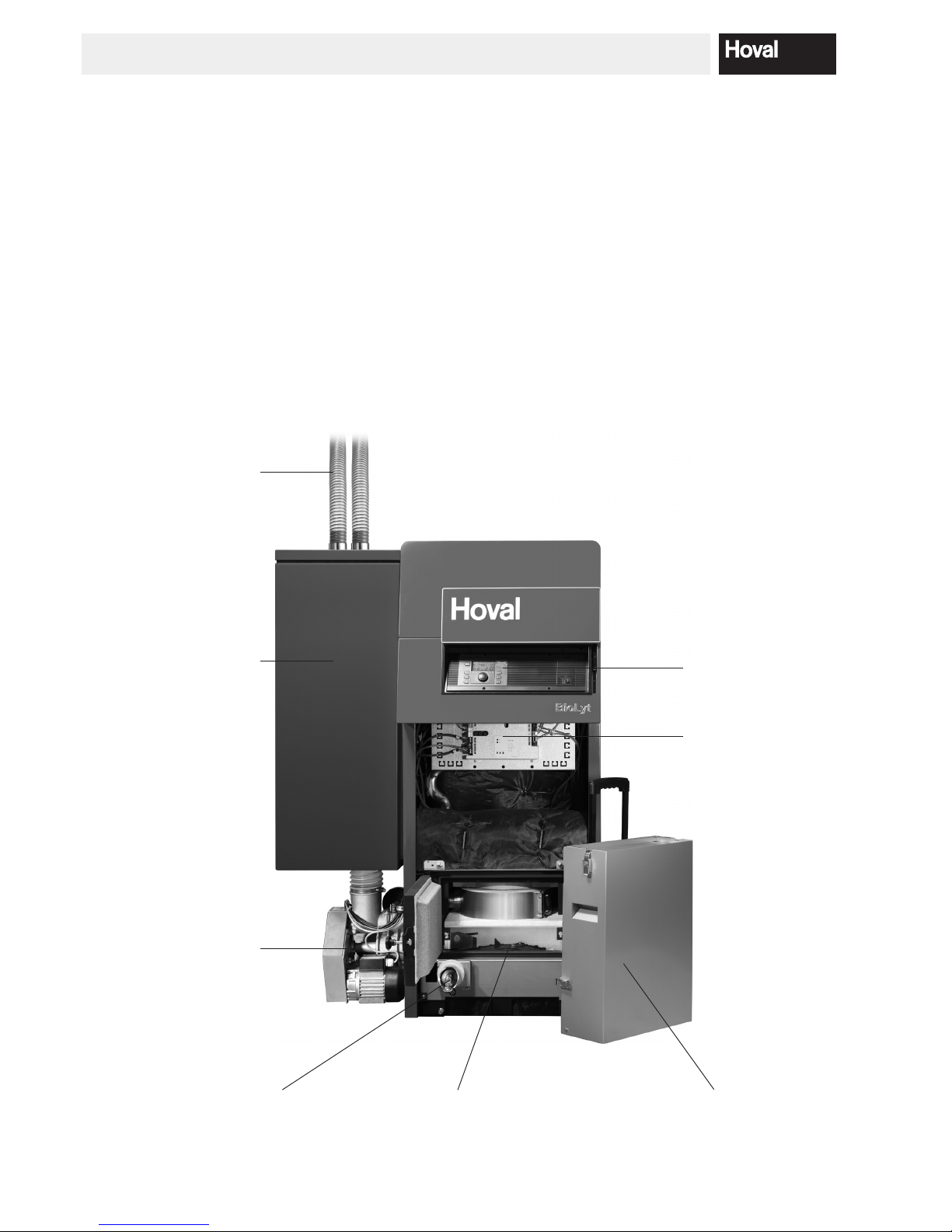

TopTronic®T controller for
easy operation
Combustion regulation for
low emissions and the highest
level of efciency
Large pellet hopper with
integrated suction system
for problem-free operation and
exible connection to a wide
range of pellet storage systems
Ash box mit extendible handle and
casters for simple, convenient handling
during emptying
Auger system for fully automated
ash discharge
Robust horizontal burner tube ensures
stable operation even with variable pellet
quality
Fully automated pellet feed
with rotary valve protects
against burn-back
Pellet conveyor hose and return
air hose for fully automated lling
of the pellet hopper
3. Technical information
3.1 Brief description
The BioLyt has been designed for the low-emission
combustion of wood pellets in accordance with
ÖNORM M 7135 and DIN 51731, HP5 (/ DINplus) and
EN 14961-2, A1 / ENplus. The core element of the
BioLyt is a rugged horizontal burner tube, which provides
a stable re bed with its large, plate-shaped burner.
The post-combustion ring and dust separator above the
burner plate give it a distinct design. By combining these
features, the burner is able to keep dust emissions to
a minimum. This is yet another eco-friendly feature, since
it burns with practically no ash residue and provides for
stable operation even with variable pellet quality.
The BioLyt features a standard pellet hopper and an
optional fully-automated pellet feed system. When the
integrated pellet hopper is used exclusively, it needs to
be relled manually. When combined with the pellet feed
system, the hopper is lled automatically from a store.
This feeder unit with suction turbine transports the pellets
through a exible tube from the storage room directly to
the hopper. The hopper is lled within minutes on a time-
controlled and as-needed basis, which is usually twice
a day.
18 4 211 326 / 01
TECHNICAL INFORMATION

3.2 Technical data
Type (8) (13) (15) (23) (25) (31) (36)
•Nominal heat output kW 7.9 13.0 14.9 23.0 24.9 31.0 36.0
•Firing capacity with nominal heat output kW 8.3 13.7 15.6 24.2 26.3 32.3 37.5
•Heat output range kW 2.1-7.9 3.9-13.0 4.4-14.9 6.5-23.0 7.3-24.9 8.7-31.0 9.8-36.0
•Pellets Ø mm 6 6 6 6 6 6 6
Length mm 5-30 5-30 5-30 5-30 5-30 5-30 5-30
•Maximum boiler ow temperature °C 75 75 75 75 75 75 75
•Minimum boiler operating temperature °C 60 60 60 60 60 60 60
•Minimum boiler return temperature °C 40 40 40 40 40 40 40
•Flue gas temperature with nominal heat output °C 120 120 120 120 120 120 120
•Flue gas temperature at lowest heat output °C 90 90 90 90 90 90 90
•Carbon dioxide CO2%11 11 12 12 13 13 13
•Operating/test pressure bar 3.0/4.5 3.0/4.5 3.0/4.5 3.0/4.5 3.0/4.5 3.0/4.5 3.0/4.5
•Boiler efciency at nominal heat output % >93 >93 >93 >95 >95 >95 >95
•Flue gas mass ow at nominal output
Pellet moisture content 10 % kg/h 20 32 38 57 63 77 90
•Flue gas mass ow rate at lowest nominal output kg/h 6 9 11 16 19 22 26
•Flow resistance wood pellet boiler z-value 13 13 19 19 9 9 9
•Hydraulic resistance at 10K mbar 6 12 34 56 40 63 66
•Hydraulic resistance at 20 K mbar 2 4 10 15 11 17 18
•Water ow rate at 10 K m³/h 0.69 1.12 1.29 1.97 2.15 2.66 3.09
•Water ow rate at 20 K m³/h 0.34 0.56 0.65 0.99 1.08 1.33 1.55
•Boiler water content litres 40 40 52 52 78 78 78
•Pellet hopper capacity kg 90 90 90 90 90 90 90
•Ash chamber content litres 28 28 28 28 28 28 28
•Thickness of thermal insulation on boiler body mm 80 80 80 80 80 80 80
•Boiler weight incl. casing kg 360 360 390 390 440 440 440
Flue gas system 1
•Minimum boiler draughting requirements Pa 5 (1)25 (1)25 (1)25 (1)25 (1)25 (1)25 (1)2
•Electrical power consumption during operation watts 50 70 90 110 140 150 160
•Electrical power consumption during ignition watts 300 300 300 300 300 300 300
•Electrical power consumption during standby watts 10 10 10 10 10 10 10
Fully automated pellet infeed (only in operation alternating with the wood pellet boiler)
•Electrical power consumption during pellet infeed watts 1900 1900 1900 1900 1900 1900 1900
•Maximum current consumption 3A 9999999
1A draught limiter and explosion damper must be installed.
2In borderline cases, a draughting requirement of 1 Pa at lowest output can be assumed for calculation purposes.
3Fuse protection minimum 16 A because of operating current.
194 211 326 / 01
TECHNICAL INFORMATION

3.3 Dimensions
(All dimensions in mm)
BioLyt Type A B C D H
BioLyt (8-13) 1010 996 741 316 1274
BioLyt (15-23) 1210 1180 861 316 1474
BioLyt (25-36) 1365 1254 1042 311 1667
1. Boiler ow BioLyt (8-23) DN 32 (1")
BioLyt (25-36) DN 40 (1 ¼")
2. Boiler return BioLyt (8-23) DN 32 (1")
BioLyt (25-36) DN 40 (1 ¼")
3. Drain DN 20 (½")
4. Boiler controller
5. Boiler temperature sensor
6. Boiler return sensor and STB
7. Lambda probe
8. Flue gas sensor
9. Flue gas outlet BioLyt (8-23) Ø 128 mm
BioLyt (25-36) Ø 148 mm
Optional:
10. Pellet feed suction turbine
11. Connection for conveyor hose Ø 50 mm
12. Connection for return air hose Ø 50 mm
20 4 211 326 / 01
TECHNICAL INFORMATION
