Howard McCray R-CMS32E-4C User manual

32E Series – Endless Design
Curved Glass – Single Duty – Red Meat
• PRODUCT SPECIFICATIONS SHEETS
• Specification subject to change without notice
Self-Contained SC-CMS32E-4C SC-CMS32E-6C SC-CMS32E-8C
Remote R-CMS32E-4C R-CMS32E-6C R-CMS32E-8C
Length with (2) ends 50" 74" 98"
Length without ends 48" 72" 96"
Height with ends 50-1/2" 50-1/2" 50-1/2"
Height without ends 50" 50" 50"
Depth with ends 30-1/2" 30-1/2" 30-1/2"
Depth without ends 30" 30" 30"
Endless Design YES YES YES
(Dimensions are +/- 1/4")
• Cases are designed to operate at 75 degrees Fahrenheit and 55% relative humidity

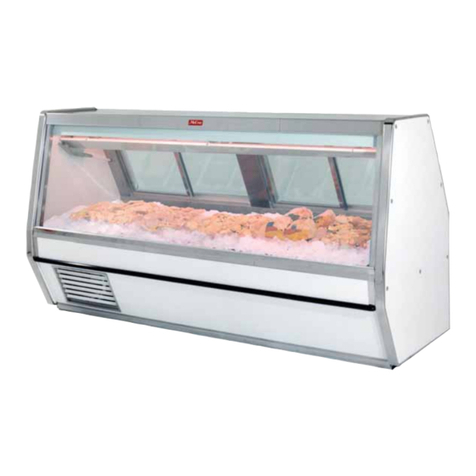

Picture shows condensing unit on opposite side

32E Series – Endless Design
Curved Glass – Single Duty – Red Meat
Standard Specifications and Optional Features
OPTIONAL FEATURES
A Division of HMC Enterprises LLC • 2501 Grant Avenue • Philadelphia, PA 19114 USA
[phone] • 1-800-344-8222 • Fax [phone] • E-Mail: [e-mail] • www.howardmccray.com
UL Classified to ANSI/NSF 7
Foamed in place CFC free foam
Double pane coated and insulated curved glass
Heavy gauge steel super structure
Single duty display
Endless design allows for continuous line up
Drain is included for cleaning
Satin finish extrusion on doors and door tracks
Designer white exterior front and ends
Stainless steel mirror trim
Stainless steel heavy gauge top – 16" W
Rear of unit is stainless steel brush finish at top
Bottom rear is designer white aluminum
CONSTRUCTION FINISHES
INTERIOR REFRIGERATION
EXTERIOR LIGHTING
ELECTRICAL REQUIREMENTS
Stainless steel mirrored upper ends
Anodized aluminum floor (main deck area)
Epoxy coated main deck shelves
Air insulated baffle (prevents moisture from drip-
ping into display area)
Copevap system (eliminates need for condensate pan)
R134a expansion valve system
Gravity coil located at inside top of unit
Humidity coil located at main deck (provides extra
humidity)
Self contained system
Automatic defrost controlled by time clock-(self
contained units only)
Pressure control maintains constant temperatures
Remotes available
Double pane rear removable doors
Newly designed rear compression door jamb
Removable front grille allows for cleaning
Removable rear grille for easy servicing
1" removable end panels
1 Row of T12 lighting at top of unit
115V/60Hz/1Ph
Unit must be hard wired
UL/CUL listed
115V-12AMP general purpose receptacle (wired
separately)
Stainless steel, laminate or paint
Mirrored doors
Stainless steel heavy gauge mezzanine shelf
Digital Thermometer
Door Locks
Meat platters
Red meat bulbs
Front bumpers 1" or 3"
Important Note: All refrigerated cases are
designed to operate in an environment of
75 degrees and 55% relative humidity.
Important Note: Product must be cooled
before being displayed within the case.

A Division of HMC Enterprises LLC • 2501 Grant Avenue • Philadelphia, PA 19114 USA
[phone] • 1-800-344-8222 • Fax [phone] • E-Mail: [e-mail] • www.howardmccray.com
32E Series – Endless Design
Curved Glass – Single Duty – Red Meat
Technical Data
SHIPPING INFORMATION
Model # Self contained SC-CMS32E-4C SC-CMS32E-6C SC-CMS32E-8C
Remote R-CMS32E-4C R-CMS32E-6C R-CMS32E-8C
50"
48"
50-1/2"
50"
30-1/2"
30"
YES
74"
72"
50-1/2"
50"
30-1/2"
30"
YES
98"
96"
50-1/2”
50”
30-1/2”
30”
YES
Length with (2) ends
Length without ends
Height with ends
Height without ends
Depth with ends
Depth without ends
Endless design
(Dimensions are +/- 1/4")
White
Stainless Polish
Stainless Bright
Anodized
2
20-1/2"X23-1/2"
2
No
Curved
2
23-5/8"X25"
23
Optional
White
Stainless Polish
Stainless Bright
Anodized
2
31"X23-1/2"
2
No
Curved
3
23-5/8"X25"
34.5
Optional
White
Stainless Polish
Stainless Bright
Anodized
4
20-1/2"X23-1/2"
2
No
Curved
4
23-5/8"X25"
46
Optional
Exterior color
Interior color
Inside end panels
Floors
# of top doors
Door size
# of coils
Bottom storage
Front Glass
# of main deck shelves
Main deck size
Cubic capacity (ft3)
Mezzanine, 1 row lighted
34°F to 36°F
R134a
1/4
30
12
1 per day
1400
115V
6.0A
0.8A
No
34°F to 36°F
R134a
1/3
30
12
1 per day
2100
115V
9.1A
1.6A
No
34°F to 36°F
R134a
1/2
30
12
1 per day
2800
115V
11.2A
1.6A
No
Operating temperature
Refrigerant (expansion valve)
Compressor size HP
Pressure control settings @
75°F, 55%RH
Defrost per day (24 hours)
BTU’s at +20°F Evap. Temp.
Voltage
Amperage
Amperage, lights only
Cord and plug
Self contained
Self contained
CUT IN
CUT OUT
Air Defrost
Remote
Self contained
Remote
55"
44"
61"
500#
460#
85ft3
55"
44"
87"
710#
660#
122ft3
55"
44"
115"
940#
910#
161ft3
Height
Depth
Length
Gross weight
Cubic feet
Self contained
Remote
• Cases are designed to operate at 75 degrees Fahrenheit and 55% relative humidity
• Cases are equipped with drains; check your local building codes for connection requirements.
• Specification subject to change without notice
