Hoyer Journey Operator's manual

User Instruction Manual
Hoyer®Journey
To avoid injury, read user manual prior to use.
Manuel de l’utilisateur
Hoyer®Journey
Afin d’éviter tout accident, veuillez lire
attentivement la notice avant utilisation.
Manual de Instrucciones
Hoyer®Journey
Para evitar posibles daños, lea
previamente el manual de usuario.

Hoyer®
Journey
2
English
Contents
1. The Hoyer Journey Patient Lift.......................................................................................3
2. Introduction: About Your Lift ...........................................................................................4
3. Assembly & Commissioning Instructions .......................................................................5
4. Sling Guide...................................................................................................................10
5. Lifting With Your Hoyer Journey...................................................................................12

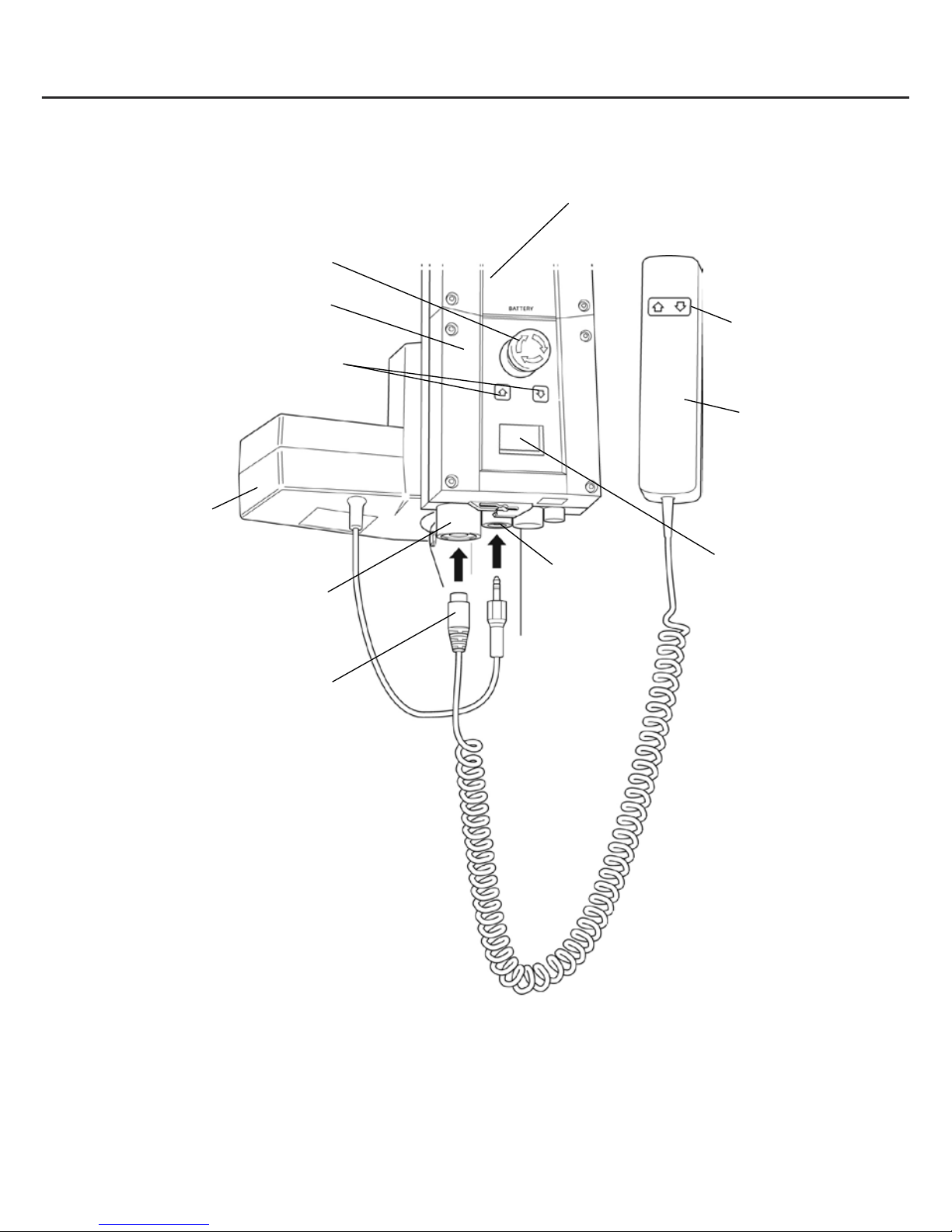

6. Standard Control Box & Handset.................................................................................14

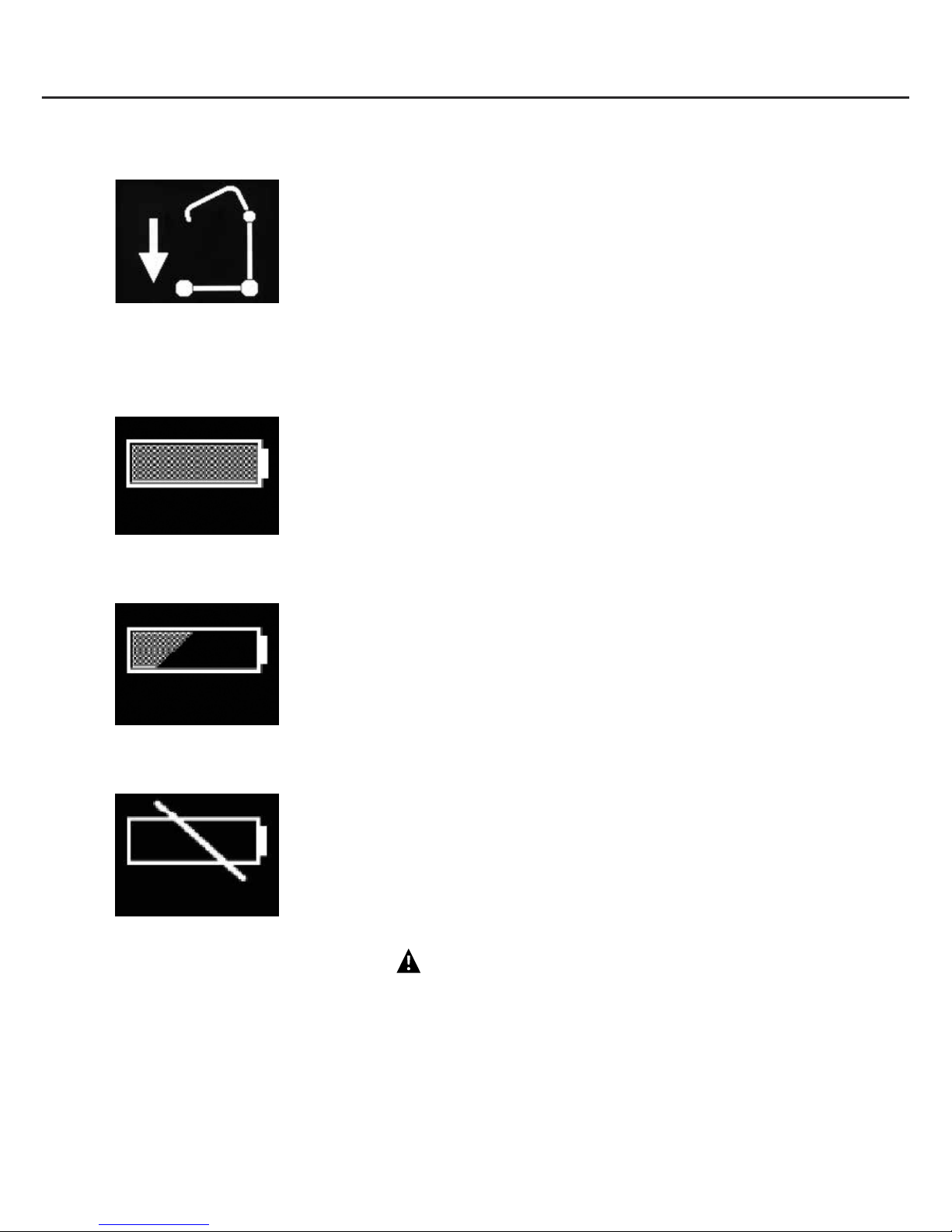

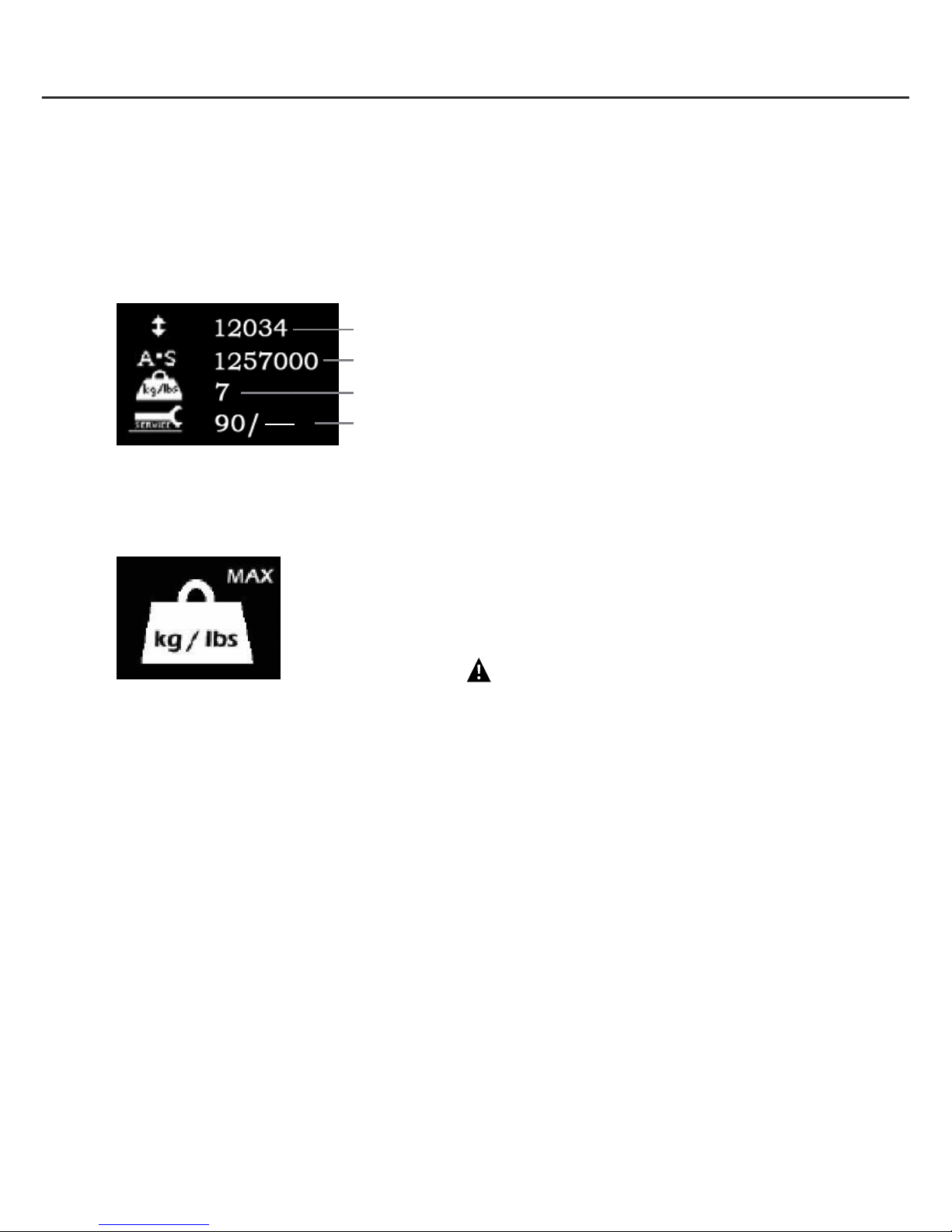

7. Smart Monitor & Handset.............................................................................................15
8. Operating Instructions ..................................................................................................19
9. Safety Precautions .......................................................................................................22
10. Charging Instructions....................................................................................................24
11. Maintenance Schedule & Daily Check List ..................................................................26
12. Technical Specifications ...............................................................................................28
13. Warranty .......................................................................................................................31

Hoyer®
Journey
3
English

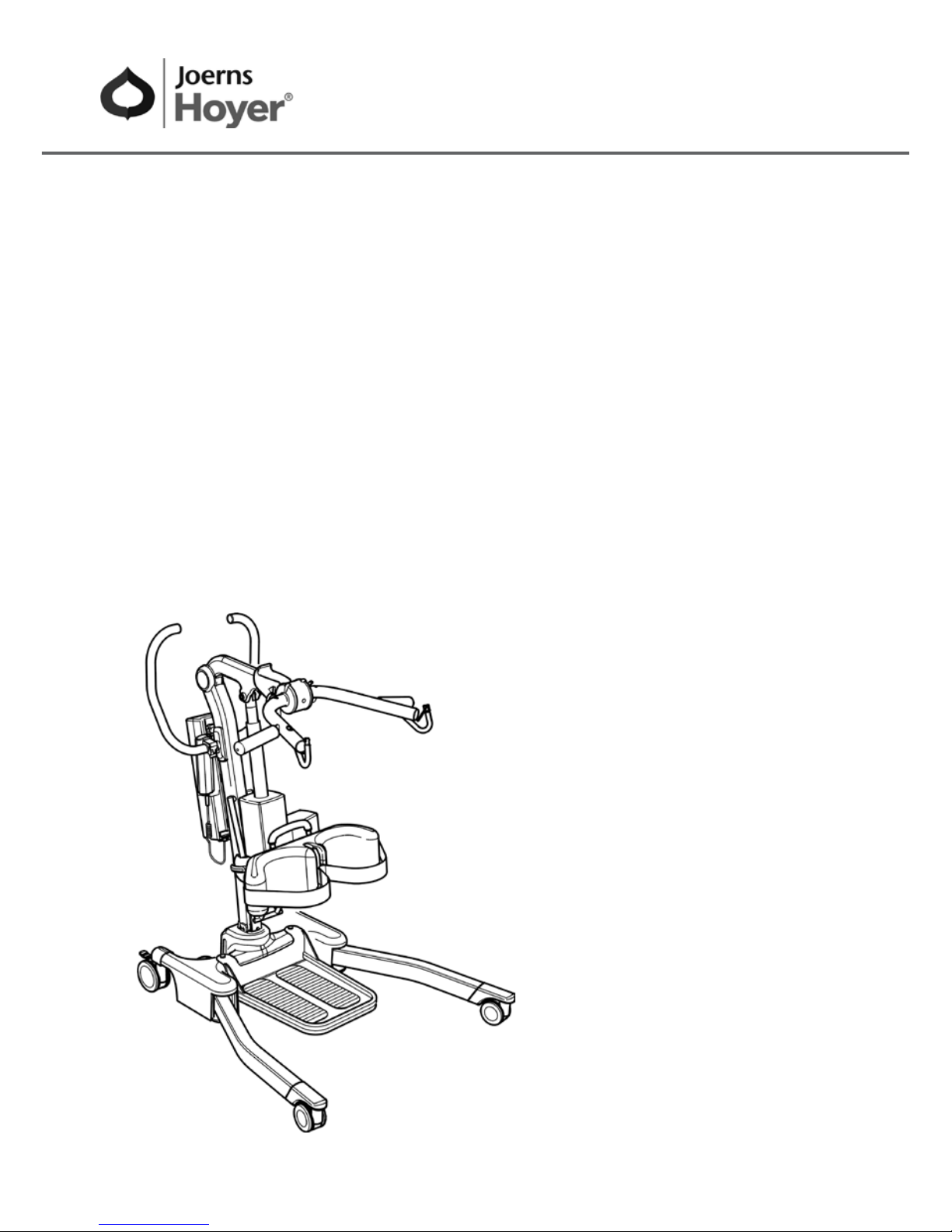

1. The Hoyer Journey Patient Lift
Ready for use position
Storage position
Push Handle
Mast
Battery/
Control Pack
Hand
Control Unit

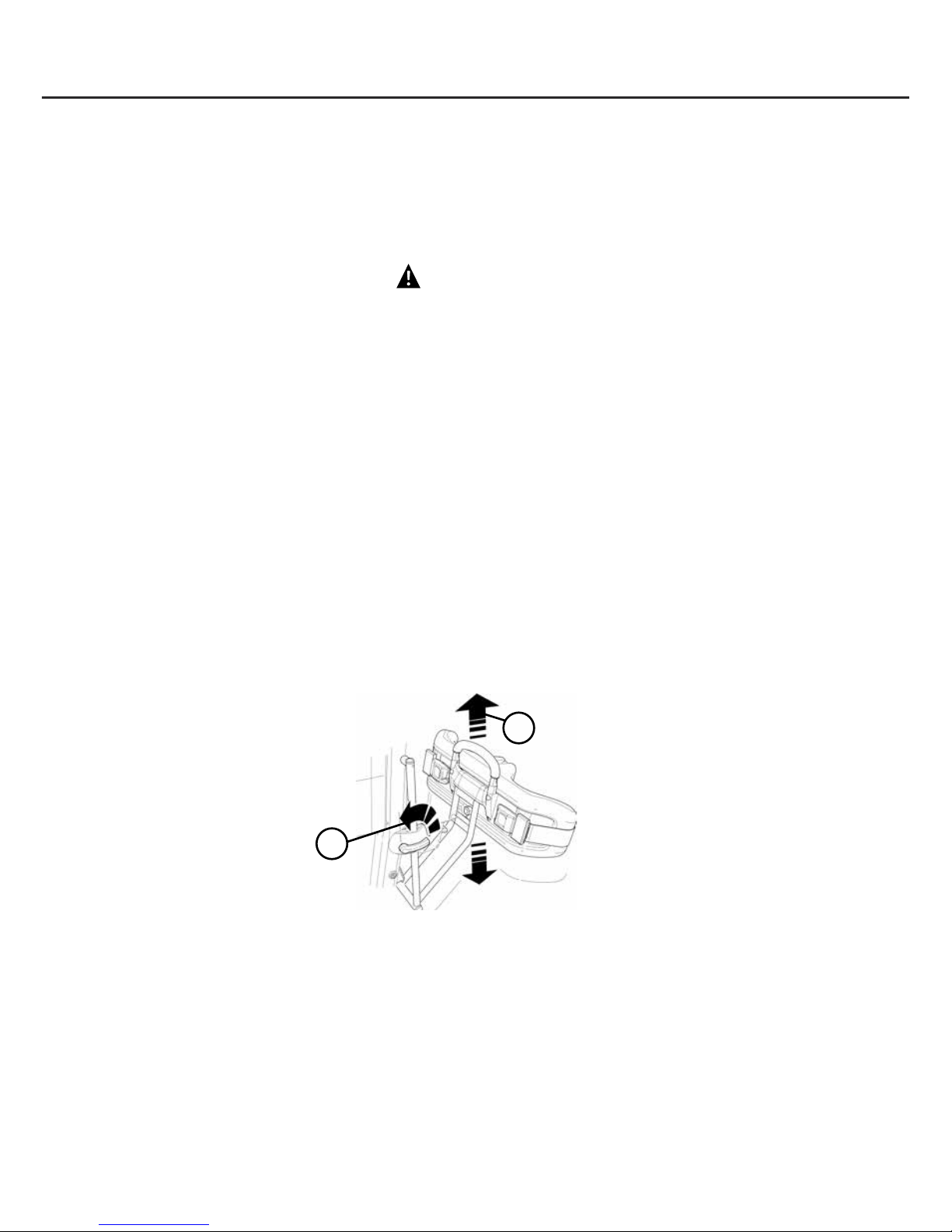

Kneepad
Adjustment
Lever
Rear Castor
(Braked)

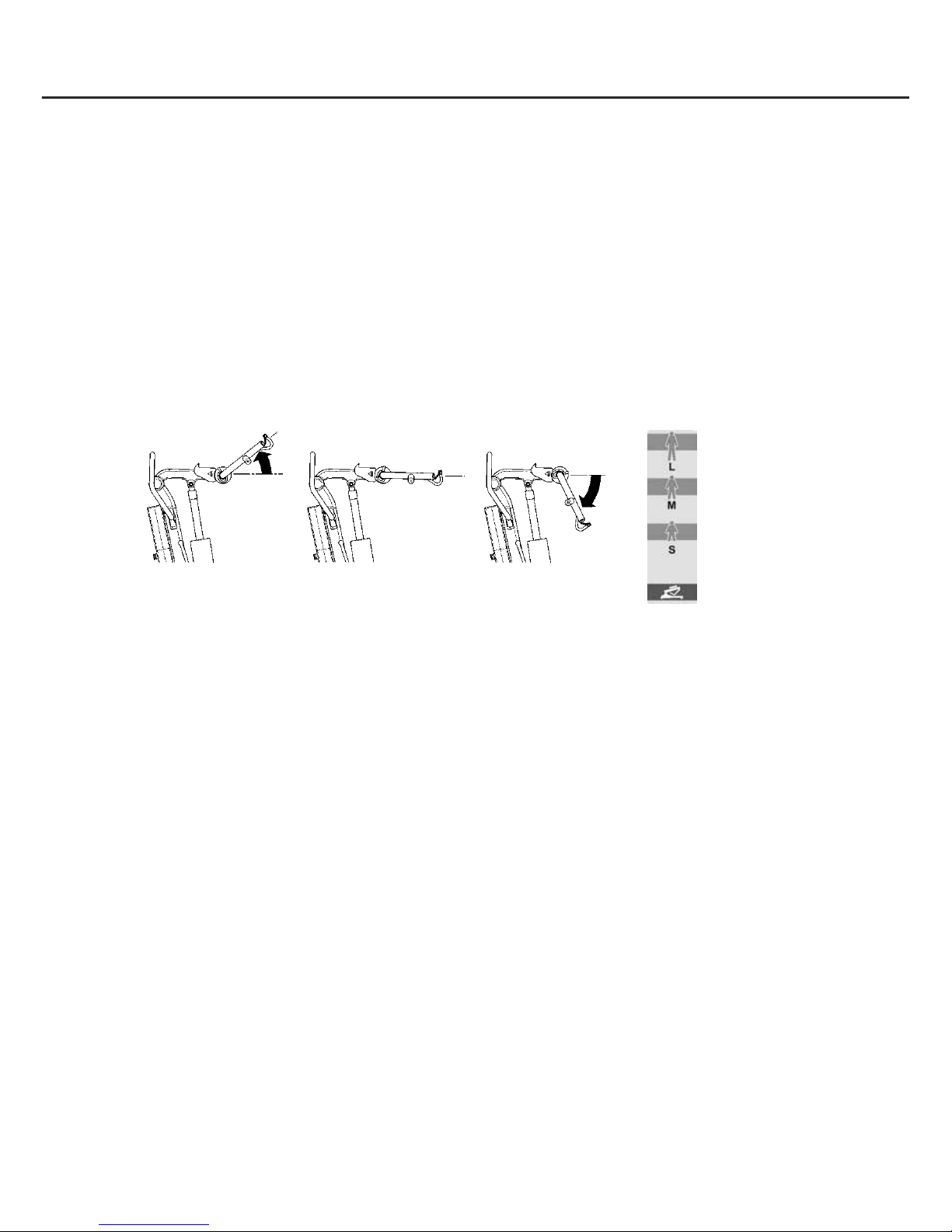

Cow Horn
Position Indicator
Cow Horn
Spreader Bar
Attachment Hook
Electric
Actuator
Adjustable
Kneepad
Mast Release Lever
(located on side of mast)
Front Castor
(non-braked)
Removable
Footy Tray

Hoyer®
Journey
4
English
2. Introduction: About Your Lift
Each Journey lift is fully assembled, load tested and certified before being packed/shipped.
The packing consists of a strong, purpose built carton to ensure the safe arrival of the lift. A
number of documents are supplied in a wallet, and packed with each lift and should be kept
safely for future reference:
• TEST CERTIFICATE • USER MANUAL
The TEST CERTIFICATE is an important document and should be kept for reference purposes.
To properly maintain your lift please refer to the maintenance schedule included in this document. If
you are at all unsure what your country’s servicing requirements are, please check with your dealer
and/or a local government agency.
Statement of Intended Use (Journey)
The intended use of this lifting device is for the safe lifting and transfer of an individual from one
resting surface to another (such as a bed to a wheelchair). Joerns Healthcare recommends that
the transfer of a patient is fully risk assessed and conducted safely over a short distance only.
The Hoyer Journey is suitable for patients in the SITTING position only who have a degree
of weight-bearing ability but require assistance to stand. By removing the foot tray, the Hoyer
Journey patient lift can also be used as a walking aid following a careful risk assessment.
The Hoyer Journey is designed to support and promote safe patient handling and transfer for
both the patient and carer. It can be folded without the use of tools enabling it to be easily stored
in environments where space is limited or to facilitate onward transportation in a vehicle with a
suitably sized trunk.
The Hoyer Journey stand aid is designed to be used in conjunction with the Hoyer range of
slings. The examples of slings suitable for use with this device are listed as follows:

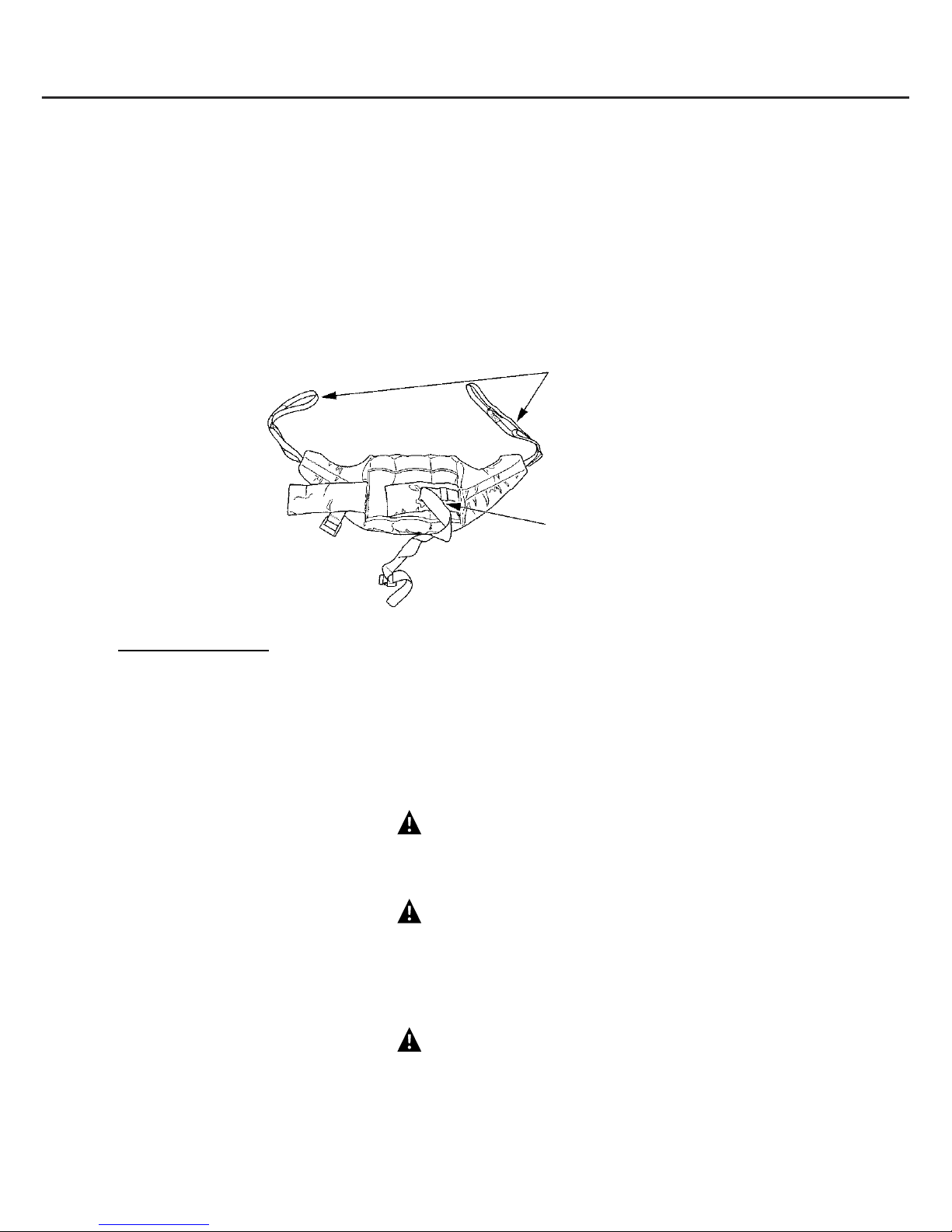

• Hoyer Standing Sling
• Hoyer Transport Sling
Expected Service Life
Hoyer Professional lifts are designed and tested for a minimum service life of ten (10) years,
subject to the use and maintenance procedures stated in this manual. Use, other than in accordance
with these instructions, may compromise service life.

Hoyer®
Journey
5
English
3. Assembly & Commissioning Instructions
Carton Contents
Place the carton in a clear working area and open carefully. The carton contains:
•HOYER JOURNEY LIFT •BATTERY PACK
•WALLET CONTAINING DOCUMENTS •CHARGING LEAD
•HAND CONTROL •DESK TOP CHARGER/STAND
WARNING
The Hoyer Journey is heavy and will need to be lifted with care. You may need assistance
to lift the Hoyer Journey from the carton.
Assembly Instructions

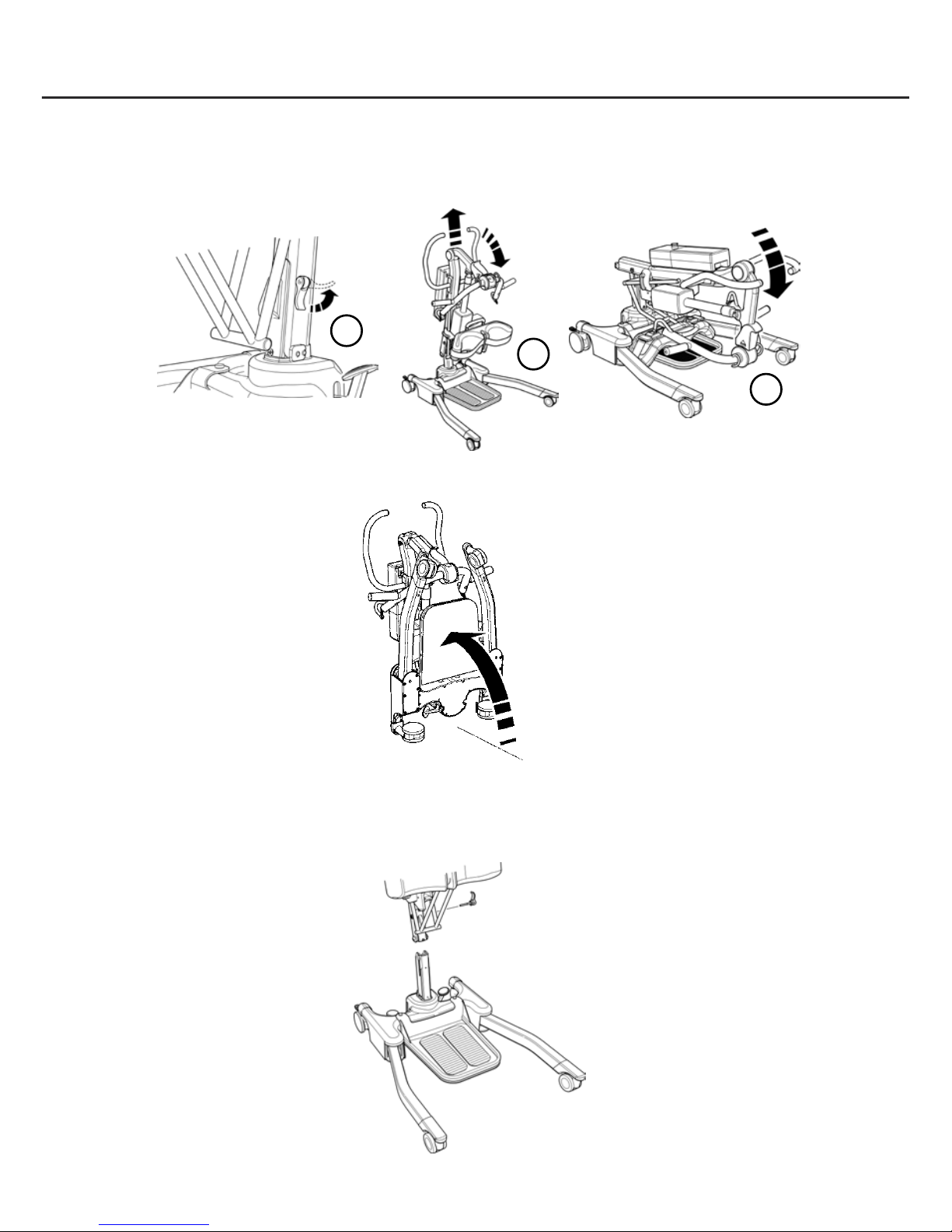

The Hoyer Journey is delivered in its folded/storage position; the following assembly process
demonstrates the 3 easy steps required to take the Hoyer Journey from its storage position to its
ready for use position. This process is carried out with no additional tools required.

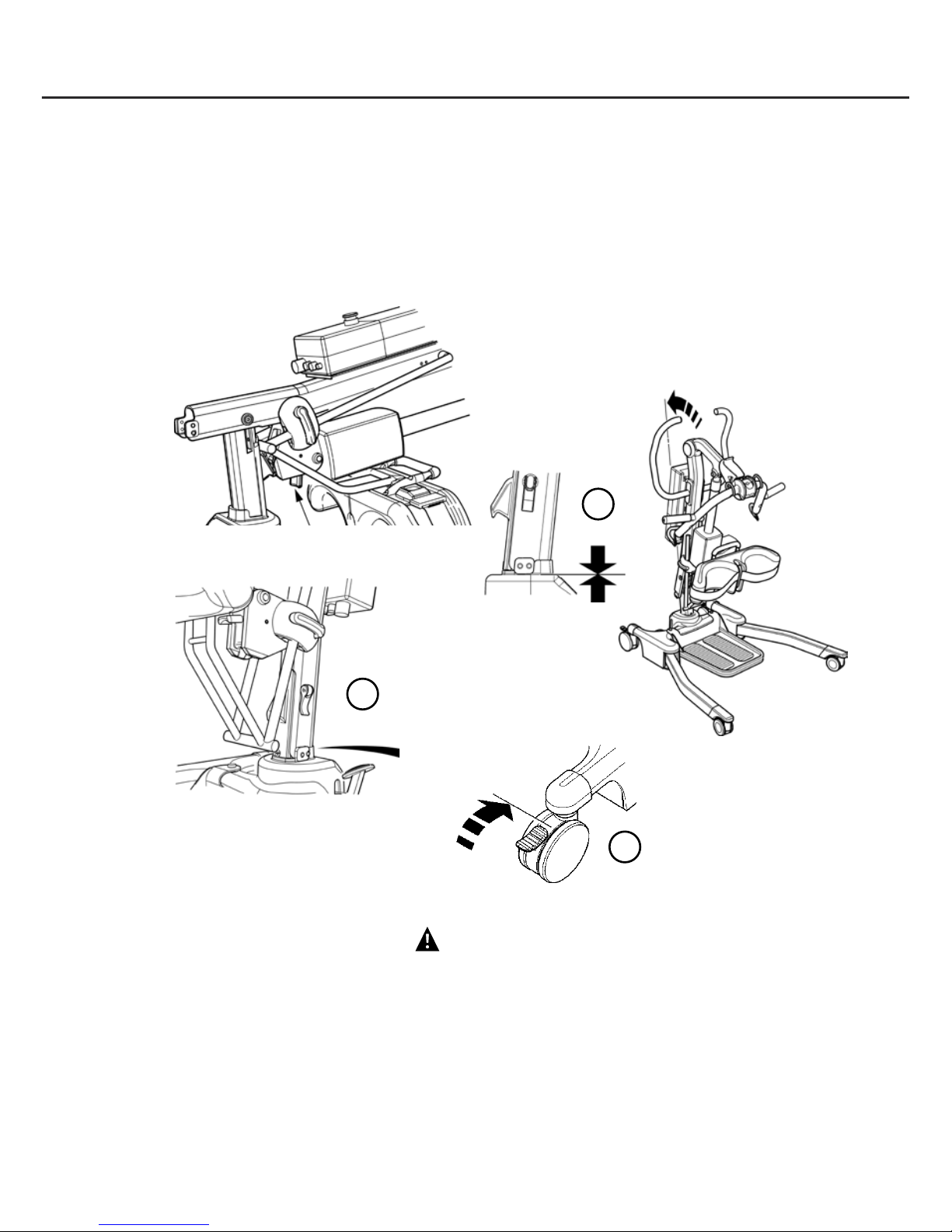

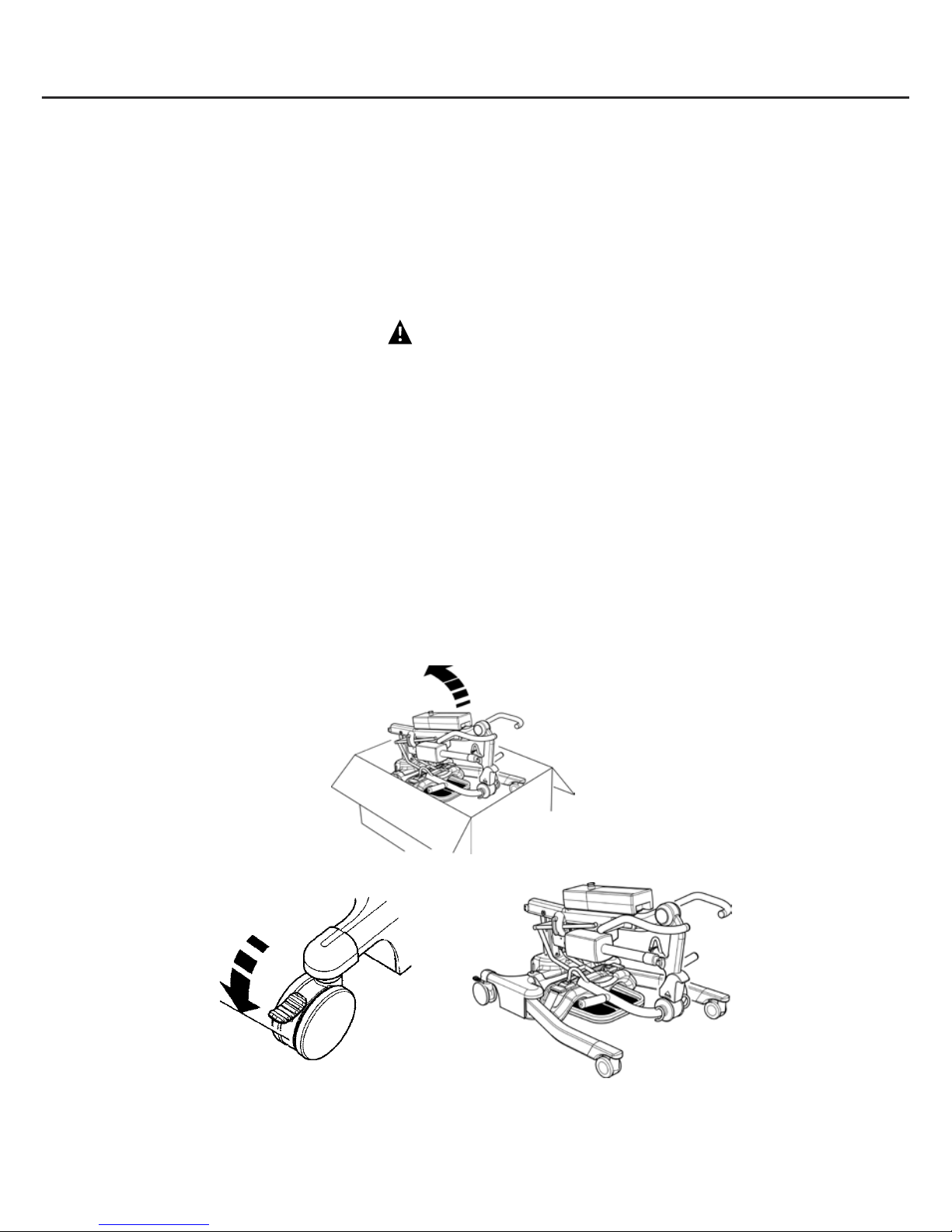

1. Remove all the parts from the carton and place on the floor, taking care to protect the finish
from damage.
Lift the Hoyer Journey carefully from the carton. Lie the lift flat on the floor and ensure the rear
castors are securely locked.
