QuickSpecs HP Compaq Pro 6300 Business PC
Technical Specifications - lnput/Output Devices
HP USB Standard Keyboard
Keys 1 04, 1 05, 1 06, 1 07, 1 09 tayout (depending upon country)
physical charact¡risticr ilTil;'ilt 18.0 x 6.4 x o.e8 in (45.8 x 1G.3 x 2.5 cm)
Weight 2 tb (0.9 kg)
Operating vottage + 5VDC r 5%
Power consumption 50-mA maximum (with three LEDs 0N)
:lectr¡cal System interface USB Type A ptug connector
ESD CE level 4, 1 5-kV air discharge
EMI - RFI Conforms to FCC rutes for a Class B computing device
Microsofto PC 99 - 2001 Functionalty compliant
Languages 38 avaitable
Keycaps Low-profile design
Switch actuation 55-g nominalpeak force with tactile feedback
Switch life 20 miltion keystrokes (using Hasco modified tester)
üechanical Switch type Contamination-resistant switch membrane
Key-leveling mechanisms For altdouble-wide and greater-]ength keys
Cable length 6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanicatly compliant
Acoustics 43-dBA maximum sound pressure level
operating temperature 50'to 1 22. F (1 0. to 50" C)
Non-operating temperature -22'to 1 40. F (-30. to 60. C)
Operating humidity 10% to 90% (non-condensing at ambient)
Non-operating humidity 20o/olo 80% (non-condensing at ambient)
Environment¡l 0perating shock 40 g, six surfaces
Non-operating shock 80 g, six surfaces
Operating vibration 2-g peak acceleration
Non-operating vibration 4-g peak acceleration
Drop (out of box) 26 in (65 cm) on carpet, six-drop sequence
Drop (in box) 42 in (107 cm) on concrete, l6-drop sequence
Approvals UL, CSA, FCC, CE Mark, TUV, TUV GS, VCC|, BSM|, C-Tíck, MtC
DA-14259 NorthAmerica-Version4l -JanuaryZ,Z014 0ll n ),' ¿ page 43
üüüü0tttt461
q?

QuickSpecs HP Compaq Pro 5300 Business PC
Technical Specifications - lnput/Output Devices
Ergonomic compliance ANSI HFS 100, lS0 9241-4, and TUVGS
Kitcontents Keyboard lnstallation Guide
Warranty Card Safety and Comfort Guide
HP PS/2 Standard Keyboard
Keys
Dimensions
(LxWxH)
Weight
0perating voltage
Power consumption
System interface
ESD
EMI - RFI
Microsoft PC 99 - 2001
Languages
Keycaps
Switch actuation
Switch life
Switch type
Key-[eveting mechanisms
Cabte [ength
Physical Character¡st¡cs
Electrical
Mechanical
Environmental
Microsoft PC 99 - 2001
Acoustics
0perating temperature
Non-operating temperature
0perating humidity
Non-operating humidity
0perating shock
Non-operating shock
0perating vibration
104, 105, 105, 107, 109 layout (depending upon country)
18.0 x 6.4 x 0.98 in (45.8 x 15.3 x 2.5 cm)
2 tb (0.9 kg)minimum
+ 5VDC r 5%
50-mA maximum (with three LEDs 0N)
PS/Z 6-pin minidin connector
CE levet 4, 1 5-kV air discharge
Conforms to FCC rules for a Class B computing device
Functionally compliant
38 available
Low-profile design
55-g nominalpeak force with tactile feedback
20 million keystrokes (using Hasco modified tester)
Contamination-resistant switch membrane
For all double-wide and greater-[ength keys
6ft
1.8 m
Mechanically compliant
43-dBA maximum sound pressure level
50' to 1 22' F (1 0'to 50' C)
-22" to 1 40' F (-30' to 60' C)
1 0% to 90% (non-condensing at ambient)
20o/oto 80% (non-condensing at ambient)
40 g, six surfaces
80 g, six surfaces
2-g peak acceleration
qe DA - 14269 North America - Version 41 - January 2,2014 Page 44
0írn?:l í
rJüüünrln400

QuickSpecs HP Compag Pro 6300 Business PC
TechnicaI Specifications - !nput/Output Devices
Non-operating vibration 4-g peak acceleration
Drop (out of box) 25 in (66 cm) on carpet, six-drop sequence
Drop (in box) 42 in (1 07 cm) on concrete, 1 6-drop sequence
Approuals UL, CSA, FCC, CE Mark, TUV, TUV GS, VCC|, BSM|, C-Tick, MtC
Ergonomic compliance ANS| HFS 100, tSO 924'l-4, and TUVGS

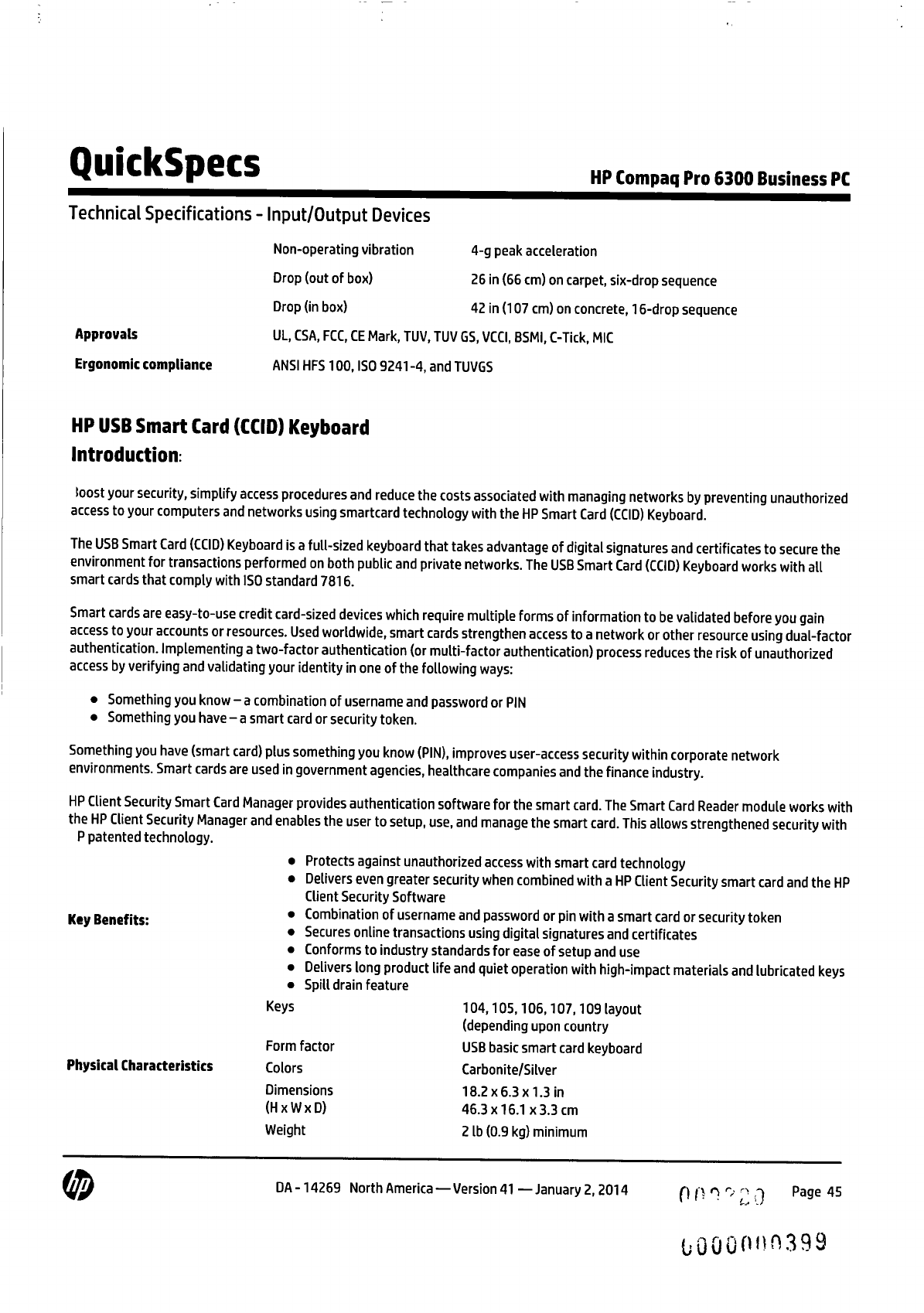

HP USB Smart Card (CCID) Keyboard
lntroduction:
loost your security, simplify access procedures and reduce the costs associated with managing networks by preventing unauthorized
access to your computers and networks using smartcard technology with the HP Smart Card (CCID) Keyboard.
The USB Smart Card (CCID) Keyboard is a futl-sized keyboard that takes advantage of digitat signatures and certificates to secure the
environment for transact¡ons performed on both pubtic and pr¡vate networks. The USB Smart Card (CCID) Keyboard works with att
smart cards that compty with lS0 standard 7816.
Smart cards are easy-to-use credit card-sized devices which require multipte forms of information to be validated before you gain
access t0 y0ur accounts or resources. Used worldwide, smart cards strengthen access to a network or other resource using dua[-factor
authentication. lmplementing a two-factor authentication (or multi-factor authentication) process reduces the risk of unauthorized
access by verifying and validating your identity in one of the fo[[owing ways:
o Something you know - a combination of username and password or plN
o Something you have - a smart card or security token.
Something you have (smart card) plus something you know (plN), improves user-access security within corporate network
environments. Smart cards are used in government agencies, healthcare companies and the finance industry.
HP Ctient Security Smart Card Manager provides authentication software for the smart card. The Smart Card Reader module works with
the HP Client Security Manager and enables the user to setup, use, and manage the smart card. This atlows strengthened security with
P patented technology.
Kcy Benefits:
Protects against unauthorized access with smart card technology
Detivers even greater security when combined with a HP Ctient Security smart card and the Hp
Client Security Software
combination of username and password or pin with a smart card or security token
Secures online transactions using digital signatures and certificates
Conforms to industry standards for ease of setup and use
Delivers long product life and guiet operation with high-impact materials and lubricated keys
Spilt drain feature
Physical Characteristics
104, 105, 106, 107, 109 layout
(depending upon country
USB basic smart card keyboard
Carbonite/Silver
18.2 x 6.3 x 1.3 in
46.3 x 16.1 x 3.3 cm
2 tb (0.9 kg) minimum
a
a
a
o
a
Keys
Form factor
Colors
Dimensions
(HxWxD)
Weight
(D DA-14259 NorthAmerica-Version4l -JanuaryZ,ZOI4 n n e ", ;] 0 page 45
büÜÜnr!n399

QuickSpecs HP Compaq Pro 6300 Business PC
TechnicaI Specifications - lnput/Output Devices
0perating voltage
Power consumption
Electrical system interface
ESD
EMI - RFI
Microsoft PC 99 - 2001
Languages
Keycaps
Sw¡tch actuation
Switch tife
'lechanical
Environmental
Switch type
Key-leveting mechanisms
Cabte [ength
Microsoft PC 99 - 2001
Acoustics
0perating temperature
Non-operating temperature
0perat¡ng humidity
Non-operating humidity
0perating shock
Non-operating shock
0perating vibration
Non-operating vibration
Drop
(out of box)
Drop
(in box)
Support
lnterface
Chipset
Standard APls supported
Power
SmartGard Function Power consumption
Communication
Landing mechanism
+ 5V0C r 5%
100-mA maximum (with four LEDs 0N)
USB Type A plug connector
CE levet 4, 1 s-kv air discharge
Conforms to FCC rules for a Class B computing device
Functionally compliant
30+ availabte
Standard design
55 g nominalpeak force with tactile feedback
20 mittion keystrokes
(using Hasco modified tester)
Contamination-resistant membrane
For all double-wide and greater-length keys
6 ft (1.8 m)
Mechanically compliant
43-dBA maximum sound pressure [evet
50'to 1 22" F (1 0'to 50' C)
-22" to 1 40' F (-30" to 60' C)
1 0% to 90% (non-condensing at ambient)
20o/olo 80% (non-condensing at ambient)
40 g, six surfaces
80 g, six surfaces
2-g peak acceleration
4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
42 in (107 cm) on concrete, 16-drop sequence
AttlS0 7816 smart cards
Reads from and writes to alt 1507816 -1,?,3,4 memory and
microprocessor smart cards (T=0, T=1)
scM sTcilt
PC/SC, EMVz000, CT-AP|
USB Port
Short circuit detection (protects smart card and reader)
Power suppty compliant with 1507816 and EMV (5V, E0 mA)
Supports 3-V and 5-V cards
100-mA maximum draw
From card 9G00 bps to 330,000 bps
From computer 1 Z Mbps (USB transfer speed)
Contact device Friction contact
Card insertions rat¡ng Up to 100,000 insertion cycles
ÚD DA - 14269 North America-Version 41 -January Z,ZO14 0nq? $Page 46

v
QuickSpecs HP Compaq Pro 6300 Business PC
TechnicaI Specifications - lnput/Output Devices
Approuals
Ergonomic Compliancc
Kit Contents
HP USB PS/2 Washable Keyboard
Keys
Physical Character¡st¡cs Dimensions
(LxWxH)
Weight
0perating voltage
Power consumption
System interface
ESD
EMI. RFI
Microsofto PC 99 - 2001
Keycaps
Switch actuation
Switch life
Switch type
Key-teveling mechanisms
Cable [ength
Microsoft PC 99 - 2001
Acoustics
0perating temperature
Non-operating temperature
0perating humidity
Non-operating humidity
0perating shock
Electr¡cal
Mechanical
F-..!---- - -¡-¡
lnterface modes CCID protocol
Reader performance interface USB connection
Electro-magneticstandards Europe 2004/108/EC
USA USAFCC part 1 5
CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSM|, C-Tick, MtC, EMVZ0OO, USB-|F
ls0 9241 -4, TUVGS
Keyboard, U0 Security and Documentation CD, warranty card
1 04 (US) layout or 1 05 (EU) tayout
(depending upon country)
17.67x6.62 x 1.38 in (449 x 168 x 35 mm)
1.7 lb (0.77 kg) minimum
+ 5VDC t5%
50-mA maximum (with three LEDs 0N)
USB Type A plug connector
CE level 4, 1 5-kV air discharge
Conforms to FCC rules for a Class B computing device
Functionalty compliant
Stepped -profile design
55-g nominalpeak force w¡th tact¡le feedback
20 mitlion keystrokes
Contamination-resistant switch membrane
For al[ double-wide and greater-length keys
7 ft (2.2 m)
Mechanica[ly comptiant
43-dBA maximum sound pressure level
50" to 1 22" F (1 0'to 50" C)
-22' to 1 40' F G30" to 50" C)
1 0% to 95% (non-condensing at ambient)
0o/o to 95o/o (non-condensing at ambient)
40 g, six surfaces
(D DA- 14269 NorthAmerica-Version 41 -January 2,2014
üüÜÜl'tlt03fl8
Page 47
0lle?rE

II
QuickSpecs HP Compaq Pro 6300 Business PC
,::T::ij,:::cif ications - ! np ut/0 utp ut D evi ces
Operating system support
Approvals
Ergonomic compliance
HP Wireless Keyboard and Mouse
Keyboard
Mouse
Receiuer
System Requirements
Non-operating shock 80 g, six surfaces
Operating vibration 2-g peak acceleration
Non-operating v¡bration 4-g peak acceleration
Drop (out of box) 26 in (65 cm) on carpet, six-drop sequence
Drop (in box) 42 in (107 cm) on concrete, 16-drop sequence
Windows@ 7, Windows Vista, Windows XP Professional
UL, cUL, FCC, CE, TUV GS, VCCI, BSMI, C-Tick, KCC, USB-|F, WHQL, EN/IEC G0601 -1, tp66/NEMA4X
ANSI HFS 100, lS0 9241-4,and TUVGS
Dimensions(HxLxW) 1.47x18.06x6.43in(37.3x458.8x163.2mm)
Weisht - Without Two AA 1.96 tb (890 g)
Alkaline Batteries
Dimensions (H x L x W) 1.51 x 4.69 x 2.71 in (38.4 x 1 19 x 68.9 mm)
Weight - Without Two AA 0.17 lb (80 g)
Alkaline Batteries
Dimensions (H x L x W) 0.31 x 0.72 x2.24in (8 x 18.4 x 57 mm)
Weight 0.27 oz(7.6 gl
Cable Length - Minimum 6 ft (1.8 m)
Range 32.8 ft (10 m)
windows 7 Home Basic*, windows 7 Home Premium*, windows 7 professional Edition 32*,
Windows 7 ProfessionatEdition 64*, Windows 7 Ultimate Edition 32*, Windows 7 Ultimate Edition
64* Windows Vista or Windows XP
Available USB port for the receiver
CD-ROM Drive
*This system may require upgraded and/or separately purchased hardware and/or a DVD drive to
install the Windows 7 software and take fut[ advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/ for detaits
Product Safety UL; CSA /TUV (Europe onty); CE Mark
Ergonomics ANS|; tSO (Europe onty); GS Mark (Germany only)
EMC FCC;C|SPR;ACA; BSM|; MtC;VCC|
CE Mark EN 55022:1998; EN 55024
Design Guidetines for PCs PC 99 - connector overmold colors; PC 2001 - futtfunctionatity
Telecom Att tocal telecom requirements and approvals for intended
markets
(D 0{}n?i ! Pase48
Ü ü Ü 0ltrl '')3 '') 7
DA - 14269 North America - Version 41 - January 2,2014

QuickSpecs HP Compaq Pro 6300 Business PC
TechnicaI Specifications - lnput/Output Devices
U5A
Enuironmental
lP PS/z Optical Mouse
Itimensions
(HxLxW)
lileight
Envi¡onmental
Electr¡cal
Country Support
Keyboard contains 25% post-consumer recycled plastic materiat.
1.56x2.44 x 4.61 in (3.95 x 6.21 x 11.7 cm)
4.44 oz (125 g)
0perating temperature
Non-operating temperature
0perating humidity
Non-operating humidity
0perating shock
Non-operating shock
0perating vibration
Non-operating vibration
Drop
(out of box)
0perating voltage
Power consumption
System consumption
ESD
EMI-RFI
Microsoft PC99 - 2001
Resolution
Tracking speed
Acceleration
FCC Part 1 5 Equipment Certificate; CFR 47, Part 1 5; other [oca[
requirements
US, Betgium, Switzerland, Spain, Denmark, Netherlands, France,
Germany, ltaty, Portugal, Sweden, Norway, Fintand, UK, Potand,
Czech Republic, Turkey, Greece, Austria, Butgaria, Cyprus,
Estonia, Hungary, lreland, Latvia, Lithuania, Luxemburg, Malta,
Romania, Slovakia, Slovenia, Vietnam, HK, Australia, NZ,
Malaysia, Singapore, lndonesia, Philippines, and Thailand.
-32' to 1 04"F (0' to 40" C)
-4'to 1 40'F (-20" to 60' C)
1 0% to 90%
(non condensing at amblent)
10% to 90%
(non condensing at ambient)
40 g, 6 surfaces
80 g, 6 surfaces
2 g peak acceleration
4 g peak acceleration
80 cm height onto asphalt tile over concrete or equivalent, 5-drop
in 5 direction except the cable face
5 VDC r 10%
100m4
PS/Z mini-din connector
CE level 4, 1 5 kV air discharge
Conforms to FCC rules for a Class B computing device
Functiona[[y compliant
400 r 20% DPI
10 in/s (25.4 cm/s) maximum
1oo in/s/s (2.54 m/s/s) fi rl I 2 *' ii
(D DA - 14259 North America - Version 41 - January 2,20'14 Page 49
üüüü(t¿tn3:]6

QuickSpecs HP Compaq Pro 5300 Business PC
TechnicaI Specifications - Input/Output Devices
Mechanical
Scroll whecl
Regulatory Approvals
Switch actuation 61 g nominal peak force
Switch life 3,000,000 operations (using Hasco modified tester)
Switch type Low force micro-switches
Tracking mechanism [ife 155 mi (250 km) at average speed of 10 in/s
Cabte length 6 ft (1.8 m)
Microsoft PC99 - 2001 Mechanically comptiant
Width I mm
Diameter 1.01 in (25.5 mm)
Maximum rotation speed 48 rats/sec
Switch type Light force micro-switch
Switch life 1 mitlion operations
Mechanica[tife Minimum 200,000 revolutions
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MtC
1.5 x 4.5 x 2.5 in (3.8 x 1 1.6 x 6.3 cm)
0.27 tb (0.12 kg)
72.8 in (185 cm)
Availabte USB port
HP USB 0ptical Mouse
Dimensions
(HxLxW)
hleight
Cable length
System requirements
HP USB Laser Mouse
Scroll Wheel
l¡laximum Rotation Speed
Switch Type
Switch Life
Environmental
24
48 rats/sec
Wheel
Button - 3,000,000
Whee[- 1,000,000 times
Titt switch - 500,000 times
0perating Temperature
Non-operating Temperature
32" to 1 04" F (0" to 40' C)
-4'to 140" F G20'to 60" C) 011n?r5
qe DA - 14269 North America - Version 41 - January 2,2014
üüüü0rrn335
Page 50

QuickSpecs HP Compag Pro 5300 Business PC
TechnicaI Specifications -
Electrical
filechanical
Regulatory Approuals
HP USB PS/2 Washable Mouse
Dimensions(HxLxW) 1.56x2.44x4.61 in(3.95xG.21 x11.7cm)
lnput/Output Devices
0perating Humidity 10% to 90%
(non-condensing at ambient)
Non-operating Humidity 20%to80o/o
(non-condensing at ambient)
Operating Shock 40 g, six surfaces
Non-operating Shock 80 g, six surfaces
Operating Vibration 2-g peak acceleration
Non-operating Vibration 4-9 peak acceleration
0perating Voltage + 5VDC t 5%
Power Consumption
MTBF > 15o,ooo hrs
ESD IEC-GI000-4-2 criteria B, Contact discharge: +/- 4kV, Air
discharge: +/- 8kV
EMI-RFI FCC Class B
PC98 PC 99 Comptiant
Resolution 800dpi
Tracking Speed 25 cm/sec
Acceleration 0.5mm
Switch Actuation 0.6N (609f)
Switch Life Button - 3,000,000
Wheel- 1,000,000 times
Tilt switch - 500,000 times
Cabte Length 1850mm
PC98-99 PC99 compliant
uL509s0-1, uL 94, UL 746 (A-E), UL 796
TUV/GS: EN 609s0-1, EN 6082s-1
FCC Class B, UL 1 950, cUL, TUV GS, CE, C-tick, VCC|, BSM|, RRL
Weight
Environmental 4.44 oz(1ZS g)
0perating temperature
Non-operating
temperature
0perat¡ng humidity
-32' to 1 04'F (0' to 40" c)
-4'to 1 40'F (-20' to 60" C)
1 0% to 90% (non-condensing at ambient) 0il"2'1
(b DA- 14269 North America-Version 41 -January Z,ZO14
üüoüonnn q Jl
Page 51

I
QuickSpecs HP Compaq Pro 6300 Business PC
TechnicaI Speciflcations - lnput/Output Devices
Non-operating humidity
0perating shock
Non-operating shock
0perat¡ng vibration
Non-operating v¡brat¡on
Drop (out of box)
Electrical 0perating vottage
Power consumpt¡on
System consumption
ESD
EMI-RFI
Microsoft@ PC99 - 2001
Resolution
Tracking speed
Acceteration
Switch actuation
Switch tife
Switch type
Cable length
Microsoft PCg9 - 2001
width
Diameter
Maximum rotation speed
Switch type
Switch life
Mechanicallife
Compliant
Operating system support
Mechanical
Scroll wheel
1 0% to 90% non-condensing
40 g, 5 surfaces
80 g, 5 surfaces
2 g peak acceteration
4 g peak acceteration
80 cm height onto asphalt tile over concrete or equivalent, S-drop in 5
direction except the cable face
5VDCt10%
100mA
PS/2 mini-din connector or USB
CE level 2 8 kV air discharge
Conforms to FCC rules for a Class B computing device
Functionally compliant
1 000 r 20% DPI
14 in/s ( 35.56 cm/s) maximum
2g
70 g nominal peak force
3,000,000 operations (using Hasco modified tester)
Low force micro-switches
8.8 ft totatT0 cm+ 2m extension
Mechanica[[y compliant
6mm
1 in (25.4 mm)
48 rats/sec
Light force micro-switch
3 mi[[ion operat¡ons
Minimum 200,000 revolutions
FCC, CE Mark, ICE5-003-8, lP66/NEMA4X
Windows 7, Windows Vista Business 64*, Windows Vista Business 32*,
Windows Vista Home Basic 32*, Windows 2000, Windows XP Professional or
Windows XP Home 32* (No driver is required for this device. Native support is
provided by the operating system.), xpe, ce.net, Linux, XP-54
* Certain Windows Vista product features require advanced or additional
hardware. Windows Vista Upgrade Advisor can hetp you determine which
features of Windows Vista will run on your computer. To download the tool,
visit: http://www.windowsvista.com/upgradeadvisor. For Windows Vista
system requirements, visit:
http://www.windowsvista.com/systemrequirements.
0[tnl '' 3
egulatory approvals
Compatibility
(D DA- 14269 NorthAmerica-Version 41 -January 2,2014 Page 52
üü0ü0nn3rj

QuickSpecs HP Compaq Pro 6300 Business PC
TechnicaI Specifications - Power
Unit Environment and Operating Conditions
General Unit Operating Guidelines
o Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is
operated within the specified operating range.
o Leave a 10.2 cm (4 in) clearance on alt vented sides of the computer to perm¡t the required airflow.
o Never restrict airflow into the computer by btocking any vents or air intakes.
o Do not stack computers on top of each other or place computers so near each other that they are subject to each other's re-
circulated or preheated air.
o 0ccasionally ctean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign
matter can block the vents and limit the airflow.
o lf the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure,
and the same operating guidelines listed above wiltstitlappty.
Temperature Range 0perating: 50" to 95'F (1 0" to 35. C)*
Non-operating:-22" to 1 40' F(-30' to 60' C)
Relative Humidity Operating: 10% to 90% (non-condensing at ambient)
Non-operating: 5o/o lo 95o/o (non-condensing at ambient)
Maximum Attitude Operatíng: 10,000 ft (3048 m)
(unpressurized) Non-operating: 30,000 ft (9144 m)
*0perating temperature is de-rated 1 .0 deg C per 300 m (1 000 ft) to 3000 m (1 0,000 ft) above sea [eve[, no direct sustained suntight.
Maximum rate of change is 10 deg C/Hr. The upper timit may be limited by the type and number of options instatted.
Power Supply sFF rr,tr
Standard Efficiency 240W active pFC 320W active pFC
High Efficiency* 240W active pFC 320W active pFC
871901870/o efficient @ 20/50/100% toad 871901870/o efficient @ 20/50/100% toad
0peratingUoltage Range 90 - 264 VAC
Rated Uoltagc Range 100 - 240 VAC
Rated l¡ne Frcgucncy 50/60 Hz
0perat¡ng Une Frequency 47 - 63 Hz
Range
Ratcd lnput Current 4A 5.SA
Rated lnput current with 4A 5.5A
Encrgy Efficient' Power
Supply
(urrentlcakagc < 275 pA < 450 ¡rA
(I{FPA 99)
Power Supply Fan 92mm variabte speed
Power cord lcngth 6.0 ft. (1.g3 m)
Total Cord Length N/A N/A
*High efficiency power supply is a requirement for ENERGY STAR qualification in conjunction with a select range of processors and
modules
l'!iln'¡t )
(D Page 53
úüüü0nn3s I
DA - 14269 North America - Version 41 - January 2,2014

QuickSpecs HP Compaq Pro 6300 Business PC
TechnicaI Specifications - Weights & Dimensions
Weights &
Dimensions
(configured with 1 HDD &
1 ODD)
Chassis
(HxWxD)
System Uolume
4.0 x 13.3 x 14.9 in
100x338x379mm
790.3 cu in
12.8 L
15.7 tb
7.6 kg
77.01b
35.0 ks
1.1 x 7.0 x 7.9 in (29 x 178 x 200 mm)
System Weight*
Max Supported Wcight
(desktop orientation)
Tower Stand
(HxWxD)
Packaging
(HxWxD)
Shipping Weight.
9.0 x 19.8 x 23.4 in
229 x 500 x 594 mm
17.9 tb
8.1 kg
4-units per [ayer
10-layer max.
40-units per pallet
Palletization Profile
SFF MT
14.9 x 7.0 x 17.0 in
377 x177 x431 mm
1757.48 cu in
28.8 L
20.s lb
9.3 kg
N/A
N/A
11.6 x 19.7 x 23.2 in
295 x 500 x 590 mm
28.81b
13.1 ks
4-units per layer
8-tayer max.
32-units per pallet
0{\n:¿l J-
0t DA- 14269 NorthAmerica-Version 41 -January 2,2014
üüúü0rrn3g1
Page 54

QuickSpecs HP Compaq Pro 6300 Business PC
TechnicaI Specifications - Misce][aneous Features
Management Features
o Advanced Configuration and Power Management lnterface (ACPI). Allows the system to wake from a low power mode. Controls
system power consumption, making it possibte to place individual cards and peripherals in a low-power or powered-off state
without affecting other elements of the system.
o lntel Wired for Management supporU industry wide initiative to make lntel architecture based PCs, servers and mobile
computers more inherently manageable out-of-the-box and over the network
o Dual State Power Button; acts as both an on/off button and a suspend-to-sleep button
Seruiceability Features
o Dua[ colored power LED on front of computer to indicate either normaI or fault condition
o Diagnostic LED Exptanation Table:
o Number of 1 -second red LED blinks fottowed by a Z-second pause, then repeats:
. 2 - processor thermal protection activated
3 - processor not installed
4 - power supply failure
5 -- memory error
6 - video error
7 - PCA failure (ROM detected failure prior to video)
8 - invalid ROM, bootbtock recovery mode
9 - system not fetching code
10 - system hang white loading an option ROM
o System/Emergency ROM
o Ftash ROM
o CMOS Battery Holder for easy replacement
o Flash Recovery with Video Configuration Record Software
o 5 Aux Power LED on System PCA
o Processor ZIF Socket for easy Upgrade
o Over-Temp Warning on Screen (Requires lM Agents)
o Clear Password Jumper
o DIMM Connectors for easy Upgrade
o Clear CMOS Button
o NIC LEDs (integrated) (Green & Amber)
o Dua[ Color Power and HD LED - To lndicate NormatOperations and Fautt Conditions
o Color coordinated cables and connectors
o Tool-less Hood Removal
o Front power switch
. System memory can be upgraded without removing the system board or any internal components
o Toot-tess Hard Drive, CD & Diskette Removal
o Green Pull Tabs, and Quick Release Latches for easy ldentification
0trn?:0
(D DA - 1 4269 North America - Version 41 - January Z,Z0'14
t¡ü{)[iftl'1i330
Page 55

QuickSpecs HP Compaq Pro 6300 Business PC
TechnicaI Specifications - Miscettaneous Features
Additional Features Description
Towerable Orientation Product can be oriented as either a desktop or a tower
lmplementation of the industry standard ATA Security feature set. When enabled, it
l!¡ive Lock prevents software access to user data on the drive until one or two user-defined
passwords are provided.
DPS Access through Fl 0 Setup during Boot
A diagnostic hard drive self-test. lt scans critica[ physical components and every sector of
the hard drive for physical faults and then reports any faults to the user
Running independentty of the operating system, it can be accessed through a Windows-
l¡r¡ve protection System based diagnostics utitity orthrough the computer's setup procedure. lt produces an
evaluation on whether the hard drive is the source of the problem and needs to be
replaced
The system expands on the Self-Monitoring, Anatysis, and Reporting Technology
(SMART), a continuously running systems diagnostic that aterts the user to certain types
of failures
SMART T¡chnology (Sclf-l,lonitorin g,
Analysis and Reporting Technology)
SMART l - Drive Failure Prediction
SMART ll- 0ff-Line Data Collection
SMART !l!- 0ff-Line Read Scanning with
Defect Reallocation
Allows hard drives to monitor their own heatth and to raise ftags if imminent failures were
predicted
Predicts failures before they occur. Tracks fault prediction and failure indication
parameters such as re-allocated sector count, spin retry count, catibration retry count
By avoiding actuaI hard drive faitures, SMART hard drives act as "insurance" against
unptanned user downtime and potentialdata loss from hard drive failure
I0EDC: U0 Error Detection Circuitry
Detects errors in Read/Write buffers on HDD cache RAM
0tltl{\J
SMART !U - End-to-End CRC for hard ¿¡¡ys5 lnterface in F10 setup provides confirmation of SMART lV support.
(D DA - 14269 North America - Version 41 - January 2,2014
üüüilonn3r?3
Page 55

QuickSpecs HP Compaq Pro 6300 Business PC
TechnicaI Specifications - EnvironmentaI Data
Environmental Ilata Eco-Label Certifications &
dcclarations
System Configuration
SFF
Energy Consumption
Normal 0peration
Steep (Energy Staro low power
mode)
0ff
SFF
Heat Dissipation*
Norma[ 0peration
Sleep
0ff
MT Norma[ 0peration
Steep
0ff
This product has received or is in the process of being certified to the
following approvals and may be labeled with one or more of these
marks:
o US ENERGY STARo
o lT ECO dectaration
o EPEAT@ Gold where HP registers commercialdesktop products.
See http://www.epeat.net for registration status in your country.
o The configurat¡on used for the Energy Consumption and Declared
Noise Emissions data for the Small Form Factor Desktop modelis
based on a typicatty configured product.
o The configuration used forthe Energy Consumption and Declared
Noise Emissions data for the Microtower Desktop mode[ is based
on a typically configured product.
115UAC 23OUAC 1OOUAC
41.77 W 41.64 W 41.57 W
1.92 W 2.21W 1.91 W
0.66 W0.89 W0.64 W
It'lT Normal0peration 48.49 W 49.54 W 47.99 W
Sleep (Energy Staro low power 1.887 W 2.117 W 1.852 W
mode)
off 0.641 W 0.847 W 0.621 W
Note: Energy efficiency data [isted is for an ENERGY STAR@ comptiant product if offered within the modetfamity . Hp computers
marked with the ENERGY STARo Logo are comptiant with the appticable U.5. Environmental Protection Agency (EPA) ENERGy STAR@
specifications for computers. lf a modeI family does not offer ENERGY STARo comptiant configurations, then energy efficiency data
tisted is for a typically configured mode[.
115UAC
143 BTU/hr
6 BTU/hr
2 BTU/hr
230 UAC
1 42 BTU/hr
7 BTU/hr
3 BTU/hr
100 uAc
142 BTU/hr
6 BTU/hr
2 BTU/hr
Declared Noise Emissions (in accordance with tSO ZZIS and ¡S0 929G)
165 BTU/hr 169 BTU/hr 154 BTU/hr
6 BTU/hr 7 BTU/hr G BTU/hr
2 BTU/hr 3 BTU/hr Z BTU/hr
*N0TE: Heat dissipation is calculated based on the measured watts,
assuming the service [eve[ is attained for one hour.
fi {\ ¡::,'i'J
(D DA - 14259 NorthAmerica-Version 41 -January 2,2014
úüt,ü0t'n38il
Page 57

QuickSpecs HP Compaq Pro 6300 Business PC
TechnicaI Specifications - EnvironmentaI Data
(Typically configured)
ldle
Fixed Disk (random
writes)
ldle
Fixed Disk (random
writes)
Longevity and Upgrading
SFF
üT
Batteries
z8
29
This product can be upgraded, possibly extending its useful life by severaI years.
Spare parts are available throughout the warranty period and or for up to '5" years
after the end of production.
This product can be upgraded, possibly extending its usefu[ life by severaI years.
Spare parts are available throughout the warranty period and or for up to "5" years
after the end of production.
Spare parts are available throughout the warranty period and or for up to "5" years
after the end of production.
This battery(s) in this product comply with EU Directive 200G/G6/EC
Sound Power
(LWAd, bels)
3.8
3.9
Sound Pressure
(LpAm, decibels)
28
28
SFF
MT 3.8
3.9
Batteries used in the product do not contain:
o Mercury greater the 5ppm by weight
o Cadmium greater than 10ppm by weigh
Battery size: CRZO3Z (coin cell)
Battery type: Lithium
Additional lnf ormation
SFFo This product is in comptiance with the Restrictions of Hazardous Substances (RoHS) directive -
z00ueslEc.
o This HP product is designed to comply with the Waste Etectr¡caland Etectronic Equipment (WEEE)
Directive - 2002
I 96 I EC.
o This product is in compliance with California Proposition 55 (State of California; Safe Drinking Water and
Toxic Enforcement Act of 1 986).
o This product is in comptiance with the IEEE 1680 (EPEAT) standard at the Gotd where HP registers
commercial desktop products. See http://www.epeat.net for registration status in your country.
. Plast¡cs parts weighing over 25 grams used in the product are marked per 150 1 1469 and 1501043.
o This product conta¡ns 3.5% post-consumer recycled plastic (by wt.)
o This product is 93.82% recyctable when property disposed of at end of tife.
MT
o This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive -
2002lsslEc.
o This HP product is designed to comply with the Waste Etectricaland Electronic Equipment (WEEE)
Directive - 2002
I 96 I EC.
o This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and
(D DA - 14269 North America - Version 41 - January 2,2014 finttnfaoesa
úüüü0nn3s7

QuickSpecs HP Compag Pro 6300 Business PC
Technical Specifications - EnvironmentaI Data
Toxic Enforcement Act of 1 986).
o This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gotd where Hp registers
commercial desktop products. See http://www.epeat.net for registration status in your country.
o Plastics parts weighing over 25 grams used in the product are marked per lS0 1 14G9 and lSO1O43.
o This product contains 5.6% post-consumer recycled ptastic (by wt.)
o This product is94.78o/o recyctable when property disposed of at end of tife.
Packaging lilate¡ials
SFFo Externa[:
o PAPER/Corrugated 2300 g
o lnternal:
o PLASTIC/Potyethylene low density 56 g
o PLASTIC/EPS (Expanded Polystyrene) 63.4 g
o PlASTlC/Polypropylene t5 g
o The corrugated packaging material contains at least 30.66% recycted content.
o The PLASTIC/Potyethytene low density packaging materiaI contains at least 5%o recycled content.
o The pLASTlc/Eps (Expanded polystyrene) packaging material contains at least 5% recycled content.
r The PLASTIC/Potypropylene packaging material contains at least 5% recycled content.
TI,IT
o External:
o PAPER/Corrugated ZZTBg
o lnterna[:
o PLASTIC/EPS (Expanded Polystyrene) 1 1 4 g
o PLASTIC/Polyethylene low density 5G g
o PlAST|C/Polypropylene 15 g
o The PAPER/corrugated packaging materiaI is made from 30.6% recycled content.
o The pLASTlc/Eps (Expanded potystyrene) materiaI is made from at least 0% recycled content.
o The PLASTIC/Potyethytene low density packaging materiaI contains at least 0% recycled content.
o The PLASTIC/EPS (Expanded Polystyrene) packaging material contains at least 0% recycted content.
RoHS Compliance Hewlett-Packard ¡s comm¡tted to compliance with attapplicable
environmenta[ [aws and regulations, including the European union Restriction
of Hazardous substances (RoHS) Directive. Hp's goal is to exceed compliance
obligations by meeting the requirements of the RoHS Directive on a worldwide
basis. By July 1, 2006, RoHS substances will be virtua[y eliminated (virtuatty =
to levels below legal timits) for att HP electronic products subject to the RoHs
Directive, except where it is widely recognized that there is no technically
feasible alternative (as indicated by an exemption under the EU RoHS
Directive).
Material Usage This product does not contain any of the foltowing substances in excess of
regulatory limits (refer to the HP General specification for the Environment at:
http://www. hp.com/hpinf o/gtobalcitizenship/environment/
supptychain/gen_specif ications.html):
o Asbestos
o Certain Azo Colorants
o Certain Brominated Flame Retardants - may not be used as flame
retardants in ptastics
o Cadmium
o ChlorinatedHydrocarbons
(D DA- 14259 NorthAmerica-Version 41 -January Z,ZO14
ü0trü0nn3R6
0n1r¡¿fas'ss

QuickSpecs HP Compaq Pro 6300 Business PC
Technical Specifications - Environmental Data
Packaging
o ChlorinatedParaffins
o Formatdehyde
o Hatogenated Diphenyl Methanes
o Lead carbonates and sulfates
o Lead and Lead compounds
o Mercuric Oxide Batteries
o Nickel - finishes must not be used on the external surface designed to
be frequently handled or carried by the user.
o 0zone Depteting Substances
o Polybrominated Biphenyls (PBBs)
o Polybrominated B¡pheny[ Ethers (PBBEs)
o Polybrominated BiphenylOxides (PBBOs)
o Polychlorinated Biphenyl (PCB)
o PolychlorinatedTerphenyls(PCT)
o Polyvinyl Chtoride (PVC) - except for wires and cables, and certain retail
packaging has been voluntarily removed from most applications.
o RadioactiveSubstances
o TributylTin (TBT), Triphenyl Tin (TPT), Tributyt Tin Oxide (TBT0)
HP follows these guidelines to decrease the environmenta[ impact of product
packaging:
o Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
o Eliminate the use of ozone-depteting substances (0DS) in packaging
materials.
o Design packaging materials for ease of disassembly.
o Maximize the use of post-consumer recycted content materials in
packaging materials.
o Use readily recyctabte packaging materials such as paper and
corrugated materiats.
o Reduce size and weight of packages to improve transportation fuel
efficiency.
o Plastic packaging materiats are marked according to lS0 11409 and DIN
61 20 standards.
End-of-life Management Hewlett-Packard offers end-of-tife HP product return and recycling programs
and Recycling in many geographic areas. To recycle your product, ptease go to:
http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
Hewlett-Packard
Corporate Environmental
lnformation
The EU WEEE directive (2002/9s/EC) requires manufacturers to provide
treatment informat¡on for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http:/iwww.hp.com/go/recycters. These instructions may
be used by recyclers and other WEEE treatment facitities as wellas HP OEM
customers who integrate and re-sell HP equipment.
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-tabel certifications
(D DA - 14269 North America - Version 41 - January 2,20'14
úülriJflnn3g5
0,'t"2nfhse60

QuickSpecs HP Compaq Pro 6300 Business PC
TechnicaI Specifications - EnvironmentaI Data
http://www.hp.com/hpinf o/globatcitizenship/environment/productdesign/
ecolabels.html
lS0 14001 certificates:
http://www.hp.com/hpinf o/globalcitizenship/environment/operations/
envmanagement.htmt
t,úaü{i,}n3gI
(D DA- 14259 NorthAmerica-Version 41 -January 2,2014 Page 61
0ili:¿{\,1
