HP 9000 Series User manual

FINAL TRIM SIZE : 7.0 in x 8.5 in
Models 745i/50, 745i/100, 747i/50, and 747i/100
Owner's Guide
for HP-UX Users
HP 9000 Series 700i Industrial Workstations
ABCDE
HP Part No. A2628-90014
Printed in USA August 1993
Edition 1
E0893
DRAFT 2/5/97 11:31

FINAL TRIM SIZE : 7.0 in x 8.5 in

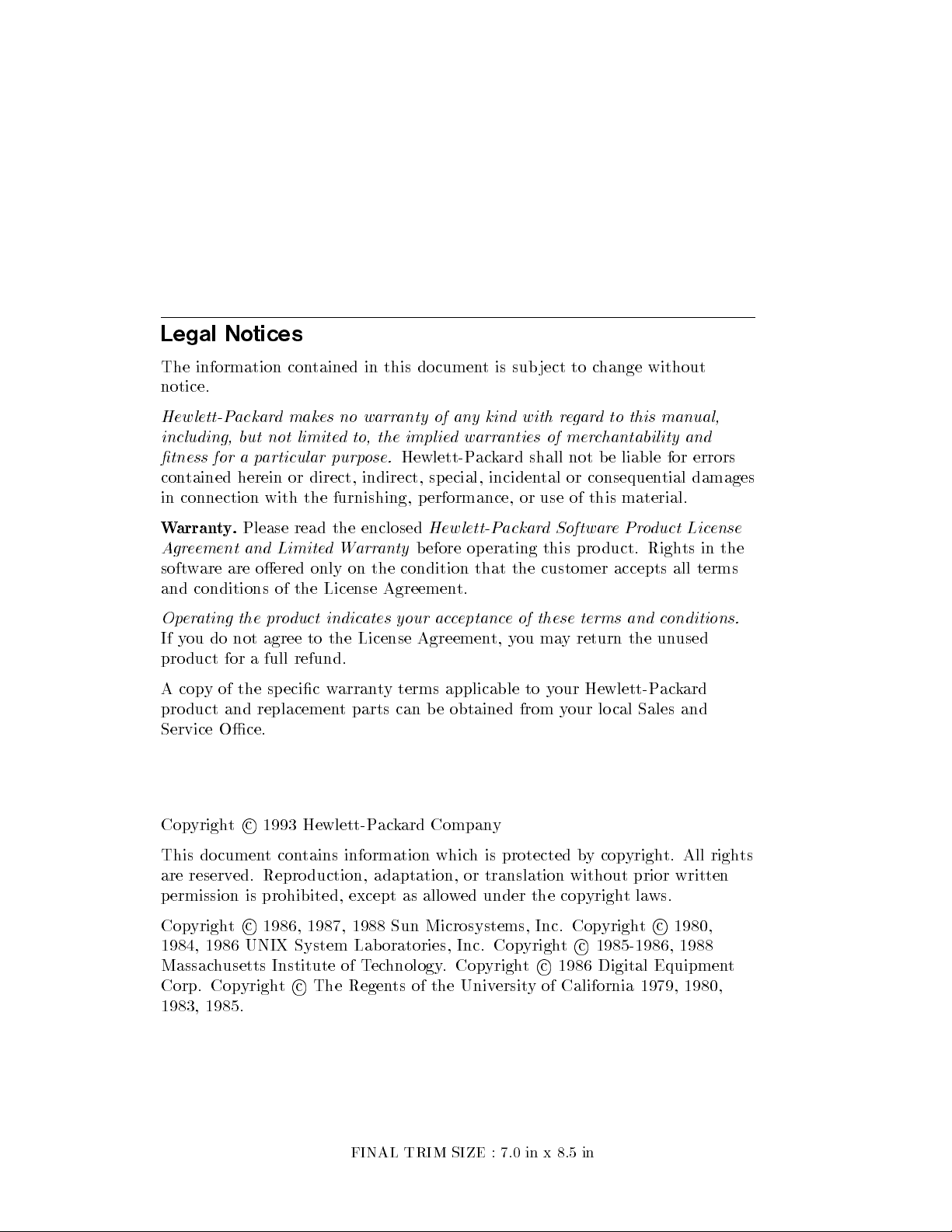

Legal Notices
The information contained in this documen
t is sub ject to c
hange without
notice.
Hew lett-Packard makes no warranty of any kind with r
egard to this manual,
including, but not limited to, the implied warranties of merchantability and
tness for a particular purpose. Hewlett-Packard shall not b e liable for errors
contained herein or direct, indirect, sp ecial, inciden
tal or consequential damages
in connection with the furnishing, performance, or use of this material.
Warranty. Please read the enclosed Hew lett-Packard SoftwareProduct License
Agreement and Limited Warranty before op erating this pro duct. Rights in the
software are oered only on the condition that the customer accepts all terms
and conditions of the License Agreement.
Operating the product indicates your acceptance of these terms and conditions.
If you do not agree to the License Agreemen
t, you may return the unused
pro duct for a full refund.
A copy of the specic warranty terms applicable to your Hewlett-Packard
pro duct and replacement parts can be obtained from your lo cal Sales and
Service Oce.
Copyright c  1993 Hewlett-Packard Company
This do cument contains information which is protected by copyright. All rights
are reserved. Reproduction, adaptation, or translation without prior written
permission is prohibited, except as allowed under the copyrightlaws.
Copyright c  1986, 1987, 1988 Sun Microsystems, Inc. Copyright c
 1980,
1984, 1986 UNIX System Lab oratories, Inc. Copyright c
 1985-1986, 1988
Massachusetts Institute of Technology. Copyright c
 1986 Digital Equipment
Corp. Copyright c  The Regents of the University of California 1979, 1980,
1983, 1985.

FINAL TRIM SIZE : 7.0 in x 8.5 in

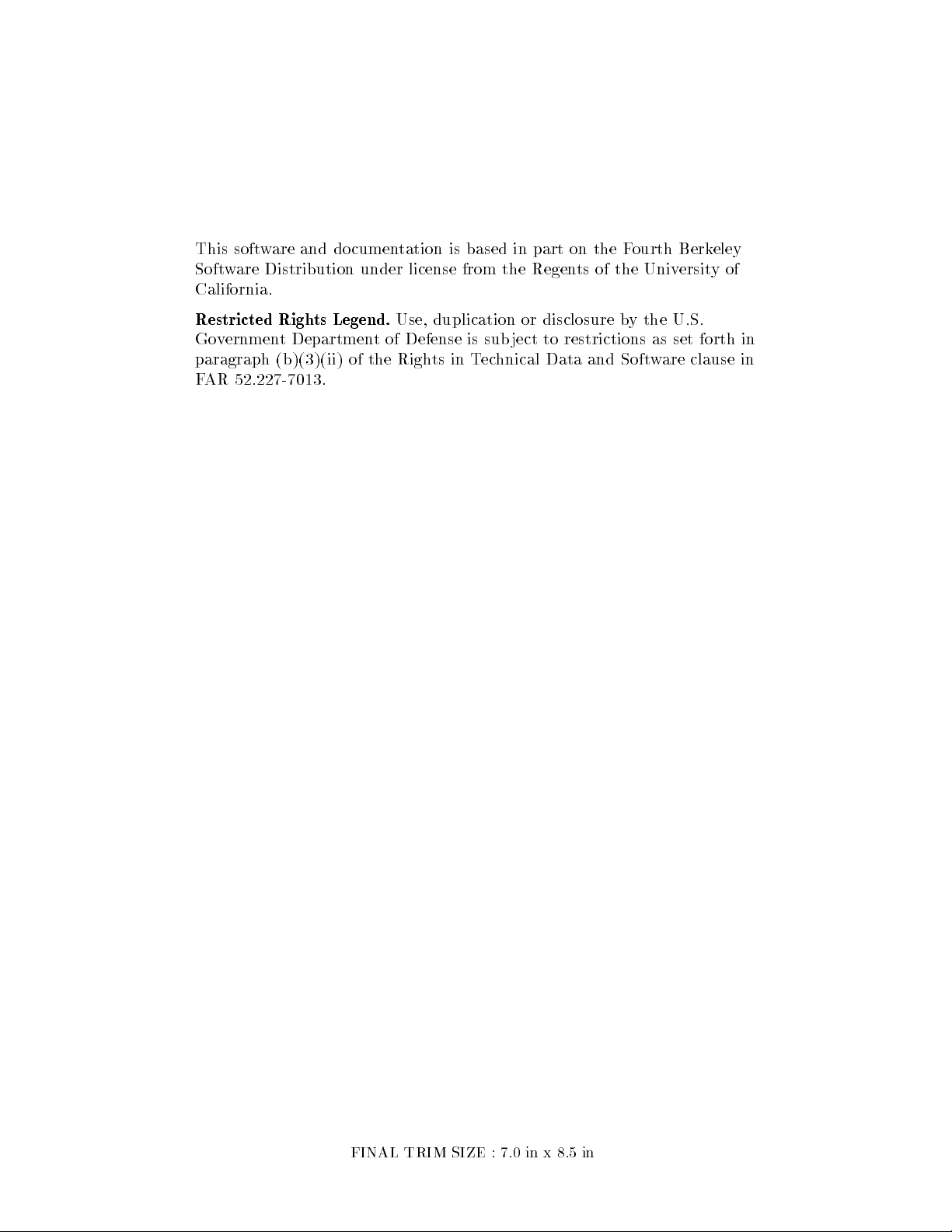

This software and do cumentation is based in part on the F
ourth Berkeley
Software Distribution under license from the Regen
ts of the University of
California.
Restricted Rights Legend. Use, duplication or disclosure by the U.S.
Government Department of Defense is sub ject to restrictions as set forth in
paragraph (b)(3)(ii) of the Righ
ts in Technical Data and Software clause in
FAR 52.227-7013.

FINAL TRIM SIZE : 7.0 in x 8.5 in

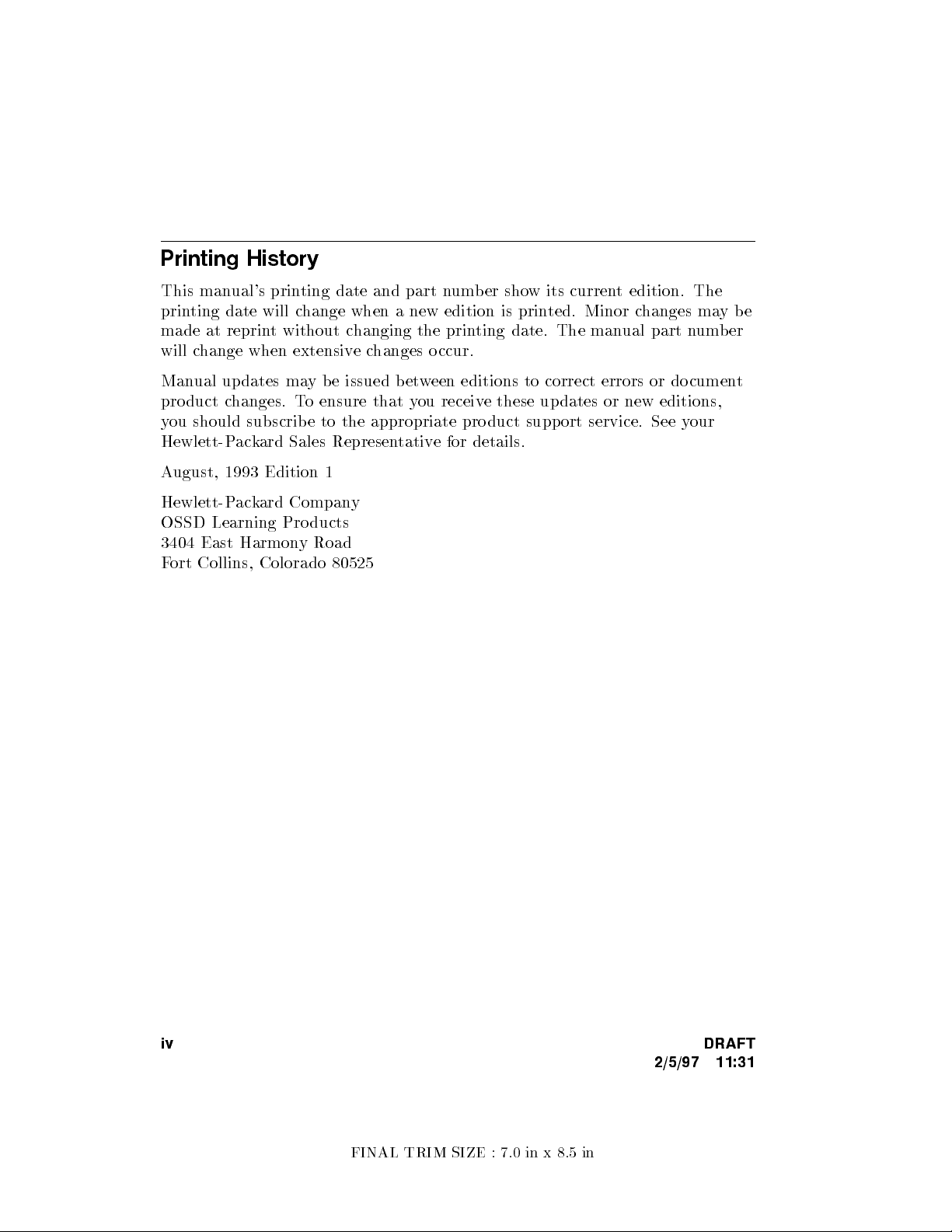

Printing History
This manual's printing date and part n
umber show its current edition. The
printing date will change when a new edition is prin
ted. Minor changes maybe
made at reprint without changing the printing date. The man
ual part number
will change when extensivechanges o ccur.
Manual updates ma
y be issued bet
ween editions to correct errors or do cumen
t
pro duct changes. To ensure that you receive these updates or new editions,
you should subscribe to the appropriate pro duct support service. See y
our
Hewlett-Packard Sales Representativ e for details.
August, 1993 Edition 1
Hewlett-Packard Company
OSSD Learning Pro ducts
3404 East Harmony Road
Fort Collins, Colorado 80525
iv DRAFT
2/5/97 11:31

FINAL TRIM SIZE : 7.0 in x 8.5 in
Safety Symbols and Conventions
The follo wing conventions are used throughout this man
ual:
Note
Notes contain imp ortant information set o from the text.
Caution
Caution messages indicate pro cedures whic
h, if not observed,
could result in loss of data or damage to equipmen
t. Do not
pro ceed b eyond a CAUTION sign until the indicated conditions
are fully understo o d and met.
Warning
Warning messages indicate procedures or practices which, if
not observed, could result in personal injury. Do not proceed
beyondaWARNING sign until the indicated conditions are fully
understood and met.
FCC Statement (For U.S.A. Only)
The Federal Communications Commission (in Subpart J of Part 15, Do cket
20780) has specied that the following notice b e brough
t to the attention of the
users of this pro duct.
Warning. This equipment generates, uses, and can radiate radio frequency
energy and if not installed and used in accordance with the instructions
manual, may cause interference to radio communications. It has been
tested and found to comply with the limits for a Class A computing device
pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide
reasonable protection against suchinterference when op erated in a commercial
environment. Operation of this equipment in a residential area is likely to
cause interference in which case the user at his own expense will b e required to
take whatever measures may be required to correct the interference.
DRAFT
2/5/97 11:31
v

FINAL TRIM SIZE : 7.0 in x 8.5 in
Regulatory Information
FCC Statement(For U.S.A. Only)
The Federal Communications Commission (in Subpart J of P
art 15, Do cket
20780) has specied that the following notice b e brough
t to the attention of
the users of this pro duct:
This equipment generates, uses, and can radiate radio frequency energy
and if not installed and used in accordance with the instructions man
ual,
may cause interference to radio communications. It has been tested and
found to comply with the limits for a Class A computing device pursuan
tto
Subpart J of Part 15 of FCC rules, which are designed to provide reasonable
protection against suchinterference when operated in a commercial
environment. Op eration of this equipment in a residential area is likely to
cause interference in which case the user at his own exp ense will b e required
to take whatever measures may b e required to correct the in
terference.
Turvallisuusyhteenveto (Finland Only)
Laserturval lisuus
Luokan 1 Laserlaite
Klass 1 Laser Apparat
HP 9000 Mo del 745i/747i tietokoneeseen v
oidaan asentaa muistilaitteeksi
laitteensisainen CD-ROM-levyasema, joka on laserlaite. Talloin myos
paalaitteena toimiva tietokone katsotaan laserlaitteeksi.
Kyseinen CD-ROM-livyasema on kayttajan kannalta turvallinen luokan 1
laserlaite. Normaalissa kaytossa levyaseman suo jakotelo estaa lasersateen
paasyn laitteen ulkopuolelle.
HP 9000 Mo del 745i/747i tietokoneen on t
yyppihyvaksynyt Suomessa
laserturvallisuuden osalta Tyosuo jeluhallitus, Tyosuo jeluhallituksen
hyvaksyntanumero TSH 222/6019/90. Laitteiden turvallisuusluokkaon
maaritettyvaltioneuvoston paatoksen No: 472/1985 ja standardin SFS-IEC
825 mukaisesti. Tiedot CD-ROM-levyasemassa kaytettavan laserdio din
sateilyominaisuuksista:
Aallonpituus 780 nm
Teho 0,4 mW
Luokan 1 laser
vi DRAFT
2/5/97 11:31

FINAL TRIM SIZE : 7.0 in x 8.5 in
VCCI Statement (Japan Only)
DRAFT
2/5/97 11:31
vii

FINAL TRIM SIZE : 7.0 in x 8.5 in
Printing Conventions
This b o ok uses the follo
wing typographical conventions:
If you see ... It means ...
Colored Text Text material which is in color is to b e t
yped byyou.
computer text Text displayed by the computer system. F
or example,
login:
indicates a login prompt displa
yed by the system.
italic text Variable text supplied byyou. For example,
le name
means that you type a le name of your choice.
Italic text is also used for text emphasis and for do cumen
t titles.
4
Key
5 Type the corresponding key on the keyb oard. For example,
4
CTRL
5 - 4
D
5
means you hold down the 4
CTRL
5 key, and press the 4
D
5 key.
NNNNNNNNNNNNNNNNNNNNNNNNNN
Displayed
NNNNNNNNNNNNN
Item
Select an on-screen item or a corresponding softkey.For example,
NNNNNNNNNNNNNN
Help
viii DRAFT
2/5/97 11:31

FINAL TRIM SIZE : 7.0 in x 8.5 in

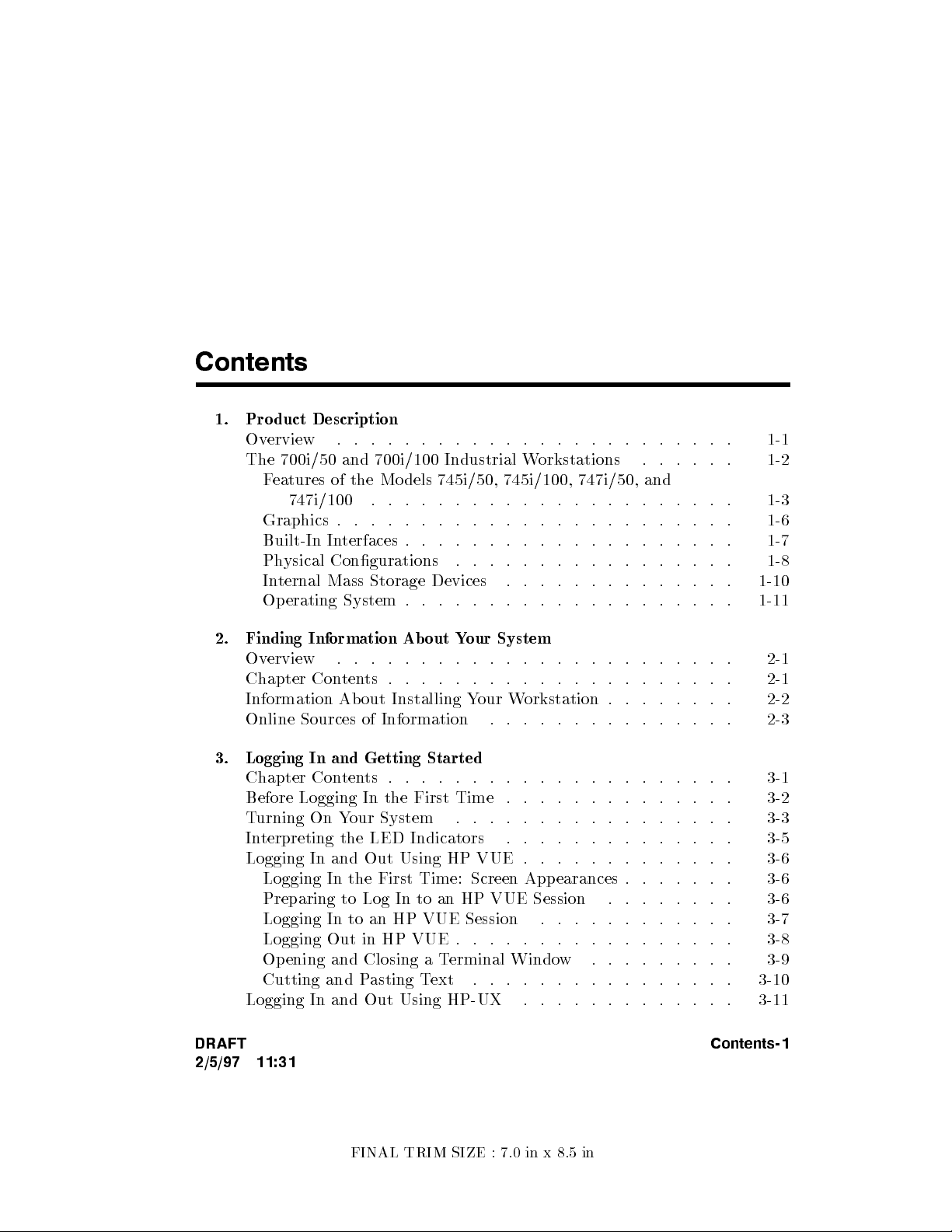

Contents
1. Product Description
Overview . . . . . . . . . . . . . . . . . . . . . . . . 1-1

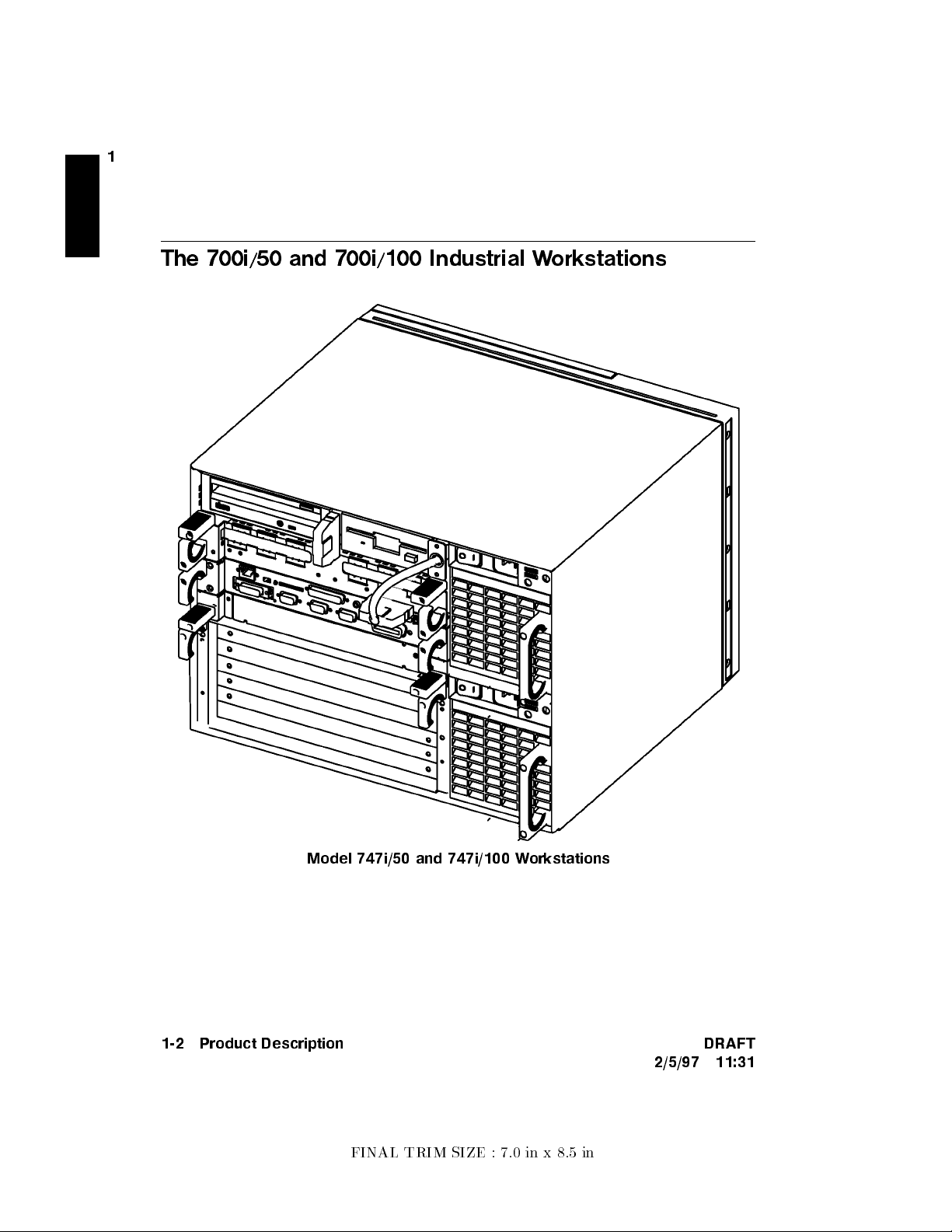

The 700i/50 and 700i/100 Industrial W
orkstations . . . . . . 1-2
Features of the Mo dels 745i/50, 745i/100, 747i/50, and
747i/100 . . . . . . . . . . . . . . . . . . . . . . 1-3
Graphics . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Built-In Interfaces . . . . . . . . . . . . . . . . . . . . 1-7
Physical Congurations . . . . . . . . . . . . . . . . . 1-8
Internal Mass Storage Devices . . . . . . . . . . . . . . 1-10
Operating System . . . . . . . . . . . . . . . . . . . . 1-11
2. Finding Information Ab out Your System
Overview . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Chapter Contents . . . . . . . . . . . . . . . . . . . . . 2-1
Information About Installing Your Workstation . . . . . . . . 2-2
Online Sources of Information . . . . . . . . . . . . . . . 2-3
3. Logging In and Getting Started
Chapter Contents . . . . . . . . . . . . . . . . . . . . . 3-1
Before Logging In the First Time . . . . . . . . . . . . . . 3-2
Turning On Your System . . . . . . . . . . . . . . . . . 3-3
Interpreting the LED Indicators . . . . . . . . . . . . . . 3-5
Logging In and Out Using HP VUE . . . . . . . . . . . . . 3-6
Logging In the First Time: Screen App earances . . . . . . . 3-6
Preparing to Log In to an HP VUE Session . . . . . . . . 3-6
Logging In to an HP VUE Session . . . . . . . . . . . . 3-7
Logging Out in HP VUE . . . . . . . . . . . . . . . . . 3-8
Opening and Closing a Terminal Window . . . . . . . . . 3-9
Cutting and Pasting Text . . . . . . . . . . . . . . . . 3-10
Logging In and Out Using HP-UX . . . . . . . . . . . . . 3-11
DRAFT
2/5/97 11:31
Contents-1

FINAL TRIM SIZE : 7.0 in x 8.5 in
Logging Out . . . . . . . . . . . . . . . . . . . . . . 3-11
Creating a New User Accoun
t . . . . . . . . . . . . . . . 3-12
Setting Audio Volume . . . . . . . . . . . . . . . . . . . 3-15
Setting or Changing a P
assword . . . . . . . . . . . . . . 3-18
Selecting a New Password . . . . . . . . . . . . . . . . 3-19
Getting Help . . . . . . . . . . . . . . . . . . . . . . . 3-20
Shutting Down Your System . . . . . . . . . . . . . . . . 3-21
Using the Shutdown Command to Stop Y
our System . . . . 3-21
4. Using the Command Line
Chapter Contents . . . . . . . . . . . . . . . . . . . . . 4-1
The Command Line Prompt . . . . . . . . . . . . . . . . 4-2
Running Commands . . . . . . . . . . . . . . . . . . . 4-2
Working with Shells . . . . . . . . . . . . . . . . . . . . 4-3
Basics of Shells: Characteristics, Cho osing and Using . . . . 4-3
Shell Features . . . . . . . . . . . . . . . . . . . . . 4-4
Determining Your Login Shell . . . . . . . . . . . . . . 4-5
Using Key Shell: Visual Help for Korn Shell . . . . . . . . 4-6
Displaying the HP-UX Manual Pages from the Command Line 4-7
For More Information . . . . . . . . . . . . . . . . . . 4-7
Using Files and Directories with Command Lines . . . . . . . 4-8
Creating Directories . . . . . . . . . . . . . . . . . . . 4-8
Moving and Copying Files b etween Directories . . . . . . . 4-9
Copying Files . . . . . . . . . . . . . . . . . . . . . . 4-9
Removing Files and Directories . . . . . . . . . . . . . . 4-10
Viewing and Printing Files . . . . . . . . . . . . . . . . . 4-12
Printing a File with lp . . . . . . . . . . . . . . . . . . 4-12
Editing Files . . . . . . . . . . . . . . . . . . . . . . . 4-14
Starting vi . . . . . . . . . . . . . . . . . . . . . . . 4-14
Selecting vi Editing Functions . . . . . . . . . . . . . . 4-14
Positioning the Cursor . . . . . . . . . . . . . . . . . . 4-15
Saving Your Work and Quitting . . . . . . . . . . . . . 4-15
For More Information on vi . . . . . . . . . . . . . . . 4-15
Using Audio Input/Output . . . . . . . . . . . . . . . . . 4-16
Developing Audio Applications . . . . . . . . . . . . . . 4-16
Using the Audio Demonstration Program . . . . . . . . . 4-16
Networking Overview . . . . . . . . . . . . . . . . . . . 4-20
Using the ftp File Transfer Program . . . . . . . . . . . . 4-21
Contents-2 DRAFT
2/5/97 11:31

FINAL TRIM SIZE : 7.0 in x 8.5 in
Preparing to Use ftp . . . . . . . . . . . . . . . . . . 4-21
Transferring Files with ftp . . . . . . . . . . . . . . . . 4-22
Copying Files Remotely Using rcp . . . . . . . . . . . . 4-24
Logging In on Another Computer Using rlogin . . . . . . . 4-26
Displaying Remote Graphical Programs Locally . . . . . . . 4-27
For More Information . . . . . . . . . . . . . . . . . . 4-28
5. Conguring HP-UX for Printers and Drives
Chapter Contents . . . . . . . . . . . . . . . . . . . . . 5-1
Preparing for Installation . . . . . . . . . . . . . . . . . 5-2
Conguring HP-UX for a Prin
ter . . . . . . . . . . . . . . 5-3
Testing the Printer Installation . . . . . . . . . . . . . . 5-6
Hardware Installation for Drives . . . . . . . . . . . . . . 5-8
Removing the Mass Storage Mo dule . . . . . . . . . . . . 5-8
Removing a Device from the Mass Storage Mo dule . . . . . 5-8
Finding the Status of Existing SCSI Bus Addresses . . . . . . 5-9
Conguring for a Hard Disk Drive . . . . . . . . . . . . . 5-10
Software Installation of the Hard Disk Drive Upgrade . . . . 5-10
Testing Your Installation . . . . . . . . . . . . . . . . . 5-13
Conguring for a Flexible Disk Drive . . . . . . . . . . . . 5-14
Testing Your Installation . . . . . . . . . . . . . . . . . 5-16
Archiving Files to a Flexible Disk . . . . . . . . . . . . . 5-16
Retrieving Files from a Flexible Disk . . . . . . . . . . . 5-17
Mounting a New Flexible Disk . . . . . . . . . . . . . . 5-18
Removing and Inserting a File-System Flexible Disk . . . . . 5-18
Conguring for a CD ROM Drive . . . . . . . . . . . . . . 5-20
Installing the CD ROM Drive with SAM . . . . . . . . . . 5-21
Testing Your Installation . . . . . . . . . . . . . . . . . 5-23
Mounting the New CD ROM Drive . . . . . . . . . . . . 5-24
Removing and Inserting a Disc . . . . . . . . . . . . . . 5-24
For More Information . . . . . . . . . . . . . . . . . . 5-25
Conguring for a DDS Tap e Drive . . . . . . . . . . . . . 5-26
Conguring the Drive on HP-UX . . . . . . . . . . . . . 5-27
Testing Your Installation . . . . . . . . . . . . . . . . . 5-29
DDS Tap e Drive LED Indicators . . . . . . . . . . . . . 5-30
Maximum Usage of DDS Cassettes . . . . . . . . . . . . 5-31
In Case of Diculty . . . . . . . . . . . . . . . . . . . 5-31
DRAFT
2/5/97 11:31
Contents-3

FINAL TRIM SIZE : 7.0 in x 8.5 in

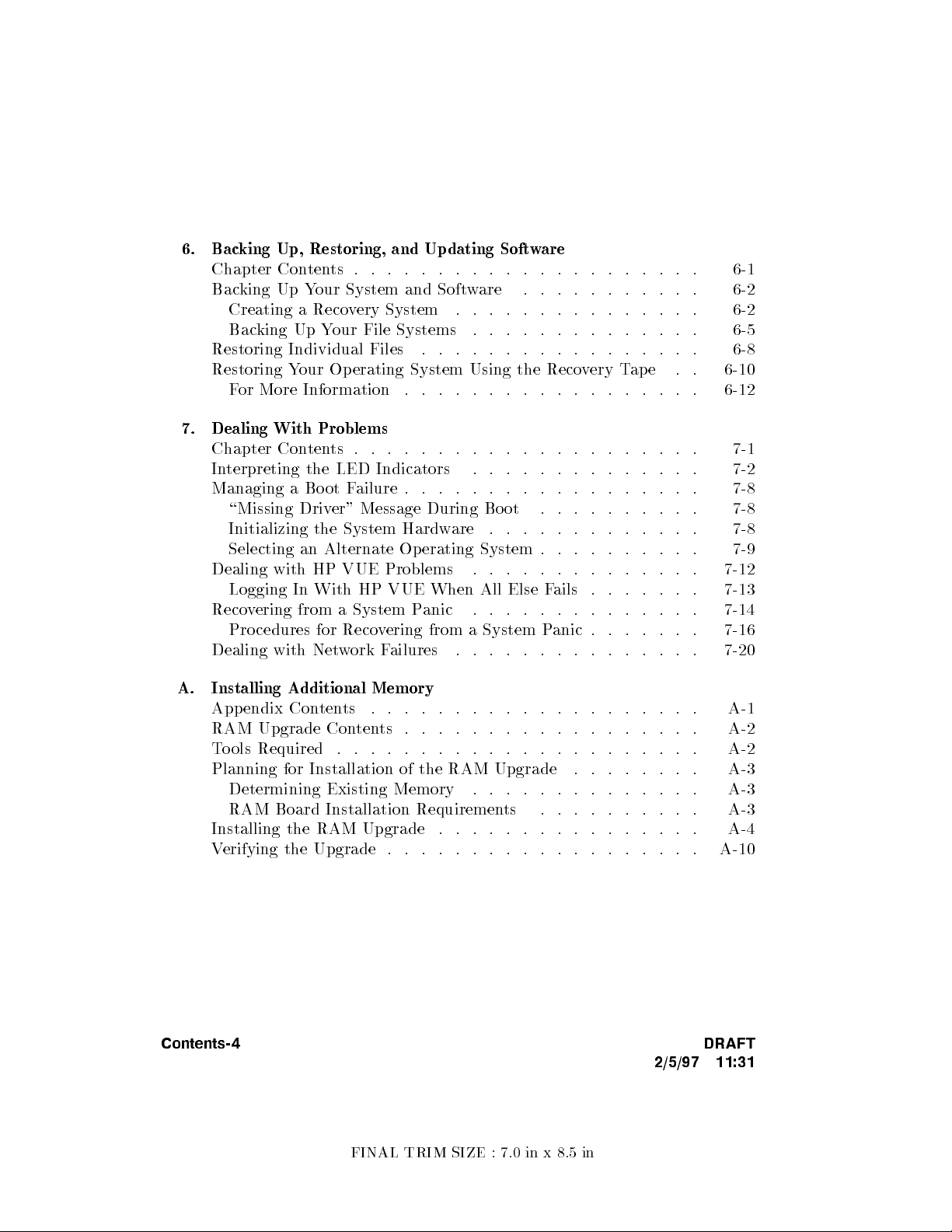

6. Backing Up, Restoring, and Up dating Soft
ware
Chapter Contents . . . . . . . . . . . . . . . . . . . . . 6-1
Backing Up Your System and Software . . . . . . . . . . . 6-2
Creating a Recovery System . . . . . . . . . . . . . . . 6-2
Backing Up Your File Systems . . . . . . . . . . . . . . 6-5
Restoring Individual Files . . . . . . . . . . . . . . . . . 6-8
Restoring Your Op erating System Using the Reco
very Tap e . . 6-10
For More Information . . . . . . . . . . . . . . . . . . 6-12
7. Dealing With Problems
Chapter Contents . . . . . . . . . . . . . . . . . . . . . 7-1
Interpreting the LED Indicators . . . . . . . . . . . . . . 7-2
Managing a Bo ot Failure . . . . . . . . . . . . . . . . . . 7-8
\Missing Driver" Message During Boot . . . . . . . . . . 7-8
Initializing the System Hardware . . . . . . . . . . . . . 7-8
Selecting an Alternate Operating System . . . . . . . . . . 7-9
Dealing with HP VUE Problems . . . . . . . . . . . . . . 7-12
Logging In With HP VUE When All Else F
ails . . . . . . . 7-13
Recovering from a System Panic . . . . . . . . . . . . . . 7-14
Pro cedures for Recovering from a System Panic . . . . . . . 7-16
Dealing with Network Failures . . . . . . . . . . . . . . . 7-20
A. Installing Additional Memory
Appendix Contents . . . . . . . . . . . . . . . . . . . . A-1
RAM Upgrade Contents . . . . . . . . . . . . . . . . . . A-2
To ols Required . . . . . . . . . . . . . . . . . . . . . . A-2
Planning for Installation of the RAM Upgrade . . . . . . . . A-3
Determining Existing Memory . . . . . . . . . . . . . . A-3
RAM Board Installation Requirements . . . . . . . . . . A-3
Installing the RAM Upgrade . . . . . . . . . . . . . . . . A-4
Verifying the Upgrade . . . . . . . . . . . . . . . . . . . A-10
Contents-4 DRAFT
2/5/97 11:31

FINAL TRIM SIZE : 7.0 in x 8.5 in
B. VME and EISA Accessory Cards
Appendix Contents . . . . . . . . . . . . . . . . . . . . B-1
VME Overview (Mo dels 747i/50 and 747i/100) . . . . . . . . B-2
VME Performance . . . . . . . . . . . . . . . . . . . B-3
Overview of Installing VME Cards . . . . . . . . . . . . B-4
Installing VME Accessory Cards . . . . . . . . . . . . . . B-6
Installation Pro cedures . . . . . . . . . . . . . . . . . B-6
For More Information . . . . . . . . . . . . . . . . . . B-12
Installing EISA Accessory Cards . . . . . . . . . . . . . . B-13
EISA Performance . . . . . . . . . . . . . . . . . . . B-13
Pro cedure . . . . . . . . . . . . . . . . . . . . . . . B-14
For More Information . . . . . . . . . . . . . . . . . . B-19
C. Using the Bo ot ROM
Appendix Contents . . . . . . . . . . . . . . . . . . . . C-1
Bo ot Console User Interface . . . . . . . . . . . . . . . . C-2
Intro duction . . . . . . . . . . . . . . . . . . . . . . C-2
Using the Bo ot Console User Interface . . . . . . . . . . . C-3
Entering the Bo ot Administration Mo de . . . . . . . . . . C-4
Exiting the Bo ot Administration Mo de . . . . . . . . . . C-4
Getting Help for the Bo ot Console User In
terface Commands . C-5
Bo oting the Workstation . . . . . . . . . . . . . . . . . C-5
Searching for Bo otable Media . . . . . . . . . . . . . . . C-7
Redisplaying the Results of a Search. . . . . . . . . . . . C-8
Displaying and Setting Paths . . . . . . . . . . . . . . . C-9
Resetting the Workstation . . . . . . . . . . . . . . . . C-11
Displaying and Setting the Real-Time Clo ck . . . . . . . . C-11
Displaying and Setting the Autoselect Flag . . . . . . . . . C-12
Displaying and Setting the Secure Boot Mo de . . . . . . . C-13
Displaying and Setting the Fastbo ot Mo de . . . . . . . . . C-14
Displaying the LAN Station Address . . . . . . . . . . . C-14
Setting the VME Backplane Networking Parameters . . . . . C-15
DRAFT
2/5/97 11:31
Contents-5

FINAL TRIM SIZE : 7.0 in x 8.5 in

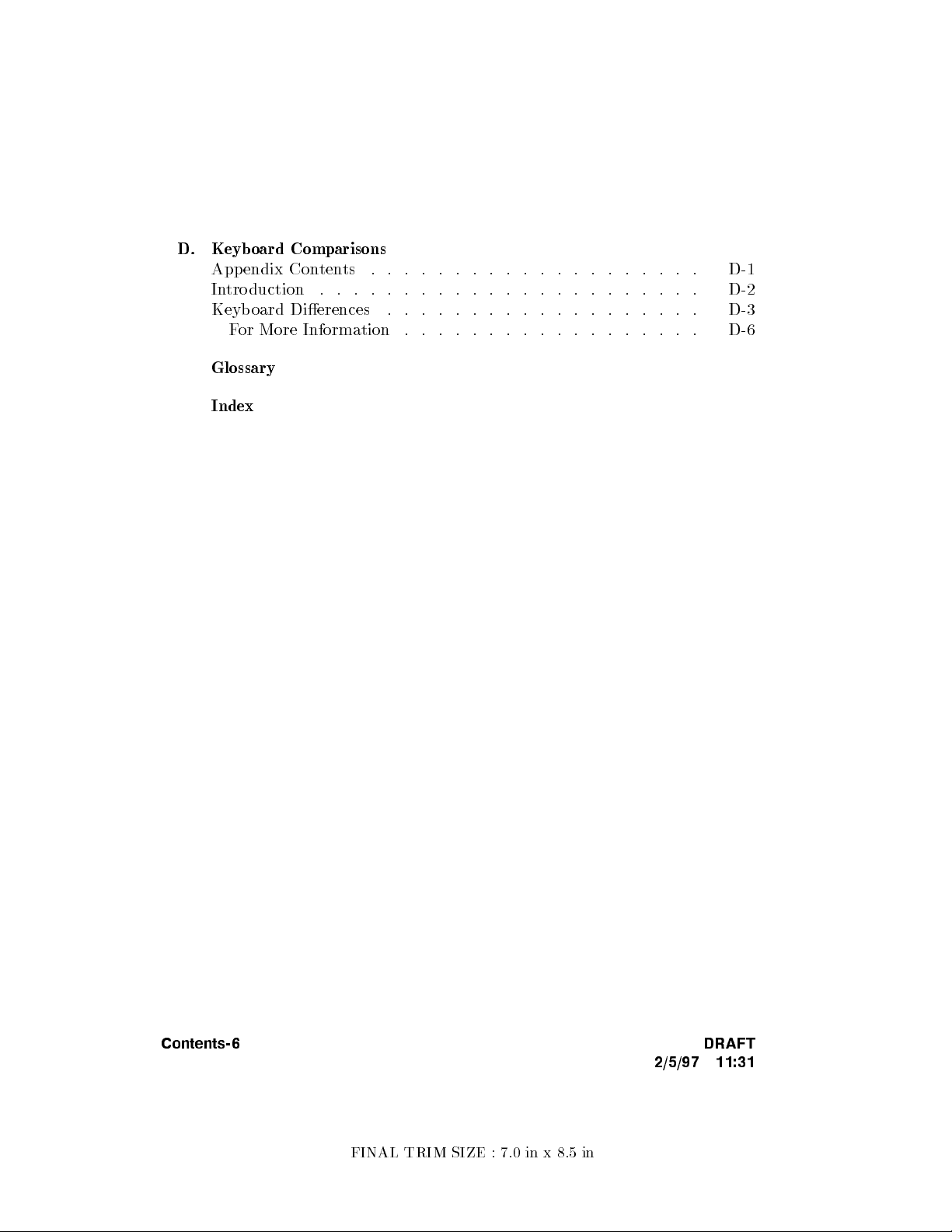

D. Keyb oard Comparisons
Appendix Contents . . . . . . . . . . . . . . . . . . . . D-1
Intro duction . . . . . . . . . . . . . . . . . . . . . . . D-2
Keyb oard Dierences . . . . . . . . . . . . . . . . . . . D-3
For More Information . . . . . . . . . . . . . . . . . . D-6
Glossary
Index
Contents-6 DRAFT
2/5/97 11:31

FINAL TRIM SIZE : 7.0 in x 8.5 in

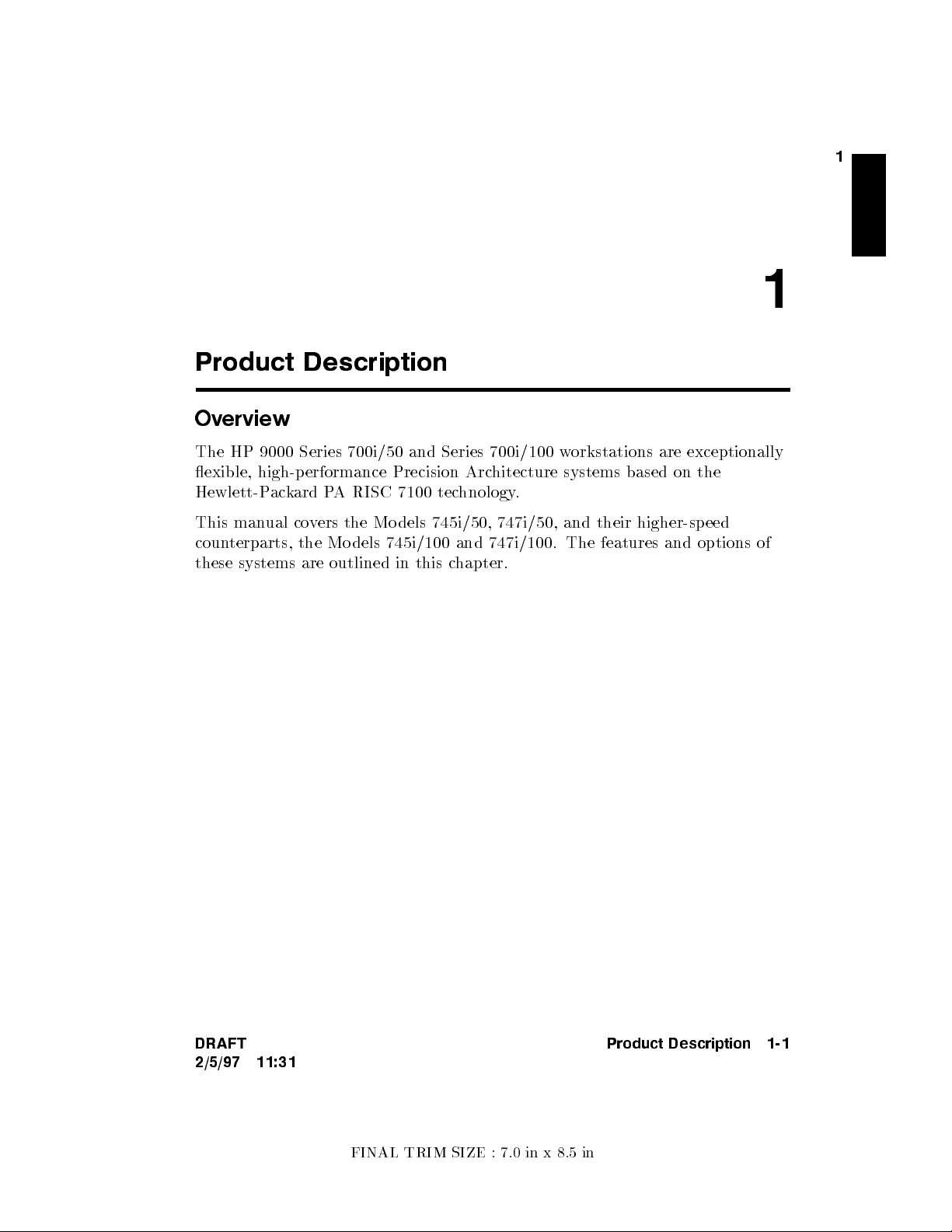

1
1
Product Description
Overview
The HP 9000 Series 700i/50 and Series 700i/100 w
orkstations are exceptionally
exible, high-performance Precision Architecture systems based on the
Hewlett-Packard PA RISC 7100 technology.
This manual covers the Mo dels 745i/50, 747i/50, and their higher-sp eed
counterparts, the Mo dels 745i/100 and 747i/100. The features and options of
these systems are outlined in this chapter.
DRAFT
2/5/97 11:31
Product Description 1-1

FINAL TRIM SIZE : 7.0 in x 8.5 in
1
The 700i/50 and 700i/100 Industrial W
orkstations
Model 747i/50 and 747i/100 Workstations
1-2 Product Description DRAFT
2/5/97 11:31

FINAL TRIM SIZE : 7.0 in x 8.5 in
1
Model 745i/50 and 745i/100 Workstations
Features of the Models 745i/50, 745i/100, 747i/50, and 747i/100
These mo dels of the Series 700i/50 and 700i/100 ha
ve the following features:
50 or 100 Mhz PA-RISC pro cessor.
The 50 Mhz processor delivers the follo wing p erformance:
69 SPECmark, 62 MIPs, 13 MFLOPs.
36 SPEC int92.
72 SPEC fp92.
The 100 Mhz pro cessor delivers the following performance:
136 SPECmark, 115 MIPs, 41 MFLOPs.
81 SPEC int92.
138 SPEC fp92.
DRAFT
2/5/97 11:31
Product Description 1-3

FINAL TRIM SIZE : 7.0 in x 8.5 in
1
Error-Checking and Correcting (ECC) RAM memory is congurable as
follows:
Series 700i/50: 16 to 128 MB main memory:
installable as pairs consisting of 8, 16, or 32 MB RAM b oards.
Series 700i/100: 16 to 256 MB main memory:
installable as pairs consisting of 8, 16, 32, or 64 MB RAM b oards.
(See \Memory Upgrades" belo
w, for details).
External Caching:
Series 700i/50: 64 Kbyte instruction cache and 64 Kbyte data cache.
Series 700i/100: 256 Kbyte instruction cache and 256 Kbyte data cache.
Three mass storage bays for hard disk, 3.5-in. exible disk, CD R
OM, and
DDS (\DAT") drives. Variable congurations, include the following:
One 3.5-in. xed disk and the following alternativ
es:
Two additional 3.5-in. xed or removable devices or
One 3.5-in. and one 5.25-in (CD ROM) device.
Front or rear access to removable media can be changed optionally.
Front access is the default for the 745i/50 or 745i/100
Rear access is the default for the 747i/50 or 747i/100.
Input/Output:
RS-232-C (2).
LAN
AUI
SCSI-II SE
HP Parallel.
HP-IB (instrument only).
Voice quality audio I/O.
Standard interfaces.
Rack-mount packages.
Internal sp eaker on b oard.
1-4 Product Description DRAFT
2/5/97 11:31

FINAL TRIM SIZE : 7.0 in x 8.5 in
1

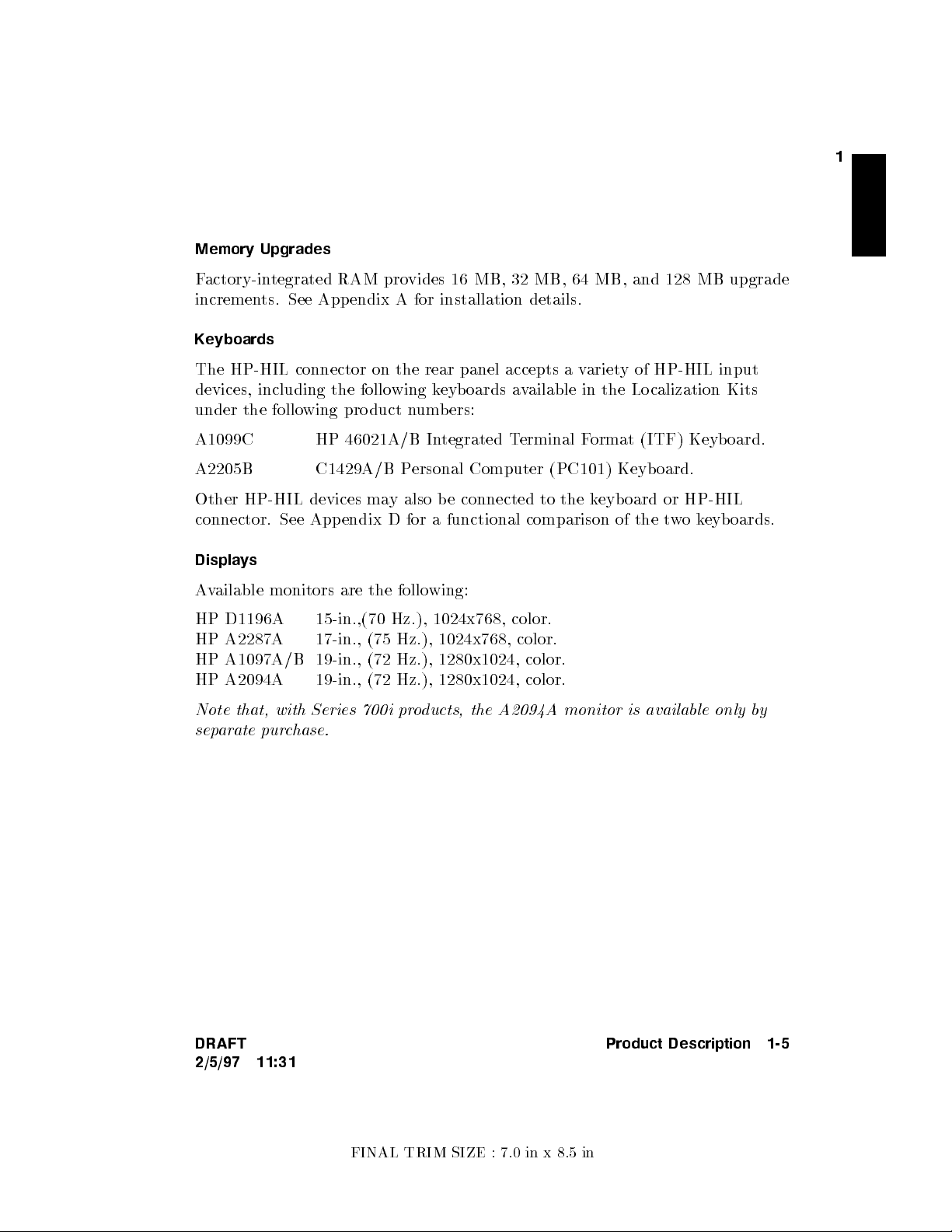

Memory Upgrades
Factory-integrated RAM provides 16 MB, 32 MB, 64 MB, and 128 MB upgrade
increments. See Appendix A for installation details.
Keyboards
The HP-HIL connector on the rear panel accepts a v
ariety of HP-HIL input
devices, including the following k
eyboards available in the Lo calization Kits
under the following pro duct numbers:
A1099C HP 46021A/B Integrated Terminal Format (ITF) Keyboard.
A2205B C1429A/B Personal Computer (PC101) Keyb oard.
Other HP-HIL devices may also b e connected to the keyboard or HP-HIL
connector. See Appendix D for a functional comparison of the t
wokeyb oards.
Displays
Available monitors are the following:
HP D1196A 15-in.,(70 Hz.), 1024x768, color.
HP A2287A 17-in., (75 Hz.), 1024x768, color.
HP A1097A/B 19-in., (72 Hz.), 1280x1024, color.
HP A2094A 19-in., (72 Hz.), 1280x1024, color.
Note that, with Series 700i products, the A2094A monitor is available only by
separate purchase.
DRAFT
2/5/97 11:31
Product Description 1-5

FINAL TRIM SIZE : 7.0 in x 8.5 in
1
Graphics
Supported graphics upgrades for the Mo dels 747i/50 and 747i/100 are as
follows:
HP A2269A: Adds dual CRX-accelerated color graphic board, including
SGC CRX card, and two 19-in. 1280 X 1024 color monitors.
HP 98768A: CRX-accelerated color graphics and a 19-in. 1280 X 1024 color
monitor.
HP A2262A: Adds dual CRX-accelerated color graphic board, with no
monitor.
HP A2270A: CRX-24 color graphics and a 19-in. 1280 X 1024 color monitor.
HP A1439A: CRX-24 color graphics, with no monitor.
SGC graphics option op erate concurrently with on-b oard graphics. The
Mo dels 747i/50 and 747i/100 function as single workstations, accepting user
input from single keyboards, but delivering graphics output to as manyas
three monitors.
The Mo dels 747i/50 and 747i/100 have only one SGC interface. Upgrade
pro ducts may not be used concurrently.
The 745i/100 or 747i/100 systems and upgrades are congured for a 70
Hz refresh rate monitor. The so cket-installed 75.0000 Mhz crystal for
the fast refresh rate display is identied as Part Number 18130940. The
corresp onding STI ROM is identied as Part Numb er 18185347.
Switches for Changing Graphics Formats
Note that both on-b oard graphics and CRX upgrades ma
y be used
concurrently in the Mo dels 747i/50 and 747i/99. On the system board, four
switches near the edge are used to congure the graphics circuit for dierent
situations. These switches are appropriately set for your monitor as shipped
from the factory. However, if you should choose to upgrade your system with
a dierent HP monitor, the following information will help in conguring the
system to communicate appropriate resolution and scan-rate.
1-6 Product Description DRAFT
